BEJTL21BNNTelematics

TBOX User Manual 1. Safety Connect .................................................................................................................................................................... 3 2. System Component ........................................................................................................................................................... 4 3. Services .................................................................................................................................................................................. 5 4. Subscription .......................................................................................................................................................................... 5 4.1 Safety Connect Services Information ........................................................................................................... 6 4.2 Languages ............................................................................................................................................................... 7 4.3 When contacting the response center ......................................................................................................... 7 5. Safety Connect LED light Indicator ............................................................................................................................. 8 6. Safety Connect services ................................................................................................................................................. 9 6.1 Automatic Collision Notification ...................................................................................................................... 9 6.2 Emergency Assistance Button ..................................................................................................................... 10 6.3 Roadside Assistance ........................................................................................................................................ 11 6.4 Stolen Vehicle Locator ..................................................................................................................................... 12 7. Safety information for Safety Connect ................................................................................................................... 13 7.1 Exposure to radio frequency signals ......................................................................................................... 13 7.2 Certification for the Safety Connect ........................................................................................................... 14 1. Safety Connect Safety Connect is a subscription-based telematics service that uses Global Positioning System (GPS) data and embedded cellular technology to provide safety and security features to subscribers. Safety Connect is supported by Toyota’s designated response center, which operates 24 hours per day, 7 days per week. Safety Connect service is available by subscription on select, telematics hardware-equipped vehicles. By using the Safety Connect service, you are agreeing to be bound by the Telematics Subscription Service Agreement and its Terms and Conditions, as in effect and amended from time to time, a current copy of which is available at Toyota.com. All use of the Safety Connect service is subject to such then- applicable Terms and Conditions. 2. System Component 1) Microphone 2) LED light indicator 3) “SOS” button 3. Services Subscribers have the following Safety Connect services available ● Automatic Collision Notification* Helps drivers receive necessary response from emergency service providers. *: U.S. Patent No. 7,508,298 B2 ● Stolen Vehicle Location Helps drivers in the event of vehicle theft. ● Emergency Assistance Button (SOS) Connects drivers to response-center support. ● Enhanced Roadside Assistance Provides drivers various on-road assistance. 4. Subscription After you have signed the Telematics Subscription Service Agreement and are enrolled, you can begin receiving services. A variety of subscription terms is available for purchase. Contact your Toyota dealer, call 1-800-25-TOYOTA (1-800-255- 3987) or push the “SOS” button in your vehicle for further subscription details. 4.1 Safety Connect Services Information ● Phone calls using the vehicles Bluetooth® technology will not be possible during Safety Connect. ● Safety Connect is available beginning Fall 2009 on select Toyota models. Contact with the Safety Connect response center is dependent upon the telematics device being in operative condition, cellular connection availability, and GPS satellite signal reception, which can limit the ability to reach the response center or receive emergency service support. Enrollment and Telematics Subscription Service Agreement required. A variety of subscription terms is available; charges vary by subscription term selected. ● Automatic Collision Notification, Emergency Assistance, Stolen Vehicle Location, and Enhanced Roadside Assistance will function in the United States, including Hawaii and Alaska, and in Canada. No Safety Connect services will function outside of the United States in countries other than Canada. ● Safety Connect services are not subject to section 255 4.2 Languages The Safety Connect response center will offer support in multiple languages. The Safety Connect system will offer voice prompts in English and Spanish. Please indicate your language of choice when enrolling. 4.3 When contacting the response center You may be unable to contact the response center if the network is busy. 5. Safety Connect LED light Indicator When the power switch is turned to ON mode, the red indicator light comes on for 2 seconds then turns off. Afterward, the green indicator light comes on, indicating that the service is active. The following indicator light patterns indicate specific system usage conditions: ● Green indicator light on = Active ser…

Text truncated - open the document above for the full version.

LG Electronics USA 111 Sylvan Avenue North Building, Englewood Cliffs, New Jersey, United States 07632 Date: Nov 09, 2020 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Letter of Authorization We, the undersigned, hereby authorize Geunki Son of DT&C C o., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: BEJTL21BNN including signing of all documents relating to these matters. Any and all acts carried out by Geunki Son of DT&C C o., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Electronics USA “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Dae Woong Kim Director, Standards& Complicance

LG Electronics USA 111 Sylvan Avenue North Building, Englewood Cliffs, New Jersey, United States 07632 Date: Nov 09, 2020 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA RE: Request of Confidentiality for FCC ID: BEJTL21BNN To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description 5 Tune-up procedure SHORT-TERM 6 Internal Photos 7 External Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Dae Woong Kim Director, Standards& Complicance

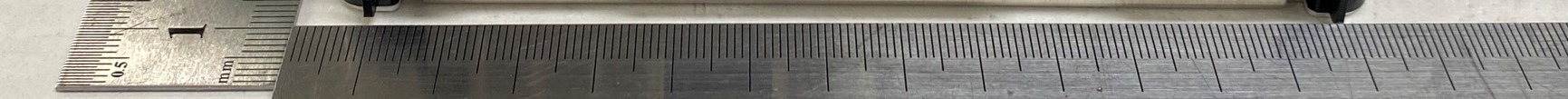

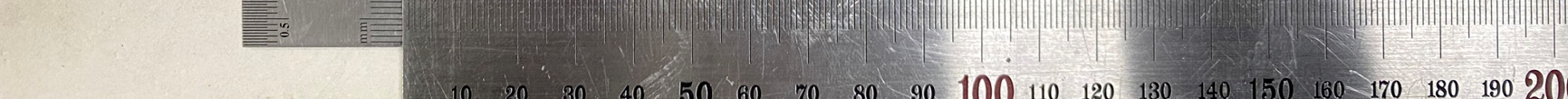

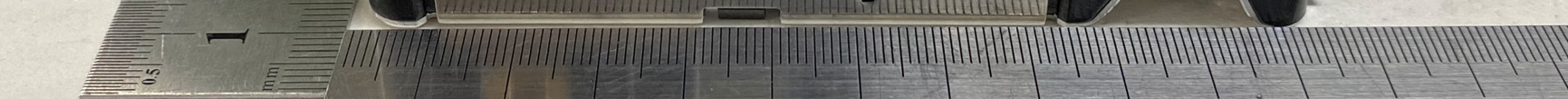

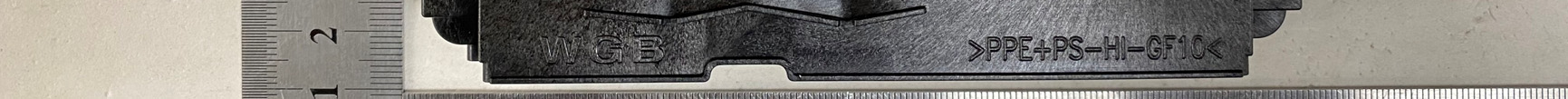

FCC ID: BEJTL21BNN Copyright Ⓒ 2020, DT&C Co., Ltd. View 1 FCC ID: BEJTL21BNN Copyright Ⓒ 2020, DT&C Co., Ltd. View 2 FCC ID: BEJTL21BNN Copyright Ⓒ 2020, DT&C Co., Ltd. View 3 FCC ID: BEJTL21BNN Copyright Ⓒ 2020, DT&C Co., Ltd. View 4 <Main Antenna> <Sub Antenna> FCC ID: BEJTL21BNN Copyright Ⓒ 2020, DT&C Co., Ltd. View 5 <Cable> FCC ID: BEJTL21BNN Copyright Ⓒ 2020, DT&C Co., Ltd. View 6 <Port>

1.1 ID Label Information FCC ID : BEJTL21BNN Model Name : TL21BNN2 1.2 Label Location Drawing The laser marking shown shall be permanently marked at a conspicuous location on the device.

FCC ID: BEJTL21BNN Copyright Ⓒ 2020, DT&C Co., Ltd. View 1 FCC ID: BEJTL21BNN Copyright Ⓒ 2020, DT&C Co., Ltd. View 2 FCC ID: BEJTL21BNN Copyright Ⓒ 2020, DT&C Co., Ltd. View 3 <Module> FCC ID: BEJTL21BNN Copyright Ⓒ 2020, DT&C Co., Ltd. View 4 FCC ID: BEJTL21BNN Copyright Ⓒ 2020, DT&C Co., Ltd. View 5

FCC ID: RF function or Mode Tune-up Max Conducted power(dBm) Note 1 Measured Conducted power(dBm) Measured EIRP(dBm) Adjusted EIRP to tune-up Max(dBm) Note 2 Maximum power density (mW/cm 2 ) Requriment (mW/cm 2 ) LTE Band 2 1850.0 ~ 1910.0 24.50 22.48 25.74 27.76 0.1188 1.000 LTE Band 4 1710.0 ~ 1755.0 24.50 24.04 25.02 25.48 0.0703 1.000 LTE Band 12 699.0 ~ 716.0 24.50 23.49 20.22 21.23 0.0265 0.466 LTE Band 26(5) 824.0 ~ 849.0 24.00 22.61 24.28 25.67 0.0735 0.549 LTE Band 26 814.0 ~ 824.0 24.00 22.73 24.59 25.86 0.0767 0.542 WCDMA 850 826.4 ~ 846.6 24.00 23.55 23.96 24.41 0.0550 0.550 WCDMA 1700 1712.4 ~ 1752.6 24.00 23.96 22.78 22.82 0.0381 1.000 WCDMA 1900 1852.4 ~ 1907.6 24.00 23.94 22.49 22.55 0.0358 1.000 -~-~ ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : ▪ Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) The exposure condition of this device is compliant with FCC EIRP / ( 4 R 2 π ) 27.76 S= Maximum power density(mW/cm 2 ) 0.1188 EIRP= Equivalent Isotropic Radiated Power(mW)R= Distance to the center of the radiation of the antenna(20c m BEJTL21BNN MPE Calculation : LTE, WCDMA Frequency range (MHz) The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below.Note1: Please refer to the tune-up procedure for the max targe t power. Note2: Adjusted EIRP to tune-up Max = Measured EIRP + (Tune-up Max. Conducted power - Measured Conducted power)

Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 179 Test Report Version Test Report No. Date Description Revised by Reviewed by DRTFCC2011-0332 Nov. 05, 2020 Initial issue JaeHyeok Bang JaeJin Lee Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 179 Table of Contents 1. GENERAL INFORMATION ........................................................................ 5 2. INTRODUCTION ........................................................................................ 7 2.1. EUT DESCRIPTION ............................................................................................................ 7 2.2. TESTING ENVIRONMENT .................................................................................................. 7 2.3. MEASURING INSTRUMENT CALIBRATION ...................................................................... 7 2.4. MEASUREMENT UNCERTAINTY ....................................................................................... 7 2.5. TEST FACILITY ................................................................................................................... 7 3. DESCRIPTION OF TESTS ......................................................................... 8 3.1 ERP & EIRP (Effective Radiated Power & Equivalent Isotropic Radiated Power) .......... 8 3.2 PEAK TO AVERAGE RATIO .............................................................................................. 10 3.3 OCCUPIED BANDWIDTH. ................................................................................................. 11 3.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ....................................................... 12 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................. 13 3.6 UNDESIRABLE EMISSIONS ............................................................................................. 14 3.7 FREQUENCY STABILITY .................................................................................................. 15 4. LIST OF TEST EQUIPMENT ................................................................... 16 5. SUMMARY OF TEST RESULTS .............................................................. 17 6. SAMPLE CALCULATION ........................................................................ 18 7. TEST DATA .............................................................................................. 20 7.1 CONDUCTED OUTPUT POWER ....................................................................................... 20 7.2 OCCUPIED BANDWIDTH .................................................................................................. 28 7.3 PEAK TO AVERAGE RATIO .............................................................................................. 28 7.4 BAND EDEG EMISSIONS (Conducted) ............................................................................ 28 7.5 SPURIOUS AND HARMONICS EMISSIONS (Conducted) ............................................... 28 7.6 ERP & EIRP ....................................................................................................................... 29 7.6.1 LTE Band 12 ............................................................................................................... 29 7.6.2 LTE Band 26 ............................................................................................................... 31 7.6.3 LTE Band 26(5) .......................................................................................................... 32 7.6.4 LTE Band 4 ................................................................................................................. 34 7.6.5 LTE Band 2 ................................................................................................................. 36 7.7 UNDESIRABLE EMISSIONS (Radiated) ........................................................................... 38 7.7.1 LTE Band 12 ............................................................................................................... 38 7.7.2 LTE Band 26 ............................................................................................................... 39 7.7.3 LTE Band 4 ................................................................................................................. 40 7.7.4 LTE Band 2 ................................................................................................................. 41 7.8 FREQUENCY STABILITY .................................................................................................. 42 7.8.1 LTE Band 12 ............................................................................................................... 42 7.8.2 LTE Band 26(5) .......................................................................................................... 43 7.8.3 LTE Band 4 ................................................................................................................. 44 7.8.4 LTE Band 2 ................................................................................................................. 45 8. TEST PLOTS ........................................................................................... 46 8.1 OCCUPIED BANDWIDTH .................................................................................................. 46 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 4 / 179 8.1.1 LTE Band 12 ............................................................................................................... 46 8.1.2 LTE Band 26 ............................................................................................................... 50 8.1.3 LTE Band 26(5) ..........................................…

Text truncated - open the document above for the full version.

Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 61 / 179 8.1.5 LTE Band 2 LTE Band 2 / 20 MHz / QPSK - RB Size 100 LTE Band 2 / 20 MHz / 16QAM - RB Size 100 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 62 / 179 LTE Band 2 / 15 MHz / QPSK - RB Size 75 LTE Band 2 / 15 MHz / 16QAM - RB Size 75 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 63 / 179 LTE Band 2 / 10 MHz / QPSK - RB Size 50 LTE Band 2 / 10 MHz / 16QAM - RB Size 50 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 64 / 179 LTE Band 2 / 5 MHz / QPSK - RB Size 25 LTE Band 2 / 5 MHz / 16QAM - RB Size 25 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 65 / 179 LTE Band 2 / 3 MHz / QPSK - RB Size 15 LTE Band 2 / 3 MHz / 16QAM - RB Size 15 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 66 / 179 LTE Band 2 / 1.4 MHz / QPSK - RB Size 6 LTE Band 2 / 1.4 MHz / 16QAM - RB Size 6 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 67 / 179 8.2 PEAK TO AVERAGE RATIO 8.2.1 LTE Band 12 LTE Band 12 / 10 MHz / QPSK - RB Size 50 LTE Band 12 / 10 MHz / 16QAM - RB Size 50 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 68 / 179 LTE Band 12 / 5 MHz / QPSK - RB Size 25 LTE Band 12 / 5 MHz / 16QAM - RB Size 25 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 69 / 179 LTE Band 12 / 3 MHz / QPSK - RB Size 15 LTE Band 12 / 3 MHz / 16QAM - RB Size 15 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 70 / 179 LTE Band 12 / 1.4 MHz / QPSK - RB Size 6 LTE Band 12 / 1.4 MHz / 16QAM - RB Size 6 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 71 / 179 8.2.2 LTE Band 26 LTE Band 26 / 15 MHz / QPSK - RB Size 75 LTE Band 26 / 15 MHz / 16QAM - RB Size 75 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 72 / 179 8.2.3 LTE Band 26(5) LTE Band 26 / 10 MHz / QPSK - RB Size 50 LTE Band 26 / 10 MHz / 16QAM - RB Size 50 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 73 / 179 LTE Band 26 / 5 MHz / QPSK - RB Size 25 LTE Band 26 / 5 MHz / 16QAM - RB Size 25 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 74 / 179 LTE Band 26 / 3 MHz / QPSK - RB Size 15 LTE Band 26 / 3 MHz / 16QAM - RB Size 15 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 75 / 179 LTE Band 26 / 1.4 MHz / QPSK - RB Size 6 LTE Band 26 / 1.4 MHz / 16QAM - RB Size 6 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 76 / 179 8.2.4 LTE Band 4 LTE Band 4 / 20 MHz / QPSK - RB Size 100 LTE Band 4 / 20 MHz / 16QAM - RB Size 100 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 77 / 179 LTE Band 4 / 15 MHz / QPSK - RB Size 75 LTE Band 4 / 15 MHz / 16QAM - RB Size 75 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 78 / 179 LTE Band 4 / 10 MHz / QPSK - RB Size 50 LTE Band 4 / 10 MHz / 16QAM - RB Size 50 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 79 / 179 LTE Band 4 / 5 MHz / QPSK - RB Size 25 LTE Band 4 / 5 MHz / 16QAM - RB Size 25 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 80 / 179 LTE Band 4 / 3 MHz / QPSK - RB Size 15 LTE Band 4 / 3 MHz / 16QAM - RB Size 15 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 81 / 179 LTE Band 4 / 1.4 MHz / QPSK - RB Size 6 LTE Band 4 / 1.4 MHz / 16QAM - RB Size 6 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 82 / 179 8.2.5 LTE Band 2 LTE Band 2 / 20 MHz / QPSK - RB Size 100 LTE Band 2 / 20 MHz / 16QAM - RB Size 100 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 83 / 179 LTE Band 2 / 15 MHz / QPSK - RB Size 75 LTE Band 2 / 15 MHz / 16QAM - RB Size 75 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 84 / 179 LTE Band 2 / 10 MHz / QPSK - RB Size 50 LTE Band 2 / 10 MHz / 16QAM - RB Size 50 Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages…

Text truncated - open the document above for the full version.

Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 121 / 179 - Upper Band Edge LTE Band 2 / 15 MHz / 16QAM - RB Size/Offset (1/74) - Upper Extended Band Edge LTE Band 2 / 15 MHz / QPSK - RB Size/Offset (1/74) Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 122 / 179 - Lower Band Edge LTE Band 2 / 10 MHz / QPSK - RB Size/Offset (1/0) - Lower Extended Band Edge LTE Band 2 / 10 MHz / QPSK - RB Size/Offset (25/0) Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 123 / 179 - Upper Band Edge LTE Band 2 / 10 MHz / QPSK - RB Size/Offset (25/25) - Upper Extended Band Edge LTE Band 2 / 10 MHz / QPSK- RB Size/Offset (25/25) Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 124 / 179 - Lower Band Edge LTE Band 2 / 5 MHz / QPSK - RB Size/Offset (1/0) - Lower Extended Band Edge LTE Band 2 / 5 MHz / 16QAM - RB Size/Offset (25/0) Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 125 / 179 - Upper Band Edge LTE Band 2 / 5 MHz / QPSK - RB Size/Offset (1/24) - Upper Extended Band Edge LTE Band 2 / 5 MHz / QPSK - RB Size/Offset (1/0) Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 126 / 179 - Lower Band Edge LTE Band 2 / 3 MHz / 16QAM - RB Size/Offset (1/0) - Lower Extended Band Edge LTE Band 2 / 3 MHz / QPSK - RB Size/Offset (15/0) Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 127 / 179 - Upper Band Edge LTE Band 2 / 3 MHz / QPSK - RB Size/Offset (1/14) - Upper Extended Band Edge LTE Band 2 / 3 MHz / QPSK - RB Size/Offset (1/0) Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 128 / 179 - Lower Band Edge LTE Band 2 / 1.4 MHz / QPSK - RB Size/Offset (1/0) - Lower Extended Band Edge LTE Band 2 / 1.4 MHz / QPSK - RB Size/Offset (3/2) Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 129 / 179 - Upper Band Edge LTE Band 2 / 1.4 MHz / QPSK - RB Size/Offset (1/0) - Upper Extended Band Edge LTE Band 2 / 1.4 MHz / QPSK - RB Size/Offset (1/0) Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 130 / 179 8.4 SPURIOUS AND HARMONICS EMISSIONS(Conducted) 8.4.1 LTE Band 12 LTE Band 12 / 10 MHz / QPSK - RB Size/Offset (25/25) – Low Channel LTE Band 12 / 10 MHz / 16QAM - RB Size/Offset (1/49) – High Channel Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 131 / 179 LTE Band 12 / 5 MHz / QPSK - RB Size/Offset (1/0) – Low Channel LTE Band 12 / 5 MHz / QPSK - RB Size/Offset (1/12) – Mid Channel Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 132 / 179 LTE Band 12 / 5 MHz / 16QAM - RB Size/Offset (12/6) – High Channel Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 133 / 179 LTE Band 12 / 3 MHz / 16QAM - RB Size/Offset (1/0) – Low Channel LTE Band 12 / 3 MHz / QPSK - RB Size/Offset (15/0) – Mid Channel Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 134 / 179 LTE Band 12 / 3 MHz / 16QAM - RB Size/Offset (8/0) – High Channel Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 135 / 179 LTE Band 12 / 1.4 MHz / 16QAM - RB Size/Offset (3/0) – Low Channel LTE Band 12 / 1.4 MHz / QPSK- RB Size/Offset (1/2) – Mid Channel Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 136 / 179 LTE Band 12 / 1.4 MHz / QPSK - RB Size/Offset (1/2) – High Channel Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 137 / 179 8.4.2 LTE Band 26 LTE Band 26 / 15 MHz / QPSK- RB Size/Offset (1/0) – Low Channel LTE Band 26 / 15 MHz / QPSK - RB Size/Offset (36/18) – Mid Channel Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 138 / 179 8.4.3 LTE Band 26(5) LTE Band 26(5) / 10 MHz / 16QAM - RB Size/Offset (50/0) – Low Channel LTE Band 26(5) / 10 MHz / 16QAM - RB Size/Offset (1/49) – Mid Channel Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 139 / 179 LTE Band 26(5) / 10 MHz / 16QAM - RB Size/Offset (1/25) – High Channel LTE Band 26(5) / 5 MHz / 16QAM - RB Size/Offset (1/12) – Low Channel Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 140 / 179 LTE Band 26(5) / 5 MHz / 16QAM - RB Size/Offset (12/0) – Mid Channel LTE Band 26(5) / 5 MHz / 16QAM - RB Size/Offset (12/0) – High Channel Report No.: DRTFCC2011-0332 FCC ID: BEJTL21BNN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Page…

Text truncated - open the document above for the full version.

Report No.: DRTFCC2011-0331 FCC ID: BEJTL21BNN TRF-RF-231(03)180307 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 41 Test Report Version Test Report No. Date Description Revised by Reviewed by DRTFCC2011-0331 Nov. 05, 2020 Initial issue JaeHyeok Bang JaeJin Lee Report No.: DRTFCC2011-0331 FCC ID: BEJTL21BNN TRF-RF-231(03)180307 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 41 Table of Contents 1. GENERAL INFORMATION ........................................................................ 4 2. INTRODUCTION ........................................................................................ 5 2.1. EUT DESCRIPTION ...............................................................................................…

Text truncated - open the document above for the full version.
