BEJTLVHE4IU-NTelematics

Product name : Telematics TLVHE4IU-N (Online Connectivity Unit) LG Electronics Inc. 19, February, 2020 FCC ID : BEJTLVHE4IU-N IC : 2703H-TLVHE4IUN LGE Confidential What is the OCU(Online Connectivity Unit) The OCU stands for Online Connectivity Unit It’s a telematics device that LGE is developing for the Volkswagen vehicles. It is a small box installed deep inside passenger cars, and in charge of wireless communications i n GSM, WCDMA, and LTE network It provides voice and data call functions and various online services requested by VW GN SS Antenna C onnector Power, CAN, Audio and other data connector GSM/WCDMA/LTE Antenna Connector WCDMA/LTE DRx Antenna Connector LGE Confidential Product Image/ Function Telematics product supporting Emergency Call/LTE service Product Image •Emergency Call •Mobile Online Services •Positioning/Dead Reckoning -GPS/ GNSS/Beidu/Galileo Function LGE Confidential Specification Supporting Bands GSM 850/1900 UMTS B2/B4/B5/*B6 LTE FDD B2/B4/B5/B12/B13/B17/B29(RX) *Not a North America(Canada,US,Mexico) suppoerted band. Modem ChipQ ualcomm MDM9240 GNSSGPS/Glonass/Beidou BluetoothNo WiFiNo Size145mm x 88mm x 38mm Weight340g PowerDC12V , 2A SpecificationDimension LGE Confidential The OCU Features •Call Services - Emergency Call - Automatic Collision Notification Call - Information Call - Road Side Assistance Call •Remote Function Services - Honking And Flashing - Speed Alert - Vehicle Disabling - Battery Charge Management - Departure Time Programming - Door Lock / Unlock - Pre-Trip Climatisation - Trip Statistics - Vehicle Status •Geo-Fencing •POI Address Import •Vehicle Health Report •Vehicle Tracking Major ServicesConcept GNSS Safety & Security Services Oriented TelematicsTerminal Emergency CallAutomatic Collision Notification Call Road Side Assistance Call Vehicle Tracking OCU Equipped Vehicles Confidential LGE Confidential OCU4High Hardware block diagram Confidential LGE Confidential Notice FCC Changes or modifications not expressly approved by the party re sponsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation i s subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera tion. This equipment has been tested and found to comply with the lim its for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance w ith the instructions, may cause harmful interference to radio c ommunications. However, there is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outle t on a circuit different fr om that to which the receiver is connected. -Consult the dealer or an experi enced radio/TV technician for h elp. This device complies with FCC radiation exposure limits set for th for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiating element of this dev ice and the user. IC This device complies with Industry Canada license-exempt RSS st andard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interfe rence, including interference that may cause undesired operatio n of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicab les aux appareils radio exempts de licence. L'exploitation est auto risée aux deux conditions suivantes : (1)l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionne ment. LGE Confidential This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with the maximum pe rmissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited f or use with this device. Under Industry Canada regulations, thi s radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To r educe potential radio interference to other users, the antenna type and its gai n should be so chosen that the equivalent isotropically radiated power (e.i.r.p) is not more than that necessary for successful communication.Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'an tenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits p our l'exploitation de l'émetteur. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une ant enne d'un type et d'un gain maxi mal (ou inférieur) approuvé pou r l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouill age radioélectrique à l'intention des autres utilisateurs, il f aut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensi…

Text truncated - open the document above for the full version.

1 ANTENNA SPECIFICATION Product : Shark pin antenna Model Name : 5WA.035.507.C 041 Date : 2020. 03. 25. 2 Table of Contents Page 1. Model Name ------------------------------------------------------------------------------- 3 2. Antenna Type ----------------------------------------------------------------------------- 3 3. Electrical Performance Data ---------------------------------------------------- 3 ~ 7 3 1. Model Name 5WA.035.507.C 041 2. Antenna Type - Shark pin Antenna 3. Electric Performance Data 3.1 Specification Sheet 4 3.2 Radiation Pattern 3.2.1 H-PLANE 1. 699Mhz ~ 960Mhz 2. 1427Mhz ~ 1575Mhz 3. 1710Mhz ~ 2170Mhz 5 4. 2500Mhz ~ 2690Mhz 6 3.2.2 V-PLANE 1. 699Mhz ~ 960Mhz 2. 1427Mhz ~ 1575Mhz 3. 1710Mhz ~ 2170Mhz 7 4.2500Mhz ~ 2690Mhz

Agent Authorization Company: LG Electronics USA Address: 1000 Sylvan Avenue, Englewood Cliffs, New Jersey, United States, 07632 Product Name: Telematics FCC ID: BEJTLVHE4IU-N We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr 20 2020 Name: Kyung-Su Han Title: Director, Standards & Compliance Company: LG Electronics USA

LG Electronics USA 1000 Sylvan Avenue, Englewood Cliffs, New Jersey, United States, 07632 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 04/20/2020 Subject; Request for Confidentiality FCC ID: BEJTLVHE4IU-N To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Kyung-Su Han Title: Chief Research Engineer

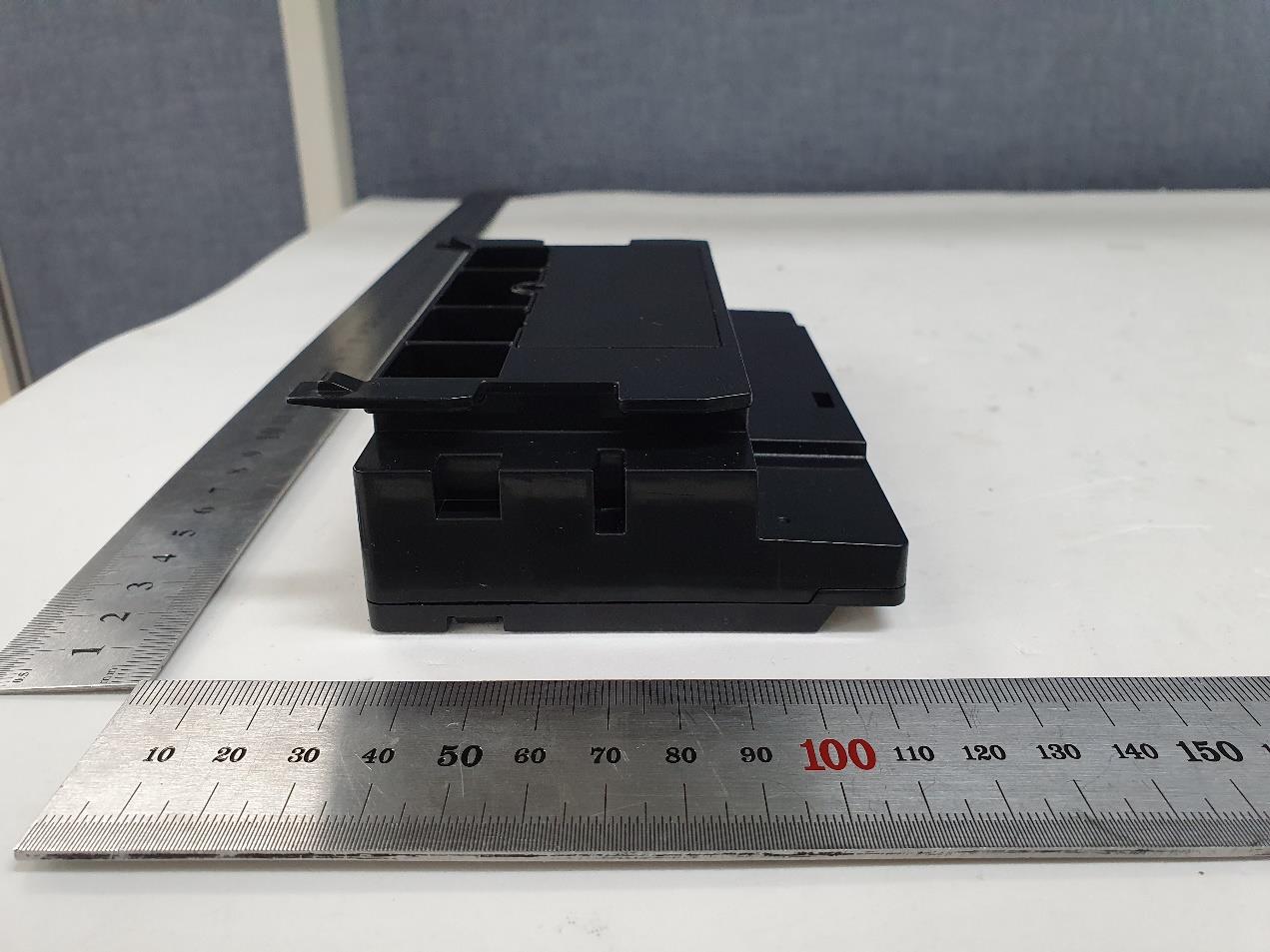

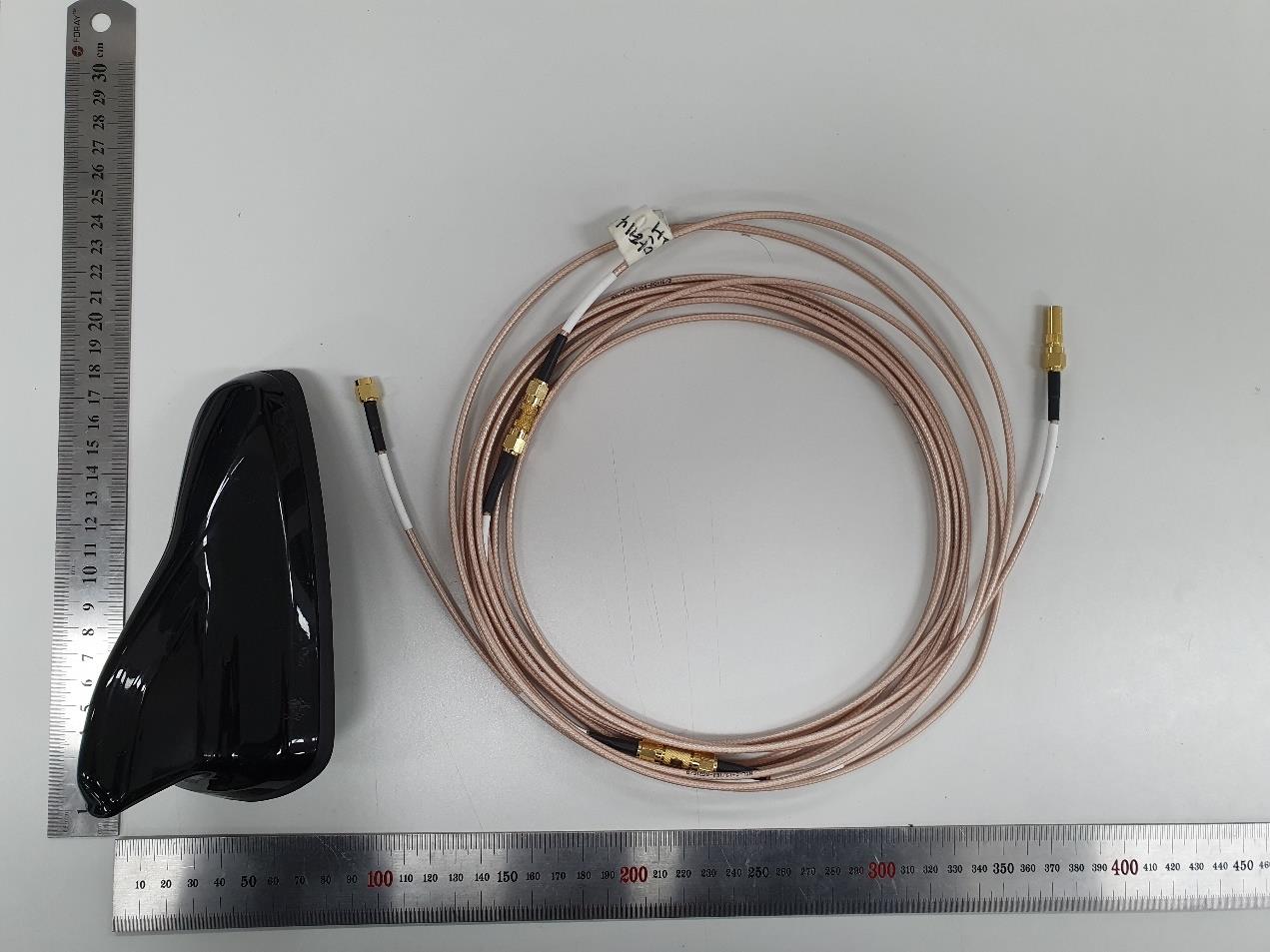

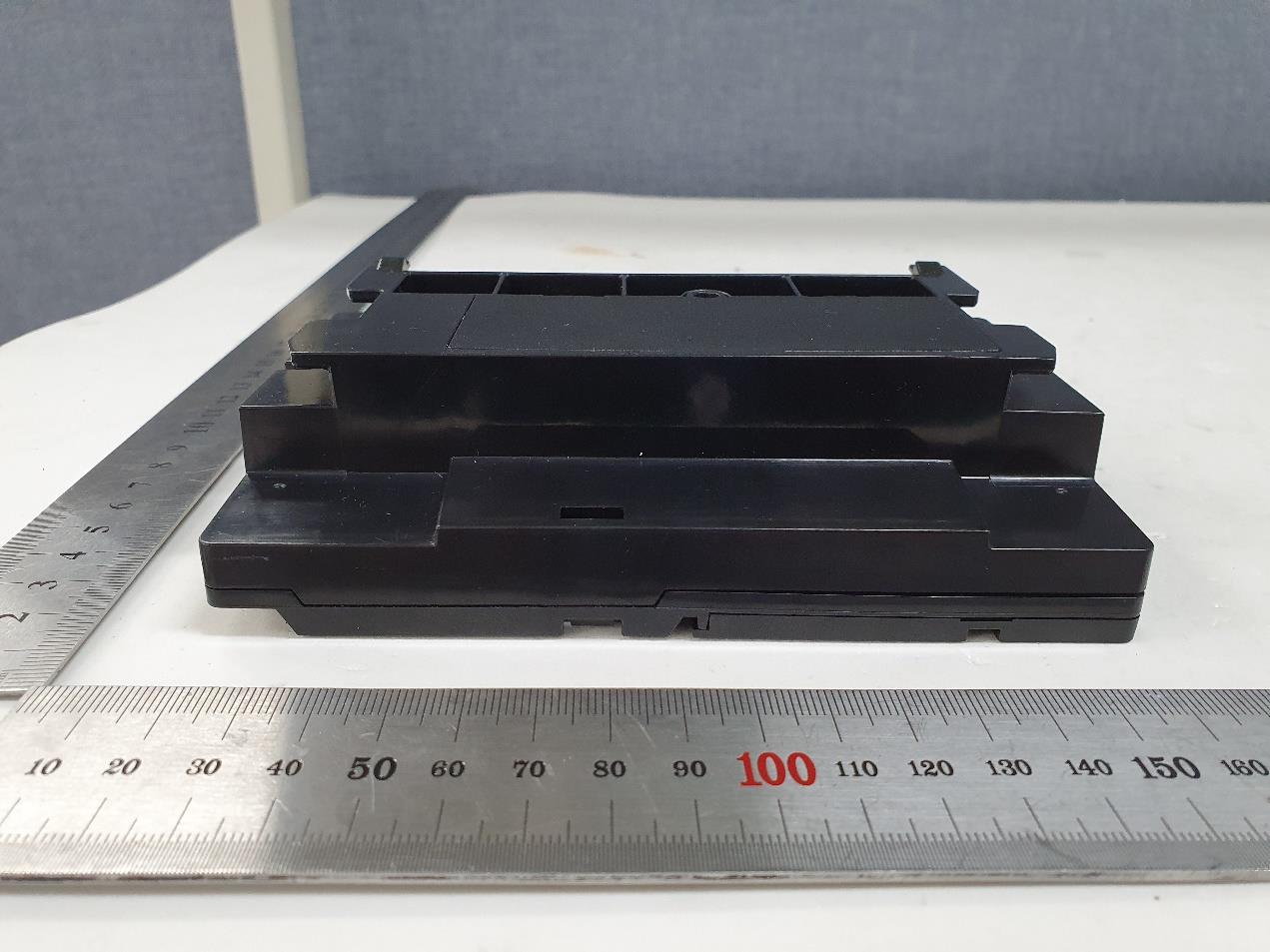

FCC ID: BEJTLVHE4IU-N IC: 2703H-TLVHE4IUN Copyright Ⓒ 2020, DT&C Co., Ltd. Page 1 / 4 View 1 FCC ID: BEJTLVHE4IU-N IC: 2703H-TLVHE4IUN Copyright Ⓒ 2020, DT&C Co., Ltd. Page 2 / 4 View 2 FCC ID: BEJTLVHE4IU-N IC: 2703H-TLVHE4IUN Copyright Ⓒ 2020, DT&C Co., Ltd. Page 3 / 4 View 3 FCC ID: BEJTLVHE4IU-N IC: 2703H-TLVHE4IUN Copyright Ⓒ 2020, DT&C Co., Ltd. Page 4 / 4 View 4 <Antenna & Cable >

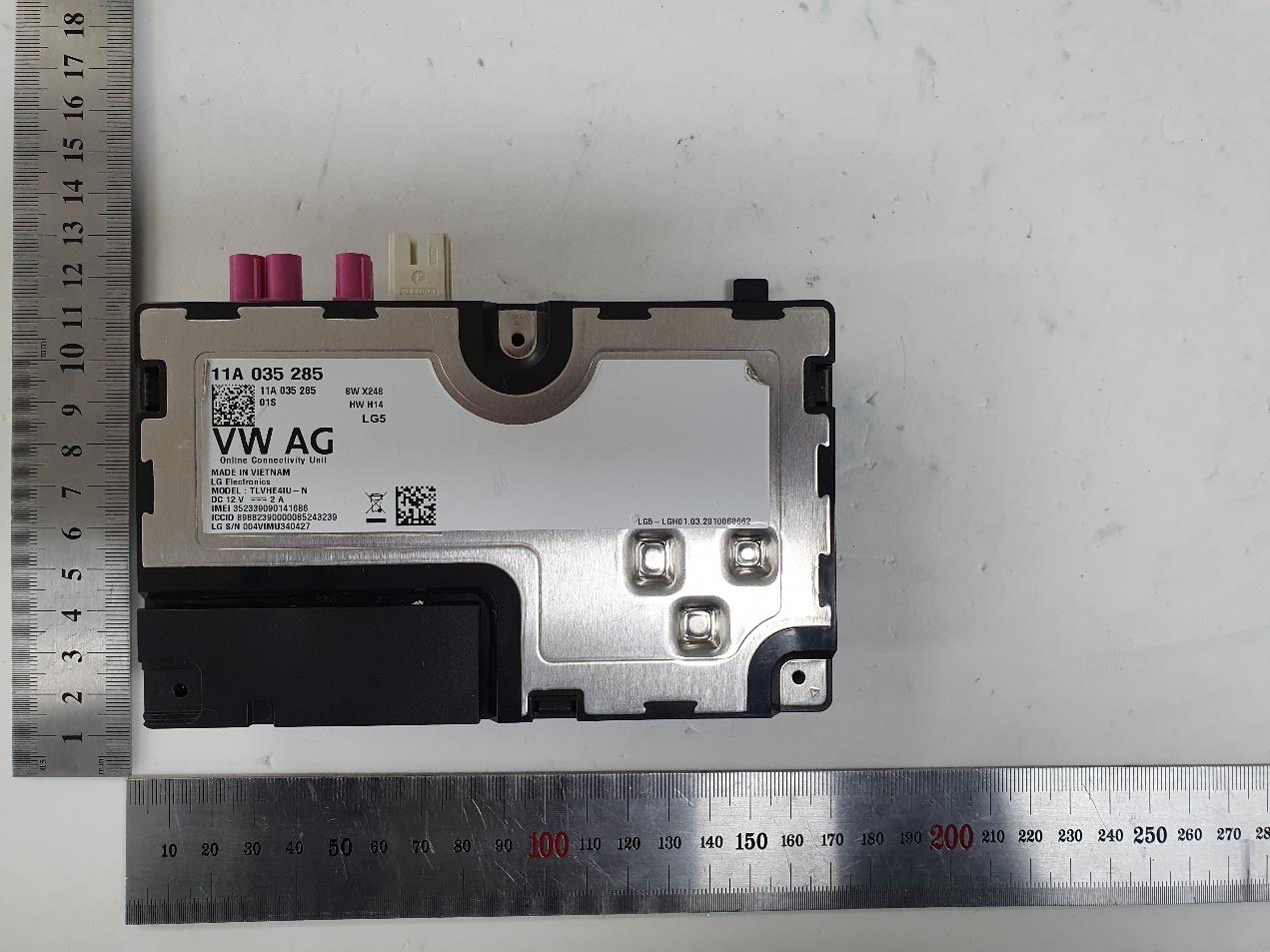

VW OCU4High NA Label Location(TLVHE4IU-N) -Label Size : 117.3 X 35.7 mm 2703H-TLVHE4IUN BEJTLVHE4IU-N

FCC ID: BEJTLVHE4IU-N IC: 2703H-TLVHE4IUN Copyright Ⓒ 2020, DT&C Co., Ltd. View 1 FCC ID: BEJTLVHE4IU-N IC: 2703H-TLVHE4IUN Copyright Ⓒ 2020, DT&C Co., Ltd. View 2 FCC ID: BEJTLVHE4IU-N IC: 2703H-TLVHE4IUN Copyright Ⓒ 2020, DT&C Co., Ltd. View 3 FCC ID: BEJTLVHE4IU-N IC: 2703H-TLVHE4IUN Copyright Ⓒ 2020, DT&C Co., Ltd. View 4 <Module> FCC ID: BEJTLVHE4IU-N IC: 2703H-TLVHE4IUN Copyright Ⓒ 2020, DT&C Co., Ltd. View 5 FCC ID: BEJTLVHE4IU-N IC: 2703H-TLVHE4IUN Copyright Ⓒ 2020, DT&C Co., Ltd. View 6 <Internal Antenna>

FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 81 / 181 LTE Band 2 / 5 MHz / QPSK - RB Size 25 LTE Band 2 / 5 MHz / 16QAM - RB Size 25 FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 82 / 181 LTE Band 2 / 3 MHz / QPSK - RB Size 15 LTE Band 2 / 3 MHz / 16QAM - RB Size 15 FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 83 / 181 LTE Band 2 / 1.4 MHz / QPSK - RB Size 6 LTE Band 2 / 1.4 MHz / 16QAM - RB Size 6 FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 84 / 181 8.3 BAND EDGE EMISSIONS(Conducted) 8.3.1 LTE Band 12(17) - Lower Band Edge LTE Band 12,17 / 10MHz / QPSK - RB Size/Offset (25/0) - Lower Extended Band Edge LTE Band 12,17 / 10MHz / 16QAM - RB Size/Offset (25/12) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 85 / 181 - Upper Band Edge LTE Band 12,17 / 10MHz / QPSK - RB Size/Offset (25/25) - Upper Extended Band Edge LTE Band 12,17 / 10MHz / QPSK - RB Size/Offset (25/25) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 86 / 181 - Lower Band Edge LTE Band 12,17 / 5MHz / QPSK Offset/Size (12/0) - Lower Extended Band Edge LTE Band 12,17 / 5MHz / QPSK Offset/Size (12/0) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 87 / 181 - Upper Band Edge LTE Band 12,17 / 5MHz / QPSK - RB Size/Offset (1/24) - Upper Extended Band Edge LTE Band 12,17 / 5MHz / QPRS - RB Size/Offset (12/13) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 88 / 181 - Lower Band Edge LTE Band 12,17 / 3MHz / QPSK - RB Size/Offset (15/0) - Lower Extended Band Edge LTE Band 12,17 / 3MHz / QPSK - RB Size/Offset (15/0) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 89 / 181 - Upper Band Edge LTE Band 12,17 / 3MHz / QPSK - RB Size/Offset (1/1 4) - Upper Extended Band Edge LTE Band 12,17 / 3MHz / QPSK - RB Size/Offset (1/14) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 90 / 181 - Lower Band Edge LTE Band 12,17 / 1.4MHz / 16QAM - RB Size/Offset (6/0) - Lower Extended Band Edge LTE Band 12,17 / 1.4MHz / 16QAM - RB Size/Offset (6/0) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 91 / 181 - Upper Band Edge LTE Band 12,17 / 1.4MHz / QPSK - RB Size/Offset (3/3) - Upper Extended Band Edge LTE Band 12,17 / 1.4MHz / QPSK - RB Size/Offset (3/3) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 92 / 181 8.3.2 LTE Band 5 - Lower Band Edge LTE Band 5 / 10MHz / 16QAM - RB Size/Offset (25/0) - Lower Extended Band Edge LTE Band 5 / 10MHz / 16QAM - RB Size/Offset (25/0) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 93 / 181 - Upper Band Edge LTE Band 5 / 10MHz / QPSK - RB Size/Offset (1/49) - Upper Extended Band Edge LTE Band 5 / 10MHz / QPSK - RB Size/Offset (1/49) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 94 / 181 - Lower Band Edge LTE Band 5 / 5MHz / QPSK - RB Size/Offset (1/0) - Lower Extended Band Edge LTE Band 5 / 5MHz / 16QAM - RB Size/Offset (12/0) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 95 / 181 - Upper Band Edge LTE Band 5 / 5MHz / 16QAM - RB Size/Offset (1/24) - Upper Extended Band Edge LTE Band 5 / 5MHz / QPSK - RB Size/Offset (12/13) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 96 / 181 - Lower Band Edge LTE Band 5 / 3MHz / QPSK - RB Size/Offset (1/0) - Lower Extended Band Edge LTE Band 5 / 3MHz / QPSK - RB Size/Offset (8/0) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 97 / 181 - Upper Band Edge LTE Band 5 / 3MHz / 16QAM - RB Size/Offset (1/14) - Upper Extended Band Edge LTE Band 5 / 3MHz / QPSK - RB Size/Offset (8/7) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 98 / 181 - Lower Band Edge LTE Band 5 / 1.4MHz / QPSK - RB Size/Offset (1/0) - Lower Extended Band Edge LTE Band 5 / 1.4MHz / QPSK - RB Size/Offset (6/0) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 99 / 181 - Upper Band Edge LTE Ban…

Text truncated - open the document above for the full version.

FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 131 / 181 - Upper Band Edge LTE Band 2 / 1.4MHz / QPSK - RB Size/Offset (3/3) - Upper Extended Band Edge LTE Band 2 / 1.4MHz / QPSK - RB Size/Offset (3/0) FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 132 / 181 8.4 SPURIOUS AND HARMONICS EMISSIONS(Conducted) 8.4.1 LTE Band 12(17) LTE Band 12,17 / 10MHz / QPSK - RB Size/Offset (25/12) – Low Channel LTE Band 12,17 / 10MHz / QPSK - RB Size/Offset (50/0) – High Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 133 / 181 LTE Band 12,17 / 5MHz / QPSK - RB Size/Offset (25/0) – Low Channel LTE Band 12,17 / 5MHz / 16QAM - RB Size/Offset (25/0) – Mid Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 134 / 181 LTE Band 12,17 / 5MHz / QPSK - RB Size/Offset (1/12) – High Channel LTE Band 12 / 3MHz / QPSK - RB Size/Offset (1/0) – Low Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 135 / 181 LTE Band 12 / 3MHz / 16QAM - RB Size/Offset (1/14) – Mid Channel LTE Band 12 / 3MHz / 16QAM - RB Size/Offset (8/7) – High Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 136 / 181 LTE Band 12 / 1.4MHz / QPSK - RB Size/Offset (1/5) – Low Channel LTE Band 12 / 1.4MHz / QPSK - RB Size/Offset (3/3) – Mid Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 137 / 181 LTE Band 12 / 1.4MHz / QPSK - RB Size/Offset (3/2) – High Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 138 / 181 8.4.2 LTE Band 5 LTE Band 5 / 10MHz / QPSK - RB Size/Offset (25/0) – Low Channel LTE Band 5 / 10MHz / 16QAM - RB Size/Offset (25/25) – Mid Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 139 / 181 LTE Band 5 / 10MHz / 16QAM - RB Size/Offset (1/0) – High Channel LTE Band 5 / 5MHz / QPSK - RB Size/Offset (1/24) – Low Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 140 / 181 LTE Band 5 / 5MHz / QPSK - RB Size/Offset (1/12) – Mid Channel LTE Band 5 / 5MHz / QPSK - RB Size/Offset (1/0) – High Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 141 / 181 LTE Band 5 / 3MHz / 16QAM - RB Size/Offset (15/0) – Low Channel LTE Band 5 / 3MHz / 16QAM - RB Size/Offset (1/7) – Mid Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 142 / 181 LTE Band 5 / 3MHz / 16QAM - RB Size/Offset (8/7) – High Channel LTE Band 5 / 1.4MHz / QPSK - RB Size/Offset (1/0) – Low Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 143 / 181 LTE Band 5 / 1.4MHz / 16QAM - RB Size/Offset (1/0) – Mid Channel LTE Band 5 / 1.4MHz / 16QAM - RB Size/Offset (3/3) – High Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 144 / 181 8.4.3 LTE Band 13 LTE Band 13 / 10MHz / 16QAM - RB Size/Offset (1/0) – Low Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 145 / 181 LTE Band 13 / 5MHz / 16QAM - RB Size/Offset (1/0) – Low Channel LTE Band 13 / 5MHz / 16QAM - RB Size/Offset (1/12) – High Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 146 / 181 8.4.4 LTE Band 4 LTE Band 4 / 20MHz / QPSK - RB Size/Offset (1/50) –Low Channel LTE Band 4 / 20MHz / QPSK - RB Size/Offset (1/50) –Low Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 147 / 181 LTE Band 4 / 20MHz / QPSK - RB Size/Offset (100/0)–Mid Channel LTE Band 4 / 20MHz / QPSK - RB Size/Offset (100/0)–Mid Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 148 / 181 LTE Band 4 / 20MHz / QPSK - RB Size/Offset (50/25) – High Channel LTE Band 4 / 20MHz / QPSK - RB Size/Offset (50/25) – High Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4IUN TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 149 / 181 LTE Band 4 / 15MHz / 16QAM - RB Size/Offset (36/18)–Low Channel LTE Band 4 / 15MHz / 16QAM - RB Size/Offset (36/18)–Low Channel FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0091 IC : 2703H-TLVHE4I…

Text truncated - open the document above for the full version.

FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0092 IC : 2703H-TLVHE4IUN TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 103 Test Report Version Test Report No. Date Description Tested by Revised by DRTFCC2004-0092 Apr. 23, 2020 Initial issue JungWoo Kim JaeJin Lee FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0092 IC : 2703H-TLVHE4IUN TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 103 Table of Contents 1. GENERAL INFORMATION ........................................................ 4 2. INTRODUCTION ........................................................................ 5 2.1. EUT DESCRIPTION .......................................................................................................... 5 2.2. EUT CAPABILITIES .......................................................................................................... 5 2.3. TESTING ENVIRONMENT ............................................................................................... 5 2.4. MEASURING INSTRUMENT CALIBRATION .................................................................. 5 2.5. MEASUREMENT UNCERTAINTY .................................................................................... 5 2.6. TEST FACILITY ................................................................................................................ 5 3. DESCRIPTION OF TESTS ......................................................... 6 3.1 ERP & EIRP (Effective Radiated Power & Equivalent Isotropic Radiated Power) ..... 6 3.2 PEAK TO AVERAGE R AT I O ............................................................................................. 8 3.3 OCCUPIED BANDWIDTH (99 % Bandwidth) ................................................................ 10 3.4 SPURIOUS EMISSIONS AT ANTENNA TERMINAL ...................................................... 11 3.5 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ................................................... 12 3.6 RADIATED SPURIOUS EMISSIONS .............................................................................. 13 3.7 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................... 14 4. LIST OF TEST EQUIPMENT .................................................. 15 5. SUMMARY OF TEST RESULTS ............................................. 16 6. EMISSION DESIGNATOR AND SAMPLE CALCULATION .... 17 7. TEST DATA ............................................................................ 19 7.1 Conducted OUTPUT POWER ........................................................................................ 19 7.2 PEAK TO AVERAGE RATIO ........................................................................................... 21 7.3 OCCUPIED BANDWIDTH (99 % Bandwidth) ................................................................ 21 7.4 SPURIOUS MISSIONS AT ANTENNA TERMINAL ......................................................... 22 7.5 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ................................................... 22 7.6 EFFECTIVE RADIATED POWER .................................................................................... 23 7.7 EQUIVALENT ISOTROPIC RADIATED POWER ............................................................ 24 7.8 RADIATED SPURIOUS EMISSIONS .............................................................................. 26 7.9 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................... 31 7.9.1 FREQUENCY STABILITY (GPRS850) ....................................................................... 31 7.9.2 FREQUENCY STABILITY (WCDMA850) ................................................................... 32 7.9.3 FREQUENCY STABILITY (WCDMA1700) ................................................................. 33 7.9.4 FREQUENCY STABILITY (GPRS1900) ..................................................................... 34 7.9.5 FREQUENCY STABILITY (WCDMA1900) ................................................................. 35 8. TEST PLOTS ........................................................................... 36 8.1 PEAK TO AVERAGE RATIO ......................................................................................... 36 8.2 OCCUPIED BANDWIDTH (99 % Bandwidth) .............................................................. 43 8.3 SPURIOUS EMISSIONS AT ANTENNA TERMINAL .................................................... 63 8.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL.................................................. 84 FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0092 IC : 2703H-TLVHE4IUN TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 4 / 103 1. GENERAL INFORMATION Applicant Name(FCC) : LG Electronics USA, Inc. Applicant Name(IC) : LG ELECTRONICS INC. Address(FCC) : 1000 Sylvan Ave. Englewood Cliffs, New Jersey, United States 07632 Address(IC) : 222, LG-ro, Jinwi-myeon Pyeongtaek-si, Gyeonggi-do 451-713 Korea (Republic Of) FCC ID : BEJT LVHE4IU-N IC : 2703H-TLVHE4IUN FCC Classification : PCS Licensed Transmitter (PCB) EUT : Telematics Model Name(FCC, IC) : TLVHE4IU-N Add Model Name(FCC, IC) : NA Hardware Version : H14 Software Version : X244 Serial Number : Conducted : 912VIPA677824 / Radiated : 912vike677813 Supplying power : DC 12 V Antenna Type : External Antenna Mode Tx Frequency (MHz) Emission Designator ERP (Max. Power) EIRP (Max. Power) dBm W dBm W GPRS850 824.2 ~ 848.8 248KGXW 26.96 0.497 29.11 0.815 EDGE850 824.2 ~ 848.8 246KG7W 20.37 0.109 22.52 0.179 WCDMA850 826.4 ~ 846.6 4M14F9W 17.52 0.056 19.67 0.093 HSUPA850 826.4 ~ 846.6 4M17F9W 16.36 0.043 18.51 0.071 WCDMA1700 1712.4 ~ 1752.6 4M15F9W - - 17.30 0.054 HSUPA1700 1712.4 ~ 1752.6 4M14F9W - - 16.02 0.040 GPRS1900 1850.2 ~ 1909.8 246KGXW - - 24.32 0.270 EDGE1900 1850.2 ~ 1909.8 251KG7W - - 18.69 0.074 WCDMA1900 1852.4 ~ 1907.6 4M16F9W - - 18.32 0.068 HSUPA1900 1852.4 ~ 1907.6 4M16F9W - - 16.99 0.050 FCC ID: BE…

Text truncated - open the document above for the full version.

FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0092 IC : 2703H-TLVHE4IUN TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 54 / 103 HSUPA850 & Channel: 4233 FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0092 IC : 2703H-TLVHE4IUN TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 55 / 103 WCDMA1700 & Channel: 1312 WCDMA1700 & Channel: 1412 FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0092 IC : 2703H-TLVHE4IUN TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 56 / 103 WCDMA1700 & Channel: 1513 FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0092 IC : 2703H-TLVHE4IUN TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 57 / 103 HSUPA1700 & Channel: 1312 HSUPA1700 & Channel: 1412 FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0092 IC : 2703H-TLVHE4IUN TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 58 / 103 HSUPA1700 & Channel: 1513 FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0092 IC : 2703H-TLVHE4IUN TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 59 / 103 WCDMA1900 & Channel: 9262 WCDMA1900 & Channel: 9400 FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0092 IC : 2703H-TLVHE4IUN TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 60 / 103 WCDMA1900 & Channel: 9538 FCC ID: BEJTLVHE4IU-N Report No.: DRTFCC2004-0092 IC : 2703H-TLVHE4IUN TRF-RF-210(11)171208 Prohibits the copying and re-issue of this…

Text truncated - open the document above for the full version.
