BEJTM510Tri-Mode Dual-Band Analog/PCS Phone

LG Electronics USA, Inc.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Dec 10, 2000
Application Purpose: Original Equipment
Date of Application: Oct 08, 2000
Equipment Note: Tri-Mode Dual-Band Analog/PCS Phone
Frequency Range: 1851.25000000 - 1908.75000000
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

@ LG Electronics Inc.& October 1, 2000 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, General Manager of New York Office LG Electronics Inc. LGE LG Electronics Inc.& 459-9,Kasan-dong,Kemchun-ku Seoul 153-023,Korea Tel: 82-2-850-3861 Fax:82-2-850-3861 E-mail :[email protected] October 7, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Information & Communications, Ltd. FCC ID: BEJTM510 FCC E911 Requirements Per S22.921 Gentlemen: LG Information & Communications, Ltd. hereby certifies that the analog cellular telephone (FCC ID:BEJTM510), using the Automatic A/B Roaming - Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a "9-l-l" call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. E.S.Park Research Engineer Communication Terminal Research Lab LG Electronics Inc.

Cover Letter(s)

October 5, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS INC. FCC ID: BEJTM510 Part 24/22 Certification Gentlemen: Submitted herewith, on behalf of LG Electronics Inc., is an application for Part 24/22 Certification of the following Tri-Mode Dual-Band Analog/PCS Phone: FCC ID: BEJTM510 TRADE/MODEL(s): LGE LG-TM510 EUT TYPE: Tri-Mode Dual-Band Analog/PCS Phone Tx Freq. Range(s): 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.605 W ERP AMPS (27.817 dBm) 0.407 W ERP CDMA (26.097 dBm) 0.378 W PCS CDMA (25.759 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, User’s Manual RF Warning page, User’s Manual Location of RF Warning page statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab, LGIC

Cover Letter(s)

November 27, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Steve Dayhoff SUBJECT: LG Electronics Inc. FCC ID: BEJTM510 731 Confirmation No.: EA98988 Correspondence Reference No.: 17032 Request for Tech. Info.: 11/7/00 Dear Steve: Transmitted herewith, on behalf of LG Electronics Inc., is an amendment provided in response to the request for technical information dated November 7, 2000. 1. Attached is the revised RF Exposure statement, which will be placed towards the front location in the users manual. We trust this information is sufficient to issue the grant ASAP. If you have any further questions, please do not hesitate to contact us. cc: LG Electronics Inc.

External Photos

© 2000 PCTEST Lab LGE FCC ID: BEJTM510 (Model: LG-TM510) NVLAP Lab Code: 1004310 Tri-Mode Analog/PCS Phone (AMPS/CDMA) © 2000 PCTEST Lab LGE FCC ID: BEJTM510 (Model: LG-TM510) NVLAP Lab Code: 1004310 Tri-Mode Analog/PCS Phone (AMPS/CDMA) © 2000 PCTEST Lab LGE FCC ID: BEJTM510 (Model: LG-TM510) NVLAP Lab Code: 1004310 Tri-Mode Analog/PCS Phone (AMPS/CDMA) © 2000 PCTEST Lab LGE FCC ID: BEJTM510 (Model: LG-TM510) NVLAP Lab Code: 1004310 Tri-Mode Analog/PCS Phone (AMPS/CDMA) © 2000 PCTEST Lab LGE FCC ID: BEJTM510 (Model: LG-TM510) NVLAP Lab Code: 1004310 Tri-Mode Analog/PCS Phone (AMPS/CDMA) © 2000 PCTEST Lab LGE FCC ID: BEJTM510 (Model: LG-TM510) NVLAP Lab Code: 1004310 Tri-Mode Analog/PCS Phone (AMPS/CDMA)

ID Label/Location Info

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics LG Electronics Inc. LGE Model No. LG-TM510 FCC ID : BEJTM510 S/N : Made in Korea

Internal Photos

RF Exposure Info

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Electronics Inc. Dates of Tests: October 03-07, 2000 Communication Terminal Research Lab Test Report S/N: SAR.201002484.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul 153-023, Korea Attn: Harris Ahn, Principal Engineer FCC ID BEJTM510 APPLICANT LG ELECTRONICS INC. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.605 W ERP AMPS (27.817 dBm) / 0.407 W ERP CDMA (26.097 dBm) 0.378 W EIRP PCS CDMA (25.759 dBm) Max. SAR Measurement: HEAD SAR (1g/avg): 1.420W/kg AMPS; 0.998W/kg CDMA; 0.996W/kg PCS BODY SAR (1g/avg): 1.330W/kg AMPS; 1.030W/kg CDMA; 0.679W/kg PCS HAND SAR (10g/avg): 2.480W/kg AMPS; 2.140W/kg CDMA; 0.957W/kg PCS Trade Name/Model(s): LGE LG-TM510 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 201002484.BEJ SAR Measurement Report FCC Part 24/22 Certification © 2000 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY SAR TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-22 14.1 SAR TEST EQUIPMENT LIST 23 15.1 CONCLUSION 24 16.1 REFERENCES 25 Test Report S/N: SAR.201002484.BEJ SAR Measurement Report Test Dates: October 03-07, 2000 FCC Part 24/22 Certification LGE FCC ID: BEJTM510 (Model: LG-TM510) © 2000 PCTEST Lab Tri-Mode Analog/PCS Phone (AMPS/CDMA) 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: LG ELECTRONICS INC. Address: Communication Terminal Research Lab 459-9, Kasan-dong, Keumchun-Ku Seoul 153-023, Korea Attention: Harris Ahn, Principal Engineer • EUT Type: Tri-Mode Dual-Band Analog/PCS Phone • Trade Name / Model: LGE LG-TM510 • FCC IDENTIFIER: BEJTM510 • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • Modulation(s): AMPS / CDMA • FCC Rule Part(s): §2.1093, Docket 96-326 • Max. RF Output Power: 0.605W ERP - AMPS (27.817 dBm) 0.407W ERP - CDMA (26.097 dBm) 0.378W EIRP - PCS CDMA (25.759 dBm) • Antenna Type: Helical (λ/2) Antenna Dimensions: 9.7 cm. (Length) • Dates of Tests: October 03-07, 2000 Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.201002484.BEJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.201002484.BEJ SAR Measurement Report Test Dates: October 03-07, 2000 FCC Part 24/22 Certification LGE FCC ID: BEJTM510 (Model: LG-TM510) © 2000 PCTEST Lab Tri-Mode Analog/PCS Phone (AMPS/CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evalua…

Text truncated - open the document above for the full version.

RF Exposure Info

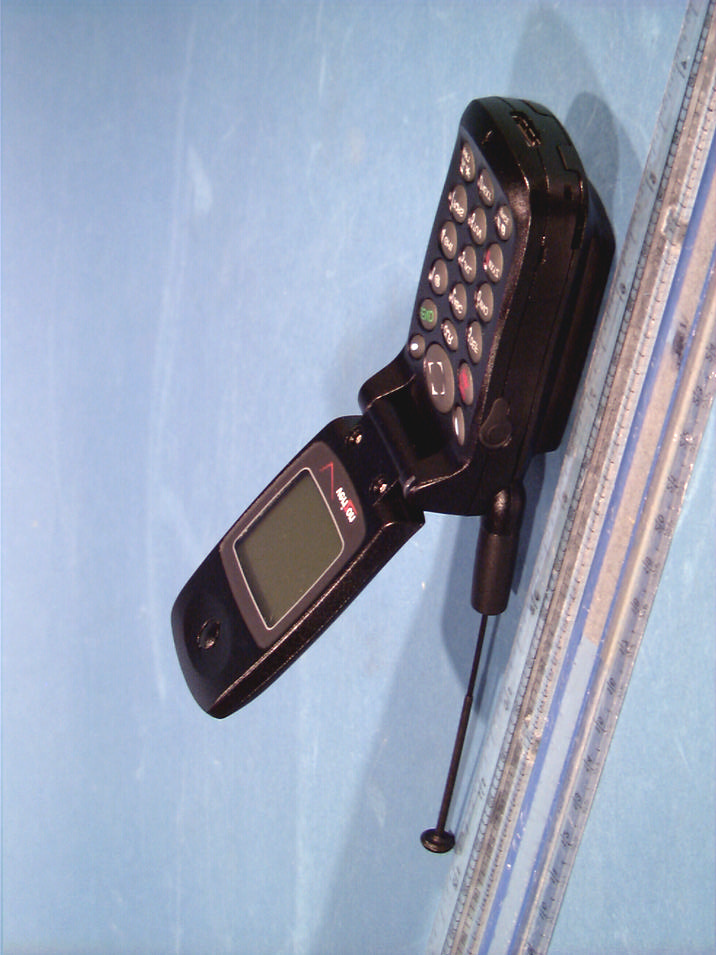

LGE FCC ID:BEJTM510 -- CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.480 mW/g, SAR (10g): 0.329 mW/g LG Electronics Tri-Mode Model:LG-TM510 CDMA Mode, Ch.1013 [824.70MHz]; w/ACE Antenna Conducted Power = 25.0dBm; Flip = open Test Date -- 10-03-2000 SAR Tot [mW/g] 4.91E-2 1.47E-1 2.46E-1 3.44E-1 4.42E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.998 mW/g, SAR (10g): 0.695 mW/g LG Electronics Tri-Mode Model:LG-TM510 CDMA Mode, Ch.1013 [824.70MHz]; w/ACE Antenna Conducted Power = 25.0dBm; Flip = open Test Date -- 10-03-2000 SAR Tot [mW/g] 1.01E-1 3.10E-1 5.17E-1 7.20E-1 9.31E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.319 mW/g, SAR (10g): 0.218 mW/g LG Electronics Tri-Mode Model:LG-TM510 CDMA Mode, Ch.0363 [835.89MHz]; w/ACE Antenna Conducted Power = 25.0dBm; Flip = open Test Date -- 10-03-2000 SAR Tot [mW/g] 3.06E-2 9.18E-2 1.53E-1 2.14E-1 2.75E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.738 mW/g, SAR (10g): 0.504 mW/g LG Electronics Tri-Mode Model:LG-TM510 CDMA Mode, Ch.0363 [835.89MHz]; w/ACE Antenna Conducted Power = 25.0dBm; Flip = open Test Date -- 10-03-2000 SAR Tot [mW/g] 7.68E-2 2.30E-1 3.84E-1 5.38E-1 6.91E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.699 mW/g, SAR (10g): 0.479 mW/g LG Electronics Tri-Mode Model:LG-TM510 CDMA Mode, Ch.0777 [848.31MHz]; w/ACE Antenna Conducted Power = 25.0dBm; Flip = open Test Date -- 10-03-2000 SAR Tot [mW/g] 7.15E-2 2.15E-1 3.57E-1 5.00E-1 6.43E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.737 mW/g, SAR (10g): 0.508 mW/g LG Electronics Tri-Mode Model:LG-TM510 CDMA Mode, Ch.0777 [848.31MHz]; w/ACE Antenna Conducted Power = 25.0dBm; Flip = open Test Date -- 10-03-2000 SAR Tot [mW/g] 6.83E-2 2.05E-1 3.42E-1 4.78E-1 6.15E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.650 mW/g, SAR (10g): 0.445 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0991 [824.04MHz]; w/ACE Antenna Conducted Power = 27.0dBm; Flip = open Test Date -- 10-03-2000 SAR Tot [mW/g] 6.59E-2 1.98E-1 3.30E-1 4.61E-1 5.93E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.42 mW/g, SAR (10g): 0.985 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0991 [824.04MHz]; w/ACE Antenna Conducted Power = 27.0dBm; Flip = open Test Date -- 10-03-2000 SAR Tot [mW/g] 1.47E-1 4.40E-1 7.34E-1 1.03E+0 1.32E+0 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.456 mW/g, SAR (10g): 0.309 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0383 [836.49MHz]; w/ACE Antenna Conducted Power = 27.0dBm; Flip = open Test Date -- 10-03-2000 SAR Tot [mW/g] 4.20E-2 1.26E-1 2.10E-1 2.94E-1 3.78E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.24 mW/g, SAR (10g): 0.848 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0383 [836.49MHz]; w/ACE Antenna Conducted Power = 27.0dBm; Flip = open Test Date -- 10-03-2000 SAR Tot [mW/g] 1.28E-1 3.84E-1 6.40E-1 8.96E-1 1.15E+0 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.01 mW/g, SAR (10g): 0.697 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0799 [848.97MHz]; w/ACE Antenna Conducted Power = 27.0dBm; Flip = open Test Date -- 10-03-2000 SAR Tot [mW/g] 1.03E-1 3.10E-1 5.16E-1 7.23E-1 9.30E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.04…

Text truncated - open the document above for the full version.

RF Exposure Info

LGE FCC ID:BEJTM510 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.727 mW/g, SAR (10g): 0.492 mW/g LG Electronics Tri-Mode Model:LG-TM510 CDMA Mode, Ch.0363 [835.89MHz]; w/ACE Antenna; Flip = closed Conducted Power = 25.0dBm; Spacing = 2.0cm from flat phantom to phone, w/o Holster or Beltclip Test Date -- 10-04-2000 SAR Tot [mW/g] 5.98E-2 1.79E-1 2.99E-1 4.19E-1 5.38E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.03 mW/g, SAR (10g): 0.692 mW/g LG Electronics Tri-Mode Model:LG-TM510 CDMA Mode, Ch.0363 [835.89MHz]; w/ACE Antenna; Flip = closed Conducted Power = 25.0dBm; Spacing = 2.0cm from flat phantom to phone, w/o Holster or Beltclip Test Date -- 10-04-2000 SAR Tot [mW/g] 9.35E-2 2.81E-1 4.68E-1 6.54E-1 8.42E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.752 mW/g, SAR (10g): 0.509 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0991 [824.04MHz]; w/ACE Antenna; Flip = closed Conducted Power = 27.0dBm; Spacing = 2.0cm from flat phantom to phone, w/o Holster or Beltclip Test Date -- 10-04-2000 SAR Tot [mW/g] 6.23E-2 1.87E-1 3.12E-1 4.36E-1 5.61E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.33 mW/g, SAR (10g): 0.906 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0991 [824.04MHz]; w/ACE Antenna; Flip = closed Conducted Power = 27.0dBm; Spacing = 2.0cm from flat phantom to phone, w/o Holster or Beltclip Test Date -- 10-04-2000 SAR Tot [mW/g] 1.45E-1 4.36E-1 7.26E-1 1.02E+0 1.31E+0 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.22 mW/g, SAR (10g): 0.818 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0383 [836.49MHz]; w/ACE Antenna; Flip = closed Conducted Power = 27.0dBm; Spacing = 2.0cm from flat phantom to phone, w/o Holster or Beltclip Test Date -- 10-04-2000 SAR Tot [mW/g] 1.02E-1 3.07E-1 5.11E-1 7.15E-1 9.20E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.907 mW/g, SAR (10g): 0.608 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0383 [836.49MHz]; w/ACE Antenna; Flip = closed Conducted Power = 27.0dBm; Spacing = 2.0cm from flat phantom to phone, w/o Holster or Beltclip Test Date -- 10-04-2000 SAR Tot [mW/g] 6.84E-2 2.05E-1 3.42E-1 4.79E-1 6.16E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.925 mW/g, SAR (10g): 0.625 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0799 [848.97MHz]; w/ACE Antenna; Flip = closed Conducted Power = 27.0dBm; Spacing = 2.0cm from flat phantom to phone, w/o Holster or Beltclip Test Date -- 10-04-2000 SAR Tot [mW/g] 8.05E-2 2.41E-1 4.03E-1 5.64E-1 7.25E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.759 mW/g, SAR (10g): 0.514 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0799 [836.49MHz]; w/ACE Antenna; Flip = closed Conducted Power = 27.0dBm; Spacing = 2.0cm from flat phantom to phone, w/o Holster or Beltclip Test Date -- 10-04-2000 SAR Tot [mW/g] 6.77E-2 2.03E-1 3.39E-1 4.74E-1 6.09E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- PCS CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.417 mW/g, SAR (10g): 0.236 mW/g LG Electronics Tri-Mode Model:LG-TM510 PCS CDMA Mode, Ch.0025 [1851.25MHz]; w/ACE Antenna; Flip = closed Conducted Power = 25.0dBm; Spacing = 2.0cm from flat phantom to phone, w/o Holster or Beltclip Test Date -- 10-05-2000 SAR Tot [mW/g] 3.36E-2 1.01E-1 1.68E-1 2.35E-1 3.02E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- PCS CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.438 mW/g, SAR (10g): 0.248 mW/g LG Electronics Tri-Mode Model:LG-TM510 PCS CDMA Mode, Ch.0025 [1851.25MHz]; w/ACE Antenna; Flip = closed Conducted Power = 25.0dBm; Spacing = 2.0cm from flat phantom to phone, w/o Holster or Beltclip Test Date -- 10-05-2000 SAR Tot [mW/g] 3.93E-2 1.18E-1 1.97E-1 2.75E-1 3.54E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- PCS CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 -…

Text truncated - open the document above for the full version.

RF Exposure Info

LGE FCC ID:BEJTM510 -- CDMA Hand SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 3.50 mW/g, SAR (10g): 1.88 mW/g LG Electronics Tri-Mode Model:LG-TM510 CDMA Mode, Ch.0363 [835.89MHz]; w/ACE Antenna; Flip = open Conducted Power = 25.0dBm; Spacing = flat phantom touch phone, w/hand Test Date -- 10-04-2000 SAR Tot [mW/g] 2.93E-1 8.78E-1 1.46E+0 2.05E+0 2.63E+0 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- CDMA Hand SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 4.02 mW/g, SAR (10g): 2.14 mW/g LG Electronics Tri-Mode Model:LG-TM510 CDMA Mode, Ch.0363 [835.89MHz]; w/ACE Antenna; Flip = open Conducted Power = 25.0dBm; Spacing = flat phantom touch phone, w/hand Test Date -- 10-04-2000 SAR Tot [mW/g] 3.79E-1 1.14E+0 1.89E+0 2.65E+0 3.41E+0 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Hand SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 3.60 mW/g, SAR (10g): 2.22 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0383 [836.49MHz]; w/ACE Antenna; Flip = open Conducted Power = 27.0dBm; Spacing = flat phantom touch phone, w/hand Test Date -- 10-04-2000 SAR Tot [mW/g] 2.36E-1 7.08E-1 1.18E+0 1.65E+0 2.12E+0 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- FM Hand SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 4.45 mW/g, SAR (10g): 2.48 mW/g LG Electronics Tri-Mode Model:LG-TM510 FM Mode, Ch.0383 [836.49MHz]; w/ACE Antenna; Flip = open Conducted Power = 27.0dBm; Spacing = flat phantom touch phone, w/hand Test Date -- 10-04-2000 SAR Tot [mW/g] 3.15E-1 9.44E-1 1.57E+0 2.20E+0 2.83E+0 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- PCS CDMA Hand SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.47 mW/g, SAR (10g): 0.678 mW/g LG Electronics Tri-Mode Model:LG-TM510 PCS CDMA Mode, Ch.0600 [1880.00MHz]; w/ACE Antenna; Flip = open Conducted Power = 25.0dBm; Spacing = flat phantom touch phone, w/hand Test Date -- 10-05-2000 SAR Tot [mW/g] 1.12E-1 3.37E-1 5.61E-1 7.85E-1 1.01E+0 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJTM510 -- PCS CDMA Hand SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.37 mW/g, SAR (10g): 0.957 mW/g LG Electronics Tri-Mode Model:LG-TM510 PCS CDMA Mode, Ch.0600 [1880.00MHz]; w/ACE Antenna; Flip = open Conducted Power = 25.0dBm; Spacing = flat phantom touch phone, w/hand Test Date -- 10-05-2000 SAR Tot [mW/g] 1.16E-1 3.47E-1 5.78E-1 8.09E-1 1.04E+0 PCTEST Engineering Laboratory, Inc.

RF Exposure Info

i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation For body-worn operation, to maintain compliance with FCC RF exposure guidelines, use only LG Electronics Inc. approved accessories. When carrying the phone while it is on, the back of the phone including the antenna must be placed at a distance of at least 2.0 cm from the body. The use of non-LG Electronics Inc. approved accessories may violate FCC RF exposure guidelines and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone

RF Exposure Info

Probe ET3DV5 SN:1370 Manufactured: February 1999 Calibrated: February 2000 Calibrated for System DASY3 Page 1 of 8 ET3DV5 SN:1370 Introduction The performance of all probes is measured before delivery. This includes an asses…
