BFV900LUCENT

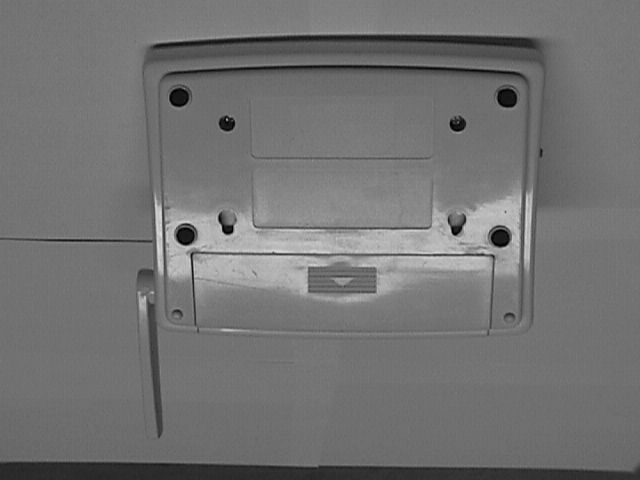

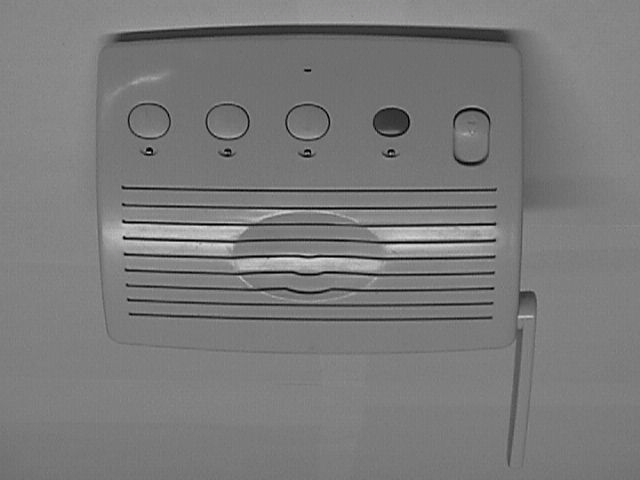

APPLICANT Golden Eagle Electronics Manufactory LTD. Suite 215, 2/F., New East Ocean Centre 9 Science Museum Road Tsim Sha Tsui East, Kowloon Hong Kong, China MANUFACTURER Golden Eagle Electronics Manufactory LTD. Suite 215, 2/F., New East Ocean Centre 9 Science Museum Road Tsim Sha Tsui East, Kowloon Hong Kong, China TEST SPECIFICATION:FCC Rules and Regulations Part 15, Subpart C TEST PROCEDURE:FCC 15.249(a) TEST SAMPLE DESCRIPTION BRANDNAME:Com-Talk MODEL:GEE900FCC ID:BFV900LUCENT TYPE:900 MHz Wireless Intercom FREQUENCY RANGE:902-928 MHz (Operates at 920.1, 920.6 and 921.1) POWER REQUIREMENTS: 4 “AA” Batteries or 7.5VDC derived from AC adapter TESTS PERFORMED - 15.249(a)Radiated Emissions, Fundamental and Harmonics - 15.249(c)/15.209Out-of-Band Radiated Emissions - 15.294(c)Occupied Bandwidth - 15.207(a)Conducted Emissions Report Number: R-7434 FCC ID #: BFV900LUCENT REPORT OF MEASUREMENTS Applicant:Golden Eagle Electronics Manufactory LTD. Device:900 MHz Wireless Intercom FCC ID:BFV900LUCENT Power Requirements:4 “AA” Batteries or 7.5 VDC derived from AC Adapter Applicable Rule Section:Part 15, Subpart C, Section 15.249 TEST RESULTS 15.203:The intentional radiator is designed to ensure that no antenna other than that furnished by the applicant can be used with the device. 15.207(a):The radio frequency voltage that was conducted back on to the AC power line on any frequency/frequencies within the bandwidth of 450kHz to 30MHz did not exceed 250 microvolts. 15.249(a):The unit operates in the 902-928 MHz band. The field strength of the fundamental did not exceed 50mV/M AVERAGE. The field strength of the harmonics did not exceed 500μV/M AVERAGE. 15.249(b):Field strength readings were taken at three meters unless otherwise noted. 15.249(c):Emissions radiated outside the specified frequency band were attenuated in accordance with the general radiated emissions limits of 15.209. 15.249(d):The peak field strength of any emission did not exceed the maximum permitted average field strength by more than 20dB under any condition of modulation. Report Number: R-7434 FCC ID #: BFV900LUCENT GENERAL NOTES 1.The AC input was varied from 85 to 115% of the rated input. Field strength measurements were taken with the AC input adjusted to produce the maximum emissions. 2.All user accessible controls were adjusted to produce maximum emissions. 3.Measurements of conducted emissions were performed utilizing a 50 ohm/50μhenry Line Impedance Stabilization Network (LISN). 4.The unit operates in the band of 902-928 MHz. The unit operates at three (3) discrete frequencies, 920.1 MHz, 920.6 MHz and 921.1 MHz. Since the unit tunes over a range greater than 1 MHz, two frequencies were chosen for testing, in accordance with Section 15.31(m). The unit was tested at 920.1 MHz, 921.1 MHz. 5.The frequency range was scanned from 30MHz to 9.3 GHz. All emissions not reported were more than 20dB below the specified limit. Report Number: R-7434 FCC ID #: BFV900LUCENT EXHIBIT 4 Radiated Emissions, Fundamental & Harmonics Para. 15.249(a) Report Number: R-7434 FCC ID #: BFV900LUCENT Test Method: FCC Part 15 Sub part C Radiated Emissions Paragraph 15.249(a) Customer: Golden Eagle Electronics Job No. R-7434 Test Sample: 900 Mhz Wireless Intercom FCC ID: BFV900LUCENT Model No.: GEE900 Serial No. N/A Operating Mode: Continuously transmitting 920.0 Mhz Signal Technician: Dennis Cortes Date: May 21,1999 Notes: Test Distance: 3 Meters Temp:24C Humidity:21% Detector: Peak Test Freq.Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Peak Limit Mhz(V/H) / DegreesX / Y / Z dBuv dB dBuV/m uV/m uV/m 920.0H / 1.0X74.67.381.912445.150000 920.0H / 1.0Y72.37.379.69549.950000 920.0H / 1.3Z74.17.381.411749.050000 920.0V / 1.0X75.77.383.014125.450000 920.0V / 1.0Y73.77.381.011220.250000 920.0V / 1.4Z73.07.380.310351.450000 1840.0H / 1.2X49.3-2.646.7216.3500 1840.0H / 1.2Y46.1-2.643.5149.6500 1840.0H / 1.3Z44.4-2.641.8123.0500 1840.0V / 1.2X46.8-2.644.2162.2500 1840.0V / 1.0Y45.8-2.643.2144.5500 1840.0V / 1.0Z46.5-2.643.9156.7500 2760.0H / 1.3X45.51.146.6213.8500 2760.0H / 1.1Y44.11.145.2182.0500 2760.0H / 1.1Z44.81.145.9197.2500 2760.0V / 1.3X46.71.147.8245.5500 2760.0V / 1.0Y49.31.150.4331.1500 2760.0V / 1.0Z46.21.147.3231.7500 3680.0H / 1.1X42.57.349.8309.0500 3680.0H / 1.2Y41.77.349.0281.8500 3680.0H / 1.2Z42.37.349.6302.0500 3680.0V / 1.5X41.87.349.1285.1500 3680.0V / 1.4Y43.37.350.6338.8500 3680.0V / 1.0Z42.37.349.6302.0500 4600.0H & VX, Y & Z41.02.643.6*151.4500 5520.0H & VX, Y & Z40.6-4.835.8*61.7500 6440.0H & VX, Y & Z42.7-2.240.5*105.9500 7360.0H & VX, Y & Z42.9-4.138.8*87.1500 8280.0H & VX, Y & Z43.3-3.140.2*102.3500 9200.0H & VX, Y & Z43.6-1.342.3*130.3500 The frequency range was scanned from 30 Mhz to 9.2Ghz. Emissions from the EUT do not exceed the specified limits. *=Noise Floor Measurements ( Minimum system sensitivity) Test Method: FCC Part 15 Sub part C Radiated Emissions 15.249(a) Customer: Golden Eagle Electronics Job No. R-7434 Test Sample: 900 Mhz Wireless Intercome FCC ID: BFV900LUCENT Model No.: GEE900 Serial No. N/A Operating Mode: Continuously transmitting 921.0 Mhz Signal Technician: Dennis Cortes Date: March 21,1999 Notes: Test Distance: 3 Meters Temp:24C Humidity:21% Detector: Quasi-Peak Test Freq.Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Limit Mhz(V/H) / DegreesX / Y / Z dBuv dB dBuV/m UV/m uV/m 921.0H / 1.2X73.37.380.610715.250000 921.0V / 1.0X74.77.382.012589.350000 1842.0H / 1.2X48.4-2.645.8195.0500 1842.0V / 1.5X47.7-2.645.1179.9500 2763.0H / 1.1X45.01.146.1201.8500 2763.0V / 1.0X44.01.145.1179.9500 3684.0H / 1.3X40.87.348.1254.1500 3684.0V / 1.3X41.37.348.6269.2500 4605.0H & VX41.02.643.6*151.4500 5526.0H & VX40.6-4.835.8*61.7500 6447.0H & VX42.7-2.240.5*105.9500 7368.0H & VX42.9-4.138.8*87.1500 8289.0H & VX43.3-3.140.2*102.3500 9210.0H & VX43.6-1.342.3*130.3500 The frequency range was scanned from 30 Mh…

Text truncated - open the document above for the full version.

TABULAR DATA SHEET CUSTOMER: MODEL No.: TEST SAMPLE: SERIAL No.: TEST SPECIFICATION: TEST METHOD: OPERATING MODE: TECHNICIAN:DATE: RETLIF TESTING LABORATORIES NOTES: DATA SHEETOF JOB No.: PARAGRAPH: Detector Function: Quasi-Peak Test Distance: 3 Meters 900 Mhz Wireless Intercome FCC ID:BFV900LUCENT R-7434 The frequency range was scanned from 30 MHz to 10 GHz. Emissions observed from the EUT do not exceed the specified limit. 8.218.3-11.329.6203V-1.0 100 | V 100 150 | | | | V 150 200 | | V 200 500 | | | V 500 30.00 | V 88.00 88.00 | V 120.00 | V 216.00 216.00 | | V 960.00 960.00 | | V 10000.00 uV/muV/mdBuV/mdBdBuVDegrees(H/V) - HeightMHz Converted ReadingMeter Reading Correction Factor LimitCorrected Reading Turntable PositionAntenna Position Test Frequency Continuously Transmiting 920.6 Mhz Signal 15.209 FCC Part 15, Subpart C Dennis CortesAugust 19,1998 FCC Part 15 Radiated Emissions, 30 MHz to 10 GHz Spurious Emissions R-7434Golden Eagle Electronics GEE-900N/A 11
