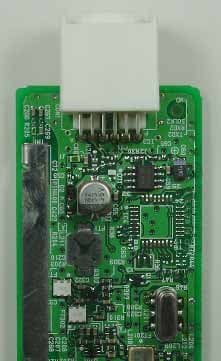

BGBX1T502SKE11A01Smart Keyless System (ECU)

TYPE NAME : SKE11A-01 DATE ID SERIAL No. ＳＭＡＲＴ ＫＥＹＬＥＳＳ ＳＹＳＴＥＭ （RECEIVER） LABEL_RECEIVER_11A01A.xls

Test report No. : 25LE0285-HO-1a Page : 2 of 21 Issued date : August 18, 2005 Revised date : August 19, 2005 FCC ID : BGBX1T406SKE11A01, BGBX1T502SKE11A01 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information.......................................................................................................3 SECTION 2: Equipment under test (E.U.T.) ..................................................................................3 SECTION 3: Test specification, procedures & results ...................................................................4 SECTION 4: Operation of E.U.T. during testing............................................................................6 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ....................................8 SECTION 6: -26dB Bandwidth (Reference data) ...........................................................................8 APPENDIX 1: Photographs of test setup.........................................................................................9 Radiated Magnetic Field Strength (Transmitting) .............................................................9 Radiated emission(Transmitting and Receiving mode) ....................................................10 Worst Case Position:Antenna(Axis Y) ...............................................................................11 Worst Case Position:Receiver (Axis X) ..............................................................................12 APPENDIX 2: Test Instruments.....................................................................................................13 APPENDIX 3: Data of EMI test .....................................................................................................14 Radiated Emission (Transmitting) .....................................................................................14 Radiated Emission (Transmitting) above 30MHz.............................................................16 -26dB Bandwidth..................................................................................................................17 99% Occupied Bandwidth...................................................................................................18 Radiated Emission (Receiving) ...........................................................................................19 Test report No. : 25LE0285-HO-1a Page : 3 of 21 Issued date : August 18, 2005 Revised date : August 19, 2005 FCC ID : BGBX1T406SKE11A01, BGBX1T502SKE11A01 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Client information Company Name : Mitsubishi Electric Corporation Himeji Works Address : 840 CHIYODA-MACHI HIMEJI HYOUGO 670-8677 JAPAN Telephone Number : +81-792-98-8896 Facsimile Number : +81-792-98-9262 Contact Person : Yoshiharu Goto SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Smart keyless system (ECU) Model No. : SKE11A-01 Serial No. : 1 Country of Manufacture : Japan Receipt Date of Sample : October 19, 2004 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Equipment Type : Transceiver Rating : DC 12.0V (Car battery) Temperature of operation : -40 deg. C. -+85 deg. C. Transmitter (Smart ECU) Frequency Characteristics 132.45kHz Modulation PPM (Pulse Position Modulation) Information antenna Inductive loop Mode of Operation Simplex Other Clock Frequency 10MHz Method of frequency Generation Crystal Operating voltage (inner) DC5V Receiver Type of Receiver Super Heterodyne Receiving Frequency 315MHz Intermediate Frequency 10.7MHz Method of frequency Generation Crystal Operating voltage (inner) DC5V FCC 15.31 (e) This test was performed with the New Battery. The power supply of this EUT is transformed by ECU and provides stable voltage(DC5.0V) constantly to Radio part. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement All Antennas are installed inside the vehicle doors and users cannot detach them from vehicle. Therefore, the equipment complies the requirement. Test report No. : 25LE0285-HO-1a Page : 4 of 21 Issued date : August 18, 2005 Revised date : August 19, 2005 FCC ID : BGBX1T406SKE11A01, BGBX1T502SKE11A01 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C : 2005 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, general requirements. Test Specification : FCC Part 15 Subpart B : 2005 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators Section 15.109 Radiated emission limits 3.2 Procedures and results 1) FCC Part 15 Subpart C: 2005 No. Item Test Procedure Specification Deviation Worst margin Result 1 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 FCC Section 15.209N/A 3.9dB 0.13245MHz 0 deg. AV Complied 2 Electric Field Strength of Spurious Emission ANSI C63.4:2003 FCC Section 15.205 FCC Section 15.209 N/A 9.4dB 0.662MHz QP Complied 3 Conducted Emission ANSI C63.4:2003 FCC Section 15.207(a) AC Mains only *1) N/A N/A Note: UL Apex’s EMI Work procedures No. QPM05 *1) This test is not applicable since the EUT does not have AC power port. *These tests were performed without any deviations from test procedure except for additions or exclusions. 2) FCC Part 15 Subpart B: 2005 No. Item Test Procedure Specification Deviation Worst margin Result 1 Radiated emission ANSI C63.4:2003 FCC Section 15.109…

Text truncated - open the document above for the full version.

Test report No. : 25LE0285-HO Page : 9 of 21 Issued date : August 18, 2005 FCC ID : BGBX1T406SKE11A01, BGBX1T502SKE11A01 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Radiated Magnetic Field Strength (Transmitting) Front Rear Test report No. : 25LE0285-HO Page : 10 of 21 Issued date : August 18, 2005 FCC ID : BGBX1T406SKE11A01, BGBX1T502SKE11A01 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Radiated emission(Transmitting and Receiving mode) Front Rear Test report No. : 25LE0285-HO Page : 11 of 21 Issued date : August 18, 2005 FCC ID : BGBX1T406SKE11A01, BGBX1T502SKE11A01 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Worst Case Position:Antenna(Axis Y) Axis X Axis Y Axis Z Test report No. : 25LE0285-HO Page : 12 of 21 Issued date : August 18, 2005 FCC ID : BGBX1T406SKE11A01, BGBX1T502SKE11A01 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Worst Case Position:Receiver (Axis X) Axis X Axis Y Axis Z
