BIB54505003-01Packet Data Radio Transceiver - Fixed or Mobile

Meteorcomm LLC

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Feb 23, 2012
Application Purpose: Original Equipment
Date of Application: Feb 23, 2012
Equipment Note: Packet Data Radio Transceiver - Fixed or Mobile
Frequency Range: 43.00000000 - 46.00000000
Company: Meteorcomm LLC
Country: United States

Documents & Files

Select a file to view

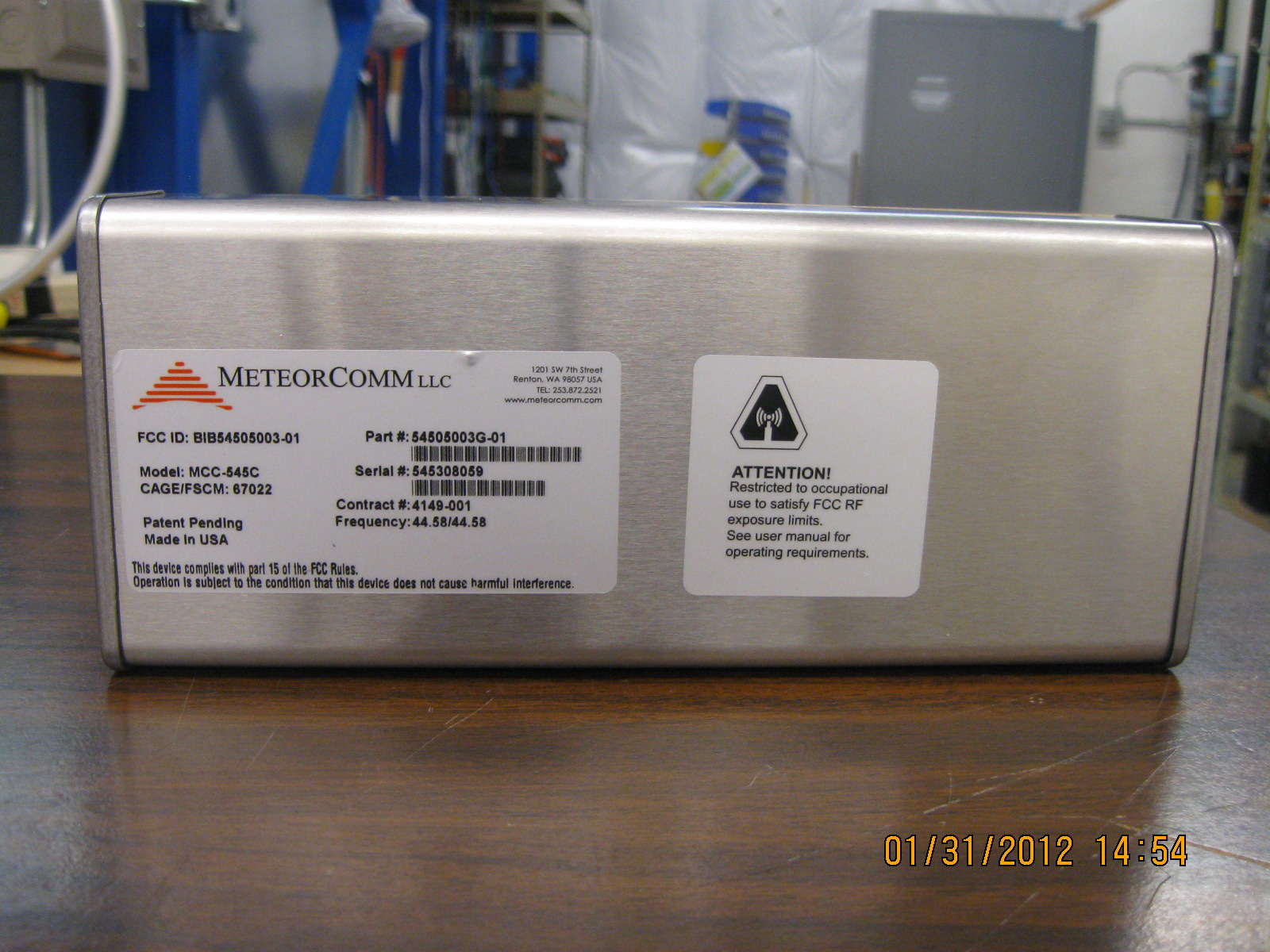

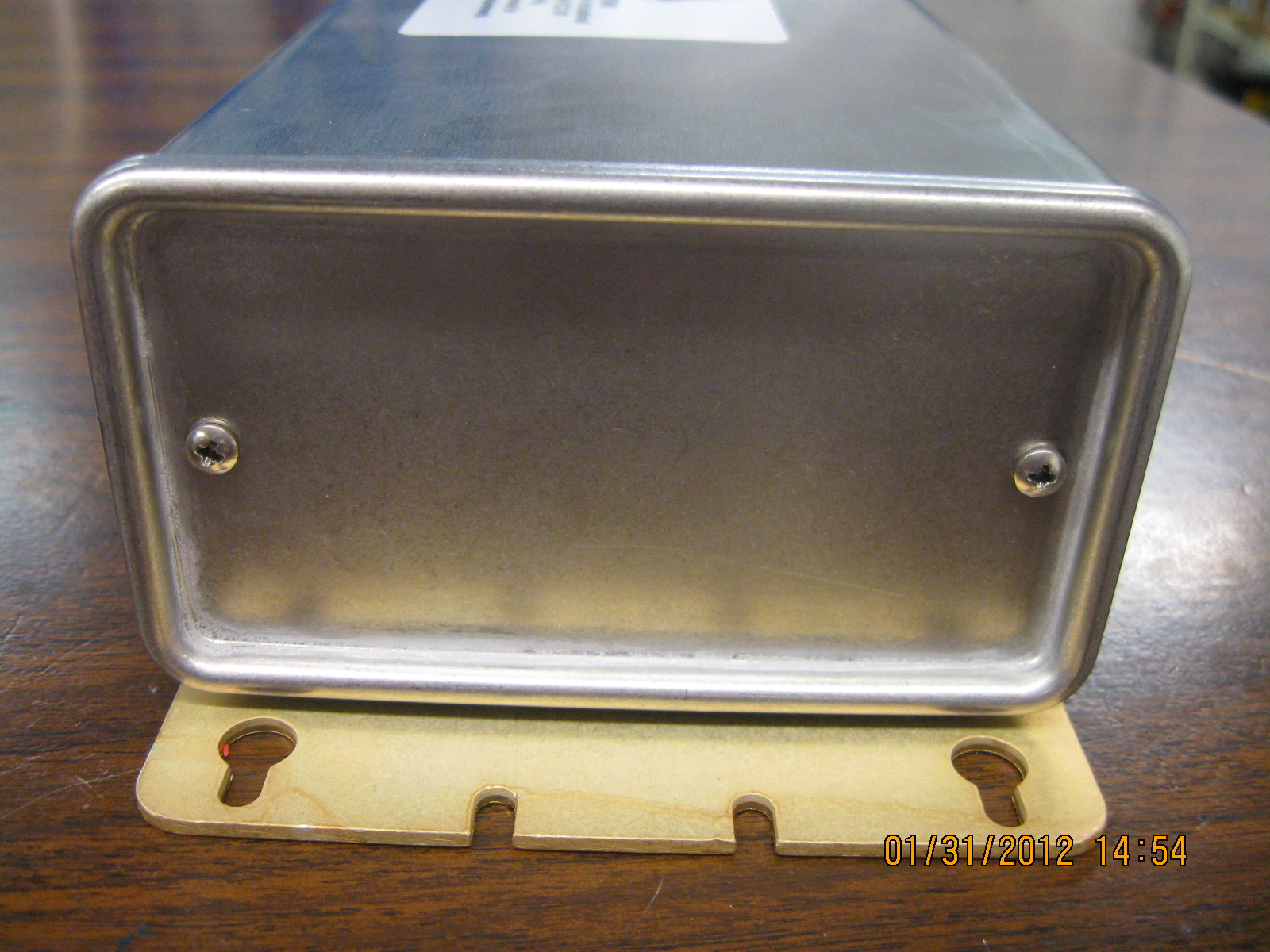

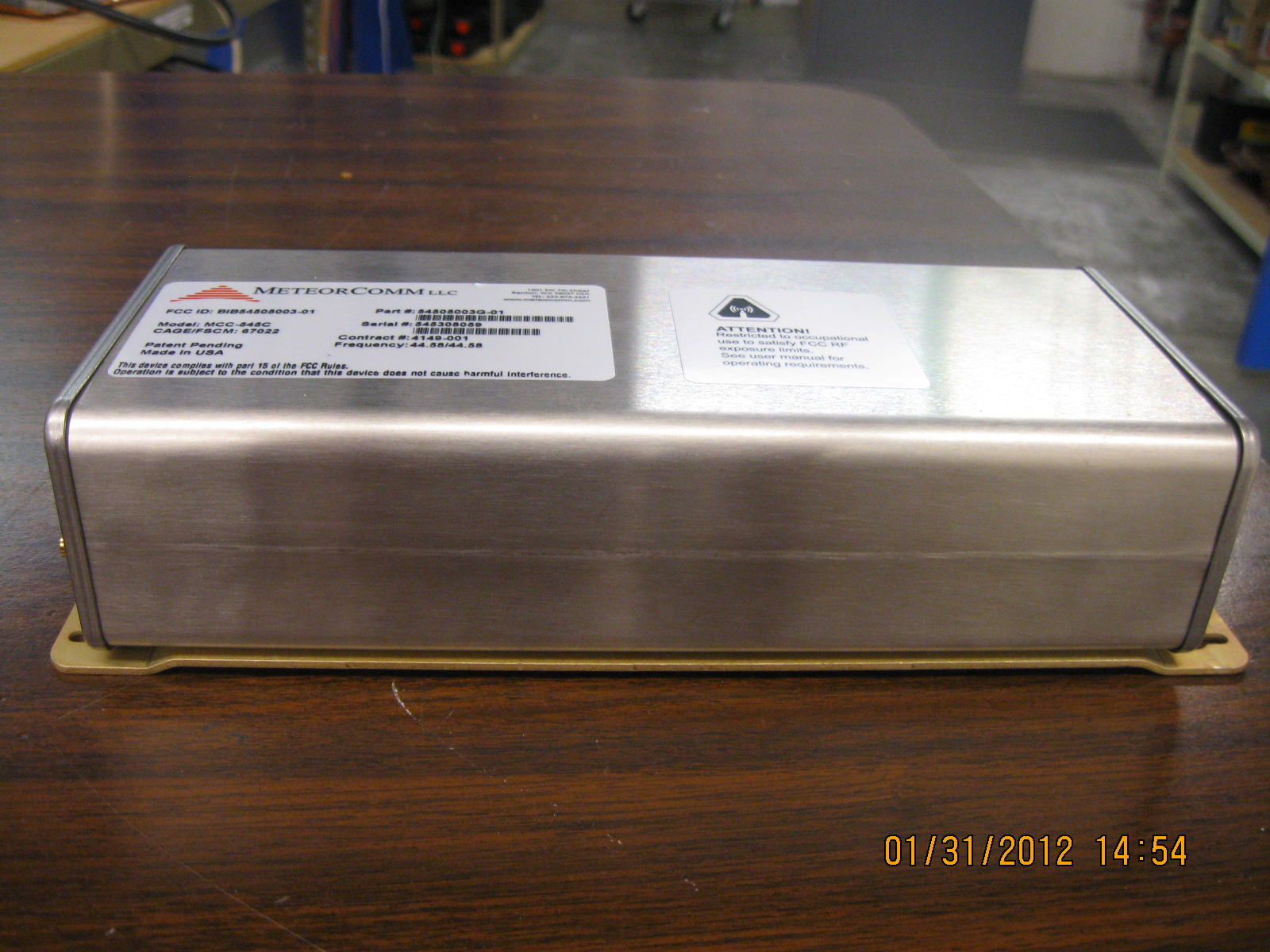

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

545C Operations Manual DocumentRevision:1.0 DocumentNumber:00001789A 545C Operations Manual 02/10/2012PrereleaseDCN00001789A ii©2012MeteorcommLLC. AllRightsReserved.ProprietaryandConfidential.DoNotDistribute. © 2012 Meteorcomm® LLC. All rights reserved. Meteorcomm® and ITCNet® are registered trademarks of Meteorcomm LLC and may not be used without express written permission of Meteorcomm LLC. By downloading, using, or referring to this document or any of the information contained herein, you acknowledge and agree: Ownership This document and the information contained herein are the sole and exclusive property of Meteorcomm LLC (“MCC”). Except for a limited review right, you obtain no rights in or to the document, its contents, or any related intellectual property. MCC may, upon written notice, terminate your internal review of this document and, upon such notice, you will return the original of this document to MCC together with the originals and all copies of all documents in your possession or under your control that refer or relate to it. Limited Use and Non-Disclosure This document contains information that is considered proprietary to MCC. It is protected by copyright, trade secret, and other applicable laws. This document may not be transmitted, distributed, duplicated, or used, including, without limitation, the information contained herein, in whole or in part, except as agreed under separate written agreement with MCC. Disclaimer of Warranty This document and all information contained herein or otherwise provided by MCC, and all intellectual property rights therein, are provided on an “as is” basis. MCC makes no warranties of any kind with respect thereto and expressly disclaims all warranties of any kind, whether express, implied, or statutory, including but not limited to warranties of merchantability, fitness for a particular purpose, title, non-infringement, accuracy, completeness, interference with quiet enjoyment, system integration, or warranties arising from course of dealing and usage of trade practice. Assumption of Risk You are responsible for conducting your own independent assessment of the information contained in this document (including without limitation schematic symbols, footprints, and layer definitions) and for confirming its accuracy. You may not rely on the information contained herein, and you agree to validate all such information by using your own technical experts. Accordingly, you agree to assume sole responsibility for your review, use of, or reliance on the information contained in this document. MCC assumes no responsibility for, and you unconditionally and irrevocably release and discharge MCC and its affiliates and their respective officers, directors, and employees (“MCC Parties”) from, any and all loss, claim, damage, or other liability associated with or arising from your use of any of the information contained in this document. Limitation of Liability In no event shall MCC or the MCC parties be liable for any indirect, incidental, exemplary, special, punitive or treble, or consequential damages or losses, whether such liability is based on contract, warranty, tort (including negligence), product liability, or otherwise, regardless as to whether they have notice as to any such claims. Hazardous Uses None of the information contained in this document may be used in connection with the design, manufacture, or use of any equipment or software intended for use in any fail-safe applications; or any other application where a failure may result in loss of human life, or personal injury, property damage or have a financial impact; or in connection with any nuclear facility or activity; or shipment or handling of any hazardous, ultra- hazardous, or similar materials (“Hazardous Uses”). MCC disclaims all liability of every kind for any Hazardous Uses, and you release MCC and the MCC Parties from, and shall indemnify MCC and the MCC Parties against, any such liability, including, but not limited to, any such liability arising from MCC’s negligence.Document Number: 00001789-A 545C Operations Manual 02/10/2012PrereleaseDCN00001789A ©2012MeteorcommLLC.AllRightsReserved.ProprietaryandConfidential.DoNotDistribute.iii Revision History Revision Date Description 1.0 02/10/2012Legacydocumentformattedin2012template 545C Operations Manual 02/10/2012PrereleaseDCN00001789A iv©2012MeteorcommLLC. AllRightsReserved.ProprietaryandConfidential.DoNotDistribute. Table of Contents Acronyms.........................................................................................viii 1. Introduction..................................................................................1 1.1 FleetTrak™Network................................................................3 1.2 ManualOrganization................................................................4 1.3 RelatedDocuments.................................................................5 2. RFSafetyandRegulatoryInformation...................................................5 2.1 LimitingRFExposure...............................................................5 2.2 RFInterferencetoResidentialReceivers........................................6 2.3 EquipmentModifications...........................................................7 3. Description...................................................................................7 3.1 General...............................................................................7 3.2 PrintedCircuitBoardAssemblies...............................................11 3.2.1 Microprocessor.............................................................11 3.2.2 Transceiver.................................................................11 3.2.3 PowerAmplifier...........................................................11 3.3 Microprocessor..................................…

Text truncated - open the document above for the full version.

Users Manual

RF Energy Exposure Guide for Meteorcomm MCC-545C Radios Installed in Vehicles or at Fixed Sites IMPORTANT BEFORE INSTALLING, MAINTAINING OR USING YOUR RADIO, READ THIS GUIDE WHICH CONTAINS IMPORTANT RF ENERGY AWARENESS AND CONTROL INFORMATION AND OPERATIONAL INSTRUCTIONS TO ENSURE COMPLIANCE WITH FCC OR INDUSTRY CANADA RF EXPOSURE GUIDELINES. IMPORTANT RETAIN THIS GUIDE AT THE LOCATION OF THE RADIO INSTALLATION. Document Number: 0000xxxx-A ITCR 1.0.5.0 RF Energy Exposure Guide © 2012 Meteorcomm LLC. All Rights Reserved. Proprietary ii Pre-Release 00001235-DA 1/18/2012 © 2012 Meteorcomm® LLC. All rights reserved. Meteorcomm® and ITCNet® are registered trademarks of Meteorcomm LLC and may not be used without express written permission of Meteorcomm LLC. By downloading, using, or referring to this document or any of the information contained herein, you acknowledge and agree: Ownership This document and the information contained herein are the sole and exclusive property of Meteorcomm LLC (“MCC”). Except for a limited review right, you obtain no rights in or to the document, its contents, or any related intellectual property. MCC may, upon written notice, terminate your internal review of this document and, upon such notice, you will return the original of this document to MCC together with the originals and all copies of all documents in your possession or under your control that refer or relate to it. Limited Use and Non-Disclosure This document contains information that is considered proprietary to MCC. It is protected by copyright, trade secret, and other applicable laws. This document may not be transmitted, distributed, duplicated, or used, including, without limitation, the information contained herein, in whole or in part, except as agreed under separate written agreement with MCC. Disclaimer of Warranty This document and all information contained herein or otherwise provided by MCC, and all intellectual property rights therein, are provided on an “as is” basis. MCC makes no warranties of any kind with respect thereto and expressly disclaims all warranties of any kind, whether express, implied, or statutory, including but not limited to warranties of merchantability, fitness for a particular purpose, title, non-infringement, accuracy, completeness, interference with quiet enjoyment, system integration, or warranties arising from course of dealing and usage of trade practice. Assumption of Risk You are responsible for conducting your own independent assessment of the information contained in this document (including without limitation schematic symbols, footprints, and layer definitions) and for confirming its accuracy. You may not rely on the information contained herein, and you agree to validate all such information by using your own technical experts. Accordingly, you agree to assume sole responsibility for your review, use of, or reliance on the information contained in this document. MCC assumes no responsibility for, and you unconditionally and irrevocably release and discharge MCC and its affiliates and their respective officers, directors, and employees (“MCC Parties”) from, any and all loss, claim, damage, or other liability associated with or arising from your use of any of the information contained in this document. Limitation of Liability In no event shall MCC or the MCC parties be liable for any indirect, incidental, exemplary, special, punitive or treble, or consequential damages or losses, whether such liability is based on contract, warranty, tort (including negligence), product liability, or otherwise, regardless as to whether they have notice as to any such claims. Hazardous Uses None of the information contained in this document may be used in connection with the design, manufacture, or use of any equipment or software intended for use in any fail-safe applications; or any other application where a failure may result in loss of human life, or personal injury, property damage or have a financial impact; or in connection with any nuclear facility or activity; or shipment or handling of any hazardous, ultra-hazardous, or similar materials (“Hazardous Uses”). MCC disclaims all liability of every kind for any Hazardous Uses, and you release MCC and the MCC Parties from, and shall indemnify MCC and the MCC Parties against, any such liability, including, but not limited to, any such liability arising from MCC’s negligence. Document Number: 0000xxxx-A ITCR 1.0.5.0 RF Energy Exposure Guide © 2012 Meteorcomm LLC. All Rights Reserved. Proprietary Pre-Release 0000xxxx-A 1/18/2012 iii Revision History Revision Date Description 0.1 2/15/2012 Creation. ITCR 1.0.5.0 RF Energy Exposure Guide © 2012 Meteorcomm LLC. All Rights Reserved. Proprietary. Pre-Release 00001235-DA 1/18/2012 1 RF Energy Exposure Awareness and Control Information, and Operational Instructions for FCC/IC Occupational Use Requirements NOTICE: This radio is intended for use in occupational/controlled conditions, where users have full knowledge of their exposure and can exercise control over their exposure to meet FCC/IC limits. This radio device is NOT authorized for general population, consumer, or any other use. This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or more users over a distance. It uses RF energy or radio waves to send and receive messages. RF energy is one form of electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high levels of x-rays, for example, can damage tissues and genetic material. Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These reco…

Text truncated - open the document above for the full version.

RF Exposure Info

RF Exposure Calculations - MCC-545C Packet Data Transceiver Applicant FCC ID: BIB54505003-01 RF Exposure Calculations © 2012 Meteorcomm LLC. All Rights Reserved. Proprietary and Confidential ii 2/14/2012 Revision History Revision Date Summary of Changes Comments 1 2/14/2012 Original RF Exposure Calculations © 2012 Meteorcomm LLC. All Rights Reserved. Proprietary and Confidential 2/14/2012 1 RF Exposure Calculations MCC-545C Transceiver 1. Determination of Need for Routine Environmental Evaluation for RF Exposure per §2.1091(c) It is the view of Meteorcomm LLC that the MCC-545C Packet Data Radio Transceiver is not subject to routine environmental evaluation for RF exposure. This model is intended for use in Part 90 mobile and fixed data applications but is not designed for use in the Specialized Mobile Radio Service. 2. RF Exposure Environment Per FCC OET Bulletin 65, there are two environments relevant to RF exposure analysis: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/ controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. The MCC-545C model can be deployed in fixed base and mobile vehicular installations, so it is possible for both environments to apply. The radio operator may be considered to be in an occupational/controlled exposure environment if she or he is properly trained to be aware of exposures and to control emissions. Vehicle passengers and bystanders are generally considered to be in a general population/uncontrolled exposure environment. This being the case, vehicular antenna installation must take into account both environments, or, at the least, the RF Exposure Calculations © 2012 Meteorcomm LLC. All Rights Reserved. Proprietary and Confidential 2 2/14/2012 more restrictive requirement, that being the general population/uncontrolled environment. The occupational/controlled exposure limits generally apply to base station applications. Vertical polarization is used with all antennas in the accompanying tables. 3. RF Exposure Limit Calculations Per Table 1 of OET Bulletin 65, Appendix A, the FCC limits for Maximum Permitted Exposure (MPE) in terms of power density, S, are shown below. For an Occupational/Controlled Exposure environment: S = 1.0mW/cm 2 for the frequency range of 30-300 MHz, For a General Population/Uncontrolled Exposure environment: S = 0.2mW/cm 2 for the frequency range of 30-300 MHz, The minimum separation required between a human and an antenna connected to an active antenna can be determined by use of the power density expression: )2^(4R PG S   Where S = power density in mW/cm 2 P = Average RF power into the antenna in mW G = antenna gain - isotropic (unitless, linear) R = separation/distance between antenna and point of interest in cm Solved for R, the formula becomes: RF Exposure Calculations © 2012 Meteorcomm LLC. All Rights Reserved. Proprietary and Confidential 2/14/2012 3 S PG R 4  The charts below show the maximum transmit power levels converted to average including the 10% duty cycle limit imposed by the radio firmware, maximum power densities and R, the calculated minimum human separation. Several example antenna types are shown. Antenna gains shown are relative to an isotropic radiator. The gain relative to a dipole (dBd) is 2.15 dB less in each case. Calculation of P for all cases: Rated power = P rated = 100 W average. Maximum conducted power condition P meas = 50.9 dBm = 123 W average. Average power reduced to 10% duty ratio, P = 0.1*123 = 12.3 W = 12300 mW. Example calculation for first and second entries in table of Section 4 below: Gain factor for 2.15 dBi is 10^(2.15/10) = 1.64 S = 0.2 mW/cm2 (uncontrolled exposure environment) R = ((12300*1.64)/(4*3.14159*0.2))^0.5 = 89.6 cm. Radiated power calculation. Antenna gain in dBd = 2.15 dBi – 2.15 dBi to dBd conversion = 0 dBd = 1 numeric P radiated = P meas *Antenna Gain (numeric dBd) = 123W*1.00 = 123 Watts ERP Example calculation for first entry in table of Section 5 (fixed antennas): Gain factor for 4.1 dBi is 10^(4.1/10) = 2.57 S = 1.0 mW/cm2 (controlled exposure environment) R = ((12300*2.57)/(4*3.14159*1.0))^0.5 = 50.2 cm. Radiated power calculation. RF Exposure Calculations © 2012 Meteorcomm LLC. All Rights Reserved. Proprietary and Confidential 4 2/14/2012 Antenna gain in dBd = 4.1 dBi – 2.15 dBi to dBd conversion = 1.95 dBd = 1.57 numeric P radiated = P meas *Antenna Gain (numeric dBd) = 123W*1.57 = 193 Watts ERP 4. Calculated Limits Applied to Mobile Installations (Uncontrolled Exposure 0.2 mW/cm 2 ) Radio Type Antenna Type Antenna gain (dBi) Maximum power (watts) Maximum Duty Cycle Recommended minimum lateral distance from transmitting antenna cm in. MCC-545C Base-loaded ¼- wave vertical whip antenna roof-mounted on car or truck 2.15 123 10% 89.6 35.3 MCC-545C 0 dBd gain antenna roof- mounted on locomotive cab 2.15 123 10% 89.6 35.3 5. Calculated Limits Applied to Fixed Installations (Controlled Exposure 1.0 mW/cm 2 ) Radio Type Antenna Type Antenna gain (dBi) Maximum Power (watts) Maximum Duty Cycle Recommended minimum lateral distance from transmitting antenna cm in. MCC-545C 2.0dBd exposed dipole fixed to tower leg 4.1 123 10% 50.2 19.7 MCC-545C 5.5dBd exposed dipole fixed to tower leg 7.6 123 10% 75.0 29.5 MCC-545C 7.8 dBd Yagi fixed to tower top 9.95 123 10% 98.4 38.7

Test Report

This report contains a total of 28 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Meteorcomm LLC. TEST REPORT FOR 45MHz 100W GMSK Packet Data Transceiver, MCC-545C Tested To The Following Standards: FCC Part 90I Report No.: 92688-7 Date of issue: February 14, 2012 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 28 Report No.: 92688-7 TABLE OF CONTENTS Administrative Information .................................................................................................................................................. 3 Test Report Information ................................................................................................................................................... 3 Report Authorization ........................................................................................................................................................ 3 Test Facility Information ................................................................................................................................................... 4 Site Registration & Accreditation Information ................................................................................................................. 4 Summary of Results .......................................................................................................................................................... 5 Conditions During Testing................................................................................................................................................. 5 Equipment Under Test ...................................................................................................................................................... 6 Peripheral Devices ............................................................................................................................................................ 6 FCC Part 90I .......................................................................................................................................................................... 7 2.1033(c)(14)/2.1046/90.205 - RF Power Output ............................................................................................................. 7 2.1033(c)(14)/2.1049/90.209 - Occupied Bandwidth ....................................................................................................... 9 2.1033(c)(14)/2.1051/90.210(c) - Spurious Emissions at Antenna Terminal .................................................................. 13 2.1033(c)(14)/2.1053/90.210(c) - Field Strength of Spurious Radiation ........................................................................ 20 2.1033(c)(14)/2.1055/90.213- Frequency Stability ........................................................................................................ 24 Supplemental Information ................................................................................................................................................. 27 Measurement Uncertainty ............................................................................................................................................. 27 Emissions Test Details ..................................................................................................................................................... 27 Page 3 of 28 Report No.: 92688-7 ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Meteorcomm LLC. 1201 SW 7th Street Renton, WA 98057 Dianne Dudley CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: Fred Cleveland Project Number: 92688 Customer Reference Number: 11283 DATE OF EQUIPMENT RECEIPT: January 30, 2012 DATE(S) OF TESTING: January 30-31, 2012 Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 28 Report No.: 92688-7 Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accurate, repeatable and affordable test results. TEST LOCATION(S): CKC Laboratories, Inc. 22116 23rd Drive S.E., Suite A Bothell, WA 98021-4413 Site Registration & Accreditation Information Location CB # Japan Canada FCC Bothell US0081 R-2296, C-2506, T-1489 & G-284 3082C-1 318736 Page 5 of 28 Report No.: 92688-7 SUMMARY OF RESULTS Standard / Specification: FCC Part 90I Description Test Procedure/Method Results RF Power Output FCC 2.1033(c)(14)/2.1046/90.205 / TIA- 603 Pass Modulation Characteristics Audio Frequency Response FCC 2.1033(c)(14)/2.1047(a) NA Modulation Characteristics Modulation Limiting Response FCC 2.1033(c)(14)/2.1047(b) NA Occupied Bandwidth FCC 2.1033(c)(14)/2.1049/90.209 / TIA- 603 Pass Spurious Emissions at Antenna Terminal FCC 2.1033(c)(14)/2.1051/90.210(c) / TIA- 603 Pass Field St…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Dave Herber(VP Engineering)

[email protected](253)872-2521Fax: 253 872-7662

Technical Contact

Meteorcomm LLCJ. Fred Cleveland

[email protected]253-872-2521

1201 SW 7th St. · Renton · United States

Test Firm

CKC Laboratories, Inc.Steve Behm

[email protected]209-966-5240Fax: 866 779 9776

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	90	43 MHz - 46 MHz	100 W	10K6G1D	20.0000000000 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. This transmitter is certified to operate with the antennas and installation configurations described in this filing. This device evaluated for RF exposure employing a source-based time-averaging duty factor not exceeding 10%. Under fixed RF exposure conditions, RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3). Under mobile RF exposure conditions, The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 89.6 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Vehicle mounted antennas must be mounted roof center. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. All qualified end users of this device must receive training, to have the knowledge to control their exposure conditions and/or duration to comply with Occupational / Controlled exposure limit and also have control of the exposure conditions of bystanders for complying with General Population / Uncontrolled exposure limit. Labeling as described in this filing must be displayed on the device and visible to the users to identify the specific training information for meeting the FCC RF exposure requirements.
