BIB63030-24Packet Data Transceiver - Fixed Use - 24VDC

ITCR Base Radio User's Manual and Installation Instructions Applicable Models: 63030-24, 63030-48 Note: The final version of this manual will include a French translation. ITCR Base Radio User's Guide © 2011 Meteorcomm LLC. All Rights Reserved. Proprietary and Confidential ii Do Not Distribute 9/8/2011 Revision History Revision Date Summary of Changes Contributor 0.1 Initial draft. Neil Ross 0.2 Changes by Neil Ross. 0.3 8/29/2011 Add notices to user and expanded RF exposure Information. General editing. Fred Cleveland 0.4 9/8/2011 Fix errors and omissions Fred Cleveland Document Number: HWD-PTC- Date Complete: Confidential and Proprietary Notice This document contains information that is considered confidential and/or proprietary to Meteorcomm® LLC (“MCC”) and shall not be disclosed, transmitted, distributed, duplicated or used in whole or in part except as agreed under separate contract between MCC and the recipient. All information contained herein shall be kept confidential. MCC makes no representations or warranties, express or implied. All warranties, including but not limited to, warranties of merchantability, fitness for a particular purpose, and non-infringement are hereby expressly disclaimed. Unless expressly authorized in writing, the name and trademarks of MCC may not be used. All other rights are reserved. Disclaimers This is a draft document only but provides sufficient information to support an initial engineering project. The estimates contained herein represent MCC’s current best estimates and will be refined over time. MCC makes no representations or warranties of any kind, express or implied, about the completeness or accuracy of the values contained herein. Any reliance placed on these values is done strictly at the risk of the user. Any designs contained in the document were developed using standard layout guidelines for most common and practical applications. All schematic symbols, footprints and layer definitions should be validated by the customer’s own technical experts as application specific requirements may differ. By downloading, using, or referring to a schematic, design or footprint, the user agrees to release MCC from all liability related to the use or application of the schematic, design or footprint. ©2011 Meteorcomm LLC. All rights reserved. Meteorcomm is a registered trademark of Meteorcomm LLC. Document Number: XXX-XXX-0000XXXX ITCR Base Radio User's Guide © 2011 Meteorcomm LLC. All Rights Reserved. Proprietary and Confidential 9/8/2011 Do Not Distribute iii Table of Contents 1. Overview ............................................................................................................................. 1 1.1 Applicable Radio Models and Identifiers ................................................................ 1 1.2 General Description ................................................................................................ 1 1.3 Chassis ..................................................................................................................... 2 1.4 Ports and Ethernet Connectors .............................................................................. 2 1.5 Power Connectors ................................................................................................... 2 1.6 Antenna Connectors ............................................................................................... 2 2. Important Information for the User ................................................................................... 3 2.1 Transmitter warm-up period. ................................................................................. 3 2.2 RF Safety ................................................................................................................. 3 2.3 Limiting RF Exposure ............................................................................................... 4 2.4 Fixed Antenna Guidelines ....................................................................................... 4 2.5 RF Interference to Residential Receivers ................................................................ 5 2.6 Equipment Modifications ....................................................................................... 6 3. Setup and Configuration for the Base Radio ...................................................................... 6 3.1 Input Power ............................................................................................................. 6 3.2 Ethernet Connection ............................................................................................... 7 3.3 RF Output Termination ........................................................................................... 7 4. Tuning the Base Radio ........................................................................................................ 7 4.1 Equipment Required ............................................................................................... 8 4.2 Set up the Radio for Testing ................................................................................... 8 4.3 Measure and Calibrate Reference Crystal Oscillator Parameters .......................... 9 4.4 Measure and Adjust Output Power ...................................................................... 10 4.5 Check and Adjust RF Output Channel ................................................................... 11 5. Operations ........................................................................................................................ 12 5.1 Restore Factory Settings ....................................................................................... 12 5.2 Display Software and Firmware Revision Numbers ............................................. 12 5.3 Display Radio Identification Information .............................................................. 12 ITCR Base Radio User's Guide © 2011 Meteorcomm LLC. All Rights Reserved. Proprietary and…

Text truncated - open the document above for the full version.

TÜV SÜD America Inc. Phone: (651) 638-0297 19333 Wild Mountain Road Fax: (651) 638-0298 Taylor Falls, MN 55084 E-mail: [email protected] www.TUVamerica.com Management Service • Product Service • Industry Service TÜV SÜD AMERICA INC 19333 WILD MOUNTAIN ROAD TAYLORS FALLS, MINNESOTA 55084-1786 ENGINEERING STATEMENT For Certification of METEORCOMM LLC Base Radio 24 V Model No: 63030-24 FCC ID: BIB63030-24 FRN: 0021060629 IC: 1300A-6303024 I am an Electromagnetic Compatibility Engineer for TÜV SÜD AMERICA INC, Taylors Falls, Minnesota. My education and experience are a matter of record with the Federal Communications Commission. TÜV SÜD AMERICA INC has been authorized by Larry Corvari, Director, Product Development, of METEORCOMM LLC, to make Certification measurements of the above mentioned equipment. I attest that all testing done under my supervision was done in accordance with, and that the EUT fulfills the requirements of, the Federal Communications Commission's CFR 47 Part 90 and Industry Canada's RSS-119 Issue 11. Joel T. Schneider Senior Engineer Minnesota Wild River Lab TÜV SÜD America Product Service Tel: 651 604 4582 Fax: 651 638 0298 [email protected] Dated: 13 September 2011

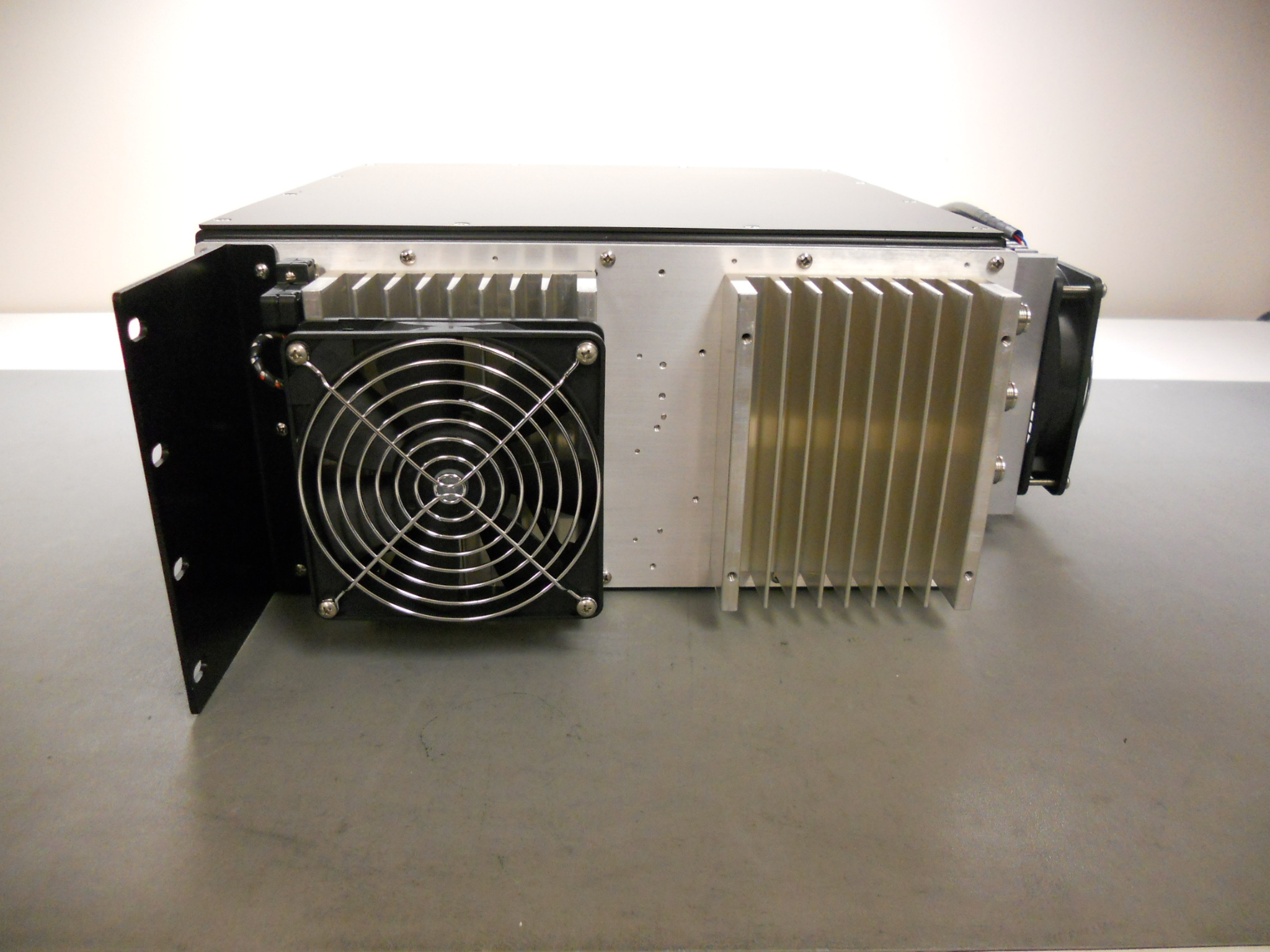

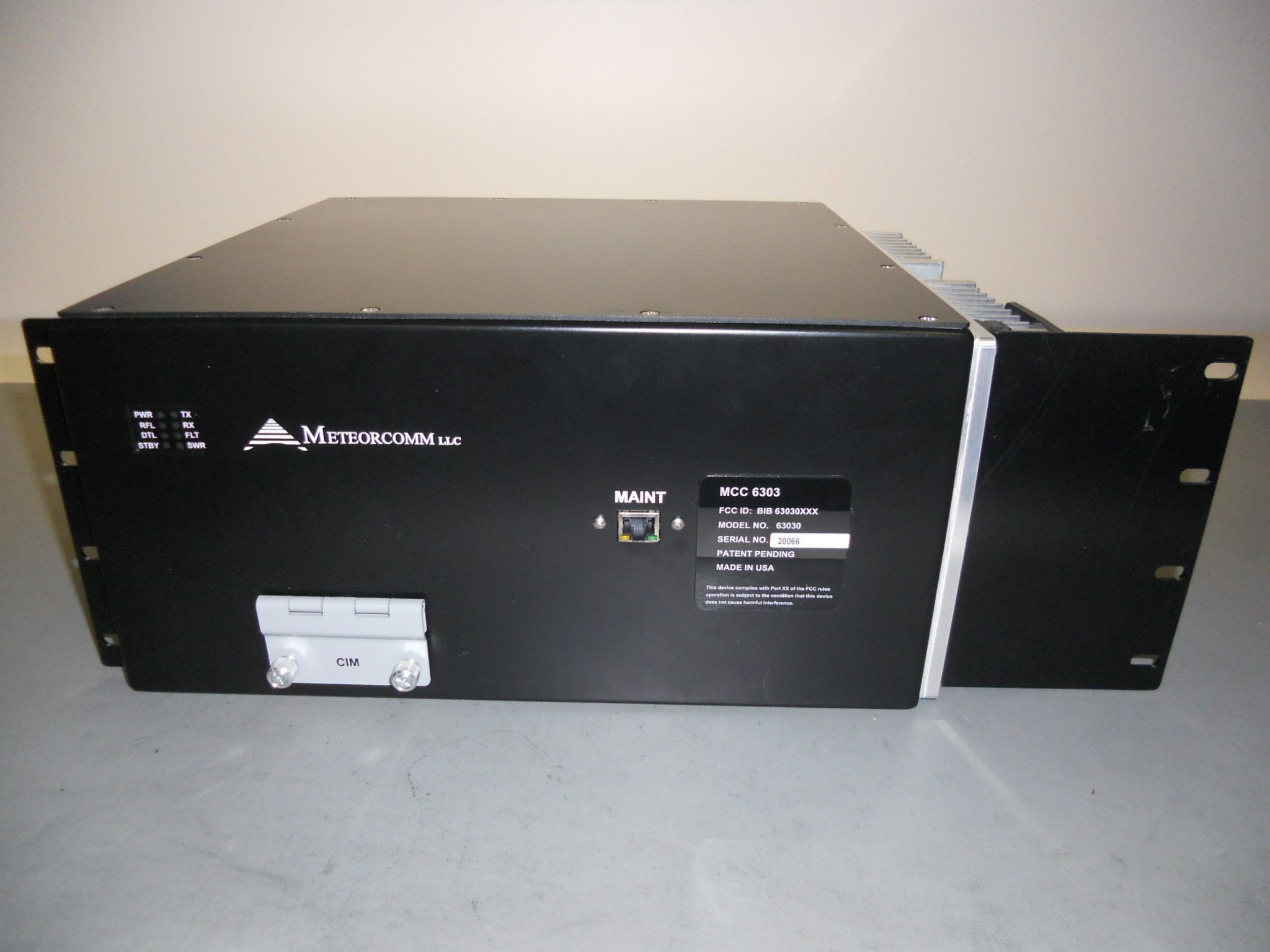

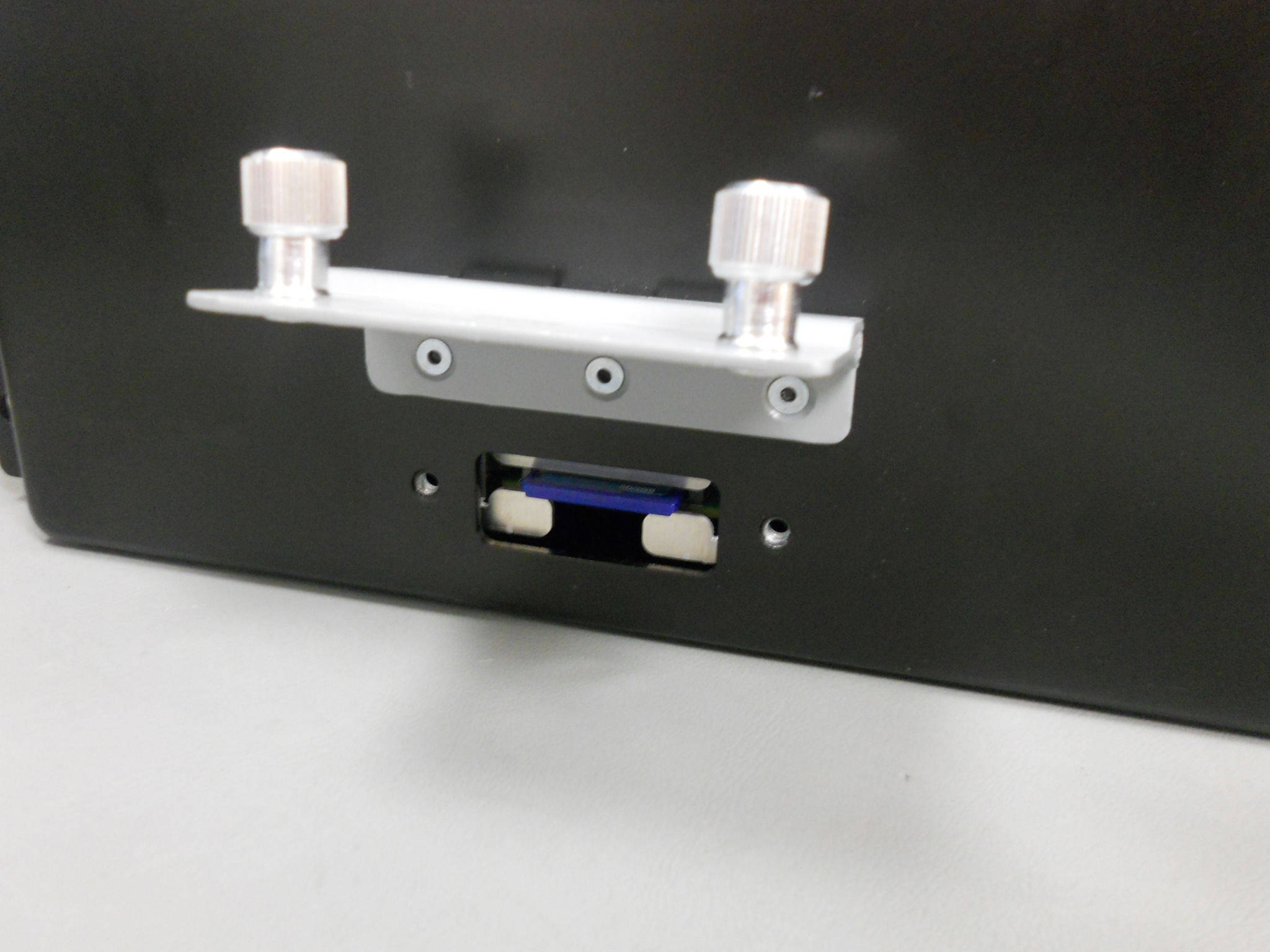

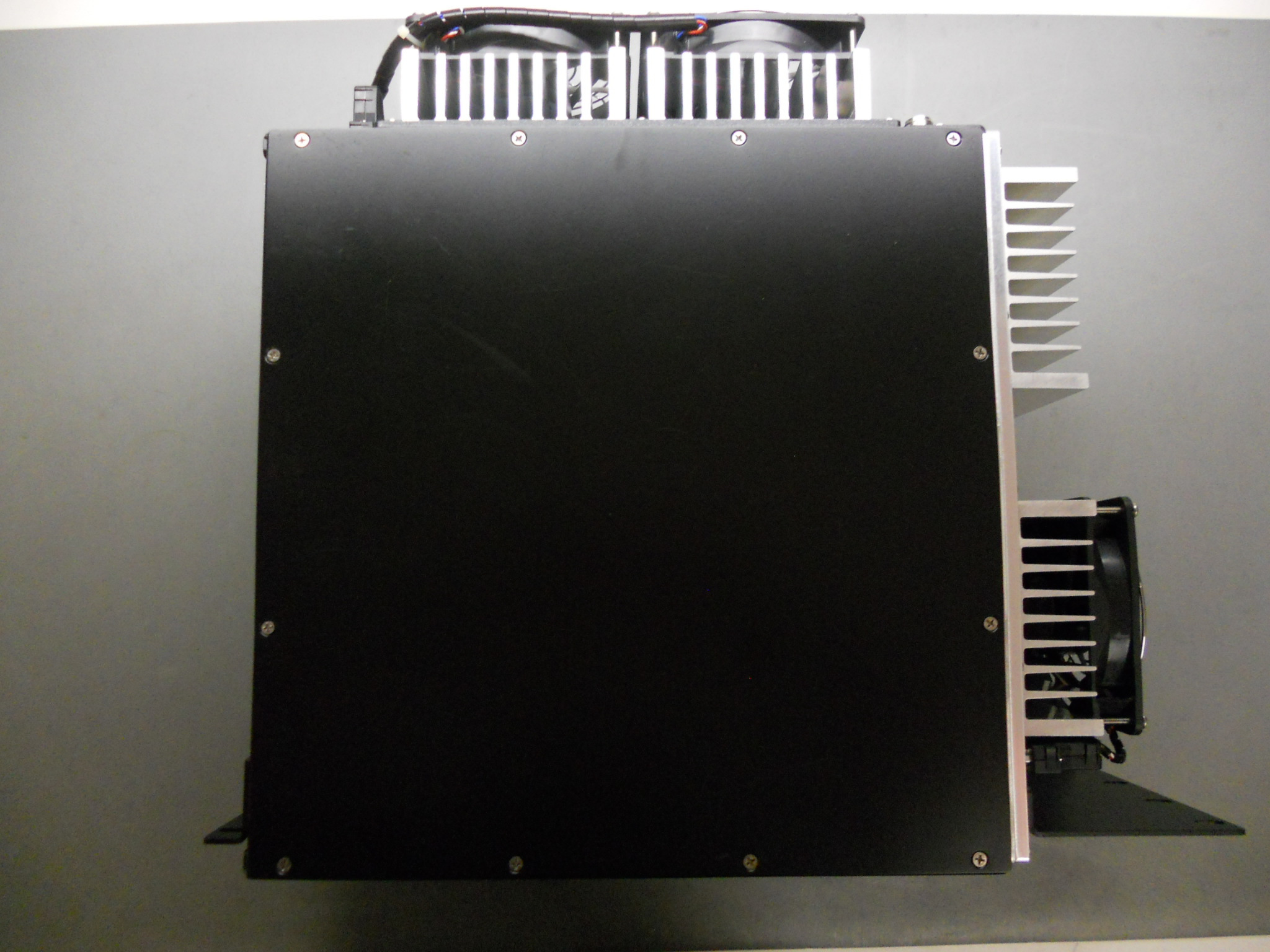

63030 Base Radio - External Pictures Front View See the label exhibit for the actual label 63030 Base Radio - External Pictures Left Side View 63030 Base Radio - External Pictures PA Heatsink (Right) Side View 63030 Base Radio - External Pictures Power Supply Heatsink (Rear) View 63030 Base Radio - External Pictures Top View 63030 Base Radio - External Pictures Bottom View 63030 Base Radio - External Pictures SD Flash Card View

63030 BaseRadio - Internal Pictures Cover removed with Shields in-place 63030 BaseRadio - Internal Pictures Cover opened without Shields 63030 BaseRadio - Internal Pictures Master Board, Top Side 63030 BaseRadio - Internal Pictures Master Board, Bottom Side 63030 BaseRadio - Internal Pictures LED Board, Top Side 63030 BaseRadio - Internal Pictures LED Board, Bottom Side 63030 BaseRadio - Internal Pictures PA Heatsink Assembly 63030 BaseRadio - Internal Pictures PA Modulator Board, Top Side 63030 BaseRadio - Internal Pictures PA Modulator Board, Bottom Side 63030 BaseRadio - Internal Pictures Front End Board, Top Side 63030 BaseRadio - Internal Pictures Front End Board, Bottom Side 63030 BaseRadio - Internal Pictures PA Heasink with Circulator, without boards 63030 BaseRadio - Internal Pictures Power Supply Heatsink Assembly 63030 BaseRadio - Internal Pictures Power Supply Board, Top Side 63030 BaseRadio - Internal Pictures Power Supply Board, Bottom Side 63030 BaseRadio - Internal Pictures Power Supply Board, Side View showing DC-DC Converter brick 63030 BaseRadio - Internal Pictures Power Supply Heatsink without boards 63030 BaseRadio - Internal Pictures Ethernet Interface Board, Top Side 63030 BaseRadio - Internal Pictures Ethernet Interface Board, Bottom Side 63030 BaseRadio - Internal Pictures Base Radio Chassis, without boards 63030 BaseRadio - Internal Pictures Entire Radio, disassembled

FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 TEST REPORT FCC Part 90 FCC Part 15 Subpart B Industry Canada RSS-119, Issue 11: 2011 Industry Canada RSS-Gen, Issue 3: 2009 MANUFACTURER Meteorcomm LLC 1201 SW 7 th Street Renton WA 98057 MODEL NUMBER(S) 63030-24 EUT DESCRIPTION Base Radio 24 V SERIAL NUMBER(S) TESTED BF2A071100062 TEST REPORT NUMBER WC1104224.2B TÜV SÜD America Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the applicable requirements of FCC Part 90, FCC Part 15 Subpart B and RSS-119, Issue 11: 2011 – “Land Mobile and Fixed Radio Transmitters and Receivers Operating in the Frequency Range 27.41-960 MHz”, and RSS-Gen, Issue 3: 2010 – “General Requirements and Information for the Certification of Radio Apparatus.” TÜV SÜD America, Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NARTE, and VCCI. Not Transferable Test Report WC1104224.2B1 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 1.0 TEST RESULT SUMMARY Tables 1 and 2 summarize the results for the tested EUT with respect to the essential requirements defined in FCC Parts 90, 15 and RSS-119, Issue 11 and RSS-Gen, Issue 3. 1.1. Transmitter Table 1: Transmitter results summary - mobile FCC Section Test Measured Limit Result §2.1033(c)(5) §90.35, §90.715 Frequency ranges 217-220 MHz – N/A 220-222 MHz Complies §2.1033(c)(6), (7) §2.1046, §90.205 §90.259, §90.729 Power 2 W 217-220 MHz – N/A 250 W 220-221 MHz 50 W 221-222 MHz Complies §2.1033(c)(4) §2.1047, §90.210 Emission types Information only §2.1033(c)(4) §2.1047, §90.210 Emission mask F – 220-222 MHz B – 217-220 MHz – N/A Complies §2.1049, §90.209 §90.259, 90.733(d) Bandwidth 50/25/12.5/6.25 kHz – 217-220 MHz – N/A 4 kHz – 220-222 MHz 4 Complies §2.1051, §2.1057 §90.210 Spurious emissions Case radiation Mask B - -13 dBm – N/A Mask F - -25 dBm Complies §2.1055, §90.213 Frequency stability 1 ppm – 217-220 MHz – N/A 0.1 ppm – 220-222 MHz Complies §15.109 Receiver emissions Complies RSS-119 Clause Test Measured Limit Result RSS-119 Frequency ranges 217-220 MHz – N/A 220-222 MHz 1 Complies 5.4.4 SRSP-512 Power 5 W 217-218 MHz – N/A 5 W 219-220 MHz – N/A 125 W 220-221 MHz 2 50 W 221-222 MHz Complies 5.5 Table 3 Emission mask D or J – 217-218 MHz 3 – N/A D or J – 219-220 MHz 3 – N/A F – 220-222 MHz Complies 5.5 Table 3 Emission types Information only 5.5 Table 3 Bandwidth 11.25 kHz – 217-218 MHz – N/A 11.25 kHz – 219-220 MHz – N/A 4 kHz – 220-222 MHz Complies 5.8 Spurious emissions Mask D/J - -20 dBm – N/A Mask F - -25 dBm Complies 5.3 Frequency stability 5 ppm – 217-218 MHz – N/A 5 ppm – 219-220 MHz – N/A 0.1 ppm – 220-222 MHz Complies RSS-Gen Issue 3 Receiver emissions Complies 1 RSS-119 limits operation to 217-218 MHz and 219-222 MHz. 2 See SRSP-512 3 D or I if device has audio filter 4 Licensees, except for licensees authorized on Channels 161 through 170 and 181 through 185, may combine any number of their authorized, contiguous channels (including channels derived from multiple authorizations) to form channels wider than 5 kHz. NOTE: Antenna gain = per license. Test Report WC1104224.2B2 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 REVISION RECORD REVISION TOTAL NUMBER OF PAGES DATE DESCRIPTION 122 12 July 2011 Initial Release Test Report WC1104224.2B3 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 List of contents Page 1. Test result summary 2 2. Introduction 5 3. Testing laboratory 5 4. Applicant 6 5. Product and product documentation 6 6. Conclusions, observations and comments 7 7. Environmental conditions in the lab 8 8. Transmitter parameters 9 8.1 Frequency ranges 9 8.2 Power 10 - 14 8.3 Emission mask 15 - 17 8.4 Bandwidth 18 - 20 8.5 Spurious emissions 21 - 82 8.6 Frequency stability 83 - 85 8.7 Receiver emissions 86 - 108 9. Photographs of the EUT test setup 109 - 114 10. EUT information 115 – 122 Test Report WC1104224.2B4 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 2. Introduction This testing is intended to verify the Meteorcomm 63030-24 24V Base Radio is performing in accordance with the requirements of FCC Part 90, RSS-Gen and RSS-119. This test report consists of: • Test result summary • List of contents • Introduction and further information • Equipment application data • Detailed test information • List of measurement equipment with calibration validity • Photographs and further test results (plots, graphs, etc.) All pages have been numbered consecutively and bear TÜV SÜD America, the test report number, the date, the test specification in its current version as well as the type designation of the EUT. The total number of pages in this report is 122. The tests were carried out on a representative assembly and in accordance with the test methods stated in: ANSI C63.4-2003; ANSI TIA-603-C, 2004. The sample(s) of the product was received on: 09 May 2011 The tests were carried out in the following period of time: 09 - 27 May 2011 3. Testing laboratory The tests were carried out at TÜV SÜD America: Wild River Lab Oakwood Lab „ 19333 Wild Mountain Road Oakwood Town Road Taylors Falls MN 55084 Millville MN 55957-0255 Large Test Site Open Area Test Site † Small Test Site Open Area Test Site † Accredited by: Accredited by: NVLAP NVLAP Accreditation number 200696-0 Accreditation number 200695-0 New Brighton Environmental Testing Lab † 1775 Old Highway 8 NW New Brighton MN 55112 The…

Text truncated - open the document above for the full version.

FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 75 watt peak power Modulation: DQPSK_HALF Low channel: 220.0125 MHz Close in emissions Test Report WC1104224.2B62 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 75 watt peak power Modulation: DQPSK High channel: 221.9875 MHz Test Report WC1104224.2B63 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 75 watt peak power Modulation: DQPSK High channel: 221.9875 MHz Close in emissions Test Report WC1104224.2B64 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 75 watt peak power Modulation: DQPSK_HALF High channel: 221.9875 MHz Test Report WC1104224.2B65 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 75 watt peak power Modulation: DQPSK_HALF High channel: 221.9875 MHz Close in emissions Test Report WC1104224.2B66 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 10 watt peak power Modulation: DQPSK Low channel: 220.0125 MHz Test Report WC1104224.2B67 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 10 watt peak power Modulation: DQPSK_HALF Low channel: 220.0125 MHz Test Report WC1104224.2B68 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 10 watt peak power Modulation: DQPSK High channel: 221.9875 MHz Test Report WC1104224.2B69 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 10 watt peak power Modulation: DQPSK_HALF High channel: 221.9875 MHz Test Report WC1104224.2B70 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 10 watt peak power Modulation: DQPSK Low channel: 220.0125 MHz Test Report WC1104224.2B71 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 10 watt peak power Modulation: DQPSK_HALF Low channel: 220.0125 MHz Test Report WC1104224.2B72 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 10 watt peak power Modulation: DQPSK High channel: 221.9875 MHz Test Report WC1104224.2B73 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC Conducted Emissions below 1 GHz Tx port Transmit mode 10 watt peak power Modulation: DQPSK_HALF High channel: 221.9875 MHz Test Report WC1104224.2B74 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC / Industry Canada Conducted Emissions above 1 GHz Tx port Transmit mode 75 watt peak power Modulation: DQPSK Low channel: 220.0125 MHz Test Report WC1104224.2B75 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC / Industry Canada Conducted Emissions above 1 GHz Tx port Transmit mode 75 watt peak power Modulation: DQPSK_HALF Low channel: 220.0125 MHz Test Report WC1104224.2B76 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC / Industry Canada Conducted Emissions above 1 GHz Tx port Transmit mode 75 watt peak power Modulation: DQPSK High channel: 221.9875 MHz Test Report WC1104224.2B77 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC / Industry Canada Conducted Emissions above 1 GHz Tx port Transmit mode 75 watt peak power Modulation: DQPSK_HALF High channel: 221.9875 MHz Test Report WC1104224.2B78 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC / Industry Canada Conducted Emissions above 1 GHz Tx port Transmit mode 10 watt peak power Modulation: DQPSK Low channel: 220.0125 MHz Test Report WC1104224.2B79 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 FCC / Industry Canada Conducted Emissions above 1 GHz Tx port Transmit mode 10 watt peak power Modulation: DQPSK_HALF Low channel: 220.0125 MHz Test Report WC…

Text truncated - open the document above for the full version.

FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 9. Test-setup photo(s): Radiated emissions Test Report WC1104224.2B109 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Radiated emissions Test Report WC1104224.2B110 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Radiated emissions Test Report WC1104224.2B111 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Radiated emissions Test Report WC1104224.2B112 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Conducted emissions Test Report WC1104224.2B113 of 122 FCC Part 90 / IC RSS-119 12 July 2011 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN USA 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Conducted emissions, frequency stability Test Report WC1104224.2B114 of 122
