BJ4-5985BLELED Bluetooth Fixture

THANK YOU We appreciate the trust and confidence you have placed in Defiant through the purchase of this motion security light. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Defiant! USE AND CARE GUIDE MOTION SECURITY LIGHT Questions, problems, missing parts? Before returning to the store, call Defiant Customer Service 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-866-308-3976 HOMEDEPOT.COM Item #1001318516 1001311061 Model #DFI-5985-BZ DFI-5985-WH Model # 5985 Serial # DFI-5985-BZ, DFI-5985-WH 2 Table of Contents Table of Contents ......................................2 Safety Information ....................................2 Warranty ...................................................2 5-Year Limited Warranty ........................2 Pre-Installation .........................................3 Planning Installation ..............................3 Specifications ........................................3 Tools Required .......................................3 Hardware Included .................................4 Package Contents ..................................4 Installation ................................................5 Operation...................................................7 Care and Cleaning ..................................11 Troubleshooting ......................................11 Safety Information PRECAUTIONS ƑPlease read and understand this entire manual before attempting to assemble, install, or operate this light fixture. ƑThis light fixture requires a 120-Volt AC power source. ƑSome codes require installation by a qualified electrician. ƑThis light fixture must be properly grounded. ƑThis light fixture should be installed outdoors to a wall or eave. ƑThe light fixture should be mounted approximately 8 ft. (2.4 m) above the ground. If the light fixture is mounted higher than recommended, aiming the sensor down will reduce the coverage area. WARNING: Turn the power off at the circuit breaker or fuse. Place tape over the circuit breaker switch and verify power is off at the light fixture. WARNING: Risk of fire. Keep the lamp heads at least 2 in. (51 mm) from combustible materials. CAUTION: Burn hazard. Allow the light fixture to cool before touching. ƑThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ƑCAN ICES-3 (B)/NMB-3(B) Warranty 5-YEAR LIMITED WARRANTY WHAT IS COVERED This product is guaranteed to be free of factory defective parts and workmanship for a period of 5 years from date of purchase. Purchase receipt is required for all warranty claims. WHAT IS NOT COVERED This guarantee does not include repair service, adjustment and calibration due to misuse, abuse or negligence, or LEDs. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, unauthorized service, or return shipping charges. This warranty is not extended to other equipment and components that a customer uses in conjunction with this product. Contact the Customer Service Team at 1-866-308-3976 or visit www.homedepot.com. 3 HOMEDEPOT.COM Please contact 1-866-308-3976 for further assistance. Pre-Installation PLANNING INSTALLATION Before installing the light fixture, ensure that all parts are present. Compare parts with the Hardware Included and Package Contents sections. If any part is missing or damaged, do not attempt to assemble, install, or operate this light fixture. Estimated installation time: 30 minutes SPECIFICATIONS Range Up to 70 ft. (21.3 m) (Varies with surrounding temperature) Sensing angle Up to 270° Electrical load - LED 28 Watts Lumens 2350 Power requirements 120 VAC, 60 Hz Operating modes Test, Motion activated, Manual Time delay 1, 5, 20 minutes DualBrite timer Off, 3 hours, 6 hours, dusk-to-dawn Mobile device requirements iPhone 4S or newer running iOS 7.x or later. Android v4.3 or later. Phone must also have Bluetooth ® version 4.0 or later. TOOLS REQUIRED Phillips screwdriver 1/8 in. Flathead screwdriver Wire strippers/ cutters Circuit testerWork gloves Silicone sealant LadderSafety gogglesMobile Device 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware shown to actual size. AA BB CC DD EE FF FRONT GG HH PartDescriptionQuantity AARubber plug1 BBMounting bracket screw2 CCMounting bracket screw2 DDMounting bracket screw2 EELarge mounting bolt (pre-installed)1 FFSmall mounting bolt1 GGMounting bracket (not to scale)1 HHMini screwdriver1 PACKAGE CONTENTS PartDescriptionQuantity ALamp head2 BLight fixture1 CMotion sensor1 D 1-2- asy Connect™ 1 C A D B 5 HOMEDEPOT.COM Please contact 1-866-308-3976 for further assistance. Installation 1 Determining the mounting location NOTE: The light fixture should be mounted approximately 8 ft. (2.4 m) above the ground. If the light fixture is mounted higher than recommended, aiming the sensor down will reduce the coverage area. ƑDetermine the mounting location – wall or eave mount. ƑPosition the lamp heads (A) in the general direction of the desired light coverage. ƑIf needed, rotate the motion sensor (C) so the text faces upward. Wall Mount Eave Mount 2 Removing the 1-2-asy Connect™ NOTE: This fixture comes with a 1-2-asy Connect™ (D). It is pre-assembled on the light fixture (B) for shipping. NOTE: The large mounting bolt (EE) is pre-installed in the light fixture (B). Do not attempt to remove the large mounting bolt (EE). ƑUnscrew the large mounting bolt (EE) connecting the light fixture (B) to the 1-2- asy Connect™ (D) and remove the 1-2- asy Connect™ (D). 3 Installing the mountin…

Text truncated - open the document above for the full version.

Date: March, 11 th , 2015 Letter of Agency "I, an officer of (HeathCo LLC) do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated:___March ____ this day_11th_____ of 2015__ By:__ _______ Printed Name:_Jeff Bessinger _______ Title:_Associate Engineer ___________ Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

Attention: Application Examiner Re: Request for confidentiality Applicant: [HeathCo LLC] FCC ID: [BJ4-5985BL E] To w hom it may concern, Permanent Confidentiality Request is hereby submitted by {HeathCo LLC] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Authorization: Rationale for request for confidentiality: [HeathCo LLC] has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. [For FCC certification; delete for TCB certification: The fee for confidentiality has been submitted along with the fee for certification.] If you have questions or need further information, please contact the undersigned. Sincerely, [ ] [Associate Engineer] [HeathCoLLC]

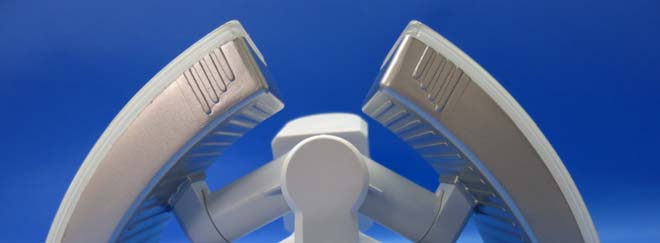

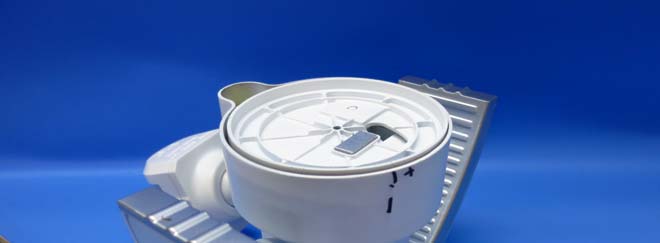

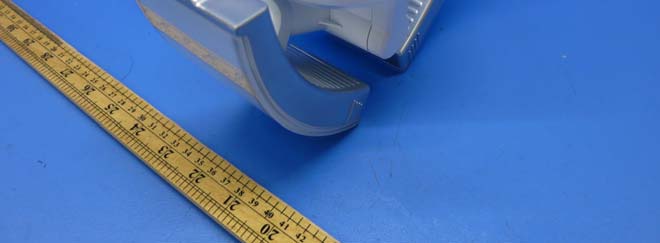

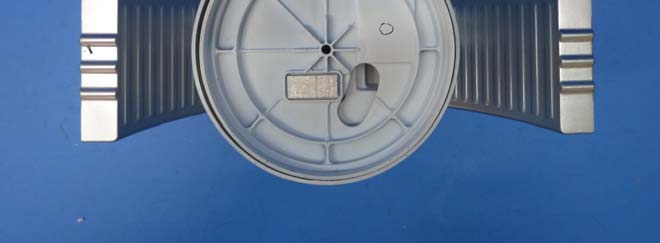

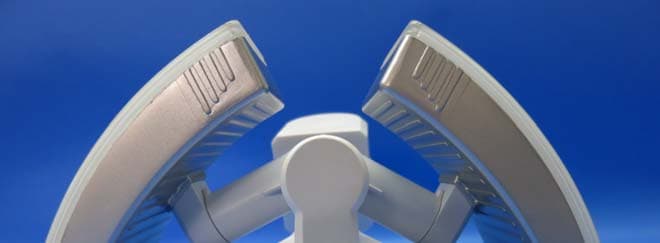

INTERTEK TESTING SERVICE Report No.: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Equipment Photographs Model : 5985 (External) INTERTEK TESTING SERVICE Report No.: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Equipment Photographs Model : 5985 (External)

FCC ID: XXX 5985BLZIC : 3984A-5985BLZ FCC ID: XXX 5985BLZIC : 3984A-5985BLZ ˇ ˆ ˅ ˄ ̆ ˗ ˖˕ ˔ ˈˉˊ 40 mm 10 mm 5985 FCC Brand: Heath/Zenith Model: 5985 FCC ID: XXX 5985BLZ IC : 398 4A- 5985 BLZ Brand: Heath/Zenith Model: 5985 FCC ID: XXX 5985BLZ IC : 3984A-5985BLZ 18 mm18 mm Brand: Heath/Zenith Model: 5985 FCC ID: BJ4-5985BLZ IC : 3984A-5985BLZ Brand: Heath/Zenith Model: 5985 FCC ID: BJ4-5985BLZ IC : 3984A-5985BLZ Brand: Heath/Zenith Model: 5985 FCC ID: BJ4-5985BL E IC : 3984A-5985BL E BLE BLE BLE BLE

INTERTEK TESTING SERVICE Report No.: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Equipment Photographs Model : 5985 (Internal) INTERTEK TESTING SERVICE Report No.: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Equipment Photographs Model : 5985 (Internal) INTERTEK TESTING SERVICE Report No.: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Equipment Photographs Model : 5985 (Internal) INTERTEK TESTING SERVICE Report No.: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Equipment Photographs Model : 5985 (Internal) INTERTEK TESTING SERVICE Report No.: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Equipment Photographs Model : 5985 (Internal) INTERTEK TESTING SERVICE Report No.: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Equipment Photographs Model : 5985 (Internal) INTERTEK TESTING SERVICE Report No.: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Equipment Photographs Model : 5985 (Internal) INTERTEK TESTING SERVICE Report No.: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Equipment Photographs Model : 5985 (Internal) INTERTEK TESTING SERVICE Report No.: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Equipment Photographs Model : 5985 (Internal)

Analysis Report Report No.: 15010067HKG-001 The Equipment Under Test (EUT) is a 2.4GHz BLE transceiver for LED light that operated at 2402MHz to 2480MHz (39 channels with 2MHz channel spacing. The EUT is powered by 120VAC. After pairing with smartphone, the EUT can be controlled by smartphone via Bluetooth. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 96.9 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 6dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 102.9dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 5.850mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =5.850mW. The power density at 20cm = 5.850 *1.00/ 4πR2 = 0.00116 mWcm-2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons.

- Intertek's standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 15010067HKG-001R1 HeathCo LLC Application For Certification (Original Grant ) (FCC ID: BJ4-5985BLE) (IC: 3984A-5985BLE) Transceiver This verification supersedes previous verification with Verification/Report number(s) 15010067HKG-001 dated March 20, 2015. Prepared and Checked by: Approved by: Signed On File Leung Chiu Kuen, Stanley Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: April 08, 2015 INTERTEK TESTING SERVICES Report No.: 15010067HKG-001R1 i FCC ID: BJ4-5985BLE IC: 3984A-5985BLE GENERAL INFORMATION Grantee: HeathCo LLC Grantee Address: 2445 Nashville Road, Bowling Green, KY 42101 Contact Person: Jeff Bessinger Tel: 270-846-8271, NA Fax: 270-846-8271, NA e-mail: [email protected] Manufacturer: Living Style Enterprises Ltd. Manufacturer Address: NO.168 SanJiang Industrial HengliTown DongGuan City GuangDong Province Brand Name: Secure Home, Heath/Zenith Model: 5985 Type of EUT: Transceiver Description of EUT: LED Bluetooth Fixture Serial Number: N/A FCC ID / IC: BJ4-5985BLE / 3984A-5985BLE Date of Sample Submitted: January 05, 2015 Date of Test: January 05, 2015 to January 30, 2015 Report No.: 15010067HKG-001R1 Report Date: April 08, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 15010067HKG-001R1 ii FCC ID: BJ4-5985BLE IC: 3984A-5985BLE SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Radiated Emission Radiated Emission on the Bandedge 15.249 / RSS-210 A2.9 Pass Restricted Band of operation 15.205 / RSS- 210 Section 2.2 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 4, December 2014 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 15010067HKG-001R1 iii FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .................................................................................. 2 2.5 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 3.4 Conducted Emission Configuration Photograph ................................................. 4 3.5 Conducted Emission Data.................................................................................. 4 4.0 Equipment Photographs ..................................................................................... 9 5.0 Product Labelling................................................................................................ 9 6.0 Technical Spec…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model : 5985 INTERTEK TESTING SERVICE Report No: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE ii Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) Model : 5985 INTERTEK TESTING SERVICE Report No: 15010067HKG-001 FCC ID: BJ4-5985BLE IC: 3984A-5985BLE iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model : 5985

INTERTEK TESTING SERVICE FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Configuration Photographs Worst-Case Radiated Emissions Model : 5985 INTERTEK TESTING SERVICE FCC ID: BJ4-5985BLE IC: 3984A-5985BLE Configuration Photographs Worst-Case Radiated Emissions Model : 5985
