BJ4-WLTX208Wireless Door Chime Transmitter

THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this wireless motion alert doorbell kit. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay! DRAFT COPY USE AND CARE GUIDE WIRELESS MOTION ALERT DOORBELL KIT Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 5 p.m., CST, Monday - Friday 1-844-760-3644 HAMPTONBAY.COM Illustrations may vary from actual unit. Item #0000000000 Model #HB-7903-02 2 Table of Contents Table of Contents .......................................2 Safety Information .....................................2 Warranty ....................................................2 3-Year Limited Warranty ........................2 Pre-Installation ..........................................3 Planning Installation ..............................3 Specifications ........................................3 Tools Required .......................................3 Hardware Included .................................3 Package Contents ..................................4 Installation .................................................4 Operation ...................................................6 Care and Cleaning .....................................8 Troubleshooting .........................................8 Safety Information PRECAUTIONS □Please read and understand this entire manual before attempting to assemble, install, or operate this doorbell. □All electrical work must be in accordance with national and local electrical codes. If in doubt, consult a qualified electrician. WARNING: To prevent possible SERIOUS INJURY or DEATH never allow small children near batteries. If a battery is swallowed, immediately notify doctor. WARNING: Risk of fire. Do not plug the doorbell into a power inverter. NOTE: The motion sensor, push button, and doorbell come synced from the factory. The range of the wireless doorbell can vary with location, temperature, and battery condition. This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user is cautioned that changes or modifications not expressly approved by the party responsible for regulatory compliance could void the user’s authority to operate the equipment. Warranty 3-YEAR LIMITED WARRANTY WHAT IS COVERED This product is guaranteed to be free of factory defective parts and workmanship for a period of 3 years from date of purchase. Purchase receipt is required for all warranty claims. WHAT IS NOT COVERED This warranty does not include expendable items (such as light bulbs, batteries, etc.), repair service, adjustment and calibration due to misuse, abuse or negligence. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, unauthorized service, or return shipping charges. This warranty is not extended to other equipment and components that a customer uses in conjunction with this product. Contact the Customer Service Team at 1-844-760-3644 or visit www.hamptonbay.com. 3 HAMPTONBAY.com Please contact 1-844-760-3644 for further assistance. Pre-Installation PLANNING INSTALLATION Before installing the wireless motion alert doorbell kit, ensure that all parts are present. Compare the parts with the Hardware Included and Package Contents sections. If any part is missing or damaged, do not attempt to assemble, install, or operate this wireless motion alert doorbell kit. Estimated installation time: 30 minutes SPECIFICATIONS DoorbellPush buttonMotion sensor Power requirements 120V, 60 HzType A23 12V battery (included) 2x - Type “AAA” 1.5V battery (not included) TOOLS REQUIRED Phillips screwdriver Small flathead screwdriver Drill 1/16 in. (1.5 mm) Drill bit Safety goggles HARDWARE INCLUDED NOTE: Hardware shown to actual size. AA BB CC PartDescriptionQuantity AAJumper1 BBScrew4 CCDouble-sided tape1 4 Pre-Installation (continued) PACKAGE CONTENTS PartDescriptionQuantity ADoorbell1 BMotion sensor1 CPush button1 Installation 1 Installing the doorbell □Plug in the doorbell (A) at the desired location. 2 Installing the batteries into the motion sensor □Remove the screw and cover on the back of the motion sensor (B) using a small Phillips screwdriver (not included). □Install two “AAA” batteries. Ensure the batteries are oriented correctly. □Replace the cover on the back of the motion sensor (B) and tighten the screw. A B C B A 5 HAMPTONBAY.com Please contact 1-844-760-3644 for further assistance. Installation (continued) 3 Removing the battery tab □Remove the backs of the push button (C) by pushing in the tab on the bottom with a small flathead screwdriver (not included). □Remove the orange battery tab from the push button (C). 4 Testing the push button and doorbell □Temporarily position the push button (C) where it will be mounted. □Press the push button (C) to verify the doorbell (A) and push button (C) work properly. □If the doorbell (A) does not sound, move the doorbell (A) closer to the push button (C) and test again. NOTE: Do not permanently mount the sensor or push button until the sensor, push button, and doorbell are all working properly. 5 Testing the sensor and doorbell In most cases, testing of the motion sensor requires two people; one person to activate the sensor (B) and the other to listen for the doorbell (A) to sound. □On the bottom of the motion sensor (B), slide the ON-TIME switch to the “TEST” position. □Temporarily position the sensor (B) near the desired mounting loc…

Text truncated - open the document above for the full version.

LETTER OF AGENCY To Whom It May Concern: “I, an officer of HeathCo LLC. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice. “ I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862 Company Name: HeathCo LLC. Contact Person Name: Jeff Bessinger. Title: Associate Engineer. Phone: 270-846-8271. Fax: 270-846-8501. e-mail: [email protected]. Signature: Date: June 3 rd , 2015.

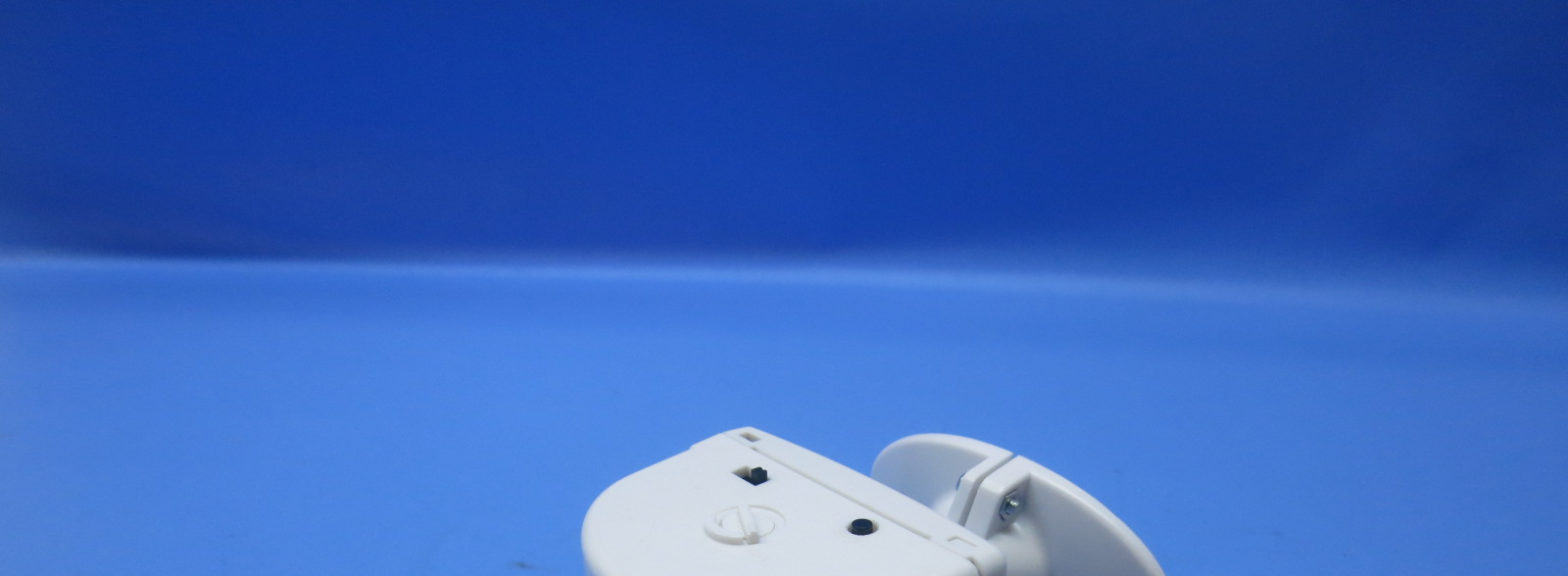

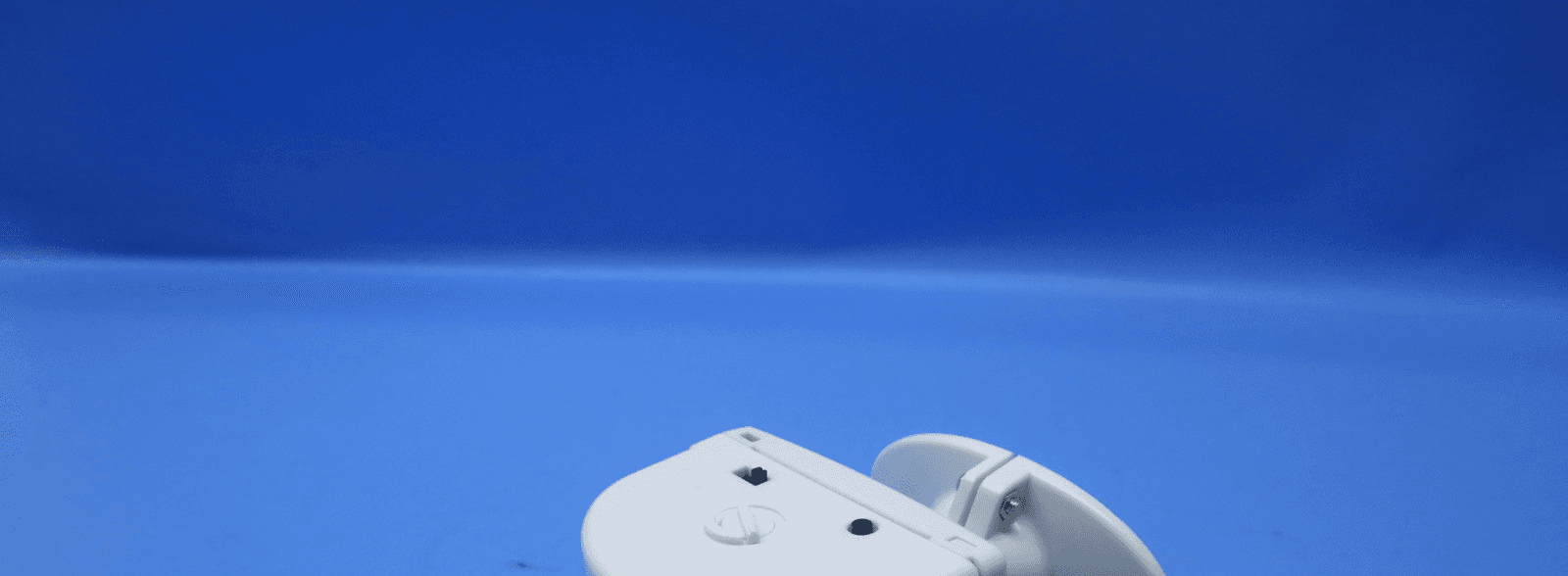

INTERTEK TESTING SERVICE Report No.: 15051548HKG-001 FCC ID: BJ4-WLTX208 IC: 3984A-WLTX208 Equipment Photographs Model: WLTX-208 (External)

INTERTEK TESTING SERVICE Report No.: 15051548HKG-001 FCC ID: BJ4-WLTX208 IC: 3984A-WLTX208 Equipment Photographs Model: WLTX-208 (Internal) INTERTEK TESTING SERVICE Report No.: 15051548HKG-001 FCC ID: BJ4-WLTX208 IC: 3984A-WLTX208 Equipment Photographs Model: WLTX-208 (Internal) INTERTEK TESTING SERVICE Report No.: 15051548HKG-001 FCC ID: BJ4-WLTX208 IC: 3984A-WLTX208 Equipment Photographs Model: WLTX-208 (Internal) INTERTEK TESTING SERVICE Report No.: 15051548HKG-001 FCC ID: BJ4-WLTX208 IC: 3984A-WLTX208 Equipment Photographs Model: WLTX-208 (Internal) INTERTEK TESTING SERVICE Report No.: 15051548HKG-001 FCC ID: BJ4-WLTX208 IC: 3984A-WLTX208 Equipment Photographs Model: WLTX-208 (Internal) INTERTEK TESTING SERVICE Report No.: 15051548HKG-001 FCC ID: BJ4-WLTX208 IC: 3984A-WLTX208 Equipment Photographs Model: WLTX-208 (Internal)

Analysis Report Report No.: 15051548HKG-001 The equipment under test (EUT) is a Motion Sensor operating at 315MHz. The EUT is powered by 3VDC AAA batteries. While someone walking in front of the EUT, the red LED on the sensor will flash and it will transmit RF signal to the corresponding receiver (i.e. Doorbell). A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. For sensor part, a transmitter activated automatically shall cease transmission within 5 seconds after activation. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 77.0dBμV/m at 3m Maximum allowed field strength of production tolerance: +3dB / - 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 80.0dBμV/m at 3m in frequency 315MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.030mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.030mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.315) mW = 26.7 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

- Intertek's standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 15051548HKG-001R1 HeathCo LLC Application For Certification (Original Grant) (FCC ID: BJ4-WLTX208) (IC: 3984A-WLTX208) Transmitter This report supersedes previous report with report number 15051548HKG-001 dated June 22, 2015 Prepared and Checked by: Approved by: Signed On File Josie Yao Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: July 07, 2015 INTERTEK TESTING SERVICES Report No.: 15051548HKG-001R1 i FCC ID: BJ4-WLTX208 IC: 3984A-WLTX208 GENERAL INFORMATION FCC Grantee: HeathCo LLC FCC Grantee Address: 2445 Nashville Road, Bowling Green, Kentucky 42101, United States. IC Grantee: HeathCo LLC IC Grantee Address: 2445 Nashville Road, Bowling Green, KY 42102, USA. Contact Person: Jeff Bessinger Tel: 270-846-8271 Fax: 270-846-8501 e-mail: [email protected] Manufacturer: Golden Wealth Industrial Ltd Manufacturer Address: Unit G, 9/F, Valiant Industrial Center, 2-12 Au Pui Wan Street, Fotan, N.T., Hong Kong. Brand Name: HeathCo LLC Model: WLTX-208 Type of EUT: Transmitter Description of EUT: Wireless Door Chime Transmitter Serial Number: N/A FCC ID / IC: BJ4-WLTX208 / 3984A-WLTX208 Date of Sample Submitted: May 27, 2015 Date of Test: May 27, 2015 to June 19, 2015 Report No.: 15051548HKG-001R1 Report Date: July 07, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 15051548HKG-001R1 ii FCC ID: BJ4-WLTX208 IC: 3984A-WLTX208 SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 4, December 2014 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 15051548HKG-001R1 iii FCC ID: BJ4-WLTX208 IC: 3984A-WLTX208 Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Measurement Uncertainty...............................................................................2 2.5 Support Equipment List and Description.........................................................2 3.0 Emission Results .............................................................................................3 3.1 Field Strength Calculation...............................................................................3 3.2 Radiated Emission Configuration Photograph ................................................4 3.3 Radiated Emission Data .................................................................................4 4.0 Equipment Photographs ..................................................................................7 5.0 Product Labelling .............................................................................................7 6.0 Technical Specifications .................................................................................7 7.0 Instruction Manual ...........................................................................................7 8.0 Miscellaneous Information ..............................................................................8 8.1 Measured…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 15051548HKG-001 FCC ID: BJ4-WLTX208 IC: 3984A-WLTX208 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: WLTX-208 INTERTEK TESTING SERVICE Report No: 15051548HKG-001 FCC ID: BJ4-WLTX208 IC: 3984A-WLTX208 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: WLTX-208
