BJ4-9000Connected Wired Decorative Motion Light

FCC DRAFT COPY © 2019 HeathCo LLC 210267-01A INSTALLATION AND OPERATING INSTRUCTIONS SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 PREPARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 HARDWARE CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 LIGHT FIXTURE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 WIRING THE LIGHT FIXTURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 MOUNTING THE LIGHT FIXTURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 TESTING AND ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 HZCONNECT APP INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 RESET BUTTON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 TECHNICAL SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 ONE YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Connected Wired Decorative Motion Light Model 9000 Motion Decorative Light Questions? Please refer to the troubleshooting guide in this manual or call our technical service department (English speak- ing only) at 1-800-858-8501, 8:00 a .m . - 5:00 p .m ., CST, Monday - Friday before returning to your retailer . Keep this manual for future reference. ATTACH YOUR RECEIPT HERE Receipt is required for all warranty requests . Purchase Date For a description of the DualBrite® technology, see page 6 . 2210267-01 SAFETY INFORMATION Please read and understand this entire manual before at- tempting to assemble, operate, or install the product. This light fixture requires 120-volts AC. All wiring must be in accordance with the National Electrical Code (Canadian Electrical Code in Canada). Some local electrical codes require installation by a qualified electrician. WARNING • Turn power off at circuit breaker or fuse when wiring fixture or replacing bulbs. Place tape over circuit breaker switch and verify power is off at the fixture. CAUTION • Do not cut any wires that have factory installed wire connectors or remove the wire connectors. 3x – Wire Connectors 2x – Mounting Bracket Screw HARDWARE CONTENTS Note: Illustrations may vary from actual unit. A - (1x) Mounting Bracket B - (2x) Fixture Mounting Screws C - (2x) Decorative Nut (This assembly is attached to the rear of the lantern canopy .) A B C PREPARATION Before beginning installation of product, make sure all parts are present. Compare parts with hardware contents list. If any part is missing or damaged, do not attempt to assemble, install, or operate the product. Tools Required for Assembly (not included): Phillips and flathead screwdrivers, pliers, wire strippers/cutters, multi- meter, electrical tape, silicone sealant, safety glasses, work gloves, and ladder • Do not connect to dimmers or timers. • For best performance, mount fixture about 6 feet (1.8 m) above the ground. Estimated Installation Time: 30 minutes This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-005 (B)/NMB-005 (B) Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. FCC Responsible Party Name: HeathCo LLC Address: 2445 Nashville Road, Bowling Green, KY 42101 U.S.A. Telephone Number: 800-858-8501 Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons. 3210267-01 Mounting Bracket LIGHT FIXTURE INSTALLATION For best performance, mount the fixture about 6 feet (1.8 m) above the ground. 1. Remove two decorative nuts. 2. Remove mounting bracket. 3. Tighten mounting screws finger tight. 4. Attach mounting bracket to junction box. Decorative Nut Mounting Screw Note: We recommend having an assistant help hold the lantern assembly during the wiring process. WIRING THE LIGHT …

Text truncated - open the document above for the full version.

FCC DRAFT COPY © 2019 HeathCo LLC 210268-01A INSTALLATION AND OPERATING INSTRUCTIONS SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 PREPARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 HARDWARE CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 LIGHT FIXTURE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 WIRING THE LIGHT FIXTURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 MOUNTING THE LIGHT FIXTURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 TESTING AND ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 HZCONNECT APP INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 RESET BUTTON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 TECHNICAL SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 ONE YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Connected Wired Decorative Motion Light Model 9003 Motion Decorative Light Questions? Please refer to the troubleshooting guide in this manual or call our technical service department (English speak- ing only) at 1-800-858-8501, 8:00 a .m . - 5:00 p .m ., CST, Monday - Friday before returning to your retailer . Keep this manual for future reference. ATTACH YOUR RECEIPT HERE Receipt is required for all warranty requests . Purchase Date For a description of the DualBrite® technology, see page 6 . 2210268-01 SAFETY INFORMATION Please read and understand this entire manual before at- tempting to assemble, operate, or install the product. This light fixture requires 120-volts AC. All wiring must be in accordance with the National Electrical Code (Canadian Electrical Code in Canada). Some local electrical codes require installation by a qualified electrician. WARNING • Turn power off at circuit breaker or fuse when wiring fixture or replacing bulbs. Place tape over circuit breaker switch and verify power is off at the fixture. CAUTION • Do not cut any wires that have factory installed wire connectors or remove the wire connectors. 3x – Wire Connectors 2x – Mounting Bracket Screw HARDWARE CONTENTS Note: Illustrations may vary from actual unit. A - (1x) Mounting Bracket B - (2x) Fixture Mounting Screws C - (2x) Decorative Nut (This assembly is attached to the rear of the lantern canopy .) A B C PREPARATION Before beginning installation of product, make sure all parts are present. Compare parts with hardware contents list. If any part is missing or damaged, do not attempt to assemble, install, or operate the product. Tools Required for Assembly (not included): Phillips and flathead screwdrivers, pliers, wire strippers/cutters, multi- meter, electrical tape, silicone sealant, safety glasses, work gloves, and ladder • Do not connect to dimmers or timers. • For best performance, mount fixture about 6 feet (1.8 m) above the ground. Estimated Installation Time: 30 minutes This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-005 (B)/NMB-005 (B) Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. FCC Responsible Party Name: HeathCo LLC Address: 2445 Nashville Road, Bowling Green, KY 42101 U.S.A. Telephone Number: 800-858-8501 Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons. 3210268-01 LIGHT FIXTURE INSTALLATION For best performance, mount the fixture about 6 feet (1.8 m) above the ground. 1. Remove two decorative nuts. 2. Remove mounting bracket. 3. Tighten mounting screws finger tight. 4. Attach mounting bracket to junction box. Note: We recommend having an assistant help hold the lantern assembly during the wiring process. WIRING THE LIGHT FIXTURE Note: All wiring must be run in accorda…

Text truncated - open the document above for the full version.

Letter of Agency, "I, an officer of (HeathCo LLC) do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 4 th , day of March of 2019 By Signature Jeff Bessinger Printed Name Associate Engineer Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

Attention: Application Examiner Re: Request for confidentiality Applicant: HeathCo LLC FCC ID: BJ4-9000 To whom it may concern, Permanent Confidentiality Request is hereby submitted by HeathCo LLC to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) & 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Rationale for request for confidentiality: HeathCo LLC has invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. [For FCC certification; delete for TCB certification: The fee for confidentiality has been submitted along with the fee for certification.] If you have questions or need further information, please contact the undersigned. Sincerely, [] [Associate Engineer] [HeathCo LLC]

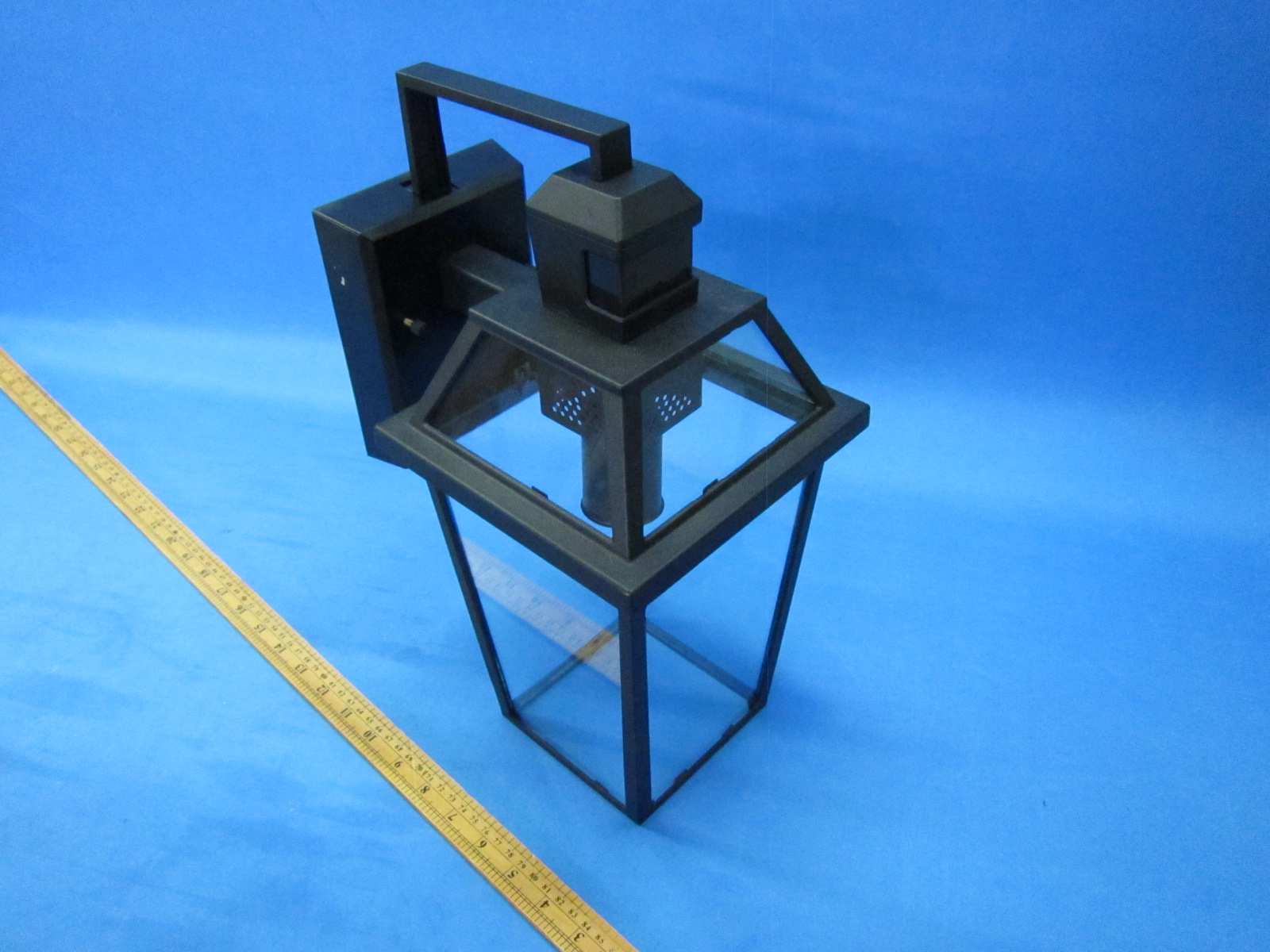

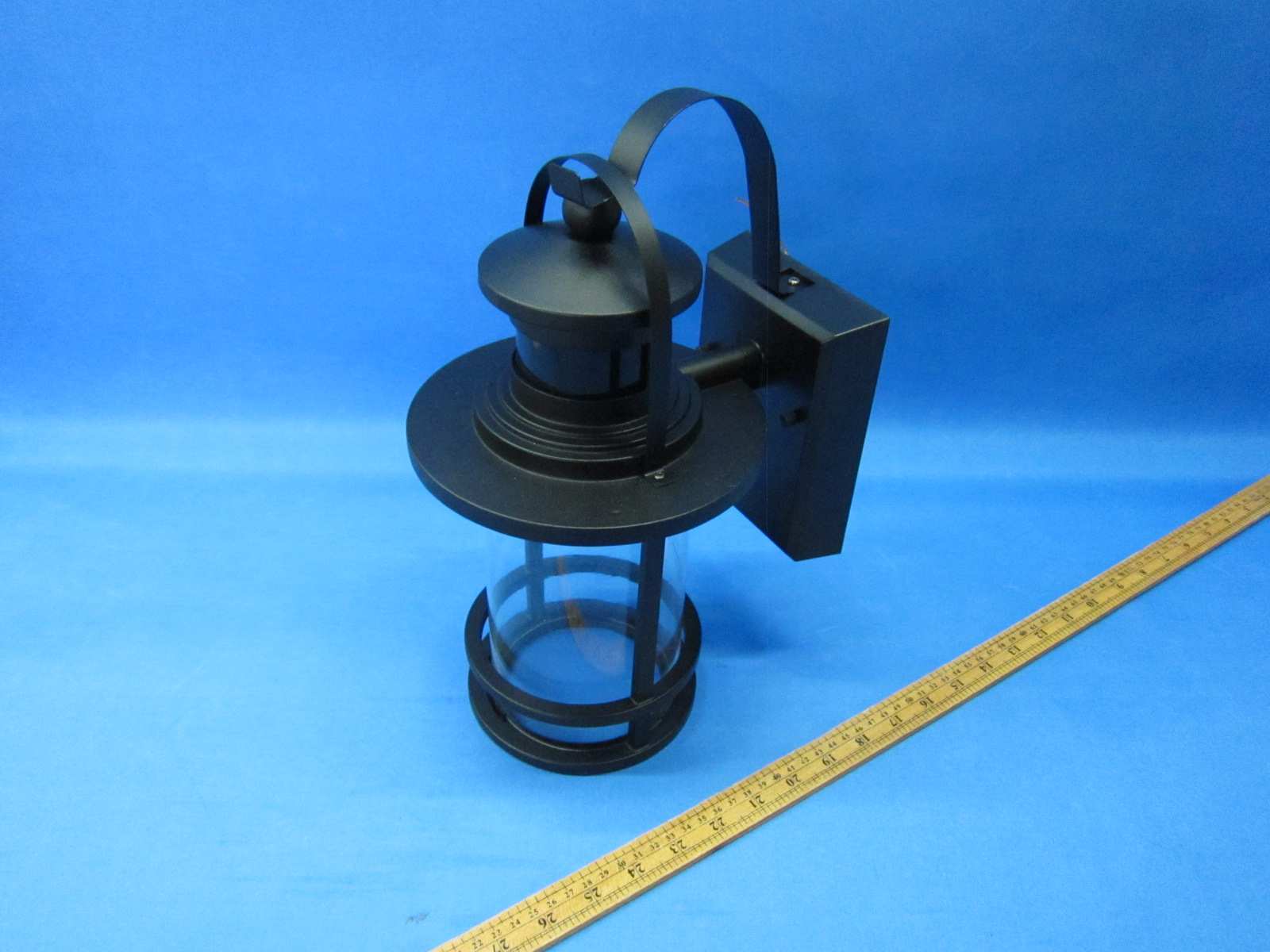

INTERTEK TESTING SERVICE Report No.: HK20010205 Equipment Photographs Model: 9000 (External) INTERTEK TESTING SERVICE Report No.: HK20010205 Equipment Photographs Model: 9003 (External)

210168-01 MODEL / MODELO / MODÈLE: 9000 INPUT / ENTRADA / ENTRÉE: 120V, 60 HZ MAXIMUM LIGHTING LOAD: 0.8 A/100 W TUNGSTEN CARGA MAX. DE ALUMBRADO: TUNGSTENO DE 0.8 A/100 W CHARGE D’ÉCLAIRAGE MAX.: 0,8 A/100 W TUNGSTÈNE SUITABLE FOR WET LOCATIONS / IDÓNEO PARA LUGARES MOJADOS / CONVIENT AUX EMPLACEMENTS MOUILLÉS MADE IN CHINA / HECHO EN CHINA / FABRIQUÉ EN CHINE BOWLING GREEN, KY 42102-9045 CONFORMS TO UL STD. 1598 CONFORME À LA NORME UL 1598 CUMPLE CON LA NORMA UL 1598 CERTIFIED TO CSA STD. C22.2 NO. 250.0 ATTESTÉ EN VERTU DE LA NORME CSA C22.2, N° 250.0 CERTIFICADO DE ACUERDO A LA NORMA CSA C22.2, N° 250.0 FCC ID: BJ4-9000 IC: 3984A-9000 CAN ICES-005 (B)/NMB-005 (B) WALL MOUNT ONLY MONTAGE MURAL SEULEMENT SOLO PARA MONTAJE SOBRE PARED THIS END UP CE CÔTÉ DESSUS ESTE LADO HACIA ARRIBA FCC DRAFT COPY 5007037 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Inno-vation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. 210269-01 MODEL / MODELO / MODÈLE: 9003 INPUT / ENTRADA / ENTRÉE: 120V, 60 HZ MAXIMUM LIGHTING LOAD: 0.8 A/100 W TUNGSTEN CARGA MAX. DE ALUMBRADO: TUNGSTENO DE 0.8 A/100 W CHARGE D’ÉCLAIRAGE MAX.: 0,8 A/100 W TUNGSTÈNE SUITABLE FOR WET LOCATIONS / IDÓNEO PARA LUGARES MOJADOS / CONVIENT AUX EMPLACEMENTS MOUILLÉS MADE IN CHINA / HECHO EN CHINA / FABRIQUÉ EN CHINE BOWLING GREEN, KY 42102-9045 CONFORMS TO UL STD. 1598 CONFORME À LA NORME UL 1598 CUMPLE CON LA NORMA UL 1598 CERTIFIED TO CSA STD. C22.2 NO. 250.0 ATTESTÉ EN VERTU DE LA NORME CSA C22.2, N° 250.0 CERTIFICADO DE ACUERDO A LA NORMA CSA C22.2, N° 250.0 FCC ID: BJ4-9000 IC: 3984A-9000 CAN ICES-005 (B)/NMB-005 (B) WALL MOUNT ONLY MONTAGE MURAL SEULEMENT SOLO PARA MONTAJE SOBRE PARED THIS END UP CE CÔTÉ DESSUS ESTE LADO HACIA ARRIBA 5007037 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Inno-vation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. FCC DRAFT ONLY

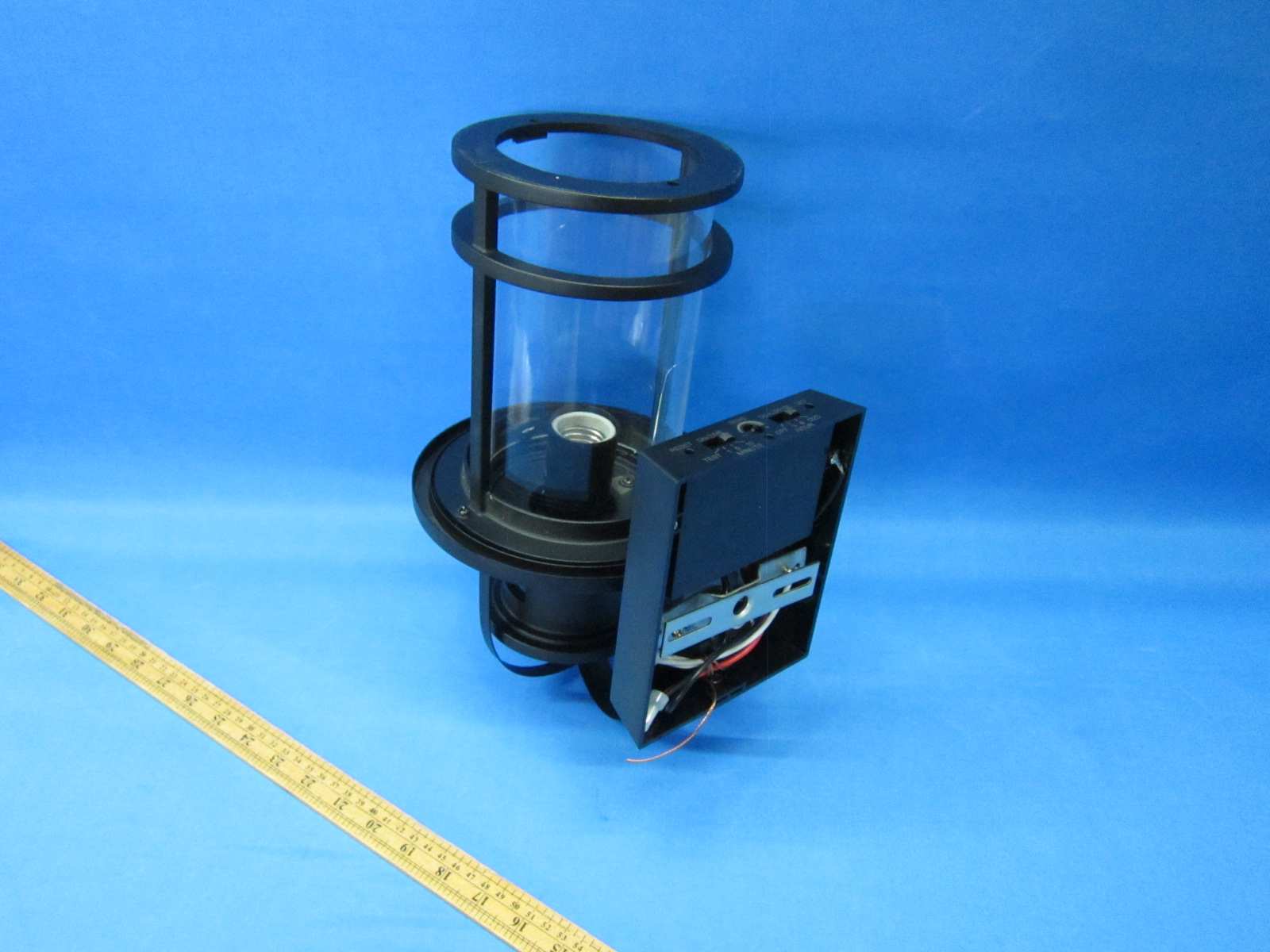

INTERTEK TESTING SERVICE Report No.: HK20010205 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20010205 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20010205 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20010205 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20010205 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20010205 Equipment Photographs (Internal)

INTERTEK TESTING SERVICE FCC ID: BJ4-9000 MPE Analysis Report The Equipment Under Test (EUT) is a Connected Wired Decorative Motion Lightwhich its function can be remote controlled by smartphone Apps via 2.4GHz wifi network. The antenna(s) used in the EUT is integral, internal. Antenna gain 2 dBi Operating mode Range of Peak Modulation Conducted Power Type 802.11b 14dBm to 26dBm DSSS 802.11g 14dBm to 26dBm OFDM 802.11n (HT20) 14dBm to 26dBm MCSn (n=0 to 7) 802.11n (HT40) not use as declared by applicant For Maximum Permissible Exposure (MPE) evaluation of the unit, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the WiFi portion of the unit, the measured powers among all the measured channels were within its production tolerance. The antenna gain is 2 dBi = 1.58 (num gain) and its maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP radiated power = conducted power (with maximum tolerance) + antenna gain = 26 dBm + 2 dBi = 28 dBm (631 mW) The radiated (EIRP) source-based time-averaging output power = (631 * 1) mW = 631 mW The power density at 20 cm from the antenna = EIRP / 4 πR^2 = 0.126 mW cm-2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons.”
