BJ4-WLTRX9600Video Doorbell with 2.4GHz wifi

123 Camera Lens Push Button Backplate Microphone Push Button Chime Wires (Connect to existing chime wires) Speaker Power Module Spade Connectors (Connect to chime terminals) Wire Quick Connect LED Indicator Ring Mount the Push Button Backplate • Remove existing wired push button. • Using a small phillips screwdriver, remove the screw on the bottom of the video doorbell to remove back. • Insert the existing push button wires through the hole in the backplate. • Attach backplate to wall using the #6 screws provided (only use the screws included to ensure proper installation). Wire the Push Button Backplate • A) Using a small phillips screwdriver, attach the two wires from the chime and transformer to the screw terminals on the push button backplate. NOTE: The wires may be connected to either screw. • B) To activate the battery, open the side of the rubber cover labeled “RST” on the back of the push button cover and slide the switch to the left. • C) Slide the cover up into the backplate and rotate down into place. Replace the screw removed in step 2. Welcome to S ECUR360 by HeathZenith. This quick start guide will help you setup the S ECUR360 doorbell system. For additional support, go to www.heath-zenith.com/Se- cur360. Important Information • Minimum system requirement for the S ECUR360 app • iOS 10.0 or higher • Android 6.0 or higher You Will Need • Password for your home wi-fi network • Broadband internet connection with home wi-fi router • For camera operation – Optimal upload speed of 3Mb/s. • Existing wired chime • 16 Volt AC transformer • Phillips screwdriver • Flat-head screwdriver NOTICE: Install the S ECUR360 doorbell in a covered location; away from direct sunlight, rain, and humidity. Do not allow salt water or other conductive liquids to come into contact with the doorbell. CAUTION: To maintain the compliance with the RF exposure guideline, place the base unit at least 7.875" (20 cm) from nearby persons. Know Your System • Use the illustration below to get to know the different components of your new S ECUR360 doorbell. Thank You for Purchasing S ECUR360™ 4 Install the Power Module • Remove the chime cover from the existing chime. • Label the chime wires according to the terminal they are attached to (TRANS, FRONT, REAR). • Remove the transformer (TRANS) wire and connect it to one of the wires on the power module using the wire quick connect (includ- ed). Connect the power module spade connector on this wire to the transformer (TRANS) screw terminal. • Remove the wire going to the doorbell (either FRONT or REAR) and connect it to the other wire on the power module using the wire quick connect (included). Connect the power module spade connector on this wire to the screw terminal the wire was previously attached to. • Use the double-sided tape to attach the power module to the chime (if space is available behind the chime cover) or to the outside of the chime cover. • Replace the cover. IMPORTANT: Do not allow the power module or wires to touch the tone bars (mechanical chime – if installed) or cover the speaker (electronic chime) as this may affect the sound of the chime when activated. Example 1: Electronic chime Example 2: Mechanical chime Ensure the orange quick connect paddles are completely up (perpendicular) before inserting chime wires. After wires are inserted, press the orange paddles down to secure the wires. Gently pull on the wires to ensure they are secured. 123 Lente de la cámara Placa posterior del pulsador Micrófono Pulsador Alambres de la campana (Conecte a los cables existentes de la campana) Altavoz Módulo de alimentación Conector de horquilla (conectado a los terminales de la campana) Conexión rápida de cables Anillo indicador LED Instale la placa trasera del pulsador • Retire el pulsador con cable existente. • Con un destornillador Phillips pequeño, retire el tornillo de la parte inferior del timbre video para quitar la parte posterior. • Inserte los cables existentes de los botones pulsadores a través del orificio en la placa posterior. • Fije la placa posterior a la pared con los tornillos n° 6 provistos (use solamente los tornillos incluidos para asegurar la instalación correcta). Cablee la placa posterior del pulsador • A) Con un destornillador Phillips pequeño, conecte los dos cables de la campana y el transformador a los terminales del tornillo en la placa posterior del botón pulsador. NOTA: Los cables pueden conectarse a cualquiera de los tornillos. • B) Para activar la pila, abra el lado de la cubierta de caucho con la etiqueta “RST” en la parte posterior de la cubierta del botón pulsador y deslice el interruptor hacia la izquierda. • C) Deslice la cubierta hacia arriba en la placa posterior y gire hacia abajo hasta que quede en su lugar. Vuelva a colocar el tornillo que retiró en el paso 2. Bienvenido a S ECUR360 by HeathZenith. Esta guía de inicio rápido le ayudará a configurar el sistema de timbre S ECUR360. Para soporte adicional, visite www.heath-zenith.com/Secur360. Información importante • Requisitos mínimos del sistema para la aplicación S ECUR360 • iOS 10.0 o superior • Android 6.0 o superior Usted necesitará • Contraseña para su red wi-fi doméstica • Conexión de banda ancha a Internet con router wifi de casa • Para el funcionamiento de la cámara - Velocidad óptimade carga de 3Mb/seg. • Campana con cableado existente • Transformador de 16 Voltios CA • Destornillador Phillips • Destornillador de cabeza plana AVISO: Instale el timbre S ECUR360 en un lugar cubierto; lejos de la luz directa del sol, de la lluvia y de la humedad. No permita que el agua salada u otros líquidos conductores entren en contacto con el timbre de la puerta. PRECAUCIÓN: Para mantener el cumplimiento con la directriz de exposición RF, coloque la unidad base por lo menos a 7,875 pulgadas (20 cm) de las personas cercanas. Conozca su sistema • Use la ilustración de abajo para conocer los diferentes componentes de su nuevo timbre S ECUR360. Muchas gracias por comprar S ECU…

Text truncated - open the document above for the full version.

Letter of Agency, "I, an officer of (HeathCo LLC) do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this 4 th , day of March of 2019 By Signature Jeff Bessinger Printed Name Associate Engineer Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

Attention: Application Examiner Re: Request for confidentiality Applicant: HeathCo LLC FCC ID: BJ4-WLTRX9600 To whom it may concern, Permanent Confidentiality Request is hereby submitted by HeathCo LLC to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) & 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Rationale for request for confidentiality: HeathCo LLC has invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. [For FCC certification; delete for TCB certification: The fee for confidentiality has been submitted along with the fee for certification.] If you have questions or need further information, please contact the undersigned. Sincerely, [] [Associate Engineer] [HeathCo LLC]

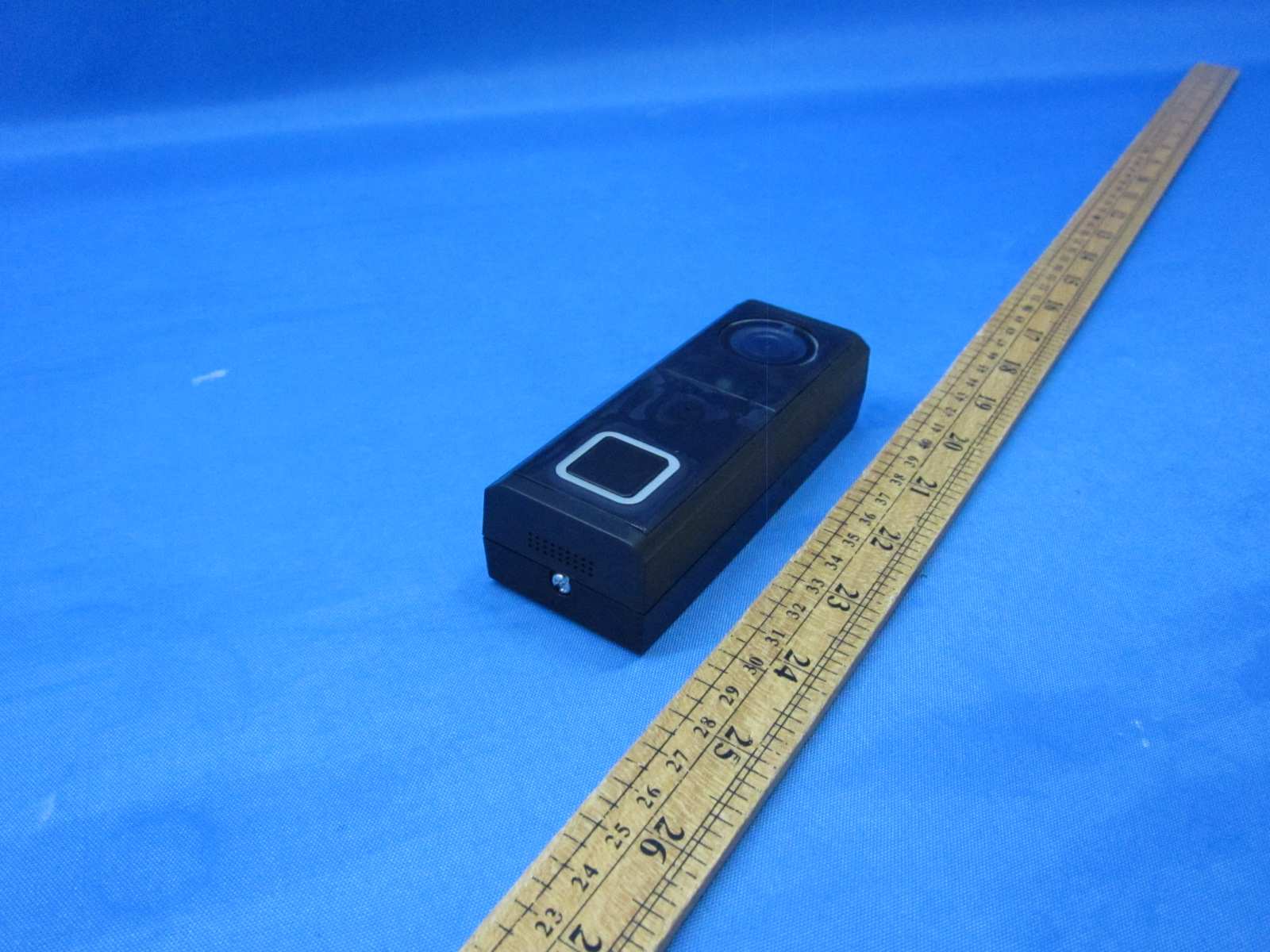

INTERTEK TESTING SERVICE Report No.: HK19110364 Equipment Photographs (External)

MODEL / MODÈLE : WLTRX-9600 FCC ID: BJ4-WLTRX9600 IC: 3984A-WLTRX9600 HEATHCO LLC BOWLING GREEN, KY MADE IN CHINA FABRIQUÉ EN CHINE 42mm 112mm

INTERTEK TESTING SERVICE Report No.: HK19110364 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19110364 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19110364 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19110364 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19110364 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19110364 Equipment Photographs (Internal)

INTERTEK TESTING SERVICE FCC ID: BJ4-WLTRX9600 MPE Analysis Report The Equipment Under Test (EUT) is a is a Video Doorbell with 2.4GHz wifi. When the button of the EUT is activated, the EUT will send the camera video via wifi to the smartphone when the smartphone is running the corresponding Apps. WiFi Module Antenna Type: Internal, Integral Antenna Gain: 0 dBi Operating mode Range of Peak Modulation Conducted Power Type WLAN portion 802.11b 22dBm to 26dBm DSSS 802.11g 18dBm to 22dBm OFDM 802.11n (HT20) 18dBm to 22dBm MCSn (n=0 to 7) 802.11n (HT40) 16dBm to 20dBm MCSn (n=0 to 7) For Maximum Permissible Exposure (MPE) evaluation of the unit, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the WiFi portion of the unit, the measured powers among all the measured channels were within its production tolerance. The antenna gain is 0 dBi = 1 (num gain) and its maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP radiated power = conducted power (with maximum tolerance) + antenna gain = 26 dBm + 0 dBi = 398 mW The radiated (EIRP) source-based time-averaging output power = (398 * 1) mW = 398 mW The power density at 20 cm from the antenna = EIRP / 4 πR^2 = 0.08 mW cm-2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons.”
