BJ4-60WRC05TXRemote Control

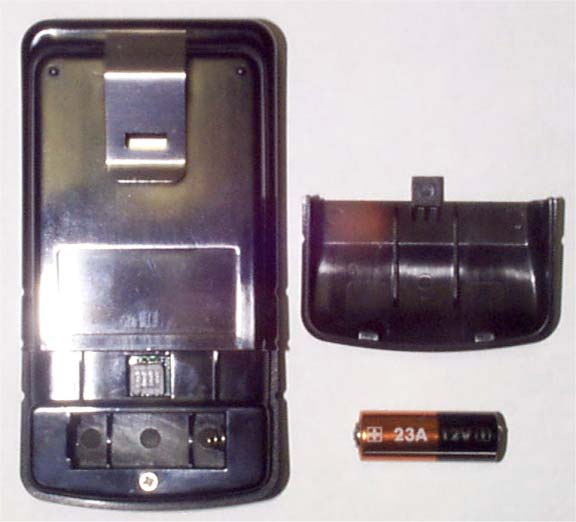

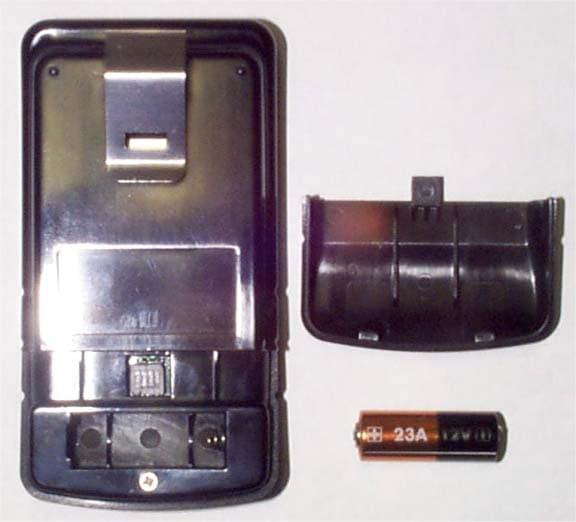

DRAFT COPY © 2001 DESA International598-1116-00 Features •Eight selectable channels available, so multiple remotes can be used in the same home. •Car visor clip included for convenience. Wireless 6-Button Remote Control Model SL-6005 Operation Eight selectable channels allow the user to operate several systems at different locations in your home. If purchasing more than one wireless control system, select different operating channels for each system or they will interact with each other. 1. Install alkaline 12-volt remote battery (A23 type). Remove cover from back of transmitter by pressing on it with your thumb and sliding it off as shown in Figure 1. Using outline of battery chamber as a guide, align battery with chamber and insert battery into remote. Slide cover back onto transmitter. 2. Remote Control Functions. Channel 1/2 ON: Turns ON any devices set to the same channel as this remote control. Channel 1/2 OFF: Turns OFF any devices set to the same channel as this remote control. Channel 1/2 DIM: Activates the DIM feature for any devices used with this remote control that have the DIM feature built-in. ON 1 2 3 4 Battery Cover Battery Channel 1, ON Channel 1, OFF Channel 2,ON Channel 2, OFF LED Indicator Light Remote Control 12-Volt (A23 Type) Battery (Included) Car Visor Clip Figure 1 Jumpers Positive Terminal Channel 1, DIM Channel 2, DIM 2598-1116-00 DRAFT COPY Car Visor Clip The remote control is equipped with a removable car visor clip for added convenience. The car visor clip may be removed to allow the remote to lie flat on table tops or other horizontal surfaces. 1. Attach car visor clip to car visor as shown in Figure 3. 2. To remove car visor clip. Insert a small flat-head screw driver into slot on back of remote. Gently push portion of clip inside of remote with screwdriver while pulling clip out of remote from top (see Figure 4). Figure 3Figure 4 Car Visor Remote Control Visor Clip Screwdriver 3598-1116-00 DRAFT COPY Channel Settings Note: Most installations will not require you to change any of the dip switches on your plug-in module or remote control. The remote control communicates by using channels that can be changed by sliding dip switches into the ON or OFF [on some switches the numbers 1 (ON) and/or 0 (OFF) are used] position on the remote control. The channel is factory set; however, there are 3 switches (8 selectable channels) that allow you to expand your system and prevent outside interference. Other wireless products may cause interference and the system may not function properly. Follow the instructions below for setting a new channel. 1. Open the cases and locate dip switches on both the remote control and outdoor module (see Figure 5). 2. The remote control and outdoor module both have two positions (ON and OFF) on each of the four dip switches. Dip switches 1 through 3 are used for setting the channel. Position 4 is not used and must remain in OFF position. 3. To change the channel, slide dip switches to ON or OFF as needed. It is recommended to only change one dip switch at a time and then check to see if system is functioning properly. Note: Dip switches in positions 1 through 3 must be in the exact same configuration on both the remote control and the device it is intended to operate to function properly. Dip Switches - Shown in the OFF Position (Factory Default) ON 1 2 3 4 ON 1 2 3 4 Figure 5 4598-1116-00 DRAFT COPY Specifications Range .......................................................................... Up to 100 feet (30.5 m) Battery ..................................................................... 12-volt alkaline (A23 type) POSSIBLE CAUSE 1. Device is defective. Try remote using different device. 2. Signals from transmitter are being blocked, or transmitter is out of range. Check for metal objects that could block the signal, or reposition the transmitter. 3. Weak battery in the transmitter. 4.Dip switches on remote and receiver module do not match. Same as above. 1. Short term power line failure. 2. Another transmitter using same channel. Troubleshooting Guide If you experience a problem, follow this guide. You may also want to visit our Web site at: www.desatech.com. If the problem persists, call for assistance at 1-800- 858-8501, 7:30 AM to 4:30 PM Central Time weekdays. You may also write to: DESA International, Inc. P.O. Box 90004, Bowling Green, KY 42102-9004 Do not send products. Regulatory Information This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user is cautioned that changes or modifications not expressly approved by the party responsible for regulatory compliance could void the user’s authority to operate the equipment. SYMPTOM Device does not come on. Device does not turn off. Device comes on randomly. 5598-1116-00 DRAFT COPY YOUR HEATH ® /ZENITH ONE YEAR LIMITED WARRANTY This is a "Limited Warranty" which gives you specific legal rights. You may also have other rights which vary from state to state or province to province. For a period of one year from the date of purchase, any malfunction caused by factory defective parts or workmanship will be corrected at no charge to you. Batteries are not covered. To obtain a refund or a replacement, return the product to the place of purchase. Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs and other expendable items are not covered by this warranty. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, or unauthorized service. This warranty covers only Heath ® /Zenith assembled products and is not …

Text truncated - open the document above for the full version.

REF. No:REF. No: (6 button) SL-6005-TX BJ4-60WRC05TX Products: 6005 Transmitter Circuit Block Diagram Power Supply (12VDC A3 Battery) ENCODER IC (3kHz) Oscillator (315MHz) Antenna (Helical, Internal) 8/31/20016005 Block Diagram.xls

Response to TCB findings FCC ID: BJ4-60WRC05TX Hi Ruby, We have completed our review and have identified the following issues: 1. Please confirm a fresh battery was used for the testing. Response - Yes a fresh battery was used for testing. 2. Please supply label material details. Response - The labels are coated with polyester and use a permanent adhesive on the back of the label for application to the product. Have a good Christmas. Best regards Barry C. Quinlan Certification & Telecom Manager ------------------------------------------------------------------------------- Curtis-Straus LLC Voice: 978.486.8880 x270 527 Great Road Fax: 978.486.8828 Littleton, MA 01460 http://www.curtis-straus.com --------------------------------------------------------------------------------

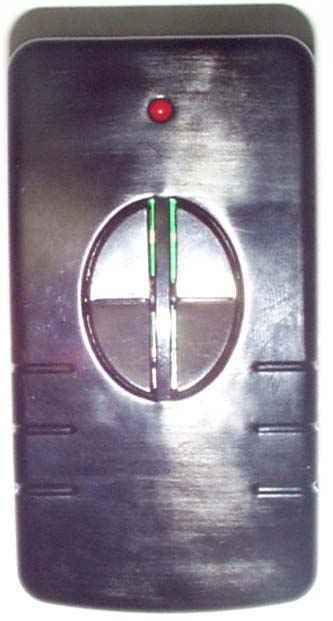

External photos

DRAFT COPY FCC ID: BJ4-60WRC05TX CANADA: xxxxxxxxxxxx This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DESA International Bowling Green, KY SL-6005-4TX Made in China Cut Size = 15mm x 33mm 390-6022-TX01

Internal photos 4 button version 6 button version

Device Operation - The 6005 Transmitter, when activated by one of its four or six momentary switches (model dependant) the unit transmits a modulated code. This code consists of a device address configured via DIP Switches and a ‘device state’ setting determined by which button is pressed. When a receiving device is programmed via jumpers to the same code as the transmitter, receives this code it then corresponds its output according the ‘device state’ portion of the code (on, off, flash, dim or brighten).

Master:PT15-Sub-C-15231 Date: November 12, 2001 Test Report:1W04321 Applicant:Desa International PO Box 9004, 2701 Industrial Avenue Bowling Green, KY 42101-9004 USA Equipment Under Test:Desa International SL-6005 (EUT)4 & 6 Button Remote 315 MHz Transmitter FCC ID:BJ4-60WRC05TX In Accordance With:FCC Part 15, Subpart C, 15.231 Tested By:Nemko Canada Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date:December 14, 2001 Total Number of Pages:19 Authorized Copy:Soft Copy Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W04321 EQUIPMENT: Desa International SL-6005 4 & 6 Button Remote 315 MHz Transmitter FCC ID: BJ4-60WRC05TX Page 2 of 19 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. Equipment Under Test.........................................................................................5 Section 3. Transmission Requirements.................................................................................7 Section 4. Radiated Emissions.............................................................................................10 Section 5. Occupied Bandwidth..........................................................................................15 Section 6. Block Diagrams...................................................................................................18 Section 7. Test Equipment List...........................................................................................19 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W04321 EQUIPMENT: Desa International SL-6005 4 & 6 Button Remote 315 MHz Transmitter FCC ID: BJ4-60WRC05TX Page 3 of 19 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: Glen Westwell, Wireless TechnologistDATE: December 14, 2001 Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W04321 EQUIPMENT: Desa International SL-6005 4 & 6 Button Remote 315 MHz Transmitter FCC ID: BJ4-60WRC05TX Page 4 of 19 Summary Of Test Data Name of TestPara. NumberResults Transmission Requirements15.231(a)Complies Radiated Emissions15.231(b)Complies Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)Complies Periodic Alternate Field Strength Requirements15.231(e)N/A Powerline Conducted Emissions15.207N/A Note:Primary Transmitter in 6005 transmitter family FCC listing. This unit is the primary unit for a family device listing with FCC, other units will not have the marked supplemental control pushbuttons. Each button controls the transmission of a pulse- coded address followed by a command for the unit with the corresponding address. Unit is powered by 12VDC Battery and operates on a modulated carrier frequency of 315 MHz. Test Conditions: IndoorTemperature:23 °C Humidity:36 % OutdoorTemperature:10 °C Humidity:42 % Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W04321 EQUIPMENT: Desa International SL-6005 4 & 6 Button Remote 315 MHz Transmitter FCC ID: BJ4-60WRC05TX Page 5 of 19 Section 2.Equipment Under Test General Equipment Information Manufacturer: Desa International Model No.: 60WRC05-4TX 60WRC05-6TX Serial No.: None Date Received In Laboratory: November 20, 2001 Nemko Identification No.: Item #’s 1 & 2 Transmitter Frequency: 315 MHz Emission Designator: 63K3L1D Note:The 6 button and 4 button remote transmitter are functionally the same, except for user features and functions. The worst case emissions were detected using the 6 button remote. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W04321 EQUIPMENT: Desa International SL-6005 4 & 6 Button Remote 315 MHz Transmitter FCC ID: BJ4-60WRC05TX Page 6 of 19 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 1W04321 EQUIPMENT: Desa International SL-6005 4 & 6 Button Remote 315 MHz Transmitter FCC ID: BJ4-60WRC05TX Page 7 of 19 Section 3.Transmission Requirements Para. No.: 15.231(a) Test Performed By: Glen WestwellDate of Test: November 26, 2001 Minimum Standard:15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one…

Text truncated - open the document above for the full version.

Radiated Emissions Photograph Front View:
