BJ4-60WRC14TXRemote Control

DRAFT COPY FEATURES •Products are UL/cUL and/or FCC/IC tested and approved. •Operational range of up to 100 feet. This manual applies to the following products: •Wall Switch Transmitter •Wall Switch Receiver Remote Controlled Products This manual includes operating instructions for a variety of remote controlled products. All products work on the same principle and use the same channel setting information. Please read all instructional information and note any specific information pertaining to your particular product. WARNINGS: • FOR USE ONLY with 120 volt incandescent or halogen bulbs. •DO NOT USE with fluorescent bulbs, appliances, power supplies, low voltage lighting, or any other electrical devices. © 2002 DESA International598-1135-00 ENGLISH WALL SWITCH TRANSMITTER Installation 1. Select mounting location for wall switch transmitter. Note: Transmitter should be located within 100 feet (30 m) of receiver. 2. Before mounting, place transmitter in selected lo- cation and verify operation (see Operation). Note: If transmitter does not operate correctly, see Troubleshooting Guide). 3. Mount transmitter to wall using two #8 x 1 3/4" wood screws (provided). Transmitter should be mounted approximately 4 feet from the floor and in the vertical position. Use drywall anchors (provided) if not mounting to wall stud. Operation 1. Verify power disconnect switch on wall switch receiver is in ON position. Wall switch transmitter will not operate lights if power disconnect switch is in OFF position. 2. Push the ON (top) button and release. The light should turn on full bright. 3. Push the OFF (bottom) button and release. The light should turn off. 4. Push the DIM button and release. The light should turn on at 50% brightness (or last setting). 5. Continue to press the DIM button until the desired dim level is reached. Note: DIM setting remembers last setting used. To recall last DIM setting, push and release the DIM button. Note: The DIM setting defaults to 50% in the event of a power failure. Important: Wait 1 to 2 seconds after you press a transmitter button before you press it again to allow the transmission to be completed. Note: If light does not turn on or intermittently turns on and off when transmitter buttons are pushed, see Troubleshooting Guide. D I M Wall Switch Transmitter Wall Switch ON/OFF Button DIM Button Access Door D I M Battery Replacement The wall switch transmitter requires a type CR2032, 3-volt lithium battery to operate. The transmitter is shipped with the battery installed. With typical use, the battery will last approxi- mately one year. Remove battery when transmitter will not be used for an extended period of time. 1. Place thumb on access door and slide down to open. 2. Carefully bend locking tab outward. Battery will pop up. 3.Remove battery from socket. 4.Install replacement bat- tery in socket plus (+) side up (see illustra- tion). Press down on battery until locking tab snaps into place. 5. Reinstall access door by sliding it upward until it locks in place. 1 2 3 4 ON DIM 2032 3 V L i t h i u m B a t t e r y CR2032 Lithium Battery Battery Locking Tab Access Door Removing Access Door and Battery 2598-1135-00 DRAFT COPY Features and Ratings: •Rated for 120VAC/60Hz supply voltage. •Up to 300 Watt maximum incandescent load. •Not for use with Compact Fluorescent bulbs. •Up to 100 feet (30 m) typical transmission range. •Fits standard single gang junction box. Important: This product can not be used if more than one switch is being used to control the light. Important: Never install two wall switch receivers within 3 feet (0.9 m) of each other. This may reduce the operating range. WALL SWITCH RECEIVER Installation 1. Locate light switch to be replaced by wall switch receiver. 2.Turn off the power to the light switch circuit before you proceed. Do this at your circuit breaker or fuse box. 3. Remove the existing wall plate and switch. Disconnect the two power wires and the ground wire. Note: If there are more than two power wires attached to the switch, consult an electrician about installation. In addition, some local building codes may require installation by a qualified electrician. 4. Connect one of the black power wires from receiver to one of the power wires you removed from the old switch. Use one of the supplied wire connectors to secure the wires (see illustration). 5. Connect the second black power wire from receiver to the other power wire you removed from the old switch. Use one of the supplied wire connectors to secure the wires (see illustration). 6. Connect the green ground wire from receiver to the ground wire removed from old switch. Use one of the supplied wire connectors to secure the wires (see illustration). 7. Check wire connections to make sure they are secure and that no bare wires are exposed. 8.Position the wall switch receiver in the junction box with the DIM button located to the right. Use the two wall switch screws (long) supplied to mount the receiver to the wall box (see illustration). Push excess wiring into wall box while you do this. You may need to bend the wires to fit inside the box. Mount wall plate on wall switch receiver with screws (short) provided. Installing Wall Switch Receiver 9. Turn on the power to the light switch circuit. Do this at your circuit breaker or fuse box. Wall Switch Screw Ground Wire (Bare or Green) Junction Box Wall Switch ON/OFF Button DIM Button Power Disconnect Switch Operation 1. Verify the power disconnect switch is in the ON (right side) position. 2. Push the ON (top) button and release. The light should turn on full bright. Note: If you are controlling a lamp, make sure it is connected to the switched outlet and the lamp is switched on. 3. Push the OFF (bottom) button and release. The light should turn off. 4. Push either the top or bottom of DIM button and release. The light should turn on at 50% brightness (or last setting). 5. Push and release top of DIM button to increase brightness. Push and release…

Text truncated - open the document above for the full version.

DESA International Confidential Sheet1Page 1 DESA International Wireless Wall Switch Model #: 6014-TX Description: 315 MHz Wireless Wall Switch RF Transmitter FCC: BJ4-60WRC14TX Transmitter Circuit Block Diagram Tact Switches &12-Bit Power SupplyBinary EncoderEnconder ICRF Oscillator (3-Volt Lithium Battery) (8 line to 3) (3 KHz)(315 MHz) File: 6014-TX Block Diagram.xls

DRAFT COPY FCC ID: BJ4-60WRC14TX CANADA: 3984A-6014TX This device complies with part 15 of the FCC rules. Op- eration is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. No serviceable parts inside. Use CR2032, 3V lithium battery. Model 6014-TX Wireless Wall Switch DESA InternationalMade In China Bowling Green, KY USA390-6014XX-TX1A

DESA International 10/1/2002 Confidential 6014-TX Wireless Wall Switch Wireless Wall Switch Model Number: 6014-TX General Description: The 6014-TX Wireless Wall Switch is a transmitting device used for remotely controlling room lights by utilizing RF transmission technology and a compatible RF receiving device. The device is capable of transmitting three separate commands, which are used to turn the room lights ON or OFF or to dim the lights. The housing and pushbuttons are made from non-metallic material and is designed to screw directly to a wall simulating a standard light switch installation. The electrical circuitry is comprised of a DC power supply, 3 tact switches, one 4-position dipswitch, an 8 line to 3 line binary encoder IC, a CMOS 12-bit encoder IC, a 315 MHz RF oscillator circuit, and complementary passive components. The circuitry is soldered to a double-sided, 94V-0 rated printed circuit board. The circuit is powered by replaceable 3- volt lithium, 20 mm coin cell battery. Specifications: • Input: 3 volt battery, type CR2032 lithium • Circuit voltage: ~5.0 volts DC. Battery output is regulated by a series regulator power supply circuit (transistor & zener diode). • Radio Frequency: 315 MHz • User-selectable address codes: 16 Theory of Operation: The wireless switch is normally off with the RF transmission starting when one of the pushbuttons is depressed momentarily. When one of the three normally open pushbuttons is depressed, it connects the circuit ground to the negative side of the battery, thereby completing the ground circuit. When ground circuit is completed, the encoder outputs a 3 KHz 12-bit transmission to the RF oscillator circuit transmitting the information at a carrier frequency of 315 MHz. The encoder continues to transmit as long as the pushbutton is depressed. The 12-bit output consists of an 8-bit address and 4 bits of data. The user-selectable address is set with a four-position dipswitch. The other 4 address lines are permanently set. The receiving unit to be controlled is set to the same address as the wireless switch. The wireless switch is capable of sending 3 different commands to a compatible receiver. It can transmit an ON, OFF, and DIM code. When the ON, OFF, or DIM switch is depressed, the corresponding data bit is pulled low (connected to ground via the tact switch). When the receiving unit receives and decodes the signal, it executes the desired ON, OFF, or DIM operation. DESA International 10/1/2002 Confidential 6014-TX Wireless Wall Switch Theory of Operation: (Continued) A red LED is located on the front panel above the ON/OFF rocker switch and DIM switch. The purpose of the LED is to serve as a visual indicator to let the operator know that the unit is transmitting a command when the buttons are depressed. The LED remains in the “on” state until the pushbutton is released. Product Pictorials: 6014-TX Wireless Wall Switch Assembled Isometric View DESA International 10/1/2002 Confidential 6014-TX Wireless Wall Switch 6014-TX Wireless Wall Switch Exploded Isometric View

Master:PT15-Sub-C-15231 Date: November 12, 2001 Test Report:2W06538 Applicant:Desa International Inc. P.O. Box 90004, 2901 Industrial Ave. Bowling Green, KY 42102 USA Equipment Under Test:6014-TX Wireless Wall Switch (EUT)315MHz Transmitter FCC ID:BJ4-60WRC14TX In Accordance With:FCC Part 15, Subpart C, 15.231 Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Kevin Carr, EMC Specialist Date:19 December 2002 Total Number of Pages:18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W06538 EQUIPMENT: 6014-TX Wireless Wall Switch Page 2 of 18 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. Equipment Under Test.........................................................................................5 Section 3. Transmission Requirements.................................................................................7 Section 4. Radiated Emissions.............................................................................................10 Section 5. Occupied Bandwidth..........................................................................................15 Section 6. Block Diagrams...................................................................................................17 Section 7. Test Equipment List...........................................................................................18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W06538 EQUIPMENT: 6014-TX Wireless Wall Switch Page 3 of 18 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: ______________________________DATE: 19 December 2002 Glen Westwell, Wireless Technologist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W06538 EQUIPMENT: 6014-TX Wireless Wall Switch Page 4 of 18 Summary Of Test Data Name of TestPara. NumberResults Transmission Requirements15.231(a)Complies Radiated Emissions15.231(b)Complies Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)N/A Periodic Alternate Field Strength Requirements15.231(e)N/A Powerline Conducted Emissions15.207N/A Note: This device is powered by a 3Vdc lithium cell. IndoorTemperature:22 ?C Humidity:38 % OutdoorTemperature:-7 ?C Humidity:36 % Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W06538 EQUIPMENT: 6014-TX Wireless Wall Switch Page 5 of 18 Section 2.Equipment Under Test General Equipment Information Manufacturer: Desa International Inc. Model No.: 6014-TX Serial No.: none Date Received In Laboratory: 10 Dec. 2002 Nemko Identification No.: Item #1 Tx: 315 MHz Fixed Emission Designator: 47K0L1D Type of Modulation: Pulse Modulated Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W06538 EQUIPMENT: 6014-TX Wireless Wall Switch Page 6 of 18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W06538 EQUIPMENT: 6014-TX Wireless Wall Switch Page 7 of 18 Section 3.Transmission Requirements Para. No.: 15.231(a) Test Performed By: Glen WestwellDate of Test: 19 Dec. 2002 Minimum Standard:15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results:Complies. Test Data:Compliance was determined by verification of technical specifications and a functional test on the equipment. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W06538 EQUIPMENT: 6014-TX Wireless Wall Switch Page 8 of 18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W06538 EQUIPMENT: 6014-TX Wireless Wall Switch Page 9 of 18 Rationale for Compliance with Transmission Requirements 15.231(a)(1) : Complies, transmitter de-activates immediately upon release. 15.231(a)(2) : N/A, manual operation only. 15.231(a)(3) : There are no provisions for regular predetermined periodic transmissions. 15.231(a)(4) : N/A Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W06538 EQUIPMENT: 6014-TX Wireless Wall Switch Page 10 of 18 Section 4.Radiated Emissions Para. No.: 15.231(b) Test Performed By: Glen West…

Text truncated - open the document above for the full version.

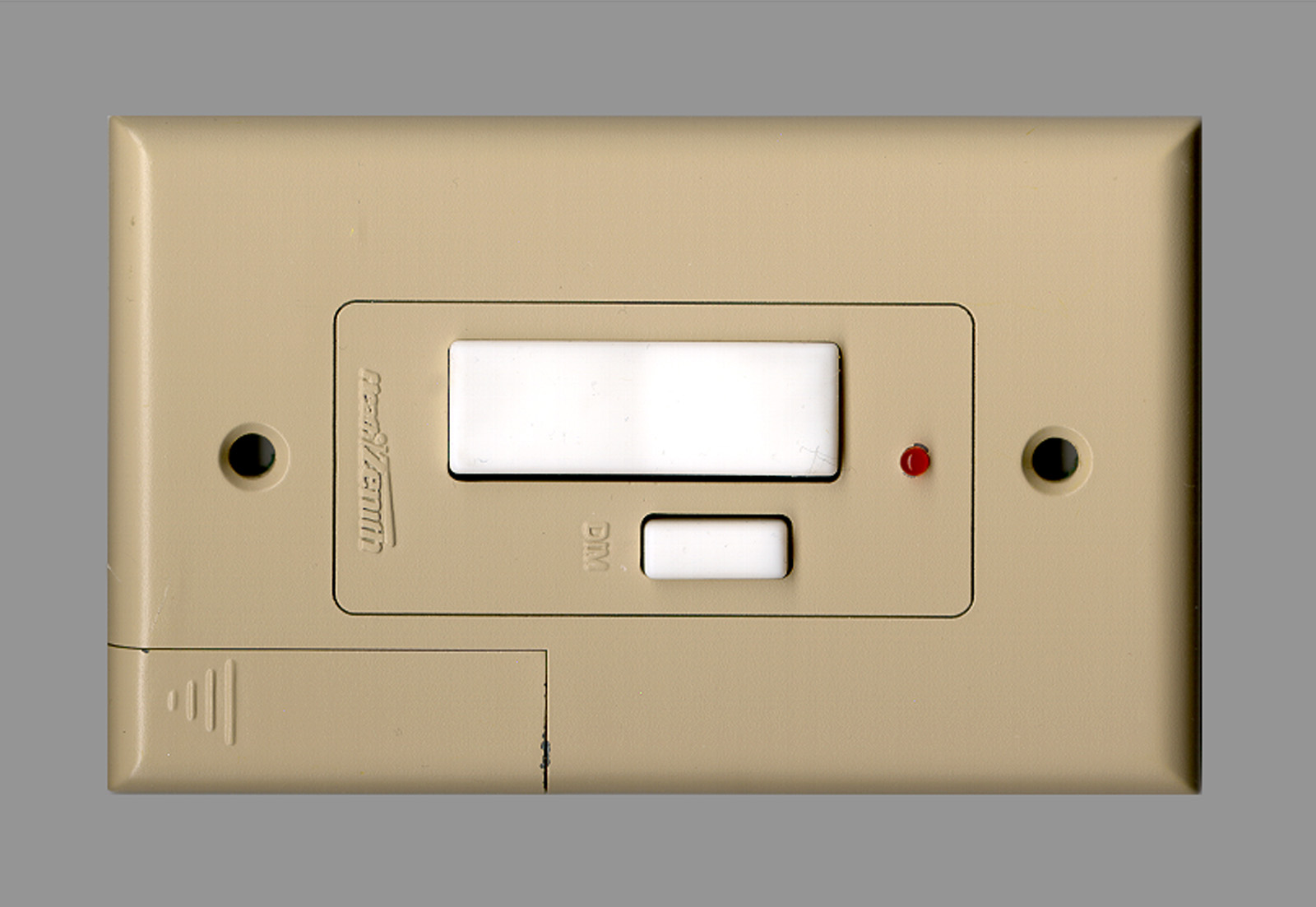

Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W06538 EQUIPMENT: 6014-TX Wireless Wall Switch Page 14 of 18 Radiated Photographs Front View:
