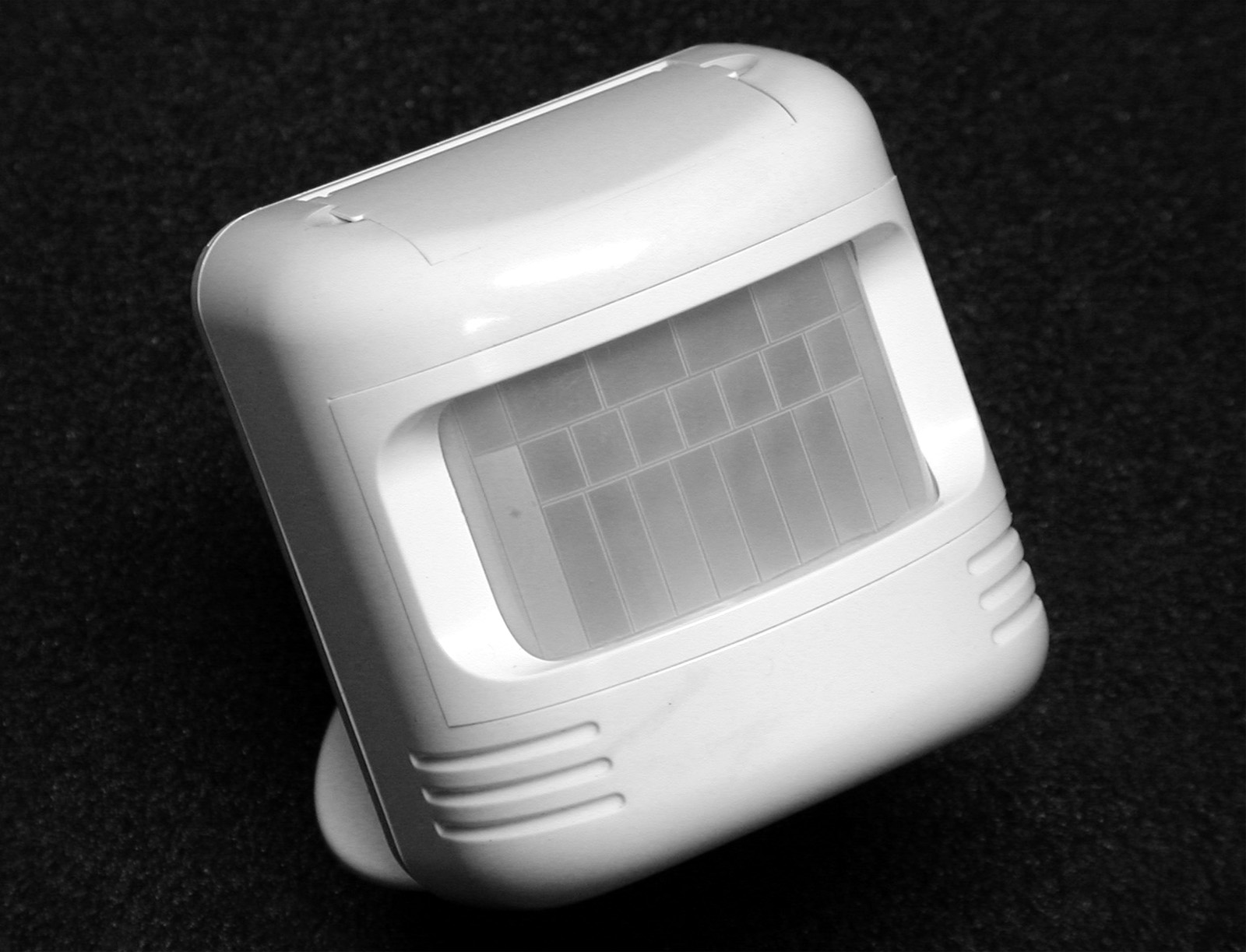

BJ4-60WRC30TX6030 Motion Sensor

DRAFT COPY © 2002 DESA International598-1116-00 FEATURES •Products are UL/cUL and/or FCC/IC tested and approved. •Operational range of up to 100 feet. Remote Controlled Products This manual applies to the following products: •6-Button Remote Control •Indoor Plug-In Receiver •PAR Light Receiver •Indoor/Outdoor Screw-In Light Receiver •Remote Motion Sensor This manual includes operating instructions for a variety of remote controlled products. All products work on the same principle and use the same channel setting information. Please read all instructional information and note any specific information pertaining to your particular product. Note: One remote control is able to independently operate two receiver units set on the same channel. If more than two receiver units, operating indepen- dently, are desired, additional remote controls will need to be purchased. 1. Install alkaline 12-Volt remote battery (A23 type). Remove cover from back of transmit- ter. Using outline of battery chamber as a guide, align battery with chamber and insert battery. Slide cover onto transmitter. ON 1 2 3 4 Battery Chamber (Type A23) Battery Cover Rear View of Remote Control 6-BUTTON REMOTE CONTROL 2. Remote Control Functions. The three but- tons on the left side of the remote will oper- ate one or more receiver units with matching addresses. The three buttons on the right side of the remote will operate a second set of one or more receiver units. •Channel 1/2 ON: Turns on any receiver unit set to the same channel as this remote control. •Channel 1/2 OFF: Turns off any receiver unit set to the same channel as this remote control. •Channel 1/2 DIM: Activates the DIM feature for any receiver unit set to the same channel as this remote control. Note: To independently operate a second re- ceiver unit using a single remote control, make sure the 4th dip switch on each receiver is set to different settings. •Channel 1 - Slide dip switch 4 to the ON position on each receiver to be operated by these buttons. •Channel 2 - Slide dip switch 4 to the OFF position on each receiver to be operated by these buttons. Channel 1 DIM Channel 1 ON Channel 1 OFF Channel 2 DIM Channel 2 ON Channel 2 OFF Function Controls Flat-Head Screwdriver Optional Visor Clip Removing Visor Clip - Rear View Optional Car Visor Clip (Included) The remote control includes an optional car visor clip for added convenience that may be installed. 1. To attach car visor clip to remote control (if desired) push it into slot on rear of remote unit until it snaps into place. 2.To remove car visor clip, insert a small, flat- head screwdriver into slot on back of remote. Gently push down on portion of visor clip inside slot with screwdriver while pulling clip out of remote from top. 2598-1116-00 DRAFT COPY PAR LIGHT RECEIVER Features and Ratings: •Up to 300 Watt incandescent load (up to 150 Watt per lampholder). •Minimal wiring required. RECEIVER INFORMATION All receivers have the following features and ratings: •Rated for 120VAC/60Hz supply voltage. •Light can be dimmed when used with remote control (OFF, Low, Med, Hi, Full On). •Remembers last selected dim setting. •Not for use with Compact Fluorescent bulbs. INDOOR PLUG-IN RECEIVER Features and Ratings: •Up to 2.5 Amps resistive load. •Up to 300-Watt incandescent load. •No wiring required. 1. Plug in indoor receiver. 2. Plug in light you wish to control. Caution: Do not exceed the maximum load limits listed above. 3. Check operation. Either activate remote motion sensor or toggle ON/OFF switches on remote control to check operation. 4. Using Remote By-Pass Switch. These re- ceivers are equipped with a remote by-pass switch. This switch allows the user to select between ON and RECEIVER modes. ON mode allows the plugged in light to be oper- ated manually. RECEIVER mode allows the light to be operated by remote control or remote motion sensor. 5. Adjust audio alert volume (if applicable). Some models are equipped with an audible alarm which sounds each time the receiver is activated. The alarm volume is adjusted by the thumbwheel on the side of the re- ceiver unit. Control Locations Remote By-Pass Switch Remote By-Pass Switch Alarm Volume Control Speaker White to White Black to Black Gasket Mounting Strap Mounting Bolt Rubber Plug Junction box ground wire to green ground screw on fixture. Wiring PAR Light Receiver Turn power off at the fuse or circuit breaker. 1. Remove the existing light fixture. 2. Install the mounting strap as shown using two screws that fit your junction box. Note: The plastic hanger can be used to hold the fixture while wiring. Thread the small end of the plastic hanger through the hole in the center of the cover plate. Insert the small end into one of the slots on the mounting strap. 3.Route the wires from the light receiver through the large gasket holes. 4. Twist the junction box wires and fixture wires together as shown. Secure with UL approved wire connectors. 5. Align the cover plate and cover plate gas- ket. Secure with mounting bolt. 6. Push the rubber plug firmly into place. 7. If a wet location junction box was not used, caulk the wall plate mounting surface with silicone weather sealant. 8.Adjust the lamp holders by loosening the lock nuts. Note: Do not rotate the lamp holders more than 180° from the factory setting. Caution: To avoid water damage and elec- trical shock, keep lamp holders 30° below horizontal. 9. Screw incandescent bulb up to rated watt- age into module. When screwing in the lamps, do not overtighten. Caution: Do not exceed the maximum load limits listed above. 10. Check operation. Either activate remote motion sensor or toggle ON/OFF switches on remote control to check operation. 3598-1116-00 DRAFT COPY INDOOR/OUTDOOR SCREW-IN LIGHT RECEIVER Features and Ratings: •Up to 150 Watt incandescent load. •No wiring required. 1. Screw module into light socket. 2. Screw incandescent bulb up to rated watt- age into module. Caution: Do not exceed the maximum load lim…

Text truncated - open the document above for the full version.

REF. No: SL-6030-TX BJ4-60WRC30TX Products: 6030 Transmitter Circuit Block Diagram Power Supply (3 VDC 2 "AA" Battery) PIR Switch ENCODER IC (3kHz) Oscillator (315MHz) Antenna 2/6/20026030 Block Diagram.xls

Barry Quinlan From: "Ruby Dulmage" <[email protected]> To: "Curtis-Straus TCB" <[email protected]> Sent: Monday, February 18, 2002 4:46 PM Sub ject: Re: Desa FCC ID: BJ4-60WRC30TX Page 1 of 1 2/19/2002 Hi Barry: 1. Yes, a fresh battery was used for testing. 2. The labels are coated with polyster and use a permanent adhesive on the back of the label for application to the product. Thanks, Ruby Ruby Dulmage Submissions Specialist Nemko Canada Inc. [email protected] Tel: 613-737-9680 x 232 Fax: 613-737-9691 ----- Original Message ----- From: Curtis -Straus TCB To: Ruby Dulmage Sent: February 18, 2002 6:53 PM Subject: Desa FCC ID: BJ4-60WRC30TX Hi Ruby, We have just two issues: 1. Please confirm a new battery was used during the testing. 2. Please supply details of the label material. Best regards Barry C. Quinlan Certification Manager Curtis-Straus TCB

FCC ID: BJ4-60WRC30TX This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DESA International, Bowling Green, KY SL-6030-TX Made in China 390-6030-TX01

6030 Device Operation - The 6030 PIR Transmitter, when activated by the PIR detecting motion, transmits a modulated code. This code consists of a device address configured via DIP Switches and a ‘device state’ setting determined by the 6030 when motion is detected. The transmitter sends an ‘ON’ state when motion is detected and ‘OFF’ state after the amount of time has passed that the user selects. When a receiving device is programmed via jumpers to the same code as the transmitter, receives this code it then corresponds its output according the ‘device state’ portion of the code (on, off).

Master:PT15-Sub-C-15231 Date: November 12, 2001 Test Report:2W04658 Applicant:Desa International Inc. P.O. Box 90004, 2901 Industrial Ave. Bowling Green, KY 42102 USA Equipment Under Test:6030 RF Tx Motion Sensor (EUT) FCC ID:BJ4-60WRC30TX In Accordance With:FCC Part 15, Subpart C, 15.231 Tested By:Nemko Canada Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Wireless Technologist Date:February 14, 2002 Total Number of Pages:18 Authorized Copy:Soft Copy Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W04658 EQUIPMENT: 6030 RF Tx Motion Sensor FCC ID: BJ4-60WRC30TX Page 2 of 18 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. Equipment Under Test.........................................................................................5 Section 3. Transmission Requirements.................................................................................9 Section 4. Radiated Emissions.............................................................................................12 Section 5. Occupied Bandwidth..........................................................................................15 Section 6. Block Diagrams...................................................................................................17 Section 7. Test Equipment List...........................................................................................18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W04658 EQUIPMENT: 6030 RF Tx Motion Sensor FCC ID: BJ4-60WRC30TX Page 3 of 18 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: DATE: February 14, 2002 Russell Grant, Wireless Group Manager Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W04658 EQUIPMENT: 6030 RF Tx Motion Sensor FCC ID: BJ4-60WRC30TX Page 4 of 18 Summary Of Test Data Name of TestPara. NumberResults Transmission Requirements15.231(a)Complies Radiated Emissions15.231(b)Complies Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)N/A Periodic Alternate Field Strength Requirements15.231(e)N/A Powerline Conducted Emissions15.207N/A Test Conditions: IndoorTemperature:21 °C Humidity:7 % OutdoorTemperature:20 °C Humidity:5 % Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W04658 EQUIPMENT: 6030 RF Tx Motion Sensor FCC ID: BJ4-60WRC30TX Page 5 of 18 Section 2.Equipment Under Test General Equipment Information Manufacturer: Desa International Inc. Model No.: 6030 Serial No.: None Date Received In Laboratory: February 7, 2002 Nemko Identification No.: Item #1 Tx: 315 MHz Fixed Emission Designator: 117KL1D Type of Modulation: Pulse Modulated Duty Cycle: 6.2 dB Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W04658 EQUIPMENT: 6030 RF Tx Motion Sensor FCC ID: BJ4-60WRC30TX Page 6 of 18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W04658 EQUIPMENT: 6030 RF Tx Motion Sensor FCC ID: BJ4-60WRC30TX Page 7 of 18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W04658 EQUIPMENT: 6030 RF Tx Motion Sensor FCC ID: BJ4-60WRC30TX Page 8 of 18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W04658 EQUIPMENT: 6030 RF Tx Motion Sensor FCC ID: BJ4-60WRC30TX Page 9 of 18 Section 3.Transmission Requirements Para. No.: 15.231(a) Test Performed By: Russell GrantDate of Test: February 13, 2002 Minimum Standard:15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results:Complies. Test Data:Compliance was determined by verification of technical specifications and a functional test on the equipment. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 2W04658 EQUIPMENT: 6030 RF Tx Motion Sensor FCC ID: BJ4-60WRC30TX Page 10 of 18 Nemko Canad…

Text truncated - open the document above for the full version.

Radiated Photographs Front View:
