Wireless Lamp/ Outlet Modules Models SL-6136 & SL-6138 Your wireless switched module system includes: •Remote wall switch •Receiver lamp module (SL-6138) or outlet module (SL-6136) •Two #8 x 2" wood screws •This manual You'll need to buy a 9-volt alkaline battery for the wireless switch. In typical use, this battery will last one year. Three channels (A, B, and C) are available so that you can operate three systems at different locations in your home. If you purchase more than one system, make sure you select different operating channels, or they will interact with each other. If you purchase a different switch plate to match your decor, make sure it is not a metal plate. Metal wall plates will reduce the operating range. 1999 Heath Co. a div. of DESA International595-5627-00 Installation 1. Install the 9-volt battery. Remove the switch cover from the transmitter as shown (save the two screws). Snap the battery clips over the battery terminals and set the battery into its compartment. Battery Compartment Remote Switch -2- 2. Turn off the power to the outlet or lamp to be con- trolled. Install the switched outlet or lamp module as shown. 3. For the SL-6136, plug in the device(s) you wish to control. Screw the light bulb into the SL-6138. Caution: do not exceed the specifica- tions listed on the next page. Turn the power back on. 4. To check the operation, hold the remote switch at the desired location and switch it on. The appliance should turn on immediately. Important: Wait at least 3 seconds after you switch the remote switch on or off before you switch it again to allow the transmission to be completed. Turn the appliance off and back on several times. If the switch appears unreliable, move the remote switch until the appliance switches reliably. 5. Mount the remote switch at the desired location with the two wood screws pro- vided. Note: Your particular installation may require different mounting hardware. 6. Install the switch plate on the remote switch with the screws provided. SL-6138 SL-6136 -3- TROUBLESHOOTING GUIDE SYMPTOM Appliance does not come on. POSSIBLE CAUSE 1. Circuit breaker or fuse is turned off. 2. Switch on appliance is turned off. 3. Lamp or appliance is defective. 4. Signals from remote switch are being blocked, or remote switch is out of range. Check for metal ob- jects that could block the signal, or reposition the remote switch. 5. Weak battery in the remote switch. 1. Switching too fast. Wait 3 seconds before switching the remote switch. 2. Same as 4 & 5 above. 1. Short term power line failure. 2. Another remote switch on the sam e channel. Appliance does not turn off. Appliance comes on randomly. If you experience a problem, follow this guide. SPECIFICATIONS Range .............................................................. Up to 100 feet (30.5 m) Rated Voltage ................................................. 120 VAC, 60 Hz Maximum Load SL-6136 ................................. 500 Watts incandescent 400 Watts TV 300 Watts fluorescent 1/3 H.P. motor Maximum Load SL-6138 ................................ 150 Watts incandescent Battery ............................................................. 9-volt alkaline The Heath Company reserves the right to discontinue products and to change specifications at any time without incurring any obligation to incorporate new features in products previously sold. Regulatory Information The user is cautioned that changes or modifications not expressly approved by the party responsible for regulatory compliance could void the user's authority to operate the equipment. This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this de- vice must accept any interference, including interference that may cause undesired operation of the device. -4- YOUR HEATH ZENITH FIVE YEAR LIMITED WARRANTY This is a “Limited Warranty” as defined in the U.S. Consumer Product Warranty and Federal Trade Commission Improvement Act. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. For a period of five years from the date of purchase, any malfunction caused by factory defective parts or workmanship will be corrected at no charge to you. Batteries are not covered. To obtain a refund or a replacement, return the prod- uct to the place of purchase. Not Covered — Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs, batteries and other expendable items are not covered by this warranty. Unauthorized service or modification of the product or of any furnished com- ponent will void this warranty in its entirety. This warranty does not include reimburse- ment for inconvenience, installation, setup time, loss of use, or unauthorized service. This warranty covers only Heath Zenith assembled products and is not extended to other equipment and components that a customer uses in conjunction with our products. SUCH REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUS- TOMER AND THERE SHALL BE NO LIABILITY ON THE PART OF HEATH FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. YOUR HEATH/ZENITH CANADIAN FIVE YEAR LIMITED WARRANTY This is a “LIMITED WARRANTY” which gives you specific legal rights. You may also have other rights which vary from province to province. For a period of five years from the date of purchase, any malfunction caused by defects in material or workmanship will be corrected at no charge to you. Return the product at your expense to the place of purchase where the product will be replaced at no charge. Heath Company reserves the right to repair or replace the product, at its option. Warr…

Text truncated - open the document above for the full version.

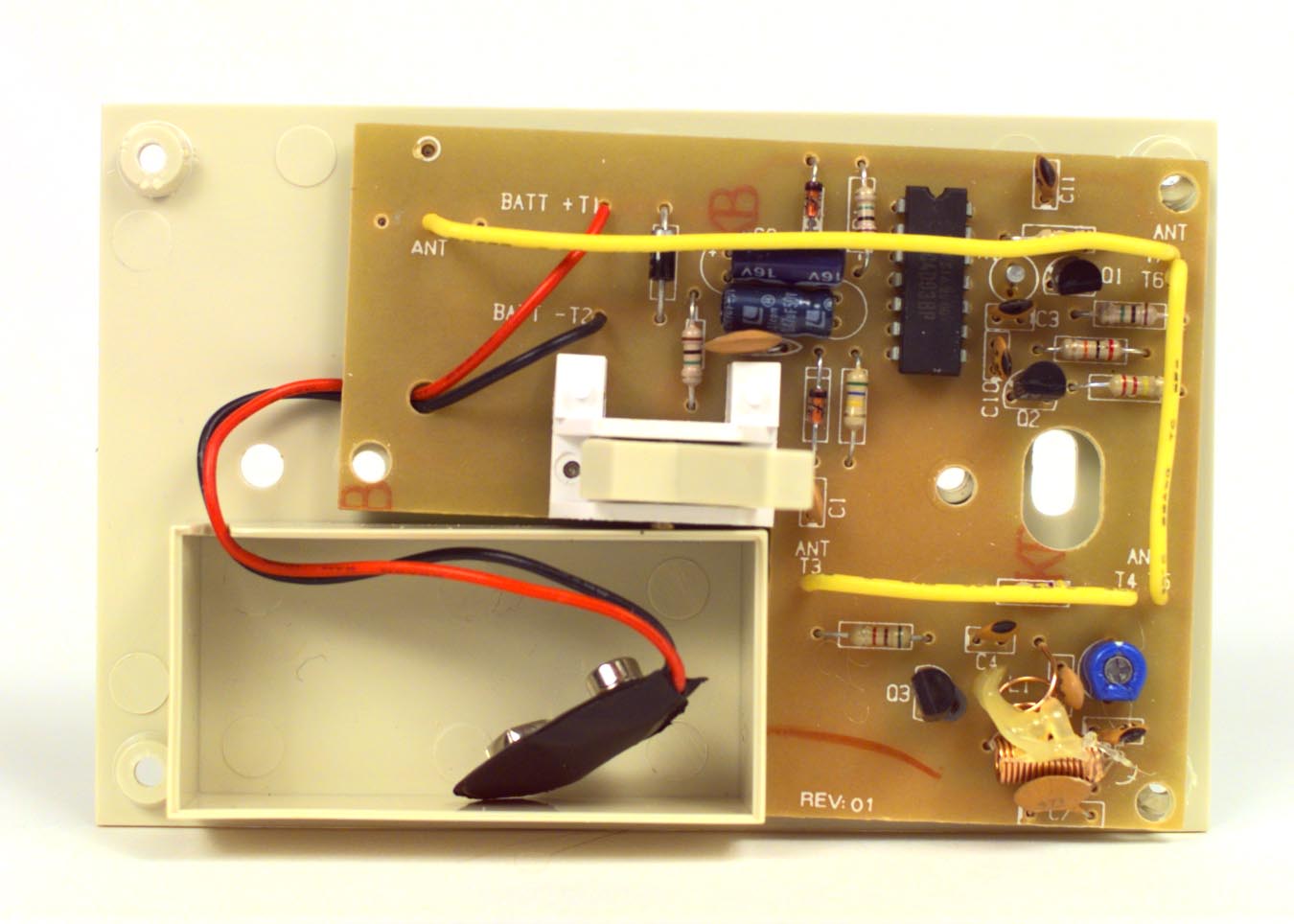

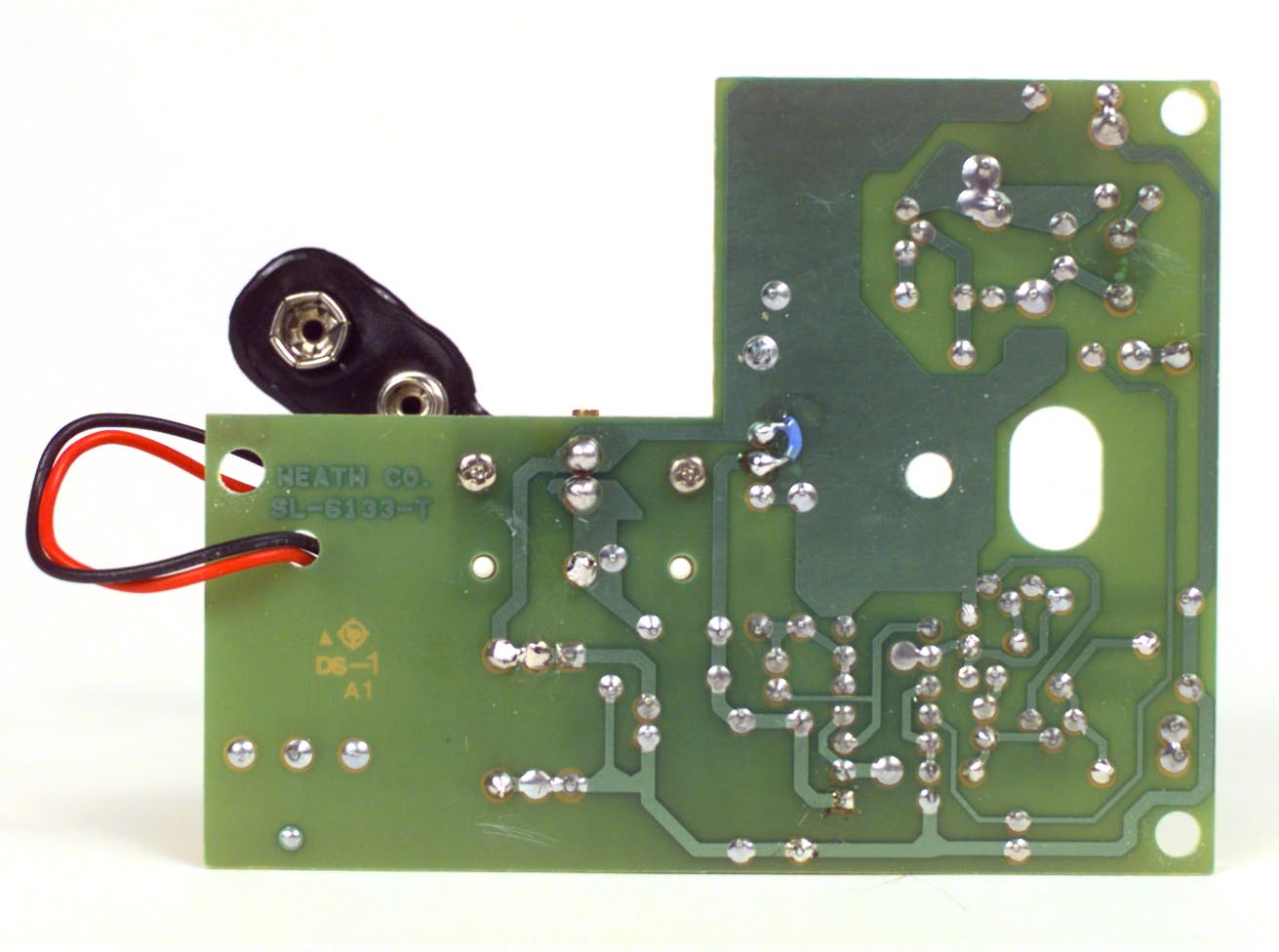

Applicant: Heath Company, a Division of DESA International Inc. 2701 Industrial Dr. Bowling Green, KY. 42102 Manufacturing Location: Heath Company LTD. Rm. 704 Star Centre 443-451 Castle Peak Rd. Kwai Chung, Hong Kong Circuit Description The W-33A-TX is a Wireless Remote Control Transmitter to be sold to operate our Heath Zenith receivers that are used to control lighting, appliances and other similar loads. Currently, this transmitter will activate receivers in our SL-6133, SL-6135, SL-6136, SL- 6138 and SL-6139 products. It will initially be packaged with the SL-6133-RX, SL- 6136-RX and SL-6138-RX receivers and case style may vary. A 9V battery powers the transmitter. Several “channels” are available which correspond to the different crystal modulation frequencies used and include crystals within the 28 k to 38 kHz range. Typically 28 kHz, 30 kHz, 32 kHz, 32.768 kHz and 38 kHz (appropriately marked “A” thru “E”). There is one front cover toggle switch (momentary contact) that activates the channel (only one crystal is use at a time). The receivers are manufactured with one of those crystal frequencies installed and appropriately marked...“ A” thru “E”. Transistors Q1 and Q2 form the crystal oscillator used for modulation. This oscillator operates continuously at low power whenever the battery is installed. This eliminates the start-up drift of the modulation frequency, which could occur when the transmitter is activated. Integrated Circuit (IC) “U1” sections –A and –B form a retriggerable monostable, which sets the minimum transmit time to approximately 150mS, eliminate contact bounce and short burst transmissions. Transistor Q3 is the “ rf” oscillator and is factory adjusted to 315 MHz by capacitor “C6”. The output is activated when pin 11 of U1 section –D is set at a logic high and deactivated when set at logic low. The antenna consists only of the tuning loop PCB trace (foil). Alignment There are no user accessible adjustments. During manufacture, adjusting the tuning capacitor “C6” to 315 MHz sets the carrier frequency. Serv ice There are no user serviceable parts in this product. List of Generated Frequencies 315 MHz “rf” oscillator stage. Modulation: crystal controlled, between 28 kHz and 38 kHz.

W-33A-TX Parts List . (PCB level) . W-33A-TX BOM revised: 18-Feb-00 Component Description ID Tot Qty Comments Printed Circuit Board CEM-1, 1-sided, 1oz Cu. -- 1 Diodes Rect-signal, 1N4148, D1,D3 2 Rect-power, 1N4001, D2 1 Capacitors Ceramic, 1000pF, 50V, 20%, radial C1 1 Ceramic, 10pF, NPO, 50V, radial C3 1 Ceramic, 3pF, 50V, 20%, radial C4 1 Ceramic, 1pF, NPO, 50V, radial C5 1 Ceramic, 470pF, 50V, 20%, radial C7 1 Ceramic, 3.3pF, NPO, 50V, radial C9 1 Ceramic, 2pF, NPO, 50V, radial C11 1 Ceramic, 2.2pF, NPO, 50V, radial C10 1 Ceramic, 0.1uF, 50V, 20%, radial C13 1 El-Al, 0.47uF, 50V, 20%, +85C, radial C2 1 Electrolytic El-Al, 47uF, 10V, 20%, +85C, radial C8 1 Electrolytic Trim (var) -screw, 2 to 5 pF, 20% C6 1 radial, 3-leg Crystals (one of) one used at a time 28.0 kHz, 30.0 kHz, 32 kHz, X1 1 axial metal can 32.768 kHz and 38.0 kHzquartz crystal/tuning fork, 20ppm,12.5pF Inductors (coils) Coil, Wound, 3-loop, #18 Cu bare L1 1 Antenna--hand formed Coil, Wound, 0.3uH, axial L2 1 Machine formed DESA International Confidential Prepared By: RKBroome Page 1 W-33A-TX Parts List . (PCB level) . W-33A-TX BOM revised: 18-Feb-00 Component Description ID Tot Qty Comments (other) Bead, Ferrite, -- 1 placed on Q3's "base" leg ICs Digital-CMOS, 4193BE U1 1 14pin DIP --(Quad NAND gate) Resistors Carbon, 1/4W, 5%, 1M ohm R1, R5, R9 3 Carbon, 1/4W, 5%, 560K ohm R2 1 Carbon, 1/4W, 5%, 220K ohm R3 1 Carbon, 1/4W, 5%, 20K ohm R4 1 Carbon, 1/4W, 5%, 180K ohm R6 1 Carbon, 1/4W, 5%, 470K ohm R7 1 Carbon, 1/4W, 5%, 5.1K ohm R8 1 Transistors Bipolar, 2N3904 Q1, Q2 2 TO-92 Bipolar, Hi-freq, 2SC1923Y Q3 TO-92 Misc. Battery clip & wire, 9V plug Batt 1 Switch-Toggle, momentary, Asmy Sw1 1 Wire, formed, #18 Cu, Insulated -- 3 Antenna aid DESA International Confidential Prepared By: RKBroome Page 2

Master: ktlPT15231 Date: October 8, 1999 KTL Test Report:9R02232 Applicant:Heath Company PO Box 90004 2701 Industrial Drive Bowling Green, KY 42102 Equipment Under Test:W-33A-TX (E.U.T.) FCC ID:BJ4-61WRC33ATX In Accordance With:FCC Part 15, Subpart C For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz And Above 70 MHz Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date: Total Number of Pages:24 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02232 EQUIPMENT: W-33A-TX FCC ID: BJ4-61WRC33ATX Page 2 of 22 Table of Contents Section 1. Summary of Test Results.............................................................................................3 Section 2. Equipment Under Test (E.U.T.).................................................................................. 5 Section 3. Transmission Requirements ........................................................................................ 7 Section 4. Radiated Emissions ...................................................................................................13 Section 5. Occupied Bandwidth................................................................................................. 16 Section 6. Block Diagrams......................................................................................................... 20 Section 7. Test Equipment List..................................................................................................22 Annex A Restricted Bands.......................................................................................................A1 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02232 EQUIPMENT: W-33A-TX FCC ID: BJ4-61WRC33ATX Page 3 of 22 Section 1.Summary of Test Results Manufacturer:Heath Company Model No.:W-33A-TX Serial No.:None Date Received In Laboratory: February 17, 2000 KTL Identification No.: Item #2 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.231. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit DS C Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Glen Westwell, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02232 EQUIPMENT: W-33A-TX FCC ID: BJ4-61WRC33ATX Page 4 of 22 Summary Of Test Data Name of TestParagraph NumberResults Transmission Requirements15.231(a)Complies Radiated Emissions15.231(b)Complies Occupied Bandwidth15.231(c)Complies Footnotes For N/A’s: Test Conditions: Indoor Temperature: 24 °C Humidity:20 % Outdoor Temperature: -4 °C Humidity:16 % KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02232 EQUIPMENT: W-33A-TX FCC ID: BJ4-61WRC33ATX Page 5 of 22 Section 2.Equipment Under Test (E.U.T.) General Equipment Information Frequency Range: 315 MHz (Fixed) Operating Frequency(ies) of Sample: 315 MHz Type of Emission: Pulse Code Modulation Emission Designator: 653KL1D Supply Power Requirement: 9 Vdc Battery Duty Cycle Calculation: 1. Pulse Period = 100 mSec ÷ 35.72 μ S = 2799 pulses in a 100 mSec period. 2. One Time Pulse Width = 17.44 μ Sec 2799 x 17.44 μ Sec = 48.8 mSec 3. 20 Log mSec mSec 100 8.48 = -6.2 dB KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02232 EQUIPMENT: W-33A-TX FCC ID: BJ4-61WRC33ATX Page 6 of 22 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02232 EQUIPMENT: W-33A-TX FCC ID: BJ4-61WRC33ATX Page 7 of 22 Section 3.Transmission Requirements NAME OF TEST: Transmission RequirementsPARA. NO.: 15.231(a) TESTED BY: Glen WestwellDATE: February 18, 2000 Minimum Standard: 15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre- determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results: Complies. Test Data: Compliance was determined by verification of technical specifications and a functional test on the equipment. KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02232 EQUI…
