BJ4-62WDB93TXWireless Remote Doorbell Transmitter

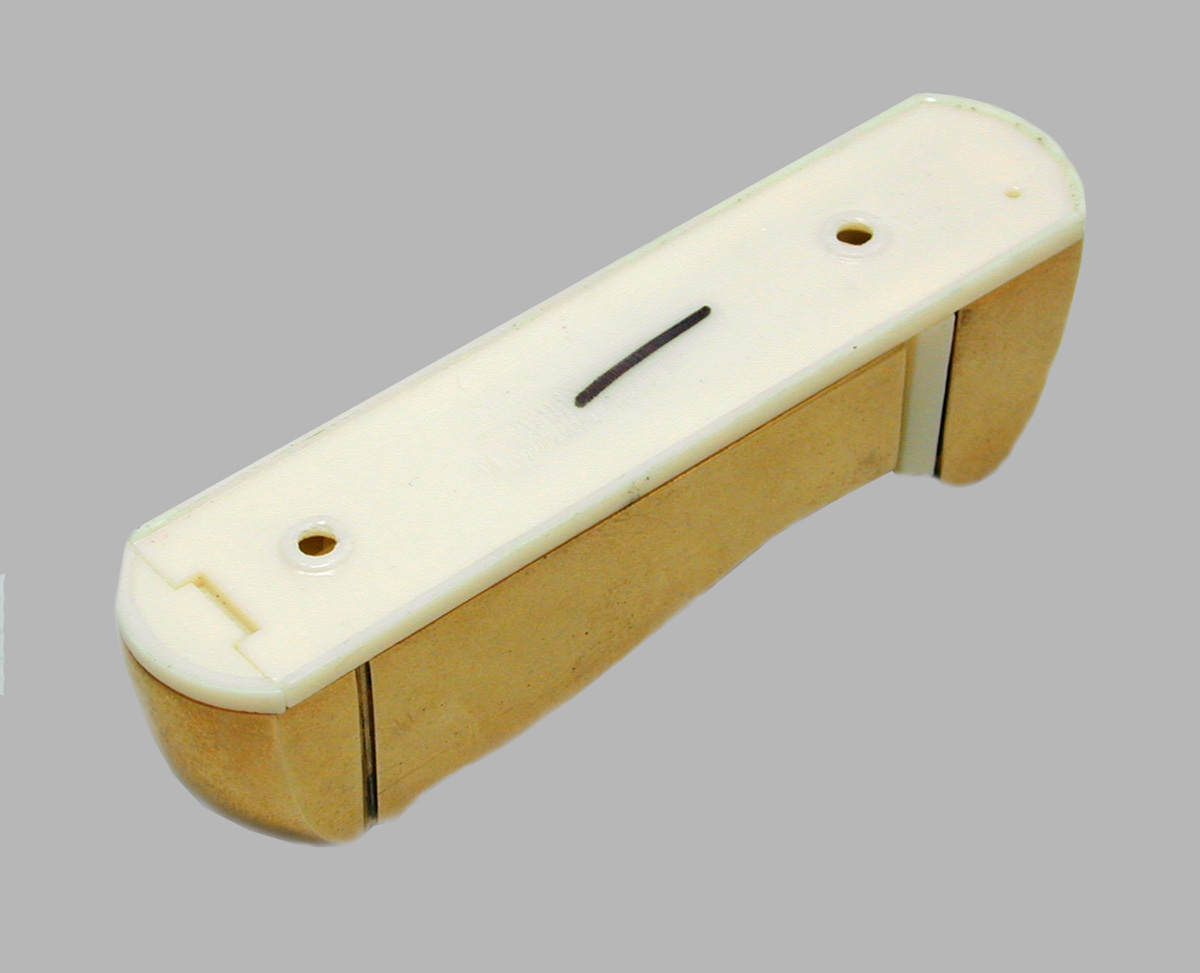

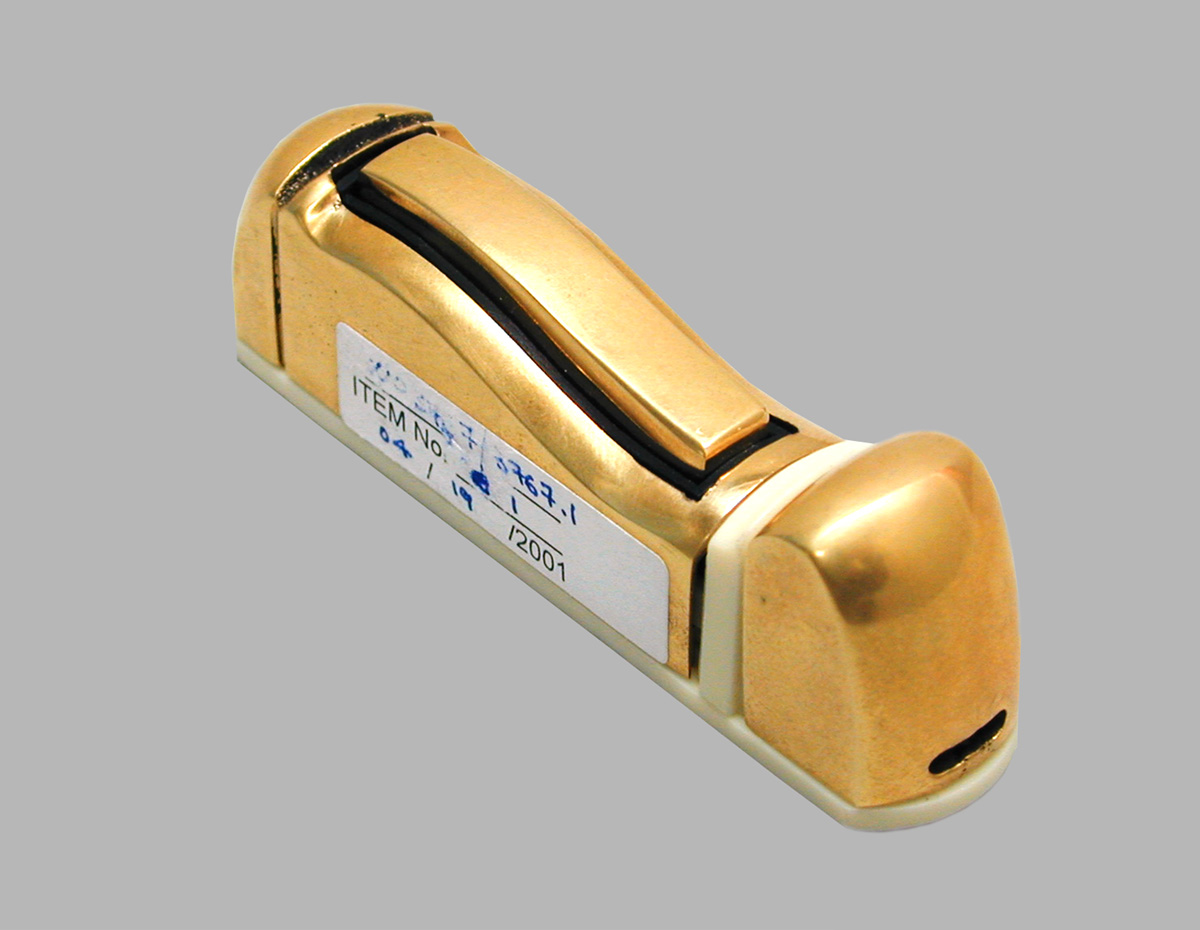

Brass Transmitter Wireless Push Button Accessory The Heath ® /Zenith Wireless Push Button Acces- sory works with existing Heath ® /Zenith jumper or dip switch systems. • Battery powered push button - No wires to run. • 128 selectable codes allow more than one chime system in the same house. © 2001 DESA International598-1105-00 SL-6293/94/95 Brass Transmitter Series (Style may vary from illustration) -2- 598-1105-00 2.Set the push button dip switches to match the chime receiver code. See "Code and Tune Setting" section. 1.Install two lithium type CR1220 3 volt push button batteries (included). Re- move back of case by pushing in tab on bottom with a small screwdriver. Make sure batteries are oriented prop- erly (see page 6). 4. Mount push button. Remove back of case by pushing in tab on bottom with a small screwdriver. Attach back of case to door jamb or wall with screws provided. Snap front of push button on. 3.Test range. Temporarily position push button where you want it mounted. Press push button to verify chime and push button work properly. If chime does not sound, see Troubleshooting. -3- 598-1105-00 Code and Tune Settings Code Settings Note: Most installations will not require you to change any jump- ers or dip switch settings on your chime and push button. WARNING: Disconnect chime unit from power source be- fore opening code access door. Close door and replace screw before reconnecting to power. The push button and chime communicate by using a code that can be changed by switching dip switch positions (or removing and/or adding jumpers) on both the push button and chime. The code is factory set; however, there are 128 selectable codes that allow you to expand your system and prevent outside inter- ference. Other wireless products may cause interference and the system may not function properly. Follow the instructions below for setting a new code. 1. Unplug wireless chime (if applicable). 2. Open the cases and locate the jumpers or dip switches on both the push button and chime (See illustration on page 6). 3. The push button and chime both have eight different jumper/ dip switch locations. Positions 1 through 7 are used for set- ting the code. 4. To change the code, add and/or remove jumpers or change dip switch setting as needed. It is recommended to only change one setting at a time and then check to see if system -4- 598-1105-00 is functioning properly. Note: Positions 1 through 7 must be exactly the same for both the push button and chime for this system to function. Tune Settings Your Heath ® /Zenith wireless chime has different selectable tunes: Ding (one note), Ding-Dong (two note), or Westminster (eight note) (Available on selected Heath ® /Zenith chimes). The fac- tory setting is for the Ding-Dong tune (or Westminster, when available). This tune can be changed by following the instruc- tions below. •Ding (one note tune) Push button: Location 8, Add jumper or set dip switch high (1 or ON). •Ding-Dong (two note tune) Push button: Location 8, Remove jumper or set dip switch low (0 or OFF). Chime: Remove jumper from location 8. •Westminster (Eight note tune) (Available on selected Heath ® / Zenith chimes) Push button: Location 8, Remove jumper or set dip switch low (0 or OFF). Chime: Add a jumper to location 8. -5- 598-1105-00 Note: All models have both front and back door tune capabili- ties. You may purchase any Heath ® /Zenith wireless push button for a second entrance. We recommend the back door use the Ding tune and the front door use the Ding-Dong tune (or Westminster tune, available on selected Heath ® /Zenith chimes). Models that include two push buttons will come factory set for front and back doors. Decals on the rear of the push button will indicate its setting. -6- 598-1105-00 1 2 3 4 5 6 7 8 ON 12345678 Inside Push Button Replacing Push Button Batteries Install two lithium type CR1220 3 volt batteries. See diagram inside push but- ton for correct orientation of batteries. * Code Settings 1-7 Must Match Both Push Button and Chime Remove screw to open access door Tune Setting (Not used on all models) Back of Chime Tune Setting Note: Some models might require the use of tweezers to remove and replace the jumpers or a small screw driver to set dip switches. Heath ® /Zenith reserves the right to discontinue and to change specifications at any time without notice without incurring any obligation to incorporate new features in previously sold products. (+) Positive Battery Terminal -7- 598-1105-00 Troubleshooting Chime doesn't sound: •Make sure push button and chime codes are the same (See pages 3 through 6). •Check orientation of push button batteries (See page 6). •Check charge of push button and chime batteries (if applicable), re- place if necessary. Batteries seem OK, but the chime doesn't work when installed: •Don't mount chime or push button on metal or near metal studs. This reduces the transmitter range. Use 1/4" to 1/2" (6 to 13 mm) wood shims to move chime or push button off metal surface. •Concrete floors may reduce range. Move chime away from floor. •Try locating chime closer to push button. The range of the wireless chime can vary with location, temperature and battery condition. Regulatory Information This device (WB-SAW-TX) complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation. The user is cautioned that changes or modifications not expressly ap- proved by the party responsible for regulatory compliance could void the user’s authority to operate the equipment. Do not send products, please call the number listed below: Technical Service: 1-800-858-8501, Ext. 7660, or visit our website: www.desatech.com. DESA International, Inc. P.O. Box 90004, Bowling Green, KY 42102-9004 -8- 598-1105-00 YOUR HEATH ® /ZENITH FIVE YE…

Text truncated - open the document above for the full version.

REF. No: WB-SAW-TX BJ4-62WDB93TX SL-6293 Transmitter Circuit Block Diagram Power Supply (Two CR1220 Batteries - 6VDC) ENCODER IC (120kHz) Oscillator (315MHz) Antenna (Helical, Internal) 4/19/01Block Diagram of WB-SAW-TX.xls

FCC ID: BJ4-62WDB93TX Response to TCB questions Dear Mr. Curtis: Further to your email below, here are the answers to your questions: 1. Yes, a new battery was used for the testing. 2. Attached, please find a certification agreement signed by Chip Irvin at Desa International. 3. Yes, a peak detector was used for column 4 of page 13. 4. The labels are coated with polyester and use a permanent adhesive on the back of the label for application to the product. I trust the above will enable you to complete the certification. Thank you, Mrs. Ruby Dulmage Administration Nemko Canada Inc. [email protected] Tel: 613-737-9680 x 232 Fax: 613-737-9691 ----- Original Message ----- From: "Jon D. Curtis" <[email protected] > To: <[email protected]> Cc: <[email protected]> Sent: May 4, 2001 8:21 AM Subject: BJ4-62WDB93TX > Dear Mr. Dulmage, > > Thank you for your business. We need a few details attended to in order > to grant this application. > > 1. Please provide information responsive to 15.31(e). Was a new > battery used for the testing? > > 2. Please provide a certification agreement signed by the applicant or > his agent. Blank form provided with yesterday's email. > > 3. Please confirm that raw data shown in column 4 of the table on page > 13 of the test report was acquired with a peak detector. > > 4. Please tell us the label material and confirm that a "permanent" > adhesive is used to affix the label to the product. > > -- > Jon D. Curtis, P.E. > > Director of Engineering > Curtis-Straus LLC > > One Stop Laboratory for NEBS, EMC, > Product Safety, and Telecom Testing. > 527 Great Road > Littleton, MA 01460 USA > Voice 978-486-8880 Fax 978-486-8828 > email: [email protected] > WWW.CURTIS-STRAUS.COM > >

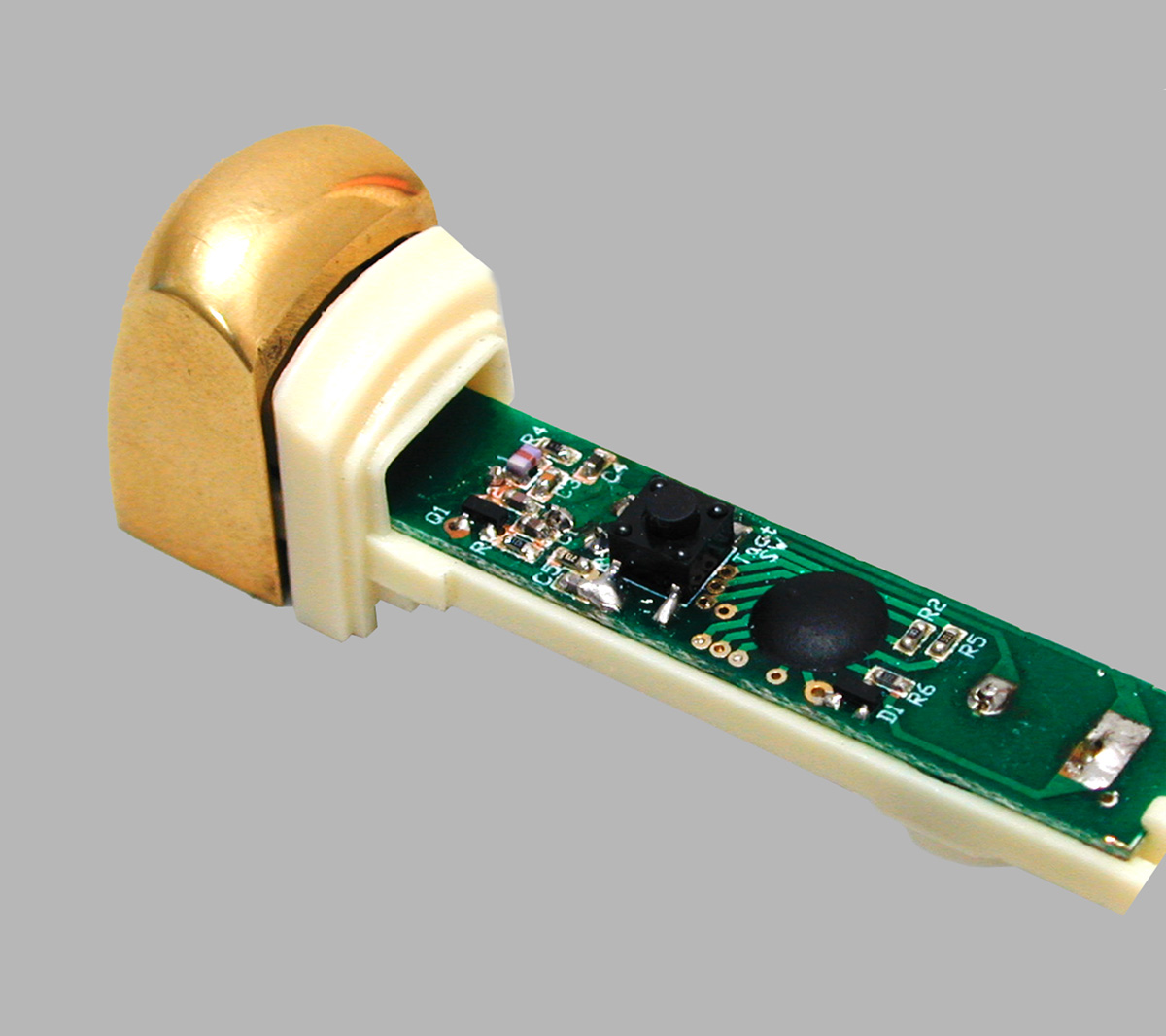

Applicant: DESA International Inc. 2901 Industrial Drive Bowling Green, KY. 42102 Manufacturing Location: Heath Company LTD. Rm. 704-5 Star Centre 443-451 Castle Peak Road Kwai Chung, Hong Kong Circuit Description The WB-SAW-TX is a Wireless Remote Doorbell Transmitter designed to operate all Heath®/Zenith door chime receivers in the SL (or private label) series of AC (plug-in) or battery powered models. These wireless systems consist of the –615x, -616x, -617x, - 618x, -625x, and –628x series of products. The WB-SAW-TX will also be packaged as a stand-alone accessory and case style may vary depending on actual model. Two type CR-1220, 3V (6V total) batteries power the transmitter and are included with the product. The transmitter is normally in a powered-down state (zero stand-by current) until the operator presses the switch (push button) to activate the unit. This switch is a front cover push button (momentary contact) that supplies power to the circuit as long as the button is pressed. When the button is released, power is removed and the transmission is stopped. The 6-volt supply from the battery is regulated to 4.4vots by an internal regulator of a custom IC used to encode functions and control the “rf” generator stage. This custom IC (444-P008) is the same custom chip that was used in the previously certified transmitters (WB-94A-TX and WB-97-TX). This IC produces a serial bit stream that corresponds to the state of its address and data control lines. The data rate is approximately 1kHz and the pattern consists of 8 address bits, 4 data bits, and 1 “start” bit (a 13 bit information block). The logic data high bit (one) is represented by a 600 uS pulse-width and a logic low bit (zero) by a 300uS pulse-width. A minimum of four 13- bit information blocks are sent (transmitted) each time the push button is pressed and will repeat while the switch is held down. A surface mounted mini dipswitch that is connected to the IC electrically sets the address and data control bits. When a switch is set to “0” or “OFF”, the data line floats (pulled high by the internal structure of the IC) and the bit is set at a logic zero. The output of the custom encoder IC (U1) drives the “rf” oscillator Q1, frequency stabilized with a SAW (Surface Acoustical Wave) Resonator operating at 315 MHz. The “rf” is activated when U1’s output is set at logic high and deactivated when set at logic low. Transmission radiation comes from a small helical antenna that is mounted directly to the PCB and is located completely internal to the transmitter housing. Alignment There are no user adjustments. The design and use of the SAW resonator locks the carrier frequency to 315 MHz. Service There are no user serviceable parts in this product. List of Generated Frequencies 315 MHz ‘rf” oscillator stage 120kHz digital encoding stage Modulation: digital data, AM pulse-width coding.

Master:PT15231 Date: February 25, 2001 Test Report:1W03767 Applicant:Desa International 2701 Industrial Avenue Bowling Green, KY 42101-9004 Equipment Under Test:WB-SAW-TX (EUT)Wireless Remote Doorbell Transmitter FCC ID:BJ4-62WDB93TX In Accordance With:FCC Part 15, Subpart C For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz And Above 70 MHz Tested By:Nemko Canada Inc. (Formerly KTL Ottawa Inc.) 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Wireless Technologist Date:April 30, 2001 Total Number of Pages:21 Authorized Copy:Soft Copy Nemko Canada Inc.FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 1W03767 EQUIPMENT: WB-SAW-TX, Wireless Remote Doorbell Transmitter FCC ID: BJ4-62WDB93TX Page 2 of 19 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. Equipment Under Test (EUT)..............................................................................5 Section 3. Transmission Requirements...............................................................................10 Section 4. Radiated Emissions.............................................................................................12 Section 5. Occupied Bandwidth..........................................................................................15 Section 6. Block Diagrams...................................................................................................17 Section 7. Test Equipment List...........................................................................................19 Annex A Restricted Bands................................................................................................A1 Nemko Canada Inc.FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 1W03767 EQUIPMENT: WB-SAW-TX, Wireless Remote Doorbell Transmitter FCC ID: BJ4-62WDB93TX Page 3 of 19 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.231. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: DATE: April 30, 2001 Russell Grant, Wireless Group Manager Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 1W03767 EQUIPMENT: WB-SAW-TX, Wireless Remote Doorbell Transmitter FCC ID: BJ4-62WDB93TX Page 4 of 19 Summary Of Test Data Name of TestPara. NumberResults Transmission Requirements15.231(a)Complies Radiated Emissions15.231(b)Complies Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)N/A Periodic Alternate Field Strength Requirements15.231(e)N/A Powerline Conducted Emissions15.207N/A Nemko Canada Inc.FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 1W03767 EQUIPMENT: WB-SAW-TX, Wireless Remote Doorbell Transmitter FCC ID: BJ4-62WDB93TX Page 5 of 19 Section 2.Equipment Under Test (EUT) General Equipment Information Date Received In Laboratory: April 19, 2001 Nemko Identification No.: Item #1 Frequency Range: 315MHz Emission Designator: 82K0L1D Supply Power Requirement: Batteries Duty Cycle Calculation: Worst Case 4x13+5 = 57 Long Pulse In 100ms 20 Log       100 667.057x = -8.4dB Nemko Canada Inc.FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 1W03767 EQUIPMENT: WB-SAW-TX, Wireless Remote Doorbell Transmitter FCC ID: BJ4-62WDB93TX Page 6 of 19 Nemko Canada Inc.FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 1W03767 EQUIPMENT: WB-SAW-TX, Wireless Remote Doorbell Transmitter FCC ID: BJ4-62WDB93TX Page 7 of 19 Nemko Canada Inc.FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 1W03767 EQUIPMENT: WB-SAW-TX, Wireless Remote Doorbell Transmitter FCC ID: BJ4-62WDB93TX Page 8 of 19 Nemko Canada Inc.FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 1W03767 EQUIPMENT: WB-SAW-TX, Wireless Remote Doorbell Transmitter FCC ID: BJ4-62WDB93TX Page 9 of 19 Nemko Canada Inc.FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 1W03767 EQUIPMENT: WB-SAW-TX, Wireless Remote Doorbell Transmitter FCC ID: BJ4-62WDB93TX Page 10 of 19 Section 3.Transmission Requirements Para. No.: 15.231(a) Test Performed By: Russell GrantDate of Test: April 29, 2001 Minimum Standard:15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more t…

Text truncated - open the document above for the full version.
