BJ4-WLTX101Wireless Door Chime Transmitter

ITEM/ARTICLE/ARTÍCULO #0568968, 0568966, 0568969, 0077758 BUTTON BOUTON BOTÓN MODEL/MODÈLE/MODELO #UT-7300, UT-7303, UT-7304, UT-7393 PACKAGE CONTENTS/CONTENU DE L’EMBALLAGE/CONTENIDO DEL PAQUETE HARDWARE CONTENTS/QUINCAILLERIE INCLUSE/ADITAMENTOS Note: Hardware shown actual size./Remarque : La quincaillerie est illustrée en grandeur réelle./Nota: Los aditamentos se muestran en tamaño real. A x 1 Push Button Bouton-poussoir Botón pulsador *Illustrations may vary from actual unit. *L’unité peut différer des illustrations. *Las ilustraciones pueden variar de la unidad real. ATTACH YOUR RECEIPT HERE JOIGNEZ VOTRE REÇU ICI ADJUNTE SU RECIBO AQUÍ Purchase Date/Date d’achat/Fecha de compra Questions?/Des questions?/¿Preguntas? Call technical service at 1-866-994-4148, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday. Communiquez avec le soutien technique au 1 866 994-4148, entre 8 h et 18 h (HNE) du lundi au jeudi, ou entre 8 h et 17 h (HNE) le vendredi. Llame al servicio técnico al 1-866-994-4148, de lunes a jueves de 8 a.m. a 6 p.m., y los viernes de 8 a.m. a 5 p.m., hora estándar del Este. 207053-01A AB14437 Lowes.com AABB Screw Vis Tornillo Double-Sided Tape Ruban adhésif à double face Cinta doble faz x 1 x 2 1. Remove back of push button (A) by pushing in tab on bottom with a small screwdriver (not included). Retirez la partie arrière du bouton- poussoir (A) en appuyant sur la languette du bas à l’aide d’un petit tournevis (non inclus). Con un destornillador pequeño (no se incluye), presione la pestaña en la parte inferior del botón pulsador (A) para retirar la parte posterior. 2. Remove orange battery tab from push button (A). Retirez la languette orange de la pile du bouton-poussoir (A). Retire la pestaña naranja de la batería del botón pulsador (A). 3. Look at the chime and determine which type of chime will be connected to the push button (A). • Chime 3A (2 Switches): The chime has only two switches similar to the push button (A). • Chime 3B (1 Button): The chime has a multi-function button. • Chime 3C (7 or 8 Jumpers or Switches): The chime has a row of 7 or 8 jumpers or switches. INSTALLATION INSTRUCTIONS/INSTRUCTIONS POUR L’INSTALLATION/INSTRUCCIONES DE INSTALACIÓN Observez le carillon et choisissez quel type de carillon sera branché au bouton- poussoir (A). • Carillon 3A (2 interrupteurs) : le carillon ne présente que deux interrupteurs semblables à ceux du bouton-poussoir (A). • Carillon 3B (1 bouton) : le carillon est doté d’un bouton multifonction. • Carillon 3C (7 ou 8 cavaliers ou interrup- teurs) : le carillon présente une rangée de 7 ou 8 cavaliers ou interrupteurs.          campanilla se conectará al botón pulsador (A). • Campanilla 3A (2 interruptores): La campanilla solo cuenta con dos inte- rruptores similares a los del botón pulsador (A). • Campanilla 3B (1 botón): La campanilla tiene un botón multifunción. • Campanilla 3C (7 u 8 puentes o interruptores): La campanilla tiene         PREPARATION/PRÉPARATION/PREPARACIÓN Before beginning installation of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble, install, or operate the product. Estimated Installation Time: 15 minutes        !"$ % $ & '+ +;<;=  +  > Avant de commencer l’installation de l’article, assurez-vous d’avoir toutes les pièces. Comparez le contenu de l’emballage avec la liste des pièces et celle de la quincaillerie. S’il y a des pièces manquantes ou endommagées, ne tentez pas d’assembler, d’installer ni d’utiliser le produit. Temps d’installation approximatif : 15 minutes. Outils nécessaires pour l’assemblage (non inclus) : tournevis cruciforme, tournevis à tête plate, perceuse, foret de 1/16 po et lunettes de sécurité. Antes de comenzar a instalar el producto, asegúrese de tener todas las piezas. Compare las piezas con la lista del contenido del paquete y la lista de aditamentos. No intente ensamblar, instalar ni operar el producto si faltara alguna pieza o si éstas estuvieran dañadas. Tiempo de instalación estimado: 15 minutos Herramientas necesarias para el ensamblaje (no se incluyen): Destornilladores de cabeza plana y Phillips, taladro, broca para taladro de 1/16", gafas de seguridad SAFETY INFORMATION/CONSIGNES DE SÉCURITÉ/INFORMACIÓN DE SEGURIDAD Please read and understand this entire manual before attempting to assemble, operate, or install the product. Assurez-vous de lire et de comprendre l’intégralité de ce manuel avant de tenter d’assembler, d’installer ou d’utiliser le produit. Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el producto. WARNING/AVERTISSEMENT/ADVERTENCIA • To prevent possible SERIOUS INJURY or DEATH, never allow small children near batteries. If battery is swallowed, immediately notify doctor./  prévenir les risques de BLESSURES GRAVES ou MORTELLES, ne laissez jamais de jeunes enfants s’approcher des piles. En cas d’ingestion d’une pile, avisez immédiatement un médecin./Para evitar posibles LESIONES GRAVES o la MUERTE, nunca permita que los niños pequeños estén cerca de las baterías. Si se ingiere la batería, informe de inmediato a su médico. This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. $    $ $>    K '   $ >      '  $ W $   operate the equipment./Cet appareil est conforme à l’alinéa 15 du règlement de la FCC et à la norme RSS-210 d’Industrie Canada. Son utilisation est so…

Text truncated - open the document above for the full version.

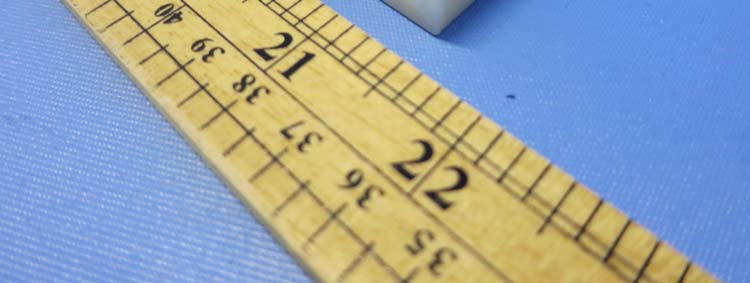

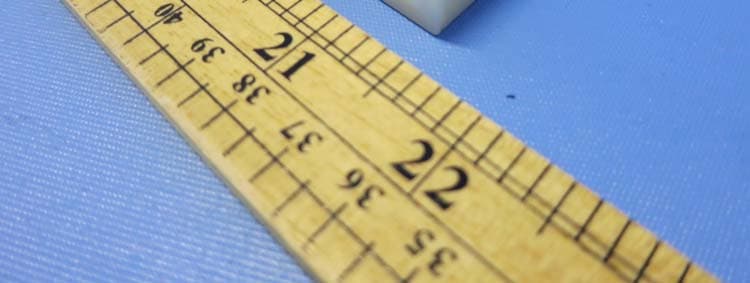

INTERTEK TESTING SERVICES External Photos FCC ID: BJ4-WLTX101 IC: 3984A-WLTX101 external photos - 1 of 1 Job Number HK14041064 Job Number HK14041064

MODEL: WLTX-101 FCC ID: BJ4-WLTX101 IC: 3984A-WLTX101 HEATHCO LLC BOWLING GREEN, KY MADE IN CHINA BATTERY 1 X CR2032 + SIDE UP

INTERTEK TESTING SERVICES Internal photos FCC ID: BJ4-WLTX101 IC: 3984A-WLTX101 internal photos - 1 of 2 INTERTEK TESTING SERVICES Internal photos FCC ID: BJ4-WLTX101 IC: 3984A-WLTX101 internal photos - 2 of 2

Analysis Report Report No.: 14041064HKG-001 The equipment under test (EUT) is a transmitter for Remote door bell operating at 315MHz which is operated by a crystal. The EUT is powered by 1 x 3.0V CR2032 battery. The EUT has one control key, press the control key on the EUT in order to control the desired door bell receiver. This manually operated transmitter will automatically deactivate the transmitter within not more than 5 seconds of being released. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 78.3 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 81.3 dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.040mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.040mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.315) mW = 26.73 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 14041064HKG-001 HeathCo LLC Application For Certification (Original Grant) (FCC ID: BJ4-WLTX101) Transmitter Prepared and Checked by: Approved by: Signed On File Yeung Yung Fai, James Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: June 23, 2014 INTERTEK TESTING SERVICES Report No.: 14041064HKG-001 i FCC ID: BJ4-WLTX101 GENERAL INFORMATION Grantee: HeathCo LLC Grantee Address: 2445 Nashville Road, Bowling Green, Kentucky 42101, United States. Contact Person: Jeff Bessinger Tel: 270-846-8271 Fax: 270-846-8501 e-mail: [email protected] Manufacturer: ZheJiang Bernal Electric Co., Ltd. Manufacturer Address: Weishiqi Road (east end), Yueqing Economic Development Zone, Zhejiang Province, China. Brand Name: HeathCo LLC Model: WLTX-101, 7393, 7340 Type of EUT: Transmitter Description of EUT: Wireless Door Chime Transmitter Serial Number: N/A FCC ID: BJ4-WLTX101 Date of Sample Submitted: April 17, 2014 Date of Test: April 17, 2014 to May 07, 2014 Report No.: 14041064HKG-001 Report Date: June 23, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 14041064HKG-001 ii FCC ID: BJ4-WLTX101 SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 14041064HKG-001 iii FCC ID: BJ4-WLTX101 Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Measurement Uncertainty...............................................................................2 2.5 Support Equipment List and Description.........................................................2 3.0 Emission Results .............................................................................................3 3.1 Field Strength Calculation...............................................................................3 3.2 Radiated Emission Configuration Photograph ................................................4 3.3 Radiated Emission Data .................................................................................4 4.0 Equipment Photographs ..................................................................................7 5.0 Product Labelling .............................................................................................7 6.0 Technical Specifications .................................................................................7 7.0 Instruction Manual ...........................................................................................7 8.0 Miscellaneous Information ..............................................................................8 8.1 Measured Bandwidth......................................................................................8 8.2 Discussion of Pulse Desensitization ...............................................................9 8.3 Calculation of Average Factor.........................................................................9 8.4 Emissions Test Procedures ..........................................................................12 9.0 Confidentiality Request .........…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Timing FCC ID: BJ4-WLTX101 IC: 3984A-WLTX101 emission - 1 of 1

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: BJ4-WLT101 IC: 3984A-WLTX101 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View
