BJ4-WLTX104Wireless Door Chime Transmitter

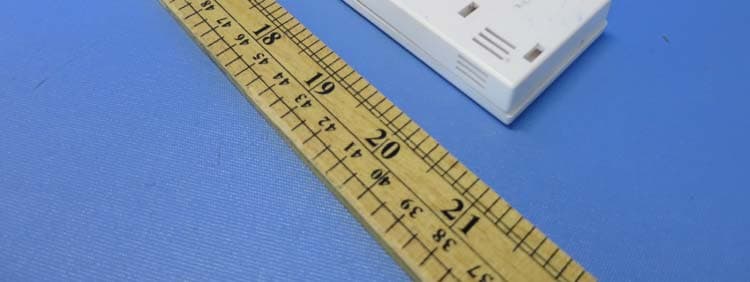

INTERTEK TESTING SERVICES External Photos FCC ID: BJ4-WLTX104 IC: 3984A-WLTX104 external photos - 1 of 1 Job Number HK14041063 HK14041063 Job Number

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MODEL: WLTX-104 FCC ID: BJ4-WLTX104 IC: 3984A-WLTX104 HEATHCO LLC BOWLING GREEN, KY MADE IN CHINA

INTERTEK TESTING SERVICES Internal photos FCC ID: BJ4-WLTX104 IC: 3984A-WLTX104 internal photos - 1 of 3 INTERTEK TESTING SERVICES Internal photos FCC ID: BJ4-WLTX104 IC: 3984A-WLTX104 internal photos - 2 of 3 INTERTEK TESTING SERVICES Internal photos FCC ID: BJ4-WLTX104 IC: 3984A-WLTX104 internal photos - 3 of 3

Analysis Report Report No.: 14050712HKG-001 The equipment under test (EUT) is a transmitter for Remote door bell operating at 315MHz which is operated by a crystal. The EUT is powered by 4 x AAA new battery. There are a test button and a microphone inside the EUT. The transmitter will be activated and then transmit a signal to corresponding door bell receiver once either the microphone can be received the chime sound from other door bell or the test button is pressed by the user. For microphone portion, the transmitter will cease transmission within 5 seconds after activation. For test button, the manually operated transmitter will automatically deactivate the transmitter within not more than 5 seconds of being released. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 85.4 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 88.4 dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.104mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.104mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.315) mW = 26.73 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 14050712HKG-001 HeathCo LLC Application For Certification (Original Grant) (FCC ID: BJ4-WLTX104) Transmitter Prepared and Checked by: Approved by: Signed On File Yeung Yung Fai, James Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: June 23, 2014 INTERTEK TESTING SERVICES Report No.: 14050712HKG-001 i FCC ID: BJ4-WLTX104 GENERAL INFORMATION Grantee: HeathCo LLC Grantee Address: 2445 Nashville Road, Bowling Green, Kentucky 42101, United States. Contact Person: Jeff Bessinger Tel: 270-846-8271 Fax: 270-846-8501 e-mail: [email protected] Manufacturer: ZheJiang Bernal Electric Co., Ltd. Manufacturer Address: Weishiqi Road (east end), Yueqing Economic Development Zone, Zhejiang Province, China. Brand Name: HeathCo LLC Model: WLTX-104, 7357 Type of EUT: Transmitter Description of EUT: Wireless Door Chime Transmitter Serial Number: N/A FCC ID: BJ4-WLTX104 Date of Sample Submitted: May 14, 2014 Date of Test: May 14, 2014 to May 19, 2014 Report No.: 14050712HKG-001 Report Date: June 23, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 14050712HKG-001 ii FCC ID: BJ4-WLTX104 SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 14050712HKG-001 iii FCC ID: BJ4-WLTX104 Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Measurement Uncertainty...............................................................................2 2.5 Support Equipment List and Description.........................................................2 3.0 Emission Results .............................................................................................3 3.1 Field Strength Calculation...............................................................................3 3.2 Radiated Emission Configuration Photograph ................................................4 3.3 Radiated Emission Data .................................................................................4 4.0 Equipment Photographs ..................................................................................7 5.0 Product Labelling .............................................................................................7 6.0 Technical Specifications .................................................................................7 7.0 Instruction Manual ...........................................................................................7 8.0 Miscellaneous Information ..............................................................................8 8.1 Measured Bandwidth......................................................................................8 8.2 Discussion of Pulse Desensitization ...............................................................9 8.3 Calculation of Average Factor.........................................................................9 8.4 Emissions Test Procedures ..........................................................................12 9.0 Confidentiality Request ...................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Timing FCC ID: BJ4-WLTX104 IC: 3984A-WLTX104 emission - 1 of 1

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: BJ4-WL TX104 I C: 3984A-WLTX104 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View
