BJ4-WRC6005TXWireless Lighting Remote Control

DRAFT COPY FEATURES •Products are UL/cUL and/or FCC/IC tested and approved. •Operational range of up to 100 feet. Heath ® /Zenith wireless lighting controls are designed to work together. Simply determine which transmitter(s) you would like to have control which receiver(s) and set the code setting to match. •Transmitters –Remote Control –Add-A-Switch –Entry Switch –Wireless Motion Sensor Remote Controlled Products This manual includes operating instructions for a variety of remote controlled products. All products work on the same principle and use the same code setting information. Please read all instructional information and note any specific information pertaining to your particular product. WARNINGS: • FOR USE ONLY with 120 volt incandescent or halogen bulbs. •DO NOT USE with fluorescent bulbs, appliances, power supplies, low voltage lighting, or any other electrical devices. CODE SETTINGS Note: Most single system installations will not require any change to the code setting. Transmitter(s) and receiver(s) must have the same code and group setting to work to- gether. Switches 1 through 3 set the code. Switch 4 sets the Group (A or B). See page 2 for switch locations. DIM AB ON OFF ON OFF DIM Receiver(s) Code Receiver(s) Code Group A Group B Remote Motion Sensor Code Group A Example 1 - Code Switch Settings, System 1 (Factory Setting) Device A Controls: Controls One Set of Group “A” or Group “B” Receiver(s) Device B Controls: Controls One Set of Group “A” or Group “B” Receiver(s) Note: When operating more than one system independently of each other, set each system to a different code. There are 8 codes available by changing the settings of switches 1 through 3. Example 2 - Code Switch Settings, System 2 Receiver(s) Code Receiver(s) Code Group AGroup B When using a single group transmitter (i.e. Door Transmitter, Add- A-Switch, Remote Motion Sensor) the code and group settings must match receiver(s) for the system to function properly. •Receivers –Indoor Plug-In Converter –Floodlight –Lamp Socket Converter This manual applies to the following products: Note: The channel can also be changed to reduce interference problems from other wireless products (i.e. wireless phones, garage door openers, etc.). See Troubleshooting Guide for more information. Receiver(s) Code Group A Example 3 - Code Switch Settings with Single Transmitter Note: This setting will work independently of examples 1 and 2 because the code setting is different. (– Indicates Position of Switch) © 2004 DESA Specialty Products™598-1116-08 ENGLISH 2598-1116-08 DRAFT COPY Remote Control Indoor Plug-In Converter CODE SWITCH LOCATIONS ON DIP 1 2 3 4 ON DIP 1 2 3 4 Device B Code Switches Battery Cover O N 1 2 3 4 Code Switches 1 2 3 4 ON 2032 3 V L i t h i u m B a t t e r y DIM Add-A-Switch Access Door 1 2 3 4 ON h i u m B Entry Switch Floodlight Lamp Socket Converter 1 2 3 4 Code Switches Screw Cover Code Switches Wireless Motion Sensor Code Switches DETECT CODES 1234 DAY NIGHT NIGHT ONL Y Code Switches ON 1 2 3 4 Close-Up of Typical Code Switch (Factory Default Setting is Off) Note: The “X” has been placed on the switches to help clarify the code settings on the previous page. CR2032 3 VOLTS 1 2 3 4 ON Code Switches Device A Code Switches 3598-1116-08 ENGLISH DRAFT COPY Note: One remote control is able to independently operate two receiver units set on the same channel. If more than two receiver units, operating independently, are desired, additional remote controls will need to be purchased. 1. Remove Tab from Battery Chamber. Remove cover from back of transmitter. Gently pull tab out of battery chamber. Slide cover onto transmitter. REMOTE CONTROL 2. Remote Control Functions. The three buttons on the left side of the remote will operate one or more receiver units with matching addresses. The three buttons on the right side of the remote will operate a second set of one or more receiver units. •Device A/B ON: Turns on any receiver unit set to the same channel as this remote control. •Device A/B OFF: Turns off any receiver unit set to the same channel as this remote control. •Device A/B DIM: Activates the DIM feature for any receiver unit set to the same channel as this remote control. Note: Pressing the DIM button steps through five brightness levels. Note: To independently operate a second receiver unit using a single remote control, make sure the second set of code switches (Device B) and the code switches on each receiver match (see Code Settings section). •Device A - Set Device A code switches. •Device B - Set Device B code switches. Rear View of Remote Control Function Controls ON DIP 1 2 3 4 ON DIP 1 2 3 4 Battery Chamber (Type A23) Battery Cover Tab Device A DIM Device A ON Device A OFF Device B DIM Device B ON Device B OFF 4543 1232 Important: Wait 1 to 2 seconds after you press a transmitter button before you press it again to allow the transmission to be completed. Note: If light does not turn on or intermittently turns on and off when transmitter buttons are pushed, see Troubleshooting Guide. Optional Car Visor Clip (Included) The remote control includes an optional car visor clip for added convenience that may be installed. 1. To attach car visor clip to remote control (if desired) push it into slot on rear of remote unit until it snaps into place. 2. To remove car visor clip, insert a small, flat-head screwdriver into slot on back of remote. Gently push down on portion of visor clip inside slot with screwdriver while pulling clip out of remote from top. Removing Visor Clip - Rear View Flat-Head Screwdriver Optional Visor Clip 4598-1116-08 DRAFT COPY ADD-A-SWITCH Installation 1. Remove Tab from Battery Chamber. Remove cover from front of Add-A-Switch transmitter. Gently pull tab out of battery chamber. Slide cover onto Add-A- Switch transmitter. DIM Add-A-Switch Add-A-Switch ON/OFF Button DIM Button Access Door D I M Removing Battery Tab 1 2 ON 2032 3 V L i t h i u m B a t t e r y Battery Chamber (Type CR2032)…

Text truncated - open the document above for the full version.

REF. No:6005-4,6,8TX 12V Battery Power Circuit power control switch (transistor) SAW (315MHz) Micro Controller Transmitter Circuit (315 MHz) A ntenna (PCB Trace, Internal) Transmitter Circuit Block Diagram 6/3/2004 427655.XLS

DRAFT COPY FCC ID: BJ4-WRC6005TX CANADA: 3984A-6005TX This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DESA Specialty Products™, Bowling Green, KY 6005-8TXMade in China 390-6005XX-8TX1A

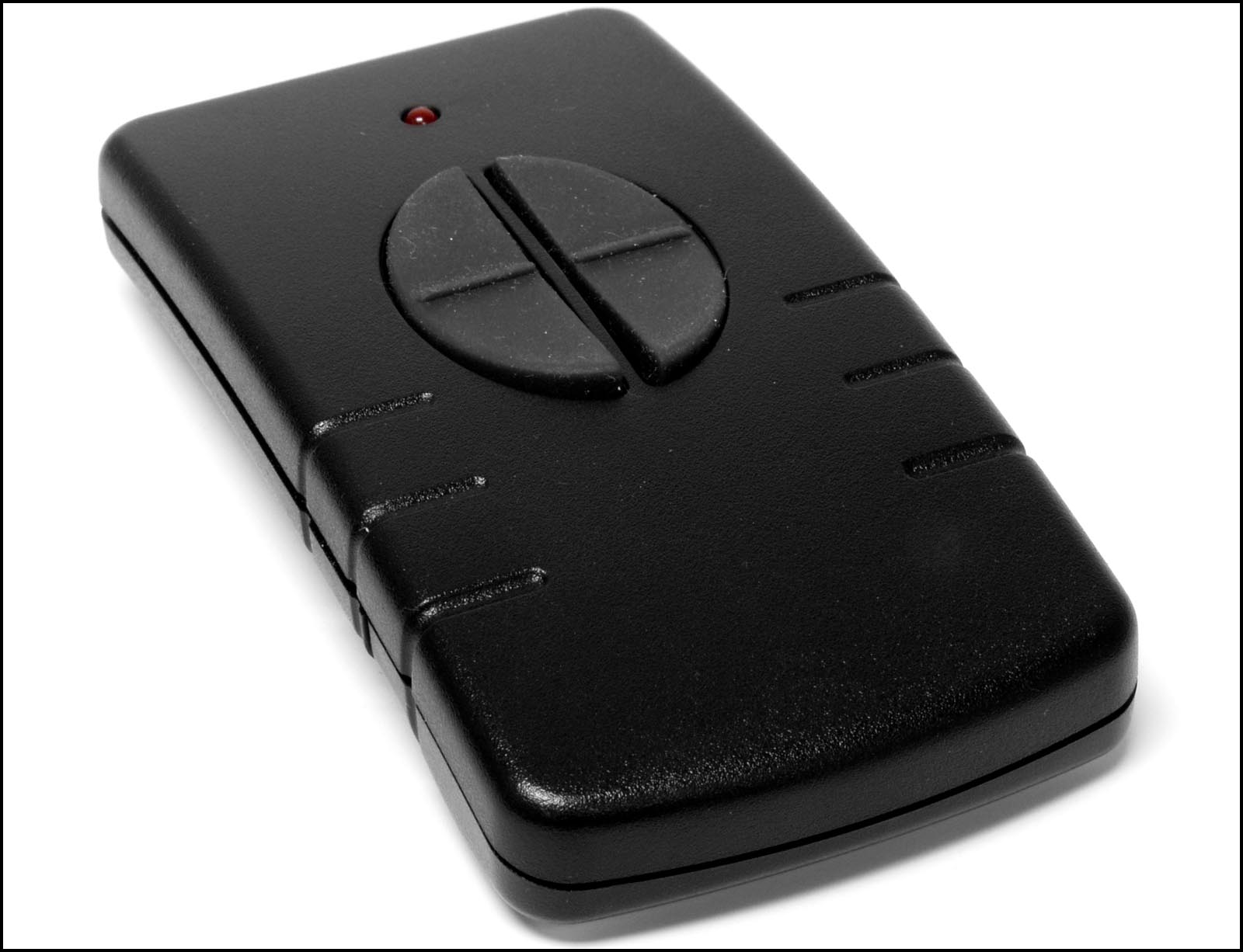

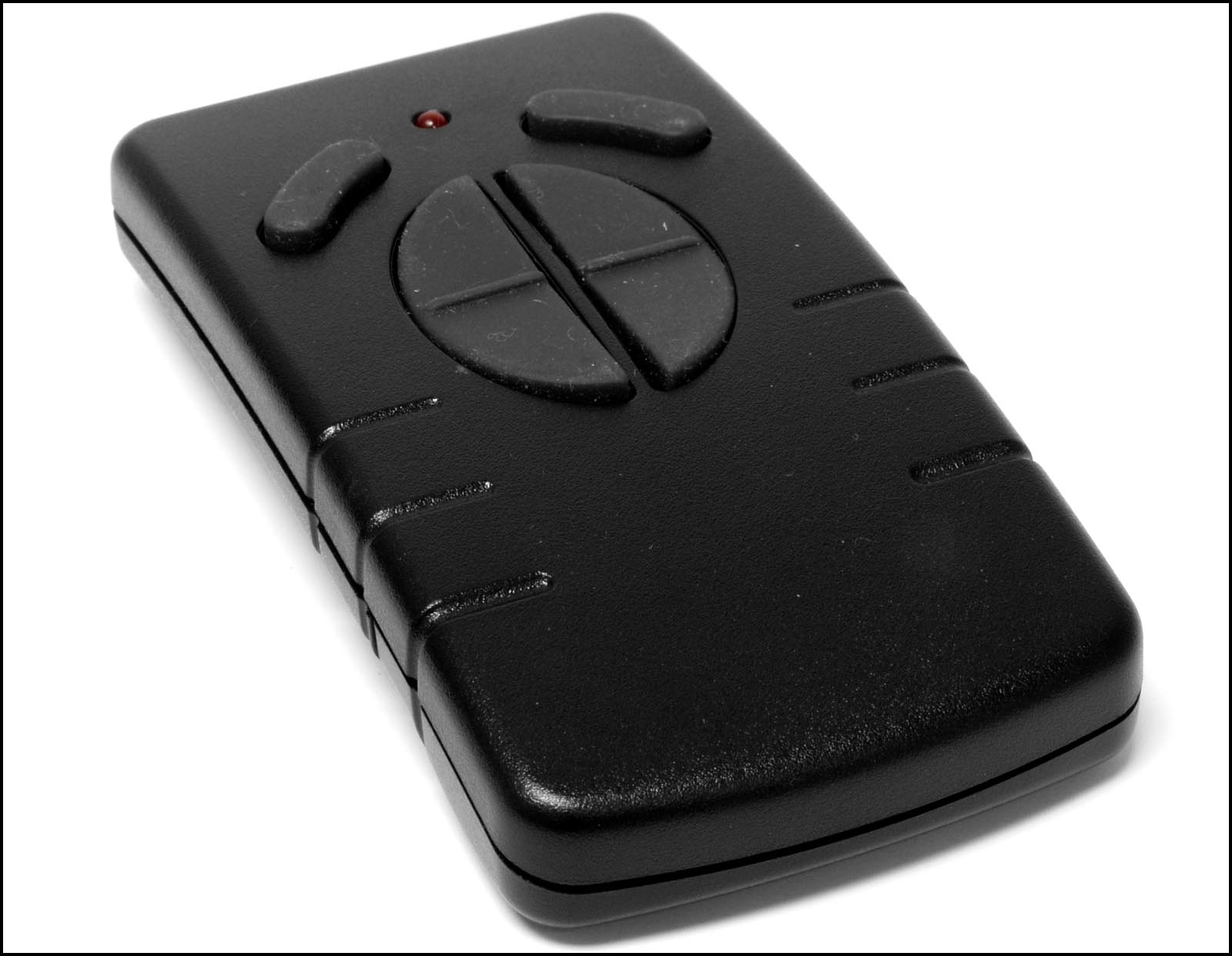

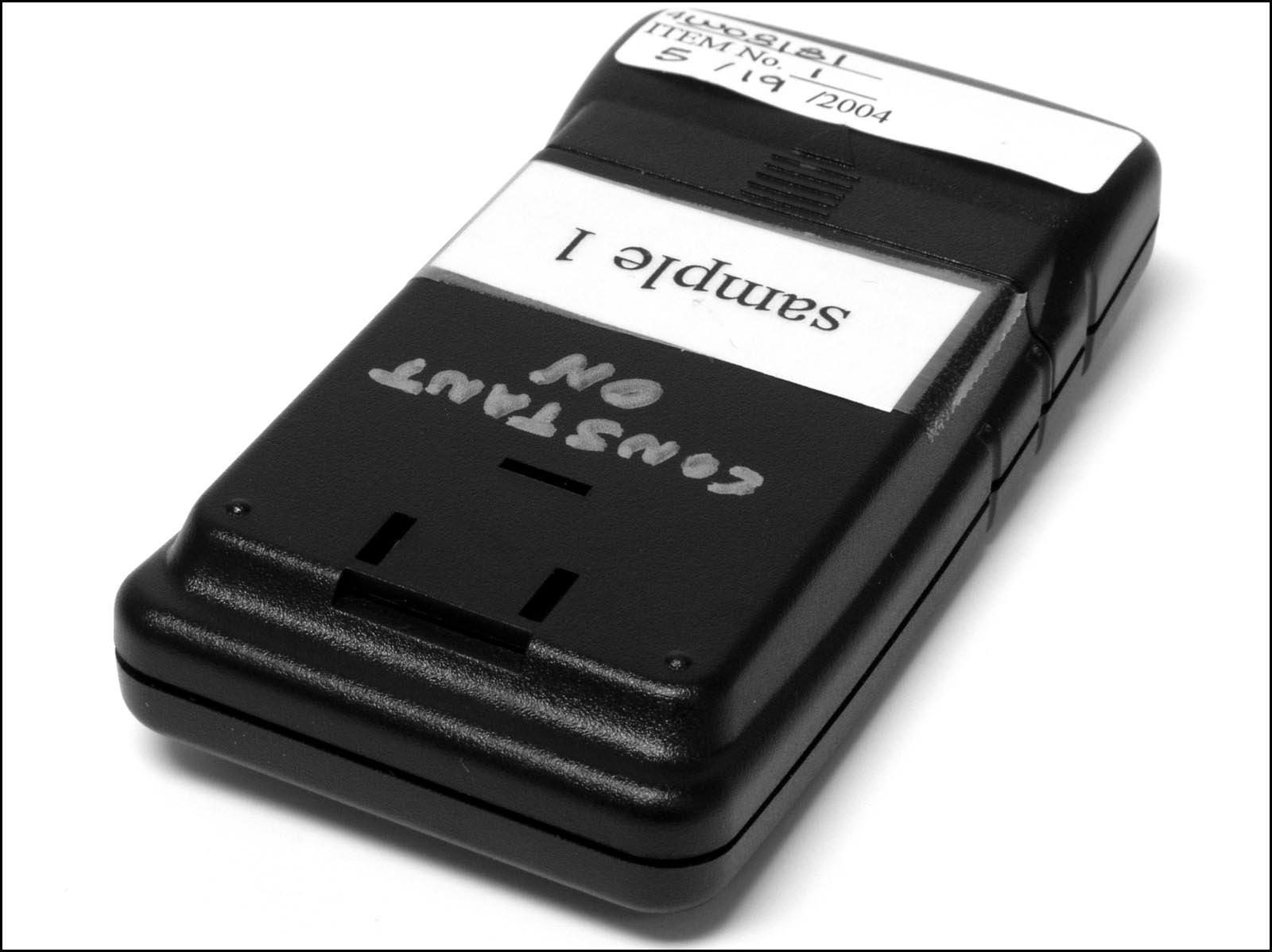

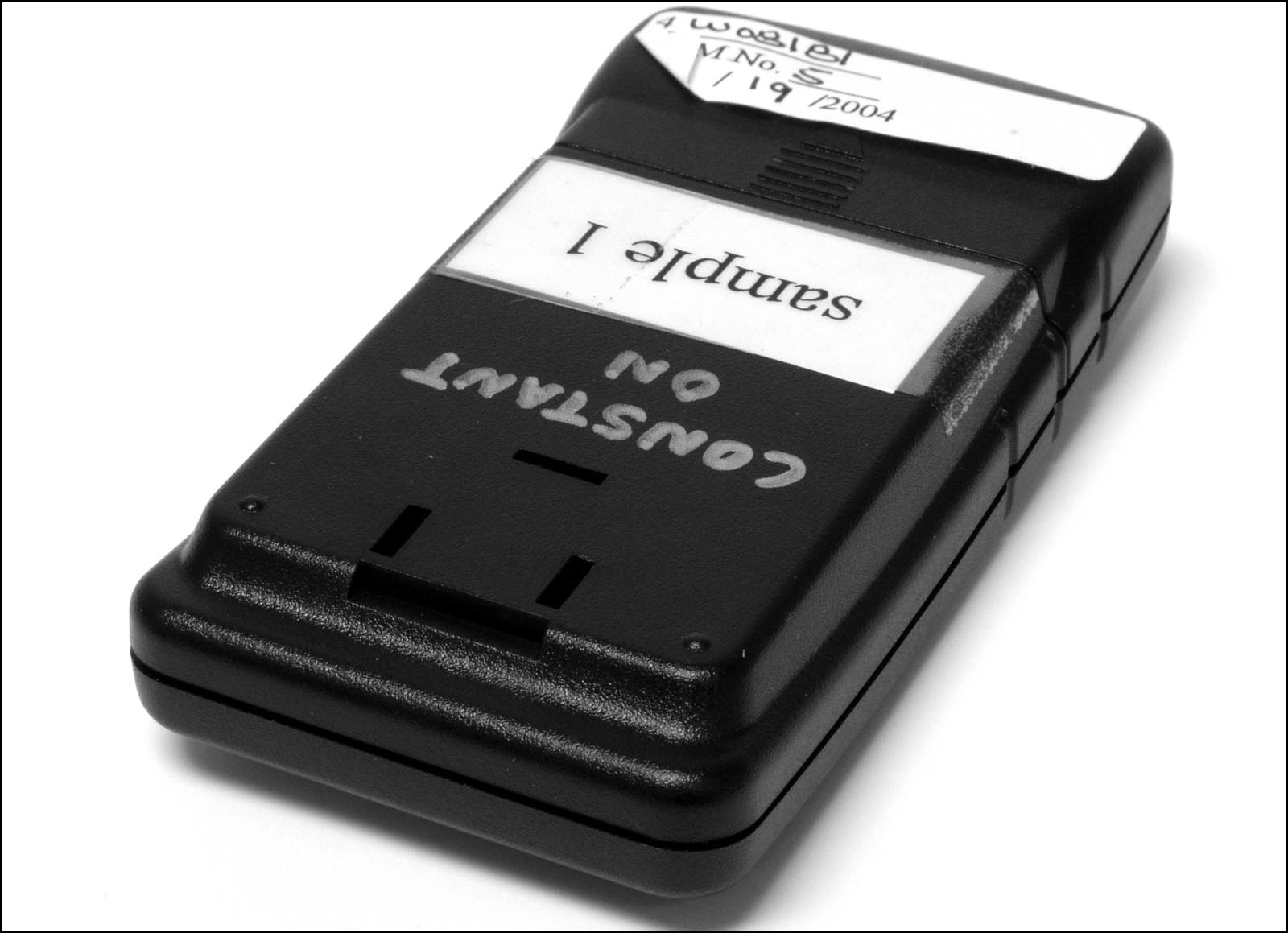

6005 REMOTE CONTROL TX FCC Model designation 6005-TX FCC ID#: BJ4-WRC6005TX IC#: Canada: 3984A-6005TX 6005 Description One A23 battery powers this unit. The input power is connected to a micro controller and the remaining circuit through a key selection. Power is only applied to the circuit during a key press. When a key is pressed, the micro controller switches power on to the transmitter section and supplies a digital code to the RF section of the circuit, which transmits the code. The dip switch controls the encoding of the digital signal. Each 4 position dip switch acts independently allowing two separate devices to be controlled independently by this remote. Additionally, the command button pressed (ON, OFF, DIM, DIM+, DIM-) also determine the code. Not all commands are available on all variations of this remote control. The LED indicates when the transmitter is active and in use. The output of the encoder chip goes through the oscillator/modulator stage. A SAW locks the frequency, which is tuned for 315M Hz. The encoded signal is then sent through the “on board” antenna trace on the PCB and the RF output is transmitted into the air. The 6005 remote will be produced in 3 versions. The 8-button (6005-8TX), 6-button (6005-6TX) and 4-button (6005-4TX) versions are electrically the same. However, they have a different number of buttons available to the user depending on the case design.

5/13/2004 Count Referece DescriptionValue 1Q12N3906 2Q2, Q32N3904 1Q4MMBTH10L 1D15.6V Zener 2D2, D31N4148 1D4BAT54 4C1, C5, C7, C8, C18100nF 1C247uF 2C3, C430pF 1C610uF 2C9, C111nF 1C1047pF 1C12, C153.9pF 1C1315pF 1C14100pF 1C165.6pF 2C171pF 1LED1TX_LED 2R1, R2, R14100K R15, R16, R17, R18 8R3, R4, R5, R6, R710K 1R822K 1R96K8 1R101K 1R11, R1933K 1R1222 1R1347 1L11uH 1L247nH 1X2315Mhz osc. 2JP1, JP24 position jumper 1X14MHz osc. 1U1Z86C04 4/6/8 Button 6005 Transmitter

Master:PT15-Sub-C-15231 Date: November 12, 2001 Test Report: 4W08181, Issue2 Applicant: Desa International Inc. P.O. Box 90004, 2901 Industrial Avenue, Bowling Green, KY. 42102, USA Equipment Under Test: 6005-8TX (EUT) FCC ID: BJ4-WRC6005TX In Accordance With: FCC Part 15, Subpart C, 15.231 Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Kevin Carr, EMC/EMI/Wireless Specialist Date: 2 June 2004 Total Number of Pages: 17 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W08181, Issue2 EQUIPMENT: 6005-8TX Page 2 of 17 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. Equipment Under Test .......................................................................................5 Section 3. Transmission Requirements ..............................................................................6 Section 4. Radiated Emissions .............................................................................................9 Section 5. Occupied Bandwidth ........................................................................................14 Section 6. Block Diagram...................................................................................................16 Section 7. Test Equipment List ..........................................................................................17 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W08181, Issue2 EQUIPMENT: 6005-8TX Page 3 of 17 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. All tests were conducted using measurement procedure ANSI C63.4-2001. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM (S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: ______________________________ DATE: 2 June 2004 Daxesh Thakker, Wireless Test Engineer Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W08181, Issue2 EQUIPMENT: 6005-8TX Page 4 of 17 Summary Of Test Data Name of Test Para. Number Results Transmission Requirements 15.231(a) Complied Radiated Emissions 15.231(b) Complied Occupied Bandwidth 15.231(c) Complied Frequency Tolerance 15.231(d) N/A (1) Periodic Alternate Field Strength Requirements 15.231(e) N/A (2) Power line Conducted Emissions 15.207 N/A (3) Justification of N/A’s (1) The EUT does not operate in the frequency range of 40.66 – 40.70 MHz. (2) The EUT does not periodically transmission at predetermined intervals. (3) The EUT is battery powered. Test Conditions: Indoor Temperature: 24° C Humidity: 56 % Outdoor Temperature: 20° C Humidity: 42 % Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W08181, Issue2 EQUIPMENT: 6005-8TX Page 5 of 17 Section 2. Equipment Under Test General Equipment Information Manufacturer: Desa International Inc. Company Number: 3984A Model No.: 6005-8TX Serial No.: None Date Received In Laboratory: May 19, 2004 Nemko Identification No.: Item no. 5 & 6 Test Voltage One A23 battery of 12 volts Frequency Range (or fixed frequency): 315 MHz, Fixed Field Strength (distance): 70.9 dBμV/m @ 3m Occupied Bandwidth (99% BW): 21.33 kHz Type of Modulation: PCM Emission Designator (TRC-43:) 21K3L1D Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W08181, Issue2 EQUIPMENT: 6005-8TX Page 6 of 17 Section 3. Transmission Requirements Para. No.: 15.231(a) Test Performed By: Daxesh Thakker Date of Test: May 20, 2004 Minimum Standard: 15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators, which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results: Complied Test Data: Compliance was determined by verification of technical specifications and a functional test on the equipment. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W08181, Issue2 EQUIPMENT: 6005-8TX Page 7 of 17 Rationale for Compliance with Transmission Requirements 15.231(a): N/A – The EUT does not continuously transmit voice, video or data and is …

Text truncated - open the document above for the full version.

Nemko Canada Inc. FCC PART 15, SUBPART C, 15.231 PROJECT NO.: 4W08181 EQUIPMENT: 6005-8TX Page 13 of 17 Radiated Emission Setup photo:
