BJM-AWD210RWireless HD Headphones

T R U E 2.1 Sound AWD210 Owner’s Manual 2.4GHzDigital Wireless HD Headphones ™ Important Information WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority to operate it. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. RF Exposure Warning: This equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Regulatory Information Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. The user is cautioned that this device should be used only as specified within this manual to meet RF exposure requirements. Use of this device in a manner inconsistent with this manual could lead to excessive RF exposure conditions. Product Information Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the model number in case you need it. These numbers are located on the product. Model No.: ________________________________________________________ Purchase Date: _____________________________________________________ Dealer/Address/Phone: ______________________________________________ Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 10. Unplug this apparatus during lightning storms or when unused for long periods of time. 11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.  2.4GHz Digital technology lets you enjoy crystal clear audio wirelessly up to 100 feet away from the transmitter, with no line-of-sight limitations* True 2.1 stereo, with patented dual-speaker design in each cup Convenient power, volume and tuning controls located on headphones Easy pairing of transmitter and headphones *Range may vary according to environment. Congratulations on your purchase of the 2.4GHz Wireless HD Headphones with True 2.1 Sound. The AWD210 uses the latest in wireless transmission, 2.4GHz digital technology, that lets you enjoy crystal clear, uncompressed digital audio up to 100 feet away from the transmitter. The headphones also offer a true 2.1 stereo listening experience, with a patented dual-speaker design in each ear cup. The headphones' compact design and comfortable ear cups let you enjoy music and TV sound just about anywhere inside or outside your home. Easy, push-button pairing makes it simple to get started, wirelessly. This manual covers various connection options and detailed operating instructions for setup and use of the AR wireless headphones. If, after having reviewed the instructions, you have any questions, please call toll-free 1-800-732-6866 or visit www.araccessories.com. Table of Contents Introduction Features Introduction ...............................................................1 Features ......................................................................1 Getting Started ...........................................................2 Headphone Buttons & Indicators ...............................5 Transmitter Jacks & Controls ......................................5 Using your Headphones ..............................................6 Troubleshooting .........................................................8 Specifications ..............................................................9 12 Month Limited Warranty ......................................9  Supplied Accessories This headphone system includes accessories that enable you to use your wireless headphone set in a number of ways. Stereo Y adapter cable (RCA/3.5 mm jack) AC power adapter Stereo cable (3.5 mm jacks) AAA batteries Wireless headphones 2.4GHz wireless transmitter Charging the Headset Before using your headphones for the first time, charge them for 3.5 hours using the supplied AC power adapter. To charge the headset unit: 1. Plug the smaller end of the AC adapter into the power jack on the bottom of the left headphone. 2. Plug the other end of the AC adapter into a wall outlet. Important: This power unit is intended to be correctly oriented in a vertical or floor mount position. While the headphones are charging, the LED on the left headphone remains red. This LED and the headphones turn off when the headphones are fully charged. Getting Started  Hooking Up the Transmitter The 2.4GHz wireless transmitter work…

Text truncated - open the document above for the full version.

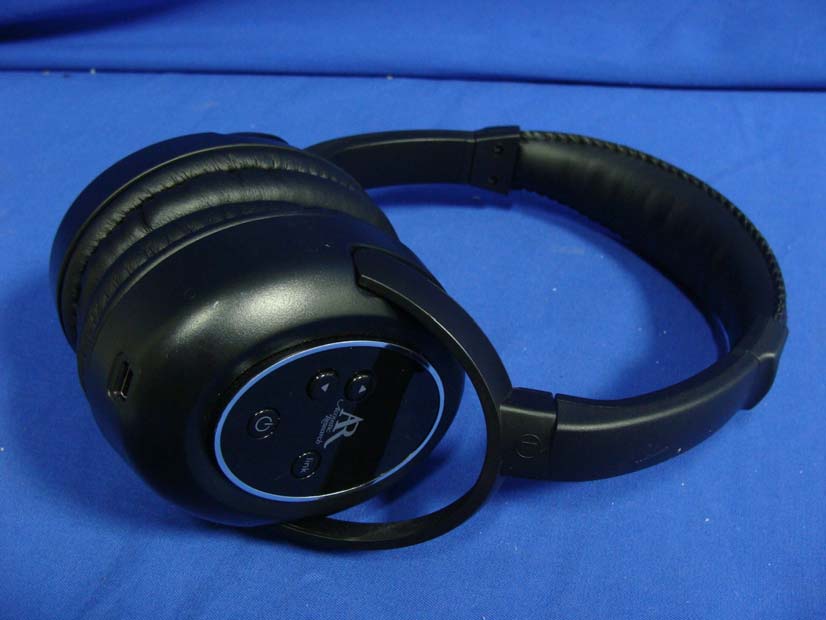

Report No.: 103336R-RFUSP44V01 Page : 1 of 6 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

22 Chung Shan N. Road, 3 rd sec., Taipei, 104, Taiwan Tel: +886-2-25984803 FCC ID.: BJM-AWD210R 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 10451, R.O.C. . Tel : 886-2-2598-4803 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 103336R-RFUSP44V01 Page : 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 103336R-RFUSP44V01 Page : 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 103336R-RFUSP44V01 Page : 4 of 6 (7) EUT Photo (8) EUT Photo Report No.: 103336R-RFUSP44V01 Page : 5 of 6 (9) EUT Photo (10) EUT Photo Report No.: 103336R-RFUSP44V01 Page : 6 of 6 (11) EUT Photo

Report No. 103336R-RFUSP44V01 Page : 7 of 46 1.2. Operational Description The EUT is a Wireless HD Headphones with a built-in 2.4GHz transceiver, The EUT operation frequency is 2405~2477MHz, The signals modulated by π/4 DQPSK (Differential Quadrature Phase Shift Keying), The Antenna is Printed on PCB.

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This a portable device and the max peak output power is 4.02 dBm = (0.0025 W). Lower that low threshold 60/f GHz mW = (25 mW), d <20 cm general population category. The SAR/MPE measurement is not necessary.

Report No. 103336R-RFUSP44V01 Page : 1 of 46 Test Report Product Name Wireless HD Headphones Model No AWD210R FCC ID. BJM-AWD210R Applicant TAUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt Mar. 22, 2010 Issue Date Apr. 09, 2010 Report No. 103336R-RFUSP44V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 103336R-RFUSP44V01 Page : 2 of 46 Test Report Certification Issue Date: Apr. 09, 2010 Report No.: 103336R-RFUSP44V01 Product Name Wireless HD Headphones Applicant TAUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Manufacturer TAUNG CO. Model No. AWD210R EUT Rated Voltage DC 3.7V (Power by Battery) EUT Test Voltage AC 120V / 60Hz Trade Name Acoustic Research Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Genie Chang) Tested By : ( Engineer / Molin Huang) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 103336R-RFUSP44V01 Page : 3 of 46 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION.......................................................................................................5 1.1. EUT Description..........................................................................................................................5 1.2. Operational Description.............................................................................................................7 1.3. Tested System Details................................................................................................................8 1.4. Configuration of Tested System................................................................................................8 1.5. EUT Exercise Software..............................................................................................................8 1.6. Test Facility..................................................................................................................................9 2. Conducted Emission.............................................................................................................10 2.1. Test Equipment.........................................................................................................................10 2.2. Test Setup..................................................................................................................................10 2.3. Limits...........................................................................................................................................11 2.4. Test Procedure..........................................................................................................................11 2.5. Uncertainty.................................................................................................................................11 2.6. Test Result of Conducted Emission.......................................................................................12 3. Peak Power Output................................................................................................................14 3.1. Test Equipment.........................................................................................................................14 3.2. Test Setup..................................................................................................................................14 3.3. Limits...........................................................................................................................................14 3.4. Test Procedure..........................................................................................................................14 3.5. Uncertainty.................................................................................................................................14 3.6. Test Result of Peak Power Output.........................................................................................15 4. Radiated Emission.................................................................................................................16 4.1. Test Equipment.........................................................................................................................16 4.2. Test Setup..................................................................................................................................17 4.3. Limits...........................................................................................................................................18 4.4. Test Procedure..........................................................................................................................18 4.5. Uncertainty.................................................................................................................................18 4.6. Test Result of Radiated Emission..........................................................................................19 5. RF antenna conducted test..................................................................................................23 5.1. Test Equipment.........................................................................................................................23 5.2. Test Setup..................................................................................................................................23 5.3.…

Text truncated - open the document above for the full version.

Appendix Report Compliance with Industry Canada Interference-Causing Equipment Standard ICES-003 Product Name ： Wireless HD Headphones / 2.4GHz wireless transmitter Model No. ： AWD210R / AWD210T Applicant ： TATUNG CO. Address ： 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt ： 2010/03/22 Issued Date ： 2010/03/29 Report No. ： 103336R-ITUSP02V02 Report Version ： V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 103336R-ITUSP02V02 Page: 2 of 35 Test Report Certification Issued Date : 2010/03/29 Report No. : 103336R-ITUSP02V02 Product Name : Wireless HD Headphones / 2.4GHz wireless transmitter Applicant : TATUNG CO. Address : 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Manufacturer : TATUNG CO. Model No. : AWD210R / AWD210T EUT Rated Voltage : AC 100-240V, 50/60Hz EUT Test Voltage : AC 120 V / 60 Hz Trade Name : Acoustic Research Applicable Standard : FCC CFR Title 47 Part 15 Subpart B: 2008, Class B CISPR 22: 2008, ANSI C63.4: 2003 ICES-003 Issue 4: 2004 Test Result : Complied Performed Location : Quietek Corporation (Linkou Laboratory) No.5-22, Ruei-Shu Valley, Ruei-Ping Tsuen Lin Kuo Shiang, Taipei, 244 Taiwan, R.O.C. TEL:+866-2-8601-3788 / FAX:+886-2-8601-3789 Documented By : ( Adm. Specialist / Joanne Lin ) Reviewed By : ( Engineer / Kent Yao ) Approved By : ( Manager / Vincent Lin ) Report No： 103336R-ITUSP02V02 Page: 3 of 35 Laboratory Information We , QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://tw.quietek.com/tw/emc/accreditations/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI Report No： 103336R-ITUSP02V02 Page: 4 of 35 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................... 5 1.1. EUT Description................................................................................................... 5 1.2. Mode of Operation ............................................................................................... 5 1.3. Tested System Details ......................................................................................... 6 1.4. Configuration of Tested System ........................................................................... 8 1.5. EUT Exercise Software........................................................................................ 9 2. Technical Test ........................................................................................................... 10 2.1. Summary of Test Result..................................................................................... 10 2.2. List of Test Equipment ....................................................................................... 11 2.3. Measurement Uncertainty.................................................................................. 12 2.4. Test Environment ............................................................................................... 13 3. Conducted Emission................................................................................................. 14 3.1. Test Specification ............................................................................................... 14 3.2. Test Setup.......................................................................................................... 14 3.3. Limit................................................................................................................... 14 3.4. Test Procedure .................................................................................................. 15 3.5. Test Result......................................................................................................... 16 3.6. Test Photograph ................................................................................................ 22 4. Radiated Emission .................................................................................................... 23 4.1. Test Specification ............................................................................................... 23 4.2. Test Setup.......................................................................................................... 23 4.3. Limit...........................................................................................…

Text truncated - open the document above for the full version.

Report No.: 103336R-RFUSP44V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 103336R-RFUSP44V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 103336R-RFUSP44V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
