BJM-CX400POLYCOM CORDLESS PHONE

Polycom CX 400 Quick Start Guide Polycom® CX 400 Quick Start Guide The Polycom CX 400 Cordless Phone connects to your computer’s USB port, giving you wireless, full-duplex, two- way telephone conversations through the Microsoft® Office Communicator 2007 unified communications client. These items are included in your Polycom CX 400 Cordless Phone package. If you are missing any items, contact your Polycom CX 400 Cordless Phone reseller. Polycom CX 400 Console Base Stand (with retractable USB cable) Quick Start Guide Rechargeable Battery Upgrade Cable Parts List Polycom CX 400 Quick Start Guide To connect the base stand, connect the retractable USB cable (attached to the base stand) to a USB port on your computer. Charge the Handset To charge the batteries in the handset: 1.Remove the battery cover, and insert the rechargeable battery into the back of the phone. 2.Replace the battery cover, and place the handset into the base stand. Base Stand Retractable USB Cable PC or Laptop USB Port Rechargeable Battery Connect Base Stand Polycom CX 400 Quick Start Guide In order to use the Polycom CX 400 Cordless Phone, Microsoft® Office Communicator 2007 must be installed on your computer. As soon as Microsoft Office Communicator 2007 Client software is installed on your PC, no further software installation is required. Contact your system administrator for any issues related to the OC 2007 client application on your PC. Features Battery Cover Call Key Mute Key End Call Key/ On/Off Key Volume Up Volume Down Headset Jack Connector (2.5mm) Speakerphone Key PowerPoint/OCS Mode Selector Switch Color Display Software Installation After the Polycom CX 400 base stand has been connected and the battery has been charged, the handset must be paired. To do this, press and hold the End Call key until the display screen is illuminated. Press and hold the mute button for about three seconds. When the green LED on the base is flashing rapidly, press the Pair button on the back of the base stand. PAIR Pair Button Pair the Handset After pairing is complete, Windows will automatically detect the new hardware and configure it for use with the Office Communicator 2007. For more information about installation and startup, refer to the Polycom CX 400 User Guide. Startup LIMITED WARRANTY. Polycom warrants to the end user (“Customer”) that this product will be free from defects in workmanship and materials, under normal use and ser- vice, for one year from the date of purchase from Polycom or its authorized reseller. Polycom’s sole obligation under this express warranty shall be, at Polycom’s option and expense, to repair the defective product or part, deliver to Customer an equiva- lent product or part to replace the defective item, or if neither of the two foregoing options are reasonably available, Polycom may, on its sole discretion, refund to Cus- tomer the purchase price paid for the defective product. All products that are replaced will become the property of Polycom. Replacement products or parts may be new or reconditioned. Polycom warrants any replaced or repaired product or part for ninety (90) days from shipment, or the remainder of the initial warranty period, whichever is longer. Products returned to Polycom must be sent prepaid and packaged appropriately for safe shipment, and it is recommended that they be insured or sent by a method that provides for tracking of the package. Responsibility for loss or damage does not trans- fer to Polycom until the returned item is received by Polycom. The repaired or replaced item will be shipped to Customer, at Polycom’s expense, not later than thirty (30) days after Polycom receives the defective product, and Polycom will retain risk of loss or damage until the item is delivered to Customer. EXCLUSIONS. Polycom will not be liable under this limited warranty if its testing and examination disclose that the alleged defect or malfunction in the product does not exist or results from: •Failure to follow Polycom’s installation, operation, or maintenance instructions. •Unauthorized product modification or alteration. •Unauthorized use of common carrier communication services accessed through the product. •Abuse, misuse, negligent acts or omissions of Customer and persons under Cus- tomer’s control; or •Acts of third parties, acts of God, accident, fire, lightening, power surges or outages, or other hazards. WARRANTY EXCLUSIVE. IF A POLYCOM PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY FOR BREACH OF THAT WARRANTY SHALL BE REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT POLYCOM’S OPTION. TO THE FULL EXTENT ALLOWED BY LAW, THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, TERMS, OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STAT- UTORY OR OTHERWISE, INCLUDING WARRANTIES, TERMS, OR CONDITIONS OF MER- CHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY, CORRESPONDENCE WITH DESCRIPTION, AND NON-INFRINGEMENT, ALL OF WHICH ARE EXPRESSLY DISCLAIMED. POLYCOM NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. SERVICE AGREEMENTS. Please contact your Polycom Authorized Reseller for informa- tion about service agreements applicable to your product. SOFTWARE SUPPORT. Polycom will provide support for software running on the Prod- uct if all of the following conditions are satisfied: • The product is under warranty or is covered by a Polycom service contract; • The product is operating on a Polycom-approved partner platform; and • The product software is the current major version or the next preceding major ver- sion (software revisions are labeled as “x.y.z,” with the first two digits designating major versions). Requests for software support should be made through the Polycom Reseller from whom the product was purchased. LIMITATION OF LIABILITY. TO THE FULL E…

Text truncated - open the document above for the full version.

22 Chung Shan N. Road, 3 rd sec., Taipei, 104, Taiwan Tel: +886-2-25984803 FCC ID.: BJM-CX400 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. . Tel : +886-2-25984803 Federal Communications Commission May 23 , 2007 Authorization and Evaluation Division ATTESTATION FCC ID: BJM-CX400 Product: Polycom Cordless Phone Model: CX400 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, Chung Chang / EMC/Safety Director TATUNG CO.

22 Chung Shan N. Road, 3 rd sec., Taipei, 104, Taiwan Tel: +886-2-25984803 FCC ID.: BJM-CX400 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Tel : +886-2-25984803 TATUNG CO. 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Tel : +886-2-25984803 Fax: 886-2-2598-4464 Federal Communications Commission May 23 , 2007 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (BJM-CX400) Schem Block Diagram: (BJM-CX400) BlkDia The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Chung Chang / EMC/Safety Director TATUNG CO.

RF_160, Issue 01 22 Chung Shan N. Road, 3 rd sec., Taipei, 104, Taiwan Tel: +886-2-25984803 Declaration of Authorization We Name: TATUNG CO. Address: 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. City: Taipei .................................................................. . Country: Taiwan, R.O.C ........................................................................... . Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: Polycom Cordless Phone ..................... . Type designation: CX400 ........................ . Trademark: Polycom on our behalf. Date: ...... 2007/05/30 ............ .. City: ...... Taipei ........................ .. Name: ...... Chung Chang ........................ .. Signature: ......... ............

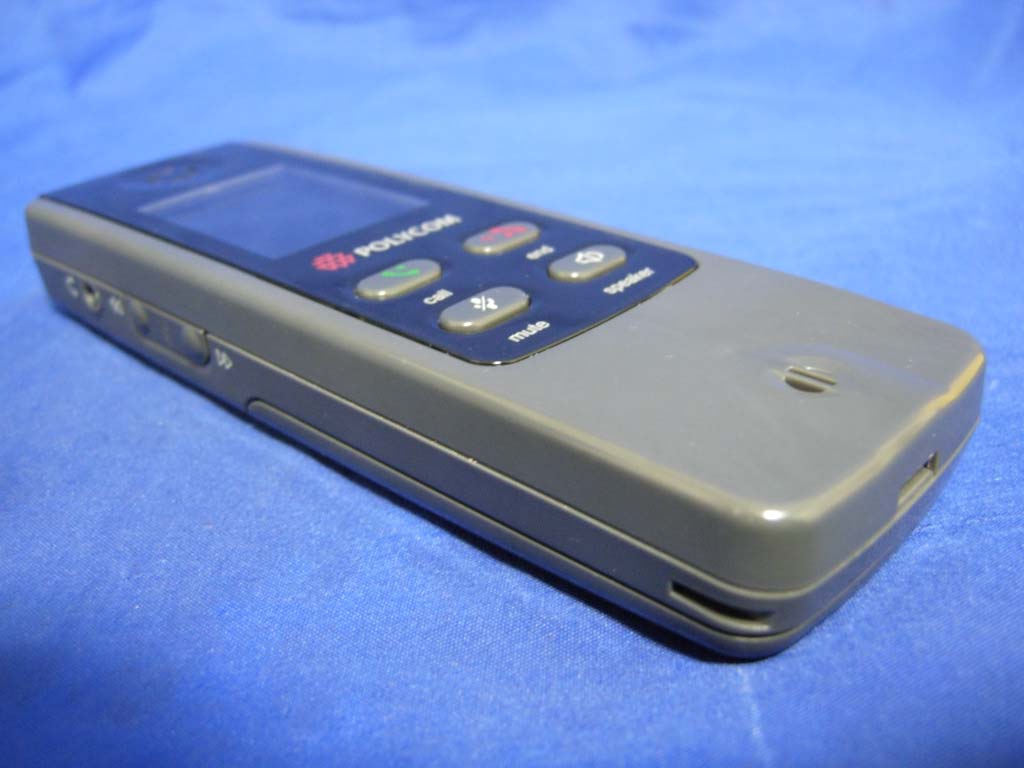

Report No.: 074L041-RFUSP01V02 Page : 1 of 7 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

22 Chung Shan N. Road, 3 rd sec., Taipei, 104, Taiwan Tel: +886-2-25984803 FCC ID.: BJM-CX400 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. . Tel : +886-2-25984803 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 074L041-RFUSP01V02 Page : 2 of 7 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 074L041-RFUSP01V02 Page : 3 of 7 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 074L041-RFUSP01V02 Page : 4 of 7 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 074L041-RFUSP01V02 Page : 5 of 7 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 074L041-RFUSP01V02 Page : 6 of 7 Version:1.0 (11) EUT Photo (12) EUT Photo Wireless Antenna Report No.: 074L041-RFUSP01V02 Page : 7 of 7 Version:1.0 (13) (14)

Report No. 074L041-RFUSP05V01 Page: 6 of 40 Version:1.0 1.2. Operational Description The EUT is a Polycom Cordless Phonewith a built-in 2.4GHz transceiver. There are 38 channels in 2405 – 2479MHz. The channels are separated by 2MHz. The signals are modulated by π/4 DQPSK The antenna type is chip antenna. Test Mode Mode 1: Transmitter

Report No. 074L041-RFUSP05V01 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : Polycom Cordless Phone Model No. : CX400 FCC ID : BJM-CX400 Applicant : TATUNG CO. Address : 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt : Apr. 02, 2007 Date of Declaration: May 23, 2007 Report No. : 074L041-RFUSP05V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 074L041-RFUSP05V01 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 074L041-RFUSP05V01 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Polycom Cordless Phone Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 1.0 cm (mW/cm2) 2 2405.00 1.4093 0.1777 20 2441.00 1.0814 0.1364 39 2479.00 0.6871 0.0867 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 1.0 cm separation requirement.

Report No. 074L041-RFUSP05V01 Page: 1 of 40 Version:1.0 Test Report Product Name Polycom Cordless Phone Model No. CX400 FCC ID BJM-CX400 Applicant TATUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt Apr. 02, 2007 Issued Date May 30, 2007 Report No. 074L041-RFUSP05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 074L041-RFUSP05V01 Page: 2 of 40 Version:1.0 Test Report Certification Issued Date: May 30, 2007 Report No.: 074L041-RFUSP05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Polycom Cordless Phone Applicant TATUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Manufacturer TATUNG CO. Model No. CX400 Rated Voltage AC 120V/60Hz Working Voltage 3.7V (Battery) Trade Name Polycom Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2006 ANSI C63.4: 2003 Test Result Complied Documented By : ( Engineering Adm. Specialist / Rita Huang ) Tested By : ( Engineer / D i n o C h e n ) Approved By : ( President / Gene Chang ) 0914 Report No. 074L041-RFUSP05V01 Page: 3 of 40 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of Test System ........................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Conducted Emission.............................................................................................11 3. Peak Power Output ...................................................................................................................13 3.1. Test Equipment............................................................................................................................13 3.2. Test Setup ....................................................................................................................................13 3.3. Limit ............................................................................................................................................13 3.4. Uncertainty ..................................................................................................................................13 3.5. Test Result of Peak Power Output...............................................................................................14 4. Radiated Emission .....................................................................................................................16 4.1. Test Equipment............................................................................................................................16 4.2. Test Setup ....................................................................................................................................17 4.3. Limits ..........................................................................................................................................18 4.4. Test Procedure .............................................................................................................................19 4.5. Uncertainty ..................................................................................................................................19 4.6. Test Result of Radiated Emission................................................................................................20 5. Band Edge ..................................................................................................................................24 5.1. Test Equipment............................................................................................................................24 5.2. Test Setup ....................................................................................................................................24 5.3. Limit .................................................................................…

Text truncated - open the document above for the full version.

Report No.: 074L041-RFUSP05V01 Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 074L041-RFUSP05V01 Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 074L041-RFUSP05V01 Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
