BJM-KHA01651BDIGITAL ENTERTAINMENT CENTER

Digital Entertainment Center KHA-01651B Set-Up-Guide Rear Panel Features Unpack the box Front Panel 1 Power Button :Press Power Red / Blue light illuminates when STB is on and sending a signal to the TV. 2 Navigation Button :Press Up, Down, Left, Right to access and navigate menu items. Press OK to confirm. 3 Menu Button :Press Button to display the menu. Indicators Set Top Box Remote Control Adapter Set-Up-Guide Component Cable Audio/Video Cable S-Video Cable 6 AAAAAA 1 WIFI Antenna2 DC IN 12V3 HDMI OUT4 Componert (VIDEO OUT) 5 COMPOSTIE (VIDEO OUT) 6 S-VIDEO (VIDEO OUT) 4 S-VIDEO IN 8 MD/CompactFlash I/II 5 VIDEO IN 9 Memory Stick/Pro/Duo 6 AUDIO IN (Fornt Left Right ) 10 USB 2.0 7 MMC/SD 7 AUDIO OUT (Left) 8 AUDIO OUT (Right) 9 COAXIAL (SPDIF OUT) 10 OPTICAL (SPDIF OUT) 11 AUDIO IN (Left) 12 AUDIO IN (Right) 13 COMPOSTIE (VIDEO IN) 14 S-VIDEO (VIDEO IN) 15 LAN16 USB 2.0x217 ANT 1 IN 7 Power Cord 8 Antenna Cable 9 1 2 3 Audio Out Analog Audio Out (Audio Cable) & S/PDIF Out (Digital Optical Cable) 4 5 6 7 8 9 10 1 2 6 8 10 12 14 16 17 3 4 5 7 11 13 15 WIFI DC-IN 12V HDMI OUT SPDIF OUT AUDIO & VIDEO IN WIFI DC-IN 12V HDMI OUT SPDIF OUT AUDIO & VIDEO IN 9 OPTICAL Audio Cable Amplifier LR Audio Digital Optical Cable Digital Coaxial Cable Amplifier Optical Fiber Connector COAXIAL Connecting Analog AVConnecting Analog AV & Connecting Digital AV (HDMI) AAAAAA Remote Control bottom side of view Video Out orororor Note:Make sure the TV indicator is on before you start to use STB. The POWER button on the TV remote turns the TV on and off.The POWER button on the TV remote puts the STB in and out of standby state. HDMI Cable WIFI DC-IN 12V HDMI OUT SPDIF OUT AUDIO & VIDEO IN WIFI DC-IN 12V HDMI OUT SPDIF OUT AUDIO & VIDEO IN WIFI DC-IN 12V HDMI OUT SPDIF OUT AUDIO & VIDEO IN TV/VCR/DVR/MCPC/PVR Pr Pb Y Y/Pb/Pr Cable TV/VCR/DVR/MCPC/PVR S-Video Cable VIDEO DEVICE 4 123 Installing Batteries Plug in Power Cord and Turn Power On AC Power Safety Warnings The power supply is pre-set for the country/region in which you purchased DSTB (Digital Set Top Box). If you move to another country/region, please make sure you check its voltage requirements before plugging DSTB into an AC power outlet.Install the DSTB near an AC outlet. The AC power cord is DSTB's main AC disconnecting device and must be easily accessible at all times. For your safety, the power cord provided with your system has a grounded plug. Always use the power cord with a properly grounded wall outlet to avoid the risk of electrical shock. Before you getting started, please read the important safety information below. Safety Information Conventions used in this manual WARNING: Information to prevent injury to yourself when trying to complete a task.CAUTION: Information to prevent damage to the components when trying to complete a task. Electrical Safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. DO NOT OPEN THE CHASSIS ANY TIME. Operation Safety Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your Service Provider immediately.To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet. Place the product on a stable surface.Slots and openings are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. This product should never be placed near or over a radiator or heat register.Antenna coaxial screen must be probably earthed. orororor WIFI DC-IN 12V HDMI OUT SPDIF OUT AUDIO & VIDEO IN 3 Ethernet LAN cable to Router or ADSL Local Area Network (LAN) WIFI Digital signals are received with the antenna cable connection. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help. CAUTION:Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC RF Radiation Exposure StatementThis equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. Federal Communication Commission Interference Statement

TATUNG Co. JULY. 10 2007 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Re.: Cover letter FCC ID ： BJM-KHA01651B Product：Digital Entertainment Center Model：KHA-01651B To Whom It May Concern: TATUNG CO. in accordance with Part 15, Subpart B, hereby acknowledges that this product applies for the composite device. Sincerely, ______________________ Chung Chang / EMC / Safety Director TATUNG CO 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C.

22 Chung Shan N. Road, 3 rd sec., Taipei, 104, Taiwan Tel: +886-2-25984803 FCC ID.: BJM-KHA01651B 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Tel : +886-2-25984803 Federal Communications Commission Authorization and Evaluation Division July 25 , 2007 Confidential Statement We have understood that the following request for confidential documents has been and viewable since the date of grant, since it has been granted. Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics : (KHA-01651B) Schem Block Diagram: (KHA-01651B) BlkDia Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 DFR § 2.803 and the importation rules in 47 CFR § 2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized divices. We are requesting the commission to grant short-thrm confidentiality request on the following attachments: Exterbak Photos: (KHA-01651B) ExtPho Internal Photos: (KHA-01651B) IntPho Test Setup Photos: (KHA-01651B) Tsup User Manual: (KHA-01651B) UserMan It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Chung Chang / EMC/Safety Director TATUNG CO.

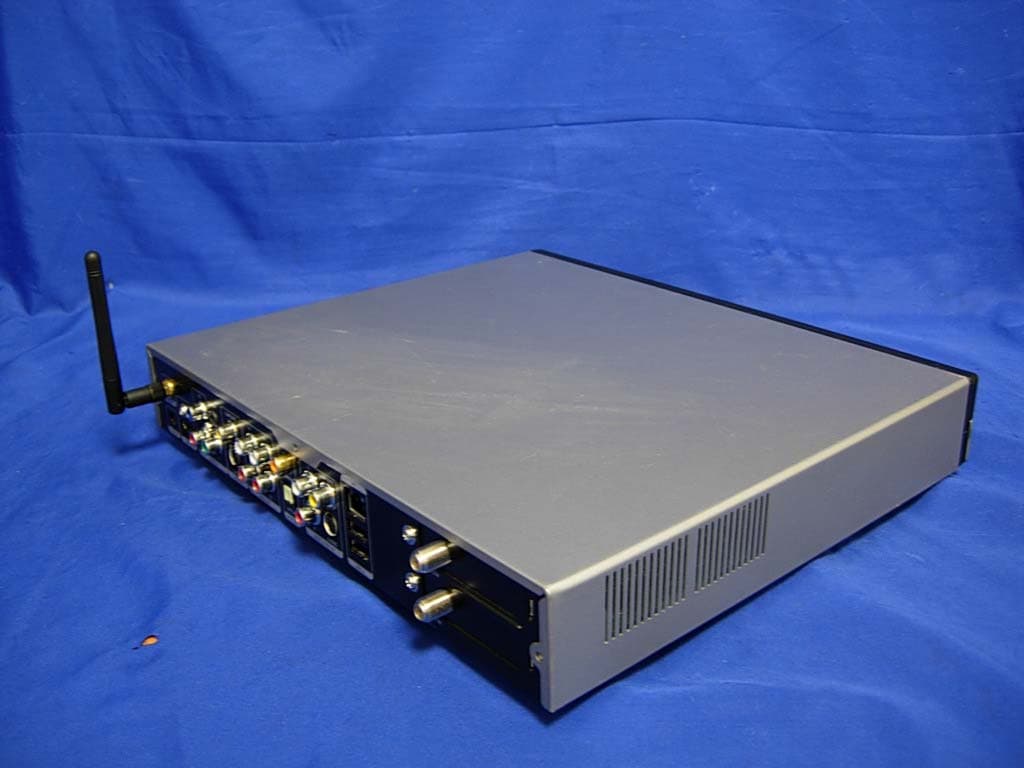

Report No.: 076011R-RFUSP05V01 Page : 1 of 11 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

22 Chung Shan N. Road, 3 rd sec., Taipei, 104, Taiwan Tel: +886-2-25984803 FCC ID.: BJM-KHA01651B 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. . Tel : +886-2-25984803 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 076011R-RFUSP05V01 Page : 2 of 11 Version:1.0 (3) EUT Photo (4) EUT Photo Dipole antenna Report No.: 076011R-RFUSP05V01 Page : 3 of 11 Version:1.0 (5) EUT Photo (6) EUT Photo WLAN Module Report No.: 076011R-RFUSP05V01 Page : 4 of 11 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 076011R-RFUSP05V01 Page : 5 of 11 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 076011R-RFUSP05V01 Page : 6 of 11 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 076011R-RFUSP05V01 Page : 7 of 11 Version:1.0 (13) EUT Photo (14) EUT Photo PIFA antenna Report No.: 076011R-RFUSP05V01 Page : 8 of 11 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 076011R-RFUSP05V01 Page : 9 of 11 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 076011R-RFUSP05V01 Page : 10 of 11 Version:1.0 (19) EUT Photo (20) EUT Photo Report No.: 076011R-RFUSP05V01 Page : 11 of 11 Version:1.0 (21) EUT Photo

Report No. 076011R-RFUSP05V01 Page: 6 of 75 Version:1.0 1.2. Operational Description The EUT is a Digital Entertainment Center with a built-in 2.4GHz transceiver. There are 11 channels in 2412 – 2462MHz. The channels are separated by 5MHz. This device supports the data rates of 1, 2, 5.5, 11Mbps in 802.11b mode and 6, 9, 12, 18, 24, 36, 48, 54Mbps in 802.11g mode. The signals are modulated by DSSS in 802.11b mode and OFDM in 802.11g mode. The antenna type is PIFA and Dipole. Mode 1: Transmitter 802.11b - Antenna 1+Power Adapter(1) Mode 2: Transmitter 802.11g - Antenna 1+Power Adapter(1) Mode 3: Transmitter 802.11b - Antenna 2+Power Adapter(2) Test Mode Mode 4: Transmitter 802.11g - Antenna 2+Power Adapter(2)

Report No. 076011R-RFUSP05V01 Page: 1 of 4 Version: 1.0 RF Exposure Evaluation declaration Product Name : Digital Entertainment Center Model No. : KHA-01651B FCC ID : BJM-KHA01651B Applicant : TATUNG CO. Address : 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt : May 10, 2007 Date of Declaration: July 09, 2007 Report No. : 076011R-RFUSP05V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 076011R-RFUSP05V01 Page: 2 of 4 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 076011R-RFUSP05V01 Page: 3 of 4 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Digital Entertainment Center Test Item : RF Exposure Evaluation Test Site : No.3 OATS Use PIFA Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.5 dBi in logarithm scale. 802.11b (PIFA) Output Power Into Antenna & RF Exposure Evaluation Distance (1.5 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 39.9945 0.0112 6 2437.00 56.3638 0.0158 11 2462.00 72.6106 0.0204 802.11g (PIFA) Output Power Into Antenna & RF Exposure Evaluation Distance (1.5 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 73.6207 0.0207 6 2437.00 95.7194 0.0269 11 2462.00 129.7179 0.0365 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement. Report No. 076011R-RFUSP05V01 Page: 4 of 4 Version: 1.0 Use Dipole Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2 dBi in logarithm scale. 802.11b (Dipole) Output Power Into Antenna & RF Exposure Evaluation Distance (2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 39.9945 0.0126 6 2437.00 56.3638 0.0178 11 2462.00 72.6106 0.0229 802.11g (Dipole) Output Power Into Antenna & RF Exposure Evaluation Distance (2 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 73.6207 0.0232 6 2437.00 95.7194 0.0302 11 2462.00 129.7179 0.0409 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 076011R-RFUSP05V01 Page: 1 of 75 Version:1.0 Test Report Product Name Digital Entertainment Center Model No. KHA-01651B FCC ID BJM-KHA01651B Applicant TATUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt May 10, 2007 Issued Date July 09. 2007 Report No. 076011R-RFUSP05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 076011R-RFUSP05V01 Page: 2 of 75 Version:1.0 Test Report Certification Issued Date: July 09. 2007 Report No.: 076011R-RFUSP05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Digital Entertainment Center Applicant TATUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Manufacturer TATUNG CO. Model No. KHA-01651B Rated Voltage AC 120V/60Hz Working Voltage AC 120V/60Hz Trade Name Polaroid Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2006 ANSI C63.4: 2003 Test Result Complied Documented By : ( Engineering Adm. Specialist / Rita Huang ) Tested By : (Engineer /Tim Sung) Approved By : ( President / Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 0914 Report No. 076011R-RFUSP05V01 Page: 3 of 75 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of Test System ........................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Conducted Emission.............................................................................................11 3. Peak Power Output ...................................................................................................................19 3.1. Test Equipment............................................................................................................................19 3.2. Test Setup ....................................................................................................................................19 3.3. Limits ..........................................................................................................................................19 3.4. Uncertainty ..................................................................................................................................19 3.5. Test Result of Peak Power Output...............................................................................................20 4. Radiated Emission .....................................................................................................................22 4.1. Test Equipment............................................................................................................................22 4.2. Test Setup ....................................................................................................................................23 4.3. Limits ..........................................................................................................................................23 4.4. Test Procedure .............................................................................................................................24 4.5. Uncertainty ..................................................................................................................................24 4.6. Test Result of Radiated Emission................................................................................................25 5. Band Edge ..................................................................................................................................41 Report No. 076011R-RFUSP05V01 Page: 4 of 75 Version:1.0 5.1. Test Equipment............................................................................................................................41 5.2. Test Setup ........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 076011R-RFUSP05V01 Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 076011R-RFUSP05V01 Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 076011R-RFUSP05V01 Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
