American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 14, 2007 RE: Tatung Co. FCC ID: BJM-KL1 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Users manual contains 20 cm statements. This appears not appropriate given the use of the device. Please remove statements relative to distance, but keep the non-colocation statements in the manual. Please review & correct. 2) Antennas in this device exist on two different boards in 2 different locations. Do both TX? If so, have both been evaluated to show/determine worse case? 3) Thank you for the many photographs to show the > 2.5 cm distance to the radiating element. Unfortunately it took awhile to piece together the photos. Kindly add line/information/marking on the device when shown on the head phantom to clearly denote where the antenna is located when showing the external photograph with the ruler. 4) IC requires RX emissions to be tested/shown as well. It does not appear this information was provided. Please review. 5) IC RSS-102 has different exemption requirements than the FCC for SAR. Please note that according to RSS-102, SAR is required. Please review and complete RSS-102 attestation Appendix A which was previously left blank. 6) FYI....For future bandwidth tests for this type of signal, kindly use a much smaller span (i.e. 2 – 5 MHz). 7) FYI....Equipment codes for 15.247 on the 731 form should be DTS or DSS – depending on the device, not DXX. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

X-Ninja-PIM: Scanned by Ninja X-Ninja-Antispam: Policy 1 - Allowed - Final Score - 0,0,194 (194) X-Ninja-AttachmentFiltering: Policy 3 - no action (inbound) From: EmilyChen <[email protected]> To: Timothy R.Johnson <[email protected]> Cc: [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected] Subject: Re: www.AmericanTCB.com ATCB004886 | BJM-KL1 | 4484A - KL1 | | BJM-KA1_ATCB004886 Date: Tue, 15 May 2007 17:02:53 +0800 X-Mailer: Microsoft Outlook Express 6.00.2900.3028 X-OriginalArrivalTime: 15 May 2007 09:03:57.0593 (UTC) FILETIME=[F88FF890:01C796CF] Dear Tim, Concerning the comments of this applicaiton in the former letter, we revised the documents. pls help to check. 1) Users manual contains 20 cm statements. This appears not appropriate given the use of the device. Please remove statements relative to distance, but keep the non-colocation statements in the manual. Please review & correct.----We've revised the Users manual, pls see the attachment. 2) Antennas in this device exist on two different boards in 2 different locations. Do both TX? If so, have both been evaluated to show/determine worse case?--pls see the attachment "BJM- KL1" 3) Thank you for the many photographs to show the > 2.5 cm distance to the radiating element. Unfortunately it took awhile to piece together the photos. Kindly add line/information/marking on the device when shown on the head phantom to clearly denote where the antenna is located when showing the external photograph with the ruler.--pls see the attachment "Antenna photo(test setup)" 4) IC requires RX emissions to be tested/shown as well. It does not appear this information was provided. Please review.--pls see the attachment "TestRpt (IC RX Emission) " 5) IC RSS-102 has different exemption requirements than the FCC for SAR. Please note that according to RSS-102, SAR is required. Please review and complete RSS-102 attestation Appendix A which was previously left blank.--the output power is 17.906 mW , which is less than the rule's limit, 7) FYI.Equipment codes for 15.247 on the 731 form shouuld be DTS or DSS  depending on the device, not DXX.--Wee changed the code, pls see the attachment "731Form-" Thanks and best regards. Emily ------------------------------------------------------- QuieTek Corporation Marketing Specialist, Intl. Certification Dept. Emily Chen Tel : 886-2-8792-6808 ext:1306 Fax : 886-2-8792-9628 E-Mail : [email protected] 2F, No.345, Xinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. ------------------------------------------------------------------------------------------------------------------------------------------------------ ----- Original Message ----- From: "Timothy R.Johnson" <[email protected] > To: <[email protected]>; <[email protected]>; <[email protected]> Cc: <[email protected]>; <[email protected]>; <[email protected]>; <[email protected]>; <[email protected]> Sent: Tuesday, May 15, 2007 1:42 PM Subject: www.AmericanTCB.com ATCB004886 | BJM-KL1 | 4484A - KL1 | | BJM-KA1_ATCB004886 > Please see attached.... > Sorry for the delay....I had to internally discuss the 2.5 cm > issue....Please see attached comments... > > Regarding www.AmericanTCB.com application: > ATCB ID: ATCB004885 > FCC ID: BJM-KA1 > IC: 4484A - KA1 > TCF: > Account name: khung > > Timothy R. Johnson, NARTE Certified EMC Engineer (No. EMC-002205-NE) > Examining Engineer > American TCB, Inc. > 6731 Whittier Ave. > McLean, VA 22101 > > email: [email protected] > alternate email: [email protected] > USA direct number: 404-414-8071 > USA corporate phone: 703-847-4700 > USA corporate fax: 703-847-6888 > 7.(KL -1) 731Form-ATCB-v96.05.15.pdf 1.(KL -1) UserMan-v96.05.15.pdf BJM -KL1.pdf 3.Antenna photo(test setup).pdf 4.(KL-1) TestRpt (IC RX Emission) .pdf

Report No.: 072L099-RFUSP05V01 Page : 1 of 10 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

22 Chung Shan N. Road, 3 rd sec., Taipei, 104, Taiwan Tel: +886-2-25984803 FCC ID.: BJM-KL1 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. . Tel : 886-2-2598-4803 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 072L099-RFUSP05V01 Page : 2 of 10 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 072L099-RFUSP05V01 Page : 3 of 10 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 072L099-RFUSP05V01 Page : 4 of 10 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 072L099-RFUSP05V01 Page : 5 of 10 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 072L099-RFUSP05V01 Page : 6 of 10 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 072L099-RFUSP05V01 Page : 7 of 10 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 072L099-RFUSP05V01 Page : 8 of 10 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 072L099-RFUSP05V01 Page : 9 of 10 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 072L099-RFUSP05V01 Page : 10 of 10 Version:1.0 (19) EUT Photo (20) EUT Photo

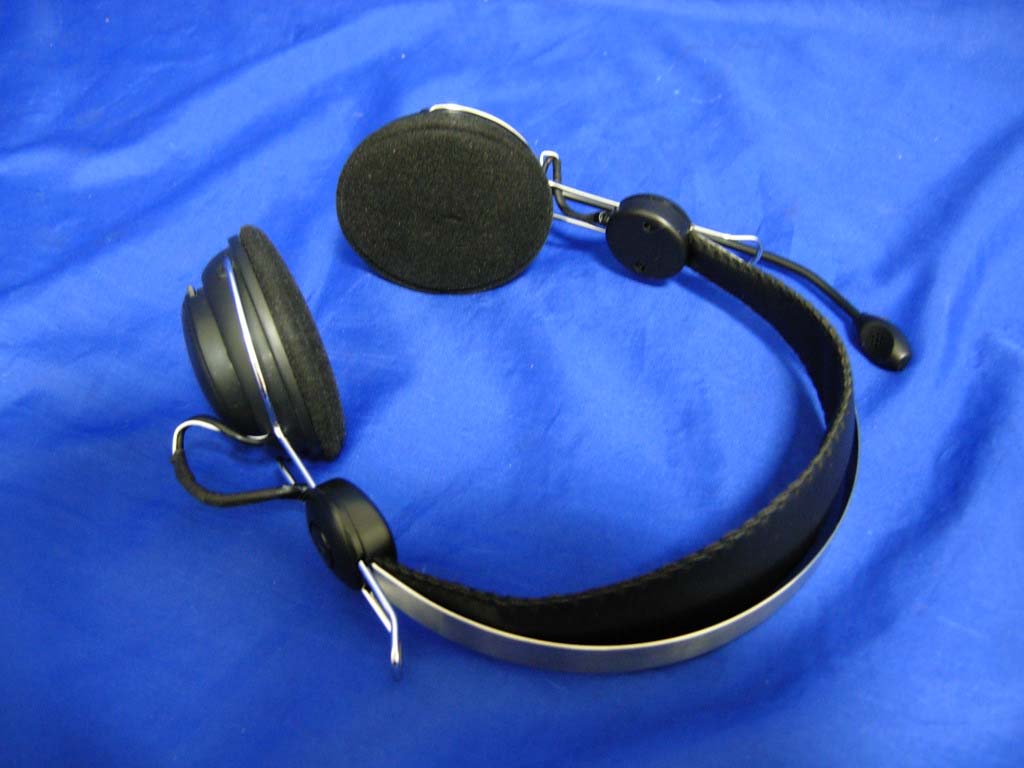

Report No. 072L099-RFUSP05V01 Page: 7 of 44 Version:1.0 1.2. Operational Description The EUT is a PC USB Headset with a built-in 2.4GHz transceiver. There are 38 channels in 2405 – 2479MHz. The channels are separated by 2MHz. The signals are modulated by π/4 DQPSK The antenna type is chip antenna. Test Mode Mode 1: Transmitter

Report No.: 072L099-RFUSP05V01 Page : 1 of 2 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Antenna Report No.: 072L099-RFUSP05V01 Page : 2 of 2 Version:1.0 (3) EUT Photo (4) EUT Photo Antenna Antenna

Report No. 072L099-RFUSP05V01 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : PC USB Headset Model No. : KL-1 FCC ID BJM-KL1 Applicant : TATUNG CO. Address : 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt : Jan. 23, 2007 Date of Declaration: May. 04, 2007 Report No. : 072L099-RFUSP05V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 072L099-RFUSP05V01 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 072L099-RFUSP05V01 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : PC USB Headset Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 2.5 cm (mW/cm2) 02 2405.00 17.9061 0.3613 20 2441.00 11.5080 0.2322 39 2479.00 7.6560 0.1545 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 2.5 cm separation requirement.

ApplicantEUT Frequency (MHz) Power Value Antenna_1Antenna_2 2405-13.7614.56 2441-11.6412.38 2479-9.3410.11 2405-11.7812.53 2441-9.8510.61 2479-7.968.84 Result : Operator Signed: Tim Sung Effective Radiated Power Test Data (Pretest) . USB HEADSET KA-1 KL-1 TATUNG

Report No. 072L099-RFUSP05V01 Page: 1 of 44 Version:1.0 Test Report Product Name PC USB Headset Model No. KL-1 FCC ID BJM-KL1 Applicant TATUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt Jan. 23, 2007 Issued Date May. 11, 2007 Report No. 072L099-RFUSP05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 072L099-RFUSP05V01 Page: 2 of 44 Version:1.0 Test Report Certification Issued Date: May. 11, 2007 Report No.: 072L099-RFUSP05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name PC USB Headset Applicant TATUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Manufacturer TATUNG CO. Model No. KL-1 Rated Voltage AC 120V/60Hz Working Voltage 3.7V Battery Trade Name TATUNG Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2006 CISPR 22: 2005, ANSI C63.4: 2003 Test Result Complied Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : (Engineer/Tim Sung ) Approved By : (President /Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 0914 Report No. 072L099-RFUSP05V01 Page: 3 of 44 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Datails....................................................................................................................8 1.4. Configuration of Test System ........................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limit ............................................................................................................................................14 3.4. Uncertainty ..................................................................................................................................14 3.5. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................18 4.1. Test Equipment............................................................................................................................18 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Uncertainty ..................................................................................................................................21 4.6. Test Result of Radiated Emission................................................................................................22 5. Band Edge ..................................................................................................................................28 5.1. Test Equipment............................................................................................................................28 5.2. Test Setup ....................................................................................................................................28 5.3. Limit ...........................................…
