American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 12, 2005 RE: Tatung Co. FCC ID: BJM-MG1000 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) FYI: In the future kindly supply larger and clearer internal photographs. To the FCC’s eye, these photographs are marginal as it is very difficult to understand the layout and possible circuit board interactions for this device. I personally would recommend for the future using one single photo per page. And this guidance is indeed what FCC recommends in Part 2 of the Rules. 2.) There are two documents uploaded to the ATCB website entitled “(MG-1000) LabelLoc.pdf” and “(MG-1000) LabelSmpl.pdf”. Neither of these documents shows either the sample label or label location – the document uploaded is simply the attestation that no controls are available for US marketed equipment which will permit operation on non-USA channels. Please provide a proper sample label and location exhibit. 3.) Could you kindly supplement the block diagram information with additional block diagram on the “WiFi BGW200” which is shown in the supplied block diagram document? FCC is concerned with how the device generates and uses RF energy – the existing block diagram shows all the major interconnect pieces, but lacks this specific RF information. 4.) FYI: Whenever a SAR report is part of any filing, an RF Exposure exhibit calculating power density at 20cm is rarely needed. Save yourself a little work. 5.) Unless I have missed it, the Manual appears to lack all the required FCC compliance language for a device of this type. Missing appears to be the two-part information statement of 15.19(a)(3), and the prohibition from modification statement of 15.21. In addition, RF Exposure information is not included in the Manual. In this case, the measured SAR values should be included in the Manual. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. z Page 2 December 12, 2005 Any questions about the content of this correspondence should be directed to the sender.

Report No.: 05CL031-RF-US-P05V01 Page : 1 of 7 Version:1.0 附件2: 待測物內部相片 (1) EUT Photo (2) EUT Photo Report No.: 05CL031-RF-US-P05V01 Page : 2 of 7 Version:1.0 (3) EUT Photo (4) EUT Photo

TATUNG CO. FCC ID.: BJM-MG1000 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Tel : 886-2-2592-5252 # 3543 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. MusicGremlin Model No.: MG-1000 MusicGremlin Model No.: MG-1000 F F C C C C I I D D : : B B J J M M - - M M G G 1 1 0 0 0 0 0 0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

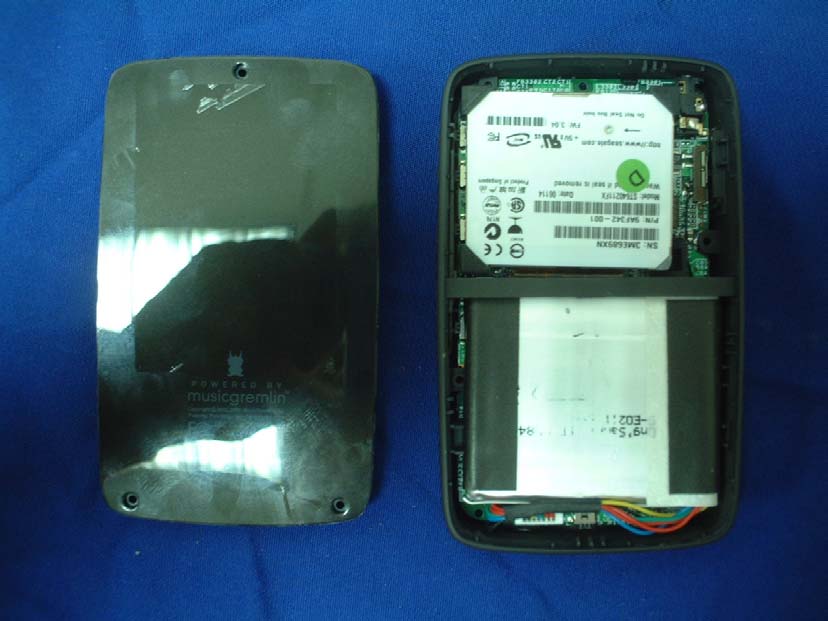

Report No.: 05CL031-RF-US-P05V01 Page : 2 of 7 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 05CL031-RF-US-P05V01 Page : 3 of 7 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 05CL031-RF-US-P05V01 Page : 4 of 7 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 05CL031-RF-US-P05V01 Page : 5 of 7 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 05CL031-RF-US-P05V01 Page : 6 of 7 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 05CL031-RF-US-P05V01 Page : 7 of 7 Version:1.0 (13) EUT Photo (14) EUT Photo

1.2. Operational Description EUT is a MusicGremlin with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps. The device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b) . The device adapts direct sequence spread spectrum modulation. The antenna was Connector provides diversity function to improve the receiving function. This MusicGremlin, compliant with IEEE 802.11b, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the MusicGremlin Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b network. Test Mode Mode 1: Transmitter 802.11b

Report No： 05CL031-HP-US-P09V01 Page: 1 of 21 Version:1.0 SAR Test Report Product Name：MusicGremlin Model No. ：MG-1000 Applicant ： TATUNG CO. Address ： 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt：2005/12/06 Issued Date ：2005/12/09 Report No. ：05CL031-HP-US-P09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 05CL031-HP-US-P09V01 Page: 2 of 21 Version:1.0 Test Report Certification Issued Date: 2005/12/09 Report No.: 05CL031-HP-US-P09V01 Product Name ： MusicGremlin Applicant ： TATUNG CO. Address ： 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Manufacturer ： TATUNG CO. Model No. ： MG-1000 Applicable Standard ： FCC Oet65 Supplement C June 2001 RSS-102, Issue 2 Test Result ： Max. SAR Measurement (1g) 802.11b: 0.469 W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Rebaca CHi ) Tested By ： (Hsiu Ho) Approved By ： (Gene Chang) Report No： 05CL031-HP-US-P09V01 Page: 3 of 21 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Test Results ......................................................................................... 20 8.1 SAR Test Results Summary ......................................................................................... 20 Appendix A. SAR System Validation Data........................................................................ 21 Appendix B. SAR measurement Data................................................................................ 21 Report No： 05CL031-HP-US-P09V01 Page: 4 of 21 Version:1.0 Appendix C. Test Setup Photographs & EUT Photographs............................................... 21 Appendix D. Probe Calibration Data ................................................................................. 21 Appendix E. Dipole Calibration Data ................................................................................ 21 Report No： 05CL031-HP-US-P09V01 Page: 5 of 21 Version:1.0 1. General Information 1.1 EUT Description Product Name MusicGremlin Model No. MG-1000 Transmitter module MG-100 FCC ID BJM-MG1000 TX Frequency 2412MHz ~2462MHz Type of Modulation DSSS Antenna Type Fixed Device Catego…

Text truncated - open the document above for the full version.

Report No. 05CL031-RF-US-P05V01 Page: 1 of 60 Version:1.0 Test Report Product Name : MusicGremlin Model No. : MG-1000 FCC ID : BJM-MG1000 Applicant : TATUNG CO. Address : 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt : Dec. 06, 2005 Issued Date : Dec. 07, 2005 Report No. : 05CL031-RF-US-P05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 05CL031-RF-US-P05V01 Page: 2 of 60 Version:1.0 Test Report Certification Issued Date: Dec. 07, 2005 Report No.: 05CL031-RF-US-P05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : MusicGremlin Applicant : TATUNG CO. Address : 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Manufacturer : TATUNG CO. Model No. : MG-1000 Rated Voltage : AC 120V/60Hz Working Voltage : N/A Trade Name : MusicGremlin Applicable Standard : FCC CFR Title 47 Part 15 Subpart B: 2005 CISPR 22 Edition 4.1: 2004 ANSI C63.4: 2003 Test Result : Complied Documented By : ( Rebaca CHi ) Tested By : ( Tim Sung ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 0914 Report No. 05CL031-RF-US-P05V01 Page: 3 of 60 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Uncertainty ..................................................................................................................................14 3.5. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................16 4.1. Test Equipment............................................................................................................................16 4.2. Test Setup ....................................................................................................................................16 4.3. Limits ..........................................................................................................................................17 4.4. Test Procedure .............................................................................................................................18 4.5. Uncertainty ..................................................................................................................................18 Report No. 05CL031-RF-US-P05V01 Page: 4 of 60 Version:1.0 4.6. Test Result of Radiated Emission................................................................................................19 5. Band Edge ..................................................................................................................................25 5.1. Test Equipment............................................................................................................................25 5.2. Test Setup .................................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 05CL031-RF-US-P05V01 Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 05CL031-RF-US-P05V01 Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 05CL031-RF-US-P05V01 Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
