BJM-PTAB915DBench Top PC With 802.11 b/g WLAN

Quick Start Guide Version 2: Online/Node COVER: Integrated Marketing Solutions DS15- Node Planar Logo/Tag: Display Innovation You Depend On Quick Start Guide 1. Connect E-net cable 2. Connect power 3. Turn system on INSIDE: Quick Start Guide Step 1: Connecting the System. Connect the mounting bracket 1. A 75mm VESA KOK Mounting pattern is located on the back of the monitorsystem .. Attach left and right adjustable mounting bracket (not included) with four (4) screws provided. 2. If necessary, clean the front surface of the display using clean, compressed air or by using only a clean, dry, soft cloth. 3. Mount the (product name) to the wall using your hardware. Detailed mechanical drawings, including mounting hole patterns, may be found at www.planar.com/support . 4. Securely tighten all mounting hardware. 2. Turning on power 1. Connect the cord attached to the power adapter to the back-bottom of your system. Attach the power cord to the power adapter, and then plug the cord into an active wall outlet, located approximately 1.5 meters from the unit. 2. Attach Ethernet CAT5 cable. (Cable not provided). 3. Push “on” switch located on back of DS15- Node at top of unit. 4. Series of logos will appear on screen, as well as a “set local time” screen. Using your finger, set the time. 5. System is set to DHCPIP address 192.168.1.xxx . If DHCP server is on netware IP address will be assignedThe IP address can be changed via the Administrative Panel. The Administrative Panel is access by.. Product Specifications Features Planar Model PTAB-915D N01 PTAB-915D N02 Processor: ULV Mobile Intel Celeron M 800 processor (400MHz FSB, 90nm 0.13u ) V V Core Logic Chipset: North Bridge: Intel GMCH-M 855 GM 852GM South Bridge: Intel ICH4-M V V V V Cache: 512KB L2 Cache V V System Memory: - 256 MB DDR default (soldered on M/B) V V BIOS ROM: 512KB flash with boot block or above V V Graphics Controller: integrated on Intel GMCH-M 855 GM 852GM Supports Dual Display Options V V V V LCD Panel: High brightness = 500 nits Support XGA 1024 x 768 resolution LVDS TTL type V V V V V V Audio: AC-97 Rev 2.2 Compliant Integral 3 2W Speakers Integral Full Duplex Microphone x 1 V 2 SPK V V 2 SPK V USB Touch screen: Capacitance type Transparency = 88% Hardness: 7H Wire type: FPC V V V V V V V V Ethernet: Built In 10/100 Ethernet Port V V Wireless: Built In Intel PRO/Wireless 2200 b/g Wireless LAN Integral Single Band Antenna V V X X Mass Storage: 20GB HDD with support for larger capacity 2.5”, 9.5mm height, 5V V V V V External exposed Connectors: USB 2.0 Type A x 1 10/100 Ethernet Port (RJ45) x 1 VGA output (D-sub15)x 1 Serial port x 1 Parallel port x 1 V V V V V V V V V V DC in x 1 Line out Jack x 1 V V V V Internal covered connectors: USB2.0 non standard type x 4 for Expansion USB2.0 Type A x 1 for touch screen V V V V Expansion: USB type card reader USB type printer USB type Microscan Optional Optional Optional Optional Optional Optional Optical driver: Slim & slot in type optical driver X V (Optional) User Indicators: Power On/Off HDD Access X X X X AC Power Adapter: 18.5VDC @ 65W Worldwide EMI and Safety Approvals V V V V Operating System: Microsoft Embedded Windows XP V V Usage Notice Warning - To prevent the risk of fire or shock hazards, do not expose this product to rain or moisture. Warning – Please do not open or disassemble the product as this may cause electric shock. Precautions Follow all warnings, precautions and maintenance as recommended in this user’s guide to maximize the life of your unit. Do: • Turn off the product before cleaning. • Use only a dry soft cloth or clean room wiper when cleaning the LCD panel surface. • Use a soft cloth moistened with mild detergent to clean the display housing. • Use only designated power cord with the designated AC adapter. • Disconnect he power plug from AC outlet if the product is not used for a long period of time. • Keep away from cold. • Keep away from high temperatures or fire hazards. Don’t • Open the computer casing. Any dismantling or adjustments may result in electric shock. • Touch the LCD panel surface with sharp or hard objects. • Use abrasive cleaners, waxes or solvents for your cleaning. • Pull on the power cord or power adapter, or damage the power cord insulation. • Operate the product under the following conditions: o Extremely hot cold or humid environment. (See operating specifications) o Areas susceptible to excessive dust and dirt. o Near any appliance generating a strong magnetic field. o In direct sunlight. o In water Suggestion: DS15 is for business not for personal use. Operating Specifications: Electrical Rating: AC 100V-240V, DC 18.5V, 3.5A, Operating Temperature: 5 degrees C – 40 degrees C Storage Temperature: -20 degrees C – 60 degrees C Operating Humidity: under 25 degrees C – 50%, 40 degrees C – 85% humidity Storage Humidity: under 25 degrees C – 50%, 60 degrees C – 85% humidity (no condensation) Storage Altitude: 0m – 2900m Declaration of Conformity (Safety Standards) Declares that the following product: DS15- Node Model: PTAB-915D Conforms to the following safety standards: Safety: CB, UL EMC: FCC, CB Safety CB: IEC 60950-1999 UL: UL 60950-1 EMC: FCC: (USA) EMC: FCC part 15 subpart B RF: FCC part 15 subpart C CE (EU) EMC: EN 55022:1998+A1:2000, Class B EN 61000-3-2:1995+A1:1998+A2:1998 EN 61000-3-3:1995 EN 55024:1998+A1:2001 RF: EN 301 489-17:2002 EN:300 328-2:2001 ¾ FCC Warning statement: 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfere…

Text truncated - open the document above for the full version.

Intel(R) PRO/Wireless 2200BG User's Guide Your Intel(R) PRO/Wireless 2200BG Network Connection adapter works with either 802.11b or 802.11g wireless standard. Operating at 2.4 GHz frequency at speeds of up to 54 Mbps you can now connect your computer to high-capacity existing 802.11b networks using multiple access points within large or small environments, and also to high-speed 802.11g networks. Your wireless adapter maintains automatic data rate control according to access point location to achieve the fastest possible connection. All your wireless client connections can be easily managed by the Intel(R) PROSet for Wireless utility. Using the Intel(R) PROSet for Wireless Profile Wizard, you can create profiles automatically to suite your specific connection requirements. Enhanced security measures using 802.1x, WPA encryption and authentication, and 128-bit WEP encryption is standard for both 802.11b and 802.11g. Introduction to Wireless Networking Software Installation Using Intel(R) PROSet for Wireless Connecting to a Network Security Overview Setting up Connection Security Troubleshooting Specifications Glossary Customer Support Safety and Regulatory Notices Warranty Adapter Registration Information in this document is subject to change without notice. (c) 2000–2003 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel(R) is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. September 2003 Back to Contents Page Wireless LAN Overview: Intel(R) PRO/Wireless 2200BG User's Guide About Wireless LAN Technology l Choosing a WLAN l Configuring a WLAN l Identifying a WLAN l Surveying the Site of Your WLAN l Factors Affecting Range A wireless network connects computers without using network cables. Computers use radio communications to send data between each other. You can communicate directly with other wireless computers, or connect to an existing network through a wireless access point. When you set up your wireless adapter, you select the operating mode for the kind of wireless network you want. You can use your wireless adapter to connect to other similar wireless devices that comply with the 802.11 standard for wireless networking. Choosing a Wireless LAN Wireless LANs can operate with or without access points, depending on the number of users in the network. Infrastructure mode uses access points to allow wireless computers to send and receive information. Wireless computers transmit to the access point, the access point receives the information and rebroadcasts it to other computers. The access point can also connect to a wired network or to the Internet. Multiple access points can work together to provide coverage over a wide area. Peer-to-Peer mode, also called Ad Hoc mode, works without access points and allows wireless computers to send information directly to other wireless computers. Ad Hoc Mode is only supported in 802.11b and 802.11g networks. You can use Peer-to-Peer mode to network computers in a home or small office or to set up a temporary wireless network for a meeting. Configuring a Wireless LAN There are three basic components that must be configured for an 802.11 wireless LAN to operate properly: l Network Name: Each wireless network uses a unique Network Name to identify the network. This name is called the Service Set Identifier (SSID). When you set up your wireless adapter, you specify the SSID. If you want to connect to an existing network, you must use the name for that network. If you are setting up your own network you can make up your own name and use it on each computer. The name can be up to 32 characters long and contain letters and numbers. l Profiles: When you set up your computer to access a wireless network, the wireless client manager creates a profile for the wireless settings that you specify. If you want to connect to another network, you can scan for existing networks and make a temporary connection, or create a new profile for that network. After you create profiles, your computer will automatically connect when you change locations. l Security: The 802.11 wireless networks use encryption to help protect your data. Wired equivalent privacy (WEP) uses a 64-bit or 128-bit shared encryption key to scramble data. Before a computer transmits data, it scrambles the data using the secret encryption key. The receiving computer uses this same key to unscramble the data. If you are connecting to an existing network, use the encryption key provided by the administrator of the wireless network. If you are setting up your own network you can make up your own key and use it on each computer. m Wi-Fi Protected Access (WPA) is a security enhancement that strongly increases the level of data protection and access control to a WLAN. WPA mode enforces 802.1x authentication and key-exchange to strengthen data encryption. WPA utilizes its Temporal Key Integrity Protocol (TKIP). TKIP provides important data encryption enhancements that include a per-packet key mixing function, a message integrity check (MIC) named "Michael", an extended initialization vector (IV) with sequencing rules, and a also re-keying mechanism. Using these improvement enhanceme…

Text truncated - open the document above for the full version.

Mike Kuo 4/6/2004 Hi Mike, Q1, Q2 & Q4: The WLAN module's block diagram, schematics and user manual are attached. Q3: The test report has been modified as attached. Q5: The revised system schematics are attached. And, this product doesn't have battery function. Q6: The power adapter doesn't have a ferrite core. Please refer to the attached external photo. Best regard, Ting ----- Âà§eªÌ ting/ccsemc ©ó 2004/04/06 03:34 PM ----- -----Original Message----- From: CERTADM Sent: Friday, April 02, 2004 5:46 PM To: Mike Kuo Subject: TATUNG CO., FCC ID:BJM-PTAB915D, AN04T3826 Notice_content ------------- Question #1: Please provide functional block diagram for WLAN card. ( only notebook block diagram is provided ) Question #2: Please provide schematic diagram for WLAN ( only notebook schematic diagram is provided ) Question #3: Page 4 of test report indicates the antenna gain is 1.83dbi but in MPE estimate section of test report, antenna gain is listed as 5.63dBi. Please review antenna specification sheet and make necessary correction. Question #4: Please provide WLAN portion of user manual. Question #5: As indicated in the schematic diagram for notebook computer, this device is equipped with battery circuitry. Please explain when the device is equipped with battery function, will this device be used as lap held operation ? Question #5:Ferrite core is added to the DC line of power adapter. Please provide modification report signed by the applicant to indicate the modification will be implemented in the final production unit. Mike Kuo <[email protected]> 2004/04/03 09:47 AM ¦¬¥ó¤H¡G "CCS-Taiwan, Ting (E-mail)" <[email protected]>, "CCS-Taiwan, Wklo (E-mail)" <[email protected]> °Æ¥»§Û°e¡G ¥D¦®¡G FW: TATUNG CO., FCC ID:BJM-PTAB915D, AN04T3826 Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 4/6/2004

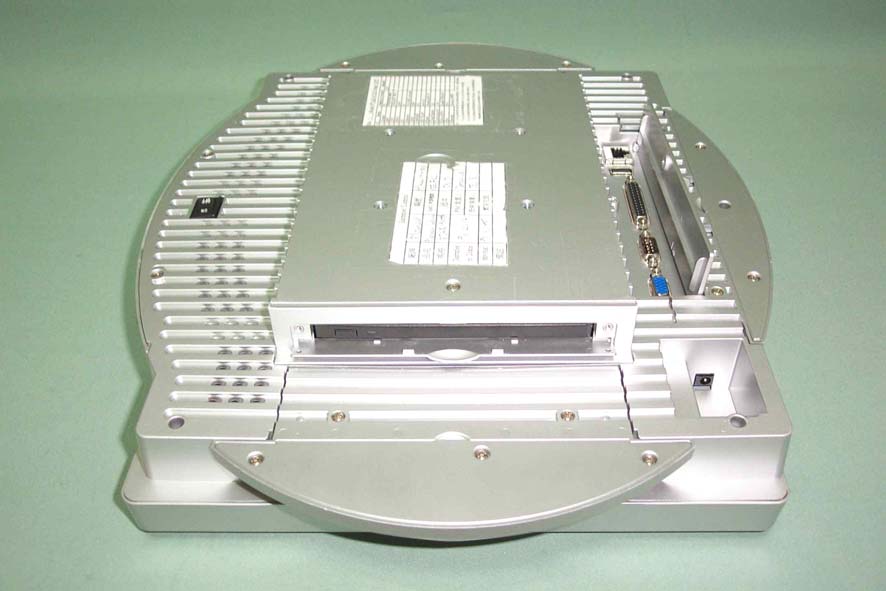

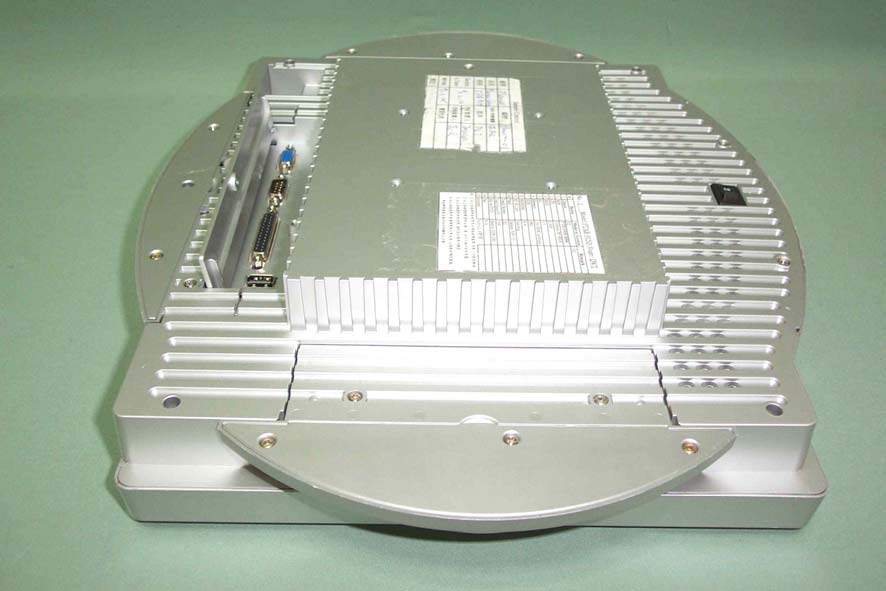

Compliance Certification Services Inc. Report No: B40223204 Date of Issue: March 10, 2004 Page 1 of 10 External Photo Compliance Certification Services Inc. Report No: B40223204 Date of Issue: March 10, 2004 Page 2 Compliance Certification Services Inc. Report No: B40223204 Date of Issue: March 10, 2004 Page 3 Compliance Certification Services Inc. Report No: B40223204 Date of Issue: March 10, 2004 Page 4

Compliance Certification Services Inc. Report No: B40223204 Date of Issue: March 10, 2004 Page 5 Internal Photo Compliance Certification Services Inc. Report No: B40223204 Date of Issue: March 10, 2004 Page 6 Compliance Certification Services Inc. Report No: B40223204 Date of Issue: March 10, 2004 Page 7 Compliance Certification Services Inc. Report No: B40223204 Date of Issue: March 10, 2004 Page 8 Compliance Certification Services Inc. Report No: B40223204 Date of Issue: March 10, 2004 Page 9 Compliance Certification Services Inc. Report No: B40223204 Date of Issue: March 10, 2004 Page 10

1 Date : Feb.19.2004 TEST REPORT CUSTOMER : TATUNG CO. Customer Model Name PLANAR Customer Approved P/N XXXXXX ET Antenna P/N MPCI09003 北路755樓 TEL : (02)26980098 FAX : (02)26980096 2 INDEX The front cover........................................................................................................ 01 Index.................................................................................................................02~03 1.Antenna Spec. For WLAN..........................................................................04 2.Description...................................................................................................04 3.Sample Check..............................................................................................04 4.IMD ANT. / ANTENNA_Right(Main) / 18cm/2.4~5.825GHz 4.1 ANT_R_VSWR................................................................................................05 4.2 ANT_R_Return Loss 5. IMD ANT. / ANTENNA_Lift(Auxiliary) / 18cm/2.4~5.825GHz 5.1 ANT_L_VSWR.................................................................................................06 5.2 ANT_L_Return Loss 6 . Gain & PATTERN–W/L/IMD ANT. For PLANAR 6.1 ANTENNA_Right (Main) / 2.4~5.825GHz a.) ANT_R (Main) / 2.4 GHz.............................................................................07 b.) ANT_R (Main) / 2.45 GHz............................................................................08 c.) ANT_R (Main) / 2.49 GHz............................................................................09 d.) ANT_R (Main) / 5.15 GHz............................................................................10 e.) ANT_R (Main) / 5.25 GHz............................................................................11 f.) ANT_R (Main) / 5.35 GHz............................................................................12 g.) ANT_R (Main) / 5.725 GHz..........................................................................13 h.) ANT_R (Main) / 5.825 GHz..........................................................................14 6.2 ANTENNA_ Lift (Auxiliary) / 2.4~5.825GHz a.) ANT_L (Auxiliary)/ 2.4 GHz...........................................................................15 b.) ANT_L (Auxiliary)/ 2.45 GHz..........................................................................16 c.) ANT_L (Auxiliary)/ 2.49 GHz.........................................................................17 d.) ANT_L (Auxiliary)/ 5.15 GHz.........................................................................18 e.) ANT_L (Auxiliary)/ 5.25 GHz.........................................................................19 f.) ANT_L (Auxiliary)/ 5.35 GHz.........................................................................20 g.) ANT_L (Auxiliary)/ 5.725 GHz.......................................................................21 h.) ANT_L (Auxiliary)/ 5.825GHz.........................................................................22 3 7. DPXX W/L ANT. Photo In Notebook............................................................23 8. Reference 8.1 Connector specification : model & vendor – P/N:20278-101R-13 / 1.13& I-PEX..................... ..................................................................Such the attached file : SP04-040302.04.pdf 4 1. Antenna Spec. For WLAN Average & Peak gain for WLAN (802.11b) 1.1. Frequency range : 2.4 ~ 2.5GHz (Nominal) 1.2. Impedance : 50Ω 1.3. VSWR : ≤ 2 ( Main & Aux. Antenna ) 1.4. Return Loss : ≤ -10dB ( Main & Aux. Antenna ) 1.5. Band Width : ≥ 130MHz ( 2450MHz65MHz at least ). 2. Description A.TATUNG Project Name & Frequency PLANAR & Single Band 2.4~2.5GHz B. Vendor’s antenna P/N MPCI09003 C. Antenna P/N & type & material MPCI09003 & IMD & Phosphor Bronze D. Coaxial cable length & diameter() 18cm(Left&Right) & 1.13 & Cable Vendor GoldenBridge E. Connector model no. & vendor P/N:20278-101R-13/1.13& I-PEX 3. Sample Check : 5 4. IMD ANT. / ANTENNA_Right(Main) / 18cm / 2.4~5.825GHz 4.1 ANT_R_VSWR 4.2 ANT_R_Return Loss 6 5. IMD ANT. / ANTENNA_Left(Auxiliary)/18cm/ 2.4~5.825GHz 5.1 ANT_L_VSWR 5.2 ANT_L_Return Loss 7 6. Gain & PATTERN–W/L/IMD ANT. For PLANAR 6.1 ANTENNA_Right (Main) / 2.4~5.825GHz a.) ANT_R (Main)/ 2.4 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain -4.42 8 b.) ANT_R (Main)/ 2.45 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain -4.58 9 c.) ANT_R (Main)/ 2.49 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain 0.77 10 d.) ANT_R (Main)/ 5.15 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain 0.27 11 e.) ANT_R (Main)/ 5.25 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain 0.08 12 f.) ANT_R (Main)/ 5.35 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain 3.42 13 g.) ANT_R (Main)/ 5.725 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain -2.08 14 h.) ANT_R (Main)/ 5.825 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain -4.52 15 6.2 ANTENNA_ Lift (Auxiliary) / 2.4~5.825GHz a.) ANT_L (Auxiliary)/ 2.4 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain 1.72 16 b.) ANT_L (Auxiliary)/ 2.45 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain 1.55 17 c.) ANT_L (Auxiliary)/ 2.49 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain -3.13 18 d.) ANT_L (Auxiliary)/ 5.15 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain 1.69 19 e.) ANT_L (Auxiliary)/ 5.25 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain 0.08 20 f.) ANT_L (Auxiliary)/ 5.35 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain 0.54 21 g.) ANT_L (Auxiliary)/ 5.725 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain 1.79 22 h.) ANT_L (Auxiliary)/ 5.825 GHz Antenna Pattren Freq= MHz H-Pol E-Pol H+V Average Gain Peak Gain 0.11 23 7. PLANAR W/L ANT. Photo In PC 8. Reference 8.1 Connector specification : model & vendor – P/N:20278-101R-1…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40223204-RP FCC ID: BJM-PTAB915D Date of Issue: March 11, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 65 FCC 47 CFR PART 15 SUBPART C TEST REPORT For TATUNG CO. Bench Top PC Model: PTAB-915D, TTAB-915D Trade Name: Planar, Tatung Prepared for TATUNG CO. 22 Chungshan N. Rd., 3 Sec., Taipei, Taiwan, 10451 R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B40223204-RP FCC ID: BJM-PTAB915D Date of Issue: March 11, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES....................................................................................................................................... 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SUPPORT EQUIPMENT......................................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................30 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................35 7.6 SPURIOUS EMISSIONS ................................................................................................................38 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................60 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .................................................................................64 Compliance Certification Services Inc. Report No: B40223204-RP FCC ID: BJM-PTAB915D Date of Issue: March 11, 2004 Page 4 2. EUT DESCRIPTION Product Bench Top PC Trade Name Planar, Tatung Model Number PTAB-915D(for brand: Planar), TTAB-915D(for brand: Tatung) Model Discrepancy All the above models are identical except the model designation for different market. Power Supply Powered from AC/DC power adapter Model Number: HP-OK065813 REV:01 Input: AC 100-240V, 1.7A, 50-60Hz Output: DC 18.5V, 3.5A, 65W Frequency Range 802.11b/g: 2412 ~ 2462 MHz Transmit Power 802.11b: 16.75 dBm 802.11g: 11.78 dBm Modulation Technique 802.11b: DSSS (CCK; DQPSK; DBPSK) 802.11g: OFDM Antenna Specification 2 PIFA Antennas Gain: 1.83 dBi (max) Note: This submittal(s) (test report) is intended for FCC ID: BJM-PTAB915D filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: B40223204-RP FCC ID: BJM-PTAB915D Date of Issue: March 11, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40223204-RP FCC ID: BJM-PTAB915D Date of Issue: March 11, 2004 Page 64 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B40223204-RP FCC ID: BJM-PTAB915D Date of Issue: March 11, 2004 Page 65 Conducted Emission Set Up Photos
