BJM-ROS1000AROS Video DMA

2 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. 3 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. Actual product may vary from depictions in this guide. OPS-DOC-GEN-SUB-700040-22 Contents Setup Hardware .............................................................................4 Standard DVD / Satellite Composite vDMA Setup ............................8 High Definition Component vDMA Setup .........................................9 High Definition HDMI vDMA Setup ..................................................10 RHC LED Description .......................................................................11 vDMA LED Description ....................................................................12 Universal Remote Description ........................................................13 Safety and Notices .........................................................................14 Warranty .......................................................................................Back © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. PRODEA SYSTEMS CONFIDENTIAL INFORMATION AND TRADE SECRETS 4 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. 5 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. SETUP HARDWARE What is a router? A router manages and connects your home networked computers and devices via Wi- Fi or Ethernet. What is a modem? A modem connects your home to the Internet services provided by your Internet Service Provider (ISP). IMPORTANT! If you have a modem - router combination, you need to turn on bridge mode. ROS Home Center ROS Set Top Box Component Cables ROS Home Center AC Adapter Remote (with batteries) Ethernet Cable Composite Cables Working high-speed Internet connection• Television• Activation code • you received from your ROS service provider. At least the following ROS hardware:• Component Dongle ROS Set Top Box AC Adapter 1. Before you begin, make sure you have following equipment. Specifications RHC Supply voltage: ........................................................................115/230 V.C.A. ±10% RHC Frequency: ...............................................................................50/60 Hz RHC Current consumption: ...............................................................3.33 A vDMA Supply voltage: .....................................................................115/230 V.C.A. ±10% vDMA Frequency: ............................................................................50/60 Hz vDMA Current consumption: ............................................................2.1 A 6 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. 7 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. 2. Place for your ROS Home Center (ROS2000) next to your Internet modem (preferred location). Unplug power from your modem. 4. Plug your ROS Home Center into an electric outlet. SETUP HARDWARE Install your equipment in a clean, indoor environment where the temperature is between 32 and 104 degrees Fahrenheit (no attics or garages). Internet modem Ethernet port 5. Using another Ethernet cable, connect your PC to the RHC. 3. Connect your ROS Home Center with your modem using the provided blue Ethernet cable and then supply power to your modem. 6. Set up your vDMA (ROS1000). IMPORTANT! Power the ROS Home Center (ROS2000) only with the included AC adapter: Hipro model HP-02040D43 LF, 12VDC operating at 3.33 amps. 8 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. 9 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. Back of TV For Standard DVD or Cable / Satellite Boxes Composite Cables For High Defintion DVD and Cable / Satellite Boxes Component Cables Standard Definition Cable Box or DVD Player High Definition Cable Box or DVD Player Back of TV B A B A Dongle Dongle Component Cable Component Cable Composite Cable Composite Cable S/PDIF Cable S/PDIF Cable Composite Audio Cables Back of TV Composite Audio Cables Connect your high definition devices to the ROS Set Top Box and the ROS Video Set Top Box to your TV using the supplied component video dongles and cables for video. Use either composite or S/PDIF (optical) cables for audio (A or B). If your television or devices support only standard definition, complete the following steps to connect the ROS Set Top Box to your television using composite A/V cables. If your television supports high definition, see the following pages for installation instructions. 10 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. 11 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. Back of TV When using the HDMI-to-DVI adapter to connect to your TV’s DVI port, you will need to use separate audio cables (either S/PDIF or composite cables). Plug in the ROS Set Top Box into an electric outlet. HDMI Cables High Definition Cable Box or DVD Player OR For High Defintion DVD and Cable / Satellite Boxes HDMI Cable HDMI Cable HDMI to DVI Cable Connect your high definition devices to the ROS Set Top Box, and then the ROS Set Top Box to your TV using HDMI cables. RHC LED DESCRIPTION RHC LED Description ColorDescription RedWhen first powered on, the LED is red during start up. If the LED is red after activation, check your Ethernet cabling. Amber (blinking)Indicates that the RHC is attempting activation. AmberIndicates activation failed. Green (blinking)Indicates the RHC is activating. GreenIndicates the RHC is activated and you can reach the Internet. IMPORTANT! Power the vDMA (ROS1000) only with the included AC adapter Universal Microelectronics model UP0251P-12PA 12VDC at 2.1 amps. 12 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. 13 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED. vDMA LED DESCRIPTION vDMA LED Description ColorDescription RedThe vDMA LED is red during start up; if it remains red, there is a service connectivity issue. Amber (flashing)vDMA is connected to the…

Text truncated - open the document above for the full version.

22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. TEL No: 886-2-2598-4803 FAX No.: 886-2-2598-4464 Attestation for FCC Declaration of Conformity FCC ID: BJM-ROS1000A Data: May. 13, 2010 Please be notified that we, the undersigned, TATUNG CO., declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 104110R-ITUSP02V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,Taipei City 114,Taiwan,R.O.C. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Chung Chang / EMC/Safety Director TATUNG CO. Tel: 886-2-2598-4803 Fax: 886-2-2598-4464 Email: [email protected]

TATUNG CO. FCC ID.: BJM-ROS1000A 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 10451, R.O.C. Tel : 886-2-25984803 TATUNG CO. 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 10451, R.O.C. Tel : 886-2-25984803 Fax: 886-2-25984464 Federal Communications Commission May. 13, 2010 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (005-01004) Schem Block Diagram: (005-01004) BlkDia The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------------------------------------- Chung Chang / EMC/Safety Director TATUNG CO.

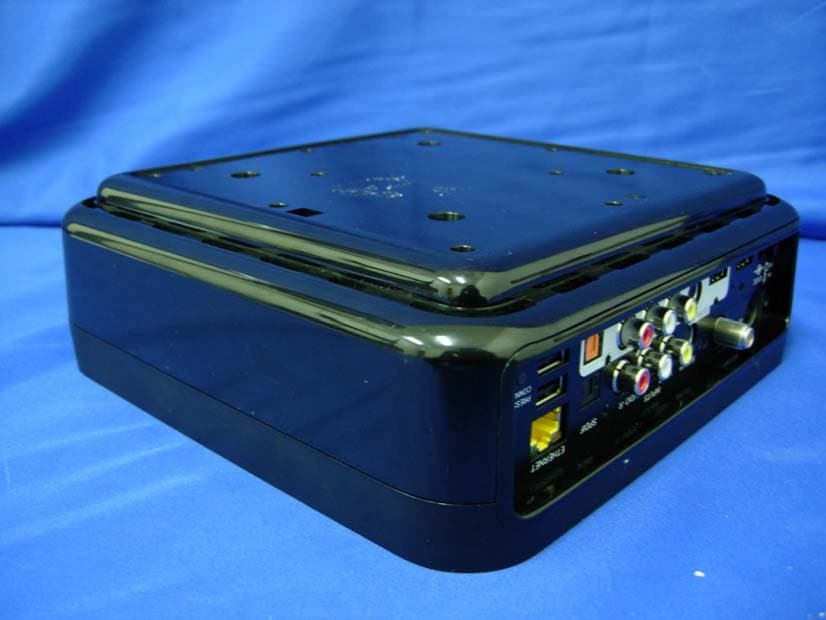

Report No.: 104110R-RFUSP32V01 Page : 1 of 13 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

TATUNG CO. FCC ID.: BJM-ROS1000A 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 10451, R.O.C..Tel : 886-2-25984803 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

TATUNG CO. FCC ID.: BJM-ROS1000A 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 10451, R.O.C..Tel : 886-2-25984803 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Page : 7 of 139 1.2. Operational Description The EUT is a ROS Video DMA with a built-in 2.4GHz and 5GHz WLAN card. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11a/g). The device provided of eight kinds of transmitting speed 13,26,39,52,78,104,117 and 130Mbps in 802.11n(20BW) mode and 27,54,81,108,162,216,243 and 270Mbps(40BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n), the IEEE 802.11n is Multiple In, Multiple Out” (MIMO) technology. The device adapts direct sequence spread spectrum modulation. The antenna provides diversity function to improve the receiving function and the antennas to support 2(Transmit) × 3(Receive) MIMO technology. This ROS Video DMA, compliant with IEEE 802.11b and IEEE 802.11a/g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz/5GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the ROS Video DMA Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11a/g/n network.

Report No. 104110R-RFUSP42V01 Page: 1 of 7 Version: 1.0 RF Exposure Evaluation declaration Product Name : ROS Video DMA Model No. : 005-01004 FCC ID : BJM-ROS1000A Applicant : TATUNG CO. Address : 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 10451, R.O.C. Date of Receipt : Apr. 01, 2010 Date of Declaration: May. 13, 2010 Report No. : 104110R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 104110R-RFUSP42V01 Page: 2 of 7 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 104110R-RFUSP42V01 Page: 3 of 7 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : ROS Video DMA Test Item : RF Exposure Evaluation Test Site : No.3 OATS 802.11b (1Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (4.69dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 77.2681 0.045262 6 2437.00 81.6582 0.047833 11 2462.00 77.9830 0.045680 The RF exposure at 20 cm is below limit. 802.11g (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (4.69dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 300.6076 0.176088 6 2437.00 291.7427 0.170895 11 2462.00 314.7748 0.184387 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (2.97dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 231.7395 0.091355 157 5785.00 232.8091 0.091776 165 5825.00 230.6747 0.090935 The RF exposure at 20 cm is below limit. Report No. 104110R-RFUSP42V01 Page: 4 of 7 Version: 1.0 802.11n-20MHz_13Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (4.69dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2412.00 345.1437 0.202176 06 2437.00 353.9973 0.207363 11 2462.00 355.6313 0.208320 The RF exposure at 20 cm is below limit. 802.11n-40MHz_27Mbps - 2.4G Band Output Power Into Antenna & RF Exposure Evaluation Distance (4.69dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2422.00 387.2576 0.226846 04 2437.00 391.7419 0.229472 07 2452.00 394.4573 0.231063 The RF exposure at 20 cm is below limit. 802.11n-20MHz_13Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2.97dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 149 5745.00 345.1437 0.136060 157 5785.00 341.1929 0.134503 165 5825.00 341.9794 0.134813 The RF exposure at 20 cm is below limit. 802.11n-40MHz_27Mbps - 5G Band Output Power Into Antenna & RF Exposure Evaluation Distance (2.97dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 151 5755.00 353.9973 0.139550 159 5795.00 355.6313 0.140194 The RF exposure at 20 cm is below limit. Report No. 104110R-RFUSP42V01 Page: 5 of 7 Version: 1.0 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (4.87dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 36.9828 0.022580 44 5220.00 38.1944 0.023320 48 5240.00 38.4592 0.023482 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (4.87dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 52 5260.00 38.1944 0.023320 60 5300.00 38.6367 0.023590 64 5320.00 38.2825 0.023374 The RF exposure at 20 cm is below limit. 802.11a (6Mbps) Output Power Into Antenna & RF Exposure Evaluation Distance (4.87dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 100 5500.00 39.1742 0.023918 120 5600.00 39.2645 0.023973 140 5700.00 38.8150 0.023699 The RF exposure at 20 cm is below limit. 802.11n-20MHz_13Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (4.87dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 36 5180.00 38.6367 0.023590 44 5220.00 38.2825 0.023374 48 5240.00 37.9315 0.023160 The RF exposure at 20 cm is below limit. Report No. 104110R-RFUSP42V01 Page: 6 of 7 Version: 1.0 802.11n-20MHz_13Mbps Output Power Into Antenna & RF Exposure Evaluation Distance (4.87dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 52 5260.00 38.1066 0.023266 60 5300.00 38.1066 0.023266 64 5320.00 39.0841 0.023863 The RF exposure at 20 cm is belo…

Text truncated - open the document above for the full version.

Page : 1 of 139 Test Report Product Name ROS Video DMA Model No 005-01004 FCC ID. BJM-ROS1000A Applicant TATUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 10451, R.O.C. Date of Receipt Apr. 01, 2010 Issue Date May. 10, 2010 Report No. 104110R-RFUSP42V01 Report Version V0.1-Draft The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Page : 2 of 139 Test Report Certification Issue Date: May. 10, 2010 Report No.: 104110R-RFUSP42V01 Product Name ROS Video DMA Applicant TATUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 10451, R.O.C. Manufacturer TATUNG CO. Model No. 005-01004 EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/60Hz Trade Name Prodea Systems Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Engineer / Molin Huang ) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Page : 3 of 139 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................17 3.1. Test Equipment............................................................................................................................17 3.2. Test Setup ....................................................................................................................................17 3.3. Limits ..........................................................................................................................................17 3.4. Test Procedure .............................................................................................................................17 3.5. Uncertainty ..................................................................................................................................17 3.6. Test Result of Peak Power Output...............................................................................................18 4. Radiated Emission .....................................................................................................................25 4.1. Test Equipment............................................................................................................................25 4.2. Test Setup ....................................................................................................................................26 4.3. Limits ..........................................................................................................................................27 4.4. Test Procedure .............................................................................................................................28 4.5. Uncertainty ..................................................................................................................................28 4.6. Test Result of Radiated Emission................................................................................................29 5. RF antenna conducted test........................................................................................................56 5.1. Test Equipment............................................................................................................................56 5.2. Test Setup ....................................................................................................................................56 …

Text truncated - open the document above for the full version.

Report No. 104110R-RFUSP42V01 Page: 96 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 (1Mbps) 2437.00 13250 >500 Pass Figure Channel 6: Report No. 104110R-RFUSP42V01 Page: 97 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 (1Mbps) 2462.00 13200 >500 Pass Figure Channel 11: Report No. 104110R-RFUSP42V01 Page: 98 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 (6Mbps) 2412.00 16600 >500 Pass Figure Channel 1: Report No. 104110R-RFUSP42V01 Page: 99 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 (6Mbps) 2437.00 16550 >500 Pass Figure Channel 6: Report No. 104110R-RFUSP42V01 Page: 100 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 (6Mbps) 2462.00 16550 >500 Pass Figure Channel 11: Report No. 104110R-RFUSP42V01 Page: 101 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmitter - 802.11a 6Mbps (5745MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 149 (6Mbps) 5745.00 16550 >500 Pass Figure Channel 149: Report No. 104110R-RFUSP42V01 Page: 102 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmitter - 802.11a 6Mbps (5785MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 157 (6Mbps) 5785.00 16550 >500 Pass Figure Channel 157: Report No. 104110R-RFUSP42V01 Page: 103 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmitter - 802.11a 6Mbps (5825MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 165 (6Mbps) 5825.00 16550 >500 Pass Figure Channel 165: Report No. 104110R-RFUSP42V01 Page: 104 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmitter - 802.11n-20BW_13Mbps(2.4G Band) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 (13Mbps) 2412.00 16850 >500 Pass Figure Channel 1: Report No. 104110R-RFUSP42V01 Page: 105 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmitter - 802.11n-20BW_13Mbps(2.4G Band) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 (13Mbps) 2437.00 16650 >500 Pass Figure Channel 6: Report No. 104110R-RFUSP42V01 Page: 106 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmitter - 802.11n-20BW_13Mbps(2.4G Band) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 (13Mbps) 2462.00 16800 >500 Pass Figure Channel 11: Report No. 104110R-RFUSP42V01 Page: 107 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 5: Transmitter - 802.11n-40BW_27Mbps(2.4G Band) (2422MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 (27Mbps) 2422.00 32200 >500 Pass Figure Channel 1: Report No. 104110R-RFUSP42V01 Page: 108 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 5: Transmitter - 802.11n-40BW_27Mbps(2.4G Band) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 4 (27Mbps) 2437.00 32900 >500 Pass Figure Channel 4: Report No. 104110R-RFUSP42V01 Page: 109 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 5: Transmitter - 802.11n-40BW_27Mbps(2.4G Band) (2452MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 7 (27Mbps) 2452.00 32800 >500 Pass Figure Channel 7: Report No. 104110R-RFUSP42V01 Page: 110 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 6: Transmitter - 802.11n-20BW_13Mbps(5G Band) (5745MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 149(13Mbps) 5745.00 16350 >500 Pass Figure Channel 149:

Report No. 104110R-RFUSP42V01 Page: 111 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 6: Transmitter - 802.11n-20BW_13Mbps(5G Band) (5785MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 157(13Mbps) 5785.00 16150 >500 Pass Figure Channel 157: Report No. 104110R-RFUSP42V01 Page: 112 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 6: Transmitter - 802.11n-20BW_13Mbps(5G Band) (5825MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 165(13Mbps) 5825.00 16350 >500 Pass Figure Channel 165: Report No. 104110R-RFUSP42V01 Page: 113 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 7: Transmitter - 802.11n-40BW_27Mbps(5G Band) (5755MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 151 (27Mbps) 5755.00 34400 >500 Pass Figure Channel 151: Report No. 104110R-RFUSP42V01 Page: 114 of 139 Product : ROS Video DMA Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 7: Transmitter - 802.11n-40BW_27Mbps(5G Band) (5795MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 159 (27Mbps) 5795.00 33700 >500 Pass Figure Channel 159: Report No. 104110R-RFUSP42V01 Page: 115 of 139 8. Power Density 8.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2009 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2009 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2010 X 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2010 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 8.2. Test Setup 8.3. Limits The transmitted power density averaged over any 1 second interval shall not be greater +8dBm in any 3kHz bandwidth. 8-WAY Power Divider EUT Spectrum Analyzer RF Cable Report No. 104110R-RFUSP42V01 Page: 116 of 139 8.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW= 3 kHz, VBW=10KHz, Sweep time=(SPAN/3KHz), detector=Peak detector 8.5. Uncertainty ± 1.27 dB Report No. 104110R-RFUSP42V01 Page: 117 of 139 8.6. Test Result of Power Density Product : ROS Video DMA Test Item : Power Density Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measure Level (dBm) Limit (dBm) Result 1 (1Mbps) 2412.00 -10.282 < 8dBm Pass Figure Channel 1: Report No. 104110R-RFUSP42V01 Page: 118 of 139 Product : ROS Video DMA Test Item : Power Density Data Test Site : No.3OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (dBm) Required Limit (dBm) Result 6 (1Mbps) 2437.000 -11.195 < 8dBm …

Text truncated - open the document above for the full version.
