BJM-TABLETSC800Tablet PC

1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2 FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT___2 SAFETY INFORMATION______________________________________________7 PREFACE_________________________________________________________9 CHAPTER 1: INTRODUCING THE SCRIBBLER__________________________10 1.1 Inventory Checklist______________________________________________________________10 1.2 Scribbler Features________________________________________________________________10 CHAPTER 2: A GUIDED TOUR_______________________________________13 2.1 The different models of Scribbler___________________________________________________13 2.2 Front View______________________________________________________________________13 2.2.1 Shortcut Keys__________________________________________________________________14 2.2.2 Indicator Lights________________________________________________________________14 2.3 Back View_____________________________________________________________________15 2.4 Top Panel View_________________________________________________________________15 2.6 Right-Side Panel View____________________________________________________________17 2.5 Bottom Panel View___________________________________________________________________18 CHAPTER 3: SHORTCUT & FUNCTION KEYS___________________________19 3.1 Using the Shortcut Keys on the Front Panel_________________________________________19 3.2 Using the Function Key__________________________________________________________20 3.2.1 Default Combinations___________________________________________________________20 3.2.2 Assigning a shortcut_____________________________________________________________20 CHAPTER 4: GETTING STARTED_____________________________________22 4.1 Connecting the AC Adaptor________________________________________________________22 3 4.2 Turning on the power_____________________________________________________________22 4.3 Turning off the power_____________________________________________________________23 4.4 The Battery_____________________________________________________________________25 4.4.1 How to Determining the remaining battery power_______________________________________25 4.4.2 How to Charge the Battery_________________________________________________________25 4.4.3 Approximate Charging Time______________________________________________________25 4.5 The Stylus_____________________________________________________________________26 4.5.1 How to Use the Stylus___________________________________________________________26 4.5.2 The “Right - Click” button________________________________________________________26 4.5.3 Calibrating the Screen for Stylus Accuracy__________________________________________27 4.5.4 Changing the Stylus Tips_________________________________________________________27 4.5.5 Joystick______________________________________________________________________30 4.6 Putting the Scribbler in Standby Mode______________________________________________ 30 4.7 The Screen_____________________________________________________________________31 4.7.1 Adjusting the Screen Brightness___________________________________________________31 4.7.2 Selecting Screen Orientation______________________________________________________32 4.8 Connecting Accessories___________________________________________________________ 33 4.8.1 Connecting an external USB Mouse________________________________________________33 4.8.2 Connecting an external USB Keyboard_____________________________________________33 4.8.3 Connecting a Printer and Setting it up______________________________________________33 4.8.4 Connecting the Modem_________________________________________________________34 4.8.5 Connecting to a Phone Line______________________________________________________34 4.8.6 Connecting to a network________________________________________________________34 4.8.7 Connecting to an external USB diskette drive_________________________________________34 CHAPTER 5: GETTING TO KNOW THE SCRIBBLER_____________________35 5.1 Creating User Accounts___________________________________________________________35 5.2 Setting up Passwords________________________________________________________________35 5.3 …

Text truncated - open the document above for the full version.

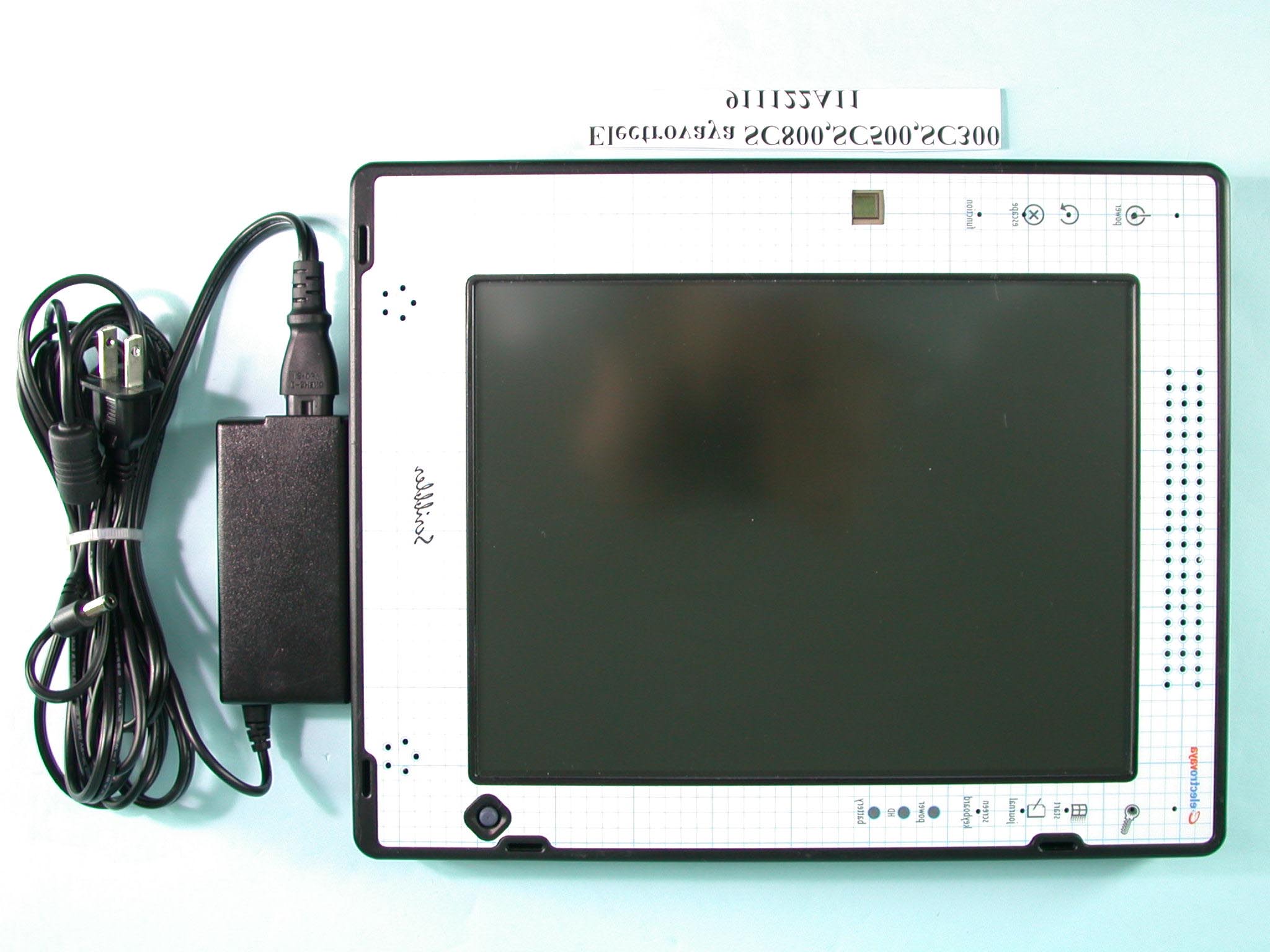

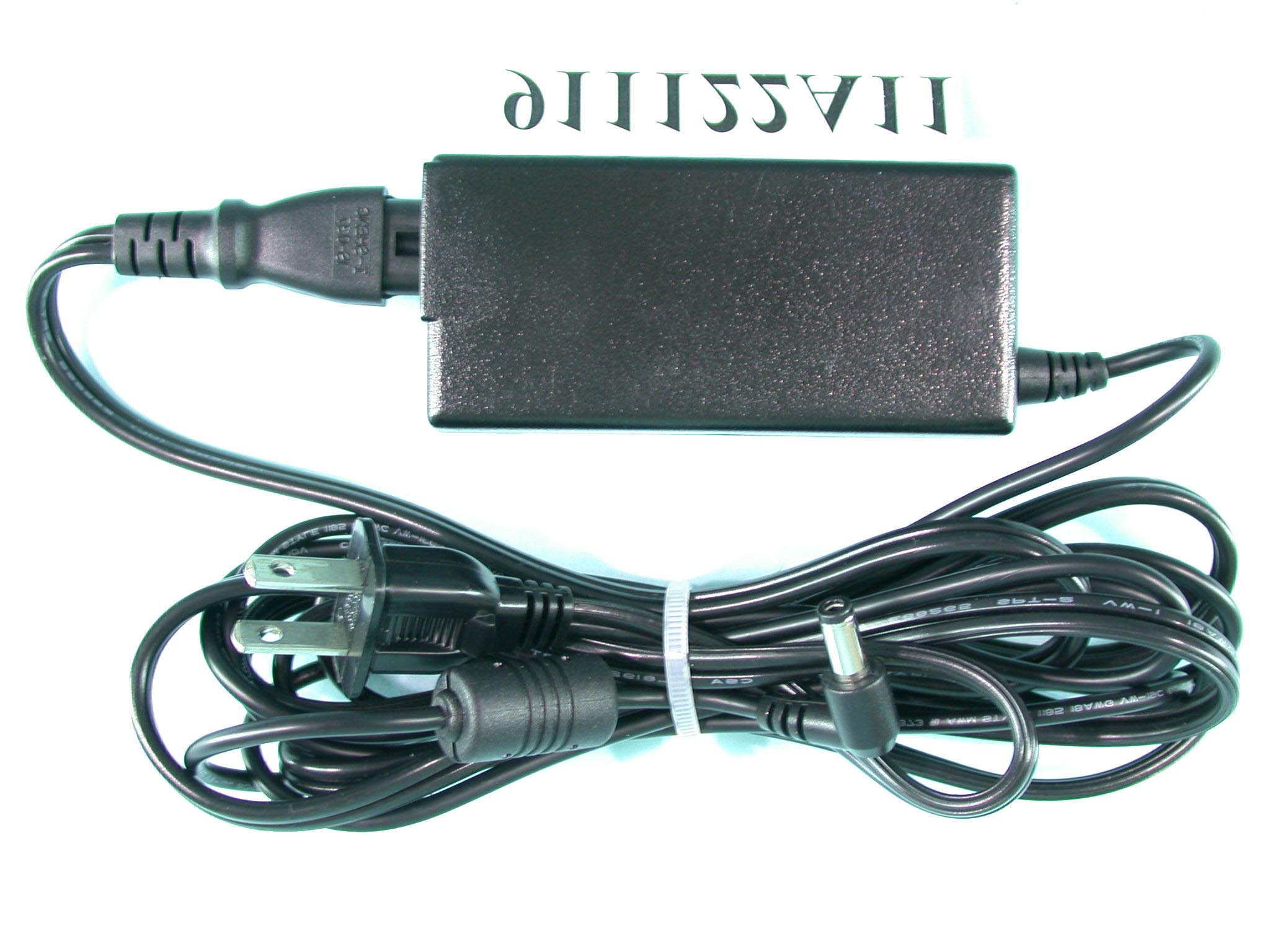

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3 Page 4

Scribbler SC 800 Made in Taiwan Output: 12V 2.5A Operate this device only with AC adapter provided with this product Electrovaya ! ETAB910 N01/N02/N03 SYSTEM LABEL REV.01 IC:XXXXXXXXX Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Canada ICES-003 CLASS B/NMB-003 CLASS B. FCC ID:BJM-TABLETSC800 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Canada ICES-003 Class B. Model No.:SC800 Scribbler SC 500 Made in Taiwan Output: 12V 2.5A Operate this device only with AC adapter provided with this product Electrovaya ! IC:XXXXXXXXX Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Canada ICES-003 CLASS B/NMB-003 CLASS B. FCC ID:BJM-TABLETSC800 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Canada ICES-003 Class B. Model No.:SC500 Scribbler SC 300 Made in Taiwan Output: 12V 2.5A Operate this device only with AC adapter provided with this product Electrovaya ! IC:XXXXXXXXX Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Canada ICES-003 CLASS B/NMB-003 CLASS B. FCC ID:BJM-TABLETSC800 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Canada ICES-003 Class B. Model No.:SC300

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

FCC ID: BJM-TABLETSC800 ADT No.911122A11 Operational Description The transmitter of the EUT (Tablet PC) is powered by 12VDC power adapter. The antenna type used in this product is Printed antenna with UFL connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: BJM-TABLETSC800 Report No.: SA911122A111Issued: Jan. 3, 2003 SAR TEST REPORT REPORT NO.: SA911122A11 MODEL NO.: SC800, SC500, SC300 RECEIVED: Nov. 12, 2002 TESTED: Jan. 2, 2003 APPLICANT: TATUNG CO. ADDRESS: 22, ChungShan N. Rd., 3 rd Sec., Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 13 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: BJM-TABLETSC800 Report No.: SA911122A112Issued: Jan. 3, 2003 Table of Contents 1.CERTIFICATION ........................................................................................... 3 2.GENERAL INFORMATION ........................................................................... 4 2.1GENERAL DESCRIPTION OF EUT.............................................................. 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 4 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ...................... 5 4.DESCRIPTION OF SUPPORT UNITS .......................................................... 6 5.TEST RESULTS............................................................................................ 7 5.1TEST PROCEDURES................................................................................... 7 5.2MEASURED SAR RESULT........................................................................... 7 5.3SAR LIMITS .................................................................................................. 8 5.4EUT CONDUCTED POWER VARIATION ..................................................... 8 5.5TISSUE ......................................................................................................... 9 5.6TEST EQUIPMENT....................................................................................... 9 6.SYSTEM VALIDATION................................................................................ 10 7.MEASUREMENT UNCERTAINTIES ............................................................11 8.INFORMATION ON THE TESTING LABORATORIES ................................ 13 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: BJM-TABLETSC800 Report No.: SA911122A113Issued: Jan. 3, 2003 1. CERTIFICATION PRODUCT : Tablet PC MODEL NO. : SC800, SC500, SC300 BRAND : Electrovaya APPLICANT : TATUNG CO. STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01) We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts for the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: BJM-TABLETSC800 Report No.: SA911122A114Issued: Jan. 3, 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Tablet PC MODEL NO. SC800, SC500, SC300 POWER SUPPLY Power Adapter MODULATION TYPE DBPSK, QPSK, CCK RADIO TECHNOLOGY DSSS TRANSFER RATE 1/2/5.5/11Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 CONDUCTED OUTPUT POWER 18.42 dBm ( 69.60 mW) ANTENNA TYPE Printed Antenna PEAK SAR 0.0451 W/kg DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: model SC800 uses PIII 866MHz CPU, two 256MB memories and fingerprint identification function. Model SC500 uses PIII 866MHz CPU, two 256MB memories but without fingerprint identification function. Model SC300 uses CELERON 733MHz CPU, one 256MB memory but without fingerprint identification function. 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS According to the specifications of the manufacturer, this product must comply with the requirements of the following standards: FCC 47 CFR Part 2 (2.1093) FCC OET Bulletin 65, Supplement C (01- 01) All tests have been performed and recorded as per the above standards. FCC ID: BJM-TABLETSC800 Report No.: SA911122A115Issued: Jan. 3, 2003 3. DESCRIPTION OF TEST MODES AND CONFIGURATIONS CARRIER MODULATION UNDER TEST Un-modulated CW Carrier CREST FACTOR 1.0 CHANNEL FREQUENCIES UNDER TEST AND ITS CONDUCTED OUTPUT POWER Ch. 1: 2412MHz / 18.36 dBm Ch. 6: 2437MHz / 18.42 dBm Ch. 11: 2462MHz / 18.32 dBm ANTENNA CONFIGURATION Printed Tx antenna is located on the top end right hand side of the tablet PC. EUT POWER SOURCE From Host Tablet PC HOST POWER SOURCE Chargeable Battery The following test configurations have been applied in this test report: Mode 1: The bottom of the Tablet PC contact the bottom of the flat phantom with 0 cm separation distance. Mode 2: The screen of the tablet PC is perpendicular with the bottom of the flat phantom with the antenna portion on the top. There is 1.5 cm separation distance between the EUT and the bottom of the flat phantom. Mode 3: The screen of the tablet PC is perpendicular with the bottom of the flat phantom with the antenna portion on the top. There is no separation distance between the EUT and the bottom of the flat phantom. Note 1: Please reference “APPENDIX A” for the photos of test configuration. Note 2: The output power of the un-modulated CW carrier has been adjusted to be the same with that of modulated signal. FCC ID: BJM-TABLETSC800 Report No.: SA911122A116Issued: Jan. 3, 2003 4. DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. NO.PRODUCTBRANDMODEL NO.SERIAL NO.FCC ID…

Text truncated - open the document above for the full version.

FCC ID: BJM-TABLETSC800 Report No.: RF911122A111Issued: January 5, 2003 FCC TEST REPORT REPORT NO.: RF911122A11 MODEL NO.: SC800, SC500, SC300 RECEIVED: Nov. 21, 2002 TESTED: Nov. 26, 2002 ~ Jan. 1, 2003 APPLICANT: Tatung Co. ADDRESS: 22, ChungShan N. Rd., 3 Rd Sec., Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 45 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: BJM-TABLETSC800 Report No.: RF911122A112Issued: January 5, 2003 Table of Contents 1CERTIFICATION.....................................................................................4 2SUMMARY OF TEST RESULTS...............................................................5 3GENERAL INFORMATION.......................................................................6 3.1GENERAL DESCRIPTION OF EUT..........................................................6 3.2DESCRIPTION OF TEST MODES............................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.............................7 3.4DESCRIPTION OF SUPPORT UNITS......................................................8 4TEST TYPES AND RESULTS..................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.............................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................9 4.1.2TEST INSTRUMENTS.............................................................................9 4.1.3TEST PROCEDURES............................................................................10 4.1.4DEVIATION FROM TEST STANDARD....................................................10 4.1.5TEST SETUP........................................................................................10 4.1.6EUT OPERATING CONDITIONS.............................................................11 4.1.7TEST RESULTS....................................................................................12 4.2RADIATED EMISSION MEASUREMENT................................................14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...............................14 4.2.2TEST INSTRUMENTS...........................................................................15 4.2.3TEST PROCEDURES............................................................................16 4.2.4DEVIATION FROM TEST STANDARD....................................................16 4.2.5TEST SETUP........................................................................................17 4.2.6EUT OPERATING CONDITIONS............................................................17 4.2.7TEST RESULTS....................................................................................18 4.36dB BANDWIDTH MEASUREMENT.......................................................23 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.....................................23 4.3.2TEST INSTRUMENTS...........................................................................23 4.3.3TEST PROCEDURE..............................................................................24 4.3.4DEVIATION FROM TEST STANDARD....................................................24 4.3.5TEST SETUP........................................................................................24 4.3.6EUT OPERATING CONDITIONS............................................................24 4.3.7TEST RESULTS....................................................................................25 4.4MAXIMUM PEAK OUTPUT POWER.......................................................29 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........29 4.4.2TEST INSTRUMENTS...........................................................................29 FCC ID: BJM-TABLETSC800 Report No.: RF911122A113Issued: January 5, 2003 4.4.3TEST PROCEDURES............................................................................30 4.4.4DEVIATION FROM TEST STANDARD....................................................30 4.4.5TEST SETUP........................................................................................30 4.4.6EUT OPERATING CONDITIONS............................................................30 4.4.7TEST RESULTS....................................................................................31 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................32 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..................32 4.5.2TEST INSTRUMENTS...........................................................................32 4.5.3TEST PROCEDURE..............................................................................33 4.5.4DEVIATION FROM TEST STANDARD....................................................33 4.5.5TEST SETUP........................................................................................33 4.5.6EUT OPERATING CONDITIONS............................................................33 4.5.7TEST RESULTS....................................................................................34 4.6BAND EDGES MEASUREMENT............................................................38 4.6.1LIMITS OF BAND EDGES MEASUREMENT...........................................38 4.6.2TEST INSTRUMENTS...........................................................................38 4.6.3TEST PROCEDURE..............................................................................38 4.6.4DEVIATION FROM TEST STANDARD....................................................38 4.6.5EUT OPERATING CONDITION..............................................................39 4.6.6TEST RESULTS.....…

Text truncated - open the document above for the full version.

FCC ID: BJM-TABLETSC800 Report No.: RF911122A1143Issued: January 5, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: BJM-TABLETSC800 Report No.: RF911122A1144Issued: January 5, 2003 RADIATED EMISSION TEST
