BJM-TTAB12DABGTATUNG CO.

ACCESSORY CHECKLIST Standard Accessories (depends on model and configuration) USB Keyboard USB Mouse Power Cord AC Adapter Cleaning Cloth Stylus (includes an eraser function) Stylus Tether Slipcover Recovery CD Microsoft Windows XP Tablet PC Edition Introductory Guide Optional Accessories Keyboard Stand SAFETY GUIDELINES Safety Information Please pay attention to the following two symbols that appear in the User Manual. Each symbol is followed by important, useful information that will help you use your Tablet PC. Warning! This symbol warns of incorrect usage of equipment and/or a violation of the instructions for usage that will damage the Tablet PC or impair its performance. Attention! This symbol marks advice that will help you get better results when using your Tablet PC. Safety and Regulatory Information z When moving the Tablet PC, be careful not to drop it. z Do not dismantle the outer casing, especially during system start-up. Any type of dismantling will damage the system, and the manufacturer will not be held responsible. z Using an incorrect memory module may damage the system. z Do not install any expansion card that draws large amounts of electric current and will overload the system. z If the battery is replaced incorrectly, there is the risk of an explosion. When replacing the battery, the user should use the same kind as the original. Dispose of the used battery according to the manufacturer’s instructions. In order to get optimal results from your Tablet PC, please follow the recommendations below. The user should remember: z When viewing the computer screen, please maintain a distance of 38cm–45cm for the best results. z Avoid exposing the computer screen to direct sunlight, which can cause viewing discomfort and/or reduce the screen brightness. Power Cord and Power Supply Safety Guidelines z Use together with the designated AC adapter. z Keep away from cold. z Keep away from high temperatures or fire hazards. z Do not short-circuit the power-out. z Do not set in water. z Do not use in humid areas. z Do not pull on the power cord. z Use together with the designated power cord. z Operate at a room temperature of 5 o C–40 o C (41 o F–104 o F), relative humidity 10%–95% z High voltage inside; do not open. z Do not try to alter or repair. z Do exert pressure on or drop. z Store at a room temperature of -20 o C–85 o C (-4 o F–185 o F), relative humidity 5%–95%. z Do not damage the cord insulation. z Set the computer up near an AC outlet. The AC power cord is the main AC power breaker for the Tablet PC, and you must be able to access it easily. For safety reasons, the power cord supplied with the system has a grounded plug. You also need to plug the power cord into a grounded wall outlet to avoid the danger of electric shock. z This system can handle a power system of 100–240V. It is suitable for use in the place or country of purchase. z In order to reduce the possibility of electric shock from the telephone network, plug the computer power cord into the AC outlet before connecting the computer with the telephone line. Also, you should disconnect the telephone line first when unplugging the computer power cord from the AC power outlet. z Do not repair the power supply yourself. To avoid damage to the power supply, contact a professional to have it repaired or replaced. z All performance procedures, adjustments, controls, etc. aside from those that are listed in the User Manual (as computer upgrading and maintenance) can cause serious radiation damage. In order to avoid laser exposure, please do not open the LCD cover. Battery Safety Guidelines z The battery is restricted to usage with this computer. z Do not dismantle the battery. z Do not expose the battery to fire or water. z Avoid fire, heat and any sort of damage to the battery. Do not touch either end of the battery with anything metallic. z Be extremely careful when using a damaged or leaking battery. z If the surrounding temperature exceeds 45 o C (113 o F), do not charge the battery. z If electrolytes come into contact with the battery, use soap and water to clean the affected area. z If electrolytes come into contact with your eyes, wash your eyes with water for 15 minutes, and then go to a physician immediately. z To buy a battery, contact a local distributor. z Do not store the battery in a warehouse under high temperatures (over 60 o C, 140 o F). z When you want to dispose of the battery, consult your local Waste Treatment Center regarding disposal and recycling restrictions. Mercury Battery Warning z This computer contains a mercury battery that is used to power the clock and the calendar loop. z If the battery is improperly replaced, there is the risk of an explosion. Please only use an identical or equivalent battery supplied by the manufacturer when replacing the battery. Please dispose of the used battery in accordance with the manufacturer’s instructions and local laws. Operating Specifications Electrical Rating: DC 12V, 3.5A Operating Temperature: 25 o C (77 o F) Storage Temperature: -20 o C–70 o C (-4 o F–158 o F) Operating Humidity: under 26 o C (78.8 o F), 15%–80% humidity Storage Humidity: under 65 o C (149 o F), 90% humidity (no condensation) Storage Altitude: 0m–4572m TABLET PC INTRODUCTION Properties z The Tablet PC’s size is designed with the user in mind: while writing, you can conveniently rest your hand on top of the screen. z The Tablet PC’s advanced speech recognition system also allows it to be used as a dictation machine. (See Note 1.) z The wireless network function lets you conduct business no matter where you are, increasing your efficiency. z Inputting information into the computer is no longer any trouble! Using the stylus, you can write directly on the screen and handwritten documents can even be converted to typed text. (See Note 2.) Components z Processor: Intel Pentium M Processor z Memory: 256MB (Upgradeable to 1GB) z Hard Drive: 30G z Display: 12.1” TFT technology, 1024x768 resolu…

Text truncated - open the document above for the full version.

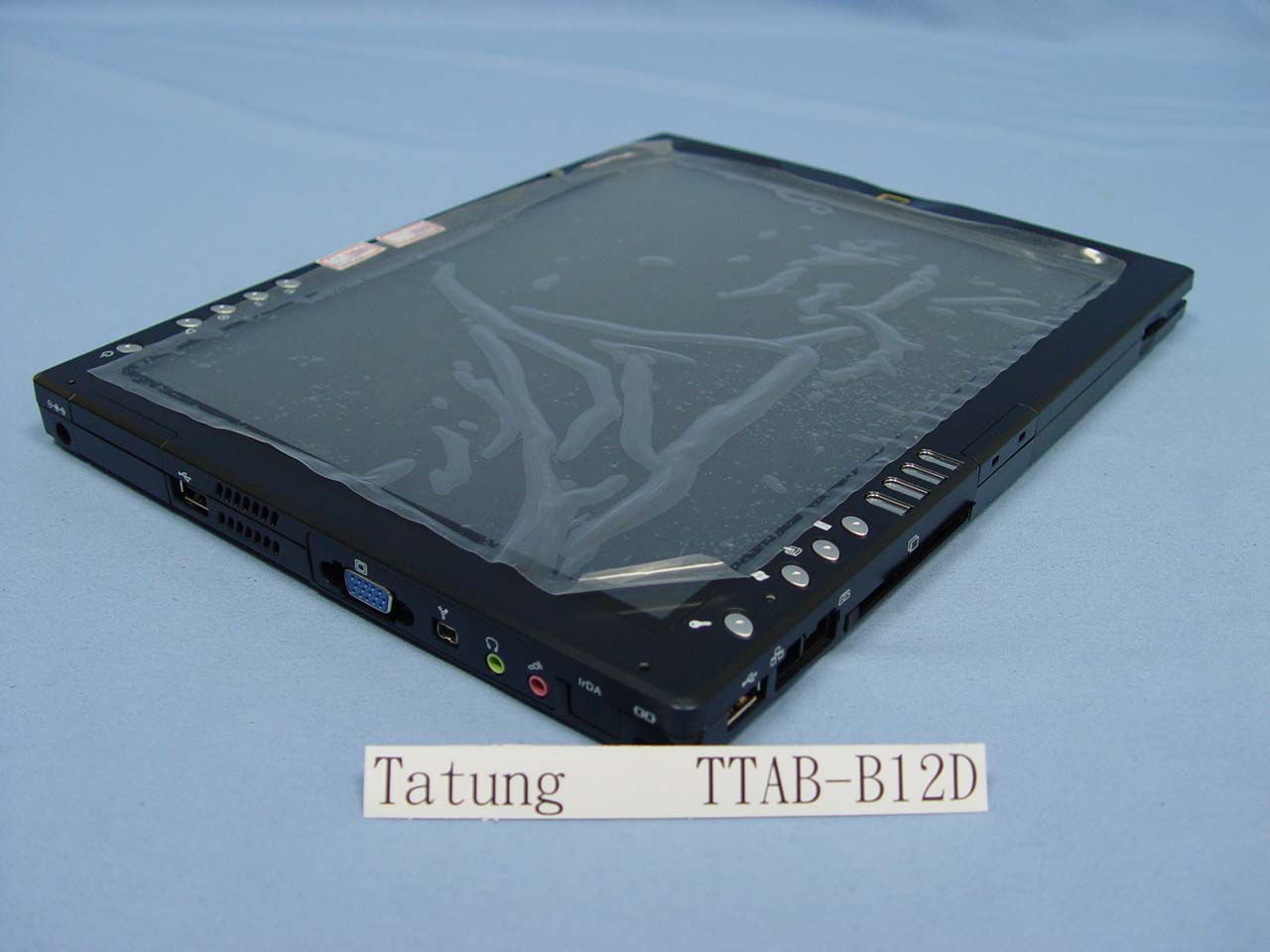

Compliance Certification Services Inc. Report No: 40816206 Date of Issue: September 23, 2004 Page 1 of 1 EXTERNAL PHOTOGARPHS OF EUT Compliance Certification Services Inc. Report No: 40816206 Date of Issue: September 23, 2004 Page 2

UNIT:mm Scale:1/1 TTABB12D System Label for Intel Calexico a+b+g

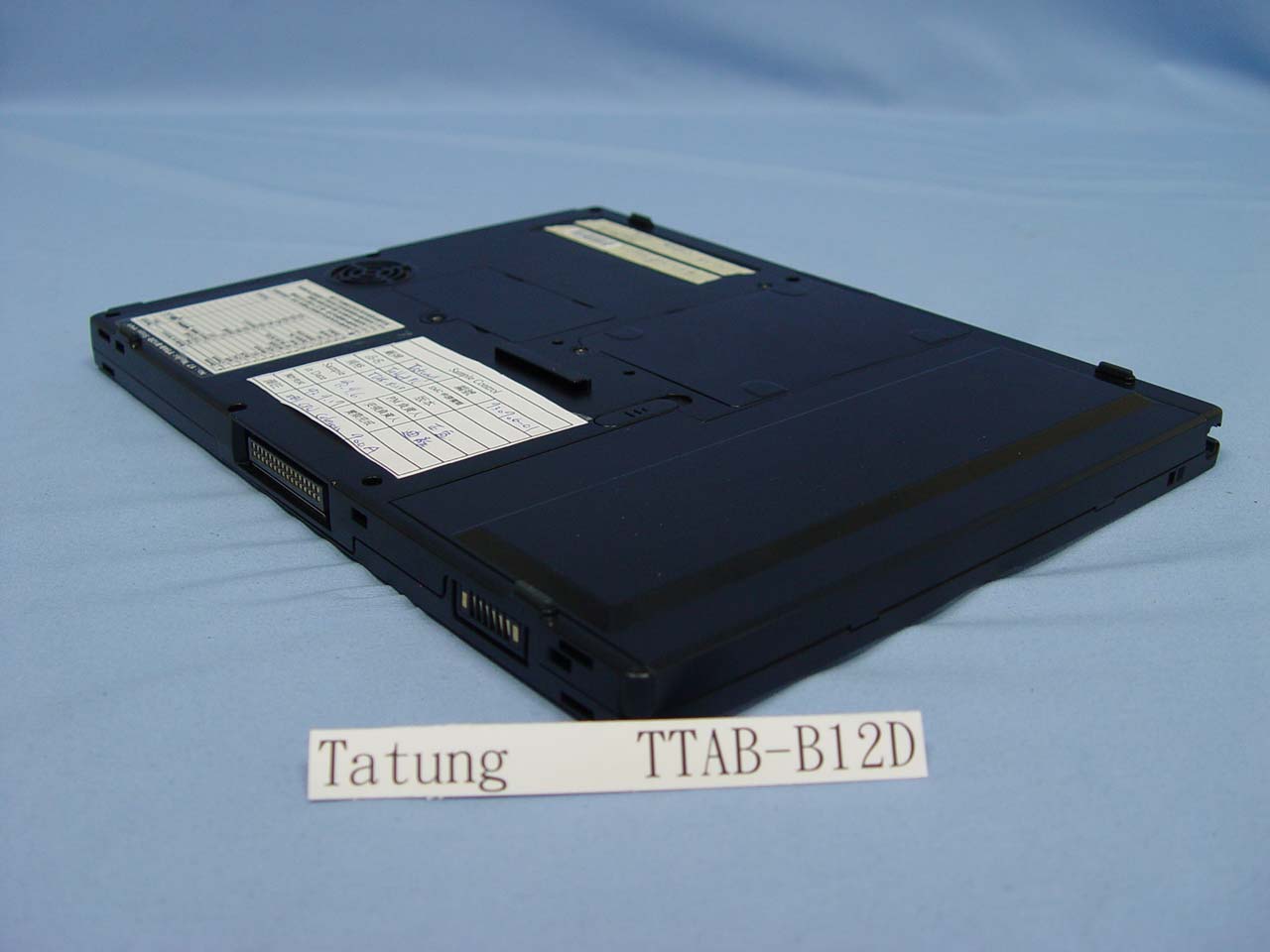

Compliance Certification Services Inc. Report No: 40816206 Date of Issue: September 23, 2004 Page 3 INTERNAL PHOTOGARPHS OF EUT Compliance Certification Services Inc. Report No: 40816206 Date of Issue: September 23, 2004 Page 4 Compliance Certification Services Inc. Report No: 40816206 Date of Issue: September 23, 2004 Page 5 Compliance Certification Services Inc. Report No: 40816206 Date of Issue: September 23, 2004 Page 6 Compliance Certification Services Inc. Report No: 40816206 Date of Issue: September 23, 2004 Page 7 Compliance Certification Services Inc. Report No: 40816206 Date of Issue: September 23, 2004 Page 8

Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 1/26 Regulatory WLAN Antenna Information (English Language Required for Intel Regulatory Review / Approval) (OEM/ODM or antenna vendor is required to complete this document with platform antenna information. Remove Intel references and make this your own document) OEM Vendor Name: Tatung Company Platform Name :TTAB-B12D / ETAB-B12D / RTAB912-T01 SC2000/SC2010/SC2100/SC2200 Antenna Vendor Name: Antenniques Corp. Ltd. Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 2/26 Antenna Sample / Antenna Data Requirements for worldwide regulatory approval Section Description of Required OEM / ODM Antenna Information US / ICEU Japan Taiwan S.Korea 1A Part Number for Antenna only RequiredRequiredRequired Required Required 1B Antenna Manufacturer Name RequiredRequiredRequired Required Required 1C Description of Antenna Type RequiredN/A N/A N/A N/A 1D Part number of Antenna Assembly / cable impedance, length & diameter. RequiredDesiredDesired Desired Desired 1E Main & Aux antenna (Peak Gain W/ cable loss) RequiredRequiredRequired Required Required 1E OR 1F, 1G, 1H 1F Main & Aux antenna (Peak Gain only) RequiredRequiredRequired Required Required 1G VSWR of cable including connector RequiredRequiredRequired Required Required 1H Main & Aux antenna (Cable loss W/ connector) RequiredRequiredRequired Required Required 2 Dimensioned Photographs and Drawings of main & auxiliary antennas RequiredRequiredRequired Required Required 3 Radiation patterns of antennas loaded in the host platform. RequiredDesiredRequired N/A Required 4 Platform model name / number - correlated to antenna manufacturer and antenna part number RequiredRequiredDesired Required Desired 5 Photograph(s) or Drawings showing location of antennas in platform. (S. Korea requires photographs of antennas for approval submission). Taiwan requires pictures of each antenna type shown in the system. RequiredRequiredDesired Required (Photos) Required (Photos) 6 Mech. drawings / photos with dimensions of antenna locations and distance from end-user (For evaluation of SAR testing requirement). RequiredN/A N/A N/A N/A 7 Photograph(s) or Drawings showing the location of all antennas (WLAN, BT, other) and distance between those transmitting antennas. Information will be used to evaluate whether co-location testing is required. RequiredN/A N/A N/A N/A Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 3/26 Antenna Information Section 1. Antenna Assembly Specifications Antenna Assembly Summary: 1A Antenna Part Number 1B Manufacture 1C Antenna Type 1D Cable Assembly Part Number and Information 1E Peak Gain W/ Cable loss (dBi) 1F Peak Gain w/o Cable Loss (dBi) 1G VSWR 1H Cable Loss (dBi) 2400-2500MHz -2.296 dBi (peak) 2400-2500MHz -2.075dBi (peak) 2400-2500MHz 1.475 max 2400-2500MHz -0.925dBi (peak) 5150-5350MHz -2.964 dBi (peak) 5150-5350MHz -2.079dBi (peak) 5150-5350MHz 1.517 max 5150-5350MHz -1.632dBi (peak) 5470-5725MHz -5.448 dBi (peak) 5470-5725MHz -4.763dBi (peak) 5470-5725MHz 2.412 max 5470-5725MHz -1.655dBi (peak) (P/N:5773700051) Main antenna ANTENNIQUE CORPORATION PIFA (P/N： UL1745-SB) 50ohm Coaxial. length: 29.5 cm diameter: 1.13 mm Connector: UL 5725-5850MHz -5.342dBi (peak) 5725-5850MHz -4.457dBi (peak) 5725-5850MHz 2.5219 max 5725-5850MHz -1.685dBi (peak) 2400-2500MHz -2.964dBi (peak) 2400-2500MHz -2.214dBi (peak) 2400-2500MHz 1.3044 max 2400-2500MHz -0.812dBi (peak) 5150-5350MHz 2.058 dBi (peak) 5150-5350MHz 2.808dBi (peak) 5150-5350MHz 1.6744 max 5150-5350MHz -1.542dBi (peak) 5470-5725MHz 2.574 dBi (peak) 5470-5725MHz 3.324dBi (peak) 5470-5725MHz 2.234 max 5470-5725MHz -1.491dBi (peak) (P/N: 5773700050) Auxiliary antenna ANTENNIQUE CORPORATION PIFA (P/N： UL1745-SB) 50ohm Coaxial. length: 25 cm diameter: 1.13 mm Connector: UL 5725-5850MHz -0.669 dBi (peak) 5725-5850MHz 0.199dBi (peak) 5725-5850MHz 2.5698 max 5725-5850MHz -1.583dBi (peak) Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 4/26 Section 2. Dimensioned Photos or Drawings of Antennas Include a dimensioned photo and dimensioned drawing of main antenna here. Main Antenna Dimensioned Drawing: Main Antenna Photo: Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 5/26 Include a dimensioned photo and dimensioned drawing of aux antenna here. Aux Antenna Dimensioned Drawing: Aux Antenna Photo: Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 6/26 Section 3. Radiation characteristics of antennae Loaded in Host Platform 2400-2500MHz radiation characteristic BLUE__H-PLANE RED__E-PLANE Center Frequ2400 Horizontal -5.665 Vertical (dBi) -2.677 Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 7/26 Main antenna: 2450 MHz BLUE__H-PLANE RED__E-PLANE Center Frequ2450 Horizontal -4.856 Vertical (dBi) -2.296 Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 8/26 Main antenna: 2500 MHz BLUE__H-PLANE RED__E-PLANE Center Frequ2500MH Horizontal -4.034 Vertical (dBi) -0.922 Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 9/26 Auxiliary antenna: 2400 MHz BLUE__H-PLANE RED__E-PLANE Center Frequ2400 Horizontal -2.906 Vertical (dBi) -2.095 Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 10/26 Auxiliary antenna: 2450 MHz BLUE__H-PLANE RED__E-PLANE Center Frequ2450 Horizontal -2.281 Vertical (dBi) -2.964 Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 11/26 Auxiliary antenna: 2500 MHz BLUE__H-PLANE RED__E-PLANE Center Frequ250 Horizontal -3.324 Vertical (dBi) -2.382 Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 12/26 5150-5135 MHz radiation characteristic Main antenna: 5150 MHz BLUE__H-PLANE RED__E-PLANE Center Frequ5150 Horizontal -3.893 Vertical (dBi) -2.703 Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 13/26 Main antenna: 5250 MHz BLUE__H-PLANE RED__E-PLANE Center Frequ5250 Horizontal -6.981 Vertical (dBi) -2.964 Doc.No.:8.8.03 Rev - 5.7 Regulatory WLAN Antenna Information 14/26 Main antenna: 5350 MHz BLUE__…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No : 40816206-SF FCC ID: BJM-TTAB12DABG Date of Issue: Sep 23, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 34 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For TATUNG CO. TABLET PC Trade Name: Tatung Model: TTAB-B12D Prepared for TATUNG CO. 22 Chungshan N. Rd.,3 Sec. Taipei, Taiwan, 10451 R.O.C. Prepared by Compliance Certification Services Inc. No. 11, Wu-Kung 6 Rd, Wu-Ku Hsiang, Wu-Ku Industrial District, Taipei Hsien, (248) Taiwan. TEL: 886-2-2299-9720 FAX: 886-2-2299-9721 Compliance Certification Services Inc. Report No: 40816206-SF FCC ID: BJM-TTAB12DABG Date of Issue: Sep 23, 2004 Page 3 TABLE OF CONTENTS 1. EUT DESCRIPTION ................................................................................................................................ 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC................................ 5 3. DOSIMETRIC ASSESSMENT SYSTEM .............................................................................................. 5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES............................................................................................................ 10 5. MEASUREMENT UNCERTAINTY .................................................................................................... 14 6. EXPOSURE LIMIT ................................................................................................................................ 15 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS................ 15 8. MEASUREMENT RESULTS ................................................................................................................ 16 8.1 SYSTEM PERFORMANCE CHECK..............................................................................16 8.2 TEST LIQUID CONFIRMATION ..................................................................................18 8.3 EUT TUNE-UP PROCEDURES......................................................................................20 8.4 SAR MEASUREMENTS RESULTS...............................................................................21 9. EUT PHOTOS ......................................................................................................................................... 30 10. EQUIPMENT LIST & CALIBRATION STATUS .............................................................................. 32 11. FACILITIES............................................................................................................................................ 33 12. REFERENCES ........................................................................................................................................ 33 13. ATTACHMENTS.................................................................................................................................... 34 Compliance Certification Services Inc. Report No: 40816206-SF FCC ID: BJM-TTAB12DABG Date of Issue: Sep 23, 2004 Page 4 1. EUT DESCRIPTION Applicant: TATUNG Co. Chungshan N.Rd., 3 Sec. Taipei Taiwan 10451 R.O.C. Model Number / Trade Name: TTAB-B12D / Tatung Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11a: Orthogonal Frequency Division Multiplexing (OFDM) 802.11b: Direct Sequence Spread Spectrum 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 802.11a: 5.15~5.35 GHz 5.725~5.85 GHz 802.11b: 2412 ~ 2462 MHz 802.11g: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 802.11a: 15.39dBm 802.11b: 15.58dBm 802.11g: 15.69dBm Max. SAR (1g): 802.11a: 0.200W/kg 802.11b: 0.082W/kg 802.11g: 0.077W/kg Application Type: Certification FCC Rule Part(s): 15E Antenna: PIFA Ant. Compliance Certification Services Inc. Report No: 40816206-SF FCC ID: BJM-TTAB12DABG Date of Issue: Sep 23, 2004 Page 5 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation”, ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields”, released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a S…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40816206-RP FCC ID: BJM-TTAB12DABG Date of Issue: September 23, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 79 FCC 47 CFR PART 15 SUBPART C TEST REPORT For TATUNG CO. TABLET PC Model: TTAB-B12D Trade Name: Tatung Prepared for TATUNG CO. 22 Chungshan N. Rd.,3 Sec. Taipei, Taiwan, 10451 R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40816206-RP FCC ID: BJM-TTAB12DABG Date of Issue: September 23, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION........................................................................................................3 2. EUT DESCRIPTION..............................................................................................................................4 3. TEST METHODOLOGY.......................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION...........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..............................................................................................8 5.1 FACILITIES....................................................................................................................................... 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST...........................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS ................................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................18 7.3 BAND EDGES MEASUREMENT ................................................................................................25 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................26 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................36 7.6 SPURIOUS EMISSIONS ................................................................................................................42 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................75 APPENDIX 1 PHOTOGRPHS OF TEST SETUP......................................................................................78 Compliance Certification Services Inc. Report No: 40816206-RP FCC ID: BJM-TTAB12DABG Date of Issue: September 23, 2004 Page 4 2. EUT DESCRIPTION Product TA B L E T P C Trade Name Tat un g Model Number TTAB-B12D Model Discrepancy N/A Power Supply HP-OK065b13 I/P: 100-240V, 1.7A, 50-60Hz O/P: 18.5V, 3.5A, 65W Frequency Range IEEE802.11a : 5.15~5.35 GHz 5.725~5.85 GHz IEEE802.11b/g : 2412~2462 MHz Transmit Power IEEE 802.11a: 5.15~5.35 GHz: 12.30 dBm 5.725~5.85 GHz: 15.37dBm IEEE 802.11b: 15.55 dBm IEEE 802.11g: 15.67 dBm Modulation Technique IEEE 802.11a: DSSS+ OFDM IEEE 802.11b: DSSS IEEE 802.11g: OFDM Transmit Data Rate IEEE802.11a: 54Mbps IEEE 802.11b: 11Mbps IEEE 802.11g: 54Mbps Number of Channels IEEE802.11a: 5.15~5.35 GHz: 8 Channels 5.725~5.85 GHz: 5 Channels IEEE802.11b/g : 11 Channels Antenna Specification Antanna Type : PIFA Antanna Antanna Gain: IEEE802.11a: 5.15~5.35 GHz: 3.709dBi 5.725~5.85 GHz: -0.669dBi IEEE802.11b/g: -0.922dBi Note: This submittal(s) (test report) is intended for FCC ID: BJM-TTAB12DABG filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: 40816206-RP FCC ID: BJM-TTAB12DABG Date of Issue: September 23, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40816206-RP FCC ID: BJM-TTAB12DABG Date of Issue: September 23, 2004 Page 78 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 40816206-RP FCC ID: BJM-TTAB12DABG Date of Issue: September 23, 2004 Page 79 Conducted Emission Set Up Photos
