BJM-TTAB510Tablet PC System

Tablet PC User Guide FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. Tablet PC Desktop Control Panel Views You can view the Control Panel in 2 views, Category and Classic. To select the view most appropriate for you, follow the steps below. Start Button Taskbar System Tray Go to Start > Control Panel. 1 Tablet PC Appearance To increase your Tablet PC visual friendliness, you may change its color scheme, and increase its font size and icon size. Follow the steps below. 2 Table of Contents Chapter 1 Introducing the Tablet PC Product Overview Safety Information Inventory Checklist Chapter 2 Seeing the Tablet PC Different types of Tablet Front View of the Tablet Back View of the Tablet Topside View of the Tablet Bottom Side View of the Tablet Right Side View of the Tablet Chapter 3 Setting up the Tablet PC Charging Tablet PC Battery Using Stylus Turning On/Off the Tablet Putting the Tablet in Standby Mode Changing New Battery (Hot Swap Time Process) Calibrating Screen for Stylus Accuracy Adjusting Screen Brightness Selecting Screen Orientation Changing the Time Projecting Materials on Screen Adjusting Audio Properties Changing New Battery Chapter 4 Defining the PC Function Keys Introducing Tablet Button Functions How to Activate Secondary Button Functions? Button Functions in the Logon Process Button Functions When Desktop Icons Appear Button Configuration Chapter 5 Protecting the Tablet PC Cleaning the Screen Chapter 6 Troubleshooting Useful Tutorials Help and Support Hardware Problems and Solutions Before Contacting COMPANY Contact COMPANY Appendix Safety Notices Limited Warranty Regulatory Compliance Copyright Notice Chapter 1 Introducing the Tablet PC Product Overview Tablet PC combines the versatility of a pen and tablet with the functionality of a laptop to bring you a truly mobile tool for your work and personal use. This lightweight, page-size PC gives you easy access for retrieving and entering information using the latest Widows-based applications. Congratulations on your new purchase! Now, you may start enjoying a few of the vast amount of benefits Tablet PC has to offer you right away. They are: n The spacious and user-centered design of the PC gives you the convenience of resting your hand on the screen while writing. n Highly advanced speech recognition system in the PC turns it into a dictation machine that converts your voice into text. n The lightweight PC allows you to conduct business wherever you go and increase your work productivity. n No more hassle with entering information into your PC! With your stylus, you can scribble directly on the Tablet PC screen and your handwriting is instantly transferred into text. Safety Information Be aware of the following 2 symbols used in this user manual. Each symbol denotes important and helpful information that will benefit you while using the computer. Warning! This symbol informs you that improper use of equipment or failure to follow instructions may cause property damage or bodily injury. * Note! This symbol offers advice that helps you to take full advantage of the Tablet PC. To preserve your Tatung Tablet PC in the best possible condition, you should follow the safety measures below. * Note! You need to view the PC screen from 15” to 18” away for best viewing. * Note! For comfortable viewing and glare reduction, keep the PC screen away from direct sunlight. Warning! Never touch the screen with your fingers, because skin oils are hard to remove. Warning! Never remove the rear cover of the PC, because some PC parts contain high voltage. Warning! Keep the PC screen away from direct sunlight and other powerful light source. Warning! Avoid putting heavy objects on the screen and any PC wire parts. Warning! Avoid operating the PC in outdoor environments of extreme cold, dampness and wetness. Inventory Checklist * Note! Your content items may vary depending on purchase. 1 Tablet PC x 1 2 4-cell Lithium Battery Pack x 1 3 Stylus x 1 4 Stylus Cord x 1 5 Telephone Cable x 1 6 Slip Cover x 1 7 Mini VGA Cable x 1 8 Soft Cleaning Cloth x 1 9 AC Adapter x 1 10 AC Power Cord x 1 11 Stand x 1 12 CD x 1 13 Quick Start Guide x 1 2 1 3 4 5 6 7 8 9 10 11 12 MISSING MISSING MISSING MISSING MISSING 13 MISSING Optional Items 14 Rubber Hand Grid 15 SDRAM DIMM 16 IR Keyboard 17 8-cell Extended Lithium Ion Battery Pack 14 15 16 17 MISSING MISSING MISSING MISSING Chapter 2 Seeing the Tablet PC Different Types of Tablet PC Section for briefly explain the different types of tablet pc & the im…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA CRUSOE ALi M1535+ TM5800 CPU PCI BUSPCI BUS AC97 Codec AD1886 BLOCK DIAGRAM RICOH 590 CF Card Or 4-IN-1 MEDIA BAY CardBus Type(III) Slot IEEE 1394 Connector CRT SM722 Graphics Controller LCD SMBus Clock Gen. ICS9248-192 Smart Battery INTERNAL Speaker L/R AMP LM4863 EXTERNEL Head Phone INTERNEL MIC EXTERNEL MIC H8/2149 AC97 Link Digitizer RS2 32 X-Bus BIOS ROM Button board Hot Key board Primary IDE Connector Primary IDE USB Connector * 1 (on cradle)~Option~ ALI M5819-3 RTC USB Connector*2 (on board)~Option~ US B TTAB 510 NEC uPD720101 USB2.0 USB Connector *1 (on board)~Option~ Finger Printer USB1.1 USB1.1 USB1.1 USB2.0 USB2.0 USB2.0 Core Power Supply MAX 1718 TDM CPU Debug Connectors Config ROM & CMS ROM LPC DDR SDR DDR RAM 256MB SODIMM 256M(MAX) RJ45 transformer AN983B MINI PCI * 2 TYPE (III) For Device* 9 C SYSTEM BLOCK DIAGRAM C 232Friday, January 10, 2003 TTAB-510 Title SizeModule NameRev Date:Sheetof Computer R&D Division TATUNG CO. 5 5 4 4 3 3 2 2 1 1 DD CC BB AA DC IN BATTERY MAX1645EEI_QSOP28 Battery Charge SYSTEM POWERLTC 1628CG_PG_SSOP28 H8-2149 BLOCK DIAGRAM v12 v5_0_ALWAYS v3_3_ALWAYS DC_S5 (V_3P3_S5) Hot Key board Button board LTC1624CS_SO8 V_2P5_S3V_2P5_S1 SI4835DY_SO8 0V 0V V_3P3_S3 0VACPI S5 3.3V 0V V_3P3_CPU 3.3V 0V ACPI MODE PIN DEFINE 3.3V 0 2.5V 0 0V1 1 V_3P3_S1 2.5V 0V V_2P5_S1SUSB# 0V ACPI S3 SUSC# 0V 2.5V 02.5V0V ACPI S0 V_2P5_S3 3.3V V_2P5_CPU 1 SUSA# 1 0 0 V_5P0_S1 5.0V 0V 0V V_5P0_S3 5.0V 5.0V 0V V_5P0_S5 5.0V 5.0V 5.0V V_3P3_S5 3.3V 3.3V 3.3V 5.0V03.3VACPI S15.0V2.5V2.5V13.3V13.3V3.3V5.0V2.5V 5.0V 0V V_5P0_S0 0V 0V V_3P3_S3 V_3P3_S1 SI4835DY_SO8 (V_5P0_S5) V_5P0_S3 V_5P0_S1 SI2303DS_SOT23_GDS V_5P0_S0 MAX1718 V_CPU_CORE SUSA# SUSC# SUSB# SI4835DY_SO8 SI4463DY_SO8 SI4463DY_SO8 SUSB# SUSB# SUSC# LP2980AIM5X_2.5 _SOT23-5 2.5VREF_S51.8VREF_S5 C POWER DIAGRAM Custom 332Friday, January 10, 2003 TTAB-510 Title SizeModule NameRev Date:Sheetof Computer R&D Division TATUNG CO.

22 Chungshan N. Rd., 3 rd Sec.Taipei, Taiwan, 104, R.O.C. TEL: (02)25925252 . FAX: (02)25915185,25921813 CABLE: ”TATUNG TAIPEI” TELEX: 11348,22830 TATUNG TATUNG Federal Communications Commission April 02, 2003 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Tatung Company

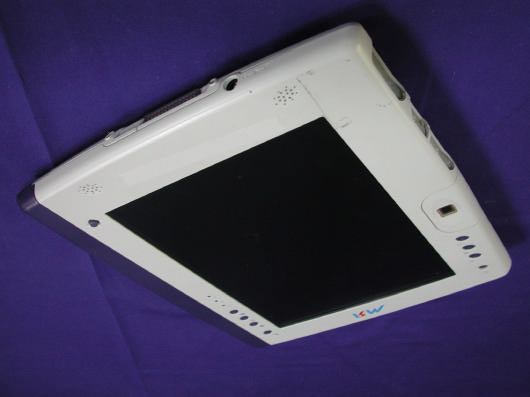

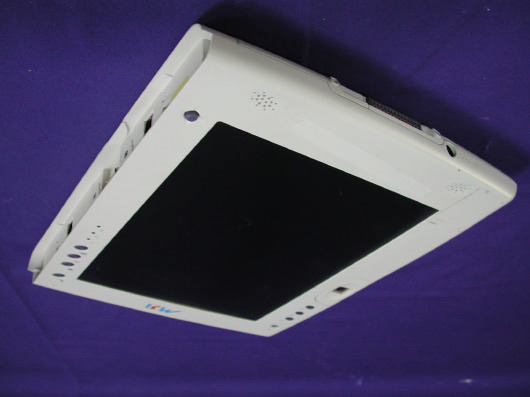

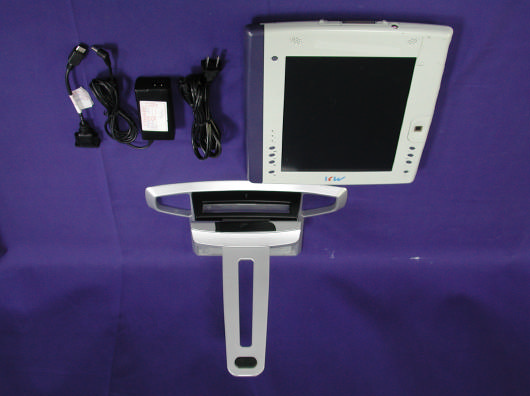

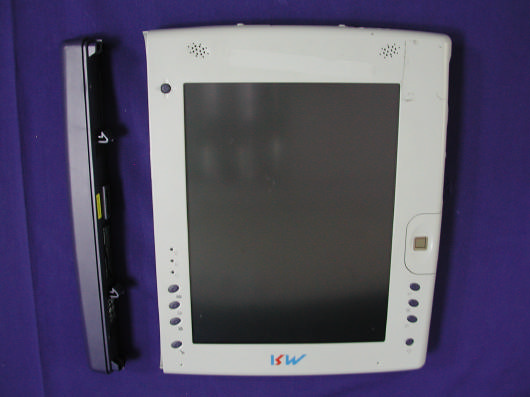

Report No.: 033L206FI Page : 1 of 9 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 033L206FI Page : 2 of 9 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 033L206FI Page : 3 of 9 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 033L206FI Page : 4 of 9 Version:1.0 (7) EUT Photo (8) EUT Photo

22 Chungshan N. Rd., 3 rd Sec.Taipei, Taiwan, 104, R.O.C. TEL: (02)25925252 . FAX: (02)25915185,25921813 CABLE: ”TATUNG TAIPEI” TELEX: 11348,22830 TATUNG TATUNG FCC ID: BJM-TTAB510 FCC ID and DoC Label TTAB510 The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Tablet PC System Model No.: TTAB510 TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Tablet PC System Model No.: TTAB910 F F C C C C I I D D : : B B J J M M - - T T T T A A B B 5 5 1 1 0 0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 033L206FI Page : 5 of 9 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 033L206FI Page : 6 of 9 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 033L206FI Page : 7 of 9 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 033L206FI Page : 8 of 9 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 033L206FI Page : 9 of 9 Version:1.0 (17) EUT Photo

Report No. 033L206FI Page: 6 of 48 Version:1.0 Frequency of Each Channel: Channel Frequency Channel Frequency Channel Frequency Channel 1: 2412 MHz Channel 5: 2432 MHz Channel 9: 2452 MHz Channel 2: 2417 MHz Channel 6: 2437 MHz Channel 10: 2457 MHz Channel 3: 2422 MHz Channel 7: 2442 MHz Channel 11: 2462 MHz Channel 4: 2427 MHz Channel 8: 2447 MHz Note: 1. This device is a 2.4GHz Tablet PC System included a 2.4GHz receiving function, a 2.4GHz transmitting function. 2. Regards to the frequency band operation; included the lowestmiddle and highest frequency of channel were selected to perform the test, then shown on this report. 3. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.247 for spread spectrum devices. 4. This device is a composite device in accordance with Part 15 regulations. The function receiving was measured and made a test report that the report number is 033L206F under Declaration of Conformity. 1.2. Operational Description EUT is a Tablet PC System with wireless LAN adapter. This device provided 11 channels and four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK, DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was provides diversity function to improve the receiving function. This Tablet PC System is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Tablet PC System transfers data at speeds up to 64/128-bit Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

Report No. 033L206FI Page: 1 of 48 Version:1.0 Test Report Product Name : Tablet PC System Model No.: TTAB-510 FCC ID.: BJM-TTAB510 Applicant : Tatung Company Address : 22, Chungshan N. Rd., 3rd Sec.Taipei, Taiwan, 104, R.O.C. Date of Receipt : Mar. 18, 2003 Date of Test : Mar. 26, 2003 Report No. : 033L206FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 033L206FI Page: 2 of 48 Version:1.0 Test Report Certification Test Date: Mar. 26, 2003 Report No. : 033L206FI Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Tablet PC System Applicant : Tatung Company Address : 22, Chungshan N. Rd., 3rd Sec.Taipei, Taiwan, 104, R.O.C. Manufacturer : Tatung Company Model No. : TTAB-510 FCC ID. : BJM-TTAB510 Rated Voltage : AC 120V/60Hz Trade Name : TATUNG Measurement Standard : FCC Part 15 Subpart C Paragraph 15.247 Measurement Procedure : ANSI C63.4: 1992 Test Result : Complied Documented By : ( Grace Lin ) Tested By : ( Tony Hsieh ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 033L206FI Page: 3 of 48 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION............................................................................................5 1.1. EUT Description.................................................................................................................5 1.2. Operational Description.......................................................................................................8 1.3. Tested System Datails..........................................................................................................9 1.4. Configuration of tested System............................................................................................10 1.5. EUT Exercise Software.......................................................................................................10 1.6. Test Facility.......................................................................................................................11 2. Conducted Emission........................................................................................................12 2.1. Test Equipment..................................................................................................................12 2.2. Test Setup..........................................................................................................................12 2.3. Limits................................................................................................................................12 2.4. Test Procedure....................................................................................................................13 2.5. Test Result of Conducted Emission......................................................................................14 3. Peak Power Output.........................................................................................................16 3.1. Test Equipment..................................................................................................................16 3.2. Test Setup..........................................................................................................................16 3.3. Limits................................................................................................................................16 3.4. Test Result of Peak Power Output........................................................................................17 4. RF Exposure Evaluation..................................................................................................18 4.1. Limits................................................................................................................................18 4.2. Test Procedure....................................................................................................................18 4.3. Test Result of RF Exposure Evaluation................................................................................19 5. Radiated Emission...........................................................................................................20 5.1. Test Equipment..................................................................................................................20 5.2. Test Setup..........................................................................................................................20 5.3. Limits................................................................................................................................21 5.4. Test Procedure....................................................................................................................22 5.5. Test Result of Radiated Emission.........................................................................................23 6. Band Edge.......................................................................................................................29 6.1. Test Equipment..................................................................................................................29 6.2. Test Setup..........................................................................................................................29 6.3. Limits................................................................................................................................30 6.4. Test Procedure....................................................................................................................30 6.5. Test Resu…

Text truncated - open the document above for the full version.

Report No.: 033L206FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) Report No.: 033L206FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 033L206FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn)
