BJM-TTABB12DBGTablet PC With 802.11 b/g WLAN

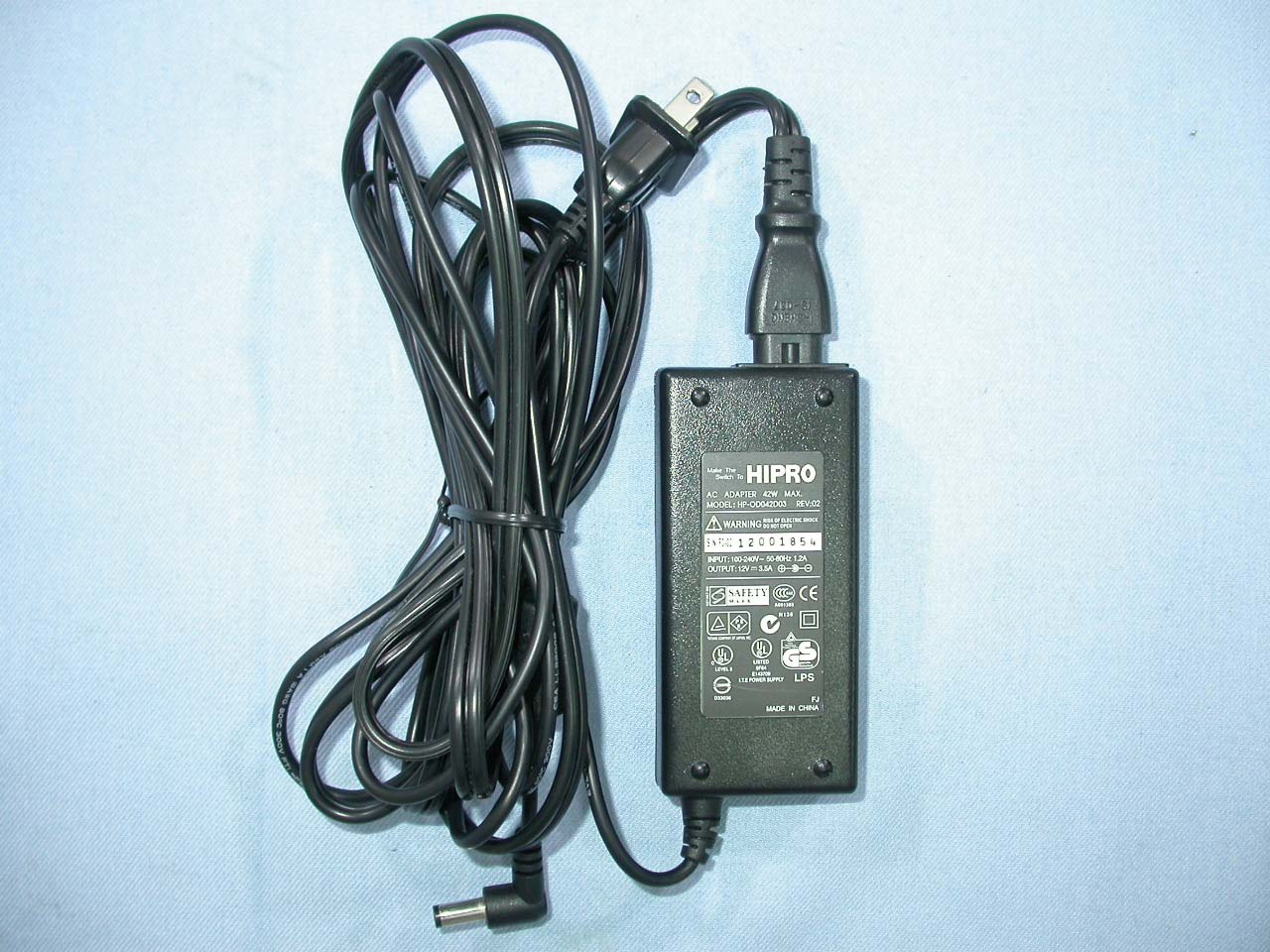

ACCESSORY CHECKLIST Standard Accessories (depends on model and configuration) USB Keyboard USB Mouse Power Cord AC Adapter Cleaning Cloth Stylus (includes an eraser function) Stylus Tether Slipcover Recovery CD Microsoft Windows XP Tablet PC Edition Introductory Guide Optional Accessories Keyboard Stand SAFETY GUIDELINES Safety Information Please pay attention to the following two symbols that appear in the User Manual. Each symbol is followed by important, useful information that will help you use your Tablet PC. Warning! This symbol warns of incorrect usage of equipment and/or a violation of the instructions for usage that will damage the Tablet PC or impair its performance. Attention! This symbol marks advice that will help you get better results when using your Tablet PC. Safety and Regulatory Information z When moving the Tablet PC, be careful not to drop it. z Do not dismantle the outer casing, especially during system start-up. Any type of dismantling will damage the system, and the manufacturer will not be held responsible. z Using an incorrect memory module may damage the system. z Do not install any expansion card that draws large amounts of electric current and will overload the system. z If the battery is replaced incorrectly, there is the risk of an explosion. When replacing the battery, the user should use the same kind as the original. Dispose of the used battery according to the manufacturer’s instructions. In order to get optimal results from your Tablet PC, please follow the recommendations below. The user should remember: z When viewing the computer screen, please maintain a distance of 38cm–45cm for the best results. z Avoid exposing the computer screen to direct sunlight, which can cause viewing discomfort and/or reduce the screen brightness. Power Cord and Power Supply Safety Guidelines z Use together with the designated AC adapter. z Keep away from cold. z Keep away from high temperatures or fire hazards. z Do not short-circuit the power-out. z Do not set in water. z Do not use in humid areas. z Do not pull on the power cord. z Use together with the designated power cord. z Operate at a room temperature of 5 o C–40 o C (41 o F–104 o F), relative humidity 10%–95% z High voltage inside; do not open. z Do not try to alter or repair. z Do exert pressure on or drop. z Store at a room temperature of -20 o C–85 o C (-4 o F–185 o F), relative humidity 5%–95%. z Do not damage the cord insulation. z Set the computer up near an AC outlet. The AC power cord is the main AC power breaker for the Tablet PC, and you must be able to access it easily. For safety reasons, the power cord supplied with the system has a grounded plug. You also need to plug the power cord into a grounded wall outlet to avoid the danger of electric shock. z This system can handle a power system of 100–240V. It is suitable for use in the place or country of purchase. z In order to reduce the possibility of electric shock from the telephone network, plug the computer power cord into the AC outlet before connecting the computer with the telephone line. Also, you should disconnect the telephone line first when unplugging the computer power cord from the AC power outlet. z Do not repair the power supply yourself. To avoid damage to the power supply, contact a professional to have it repaired or replaced. z All performance procedures, adjustments, controls, etc. aside from those that are listed in the User Manual (as computer upgrading and maintenance) can cause serious radiation damage. In order to avoid laser exposure, please do not open the LCD cover. Battery Safety Guidelines z The battery is restricted to usage with this computer. z Do not dismantle the battery. z Do not expose the battery to fire or water. z Avoid fire, heat and any sort of damage to the battery. Do not touch either end of the battery with anything metallic. z Be extremely careful when using a damaged or leaking battery. z If the surrounding temperature exceeds 45 o C (113 o F), do not charge the battery. z If electrolytes come into contact with the battery, use soap and water to clean the affected area. z If electrolytes come into contact with your eyes, wash your eyes with water for 15 minutes, and then go to a physician immediately. z To buy a battery, contact a local distributor. z Do not store the battery in a warehouse under high temperatures (over 60 o C, 140 o F). z When you want to dispose of the battery, consult your local Waste Treatment Center regarding disposal and recycling restrictions. Mercury Battery Warning z This computer contains a mercury battery that is used to power the clock and the calendar loop. z If the battery is improperly replaced, there is the risk of an explosion. Please only use an identical or equivalent battery supplied by the manufacturer when replacing the battery. Please dispose of the used battery in accordance with the manufacturer’s instructions and local laws. Operating Specifications Electrical Rating: DC 12V, 3.5A Operating Temperature: 25 o C (77 o F) Storage Temperature: -20 o C–70 o C (-4 o F–158 o F) Operating Humidity: under 26 o C (78.8 o F), 15%–80% humidity Storage Humidity: under 65 o C (149 o F), 90% humidity (no condensation) Storage Altitude: 0m–4572m TABLET PC INTRODUCTION Properties z The Tablet PC’s size is designed with the user in mind: while writing, you can conveniently rest your hand on top of the screen. z The Tablet PC’s advanced speech recognition system also allows it to be used as a dictation machine. (See Note 1.) z The wireless network function lets you conduct business no matter where you are, increasing your efficiency. z Inputting information into the computer is no longer any trouble! Using the stylus, you can write directly on the screen and handwritten documents can even be converted to typed text. (See Note 2.) Components z Processor: Intel Pentium M Processor z Memory: 256MB (Upgradeable to 1GB) z Hard Drive: 30G z Display: 12.1” TFT technology, 1024x768 resolu…

Text truncated - open the document above for the full version.

Mike Kuo From: [email protected] Sent: February11 2004 Wednesday 10:13 PM To: Mike Kuo Cc: [email protected]; [email protected] Subject: FW: TATUNG CO., FCC ID:BJM-TTABB12DBG, AN04T3655 2/12/2004 Hi Mike, Here are our reponses to the issues. Question #1: At the end of antenna specification sheet, it provides the guideline for Bluetooth co-location condition. Please explain why Bluetooth transmitter is included in the antenna specification. Our Response #1: The antenna spec is revised (as attached). Question #2: In the SAR test report, the duty cycle is 100% but the crest factor of 4 is used for 802.11b modulation and crest factor of 20 is used for 802.11g modulation. Please provide justification and supporting data to demonstrate why crest factor other than 1 was used. Our Response #2: SAR is re-evaluated Please refer to the attached report. Hope the above would conclude this case and receive your grant soon. We are a little bit behind the schedule as promised to our customer. Thank you in advance for your assistance. Best Rgds, WK -----Original Message----- From: CERTADM Sent: Monday, February 09, 2004 1:49 PM Mike Kuo <[email protected]> 2004/02/10 05:50 AM "CCS-Taiwan, Ting (E-mail)" <[email protected]>, "CCS-Taiwan, Wklo (E-mail)" <[email protected]> To: Mike Kuo Subject: TATUNG CO., FCC ID:BJM-TTABB12DBG, AN04T3655 Notice_content ------------- Question #1: At the end of antenna specification sheet, it provides the guideline for Bluetooth co-location condition. Please explain why Bluetooth transmitter is included in the antenna specification. Question #2: In the SAR test report, the duty cycle is 100% but the crest factor of 4 is used for 802.11b modulation and crest factor of 20 is used for 802.11g modulation. Please provide justification and supporting data to demonstrate why crest factor other than 1 was used. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 2/12/2004

Compliance Certification Services Inc. Report No: B31216203 Date of Issue: February 3, 2004 Page 1 of 11 External Photo Compliance Certification Services Inc. Report No: B31216203 Date of Issue: February 3, 2004 Page 2 Compliance Certification Services Inc. Report No: B31216203 Date of Issue: February 3, 2004 Page 3 Compliance Certification Services Inc. Report No: B31216203 Date of Issue: February 3, 2004 Page 4

Compliance Certification Services Inc. Report No: B31216203 Date of Issue: February 3, 2004 Page 5 Internal Photo Compliance Certification Services Inc. Report No: B31216203 Date of Issue: February 3, 2004 Page 6 Compliance Certification Services Inc. Report No: B31216203 Date of Issue: February 3, 2004 Page 7 Compliance Certification Services Inc. Report No: B31216203 Date of Issue: February 3, 2004 Page 8 Compliance Certification Services Inc. Report No: B31216203 Date of Issue: February 3, 2004 Page 9 Compliance Certification Services Inc. Report No: B31216203 Date of Issue: February 3, 2004 Page 10 Compliance Certification Services Inc. Report No: B31216203 Date of Issue: February 3, 2004 Page 11

OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 1/28 Regulatory Antenna Information Example (English Required) Tatung Corporation OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 2/28 Antenna Information Example I. Antenna Assembly Specifications Antenna assembly overview: Peak Gain including cable loss. Designator Manufacture Antenna type Cable Assembly Info. Peak Gain W/ Cable loss (dBi) 2400-2500MHz -2.296 dBi (peak) 5150-5350MHz -2.964 dBi (peak) 5470-5725MHz -5.448 dBi (peak) Main antenna ANTENNIQUE CORPORATION PIFA (P/N：UL1745-SB) 50ohm Coaxial. length: 29.5 cm diameter: 1.13 mm Connector: UL 5725-5850MHz -5.342dBi (peak) 2400-2500MHz -2.964dBi (peak) 5150-5350MHz 2.058 dBi (peak) 5470-5725MHz 2.574 dBi (peak) Auxiliary antenna ANTENNIQUE CORPORATION PIFA (P/N：UL1745-SB) 50ohm Coaxial. length: 25 cm diameter: 1.13 mm Connector: UL 5725-5850MHz -0.669 dBi (peak) Antenna overview: Peak Gain not including cable loss. Antenna Designator Manufacture Antenna type Peak Gain w/o Cable Loss (dBi) 2400-2500MHz -2.075dBi (peak) 5150-5350MHz -2.079dBi (peak) 5470-5725MHz -4.763dBi (peak) Main antenna ANTENNIQUE CORPORATION PIFA 5725-5850MHz -4.457dBi (peak) 2400-2500MHz -2.214dBi (peak) 5150-5350MHz 2.808dBi (peak) 5470-5725MHz 3.324dBi (peak) Auxiliary antenna ANTENNIQUE CORPORATION PIFA 5725-5850MHz 0.199dBi (peak) OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 3/28 Cable assembly overview: Cable loss (including connector). Designator Manufacture Cable type and length VSWR Cable Loss (dBi) 2400-2500MHz 1.475 max 2400-2500MHz -0.925dBi (peak) 5150-5350MHz 1.517 max 5150-5350MHz -1.632dBi (peak) 5470-5725MHz 2.412 max 5470-5725MHz -1.655dBi (peak) For use with the Main antenna S.A.S CABLE &INTERCONNECT Example: (P/N：UL1745-SB) 50ohm Coaxial. length:29.5 cm diameter: 1.13 mm Connector: UL 5725-5850MHz 2.5219 max 5725-5850MHz -1.685dBi (peak) 2400-2500MHz 1.3044 max 2400-2500MHz -0.812dBi (peak) 5150-5350MHz 1.6744 max 5150-5350MHz -1.542dBi (peak) 5470-5725MHz 2.234 max 5470-5725MHz -1.491dBi (peak) For use with the Auxiliary antenna S.A.S CABLE &INTERCONNECT Example: (P/N：UL1745-SB) 50 ohm Coaxial. length: 25 cm diameter: 1.13 mm Connector: UL 5725-5850MHz 2.5698 max 5725-5850MHz -1.583dBi (peak) OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 4/28 Please insert mechanical drawings of antenna here. Main antenna drawing Aux antenna drawing OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 5/28 Radiation characteristic of antennae Loaded (In Host System) 2400-2500MHz radiation characteristic Main antenna: 2400 MHz BLUE__H-PLANE RED__E-PLANE Center Frequency 2400 MHz Horizontal (dBi) peak -5.665 Vertical (dBi) peak -2.677 OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 6/28 Main antenna: 2450 MHz BLUE__H-PLANE RED__E-PLANE Center Frequency 245 MHz Horizontal (dBi) peak -4.856 Vertical (dBi) peak -2.296 OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 7/28 Main antenna: 2500 MHz BLUE__H-PLANE RED__E-PLANE Center Frequency 2500MHz Horizontal (dBi) peak -4.034 Vertical (dBi) peak -0.922 OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 8/28 Auxiliary antenna: 2400 MHz BLUE__H-PLANE RED__E-PLANE Center Frequency 2400 MHz Horizontal (dBi) peak -2.906 Vertical (dBi) peak -2.095 OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 9/28 Auxiliary antenna: 2450 MHz BLUE__H-PLANE RED__E-PLANE Center Frequency 245 MHz Horizontal (dBi) peak -2.281 Vertical (dBi) peak -2.964 OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 10/28 Auxiliary antenna: 2500 MHz BLUE__H-PLANE RED__E-PLANE Center Frequency 250 MHz Horizontal (dBi) peak -3.324 Vertical (dBi) peak -2.382 OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 11/28 5150-5135 MHz radiation characteristic Main antenna: 5150 MHz BLUE__H-PLANE RED__E-PLANE Center Frequency 5150 Horizontal (dBi) peak -3.893 Vertical (dBi) peak -2.703 OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 12/28 Main antenna: 5250 MHz BLUE__H-PLANE RED__E-PLANE Center Frequency 5250 Horizontal (dBi) peak -6.981 Vertical (dBi) peak -2.964 OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 13/28 Main antenna: 5350 MHz BLUE__H-PLANE RED__E-PLANE Center Frequency 5350 Horizontal (dBi) peak -6.746 Vertical (dBi) peak -2.197 OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 14/28 Auxiliary antenna: 5150 MHz BLUE__H-PLANE RED__E-PLANE Center Frequency 5150 Horizontal (dBi) peak -2.913 Vertical (dBi) peak 3.709 OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 15/28 Auxiliary antenna: 5250 MHz BLUE__H-PLANE RED__E-PLANE Center Frequency 5250 Horizontal (dBi) peak -5.507 Vertical (dBi) peak 2.058 OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 16/28 Auxiliary antenna: 5350 MHz BLUE__H-PLANE RED__E-PLANE Center Frequency 5350 Horizontal (dBi) peak -4.797 Vertical (dBi) peak 2.574 OEM Name or other identification Document Number: XXXX Rev: XX Tatung Regulatory Antenna Information Example Rev. 1 17/28 Main antenna: 5725 MHz BLUE__H-PLANE RED__EH-PLANE …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B31216203-SF Date of Issue: February 11, 2004 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C TEST REPORT For TATUNG COMPANY TABLET PC Model: TTAB-B12D Trade Name: HTC Prepared for TATUNG COMPANY 22 Chungshan N. Rd., 3 Sec. Taipei ,Taiwan ,10451 R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 27 Compliance Certification Services Inc. Report No: B31216203-SF Date of Issue: February 03, 2004 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: February 10, 2004 Applicant: TATUNG COMPANY 22 Chungshan N. Rd., 3 Sec. Taipei, Taiwan ,10451 R.O.C. Model Number: TTAB-B12D FCC ID: BJM-TTABB12DBG Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 17.74dBm Max. SAR (1g): 0.876 W/kg Application Type: Certification FCC Rule Part(s): 15C Note: This Report is only applicable for 802.11b/g. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Approved by: Reviewed by: Jonson Lee / Director James Lee / Senior engineer Compliance Certification Services Inc. Compliance Certification Services Inc. Page 2 Compliance Certification Services Inc. Report No: B31216203-SF Date of Issue: February 03, 2004 TABLE OF CONTENTS 1. EUT DESCRIPTION.....................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC....5 3. DOSIMETRIC ASSESSMENT SYSTEM...................................................................5 3.1 MEASUREMENT SYSTEM DIAGRAM.........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 DASY4 Measurement Server.............................................................................................7 Data Acquisition Electronics (DAE)..................................................................................7 ET3DV6 Isotropic E-Field Probe for Dosimetric Measurements......................................7 SAM Phantom (V4.0)........................................................................................................8 Device Holder for SAM Twin Phantom............................................................................8 System Validation Kits......................................................................................................8 4. EVALUATION PROCEDURES................................................................................... 9 5. MEASUREMENT UNCERTAINTY.........................................................................12 6. EXPOSURE LIMIT.....................................................................................................13 7. MEASUREMENT RESULTS.....................................................................................14 7.1 SYSTEM PERFORMANCE CHECK..............................................................................14 7.2 TEST LIQUID CONFIRMATION...................................................................................15 7.3 EUT TUNE-UP PROCEDURES......................................................................................16 7.4 SAR MEASUREMENTS RESULTS...............................................................................17 8. EUT PHOTOS..............................................................................................................23 9. EQUIPMENT LIST & CALIBRATION STATUS...................................................25 10. REFERENCES.............................................................................................................26 11. ATTACHMENTS.........................................................................................................27 Page 3 Compliance Certification Services Inc. Report No: B31216203-SF Date of Issue: February 03, 2004 1. EUT DESCRIPTION Applicant: TATUNG COMPANY 22 Chungshan N. Rd., 3 Sec. Taipei, Taiwan ,10451 R.O.C. Model Number: TTAB-B12D FCC ID: BJM-TTABB12DBG Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 17.74dBm Max. SAR (1g): 0.876 W/kg Application Type: Certification FCC Rule Part(s): 15C Antennas: Metal PIFA Ant. Page 4 Compliance Certification Services Inc. Report No: B31216203-SF Date of Issue: February 03, 2004 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commis…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B31216203-RP FCC ID: BJM-TTABB12DBG Date of Issue: February 3, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 58 FCC 47 CFR PART 15 SUBPART C TEST REPORT For TATUNG CO. TABLET PC Model: TATUNG: TTAB-B12D & ETAB-B12D / EV: SC 2000 & SC 2010 / RM: RTAB912-T01 & RTAB912-T02 Trade Name: TATUNG, EV & RM Prepared for TATUNG CO. 22 Chungshan N. Rd., 3 Sec., Taipei, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B31216203-RP FCC ID: BJM-TTABB12DBG Date of Issue: February 3, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION...............................................................................................3 2. EUT DESCRIPTION ......................................................................................................................4 3. TEST METHODOLOGY ...............................................................................................................5 3.1 EUT CONFIGURATION...................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS...................................................6 3.5 DESCRIPTION OF TEST MODES......................................................................................................6 4. INSTRUMENT CALIBRATION...................................................................................................7 5. FACILITIES AND ACCREDITATIONS .....................................................................................8 5.1 FACILITIES.. ................................................................................................8 5.2 EQUIPMENT...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST ..................................................................................10 6.1 SUPPORT EQUIPMENT.................................................................................................................10 7. FCC PART 15.247 REQUIREMENTS........................................................................................11 7.1 6DB BANDWIDTH........................................................................................................................11 7.2 PEAK POWER...............................................................................................................................14 7.3 BAND EDGES MEASUREMENT ...........................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY...............................................................................................30 7.5 RADIO FREQUENCY EXPOSURE...................................................................................................35 7.6 SPURIOUS EMISSIONS ...........................................................................................................36 7.7 POWERLINE CONDUCTED EMISSIONS..........................................................................................53 Compliance Certification Services Inc. Report No: B31216203-RP FCC ID: BJM-TTABB12DBG Date of Issue: February 3, 2004 Page 3 1. TEST RESULT CERTIFICATION Applicant: TATUNG CO. 22 Chungshan N. Rd., 3 Sec., Taipei, Taiwan, R.O.C. Equipment Under Test: TA B LE T P C Trade Name: TATUNG, EV & RM Model: TATUNG: TTAB-B12D & ETAB-B12D / EV: SC 2000 & SC 2010 / RM: RTAB912-T01 & RTAB912-T02 Model Difference All the above models are identical except the model designation Report Number: B31216203-RP Date of Test: January 27, 2004 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2001 and the energy emitted by the sample EUT tested as described in this report is in compliance with the limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Harris W. Lai Miro Chueh Executive Vice President Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B31216203-RP FCC ID: BJM-TTABB12DBG Date of Issue: February 3, 2004 Page 4 2. EUT DESCRIPTION Product TA B LE T P C Trade Name TATUNG, EV & RM Model Number TATUNG: TTAB-B12D & ETAB-B12D / EV: SC 2000 & SC 2010 / RM: RTAB912-T01 & RTAB912-T02 Model Discrepancy All the above models are identical except the model designation Power Supply Model Number: HP-OD042D03 Input: AC 100-240V, 50-60Hz, 1.2A, Output: DC 12V, 3.5A Frequency Range 802.11b/g: 2412 ~ 2462 MHz Transmit Power 802.11b: 17.54 dBm 802.11g: 12.76 dBm Modulation Technique 802.11b: DSSS (CCK; DQPSK; DBPSK) 802.11g…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B31216203-RP FCC ID: BJM-TTABB12DBG Date of Issue: February 3, 2004 Page 57 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B31216203-RP FCC ID: BJM-TTABB12DBG Date of Issue: February 3, 2004 Page 58 Conducted Emission Set Up Photos
