BJM-TX4000WIRELESS THIN CLIENT (WEBPAD)

Tatung Company
WIRELESS THIN CLIENT (WEBPAD) - FCC ID BJM-TX4000 - Tatung Company
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 07, 2010
Application Purpose
Original Equipment
Date of Application
Sep 02, 2010
Equipment Note
WIRELESS THIN CLIENT (WEBPAD)
Frequency Range
2422.00000000 - 2452.00000000
Company
Tatung Company
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗
↗

ID Label/Location Info

↗
↗

Internal Photos

↗
↗

Operational Description

↗

Test Report

↗
↗
↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

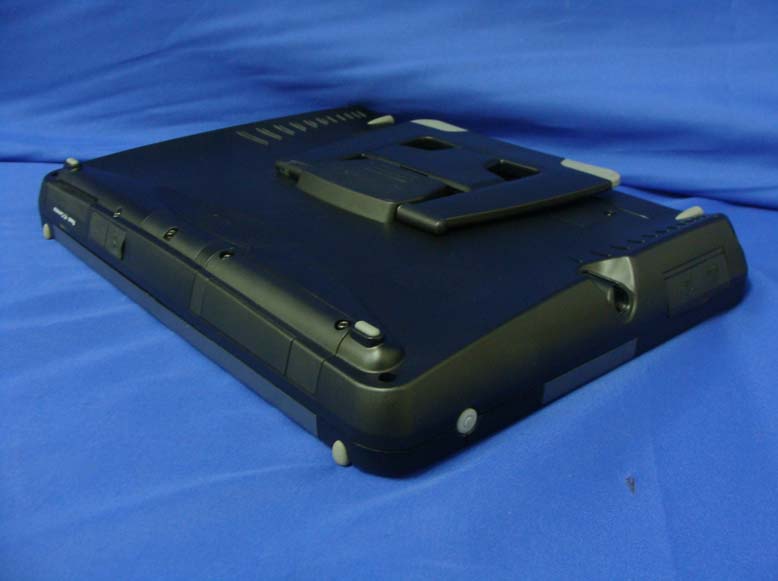

Report No.: 107325R-RFUSP42V01 Page : 1 of 12 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

External Photos

Report No:107325R-HPUSP09V01 Page: 1 of 5 Appendix D. EUT Photographs Report No:107325R-HPUSP09V01 Page: 2 of 5

ID Label/Location Info

22 Chung Shan N. Road, 3 rd sec., Taipei, Taiwan, 104,R.O.C. TEL No: 886-2-2592-5252 FAX No.: 886-2-2598-4464 FCC ID.: BJM-TX4000 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. . Tel : 886-2-2592-5252 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

ID Label/Location Info

22 Chung Shan N. Road, 3 rd sec., Taipei, Taiwan, 104,R.O.C. TEL No: 886-2-2592-5252 FAX No.: 886-2-2598-4464 FCC ID.: BJM-TX4000 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. . Tel : 886-2-2592-5252 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Internal Photos

Report No.: 107325R-RFUSP42V01 Page : 2 of 12 (3) EUT Photo (4) EUT Photo Report No.: 107325R-RFUSP42V01 Page : 3 of 12 (5) EUT Photo (6) EUT Photo Report No.: 107325R-RFUSP42V01 Page : 4 of 12 (7) EUT Photo (8) EUT Photo WLAN Aux Antenna WLAN Main Antenna Report No.: 107325R-RFUSP42V01 Page : 5 of 12 (9) EUT Photo (10) EUT Photo Report No.: 107325R-RFUSP42V01 Page : 6 of 12 (11) EUT Photo (12) EUT Photo Report No.: 107325R-RFUSP42V01 Page : 7 of 12 (13) EUT Photo (14) EUT Photo Report No.: 107325R-RFUSP42V01 Page : 8 of 12 (15) EUT Photo (16) EUT Photo Report No.: 107325R-RFUSP42V01 Page : 9 of 12 (17) EUT Photo (18) EUT Photo Report No.: 107325R-RFUSP42V01 Page : 10 of 12 (19) EUT Photo (20) EUT Photo Report No.: 107325R-RFUSP42V01 Page : 11 of 12 (21) EUT Photo (22) EUT Photo Report No.: 107325R-RFUSP42V01 Page : 12 of 12 (23) EUT Photo

Internal Photos

Report No:107325R-HPUSP09V01 Page: 3 of 5 Report No:107325R-HPUSP09V01 Page: 4 of 5 Report No:107325R-HPUSP09V01 Page: 5 of 5

Operational Description

Report No. 107325R-RFUSP42V01 Page: 7 of 97 1.2. Operational Description The EUT is an Wireless Thin Client (WebPad) with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11g). The device provided of eight kinds of transmitting speed 7.2,14.4,21.7,28.9,43.3,57.8,65 and 72.2Mbps in 802.11n(20M-BW) mode and 15,30,45,60,90,120,135 and 150 Mbps(40M-BW) the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11n), The IEEE 802.11n is Multiple In, Single Out” (MISO) technology and two antennas to support 1(Transmit) * 2(Receive) MISO technology. This Wireless Thin Client (WebPad), compliant with IEEE 802.11b and IEEE 802.11g/n, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the Wireless Thin Client (WebPad) Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g/n network.

Test Report

Test Report Compliance with Industry Canada Interference-Causing Equipment Standard ICES-003 Product Name : Wireless Thin Client (WebPad) Model No. : TX-4000 Applicant : TATUNG CO. Address : 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt : 2010/07/02 Issued Date : 2010/08/05 Report No. : 107325R-ITUSP02V02 Report Version : V2.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 107325R-ITUSP02V02 Page: 2 of 37 Test Report Certification Issued Date : 2010/08/05 Report No. : 107325R-ITUSP02V02 Product Name : Wireless Thin Client (WebPad) Applicant : TATUNG CO. Address : 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Manufacturer : TATUNG CO. Model No. : TX-4000 EUT Rated Voltage : AC 100-240V, 50/60Hz EUT Test Voltage : AC 120 V / 60 Hz Trade Name : TATUNG Applicable Standard : FCC CFR Title 47 Part 15 Subpart B: 2009, Class B CISPR 22: 2008, ANSI C63.4: 2003 ICES-003 Issue 4: 2004 Test Result : Complied Performed Location : Quietek Corporation (Linkou Laboratory) No.5-22, Ruei-Shu Valley, Ruei-Ping Tsuen Lin Kuo Shiang, Taipei, 244 Taiwan, R.O.C. TEL:+866-2-8601-3788 / FAX:+886-2-8601-3789 Documented By : (Adm.Assistant / Anny Chou) Reviewed By : ( Engineer / Leslie Chi ) Approved By : ( Manager / Vincent Lin ) Report No: 107325R-ITUSP02V02 Page: 3 of 37 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, NCC, TAF Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI Report No: 107325R-ITUSP02V02 Page: 4 of 37 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................... 5 1.1. EUT Description................................................................................................... 5 1.2. Mode of Operation ............................................................................................... 5 1.3. Tested System Details ......................................................................................... 6 1.4. Configuration of Tested System ........................................................................... 8 1.5. EUT Exercise Software........................................................................................ 9 2. Technical Test ........................................................................................................... 10 2.1. Summary of Test Result..................................................................................... 10 2.2. List of Test Equipment ....................................................................................... 11 2.3. Measurement Uncertainty.................................................................................. 12 2.4. Test Environment ............................................................................................... 13 3. Conducted Emission................................................................................................. 14 3.1. Test Specification ............................................................................................... 14 3.2. Test Setup.......................................................................................................... 14 3.3. Limit................................................................................................................... 14 3.4. Test Procedure .................................................................................................. 15 3.5. Test Result......................................................................................................... 16 3.6. Test Photograph ................................................................................................ 22 4. Radiated Emission .................................................................................................... 23 4.1. Test Specification ............................................................................................... 23 4.2. Test Setup.......................................................................................................... 23 4.3. Limit................................................................................................................... 24 4.4. Test Procedure ...............................................…

Text truncated - open the document above for the full version.

Test Report

Report No. 107325R-RFUSP42V01 Page: 1 of 97 Test Report Product Name Wireless Thin Client (WebPad) Model No TX-4000 FCC ID. BJM-TX4000 Applicant TATUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt July. 22, 2010 Issue Date Aug. 11, 2010 Report No. 107325R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 107325R-RFUSP42V01 Page: 2 of 97 Test Report Certification Issue Date: Aug. 11, 2010 Report No.: 107325R-RFUSP42V01 Product Name Wireless Thin Client (WebPad) Applicant TATUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Manufacturer TATUNG CO. Model No. TX-4000 EUT Rated Voltage AC 100-240V, 100-200V, 47-63Hz EUT Test Voltage AC 120V/60Hz Trade Name TATUNG Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : (Senior Adm. Specialist / Leven Huang ) Tested By : (Engineer / NoNo Chang) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 107325R-RFUSP42V01 Page: 3 of 97 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................19 4.1. Test Equipment............................................................................................................................19 4.2. Test Setup ....................................................................................................................................20 4.3. Limits ..........................................................................................................................................21 4.4. Test Procedure .............................................................................................................................22 4.5. Uncertainty ..................................................................................................................................22 4.6. Test Result of Radiated Emission................................................................................................23 5. RF antenna conducted test........................................................................................................39 5.1. Test Equipment............................................................................................................................39 5.2. Test Setup ....................................…

Text truncated - open the document above for the full version.

Test Report

Report No. 107325R-RFUSP42V01 Page: 66 of 97 Product : Wireless Thin Client (WebPad) Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2452 31.944 53.89 85.834 Peak Horizontal 2452 31.944 37.18 69.124 Average Vertical 2452 31.222 54.84 86.062 Peak Vertical 2452 31.222 36.9 68.122 Average Note: 1: Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Detector Horizontal 2484.7 85.834 27.724 58.11 Peak Horizontal 2483.5 69.124 48.244 20.88 Average Vertical 2484.7 86.062 27.724 58.338 Peak Vertical 2483.5 68.122 48.244 19.878 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Peak limit = 74dBuV/m, Average limit = 54dBuV/m Report No. 107325R-RFUSP42V01 Page: 67 of 97 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 107325R-RFUSP42V01 Page: 68 of 97 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2010 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2010 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr.,2010 8-WAY Power Divider JFW 50PD-647 / 526770 0916 Apr., 2010 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 3. The power combiner is used for measure 11n mode. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.4, 2003; tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 100 kHz, Span greater than RBW. 7.5. Uncertainty ± 150Hz 8-WAY Power Divider EUT Spectrum Analyzer RF Cable Report No. 107325R-RFUSP42V01 Page: 69 of 97 7.6. Test Result of Occupied Bandwidth Product : Wireless Thin Client (WebPad) Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 10250 >500 Pass Figure Channel 1: Report No. 107325R-RFUSP42V01 Page: 70 of 97 Product : Wireless Thin Client (WebPad) Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 10250 >500 Pass Figure Channel 6: Report No. 107325R-RFUSP42V01 Page: 71 of 97 Product : Wireless Thin Client (WebPad) Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 10250 >500 Pass Figure Channel 11: Report No. 107325R-RFUSP42V01 Page: 72 of 97 Product : Wireless Thin Client (WebPad) Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 15450 >500 Pass Figure Channel 1: Report No. 107325R-RFUSP42V01 Page: 73 of 97 Product : Wireless Thin Client (WebPad) Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 15900 >500 Pass Figure Channel 6: Report No. 107325R-RFUSP42V01 Page: 74 of 97 Product : Wireless Thin Client (WebPad) Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 16450 >500 Pass Figure Channel 11: Report No. 107325R-RFUSP42V01 Page: 75 of 97 Product : Wireless Thin Client (WebPad) Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412.00 17400 >500 Pass Figure Channel 1: Report No. 107325R-RFUSP42V01 Page: 76 of 97 Product : Wireless Thin Client (WebPad) Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437.00 17400 >500 Pass Figure Channel 6: Report No. 107325R-RFUSP42V01 Page: 77 of 97 Product : Wireless Thin Client (WebPad) Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) (2462MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 11 2462.00 17400 >500 Pass Figure Channel 11: Report No. 107325R-RFUSP42V01 Page: 78 of 97 Product : Wireless Thin Client (WebPad) Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2422MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2422.00 35900 >500 Pass Figure Channel 1: Report No. 107325R-RFUSP42V01 Page: 79 of 97 Product : Wireless Thin Client (WebPad) Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 4: Transmit (802.11n MCS0 15Mbps 40M-BW) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result…

Text truncated - open the document above for the full version.

Test Report

Report No:107325R-HPUSP09V01 Page: 1 of 22 SAR Test Report Product Name :Wireless Thin Client (WebPad) Model No. :TX-4000 Applicant : TATUNG CO. Address : 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt :2010/07/22 Issued Date :2010/08/10 Report No. :107325R-HPUSP09V01 Report Version :V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No:107325R-HPUSP09V01 Page: 2 of 22 Test Report Certification Issued Date: 2010/08/10 Report No.: 107325R-HPUSP09V01 Product Name : Wireless Thin Client (WebPad) Applicant : TATUNG CO. Address : 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Manufacturer : TATUNG CO. Model No. : TX-4000 Trade Name : TATUNG FCC ID : BJM-TX4000 Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) 0.740 W/kg Application Type : Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : (Adm.Assistant / Anny Chou) Tested By : (Engineer / Jung Chang) Approved By : (Manager / Vincent Lin) Report No:107325R-HPUSP09V01 Page: 3 of 22 TABLE OF CONTENTS Description Page 1. General Information.......................................................................................5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Test Environment ...........................................................................................................6 2. SAR Measurement System..........................................................................7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid...........................................................................13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure..................................................................15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits..................................................................................17 6. Test Equipment List.....................................................................................18 7. Measurement Uncertainty..........................................................................19 8. Test Results....................................................................................................21 8.1 SAR Test Results Summary ......................................................................................... 21 Appendix ............................................................................................................................ 22 Report No:107325R-HPUSP09V01 Page: 4 of 22 Appendix A. SAR System Validation Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs Appendix D. EUT Photographs Appendix E. Probe Calibration Data Appendix F. Dipole Calibration Data Report No:107325R-HPUSP09V01 Page: 5 of 22 1. General Information 1.1 EUT Description Product Name Wireless Thin Client (WebPad) Trade Name TATUNG Model No. TX-4000 FCC ID BJM-TX4000 WLAN Modular MFR : AzureWave; M/N : AW-NE768H TX Frequency 2412MHz ~ 2462MHz Number of Channel 11 Antenna Type PCB Antenna Type of Modulation DSSS/OFDM Device Category Portable RF Exposure Environment Uncontrolled Max. Output Power (Conducted) 802.11b: 20.22 dBm 802.11…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 107325R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 107325R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 107325R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)

Test Setup Photos

Report No:107325R-HPUSP09V01 Page: 1 of 2 Appendix C. Test Setup Photographs EUT Side EUT Top Touch, 0cm Touch, 0cm Report No:107325R-HPUSP09V01 Page: 2 of 2 EUT Back Note: The positions used in the measurements were according to IEEE 1528-2003. Touch, 0cm

Contact Information

Applicant

Chung Chang(Director)
[email protected]886-2-2592-5252Fax: 886-2598-4464

Test Firm

DEKRA TESTING AND CERTIFICATION CO., LTD. LinKouMirenda Liao
[email protected]+886-2-2602-7968Fax: +886-2-2602-3286

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz63.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. This transmitter is restricted for use in this specific product and antenna configuration evaluated in this filing. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within this host device, except as evaluated in this filing. End-users must be provided with specific operating instructions for satisfying RF exposure compliance requirements. This device was tested for SAR evaluation and complies with OET Bulletin 65 for General Population use. The highest reported SAR level is: Body: 0.74 W/kg. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452MHz.
