BJM-WHP210Wireless Headphone

Product Introductionand Safety Approvals Unique Features Specification Product Accessories Parts Introduction Lengthadjustment LED IndicatorPairPower On/OffCharging Port Reset 123456 7 90 0 90 0 User Guide Symbols 1 23 4 5 7 1 2 3 4 5 6 7 6 Steady red lightSteady greed lightFlashing green light Devices are waiting for pairingDevices are pairedDevices are not paired Ȯ The headphone is charging FCC StatementBoth the headphone and the trarnsmitter are compliant with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)These devices may not cause harmful interference, and (2)These devices must accept any interference received, including interference that may cause undesired operation. CEThis product is CE marked according to the provisions of the R&TTE Directive. (99/5/EC) The SoundOn WHP-210 is a high performance wireless headphone delivering ultra clear sound with extended bass effects. The headphone comes with a wireless music transmitter that can be connected to any type of audio source via a standard 3.5 mm audio jack. Also included is a RCA cable with 3.5 mm adapter that can be used to accommodate a separate 2-channel audio output port. The transmitter can be powered by a power adapter, or by 3 AAA batteries. You may find the battery cabinet located at the bottom of the transmitter. The headphone has a built-in Li-Polymer battery. When fully charged the battery offers up to 12 hours of usage. To charge the headphone simply plug into the power adapter. Please read the following certification and safety approvals. Based on advanced WiStereo TM digital wireless technology for reliable transmission of music in the 2.4 GHz band. Effective within 100 feet range from source. Patented dual-speakers in each of the ear-cups delivering a full range of sounds as well as a soft, deep bass.The transmitter can be powered by the power adapter, or by 3 AAA batteries making it perfect for on-the-go lifestyles.Connects to any type of music input via a standard stereo jack, such as iPod, Zune player, DVD players, TV audio out, CD players, etc.Fast working, easy to use, automatic Pair function.Extended battery life lasts up to 12 hours when fully charged.Ultra comfortable headband design for long wear hours. WHP-210 ResetIf headphone is functioning improperly, poke the reset hole by a paper clip. Power On/OffPress this button to control power on/off.Charging PortConnect to the AC power adapter for charging.LED IndicatorA red indicator represents charging functions.A green indicator represents signal connections.Press to increase the headphone volume.Press to decrease the headphone volume. 12345 67 PairPress “pair” button to connect the wireless headphone and the USB Puck. 1.0 SoundOn WHP-210Wireless Headphone Noise-resistant Digital Wireless TechnologyPatented Dual-Speaker Design in Each Ear-cupSuperior Sound Quality and Extended BassWireless Transmitter Key Adapts To Every Music PlayerRe-chargable Headphones Provide up tp 12 Hours UseUnique Comfortable Headband Design Wireless TechnologyHeadphone Listen Time Transmitter Usage TimeStandby TimeCharge Time (full charge)Distance of UseH eadphone Weight Transmitter WeightCharging MethodHeadphone Battery TypeFrequency ResponseAudio QualityDistortion (T.H.D.) Speaker Drivers WiStereo TM for advanced 2-way digital transmission in the 2.4 GHz frequency bandUp to 12 hours (per charge)Up to 4 hoursUp to 3 monthsUp to 3.5 hours100 feet7.9 ounces1.6 ouncesAC Power AdapterLithium Polymer20Hz ~30,000Hz (perfect for all music, game, and voice)Uncompressed audio for music (CD-quality) and voice (extra clarity)<0.08% (professional grade audio performance)2 on each side for full-range audio and sub-woofer enhancement with SafeBass technology30mm Neodymium for left/right channels 40mm Neodymium for subwoofer Model R User Guide * 1pc Wireless Headphone * 1pc AC Power Adapter * 1pc Wireless Transmitter * 1pc RCA Plugs with 3.5mm Adapter* 1pc AAA Batteries * 3pcs AAAAAA AAA AAA 3.5mm Stereo Cable * 1pc Headphones Made In China Handling the headphone Do not bend, drop, crush, puncture, incinerate, or open the headphone.Repairing the headphoneNever attempt to repair the headphone yourself. The headset does not contain any user serviceable parts. For service information, read the “Help” section from the warranty card. The headphone should be replaced only by authorized service providers. ImportantUser Information 11 8 12 13 Getting Started To ensure this headphone to work properly, please avoid recharging while using.AC Power Adapter is used to both charge the headphone and the transmitter( if batteries are not powering the transmitter).Steady red light is turned off when the headphone is fully charged. The headphone is charging 9 Power off ř Press and hold the power button for 2 sec. to turn off the headphone.Power on ř Press the power button to turn on the headphone. Turning the headphone on/off 10 First time use : Charge 3.5 hours before using headphone for the first time. Charging Plug in to charge Unplug when finished AC Power adapter Avoiding hearing damage Permanent hearing loss may occur if the headphone is used at too high a volume. Set the volume to a safe level. Warning: Over time it is possible to become accustomed to high volumes that may be damaging to your hearing. If you experience a ringing in your ears or your own voice and other sounds appear muffled, stop using the headphone and consult a hearing professional. Hearing experts suggest that in order to protect your hearing: Limit the amount of time you use the headphone at high volume.Avoid turning up the volume to block out noisy surroundings.Turn down the volume if you can't hear people speaking near you. Maintaining battery lifeDue to the physical nature of the battery, required charging time may increase while the actual capacity of the batter may decrease. If you have any questions regarding the replacement of the built-in battery, please contact our service center. 15 No sound …

Text truncated - open the document above for the full version.

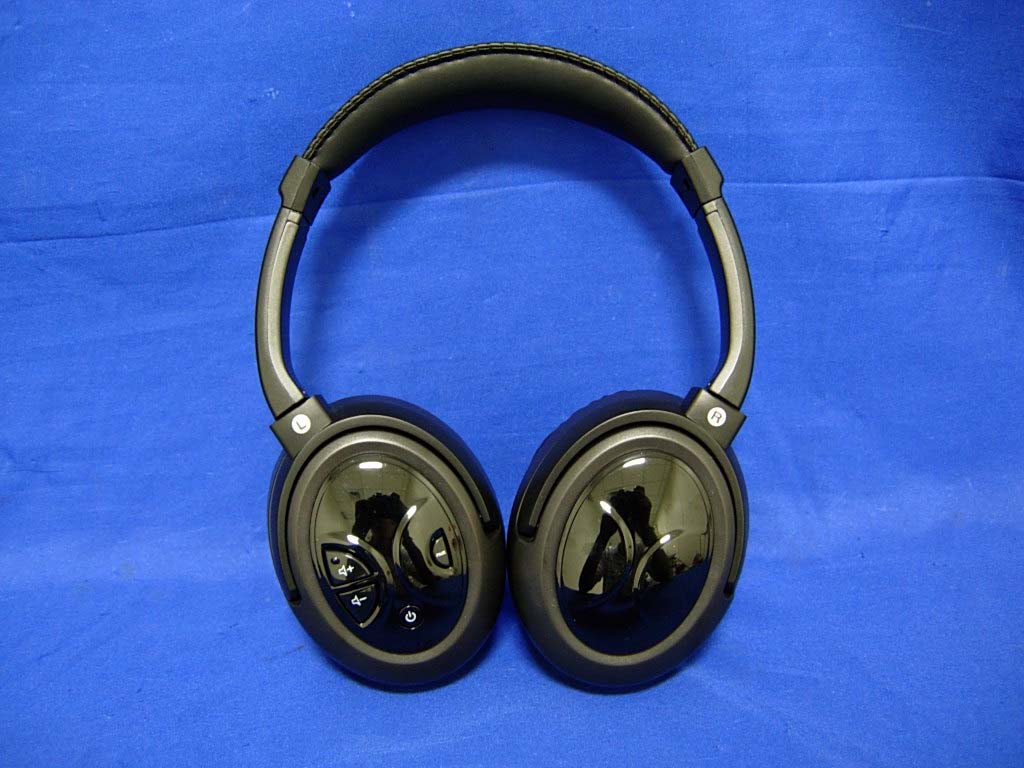

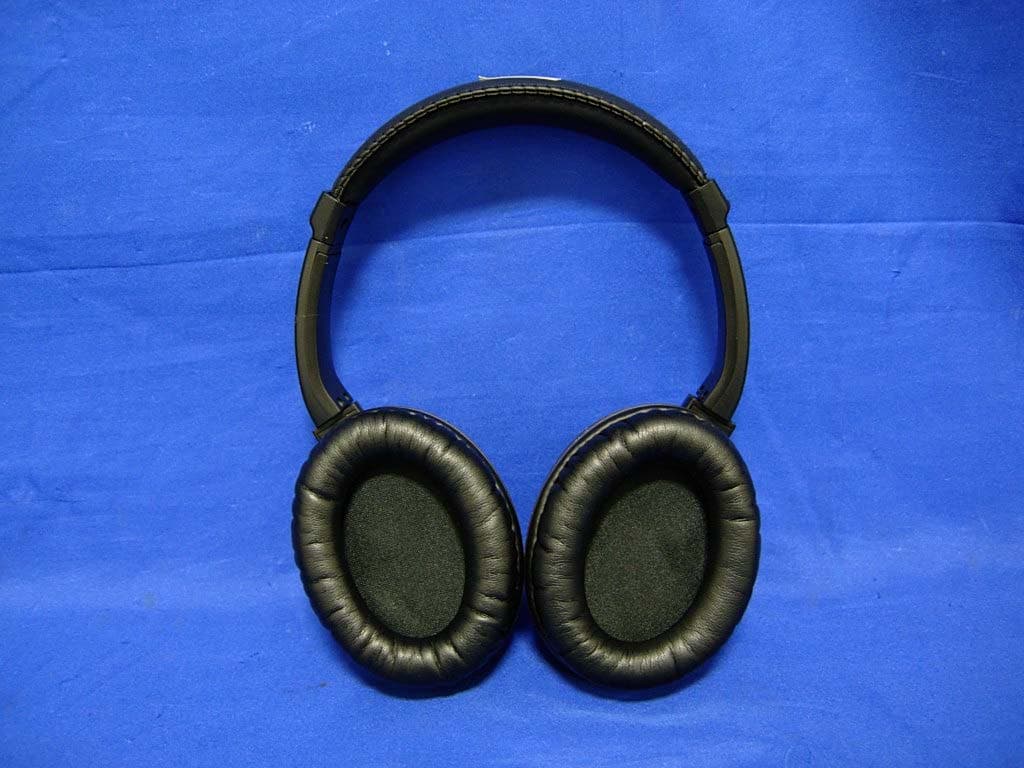

Report No.: 075L010-RFUSP01V02 Page : 1 of10 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

22 Chung Shan N. Road, 3 rd sec., Taipei, 104, Taiwan Tel: +886-2-25984803 FCC ID.: BJM-WHP210 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. . Tel : +886-2-25984803 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 075L010-RFUSP01V02 Page : 2 of10 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 075L010-RFUSP01V02 Page : 3 of10 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 075L010-RFUSP01V02 Page : 4 of10 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 075L010-RFUSP01V02 Page : 5 of10 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 075L010-RFUSP01V02 Page : 6 of10 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 075L010-RFUSP01V02 Page : 7 of10 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 075L010-RFUSP01V02 Page : 8 of10 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 075L010-RFUSP01V02 Page : 9 of10 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 075L010-RFUSP01V02 Page : 10 of10 Version:1.0 (19) EUT Photo

Report No. 075L010-RFUSP05V01 Page: 7 of 40 Version:1.0 1.2. Operational Description The EUT is a PC USB Headset with a built-in 2.4GHz transceiver. There are 38 channels in 2405 – 2479MHz. The channels are separated by 2MHz. The signals are modulated by π/4 DQPSK The antenna type is chip antenna. Test Mode Mode 1: Transmitter

Report No. 075L010-RFUSP05V01 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : Wireless Headphone Model No. : WHP-210 FCC ID : BJM-WHP210 Applicant : TATUNG CO. Address : 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt : Apr. 27, 2007 Date of Declaration: May 29, 2007 Report No. : 075L010-RFUSP05V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 075L010-RFUSP05V01 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 075L010-RFUSP05V01 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Wireless Headphone Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance (2dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 2.5 cm (mW/cm2) 2 2405.00 2.1727 0.0438 20 2441.00 1.5596 0.0315 39 2479.00 1.1117 0.0224 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 2.5 cm separation requirement.

Report No. 075L010-RFUSP05V01 Page: 1 of 40 Version:1.0 Test Report Product Name Wireless Headphone Model No. WHP-210 FCC ID BJM-WHP210 Applicant TATUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Date of Receipt Apr. 27, 2007 Issued Date May 29, 2007 Report No. 075L010-RFUSP05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 075L010-RFUSP05V01 Page: 2 of 40 Version:1.0 Test Report Certification Issued Date: May 29, 2007 Report No.: 075L010-RFUSP05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Wireless Headphone Applicant TATUNG CO. Address 22, Chungshan N. Rd., 3rd Sec. Taipei, Taiwan, 104, R.O.C. Manufacturer TATUNG CO. Model No. WHP-210 Rated Voltage AC 120V/60Hz Working Voltage 3.7V (Battery) Trade Name Sound On Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2006 CISPR 22: 2005 ANSI C63.4: 2003 Test Result Complied Documented By : ( Engineering Adm. Specialist / Rita Huang ) Tested By : ( Engineer / D i n o C h e n ) Approved By : ( President / Gene Chang ) 0914 Report No. 075L010-RFUSP05V01 Page: 3 of 40 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of Test System ........................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Conducted Emission.............................................................................................11 3. Peak Power Output ...................................................................................................................13 3.1. Test Equipment............................................................................................................................13 3.2. Test Setup ....................................................................................................................................13 3.3. Limit ............................................................................................................................................13 3.4. Uncertainty ..................................................................................................................................13 3.5. Test Result of Peak Power Output...............................................................................................14 4. Radiated Emission .....................................................................................................................16 4.1. Test Equipment............................................................................................................................16 4.2. Test Setup ....................................................................................................................................17 4.3. Limits ..........................................................................................................................................18 4.4. Test Procedure .............................................................................................................................19 4.5. Uncertainty ..................................................................................................................................19 4.6. Test Result of Radiated Emission................................................................................................20 5. Band Edge ..................................................................................................................................24 5.1. Test Equipment............................................................................................................................24 5.2. Test Setup ....................................................................................................................................24 5.3. Limit ....................................................................…

Text truncated - open the document above for the full version.

Report No.: 075L010-RFUSP05V01 Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 075L010-RFUSP05V01 Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 075L010-RFUSP05V01 Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
