BJMZCOMS15772.4GHz Wireless module built-in Webpad

NEC-i ORDERING TERMINAL User Booklet NEC Infrontia Corporation Web Terminal division 1. Unpacking Carefully unpack the ordering terminal and its included accessories. At the first, please confirm whether there are any discrepancies or problems. Package contents (1) Ordering terminal (2) Battery pack (3) Shoulder belt (4) Number seal(1 to 6) (5) Warranty sheet (6) PL booklet (7) Software license agreement 2. Powering the terminal 2.1 Changing the battery pack Setting (1) Release the battery lock. (2) Slide the battery pack into the compartment. (3) Set the battery lock. (1) (2) (3) Removing (1) Turn the system off (Refer 2.2). (2) Release the battery lock. (3) Slide the battery release lever to the left. (4) Pull the battery pack out of the compartment. 2.2 Power ON/OFF Press the power switch for a short time to turn the terminal on after the battery is set. Execute a shout down command prepared in the application to turn the terminal off. (3) (4) (2) 3. OVER VIEW 3.1 Indicators Indicator Color Description Green System power on and battery fully charged Orange System power on and battery power is low. Power status Red System power on and battery power is critically low. Green Battery charge has complete. Orange Battery in charge. Battery charge status Red Error (ex. not equip battery pack). PC Card status Orange PC Card is accessible. 3.2 Key assignment Print Key name Print Key name ESC Y 0 0 1 1 2 2 3 3 () Enter 4 4 Left CTRL 5 5 6 6 7 7 8 8 9 9 1 F8 2 F7 3 F9 N 3. SPECIFICATIONS S1577-11 (Wireless LAN model) S1577-01 (Standard Model) CPU Geode™ SC3200 266MHz RAM 128MB SDRAM Display 10.4" TFT LCD, SVGA(800x600), 16bit color Touch panel Analog resistance film Keyboard 23 Keys(numeric key + function key) Storage 256MB Compact Flash Wireless LAN IEEE802.11b ------- PC Card slot TypeII x 1(complied to PCMCIA2.1) RS-232C 1 USB USB1.1 x 1 I/O interface Infrared IrDA1.1 x 1 Audio Internal speaker(monaural) Main battery Re-chargeable Lithium-Ion(11.1V, 2000mAh) Battery life about 2 hours about 2.5 hours Charge time 2.5 hours Sub battery Re-chargeable Ni-MH Battery life about 30 minutes Charge time 40 hours AC adapter(option) INPUT : AC 100-240V, 84-120VA, 50-60Hz OUTPUT : DC16V, 2.5A Temperature Operation : 5 - 35degrees, Storage : -10 - 60degrees Conditions Humidity Operation : 35 - 85%, Storage : 35 - 85% Dimension 297 x 210 x 29(max 40) mm Weight about 1.35Kg about 1.3Kg Operating system Microsoft ® Windows ® 98 Pre-installed software IE5.5 sp2, MS Java VM, Outlook Express IE5.5 sp2, Outlook Express Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2001/8/14maurice Z-Com, Inc. A Wireless Networking Company XI325(B) Block Diagram PLLI/Q LO IF VCO 748.5MHz HFA3783 QUAD IF WEP Engine PHY I/O CONTROL PROCESSOR RF DAC 1 1 7 6 6 7 6 ISL3873 BB and MAC RF ADC IF DAC Q ADC I ADC Q DAC I DAC TX DAC TX ADC RAKE AND DEMOD AGC CTL 6 6 I/O MOD AND FILTER TX ALC Parallel FLASH ISL3685 RF/IF CONV RF VCO 2037.75- 2109.75MHz PLL ANT SWITCH ISL3984 RF PA/DET BPF SAW 374MHz 44MHz CLOCK REF IN REF IN REF IN USB interface PCMCIA Host Interface 128K16 SRAM 32.768KHZ Sleep Base Band Processor Medium Access Controller 44MHz USB PCMCIA,ISA BPFBPF T/R SWITCH ANT RXANT TX/RX RX_RF_AGC RX_IF_DETECT RX_IF_AGC RX I TX_AGC_IN RX Q TX I TX Q TX_IF_AGC AME 8801 VCC_in(5.0V)+3.3V Channel Number Channel Frequency (MHz) IF 748MHz VCO(MHz) RF 2.1GHz VCO (MHz)2037.75 Status LED MEMORY ARBITER RADIO I/O HOST I/O CAL_EN ANT _SEL Optional Serial EEPROM T/R MMCX-R MMCX-R 55 44 33 22 11 D D C C B B A A SC3200266MHz DS90C363Inverter TFT-LCD800X600 TMP87CH48U T.S CONT TOUCH PANEL SDRAM LVDS HY57V561620BackupBattery 40mAH USB PORT IDE I/F AC"97LM4549 DC JACK Metal Contact Main Battery Sub Battery DC/DC LT1628LT1624 +5VALWAYS+3.3VALWAYSVCC5VVCC3.3VVCORE SpeakerInt.MicExt.MicHearPhone BIOS ROM 512KB SUPER I/O & EC PC87591 Thermal sensor BQ2000 SMART BATTERY 3S1P NS 9604 PCI/ISA LPC I/F ISA PCI I2C SERIAL SMBUSGPIO GPIO SLOT1 POWER SWITCHTPS2211 Card busPCI1410 option USB SLAVE USBSLAVE X-BUS MiniPCI RFCARDTWN-5213 HARRY W.LIAO R00C.6 BLOCK DIAGRAM B 228 Friday, December 27, 2002 TitleSize Document Number Rev Date: Sheet of

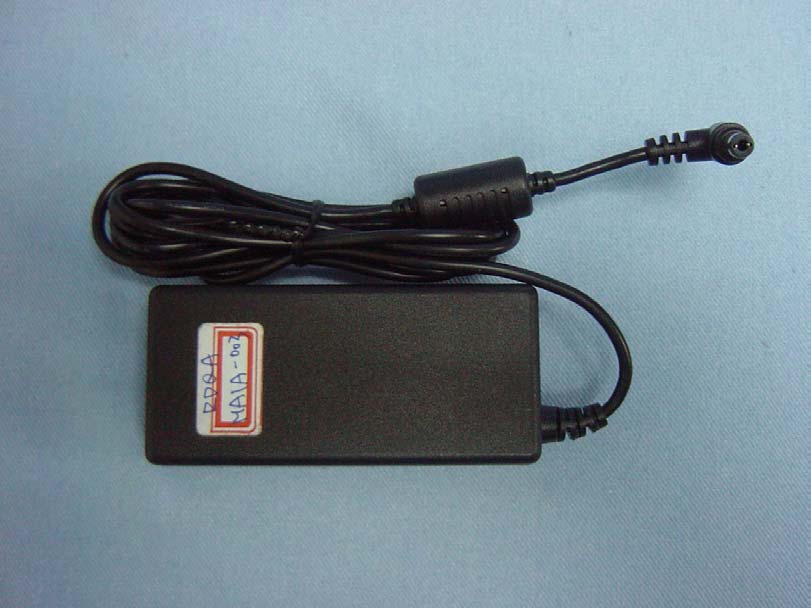

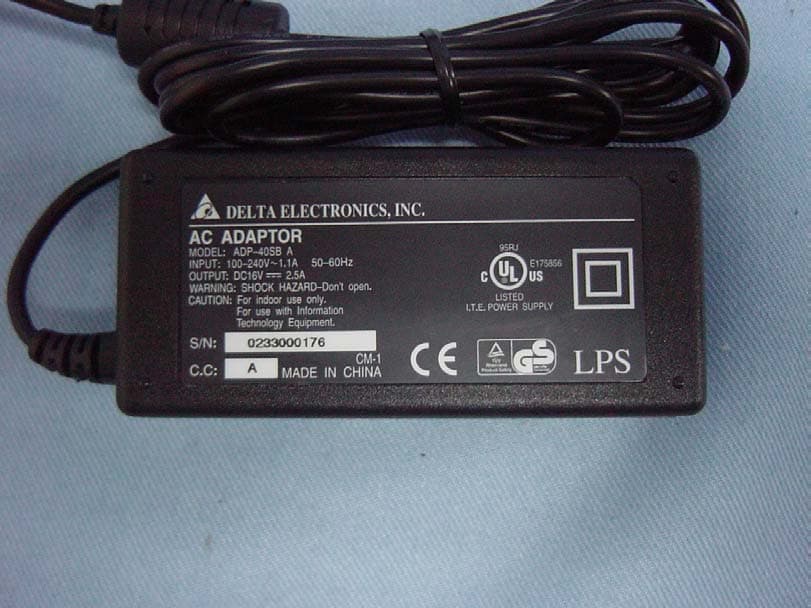

C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 44 Rev. 00 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 45 Rev. 00 All of EUT Front View of Webpad C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 46 Rev. 00 Back View of Webpad Lift View of Webpad C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 47 Rev. 00 Right View of Webpad Top View of Webpad C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 48 Rev. 00 Bottom View of Webpad Front View of Adaptor C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 49 Rev. 00 Back View of Adaptor

FCC ID LABEL FORMAT AND LOCATION Applicant: TATUNG CO. FCC ID: BJMZCOMS1577 FCC ID: BJMZCOMS1577 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 50 Rev. 00 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 51 Rev. 00 Internal of Webpad with WLAN module Antenna Position Bottom Cover RF Module RX Antenna Front Panel Bottom Cover C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 52 Rev. 00 Internal of Webpad TX Antenna C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 53 Rev. 00 Internal of Webpad (Main Board)-1 Internal of Webpad (Main Board)-2 C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 54 Rev. 00 Internal of PDA (Main Board)-3 RF Modul-1 C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 55 Rev. 00 RF Modul-2 RF Modul-3 C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 56 Rev. 00 Internal of RF Module Front of RF Module and Antenna C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 57 Rev. 00 Open of RF Module-1 Open of RF Module-2 C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 58 Rev. 00 Back of RF Module Back of RF Module and Antenna

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Ordering Terminal With 802.11b Wireless LAN PC Card Model: S1577-XXX FCC ID: BJMZCOMS1577 April 5, 2003 REPORT NO: 03T1917-1 Prepared for Tatung Co. 22 Chungshan North Rd, Section 3 Taipei, Taiwan, R.O.C Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 03T1917-1 DATE: April 5, 2003 FCC ID: BJMZCOMS1577 COMPLIANCE CERTIFICATION SERVICES Page 2 of 23 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: April 4 - 5, 2003 Report No: 03T1917-1 APPLICANT: Tatung Co. 22 Chungshan North Rd, Section 3 Taipei, Taiwan, R.O.C MODEL: S1577-XXX (X = 0-9, A-Z or Blank) FCC ID: BJMZCOMS1577 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Operating mode: Maximum continuous output Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: 15.48 dBm (Conducted) Max. SAR (1g): 0.0424 mW/g Application type: Certification FCC Rule part(s): § 15.247 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03T1917-1 DATE: April 5, 2003 FCC ID: BJMZCOMS1577 COMPLIANCE CERTIFICATION SERVICES Page 3 of 23 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION ............................................................................................. 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ............... 5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................ 5 3.1. MEASUREMENT SYSTEM DIAGRAM.............................................................................................6 3.2. SYSTEM COMPONENTS.................................................................................................................7 4. EVALUATION PROCEDURE ................................................................................ 9 5. MEASUREMENT UNCERTAINTY ....................................................................... 12 6. EXPOSURE LIMIT ............................................................................................. 13 7. MEASUREMENT RESULTS ............................................................................... 14 7.1. SYSTEM VALIDATION ...................................................................................................................14 7.2. TEST LIQUID CONFIRMATION .....................................................................................................15 7.3. EUT TUNE-UP PROCEDURES......................................................................................................15 7.4. EUT SETUP PHOTOS....................................................................................................................16 7.5. SAR MEASUREMENT RESULTS ..................................................................................................18 8. EUT PHOTOS .................................................................................................... 19 9. EQUIPMENTS LIST & CALIBRATION STATUS .................................................. 21 10. REFERENCES .................................................................................................. 22 11. ATTACHMENTS ................................................................................................ 23 REPORT NO: 03T1917-1 DATE: April 5, 2003 FCC ID: BJMZCOMS1577 COMPLIANCE CERTIFICATION SERVICES Page 4 of 23 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: Tatung Co. 22 Chungshan North Rd, Section 3 Taipei, Taiwan, R.O.C MODEL: S1577-XXX (X = 0-9, A-Z or Blank) FCC ID: BJMZCOMS1577 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Operating mode: Maximum continuous output Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: 15.48 dBm (Conducted) Max. SAR (1g): 0.0424 mW/g Application type: Certification FCC Rule part(s): § 15.247 Wireless Module: Wireless LAN PC Card - Manufactured by Z-Com, model XI-325, FCC ID M4Y-000325 Antenna (s): Tx & Rx - Manufactured by Tatung, model TWN-0313 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. REPORT NO: 03T1917-1 DATE: April 5, 2003 FCC ID: BJMZCOMS1577 COMPLIANCE CERTIFICATION SERVICES Page 5 of 23 This report sha…

Text truncated - open the document above for the full version.

Date/Time: 04/04/03 18:30:02 Test Laboratory: Compliance Certification Services File Name: D2450V2 SN 706_13 mW.da4 DUT: Dipole Type & Serial Number: D2450V2 SN 706 Program: System Validation (ET3DV6 SN 1577); I/P Power 250 mW, Air temp. 25 deg C, liquid temp. 23 deg C Communication System: CW - 2450 MHz; Frequency: 2450 MHz; Duty Cycle: 1:1 Medium: Head 2450 MHz ( σ = 1.8809 mho/m, ε = 39.13, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.1, 5.1, 5.1); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 94.4 V/m Peak SAR = 28.1 mW/g SAR(1 g) = 13 mW/g; SAR(10 g) = 5.78 mW/g Power Drift = -0.03 dB Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -22.8 -20.5 -18.2 -16 -13.7 -11.4 -9.12 -6.84 -4.56 -2.28 0

Date/Time: 04/04/03 21:47:20 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0391 mW.da4 EUT Configuration 1 SAR in dB -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 Date/Time: 04/04/03 21:47:20 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0391 mW.da4 DUT: Tatung Type & Serial Number: S1577-XXX Program: EUT Configuration 1; Air temp 25 deg C & Liquid temp 22.7 deg C Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 2.0104 mho/m, ε = 50.66, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 1.6 V/m Peak SAR = 0.121 mW/g SAR(1 g) = 0.0391 mW/g; SAR(10 g) = 0.0154 mW/g Power Drift = -0.12 dB Area Scan (19x26x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 Date/Time: 04/04/03 21:49:08 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0288 mW.da4 DUT: Tatung Type & Serial Number: S1577-XXX Program: EUT Configuration 1; Air temp 25 deg C & Liquid temp 22.7 deg C Communication System: DSSS; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 2.0104 mho/m, ε = 50.66, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 1.6 V/m Peak SAR = 0.0686 mW/g SAR(1 g) = 0.0288 mW/g; SAR(10 g) = 0.0159 mW/g Power Drift = -0.12 dB Area Scan (19x26x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 Date/Time: 04/04/03 22:53:08 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0424 mW.da4 DUT: Tatung Type & Serial Number: S1577-XXX Program: EUT Configuration 1; Air temp 25 deg C & Liquid temp 22.5 deg C Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 2.0104 mho/m, ε = 50.66, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 1.57 V/m Peak SAR = 0.147 mW/g SAR(1 g) = 0.0424 mW/g; SAR(10 g) = 0.0161 mW/g Power Drift = -0.12 dB Area Scan (19x26x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 Date/Time: 04/04/03 22:53:08 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0283 mW.da4 DUT: Tatung Type & Serial Number: S1577-XXX Program: EUT Configuration 1; Air temp 25 deg C & Liquid temp 22.5 deg C Communication System: DSSS; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 2.0104 mho/m, ε = 50.66, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 1.57 V/m Peak SAR = 0.0646 mW/g SAR(1 g) = 0.0283 mW/g; SAR(10 g) = 0.0152 mW/g Power Drift = -0.12 dB Area Scan (19x26x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 Date/Time: 04/04/03 23:52:58 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.0364 mW.da4 DUT: Tatung Type & Serial Number: S1577-XXX Program: EUT Configuration 1; Air temp 24.5 deg C & Liquid temp 22.4 deg C Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 2.0104 mho/m, ε = 50.66, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 1.46 V/m Peak SAR = 0.118 mW/g SAR(1 g) = 0.0364 mW/g; SAR(10 g) = 0.014 mW/g Power Drift = 0.09 dB Area Scan (19x26x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 Date/Time: 04/04/03 23:52:58 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.0257 mW.da4 DUT: Tatung Type & Serial Number: S1577-XXX Program: EUT Configuration 1; Air temp 24.5 deg C & Liquid temp 22.4 deg C Communication System: DSSS; Frequency: 2462 MHz; Duty Cycle: 1:1 Medium: Muscle 2450 MHz ( σ = 2.0104 mho/m, ε = 50.66, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(4.7, 4.7, 4.7); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 1.46 V/m Peak SAR = 0.0569 mW/g SAR(1 g) = 0.0257 mW/g; SAR(10 g) = 0.0136 mW/g Power Drift = 0.09 dB Area Scan (19x26x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 Date/Time: 04/05/03 00:43:34 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0075 mW.da4 EUT Configuration 2 SAR in dB -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 Date/Time: 04/05/03 00:43:34 T…

Text truncated - open the document above for the full version.

C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 1 of 40 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF 2.4GHz Wireless module built-in Webpad MODEL No.: S1577-XXX (X = 0-9,A-Z, blank) Model Difference: The models are same except the model designed FCC ID: BJMZCOMS1577 REPORT NO: 030038-RF-ID ISSUE DATE: Mar. 28, 2003 Prepared for TATUNG CO. 22 Chungshai N. Rd., 3 Sec. Taipei, Taiwan, 10451 R.O.C. Prepared by C&C LABORATORY, CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: TATUNG CO. 22 Chungshai N. Rd., 3 Sec. Taipei, Taiwan, 10451 R.O.C . Product Description: 2.4GHz Wireless module built-in Webpad Model No.: S1577-XXX (X = 0-9, A-Z, blank) Model Difference The models are same except the model designed Serial Number: N/A File Number: 030038-RF-ID Date of test: March 24, 2003 ~March 28, 2003 We hereby certify that: The above equipment was tested by C&C Laboratory Co., Ltd. The test data , data evaluation , test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Approved By Vincent Su / Vice Manager C&C Laboratory Co., Ltd.. C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION ........................................................................................... 5 1.1 P RODUCT D ESCRIPTION .....................................................................................................................5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ...............................................................................................5 1.3 T EST M ETHODOLOGY ........................................................................................................................5 1.4 T EST F ACILITY ...................................................................................................................................5 1.5 S PECIAL A CCESSORIES ......................................................................................................................5 1.6 E QUIPMENT M ODIFICATIONS .............................................................................................................5 2. SYSTEM TEST CONFIGURATION .............................................................................. 6 2.1 EUT C ONFIGURATION .......................................................................................................................6 2.2 EUT EXERCISE..................................................................................................................................6 2.3 T EST P ROCEDURE ..............................................................................................................................6 2.4 C ONFIGURATION OF T ESTED S YSTEM ...............................................................................................7 3. SUMMARY OF TEST RESULTS ................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................ 8 5. SPURIOUS EMISSION TEST ......................................................................................... 9 5.1 S TANDARD A PPLICABLE ....................................................................................................................9 5.2 EUT SETUP........................................................................................................................................9 5.3 M EASUREMENT P ROCEDURE .............................................................................................................9 5.4 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) .................................................................10 5.5 M EASUREMENT E QUIPMENT U SED :.................................................................................................11 5.6 M EASUREMENT R ESULT ..................................................................................................................11 6. AC POWER LINE CONDUCTED EMISSION TEST ................................................ 23 6.1 S TANDARD A PPLICABLE ..................................................................................................................23 6.2 EUT SETUP......................................................................................................................................23 6.3 M EASUREMENT P ROCEDURE ...........................................................................................................23 6.4 M EASUREMENT E QUIPMENT U SED :.................................................................................................24 6.5 M EASUREMENT R ESULT ..................................................................................................................24 7. 6 DB BANDWIDTH MEASUREMENT........................................................................ 27 7.1 S TANDARD A PPLICABLE ..................................................................................................................27 7.2 MEASUREMENT EQUIPMENT USED:.................................................................................................27 7.3 T EST S ET - UP : .................................................................................................…

Text truncated - open the document above for the full version.

C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 41 Rev. 00 APPENDIX 1 PHOTOGRPHS OF SET UP C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 42 Rev. 00 PHOTOGRPHS OF SET UP Radiated Emission Set up Photos C&C Laboratory Co. Ltd. REPORT NO: 030038-RF-ID ID: BJMZCOMS1577 DATE: March 28, 2003 Page 43 Rev. 00 Conducted Emission Set Up Photos
