BV2-EW21DMDENON Wireless Module 5G

Everestek Inc. Page 1 www.everestek.biz 5GHz 2.1CH Module (SW-S) Data Sheet DENON Wireless Module 5G EW21DM Version: 1.4 2020/01/07 Everestek Inc. Page 3 www.everestek.biz 1. Features The SW-S is a module based on Everestek ETK52, providing 3 channels audio for 2.1 channel (L+R+subwoofer) application. Operating in both 5.2G and 5.8GHz RF bands. This module support 3 channels compressed audio stream and comes with additional features such as data encryption, pairing functionality, bi-directional data messages, enhanced RF interference detection, and automatic frequency allocation. Brief features include:  Radio Frequency: 5.8G and 5.2G unlicensed bands  Delay Time Variation + audio jitter is only +/- 6.5μsec. (Total delay time variation is less than +/-2.5 degree @ 1K sine tone.)  Long Link Distance  Advanced RF Selection Algorithm  Small RF Foot Print  Best Coexistence with Wi-Fi/Bluetooth  Highly Integrated SoC: RF/PA/CPU/Flash Embedded  Wide-Band Antenna on Module  Short RBOM List  RF Modulation: FSK  Digital I2S (master or slave) Audio Interface, 24bit , 32/44.1/48KHz Sampling Rate  Low Power Consumption  Supply Voltage: 2.7~3.6V  Support I2C master/slave mode and UART  Compliant with EMC Regulations (FCC/CE) 2. Application  Wireless 2.1 channels audio  Dolby ATMOS 5.1.2 / 5.1.4  Dolby Digital 5.1 Everestek Inc. Page 4 www.everestek.biz 3. Electrical Specifications RF Specification Item Min Typ Max Unit Note RF Carrier Frequency 5725 ─ 5845 MHz For 5.8GHz 5135 ─ 5255 MHz For 5.2GHz -20dB bandwidth ─ 2 ─ MHz Output Power 7 dBm RF Sensitivity ─ -85 dBm Operation Condition Item Min Typ Max Unit Note VDD 2.7 3.3 3.6 V Power Supply Voltage Digital interface Item Min Typ Max Unit Note VIH 0.7VDD VDD+0.2 V Input High Threshold VIL VSS 0.3VDD V Input Low Threshold VOH VDD-0.3 VDD V Output High Threshold VOL 0 0.3 V Output Low Threshold Everestek Inc. Page 5 www.everestek.biz 4. Mechanical Specification Different labels and part numbers are used to distinguish between Tx and Rx.  Dimension：34 mm x 18 mm, thickness 2.5mm (PCB with shielding case, connector is not included)  PCB 4 Layers  Mechanical Drawing: Bottom view  Connector Drawing: 18 25 16.5 1.27 25 1 1.27 26 2 9 (0, 0) only) 9 Antenna Area No trace, ground, power copper underneath this area! 2 (use plastic screw 34 5.5 13 4.7 Everestek Inc. Page 6 www.everestek.biz 2.1 Channel I2S pins connections Note: Subwoofer I2S output, L-channel data will be the original data from Tx, R-channel will be the inverse data of L-channel Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is restricted for indoor use. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. C Everestek Inc. Page 7 www.everestek.biz IMPORTANT NOTE: This module is intended for OEM integrator. This module is only FCC authorized for the specific rule parts listed on the grant, and that the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. Additional testing and certification may be necessary when multiple modules are used. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: BV2- EW21DM ". This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not caus…

Text truncated - open the document above for the full version.

Page No. : 40 Module Approval Request Letter Date: 2020/7/2 Subject: Module Approval FCC ID: BV2-EW21DM To Whom It May Concern: We, Sporton International Inc., are authorized by D&M Holdings Inc. to have their state-of-the-art device approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1.The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2.The requirement of buffered inputs: Buffered data inputs stage has been integrated in IC chip ETK52. 3.The requirement of power supply regulation: The part number of the power regulator is in IC chip ETK52. 4.The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5.The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6.The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7.The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8.The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature: Name : Leo Huang Job Title : Manager

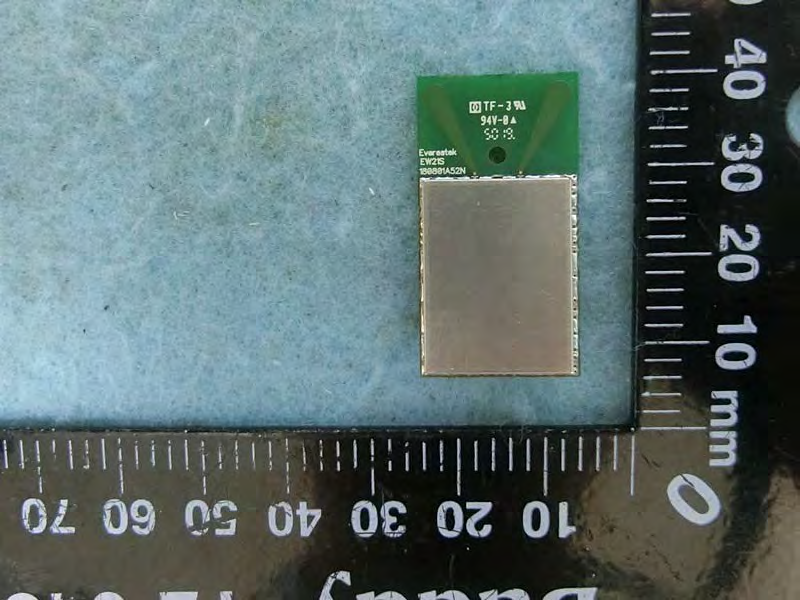

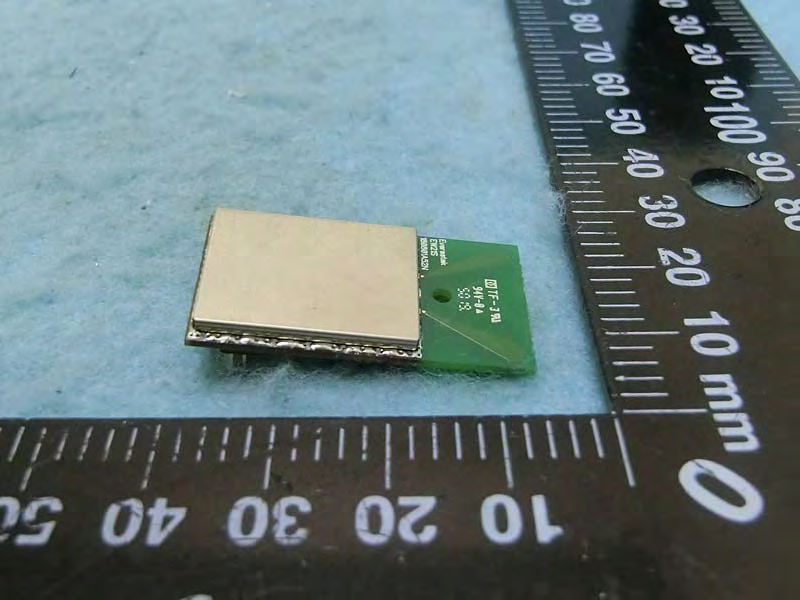

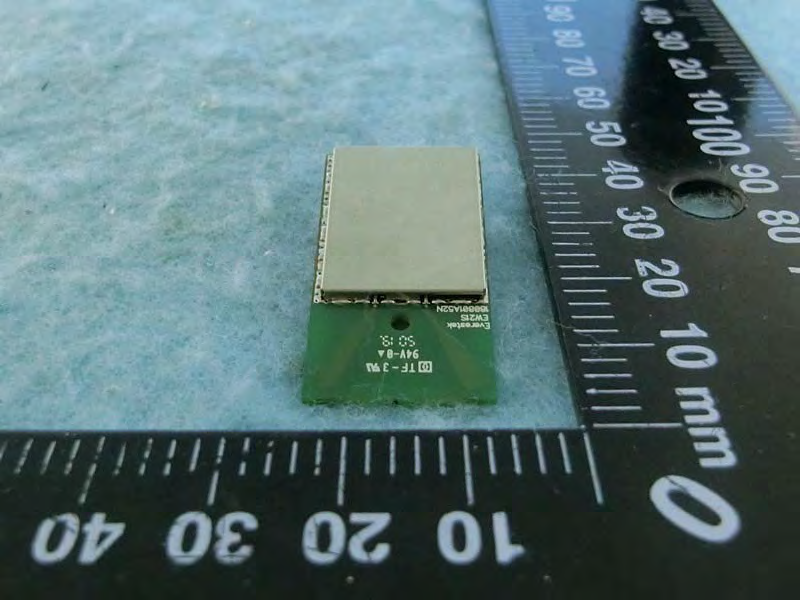

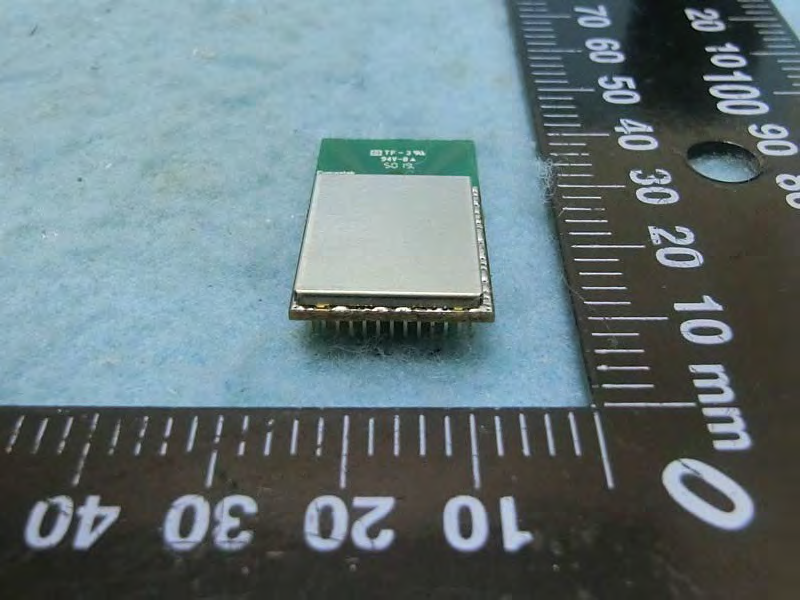

PHOTOGRAPHS OF EUT Report No. : EP041026-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 3 TEL : 886-3-656-9065 Issued Date : Jun. 22, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: DENON Model Name: EW21DM PHOTOGRAPHS OF EUT Report No. : EP041026-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 3 TEL : 886-3-656-9065 Issued Date : Jun. 22, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041026-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 3 TEL : 886-3-656-9065 Issued Date : Jun. 22, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP

Label Location Label Here

PHOTOGRAPHS OF EUT Report No. : EP041026-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 3 TEL : 886-3-656-9065 Issued Date : Jun. 22, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: DENON Model Name: EW21DM PHOTOGRAPHS OF EUT Report No. : EP041026-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 3 TEL : 886-3-656-9065 Issued Date : Jun. 22, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP041026-01 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 3 TEL : 886-3-656-9065 Issued Date : Jun. 22, 2020 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP

FCC RADIO EXPOSURE TEST REPORT Report No. : FA041026-01 TEL : 886-3-656-9065 Page Number : 2 of 7 FAX : 886-3-656-9085 Issued Date : Jun. 29, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Table of Contents History of this test report.................................................................................................................................3 Summary of Test Result...................................................................................................................................4 1 General Description .............................................................................................................................5 1.1 EUT General Information .......................................................................................................................5 1.2 Testing Location .....................................................................................................................................5 2 Maximum Permissible Exposure ........................................................................................................6 2.1 Limit of Maximum Permissible Exposure ...............................................................................................6 2.2 MPE Calculation Method........................................................................................................................6 2.3 Calculated Result and Limit....................................................................................................................7 Photographs of EUT v01 FCC RADIO EXPOSURE TEST REPORT Report No. : FA041026-01 TEL : 886-3-656-9065 Page Number : 3 of 7 FAX : 886-3-656-9085 Issued Date : Jun. 29, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 History of this test report Report No. Version Description Issued Date FA041026-01 01 Initial issue of report Jun. 29, 2020 FCC RADIO EXPOSURE TEST REPORT Report No. : FA041026-01 TEL : 886-3-656-9065 Page Number : 4 of 7 FAX : 886-3-656-9085 Issued Date : Jun. 29, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Note: Reference to Sporton Project No.: 041026 Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Viola Huang FCC RADIO EXPOSURE TEST REPORT Report No. : FA041026-01 TEL : 886-3-656-9065 Page Number : 5 of 7 FAX : 886-3-656-9085 Issued Date : Jun. 29, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 5GHz 5150-5250 5725-5850 5157-5243 5726-5848 FSK 1.2 Testing Location Testing Location HWA YA ADD : No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL : 886-3-327-3456 FAX : 886-3-327-0973 JHUBEI ADD : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Test site registered number IC 4086D with Industry Canada. FCC RADIO EXPOSURE TEST REPORT Report No. : FA041026-01 TEL : 886-3-656-9065 Page Number : 6 of 7 FAX : 886-3-656-9085 Issued Date : Jun. 29, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Method The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   FCC RADIO EXPOSURE TEST REPORT Report No. : FA041026-01 TEL : 886-3-656-9065 Page Number : 7 of 7 FAX : 886-3-656-9085 Issued Date : Jun. 29, 2020 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 2.3 Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure Mode DG (dBi) Power (dBm) EIRP (dBm) Tolerance (dB) Tune-up EIRP (dBm) Tune-up EIRP (W) Distance (cm) S (mW/cm 2 ) S Limit (mW/cm 2 ) 5.2G;F1D 2.00 7.41 9.41 0.50 9.91 0.00979 20 0.00195 1.00000 5.8G;F1D 2.00 13.61 15.61 0.50 16.11 0.04083 20 0.00812 1.00000 Note: The above antenna gain was declared by manufacturer. ─────THE END────

FCC RADIO TEST REPORT Report No. : FR041026-01 TEL : 886-3-656-9065 Page Number : 2 of 26 FAX : 886-3-656-9085 Issued Date : Jun. 29, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 01 Table of Contents History of this test report.................................................................................................................................3 Summary of Test Result...................................................................................................................................4 1 General Description .............................................................................................................................5 1.1 Information..............................................................................................................................................5 1.2 Applicable Standards .............................................................................................................................6 1.3 Testing Location Information ..................................................................................................................6 1.4 Measurement Uncertainty ......................................................................................................................6 2 Test Configuration of EUT...................................................................................................................7 2.1 Test Channel Mode ................................................................................................................................7 2.2 The Worst Case Measurement Configuration........................................................................................8 2.3 EUT Operation during Test ....................................................................................................................8 2.4 Accessories ............................................................................................................................................8 2.5 Support Equipment.................................................................................................................................9 2.6 Test Setup Diagram .............................................................................................................................10 3 Transmitter Test Result .....................................................................................................................12 3.1 AC Power-line Conducted Emissions ..................................................................................................12 3.2 Emission Bandwidth .............................................................................................................................14 3.3 Maximum Conducted Output Power ....................................................................................................15 3.4 Peak Power Spectral Density...............................................................................................................17 3.5 Unwanted Emissions ............................................................................................................................20 4 Test Equipment and Calibration Data ..............................................................................................25 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of Emission Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Peak Power Spectral Density Appendix E. Test Results of Unwanted Emissions Appendix F. Test Photos Photographs of EUT v01 FCC RADIO TEST REPORT Report No. : FR041026-01 TEL : 886-3-656-9065 Page Number : 3 of 26 FAX : 886-3-656-9085 Issued Date : Jun. 29, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 01 History of this test report Report No. Version Description Issued Date FR041026-01 01 Initial issue of report Jun. 29, 2020 FCC RADIO TEST REPORT Report No. : FR041026-01 TEL : 886-3-656-9065 Page Number : 4 of 26 FAX : 886-3-656-9085 Issued Date : Jun. 29, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.407(a) Emission Bandwidth PASS - 3.3 15.407(a) Maximum Conducted Output Power PASS - 3.4 15.407(a) Peak Power Spectral Density PASS - 3.5 15.407(b) Unwanted Emissions PASS - Note: Reference to Sporton Project No.: 041026 Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Viola Huang FCC RADIO TEST REPORT Report No. : FR041026-01 TEL : 886-3-656-9065 Page Number : 5 of 26 FAX : 886-3-656-9085 Issued Date : Jun. 29, 2020 Report Template No.: CB-A12_1 Ver1.2 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) Channel Spacing (MHz) Ch. Frequency (MHz) Channel Number 5150-5250 2 5157-5243 1-44 [44] 5725-5850 2 5726-5848 46-107 [62] Band (MHz) Mode BWch (MHz) Nant 5150-5250 FSK 2 1TX 5725-5850 FSK 2 1TX Note: Uses a combination of FSK modulation. BWch is the nominal channel bandwidth. 1.1.2 Antenna Information Ant. Brand Model Name Antenna Type Connector Gain (dBi) Remark 1 N/A N/A Printed Antenna N/A 2 TX 2 N/A N/A Printed Antenna N/A 2 RX Note: The above information was declared by manufacturer. 1.1.3 Mode Test Duty Cycle Mode DC DCF(dB) T(s) VBW(Hz) ≥ 1/T FSK 1 0 n/a (DC>=0.98) n/a (DC>=0.98) Note: DC is Duty Cycle. DCF is Duty Cycle Factor. 1.1.4 EUT Operational Conditio…
