PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 1 of 16 ZBAMB2070 Mobile Handheld Deactivator (Motorola MT2070 Handheld Scanner) Installation Guide IMPORTANT! Before You Begin! This device contains many unique parts. Before you go to the installation site, watch the Mobile Handheld Deactivator training video on the LMS site at https://mytycohr.com, or on Yammer “Tyco Retail Solutions Global Training Group” at https://www.yammer.com/tyco.com. Contents Required Parts and Tools ...................................... 2 Installation .............................................................. 3 Troubleshooting ................................................... 13 Maintain the Product ............................................ 14 Specifications ....................................................... 15 Declarations ......................................................... 16 Note: Because customer requirements may dictate the placement of specific components, your Sensormatic representative will supply this information separately. © 2013 Sensormatic Electronics, LLC Motorola MT2070 Handheld Scanner ZBAMB2070 EAS Deactivator Module Assembly (dark shaded parts) Motorola MT2070 Base Charging Station PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 2 of 16 Required Parts and Tools EAS Power Supply 5606-0096-01 (plus 0352-0460-xx power cord) S3 S2 W ZBAMB4415 EAS Module Front Adapter EAS Module Rear Adapter S1 (2x) ZBAMB4410 EAS Deactivator Module S1 (2x) S3 (2x) W (2x) S2 (2x) Lithium Battery Kit 0352-0594-01 (3.7V, 2.2Ah, with leads) 2 in a box PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 3 of 16 Installation Step 1. Prepare the Motorola scanner gun 1a 1b Scanner Gun Use a T8x60 Torx wrench to remove the Motorola MT2070 bumper (save parts to give later to Loss Prevention Manager). T8x60 (2x) Press and slide switch to release. Save the battery. You will re-install it at the end of this procedure. WARNING: Remove the battery to prevent accidental exposure to laser radiation during assembly. PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 4 of 16 Step 2. Attach the scanner gun to the EAS Deactivator Module 2a 2b Tight fit. Apply moderate pressure to secure. 2. Press in place. 1. Push down. S1 (2x) Use a 3/32in hex wrench. PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 5 of 16 Remove the Motorola interlock and power supply cables. Step 3. Prepare the Motorola Base Charging Station 3a 3b 3c 2x Remove and save screws. Re-install in Step 4c. Detach the Motorola Base Charging Station from the counter by removing the center screw and/or Velcro, if any. PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 6 of 16 Step 4. Modify the Motorola Base Charging Station (Part 1) 4a 4b 4c Install the ZBAMB4415 EAS Front Adapter. Squeeze tabs to detach the Motorola Front Adapter. Give the part to the Loss Prevention Manager. 2x Secure EAS Front Adapter by reinstalling screws removed in Step 3c. PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 7 of 16 Step 5. Modify the Motorola Base Charging Station (Part 2) 5a 5b Turn the locking screw counter-clockwise. Press the ZBAMB4415 EAS Rear Adapter onto the Motorola Base Charging Station until it “clicks”. Note: Leave the locking screw in its counter-clockwise position. PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 8 of 16 Modify the Motorola Base Charging Station (Part 2), continued 5c 5d Plug the EAS Power supply into a protected AC outlet. 5606-0096-01 EAS Power Supply Thread the EAS power supply cable into the bottom of the EAS Rear Adapter. PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 9 of 16 Step 6. Modify the Motorola Base Charging Station (Part 3) 6a 6b 6c Motorola (Blue LED) EAS (Blue LED) Verify that power is supplied to both the deactivator module and to the Motorola Base Charging Station. Route the EAS power supply cable through the cable channel in the Motorola Base Charging Station. Tape cables in place where shown. Re-connect the Motorola interlock and power supply cables. Tie wrap cables PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 10 of 16 Step 7. Secure the Motorola Base Charging Station Example of Mounting Location A mounting plate may be required if the mounting surface is uneven. Order Mounting Plate Kit 0352-0588-01. In the order shown, secure the Base Charging Station at the customer’s preferred location (see example below). Secure the front adapter first, then the rear adapter. W (2x) Use to level the base charging station. 1. S2 (2x) 2. S3 (2x) 3. PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 11 of 16 Step 8. Install the EAS battery 8a 8c 8d 8b Holding the battery with its barcode label facing up, plug in the battery cable. Barcode label Bend wires as shown. Remove the screw and battery cover. Install the battery cover and secure with the screw. DO NOT over tighten. PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 12 of 16 Step 9. Re-install the battery into the Motorola scanner gun Step 10. Pair the scanner gun to the Base Charging Station Scan the barcode on the Motorola Base Charging Station to pair the scanner. LED/Audio sequence: Red > Beep > Green. Look for lightning bolt symbol on the LCD. PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-01, REV. 1B USER GUIDE 13 of 16 Step 11. Charge the battery in the EAS Deactivator Module Troubleshooting ZBAMB4410 Deactivator LEDs / Audio Indicates Fast flashing red Replace battery Slow flashing red + beep Module is out of range of wireless AP Solid red Replace module Motorola Base Charging Station LED Indicates Dim Blue No communication Off No power MT2070 Scanner LCD I…

Text truncated - open the document above for the full version.

PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. 1B INSTALLATION AND USER GUIDE 1 of 5 ZBAMB2070 Mobile Handheld Deactivator For use with a Motorola MT2070 handheld barcode scanner User Guide The ZBAMB2070 Mobile Handheld Deactivator combines a Motorola MT2070 barcode scanner with a rechargeable battery-operated deactivator coil. This guide covers:  Using the device  Charging the battery  Replacing the battery. If you need assistance... Contact your Sales Representative. Safety WARNING:  No serviceable parts! Opening the deactivator may expose you to electric shock! If the deactivator appears defective, have your loss prevention manager or IT specialist return it to the distributor.  Never use a damaged deactivator. WARNING:  The deactivator is not to be used for scanning a person. Always keep a distance of at least 35cm (14in) between the deactivation coil and another person. Refer to the Safety Notice on page 5.  Ensure safety instructions within this manual are observed during the installation and/or operation of the deactivator.  For proper charging, rest the deactivator in the Motorola Base Charging Station exactly as shown in the image. Resting the deactivator any other way will affect its operation. © 2013 Sensormatic Electronics, LLC Motorola MT2070 Handheld Scanner Motorola MT2070 Base Charging Station ZBAMB2070 EAS Deactivator Module Assembly (dark shaded parts) PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. 1B INSTALLATION AND USER GUIDE 2 of 5 Using the Device 1. Remove the scanner/deactivator from the Motorola Base Charging Station. 2. Aim the scanner at the barcode and: a) Pull the trigger. The scanner will beep indicating a successful scan. b) Release the trigger; the LEDs on the deactivator will flash yellow for 3 seconds. Within this window, perform step 3. (If you were unable to perform step 3 within this window, repeat step 2.) 3. Swirl the deactivator coil in 2.54cm (1in) circles no more than 11.4cm (4.5in) from the barcode. Observe deactivation indications. Deactivation Indications LEDs / Audio Indicates Green flash + 1 beep Deactivation successful Red flash + 3 beeps Deactivation failed 4. When finished, seat the scanner/deactivator firmly into the Motorola Base Charging Station to maintain the battery charge. Fault Indications LEDs / Audio Indicates Flashing red and yellow Replace the battery. Red flash + beep every 500ms until 30 seconds has elapsed Deactivator is out of range of the Sync AP device. Solid red Replace the deactivator. IIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIIIIIIIIII PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. 1B INSTALLATION AND USER GUIDE 3 of 5 Charging the Battery The handheld deactivator has a rechargeable battery. LEDs on the deactivator will flash green when the battery is charging or red if the battery charge is low. IMPORTANT! To maintain the battery charge, rest the deactivator in the Motorola Base Charging Station exactly as shown below when not in use. To replace the battery, see “Replacing the Battery” on page 4. Battery Charging Indicators Both LEDs Indicate Flashing green Charging Solid green Fully charged Off Deactivator is removed from base If Battery Charge is Low Remaining Battery Life LEDs Flash Red Every... Beeps Above 30% — — 30% 120 seconds 3 20% 60 seconds 3 15% 30 seconds 3 10% 15 seconds 3 PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. 1B INSTALLATION AND USER GUIDE 4 of 5 Replacing the Battery To replace the battery, see your loss prevention manager or IT specialist. WARNING: Risk of explosion if the battery is replaced with an incorrect size and type. WARNING: Recycle or dispose used batteries according to local or state requirements. DO NOT mutilate the battery or expose it to flame. Before recycling or disposing, insulate exposed battery wires with electrical tape. 1. Remove the screw and battery cover from the bottom of the deactivator. 2. Remove the battery and disconnect it. 3. Plug in the new battery, bend wires as shown, and seat it in the battery compartment. Install the battery cover and secure it with the screw. DO NOT over tighten. Bend wires as shown. Bar code label must be face up. PRELIMINARY ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. 1B INSTALLATION AND USER GUIDE 5 of 5 Declarations Regulatory Information FCC ID: BVCAMB44 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment into an outlet on a circuit different from that to which the receiver is connected, and/or consult the dealer or an experienced radio/TV technician for help. IC ID: 3506A-AMB44 MODELS: ZBAMB2070 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas pr…

Text truncated - open the document above for the full version.

ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. A INSTALLATION AND USER GUIDE 1 of 5 ZBAMB2070 Mobile Handheld Deactivator For use with a Motorola MT2070 handheld barcode scanner User Guide The ZBAMB2070 Mobile Handheld Deactivator combines a Motorola MT2070 barcode scanner with a rechargeable battery-operated deactivator coil. This guide covers: • Using the device • Charging the battery • Replacing the battery. If you need assistance... Contact your Sales Representative. Safety WARNING: • No serviceable parts! Opening the deactivator may expose you to electric shock! If the deactivator appears defective, have your loss prevention manager or IT specialist return it to the distributor. • Never use a damaged deactivator. WARNING: • The deactivator is not to be used for scanning a person. Always keep a distance of at least 35cm (14in) between the deactivation coil and another person. Refer to the Safety Notice on page 5. • Ensure safety instructions within this manual are observed during the installation and/or operation of the deactivator. • For proper charging, rest the deactivator in the Motorola Base Charging Station exactly as shown in the image. Resting the deactivator any other way will affect its operation. © 2013 Sensormatic Electronics, LLC Motorola MT2070 Handheld Scanner Motorola MT2070 Base Charging Station ZBAMB2070 EAS Deactivator Module Assembly (dark shaded parts) ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. A INSTALLATION AND USER GUIDE 2 of 5 Using the Device 1. Remove the scanner/deactivator from the Motorola Base Charging Station. 2. Aim the scanner at the barcode and: a) Pull the trigger. The scanner will beep indicating a successful scan. b) Release the trigger; the LEDs on the deactivator will flash yellow for 3 seconds. Within this window, perform step 3. (If you were unable to perform step 3 within this window, repeat step 2.) 3. Swirl the deactivator coil in 2.54cm (1in) circles no more than 11.4cm (4.5in) from the barcode. Observe deactivation indications. Deactivation Indications LEDs / Audio Indicates Green flash + 1 beep Deactivation successful Red flash + 3 beeps Deactivation failed 4. When finished, seat the scanner/deactivator firmly into the Motorola Base Charging Station to maintain the battery charge. Fault Indications LEDs / Audio Indicates Flashing red and yellow Replace the battery. Red flash + beep every 500ms until 30 seconds has elapsed Deactivator is out of range of the Sync AP device. Solid red Replace the deactivator. IIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIIIIIIIIII ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. A INSTALLATION AND USER GUIDE 3 of 5 Charging the Battery The handheld deactivator has a rechargeable battery. LEDs on the deactivator will flash green when the battery is charging or red if the battery charge is low. IMPORTANT! To maintain the battery charge, rest the deactivator in the Motorola Base Charging Station exactly as shown below when not in use. To replace the battery, see “Replacing the Battery” on page 4. Battery Charging Indicators Both LEDs Indicate Flashing green Charging Solid green Fully charged Off Deactivator is removed from base If Battery Charge is Low Remaining Battery Life LEDs Flash Red Every... Beeps Above 30% — — 30% 120 seconds 3 20% 60 seconds 3 15% 30 seconds 3 10% 15 seconds 3 ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. A INSTALLATION AND USER GUIDE 4 of 5 Replacing the Battery To replace the battery, see your loss prevention manager or IT specialist. WARNING: Risk of explosion if the battery is replaced with an incorrect size and type. WARNING: Recycle or dispose used batteries according to local or state requirements. DO NOT mutilate the battery or expose it to flame. Before recycling or disposing, insulate exposed battery wires with electrical tape. 1. Remove the screw and battery cover from the bottom of the deactivator. 2. Remove the battery and disconnect it. 3. Plug in the new battery, bend wires as shown, and seat it in the battery compartment. Install the battery cover and secure it with the screw. DO NOT over tighten. Bend wires as shown. Bar code label must be face up. ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. A INSTALLATION AND USER GUIDE 5 of 5 Declarations Regulatory Information FCC ID: BVCAMB44 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment into an outlet on a circuit different from that to which the receiver is connected, and/or consult the dealer or an experienced radio/TV technician for help. IC ID: 3506A-AMB44 MODELS: ZBAMB2070 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit acc…

Text truncated - open the document above for the full version.

Nov. 18, 2013 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Re: Application for a Confidential Request for DSS wireless network Device, FCC ID: BVCAMB44 Dear Sir or Madam: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: BVCAMB44 Conf OpDes.pdf BVCAMB44 Conf Schem.pdf BVCAMB44 Conf BlkDia.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, William D. Owsley Principal EMC Engineer Compliance Engineering Tyco Retail Solutions Sensormatic Electronics, LLC. 6600 Congress Ave. Boca Raton, FL. 33487

FCC ID: BVCAMB44 IC: 3506A-AMB44 Nov. 22, 2013 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Re: Application for a Certification for wireless private network transceiver device, FCC ID: BVCAMB44 IC: 3506A-AMB44 Dear Sir or Madam: This handheld device communicates with a FCC ID: BVCAMB43 and receives a series of digital modulated pulses per 15.247 in the 2400-2483.5 MHz band and is used as a private wireless network to synchronize a number of EAS anti-pilferage devices. The radio module is built into a pcb card that mates with another pcb for power and data. There are several other cards in the unit for indicator lights and charger connection and serial interface to a bar code scanner. The EAS part of unit is a 58 kHz radio that has a maximum output more than 40 dB below the limit at all measureable frequencies. The 58 kHz radio is exempt from Certification per 15.201(a) and has been verified to comply. Testing and results indicated in the test report, demonstrate that the transmitter meets the general radiated limits of 15.209 and also the conducted limits of 15.207 and complies with 15.247 for DTS transceivers. Sincerely, William D. Owsley Principal EMC Engineer Sensormatic Electronics, LLC. 6600 Congress Ave. Boca Raton, FL. 33487

FCC ID: BVCAMB44 IC: 3506A-AMB44 FCC Declaration of Conformity Statement Model: AMB4410 FCC ID: BVCAMB44 This equipment complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits provide reasonable protection against harmful interference in a commercial or residential installation. This equipment can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following: reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment on a circuit different from that to which the receiver is connected, consult the dealer or an experienced radio/TV technician for help. Equipment changes or modifications not expressly approved by Sensormatic Electronics, LLC, the party responsible for FCC compliance, could void the user’s authority to operate the equipment and could create a hazardous condition. Industry Canada (IC) IC: 3506A-AMB44 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This Class B digital device complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Sincerely, William D. Owsley / Principal EMC Engineer Tyco Safety Products / Sensormatic Electronics, LLC. 6600 Congress Ave. Boca Raton, FL. 33487

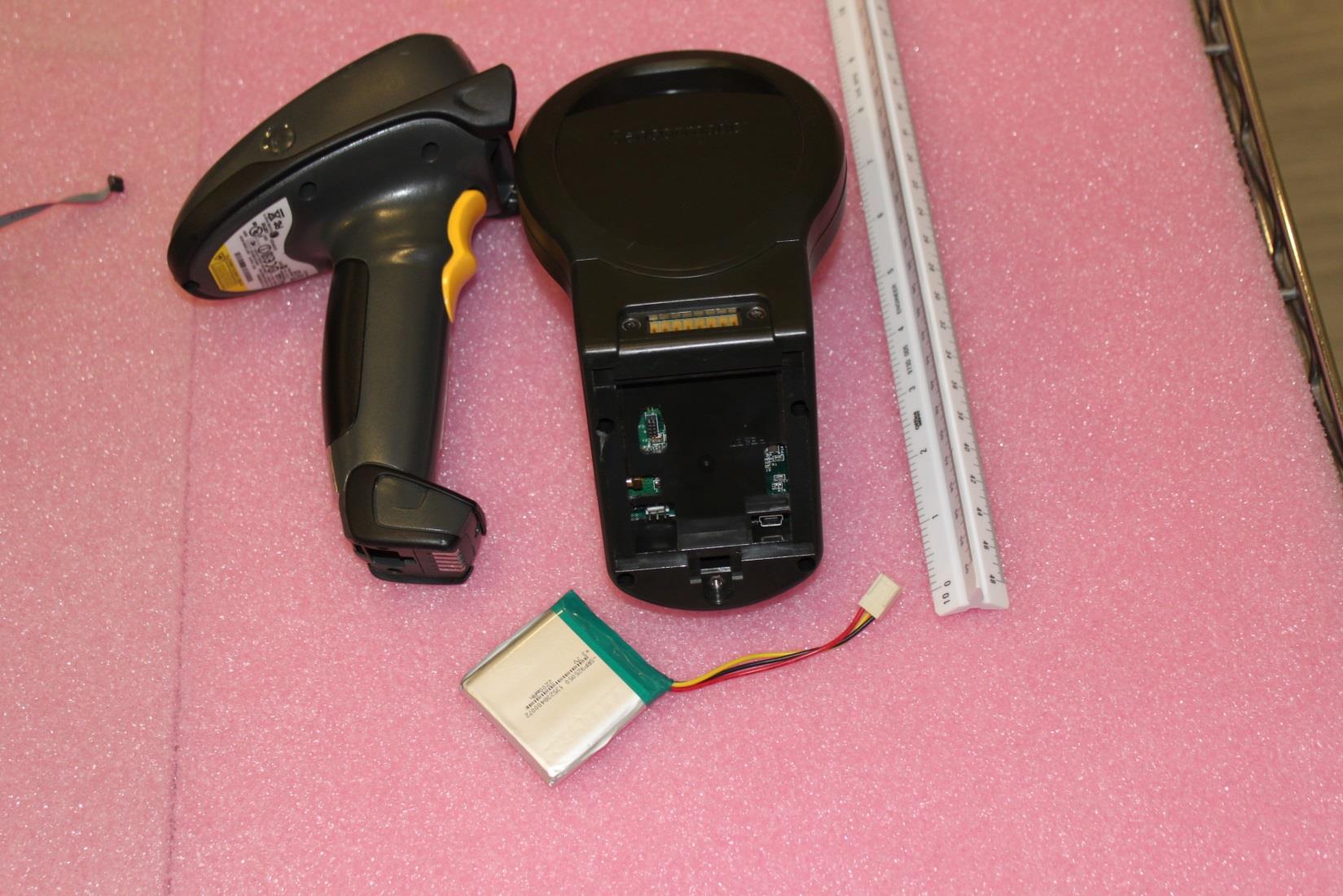

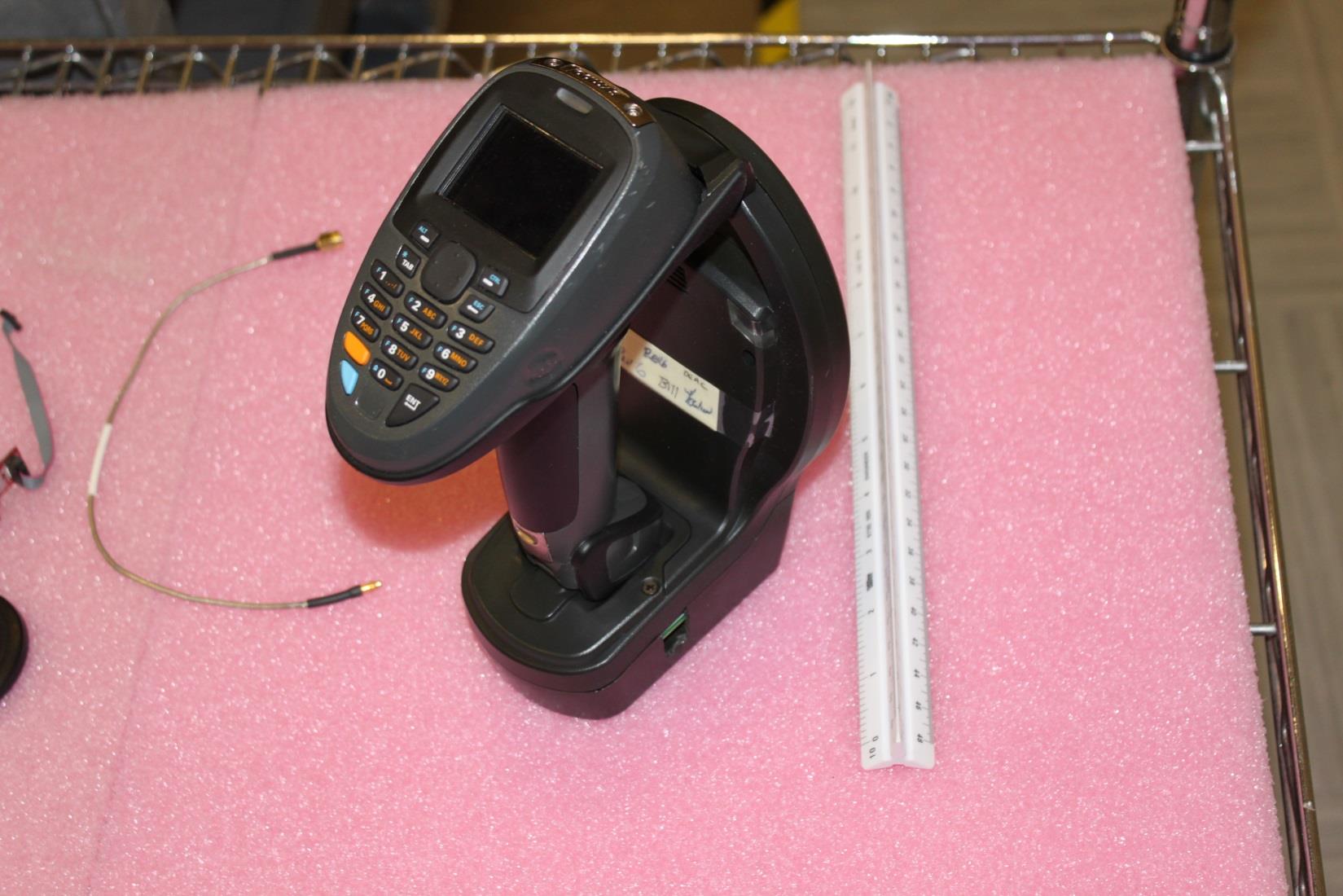

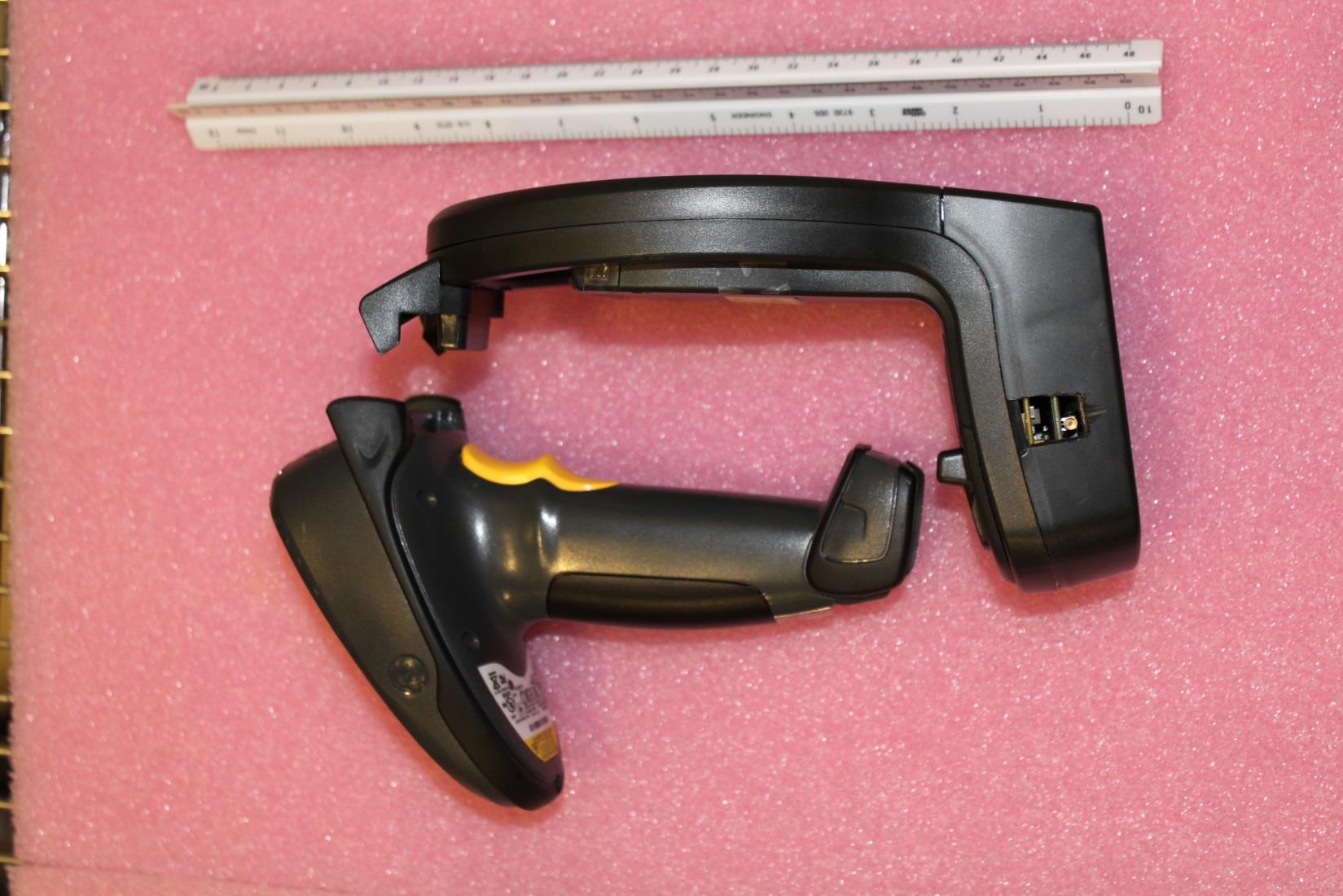

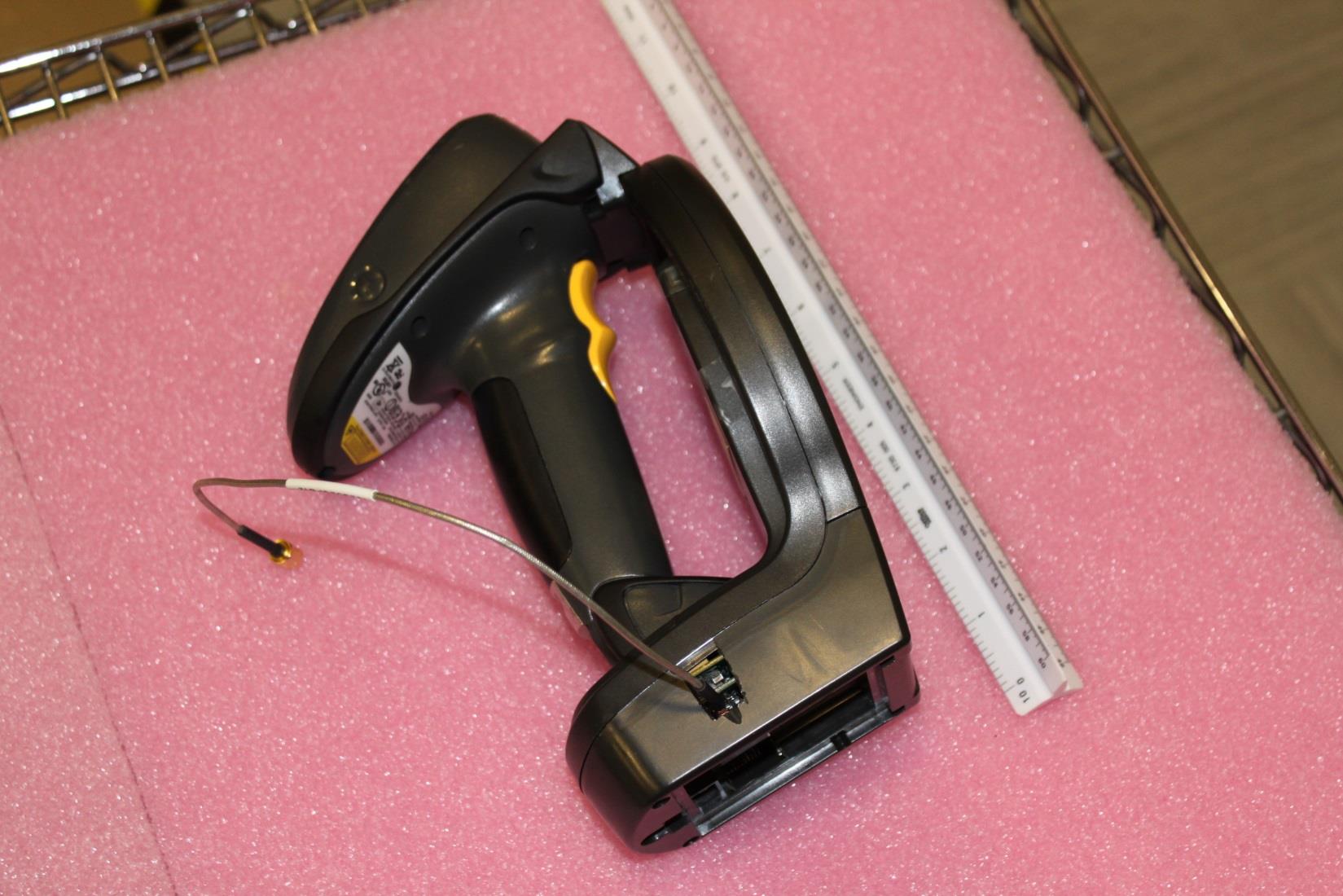

FCC ID: BVCAMB44 IC: 3506A-AMB44 External photos Assembly with test cable attached. FCC ID: BVCAMB44 IC: 3506A-AMB44 Iso view. FCC ID: BVCAMB44 IC: 3506A-AMB44 Separated devices. Device nearest to ruler is EUT. Other device is a Motorola bar code scanner. Arrow points to EUT. FCC ID: BVCAMB44 IC: 3506A-AMB44 Motorola bar code scanner on left. EUT on right. FCC ID: BVCAMB44 IC: 3506A-AMB44 Battery fits into base. Contacts are for charging and communications with bar code scanner. FCC label to be applied inside battery compartment.

FCC ID: BVCAMB44 IC: 3506A-AMB44 FCC Label Location Battery fits into base. Contacts are for charging and communications with bar code scanner. FCC label to be applied inside battery compartment.

FCC ID: BVCAMB44 IC: 3506A-AMB44 FCC Label FCC label to be applied inside battery compartment.

FCC ID: BVCAMB44 IC: 3506A-AMB44 Internal photos Case opened. Note co-planar boards. FCC ID: BVCAMB44 IC: 3506A-AMB44 Another view. FCC ID: BVCAMB44 IC: 3506A-AMB44 Co-planar boards. Digital, power, deactivator board showing. Reverse side shown below. FCC ID: BVCAMB44 IC: 3506A-AMB44 Co-planar boards. RF board with radio showing. Reverse side in next photo. FCC ID: BVCAMB44 IC: 3506A-AMB44 RF board on the left. Digital, power, deactivator board on the right.

FCC ID: BVCAMB44 IC: 3506A-AMB44 Page 1 of 49 TYCO SAFETY PRODUCTS SENSORMATIC EMC TEST REPORT Model: AMB-4400 Handheld EAS Deactivator FCC ID: BVCAMB44 IC: 3506A-AMB44 Intentional Radiator 15.247 (DSSS 2400 – 2483.5 MHz) FCC 47 CFR, Part 15, Subpart B, and Subpart C Industry Canada ICES-003e, RSS GENe, RSS-210e Date: Dec 19, 2013 EMC Engineer 6600 Congress Ave. Boca Raton, FL. 33487 USA Revision Level Date Reason Rev. A Dec. 22, 2013 Initial FCC ID: BVCAMB44 IC: 3506A-AMB44 Page 2 of 49 1 SUMMARY OF RESULTS ........................................................................................................................... 3 2 GENERAL ...................................................................................................................................................... 5 2.1 Test Site Registration ............................................................................................................................... 5 2.2 Test Procedures ........................................................................................................................................ 5 2.3 Sample Calculation – Radiated & Conducted Emissions ........................................................................ 6 2.4 Uncertainty of Measurements .................................................................................................................. 8 3 DESCRIPTION AND CHARACTERISTICS OF THE EUT ........................................................................ 9 3.1 Model / Type Designation ........................................................................................................................ 9 3.1.2 Overview ........................................................................................................................................... 9 3.1.3 Environment ...................................................................................................................................... 9 3.1.4 Frequency Characteristics and Internal Clocks ................................................................................. 9 3.2 TEST SET-UP BLOCK DIAGRAM ..................................................................................................... 10 3.2.1 List Of Ports .................................................................................................................................... 10 3.2.2 Accessory Equipment Used During Testing ................................................................................... 11 4 FCC TESTS .................................................................................................................................................. 12 4.1 AC Conducted Emissions, FCC Part 15, Clause 15.107 And 15.207 .................................................... 12 4.2 Radiated Emissions, FCC Part 15, Clause 15.109 and 15.209 (above 30 MHz) ................................... 17 4.3 Radiated Emissions, FCC Part 15, Clause 15.209 (below 30 MHz) ....... Error! Bookmark not defined. 4.4 Conducted RF measurements connection losses and setup. .................................................................. 27 4.5 6 dB Emission Bandwidth. 15.247 (a)(2) ............................................................................................... 28 4.6 Max Conducted Power Output, 15.247 (b)(3)........................................................................................ 29 4.7 Spurious RF Conducted Emissions, 15.247 (d) ..................................................................................... 31 4.8 Maximum power spectral density level in the fundamental emission. 15.247 (e) ................................. 37 4.9 20 dBc Bandwidth from highest level .................................................................................................... 38 4.10 Input Voltage Variation, 15.31(e). ...................................................................................................... 39 4.11 RF Exposure Compliance Requirements per 15.247 (b) (5), 2.1093 (d)(1) Portable ......................... 40 5 EQUIPMENT LIST ...................................................................................................................................... 41 6 ANTENNA FACTORS. ............................................................................................................................... 42 FCC ID: BVCAMB44 IC: 3506A-AMB44 Page 3 of 49 1 SUMMARY OF RESULTS FCC 47 CFR Part 15. Test Requirement Test Limit Comments 15.15 (b) User Accessible Controls Cannot change output power above limit. The product contains no user accessible controls that increase transmission power above permitted levels. 15.31 (e) Vary Input AC Mains Power Does not increase the output power above the limit. Complies. 13.33 (a) Frequency range of radiated measurements General Limits of 15.209, 150 kHz to 24 GHz. E-field measurements comply 15.107 AC Conducted Emissions Unintentional digital emissions subject to Class B limits of 15.107 Digital emissions determined by turning transmitter off. Complies. 15.109 Radiated Emissions Requirements Unintentional digital emissions subject to Class B limits of 15.109 Digital emissions determined by turning transmitter off. Complies. 15.203 Antenna Connector Permanently attached or unique coupling. The antenna is permanently attached. Inverted F. Complies. 15.204(b)(c) System and Antennas Marketed as a system with authorized antenna types Integral internal antenna. Complies. 15.207 (a) (b) AC Conducted Emissions General Limits. Conducted emissions on AC side of DC supply. Complies. 15.205 (a) (b) 15.209 (a) (c) Radiated Emission Comply with limits in 15.209 (a). No intentional emissions in the restricted bands of 15.205 The radiated emissions comply with the general emission limits. Complies. 15.247 (a) (2) Carrier Frequency Separation DTS, 6 dB BW >500 kHz Complies. 15.247 (b) (3) Output Power Maximum 1 W (30 dBm) The EUT complies with …
