BVCAMS9030ANTI THEFT DEVICE

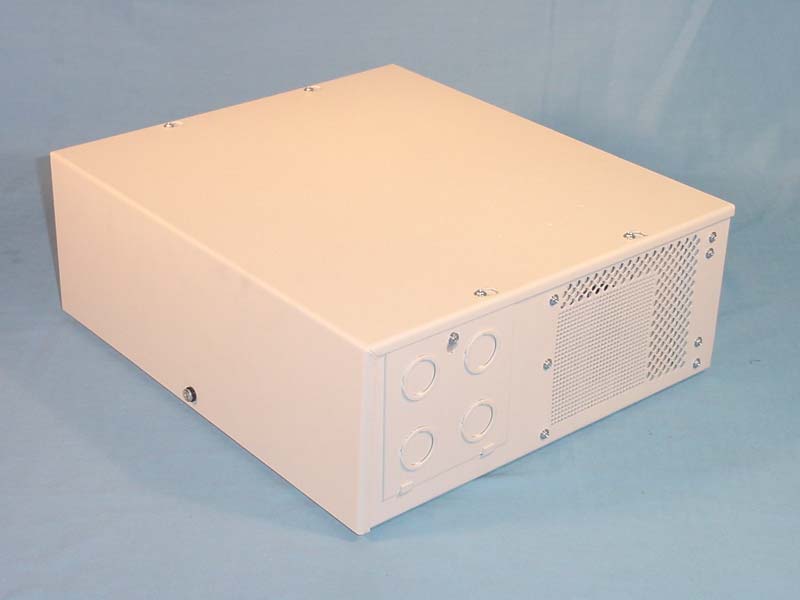

Preliminary AMS-9030 CONTROLLER 8200-0344-02, REV. 0 INSTALLATION GUIDE 1 of 16 AMS-9030 Controller Installation Guide ZE9030 Contents About this Guide .................................................... 1 Controller Overview ............................................... 2 Installation Requirements ...................................... 2 Mounting the Controller ......................................... 3 Connecting Antennas ............................................ 4 Connecting Remote Alarms................................. 12 Connecting External Devices to Controller Relays ............................................................................. 12 Connecting Noise Canceling Antennas ............... 13 Connecting Multiple 9030 Controllers.................. 13 Connecting a Service Laptop .............................. 14 Connecting a SyncLink Device ............................ 14 Connecting an Ultra*Link Device ......................... 15 Connecting Power to the Controller..................... 15 Specifications....................................................... 15 Declarations ......................................................... 16 © Sensormatic 2004 About this Guide This installation guide explains how to install the AMS-9030 controller. Other related documents are: • Planning Guide, 8200-0344-01 • Installation Guide, AMS-9030 Key Switch Option Kit, 8200-0344-05 • Installation Guide, AMS-9030 Plenum Option Kit, 8200-0344-06 • Setup and Service Guide, 8200-0344-08 • Reference Guide, 8200-0344-09 Note: Because customer requirements dictate the placement of system components, your Sensormatic representative will supply this information separately. Note to the Installer: If this product was installed in a European Union or European Free Trade Association member state, please give the Declaration of Conformity included with this product to the manager or user. By law, this information must be provided to the user. Note: There may be restrictions on the installation of certain antennas in certain countries. Please see the antenna installation guides for documentation of the restriction. Preliminary AMS-9030 CONTROLLER 8200-0344-02, REV. 0 INSTALLATION GUIDE 2 of 16 Controller Overview An AMS-9030 controller is part of an Ultra•Max ® security label detector. The controller supports the following system components, some of which are shown in Figure 1: • Two transceiver antennas or two pairs of Tx/Rx antennas for tag and label detection. • One remote alarm (optional), but the controller supports two-alarm configurations with two internal relays. • Two noise canceling antenna kits to reduce the effect of electro-magnetic interference (optional). • Four external devices, such as cameras, activated by two relays in the controller (optional). • A service laptop for configuration and trouble- shooting. • A SyncLink transmitter to synchronize the detectors with deactivators at the site (optional). • An Ultra*Link device (optional). • An RS-485 network (optional). This manual only describes how to connect a controller to an RS-485 network. For information on setting up an RS-485 network, refer to the AMS-9030 Setup and Service Guide. Figure 1. AMS-9030 system components Installation Requirements Verifying Equipment and Unpacking ❑ Verify that all equipment has arrived. Make sure the system configuration is the right one for the installation site. ❑ Unpack major components in a back room. At the install site, lay out parts in the order you will need them. Do not clutter the aisle or cause a trip hazard. Installer/Contractor ❑ Shall have electrical work comply with the latest national electrical code, national fire code, and all applicable local codes and ordinances. ❑ Shall coordinate all work with other trades to avoid interference. ❑ Shall verify existing site conditions and coordinate with the owner’s representative and appropriate utilities as required. ❑ Shall obtain copies of all related plans, specifications, shop drawings and addenda to schedule and coordinate related work. ❑ Shall thoroughly review the project to ensure that all work meets or exceeds the above requirements. Any alleged discrepancies shall be brought to the attention of your local Technical Support representative. WARNING: Do not install this product in hazardous areas where highly combustible or explosive products are stored or used. Electrical and Site Requirements q The controller connects to a 100-130Vac or 200-240Vac source. No fuse exchange is required for the controller. q The ac source must be unswitched with less than 0.5Vac between neutral and ground. q DO NOT share the ac source with neon signs, motors, computers, cash registers, terminals, or data communications equipment. q DO NOT use orange-colored outlets dedicated for computer equipment. Antennas Remote alarm (optional) AMS-9030 controller Preliminary AMS-9030 CONTROLLER 8200-0344-02, REV. 0 INSTALLATION GUIDE 3 of 16 Controller q The controller can be placed on a shelf or mounted on a wall. It can be hidden in a remote location such as a back room or basement. q Provide a minimum of 20cm (8") of unobstructed space around the controller for ventilation. q Use the appropriate power cord based on the country of use. USA-IEC 320, 18/3, 125V, 10A, 7.5ft. 0351-0547-01 Schuko-IEC 320, 1mm sq., 250V, 10A, 2.5m 0351-0547-02 UK-IEC 320, 1mm sq., 250V, 10A, 2.5m 0351-0547-03 Japan-IEC 320, 2mm sq., 250V, 15A, 2.5m 0351-0547-04 US-Filter, Line, 125V, 6A, Plug-in 0351-0547-05 Australia to IEC 320, 2.5m, 250V, 10A 0351-0547-07 q Replace the slow-blow fuses only with a fuse of the same type and rating. q Maximum cable distance from the antennas to the controller is 12.2m (40'). ZC30-ADS/ZC35-ADS Remote Alarm Unit q If the system uses a transformer to power the remote alarm, plug the transformer into a 24- hour, unswitched outlet. q Maximum cable distance from the controller to each alarm unit is about 7.6m (25'). Tools and Equipment Required For all cont…
