BVCAMS9040anti theft device

Company Confidential AMS-9040 Controller Installation and Service Guide Contents To the Installer.......................................................1 About the Product..................................................2 Operation...........................................................2 Device Connections...........................................3 Installation Features...........................................7 Service Features................................................8 Installation.............................................................9 Installation Requirements..................................9 Installation Procedure......................................10 Power Connections..........................................13 Sample Hookups..............................................14 Troubleshooting...................................................15 System Status Alert Codes..............................15 Laptop/Modem Connections............................16 Fuse Replacement...........................................17 Specifications......................................................18 Declarations........................................................18 Appendix A: About Auto Sync...........................19 © 2004 Sensormatic To the Installer This installation and service guide explains how to install, setup, and service the AMS-9040 controller. Parts required to install this system are: - AMS-9040 Controller (ZEAISLEPP) - Digital AM antennas (various) - Extension bracket 0500-9792-01 (optional) - AMS-9040 Controller Keyswitch (optional) Other documents that may be required for installation are: - Planning Guide, 8200-0367-01 - Antenna Installation Guide (various) - Antenna Controller Keyswitch, 8200-0367-04 Note: - Because customer requirements dictate the placement of system components, your Sensormatic representative will supply this information separately. - If this product was installed in a European Union or European Free Trade Association member state, please give the Declaration of Conformity included with this product to the manager or user. By law, this information must be provided to the user. - There may be restrictions on the installation of certain antennas in certain countries. Please see the antenna installation guides for documentation of the restriction. AMS-9040 CONTROLLER 8200-0367-02, REV. 9 INSTALLATION AND SERVICE GUIDE 1 of 20 Company Confidential About the Product The AMS-9040 controller is part of a four-channel EAS detector used to detect EAS tags/labels at store exit(s). The controller: - Supports transceiver (Tx/Rx) antennas, auxiliary receiver antennas, and noise coils in any combination up to the maximum specified. - Supports controller-assisted tuning of Digital AM antennas. - Can power and control up to two remote alarms. Also supports externally powered alarm devices and beacon lamps, an alarm management device, and a Sensormatic Sync Link wireless sync device. - Has four relays used to trigger externally- powered alarm devices. - Supports RS485 networking. - Has connections for hardwired sync and transmit inhibit functions. - Can be placed on a shelf or mounted to a wall. - Consists of an integral cable tray/mounting bracket assembly and a controller housing that attaches to it. Two captive ¼-turn fasteners in the tray secure it to the controller. - Nineteen knockouts in the cable tray support exposed cables or cables in conduit. There are designated knockouts for Class 2 wiring from low voltage devices, Class 2 “wet” wiring from an alarm management device, and Class 3 wiring from a transmit antenna. - Three knockouts in the tray support an exposed ac cable or the cable in conduit. A U-shaped opening in the side of the tray allows access for a power cord, if used instead of the ac cable. Operation The controller deters theft by activating an alarm when it detects the unique response of an active Ultra•Max hard plastic tag or disposable label. To detect a tag, the antenna(s) connected to the controller emit a magnetic field close to the tag/label’s natural frequency causing it to vibrate or “ring” at the frequency of the field. When the field is removed, energy in the tag/label dissipates causing an exponential ring down. The controller processes signal inputs picked up by the antennas to determine if they are indicative of ring down. If they are, then the controller activates an alarm. Audible and visual indicators located on top of each antenna indicate an active tag/label is between the antennas. Alternately, the controller can trigger a remote alarm module, or double-pole double-throw relay, one for each antenna. The controller can also trigger externally powered devices such as a security camera. - Antenna coils can be set to aiding or figure-8. Maximum operating current is as follows for each coil configuration: Aiding Figure 8 Non-European 16A 16A European (except Germany) N/A 12A Germany N/A 10A - Maximum cable length between antennas and controller is 15.2m (50ft). Longer cables can reduce performance and operating current. 3 knockouts for hardwired AC (1 on underside) Tray to controller captive ¼-turn fastener (one at each end) Cable Tray 19 knockouts for cables (1 on side, 8 on underside) U-shaped opening for power cord AMS-9040 CONTROLLER 8200-0367-02, REV. 9 INSTALLATION AND SERVICE GUIDE 2 of 20 Company Confidential Device Connections Connector pin assignments are listed on pages 4 and 5. Device connections are as follows: - Transceiver antenna connections (4) and antenna communication connections (4) - General-purpose connections (4) for auxiliary receive antennas and/or noise coils* - Remote alarm connections (2) - Beacon lamp connections (2) - Relay connections (4) - Alarm management device connection (1) - RS485 connection (1) - Wired Tx sync connection (1) - Tx inhibit connection (1) - Wireless ac synchronization (Sync Link) connection (1) - Service connection (1). * Only certain inputs support noise coils. …

Text truncated - open the document above for the full version.

Sensormatic Electronics Corporation 6600 Congress Avenue, Boca Raton, FL 33487 Telephone (561) 912-6000 FAX (561) 912-6787 May 25, 2004 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Re: Request for withholding from public disclosure proprietary information submitted pursuant to an application for certification for a low power transmitter. FCC ID: BVCAMS9040 Dear Sir or Madam: Sensormatic Electronics Corporation requests certain materials submitted with this application for certification be withheld from public disclosure. This request is made under the provision of 47 CFR 0.457 (d) and 5 USC 552(b)(4) Freedom of Information Act, Trade Secrets. The items for which confidentiality is requested include the Operational Description, Block Diagram and Schematic Diagrams. This information contains proprietary information (trade secrets) regarding the circuit operation and capabilities (specific values of components, circuit design details and system architecture) that are the result of our extensive investment in research and development. Without the disclosed information, competitive organizations would take considerable more time to assess and develop a workable competitive product. As a result, we believe that disclosure of these company-guarded materials would compromise our leading position in this market. We therefore formally request that the materials identified “Confidential” be kept strictly confidential and not made available for inspections by any other party, except on a need to know basis for the sole purpose of the certification process. Sincerely, William M. Elliott Sr. EMC Engineer, Compliance Engineering

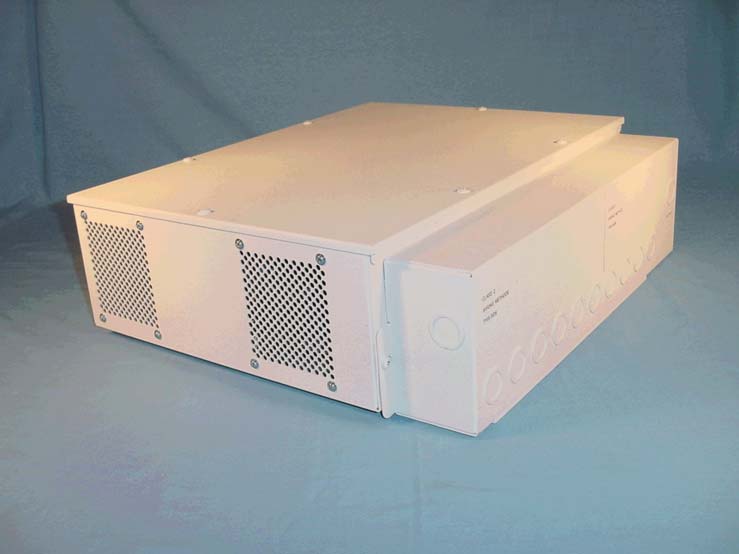

Exhibit 6 FCC ID: BVCAMS9040 IC: 3506A-AMS9040 AMS-9040 External Photos External Photo 1 – AMS-9040 Exhibit 6 FCC ID: BVCAMS9040 IC: 3506A-AMS9040 External Photo 2 – AMS-9040

Exhibit 3 FCC ID: BVCAMS9040 IC: 3506A-AMS9040 AMS-9040 Label Positi on Label Position The label is a m e talized polyester that is UL recognized and is perm anently affixed using an L-23 adhesive.

Exhibit 2 FCC ID: BVCAMS9040 IC: 3506A-AMS9040 AMS9040 Label Sample NRTL N205 FCC ID: BVCAMS9040 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est confrome á la norme NMB-003 du Canada. IC: 3506A- AMS9040 BARCODE MADE IN PUERTO RICO ® Model: AMS-9040 MFD:7-04 P/N: 0319-0008-01 REV : A SERIAL NO: SECA0117012345 RATING: 100-120/200-240V~ 50-60Hz 6.0A

Exhibit 7 FCC ID: BVCAMS9040 IC: 3506A-AMS9040 AMS-9040 Internal Photos Internal Photo 1 – AMS-9040 Exhibit 7 FCC ID: BVCAMS9040 IC: 3506A-AMS9040 Internal Photo 2 – Board Top View Exhibit 7 FCC ID: BVCAMS9040 IC: 3506A-AMS9040 Internal Photo 3 – Board Bottom View

Exhibit 9 FCC ID: BVCAMS9040 IC: 3506A – AMS9040 Report AMS-9040 1 Issue Date: May 17, 2004 COMPANY Sensormatic Electronics Corp. 6600 Congress Ave Boca Raton, Florida 33487 PRODUCT TESTED AMS-9040 FCC ID: BVCAMS9040 IC: 3506A-AMS9040 FCC RULES 15.207, 15.209 IC SPECIFICATIONS RSS 210 TEST DATE March 19 / April 21/ May 10, 2004 SUBMITTED BY William M. Elliott Exhibit 9 FCC ID: BVCAMS9040 IC: 3506A – AMS9040 Report AMS-9040 2 Issue Date: May 17, 2004 CONTENTS I. SUMMARY OF RESULTS 3 II. GENERAL INFORMATION 3 Test Methodology 3 Test Facility 3 System Description 4 15.203 Compliance 4 III. CONDUCTED EMISSIONS TESTING, 47 CFR 15.207 4 IV. RADIATED EMISSIONS TESTING, 47 CFR 15.209 4 V. OCCUPIED BANDWIDTH, RSS 210, Clause 5.9.1 5 VI. LIST OF MEASUREMENT EQUIPMENT 6 VII. DATA Part A – Conducted Emissions 7 Part B – Radiated Emissions 8 Part C – 20 dB Bandwidth 9 Exhibit 9 FCC ID: BVCAMS9040 IC: 3506A – AMS9040 Report AMS-9040 3 Issue Date: May 17, 2004 I. Summary of Results 47 CFR 15.203 ANTENNA REQUIREMENTS COMPLIES 47 CFR 15.207 CONDUCTED EMISSIONS COMPLIES 47 CFR 15.209 RADIATED EMISSIONS COMPLIES RSS 210: 5.9.1 OCCUPIED BANDWIDTH PROVIDED II. General Information 1.1. Test Methodology Both conducted and radiated emissions testing were performed according to the procedures in ANSI C63.4-1992, and the requirements of 15.31, 15.33, 15.35, 15.207, and 15.209. Radiated emissions measurements below 30MHz were performed at a distance 15 meters and the results were extrapolated to the distance specified per 15.31 and 15.209 invoking the 2-point extrapolation method. 1.2. Test Facility Measurements per 15.207 and 15.209 were performed at Sensormatic Electronics Corporation. The shielded room conducted emissions measurement facility and the radiated emissions Open Area Test Site are located at Sensormatic Electronics Corporation Headquarters at 6600 Congress Avenue, Boca Raton, Florida 33487. These sites have been found acceptable by and are on file with the FCC per FCC Registration Number 90925, and Industry Canada per file number IC 3506. Exhibit 9 FCC ID: BVCAMS9040 IC: 3506A – AMS9040 Report AMS-9040 4 Issue Date: May 17, 2004 1.3. Test System Description. The AMS-9040 is a controller capable of driving a pair of antennas to generate a magnetic field to excite tags, receive the signal and alarm when an acceptable tag signal is detected and verified. A single main PCB accommodates the Receiver, the Switching Amplifier Transmitter and the Power Supply. The AMS-9040 is intended to be paired with the following Sensormatic transmit antenna systems families: -Digital Door-Max -Digital Floor-Max -Digital Pro-Max -Digital Euro Pro-Max -Ultra•Loop The worst-case radiated emissions data [below 30 MHz] was observed on the Ultra•Loop Antenna. The worst case configuration was the vertical loop and the data reported is to that configuration. The product tested was a pre-production unit built to production drawings. 15.203. The antenna is a professionally installed external antenna employing a terminal style connector; therefore the antenna is compliant with the requirements of this clause. III. Conducted Emissions 15.207. Conducted emissions data are presented in Section VIII “Data”, Part A, “Conducted Emissions”. The product demonstrated compliance with the requirements of 15.207. The product was tested at 120 V, 60 Hz with the device transmitting. The worst-case conducted emissions data was observed on the Digital Floor-Max antennas and the data reported is to that configuration. Exhibit 9 FCC ID: BVCAMS9040 IC: 3506A – AMS9040 Report AMS-9040 5 Issue Date: May 17, 2004 IV. Radiated Emissions 15.209. Radiated emissions data for this product are presented in Section VIII “Data”, Part B, Radiated Emissions. The product demonstrated compliance with the requirements. Radiated emissions measurements were performed at 15 meters. Propagation loss was determined by measuring emissions at 15 and 30 m. The results were compared to the limits by extrapolating the results to 300 meters as per 15.31(f)(2), using the 2-point extrapolation method. Maximum radiation was determined by first assessing symmetry. The product exhibited semi-circular symmetry. Measurements were taken at radials of 22.5° throughout two quadrants; the measurement antenna was rotated for maximum pickup about the vertical axis of the measurement antenna at each radial. The maximum emission was determined to be with the measurement loop antenna in the vertical polarization, parallel to the radiating loop of the antenna structure. The product was tested at input voltages to the power supply ranging from 102 – 138V, 60Hz with no measurable change in transmitter output. See Section VIII, Part B. V. Occupied Bandwidth RSS 210:5.9.1. The 20 dB bandwidth measurements for this product are presented in Section VII “Data”, Part C, Occupied Bandwidth. A bandwidth requirement was not specified for 58kHz products, so the default 20dB bandwidth was measured. The HP 8591EM spectrum analyzer cannot measure a bandwidth over 1.8kHz in quasi- peak detection mode, so the bandwidth was measured in peak detection mode, providing a worst-case occupied bandwidth. Exhibit 9 FCC ID: BVCAMS9040 IC: 3506A – AMS9040 Report AMS-9040 6 Issue Date: May 17, 2004 VI. LIST OF MEASURING EQUIPMENT The equipment used for determining compliance of the AMS-9040 system with the requirements of 15.207 and 15.209 is marked with an “X” in the first column of the table below. ModelDescriptionVendorSerial # X ALP -70 Loop Antenna Electro Metrics 163 X 3110B Biconical Antenna Electro Metrics 1017 3146 Log Periodic Antenna EMCO 3909 3825/2 Line Imp Stable Network EMCO 1562 X 3816/2NM Line Imp Stable Network EMCO 9703 1018 6060B Frequency Generator Giga-tronics 5850202 FM2000 Isotropic Field Monitor Amplifier Research 15171 FP2000 Isotropic Field Probe Amplifier Research 15214 888 Leveler Amplifier Research 14998 75A220 Low Band Amplifier Amplifier Research 15208 10W1000A High Band Amplifier Amplifi…

Text truncated - open the document above for the full version.

Exhibit 10 FCC ID: BVCAMS9040 IC: 3506A-AMS9040 AMS-9040 Test Setup Photos Conducted Emissions Exhibit 10 FCC ID: BVCAMS9040 IC: 3506A-AMS9040 H-Field Emissions
