APS-1000 Quick Install Guide 1.8 Meter (6-Foot) Doorway System (Preliminary) 8000-2853-06, Rev. 0 A PS-1000 Marketed as A ssetPro SM and ezMax C L C L B C B D D Tx A a b Tx B C ! A The APS-1000 uses a primary pedestal and a secondary pedestal (the one with the long cable attached). A. The base for the primary pedestal contains a cable connection bracket. Remove this bracket from the base. Four screws secure the bracket. B. Place pedestal bases 1.5–1.8m (5–6 feet) apart, center-to-center. VERY IMPORTANT! Ensure bases are at least 12.7cm (5 in.) from the doorframe. C. Using a pencil, mark mounting hole locations for each base. If drilling through carpet, cut the carpet to avoid carpet runs. D. Move the bases out of the way and, using a 1.25cm (1/2 in.) drill bit, drill mounting holes 9cm (3 in.) deep. Secure each base using screws (a) and anchors (b) supplied. With its bottom facing the doorway, gently lay the secondary pedestal near its base. In the base, run the cable through the Romex clamp in the lower hole facing the door. Tighten the Romex clamp. Ensuring the pedestal’s cover screws face the exit, press down for a tight fit. As you do, pull excess cable out of the base. Ensure the cable is not pinched between the base and the pedestal housing. IMPORTANT! Once the pedestal is in place, gently push about 0.3m (1ft) of cable back into the base to enable the pedestal to be detached from the base if future service is required. Peel and stick wireway is provided. The cable from the secondary pedestal to the primary pedestal runs up, over and down the doorway through this wireway. A. Wipe the frame of the door with alcohol where the wireway is to go. Then with the opening of the wireway facing the exit, affix the wireway around the doorframe (shown by arrows) and insert the cable into it. B. At the base of the primary pedestal, run the end of the cable through the Romex Clamp in the lower hole in the end facing the door so it’s end extends about 30.5cm (1 ft) above the base. Cut off and discard excess cable. C. If necessary, protect any remaining exposed cable with a wireway or other suitable covering. A. At the cable connection bracket, connect the cable (and any accessory cables) to the color-coded terminal blocks at the bottom of the bracket. 5-pin terminal block : Pin 1 — Secondary top Pin 2 — Return secondary top Pin 3 — Return secondary bottom Pin 4 — Secondary bottom Pin 5 — Shield 14-pin terminal block: Pin 1 — Remote transmit enable Pin 2 — Return Remote transmit enable Pin 3 — Shield 1 Pin 4 — Secondary antenna select Pin 5 — Return secondary antenna select Pin 6 — Shield 2 Pin 7 — Relay 1 Pin 8 — Common 1 Pin 9 — Relay 2 Pin 10 — Common 2 Pin 11 — Shield 3 Pin 12 — W Sync Pin 13 — Return W Sync Pin 14 — Shield 4 B. Re-insert the cable connection bracket back into the base and secure using the four screws previously removed. C. Ensure the connector on the bracket faces away from the door. 1 2 34 5 APS-1000 Quick Install Guide 1.8 Meter (6-Foot) Doorway System, continued (Preliminary) 8000-2853-06, Rev. 0 B A A B A. Gently lay the primary pedestal near the base with its bottom facing the doorway. Route the ac pigtail exiting the pedestal over the base and down the vertical groove in the base facing the doorway. Towards the doorway, run the pedestal side of the power extension cord under the base and connect it to the pigtail. B. Slip the primary pedestal over its base while ensuring: a. Its cover screws face the exit. b. The ac connection is tucked in the groove of the base. Press down for a tight fit. As you do, ensure the ac connection remains tucked in the groove. IMPORTANT! Protect any remaining exposed cable with a wireway or other suitable covering. Remove the cord access knockout from the bottom of the ac receptacle guard (supplied). Replace the existing outlet cover with the receptacle guard. Plug the extension cord into the AC receptacle. A green lamp atop of the primary pedestal will light and the red alarm lamp will blink once every 4 seconds to indicate the system is looking to avoid noise from nearby electronic equipment (auto phasing). An audio/visual alarm for 2 seconds indicates the system is ready for routine operation. IMPORTANT! Auto phasing can take up to 11 minutes depending on noise encountered. Note: If the system alarms, wait one minute to see if the red lamp blinks twice every 4 seconds for one minute. If it does, see page __ in Installation and Troubleshooting Guide , 8000-2853-01. Snap the enclosure cover closed. Secure the cord using cable ties provided. TEST THE SYSTEM . Hold a known good security tag horizontal and walk it through box A, stepping past the pedestals. The system should alarm. Repeat the test for box B. Declarations Regulatory Compliance Emissions ............................... 47 CFR, Part 15 EN300330 EN301489 RSS210 Safety ..................................... UL 60950 CSA C22.2 No. 60950 EN60950 FCC COMPLIANCE: This equipment complies with Part 15 of the FCC rules for intentional radiators and Class A digital devices when installed and used in accordance with the instruction manual. Following these rules provides reasonable protection against harmful interference from equipment operated in a commercial area. This equipment should not be installed in a residential area as it can radiate radio frequency energy that could interfere with radio communications, a situation the user would have to fix at their own expense. EQUIPMENT MODIFICATION CAUTION: Equipment changes or modifications not expressly approved by Sensormatic Electronics Corporation, the party responsible for FCC compliance, could void the user's authority to operate the equipment and could create a hazardous condition. Other Declarations WARRANTY DISCLAIMER: Sensormatic Electronics Corporation makes no representation or warranty with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Furt…

Text truncated - open the document above for the full version.

Sensormatic Electronics Corporation 6600 Congress Avenue, Boca Raton, FL 33487 Telephone (561) 912-6000 FAX (561) 912-6787 October 21, 2002 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Re: Request for withholding from public disclosure proprietary information submitted pursuant to an application for certification for a low power transmitter. FCC ID: BVCAPS1000 Dear Sir or Madam: Sensormatic Electronics Corporation requests certain materials submitted with this application for certification of device FCC ID: BVCAPS1000 be withheld from public disclosure. This request is made under the provision of 47 CFR 0.457 (d) and 5 USC 552(b)(4) Freedom of Information Act, Trade Secrets. The items for which confidentiality is requested include the Operational Description, Block Diagram and Schematic Diagrams. This information contains proprietary information (trade secrets) regarding the circuit operation and capabilities (specific values of components, circuit design details and system architecture) that are the result of our extensive investment in research and development. Without the disclosed information, competitive organizations would take considerable more time to assess and develop a workable competitive product. As a result, we believe that disclosure of these company-guarded materials would compromise our leading position in this market. We therefore formally request that the materials identified “Confidential” be kept strictly confidential and not made available for inspections by any other party, except on a need to know basis for the sole purpose of the certification process. Sincerely, Donald J. Umbdenstock Sr. Principal Engineer, Compliance Engineering

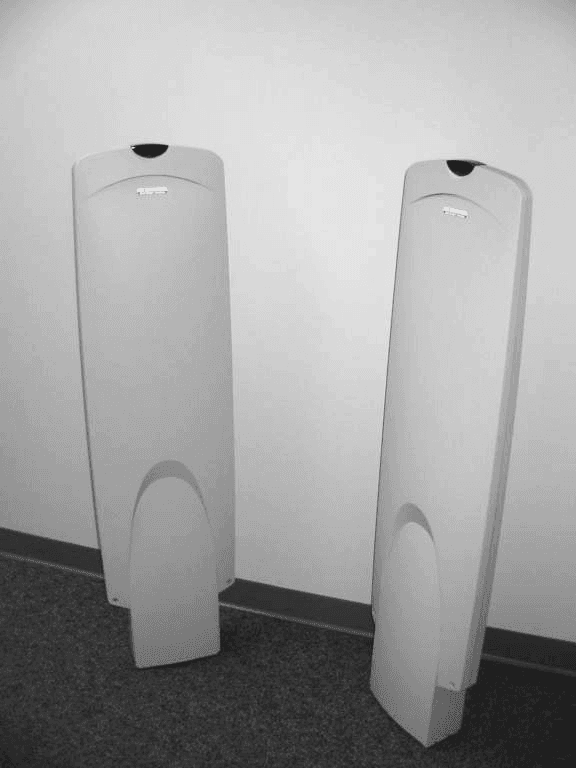

Exhibit 6 Pedestal External Photo Sync Link External Photos

Regulatory Label â Model: APS-1000 Reg ID: P MFD:7-02 P/N: 0304-2476-01 REV : A SERIAL NO: SECA0117012345 RATING: 100-120/220-240V~ 2.0/1.0A 50-60Hz MADE IN Puerto Rico BARCODE FCC ID: BVCAPS1000 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. IC: 3506A-APS1000 N205 NRTL

Regulatory Label Location

Exhibit 7 part 1 of 3 Internal Photos Primary Pedestal Open View Secondary Pedestal Open View Primary Pedestal with Sync Link Sync Link Location Close - Up

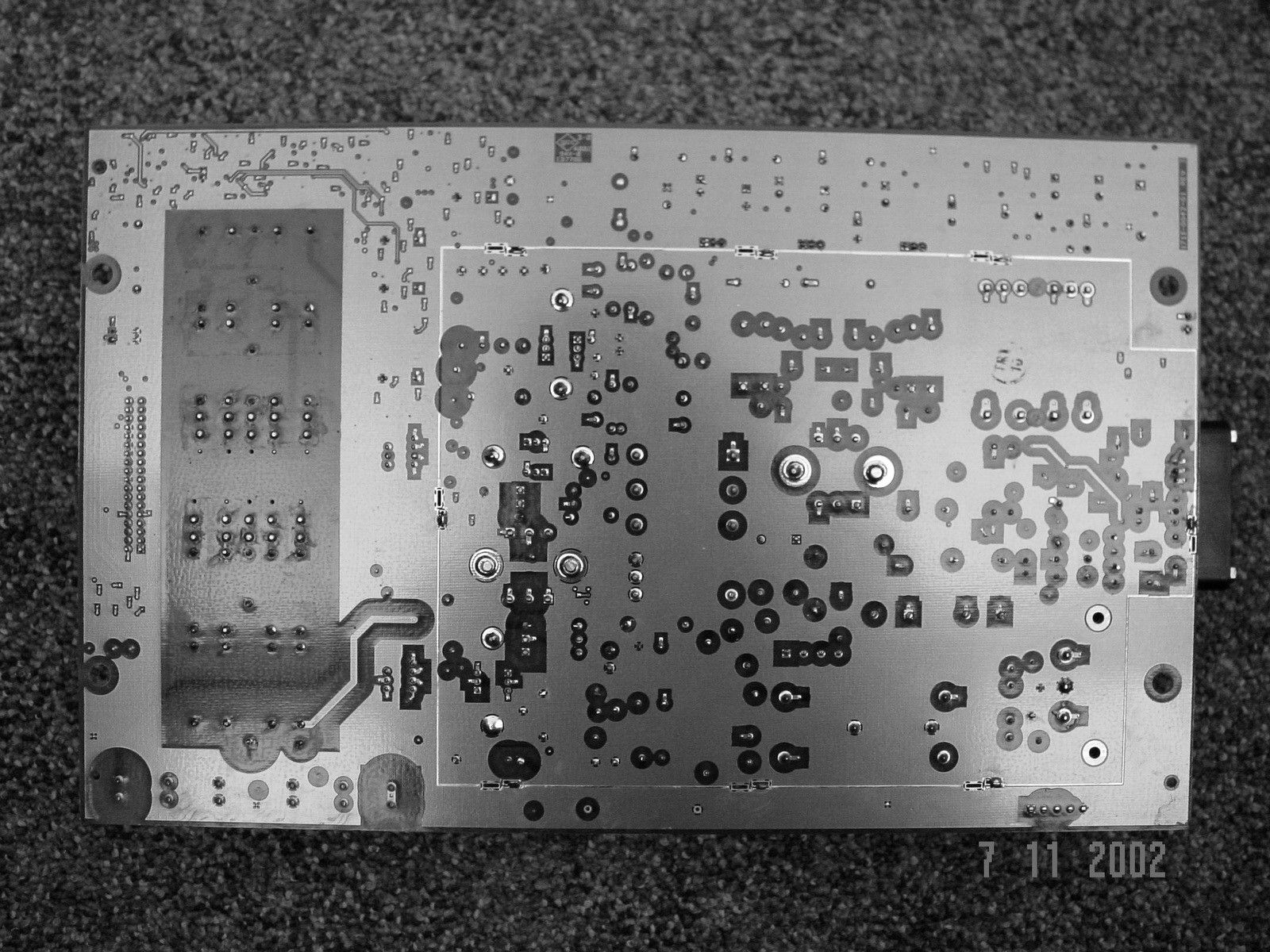

Exhibit 7 part 2 of 3 Internal Photos Receiver Top View Receiver Bottom View

Exhibit 7 part 3 of 3 Internal Photos Transmitter Top View Transmitter Bottom View Sync Link Top View Sync Link bottom View

FCC ID: BVCAPS1000 IC: 3506A – APS1000 1 Appendix II Test Report Cover Sheet COMPANY NUMBER: 3506A MODEL NUMBER: APS 1000 MANUFACTURER: Sensormatic Electronics Corporation TESTED TO RADIO STANDARD SPECIFICATION NO. : RSS 210 OPEN AREA TEST SITE INDUSTRY CANADA NUMBER: 3506 FREQUENCY RANGE (or fixed frequency): 58 R.F. POWER IN WATTS: na FIELD STRENGTH (at what distance): 15.9 dBuV/m @300 m OCCUPIED BANDWIDTH (99% BW): 4.2 kHz TYPE OF MODULATION: Pulse EMISSION DESIGNATOR (TRC-43): 4K20P0N TRANSMITTER SPURIOUS (worst case): -5.8 dBuV RECEIVER SPURIOUS (worst case): na; transmitter on continuously ATTESTATION: I attest that the testing was performed or supervised by me; that the test measurements were made in accordance with the above mentioned departmental standard(s), and that the radio equipment identified in this application has been subject to all the applicable test conditions specified in the departmental standards and all of the requirements of the standard have been met. Signature: Date: October 21, 2002 NAME AND TITLE (Please print or Type): Donald J. Umbdenstock Sr. Principal Engineer, Compliance Engineering . Note : This form must be completed and provided with the submission. FCC ID: BVCAPS1000 IC: 3506A – APS1000 2 COMPANY Sensormatic Electronics Corp. 6600 Congress Ave Boca Raton, Florida PRODUCT TESTED APS 1000 FCC ID: BVCAPS1000 IC: 3506A-APS1000 FCC RULES 15.207, 15.209 IC SPECIFICATIONS RSS 210 TEST DATE October 9 – October 16, 2002 SUBMITTED BY Donald J. Umbdenstock FCC ID: BVCAPS1000 IC: 3506A – APS1000 3 INDEX I. SUMMARY OF RESULTS 4 II. GENERAL INFORMATION 4 Test Methodology 4 Test Facility 4 System Description 5 15.203 Compliance 5 III. CONDUCTED EMISSIONS TESTING, 47 CFR 15.207 5 IV. RADIATED EMISSIONS TESTING, 47 CFR 15.209 5 V. OCCUPIED BANDWIDTH, RSS 210, Clause 5.9.1 6 VI. RF EXPOSURE 67 VII. LIST OF MEASUREMENT EQUIPMENT 7 VII. DATA Part A – Conducted Emissions 8 Part B – Radiated Emissions 9 Part C – 20 dB Bandwidth 10 FCC ID: BVCAPS1000 IC: 3506A – APS1000 4 I. Summary of Results 47 CFR 15.207 CONDUCTED EMISSIONS COMPLIES 47 CFR 15.209 RADIATED EMISSIONS COMPLIES RSS 210: 5.9.1 OCCUPIED BANDWIDTH PROVIDED II. General Information 1.1 Test Methodology Both conducted and radiated emissions testing were performed according to the procedures in ANSI C63.4-1992, and the requirements of 15.31, 15.33, 15.35, 15.207, and 15.209. Radiated emissions measurements below 30 MHz were performed at a distance of 10 meters and the results extrapolated to the distance specified per 15.31 and 15.209. The auxiliary device operating at 900 MHz complies with the requirements of 15.247 per the previous submission under FCC ID: BVCDEACSLNK. 1.2 Test Facility Measurements per 15.207 and 15.209 were performed at Sensormatic Electronics Corporation. The shielded room conducted emissions measurement facility and the radiated emissions Open Area Test Site are located at Sensormatic Electronics Corporation Headquarters at 6600 Congress Avenue, Boca Raton, Florida 33487. These sites have been found acceptable by and are on file with the FCC per FCC Registration Number 90925, and Industry Canada per file number IC 3506. FCC ID: BVCAPS1000 IC: 3506A – APS1000 5 1.3 Test System Description. The system consists of 2 pedestals, one called a primary and the other called a secondary. The primary pedestal houses loop antennas and electronics for transmit, receive, alarm and data processing electronics. The secondary pedestal houses a loop antenna and tuning circuit only. The pedestal system operates at 58 kHz, detecting an acousto-magnet tag placed within the field generated by the pedestals. In some applications, the system also includes a previously authorized auxiliary device identified as Sync Link (FCC ID: BVCDEACSLNK). The device provides a RF link to synchronize nearby 58 kHz devices. The Sync Link device is located inside of the primary pedestal below the pedestal’s transmitter assembly and operates at 900 MHz, transmitting at a 5 mW level. The product tested was a pre-production unit built to production drawings. The system was tested with the Sync Link installed. 15.203 . The antenna is an internal integral antenna, therefore the antenna is compliant with the requirements of this clause. III. Conducted Emissions 15.207. Conducted emissions data are presented in Section VIII “Data”, Part A, Conducted Emissions. The product demonstrated compliance with the requirements. The product was tested at 120 V, 60 Hz. IV. Radiated Emissions 15.209. Radiated emissions data for this product are presented in Section VIII “Data”, Part B, Radiated Emissions. The product demonstrated compliance with the requirements. Radiated emissions measurements were performed at 10 meters. Propagation loss was determined by extrapolating the results to 300 meters as per 15.31(f)(2), using the 2 point roll-off extrapolation method. FCC ID: BVCAPS1000 IC: 3506A – APS1000 6 Maximum radiation was determined by first assessing symmetry while applying incremental rotation of the product. The product exhibited quadrant symmetry. Measurements were taken at radials of 22.5° throughout one quadrant. The measurement antenna was rotated for maximum pickup about the vertical and horizontal axis of the measurement antenna at the radial of the EUT with the maximum emission. The maximum emission was determined to be with the measurement loop antenna in the vertical polarization, parallel to the plane of the transmit loop antenna. The product was tested at input voltages to the transformer ranging from 102 – 138 V, 60. See Section VIII, Part B. V. Occupied Bandwidth RSS 210:5.9.1. The 20 dB bandwidth measurements for this product are presented in Section VII “Data”, Part C, Occupied Bandwidth. A bandwidth requirement was not specified for 58 kHz products, so the default 20 dB bandwidth was measured. The HP 8591EM spectrum analyzer cannot measure a bandwidth over 1.8 kHz in quasi-peak detection mode, so the bandwidth was measured in p…

Text truncated - open the document above for the full version.

Form Letters1 FCC To whom it may concern: SUBJECT: SENSORMATIC ELECTRONICS CORP.FCC ID: APS1000 REFERENCE: JOB 1074UC2 From: DONALD UMBDENSTOCK: The distance correction factor is explained as follows: Test report Section IV, Radiated Emissions: "Propagation loss was determined by extrapolating the results to 300 meters as per 15.31(f)(2), using the 2 point roll-off extrapolation method." Test report Section VIII, Data, Part B, Radiated Emissions, footnotes at the bottom of the page: "DCF: Distance Correction Factor DCF = 20 log( Test Dist / 300)P = 20 P log ( Test Dist / 300 ) Where P is the roll-off exponent . P is found as follows: P = (Level(at Distance 1) - Level(at Distance 2)) / 20 log (Distance 2 / Distance 1) P = 3 The above formulas explains the 2 point method allowed by the rules. The following is the formula with values plugged in: P = (59.4 - 41.3) / 20 log (20/10) = 18/6 = 3 DCF = 20 P log (10/300) = (20)(3) log (1/30) = 60 log (1/30) = - 88.6 Similarly for test distance at 30 meters, DCF = 60 log (10/30) = - 28.6 Let me know if you need any further clarification. Kind regards, Form Letters1 Don Umbdenstock

Exhibit 10 Set-Up Photos Conducted Emissions Radiated Emissions
