BVCIDX8000NAPART 15.247 SPREAD SPECTRUM TRANSMITTER, RFID READER

PRELIMINARY IDX-8000 Reader Sensor Network Appliance Quick Start Guide Introduction This guide provides overview information for the IDX-8000; which includes the following models and part numbers:  IDX-8000-NA  IDX-8000-EU The reader is shipped with these items:  Reader with mounting brackets  Power supply  Localized power cord  USB cable  IDX-8000 Reader Sensor Network Appliance Quick Start Guide  Document of Conformity(-EU version only) The IDX-8000 Quick Start Guide includes LED definitions, port descriptions, connection and mounting information, as well as regulatory and compliance information. References to IDX-8000 apply to all versions, except where the version is explicitly identified. This device received all regulatory approvals under the name Sensormatic Electronics, LLC. 8200-2697-12, Rev. 1.0b RF Connections Port Description RF Outputs 1–8 Monostatic RF output ports (Reverse Polarity-SMA) Digital Connections Port Description Power 24Vdc Power supply port. Connect the power supply provided with the reader. Power consumption: 24W maximum. Ethernet 2 PoE* 10/100 Auto MDI/MDI-X Ethernet port. The RJ-45 Ethernet jack supports either a standard or cross over cable. The Ethernet 1 and Ethernet 2 ports act like a network switch. PoE (Power over Ethernet) IEEE 802.3at (802.3af with some power limitations). Ethernet 1* 10/100 Auto MDI/MDI-X Ethernet port. The RJ-45 Ethernet jack supports either a standard or cross over cable. The Ethernet 1 and Ethernet 2 ports act like a network switch. USB A Host USB 2.0 Standard Series A port supports standard USB peripherals. USB B Device USB 2.0 Standard Series B port supports Ethernet over USB. Self-powered device; no host current required. RS-485 2* For future use (RJ-45 connector). RS-485 1* For future use (RJ-45 connector). GPIO / RS-232 General Purpose Input/Output (15 pin) port. Supports a HD-15 cable assembly for connection to external devices. RS-232 serial port for future use. Reset The Reset button restores the reader with custom settings or to its factory default settings. * Connect Ethernet and RS-485 cables with care. The Ethernet and RS-485 connectors both use RJ-45 plugs. LED Definitions See the illustrations for the LED positions on the IDX-8000. LED State Description Power Solid green Power is on and unit is ready. Off No power to the unit. Solid yellow Unit is powering on. Status Off Operational, not under LLRP management. Solid yellow Power LED yellow: unit is powering on. Power LED green: unit is in power save mode. Blinking yellow Software is being downloaded. Solid green Under LLRP management. All other states take precedence. Solid red Error detected / self-test failed. Tag Green flash Valid tag is being read. Yellow flash Tag below RSSI threshold. RF Status Yellow Transmitter is active. Off Transmitter is not active. Three yellow blinks Communication has been established with a 1-Wire device. All LEDs self-test on power cycle. Mounting Position the IDX-8000 on the wall or shelf, ensuring a minimum clearance of 10cm (4in) on all sides. The mounting brackets are reversible to meet a range of installation requirements as shown below. Mark the hole locations using the mounting bracket as a guide. Remove the IDX-8000 and drill four mounting holes at the marked locations. Reposition the IDX-8000 over the mounting holes and secure using fasteners appropriate for its 0.5kg (1.1 lb) weight, the mounting surface, and any other conditions present, such as vibration. CAUTION: Observe the minimum radius specified for the associated antenna when the cable must change direction. A crushed or kinked antenna cable may impair reader performance. 200mm (7.9in) 174.3mm (6.9in) Power LED Status LED Tag LED 200mm (7.9in) 200mm (7.9in) RF Status LEDs RF1 RF2 RF3 RF4 RF5 RF6 RF7 RF8 Power 24Vdc Ethernet 1 GPIO / RS-232 Ethernet 2 PoE 1 2 RS-485 USB B Device USB A Host Reset PRELIMINARY Regulatory Information Power Supply Use only the Sensormatic Electronics power supply provided with this unit or other power supply approved by and obtained from Sensormatic for use with this product. Approved Antennas This device has been designed to operate only with the approved antennas described in the table below. Approved antennas must be connected using the cables supplied with them. Use of antennas not on this approved list will not be supported by Sensormatic and may damage the device as well as violate local regulations. This device has been designed to operate with the antennas listed below, and having a maximum gain of 6dB. Antennas not included in this list or having a gain greater than 6dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. This radio transmitter IC: 3506A-IDX8000NA has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Manufacturer Model Number Polarization Composite Gain Sensormatic IDA-1000-US / IDA-1000-EU RHCP 3.3dBiL Sensormatic IDA-2100-US RHCP 6.0dBiL Sensormatic IDA-2100-EU RHCP 5.15dBiL Sensormatic IDKM-1000 / IDKM-1010 near field –8.5dBiL Motorola (Symbol) AN480-CL66100WR LHCP 6.0dBiL Motorola (Symbol) AN480-CR66100WR RHCP 6.0dBiL Remote and Standalone Antenna Configurations The antennas used with this transmitter must be installed to provide a minimum separation distance of 20cm (7.9in) from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Frequency of Operation Model Frequency band Max Power IDX-8000-NA 902 – 928 MHz 4W EIRP IDX-8000-EU 865.7 – 867.5 MHz 2W ERP Wireless Devices If frequency is selectable for your model, select only the country in which you are using the device. Any other selection will make the operation of this device …

Text truncated - open the document above for the full version.

May 22, 2012 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Re: Application for a Limited Single Modular Request for RFID Device, FCC ID: BVCIDX8000NA IC: 3506A-IDX8000NA Dear Sir or Madam: Pursuant to Section 15.212 (b) of the FCC Rules and IC RSS-Gen I 3 2010 Sections 3.2.2 and 3.2.3; “(b) A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g. , shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.” This device generates a series of pulses per 15.247 in the 902-928 MHz band and is used to activate RFID tags and detect the data on those tags. The transmitter drives patch antennas one at a time to establish a coupling field that interacts with any tags present. The first two models of this present implementation are an 8 port and a 2 port versions. There are plans to add a 4 port version. Using one transmitter board with different number of RF ports populated which can be used for each configuration would be an advantage in time to market. The transmitter complies with the modular requirements. The transmitter radio elements are shielded, see internal photos. There are no modulation/data input to be buffered. The radio has its own regulated power supply. The antenna connectors are reverse polarity SMA to MMX to connect to only approved antennas. The radio was tested as stand alone, not installed in any other device. There is a permanently affixed label with FCC ID number. The transmitter does not comply with all the modular requirements. It is not available to be installed into any other systems or devices outside of the applicants’ control in manufacturing. Testing and results indicated in the test report, demonstrate that the transmitter meets the general radiated limits of 15.209 and also the conducted limits of 15.207. Therefore, as we the applicant will always maintain control of the end product by manufacturing the transmitter board into a variety of chassis, all to perform the same function of detecting RFID tags, we are applying for a Limited Modular approval. Sincerely, William D. Owsley Principal EMC Engineer Sensormatic Electronics, LLC. 6600 Congress Ave. Boca Raton, FL. 33487

FCC ID: BVCIDX8000NA IC: 3506AIDX8000NA FCC Declaration of Conformity Statement Sensormatic Electronics, LLC 6600 Congress Ave. Boca Raton, FL 33487 http://www.sensormatic.com Models IDX-8000-NA, IDX-4000-NA, IDX-2000-NA FCC ID: BVCIDX8000NA This equipment complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits provide reasonable protection against harmful interference in a commercial or residential installation. This equipment can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following: reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment on a circuit different from that to which the receiver is connected, consult the dealer or an experienced radio/TV technician for help. Equipment changes or modifications not expressly approved by Sensormatic Electronics, LLC, the party responsible for FCC compliance, could void the user’s authority to operate the equipment and could create a hazardous condition. Industry Canada (IC) IC: 3506A-IDX8000NA This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This Class B digital device complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

May 18, 2012 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Re: Application for a Confidential Request for Anti-Pilferage Device, FCC ID: BVCIDX8000NA Dear Sir or Madam: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: IDX8000NA Conf OpDes.pdf IDX8000NA Conf Schem.pdf IDX8000NA Conf BlkDia.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, William D. Owsley Principal EMC Engineer Compliance Engineering Tyco Retail Solutions Sensormatic Electronics, LLC. 6600 Congress Ave. Boca Raton, FL. 33487

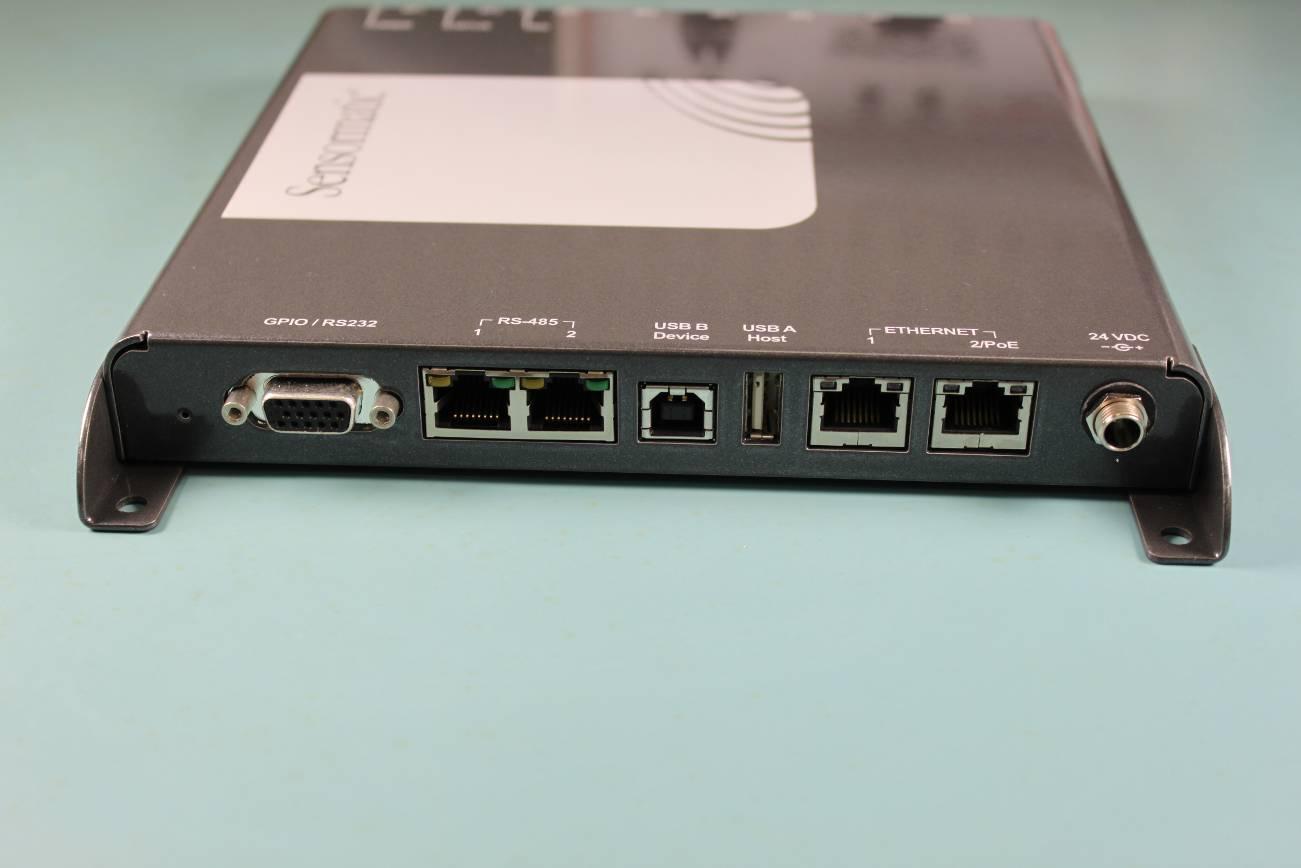

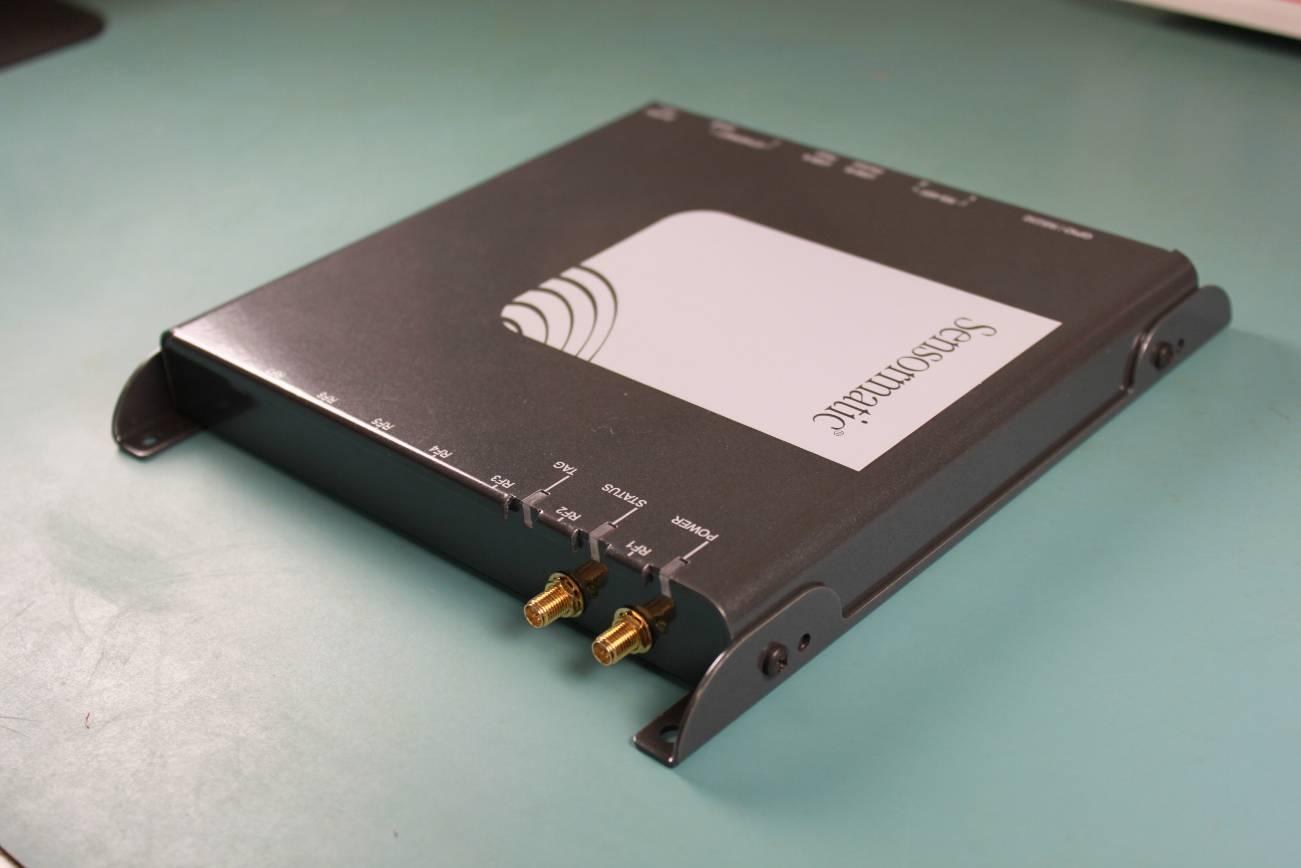

External Photos

IDX8000NA Regulatory Label Placement. One on each side.

The US region label layout (FCC and TUV approved): Model: IDX-8000-NA P/N: 0304-0059-05 Rev 1 S/N: XXXXXXXXXXXXXX MFD: YY-WW Made In USA - 0100 24VDC 1.0A (1,0A) LAN MAC: VVVVVVVVVVVV OPT WAN MAC: XXXXXXXXXXXX DEV USB MAC: YYYYYYYYYYYY PC USB MAC: ZZZZZZZZZZZZ NO PRINT - KEEP OUT NO PRINT - KEEP OUT Represents Quiet Zone FCC ID: BVCIDX8000NA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 3506A-IDX8000NA This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Label p/n - 3610-0179-01 Label p/n - 3610-0179-03 Model: IDX-8000-NA

Internal Photos – 8 port version 2 port version.

IDX8000NA RF Exposure Analysis 1.1 RF Exposure Compliance Requirements Operating Band Center Frequency = 915 MHz EUT Output Power = +30 dBm = 1 Watt Antenna Gain = 6 dBi => Numeric Gain = 4 Power Density Limit for General Population from CFR 47 Part 1.1310, Table 1 is: S = F(MHz) / 1500 => 928/1500 = 0.62 mW / cm^2 (used high end of 915 MHz band) Power Density at 25 cm = 0.51 mW/cm^2 Minimum MPE safe distance (using equation below) = 23 cm Assuming 1 watt output power into a maximum 6 dBi gain antenna, neglecting for cable losses to the antenna gives a 4 watt EIRP output. Calculations from FCC OET-65, Sec. 2, Equation 3) Power Density S = (Pt*G)/ (4*pi*d^2) S = (1000mWatt*4gain)/ (4*pi*25^2) at 25 cm distance S = (4000)/ (7854) = 0.51 mW/cm^2 Or to find the safe distance that meets the MPE limit; Power Density S = (Pt*G)/ (4*pi*d^2) Solve for d, the minimum safe distance to meet the MPE limit. d^2 = (Pt*G)/ (4*pi*S) d = SqrRoot((Pt*G)/(4*pi*S)) d = SqrRoot((1000mWatt*4gain)/(4*pi*0.62 mW/cm^2) d = SqrRoot((4000mW/4*pi*0.62)mW/cm^2) d = SqrRoot(1000/pi*0.62)cm d = 23 cm Where Pt= Transmit Power to the antenna in mWatts G = Numeric Antenna Gain d = Distance in centimeters S = Power Density in mW / square cm

FCC ID: BVCIDX8000NA IC: 3506AIDX8000NA Page 1 of 35 TYCO SAFETY PRODUCTS SENSORMATIC ELECTRONICS, LLC. EMC TEST REPORT Model: IDX-8000-NA IDX-4000-NA IDX-2000-NA Type: IDX8000NA FCC ID: BVCIDX8000NA IC: 3506A-IDX8000NA Intentional Radiator FCC and IC 47 CFR, Part 15, Subpart B, and Subpart C Industry Canada ICES-003e, RSS GENi3, RSS-210i8 EMC Engineer 6600 Congress Ave. Boca Raton, FL. 33487 USA Revision Level Reason Date Rev. A Initial May 17, 2012 FCC ID: BVCIDX8000NA IC: 3506AIDX8000NA Page 2 of 35 Table of contents 1 Summary Of Results ....................................................................................................................................... 3 2 General Information ........................................................................................................................................ 4 2.2 Test Site Registration ............................................................................................................................... 4 2.3 Sample Calculation – Radiated & Conducted Emissions ........................................................................ 5 2.4 Uncertainty of Measurements .................................................................................................................. 7 3 Test Set-Up Block Diagram ............................................................................................................................ 8 3.1 List Of Ports ............................................................................................................................................. 8 3.2 Ancillary Equipment Used During Testing .............................................................................................. 8 3.2.1 List of Power Supplies evaluated for worst case: ............................................................................. 9 3.2.2 List of Antennas that can be used with the EUT: ............................................................................. 9 3.3 RF Exposure Compliance Requirements per 15.247 (b) (5) .................................................................. 10 3.4 Input Voltage Variation, 15.31(e). ......................................................................................................... 11 3.5 Temperature Variation, 15.215(c). ......................................................................................................... 11 3.6 AC Conducted Emissions, 15.207 And 15.107, Class B. ...................................................................... 12 3.7 Frequency Hopping Requirement, 15.247 ............................................................................................. 15 3.8 Carrier Frequency Separation, 15.247 (a)(1) ......................................................................................... 16 3.9 Number Of Hopping Channels, 15.247 (a)(1)(i) .................................................................................... 17 3.10 Time Of Occupancy (Dwell Time), 15.247 (a)(1)(i) ............................................................................. 18 3.11 20 dB Bandwidth, 15.247 (a)(1)(i) ......................................................................................................... 20 3.12 Peak Power Output, 15.247 (b) .............................................................................................................. 21 3.13 Band-Edge Compliance Of RF Conducted Emissions, 15.247 (c) ........................................................ 22 3.14 Spurious RF Conducted Emissions, 15.247 (d) ..................................................................................... 23 3.15 Spurious Radiated Emissions, 15.247 (d), 15.205, 15.209 .................................................................... 26 3.15.1 Spurious Radiated Emissions below 30 MHz – H-field. ................................................................ 28 4 Test Equipment List ...................................................................................................................................... 30 5 Antenna Factors. ........................................................................................................................................... 31 FCC ID: BVCIDX8000NA IC: 3506AIDX8000NA Page 3 of 35 1 Summary Of Results FCC 47 CFR Part 15. Subpart C. Test Requirement Test Limit Comments 15,15 (b) User Accessible Controls Cannot change output power above limit. The product contains no user accessible controls that increase transmission power above permitted levels. 15.31 (e) Vary Input AC Mains Power Does not increase the output power above the limit. AC Mains Input was varied from 102 to 138 VAC. Input power to antenna was measured. Complies. 13.33 (a) Frequency range of radiated measurements General Limits of 15.209, 9kHz to 10 GHz. H-field and E-field measurements comply 15.107 AC Mains Conducted Emissions Requirements See Table 15.107. Unintentional digital emissions subject to Class B limits. Digital emissions determined by turning transmitter off. Complies [Verification]. 15.109 Radiated Emissions Requirements See Table 15.109. Unintentional digital emissions subject to Class B limits. Digital emissions determined by turning transmitter off. Complies [Verification]. 15.203 Antenna Connector Permanently attached or unique coupling. The radio to antenna connectors are MMX to RP SMA connectors. Complies. 15.204(b)(c) System and Antennas Marketed as a system with authorized antenna types System is complete radio with list of patch type antennas. Complies 15.207 (a) (b) AC Mains Conducted Emissions General Limits. Conducted emissions on AC side of DC supply. . Complies. 15.205 (a) (b) 15.209 (a) (c) Radiated Emission Must comply with limits specified in 15.209 (a). No intentional emissions in the restricted bands of 15.205 The radiated emissions in the comply with the general emission limits. 15.247 (a) (1) Carrier Frequency Separation Separated by minimum …

Text truncated - open the document above for the full version.

Test Setup Photos Chamber setup for frequency survey. OATS AC Mains Conducted Emissions H-Field OATS
