BW3-DB-6645-01WLAN VoIP Phone

WLAN IP Phone DB-6645 Quickly Operational Manual Issue 1.0 Issued18, Mar., 2004 DB-6645 Quickly Operation Manual 18/Mar/2004 Issue 1.0 1 Revision History Version Date Remarks 1.0 18. Mar. 2004 Initial operational manual: Draft issue (for MMI ver.06) DB-6645 Quickly Operation Manual 18/Mar/2004 Issue 1.0 2 1.Outline 1.1 On the handset ¾ Definition of the icons on the display  Next page.  Previously page.  is blinking, indicating new incoming call.  Handset is ready to make a call.  Handset is linked to AP  is blinking, indicating new unanswered Caller ID information exists.  is on steady, indicating old Caller ID information exists.  Keypad locked. A The capitalized mode during editing. a The small letter mode during editing. 1 The Numeral mode during editing.  Battery is low.  Battery is fully charged.  It is steady on when handset speaker is on.(Option) ¾ Definition of the keys [] Move up/down.(As a backspace key during editing) []/[] Redial/The cursor jump to right in message mode. []/[] Phone book/The cursor jump to left in message mode. [ ] Softkey1. [ ] Softkey2. [] Phone off/Escape to the last step/ Power on, off.(Press it for over 3 seconds) [] Phone on. [ HOLD] Hold on the call during conversation. [ TRF] Transfer the call to the other IP phone during conversation. [ SHIFT] Change the lower case or upper case mode during editing [ FNC] Setup a function or confirm a setup. DB-6645 Quickly Operation Manual 18/Mar/2004 Issue 1.0 3 [LOCK] Keypad locked in standby mode. [ 0~9,*,#]/[N] Numeral (The contrast table is below). Mode Capitalized Small letter Time Key 1 2 3 4 5 1 2 3 4 5 1 1 1 2 A B C 2 a b c 2 3 D E F 3 d e f 3 4 G H I 4 g h i 4 5 J K L 5 j k l 5 6 M N O 6 m n o 6 7 P Q R S 7 p q r s 7 8 T U V 8 t u v 8 9 W X Y Z 9 w x y z 9 0 Space - 0 Space- 0 * * @ ( * @ ( # # ) : # ) : 1.2 Handset LCD display HS LCD Mode Status A No service 2003/09/20 11:50 Searching mode A DB168-user 2003/09/20 11:50 Standby mode A Battery Low Low battery mode A DB168-user 2003/09/20 11:50 New message DB-6645 Quickly Operation Manual 18/Mar/2004 Issue 1.0 4 2.Programming menu Menu at handset on hook mode „ Phonebook 1 st entry [1]Speed dial [1]Search [2]Edit [3]Erase 2 nd entry Note: If there is no entry, “No Number!” shows instead. [2]Add entry Name Number IP [3]Erase [1]Erase one [2]Erase all „ Call history [1]Missed call 1 st entry [1]Detail [2]Dial [3]Save [4]Erase 2 nd entry [2]Received call 1 st entry [1]Detail [2]Dial [3]Save Note: If there is no entry, “No Number!” shows instead. [4]Erase 2 nd entry [3]Dialed call 1 st entry [1]Detail [2]Dial [3]Save [4]Erase 2 nd entry [4]Erase call [1]Erase all [2]Erase missed [3]Erase receive [4]Erase dialed „ Setting [1]On [1]Key tone [2]Off [2]Ring melody Melody 1 Melody 2 Melody 3 Melody 4 Melody 5 Melody 6 DB-6645 Quickly Operation Manual 18/Mar/2004 Issue 1.0 5 [3]Ring volume 0(Mute)~5(Max) [4]Time setting [1]Time zone GMT-12~+12 [2]Time format [1]24H [2]12H [3]Off [3]Date format [1]mm/dd [2]yyyy/mm/dd [3]Weekday [4]Off [4]Date edit [5]Time edit [5]Speed dial [1]On [2]Off [6]Auto answer [1]On [2]Off [7]Banner [8]NTP Server [1]Auto [2]Manual [9]Load default [10]Vibrator [1]On [2]Off DB-6645 Quickly Operation Manual 18/Mar/2004 Issue 1.0 6 3.Basic phone function 3.1 Power on / off Press [] for over 3 seconds. Ex. Power on A Ex. Power off  A DB168-user 2003/09/20 11:50 --------------------------- Select Back 3.2 Receiving a call ‹Calling from another handset Ex. Handset 69 is calling from handset 75.  is blinking. A 75 --------------------------- Clear Ok Press [] Ö Conversation 3.3 Making a call 3.3.1 Manual input ‹With pre-dial Press [N] Ex. It is dialing to handset 75. 1 75 --------------------------- Clear Ok Press [] Ö dial A Dialing... 75 Press [] Öto end the call. ‹Without pre-dial Press [ ] A DB-6645 Quickly Operation Manual 18/Mar/2004 Issue 1.0 7 Press [N] Ö to dialing Ex.75 A 75 Wait for 3 sec to show the dialing. A Dialing... 75 Press [] Öto end the call. 3.3.2 From phone book Press [] The LCD is show the name or phone no. Phonebook Aaron Ben 75 --------------------------- Back Select Note: If there is no phonebook entry previously saved in the Phonebook list, the LCD will shows “No number”. Phonebook Press []/[] to choose number. A Ben 75 Aaron --------------------------- Back Select Press [] Ö Conversation Ex. Ben A Dialing... Ben Press [] Ö to end the call. 3.3.3 Re-dial Press [ ] To dial the last 20 numbers. A 123 75 129 --------------------------- Back Select Press []/[] to choose redial number DB-6645 Quickly Operation Manual 18/Mar/2004 Issue 1.0 8 Press [] Ö Conversation Ex. Ben A Dialing... Ben Press [] Ö to end the call. 3.4 HS volume (To be modify in next F/W version) During the conversation: Press [ ] / [] Ö to adjust volume Press Select [] Öto confirm the setting. A 05>>>>> --------------------------- Back Select 3.5 Keypad locked Press [LOCK] ÖLock Keypad in standby mode. Press [LOCK] again Öto release. A DB168-user 2003/09/20 11:50 --------------------------- Select Back In this mode, only incoming calls can be accepted. 3.6 Caller ID Total caller ID memory: 30 sets. Calling party number will be displayed on LCD. If name information is also provided, it will be displayed on LCD.  75 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular …

Text truncated - open the document above for the full version.

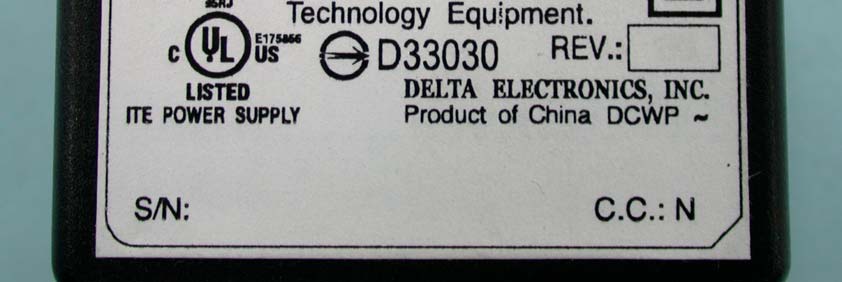

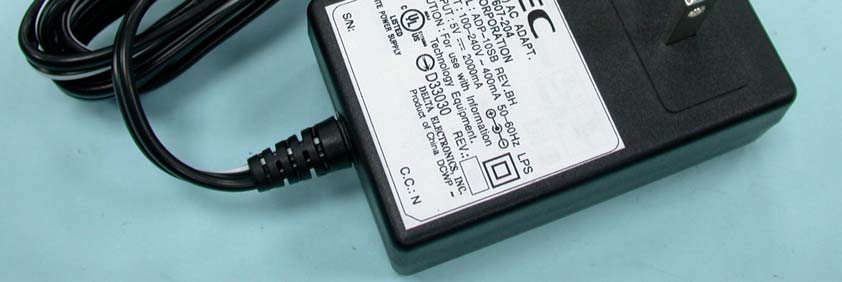

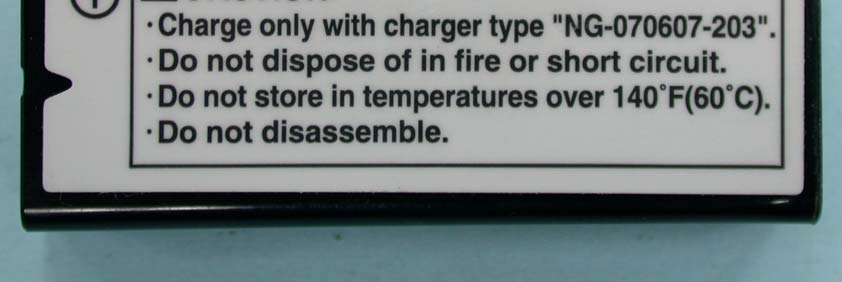

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

LABEL LOCATION

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20

FCC ID: BW3-DB-6645-01 ADT No.930322L11 Operational Description This device is a WLAN IP Phone which operates in the 2.4GHz frequency spectrum with throughput of up to 11Mbps which CCK technique will be applied. the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The transmitter of the EUT is powered by battery. The antenna is chip embedded antenna. There is no antenna connector. The other instruction, please have a look at the users manual.

FCC ID: BW3-DB-6645-01 Report No.: SA930322L111Issued: Apr. 16, 2004 SAR TEST REPORT REPORT NO.: SA930322L11 MODEL NO.: DB-6645 RECEIVED: Mar. 22, 2004 TESTED: Apr. 13, 2004 APPLICANT: DBTEL Incorporated ADDRESS: No. 29, Tzu Chiang St., Tu-Cheng, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 34 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: BW3-DB-6645-01 Report No.: SA930322L112Issued: Apr. 16, 2004 Table of Contents 1.CERTIFICATION........................................................................................................................ 3 2.GENERAL INFORMATION........................................................................................................ 4 2.1GENERAL DESCRIPTION OF EUT.......................................................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM ................................................................. 5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ................................ 9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS................................................ 12 3.1TOUCH/CHEEK TEST POSITION .......................................................................................... 13 3.2TILT TEST POSITION ............................................................................................................. 14 3.3BODY-WORN CONFIGURATION ........................................................................................... 14 4.DESCRIPTION OF SUPPORT UNITS .................................................................................... 15 5.TEST RESULTS ...................................................................................................................... 15 5.1TEST PROCEDURES .............................................................................................................15 5.2MEASURED SAR RESULT ..................................................................................................... 16 5.3SAR LIMITS ............................................................................................................................. 19 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................... 21 5.5TEST EQUIPMENT FOR TISSUE PROPERTY...................................................................... 23 6.SYSTEM VALIDATION ............................................................................................................24 6.1TEST EQUIPMENT ................................................................................................................. 24 6.2TEST PROCEDURE................................................................................................................ 24 6.3VALIDATION RESULT............................................................................................................. 26 6.4SYSTEM VALIDATION UNCERTAINTIES .............................................................................. 27 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES ...................................................... 28 7.1PROBE CALIBRATION UNCERTAINTY ................................................................................ 28 7.2ISOTROPY UNCERTAINTY.................................................................................................... 28 7.3BOUNDARY EFFECT UNCERTAINTY................................................................................... 29 7.4PROBE LINEARITY UNCERTAINTY ...................................................................................... 29 7.5READOUT ELECTRONICS UNCERTAINTY.......................................................................... 30 7.6RESPONSE TIME UNCERTAINTY ........................................................................................ 30 7.7INTEGRATION TIME UNCERTAINTY .................................................................................... 31 7.8PROBE POSITIONER MECHANICAL TOLERANCE ............................................................. 31 7.9PROBE POSITIONING............................................................................................................32 7.10 PHANTOM UNCERTAINTY .................................................................................................... 32 7.11 DASY4 UNCERTAINTY BUDGET .......................................................................................... 33 8.INFORMATION ON THE TESTING LABORATORIES............................................................ 34 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: BW3-DB-6645-01 Report No.: SA930322L113Issued: Apr. 16, 2004 1. CERTIFICATION PRODUCT : WLAN IP Phone MODEL NO. : DB-6645 BRAND NAME : DBTEL APPLICANT : DBTEL Incorporated TEST ITEM: ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from on Apr. 13, 2004. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (…

Text truncated - open the document above for the full version.

Date/Time: 04/13/04 17:38:56 Test Laboratory: Advance Data Technology DB-6654-BodySide DUT: VOIP phone Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Medium: MSL2450 (σ = 2.012 mho/m, ε r = 51.7742, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; DUT test position : Body; Modulation type: CCK Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees Separation Distance : 0mm(The front side of the EUT to the Phantom) DASY4 Configuration: - Probe: ET3DV6 - SN1687; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 - Ch 11 0mm position Front- Low/Area Scan (41x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 5.42 V/m Power Drift = 0.2 dB Maximum value of SAR = 0.0515 mW/g Ch 11 0mm position Front- Low/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.186 W/kg SAR(1 g) = 0.0618 mW/g; SAR(10 g) = 0.0286 mW/g Reference Value = 5.42 V/m Power Drift = 0.2 dB Maximum value of SAR = 0.0735 mW/g Date/Time: 04/13/04 18:05:36 Test Laboratory: Advance Data Technology DB-6654-BodySide DUT: VOIP phone Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Medium: MSL2450 (σ = 1.971 mho/m, ε r = 52.0218, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; DUT test position : Body; Modulation type: CCK Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees Separation Distance : 0mm(The bottom side of the EUT to the Phantom) DASY4 Configuration: - Probe: ET3DV6 - SN1687; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 - Ch 01 0mm position bottom- Low/Area Scan (41x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 9.17 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.21 mW/g Ch 01 0mm position bottom- Low/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.357 W/kg SAR(1 g) = 0.154 mW/g; SAR(10 g) = 0.0655 mW/g Reference Value = 9.17 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.178 mW/g Date/Time: 04/13/04 18:31:23 Test Laboratory: Advance Data Technology DB-6654-BodySide DUT: VOIP phone Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Medium: MSL2450 (σ = 1.973 mho/m, ε r = 51.7897, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; DUT test position : Body; Modulation type: CCK Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees Separation Distance : 0mm(The bottom side of the EUT to the Phantom) DASY4 Configuration: - Probe: ET3DV6 - SN1687; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 - Ch 06 0mm position bottom- Mid/Area Scan (41x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 7.79 V/m Power Drift = -0.5 dB Maximum value of SAR = 0.145 mW/g Ch 06 0mm position bottom- Mid/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.206 W/kg SAR(1 g) = 0.0995 mW/g; SAR(10 g) = 0.0422 mW/g Reference Value = 7.79 V/m Power Drift = -0.5 dB Maximum value of SAR = 0.113 mW/g Date/Time: 04/13/04 18:56:12 Test Laboratory: Advance Data Technology DB-6654-BodySide DUT: VOIP phone Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Medium: MSL2450 (σ = 2.012 mho/m, ε r = 51.7742, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; DUT test position : Body; Modulation type: CCK Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees Separation Distance : 0mm(The bottom side of the EUT to the Phantom) DASY4 Configuration: - Probe: ET3DV6 - SN1687; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 - Ch 11 0mm position bottom- High/Area Scan (41x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 5.34 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.0745 mW/g Ch 11 0mm position bottom- High/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.158 W/kg SAR(1 g) = 0.0603 mW/g; SAR(10 g) = 0.025 mW/g Reference Value = 5.34 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.0681 mW/g Date/Time: 04/13/04 19:21:32 Test Laboratory: Advance Data Technology DB-6654-BodySide-lateral Side DUT: VOIP phone Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Medium: MSL2450 (σ = 1.971 mho/m, ε r = 52.0218, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; DUT test position : Body; Modulation type: CCK Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees Separation Distance : 0mm(The lateral side of the EUT to the Phantom) DASY4 Configuration: - Probe: ET3DV6 - SN1687; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 - Ch 01 0mm position lateral side- low/Area Scan (41x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 3.23 V/m Power Drift = -0.05 dB Maximum value of SAR = 0.0375 mW/g Ch 01 0mm position lateral side- low/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SA…

Text truncated - open the document above for the full version.

FCC ID: BW3-DB-6645-01 Report No.: RF930322L111 Issued: 12 April, 2004 FCC TEST REPORT REPORT NO.: RF930322L11 MODEL NO.: DB-6645 RECEIVED: 22 March, 2004 TESTED: 27 March, 2004 ~ 09 April, 2004 APPLICANT: DBTEL Incorporated ADDRESS: No. 29, Tzu Chiang St., Tu-Cheng Industrial Park, Tu-Cheng, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 58 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. FCC ID: BW3-DB-6645-01 Report No.: RF930322L112 Issued: 12 April, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP ...............................................................................................11 4.1.6EUT OPERATING CONDITIONS.................................................................11 4.1.7TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 24 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 24 4.2.2TEST INSTRUMENTS ................................................................................ 25 4.2.3TEST PROCEDURES................................................................................. 26 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 27 4.2.5TEST SETUP .............................................................................................. 27 4.2.6EUT OPERATING CONDITIONS................................................................ 27 4.2.7TEST RESULTS.......................................................................................... 28 4.36dB BANDWIDTH MEASUREMENT .......................................................... 33 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 33 4.3.2TEST INSTRUMENTS ................................................................................ 33 4.3.3TEST PROCEDURE ................................................................................... 34 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 34 4.3.5TEST SETUP .............................................................................................. 34 4.3.6EUT OPERATING CONDITIONS................................................................ 34 4.3.7TEST RESULTS.......................................................................................... 35 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 39 FCC ID: BW3-DB-6645-01 Report No.: RF930322L113 Issued: 12 April, 2004 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 39 4.4.2TEST INSTRUMENTS ................................................................................ 39 4.4.3TEST PROCEDURES................................................................................. 39 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 39 4.4.5TEST SETUP .............................................................................................. 40 4.4.6EUT OPERATING CONDITIONS................................................................ 40 4.4.7TEST RESULTS.......................................................................................... 41 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 42 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 42 4.5.2TEST INSTRUMENTS ................................................................................ 42 4.5.3TEST PROCEDURE ................................................................................... 43 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 43 4.5.5TEST SETUP .............................................................................................. 43 4.5.6EUT OPERATING CONDITIONS................................................................ 43 4.5.7TEST RESULTS.......................................................................................... 44 4.6BAND EDGES MEASUREMENT ................................................................ 48 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 48 4.6.2TEST INSTRUMENTS ....................................…

Text truncated - open the document above for the full version.

T E S T R E P O R T REPORT NUMBER : ANKK-804016 APPLICANT : DBTEL Inc. MODEL NUMBER : DB-6645 REGULATION : FCC Part68 Akzo Nobel K. K. EMC Division Kashima Site 1, Oaza Sunayama, Hasaki-machi, Kashima-gun Ibaraki-ken, 314-0255 Japan Tel.: +81 479 40 1099 Fax.: +81 479 40 1922 Akzo Nobel Report No. ANKK-804016 Page 2 of 12 pages (Version 2.3) TABLE OF CONTENTS Page SECTION 1. TEST CERTIFICATION 3 SECTION 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) 4 SECTION 3. SUMMARY OF TEST RESULTS 5 SECTION 4. TEST PLAN 6 SECTION 5. EQUIPMENT EVALUTION 7 SECTION 6. UNCERTAINTY OF MEASUREMENT 11 SECTION 7. INSTRUMENTS USED FOR TEST 12 Akzo Nobel Report No. ANKK-804016 Page 3 of 12 pages (Version 2.3) SECTION 1. TEST CERTIFICATION APPLICANT INFORMATION Company : DBTEL Inc. Address : No.29, Tzu Chiang Street, Tu-Cheng, Taipei, Taiwan, R.O.C. Telephone number : +886 2 8227 2270 ext 5335 Fax number : +886 2 8227 2271 DESCRIPTION OF TEST ITEM Kind of equipment : Wireless IP Phone Condition of equipment : Pre-production Type : Handheld type Trademark : DBTEL Model number : DB-6645 Serial number : None TEST PERFORMED Location : Telecom Testing Room EUT Received : March 24, 2004 Test started : March 24, 2004 Test completed : March 24, 2004 Regulation : FCC Part68 Test procedure : FCC Part68 Test Procedure Revision 6 Akzo Nobel Document number : 03-10-801 / Feb 8, 2002 TEST CONDITION Temperature : 21.0 to 23.5 Humidity : 45 to 52 Atmospheric : 101.0 kPa to 102.0 kPa Voltage : DC 3.7 V Frequency : None * This equipment complies with above standard or regulation under the test condition or test configuration shown on this test report. * Traceability to national or international standards of test result is achieved by means of calibration traceability to national or international standards. * The test result of this report is effective for equipment under test itself and under the test configuration described on the report. * This test report does not assure that whether the test result taken in other testing laboratory is compatible or reproducible to the test result on this report or not. * This test report shall not be reproduced except in full, without issuer’s permission. Report issue date : April 5, 2004 Test engineer : Kazuo Gokita Report approved by : Takaaki Inagaki Akzo Nobel Report No. ANKK-804016 Page 4 of 12 pages (Version 2.3) SECTION 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) 1. This equipment is a Wireless IP Phone that provides following function and interface. * Wireless IP Phone Wireless interface: IEEE 802.11b Voice codec: G.711, G.729a Signaling protocol: SIP(RFC 3261) +Expanded proprietary protocol Encryption protocol: WEP(64bit/128bit), WPA Phonebook Mechanical specification Size: 46 mm(W) x 126 mm(D) x 25 mm(H) Mass: 123 g (include battery) 2 OPERATING CONDITION 2.1 Operating condition Test and measurement were carried out under following condition. (1) On-hook EUT has following On-hook condition; None (2) Off-hook EUT has following Off-hook condition; Power On: Standby (No signal and speech send) 3. LOOP VOLTAGE AND LOOP CURRENT DC Feed Voltage : 42.5 V or 56.5 V normal and reverse polarity Loop Current : 24.8 mA (Min) to 99.5 mA (Max) Akzo Nobel Report No. ANKK-804016 Page 5 of 12 pages (Version 2.3) SECTION 3. SUMMARY OF TEST RESULTS Electrical Tests Test Number FCC Part 68 Section Test description Result 1 - Method of Loop Current Calculation Complied 2 68.312(d)-(f) Ringer Equivalence Number (REN) Not Applicable 3 68.314(a),(b) On-hook Signal Call Duration and Requirements Not Applicable 4 68.308(d) (e)(2) Longitudinal Voltage - 0.1kHz to 6MHz Not Applicable 5 68.308(b)(1) Voiceband Metallic Signal Power Not Applicable 6 68.308(b)(2) Voiceband Signal Power - Network Control Signals Not Applicable 7 68.308(b)(4) Voiceband Signal Power - Data Not Applicable 8 68.308(b)(5) (c)(2) Through Transmission Not Applicable 9 68.308(c)(1) Signal Power 3995Hz - 4005Hz Not Applicable 10 68.308(e)(1) Metallic Voltage - 4kHz to 6MHz Not Applicable 11 68.314(c) Loop Current Requirements Not Applicable 12 68.314(d)(1) Signaling Interference Not Applicable 13 68.310(b) Transverse Balance Not Applicable 14 68.312(b)(1) (b)(2),(b)(3) DC Resistance and DC Current During Ringing Not Applicable 15 68.312(b)(4) (b)(5) AC Impedance During Ringing Not Applicable 16 68.318 (b) Automatic Dialing Not Applicable 17 68.318 (d) FAX Branding Not Applicable 18 68.316 Hearing Aid Compatibility Complied 19 68.317 Hearing Aid Compatibility Volume Control Complied 20 68.306(a) Hazardous Voltage Limitations - General Not Applicable 21 68.306(b) Connection of Non-Registered Equipment to Registered Terminal Equipment or Registered Protective Circuitry Not Applicable 22 68.306(c) Non-Hazardous Voltage Source Not Applicable 23 68.304 Leakage Current Limitations Not Applicable 24 68.306(e) Intentional Paths to Ground Not Applicable Environmental Tests Test Number FCC Part 68 Section Test description Result 25 68.302(a) Mechanical Shock Not Applicable 26 68.302(c)(1) Telephone Line Surge - Type B, Metallic Not Applicable 27 68.302(c)(2) Telephone Line Surge - Type B, Longitudinal Not Applicable 28 68.302(b)(1) Telephone Line Surge - Type A, Metallic Not Applicable 29 68.302(b)(2) Telephone Line Surge -…

Text truncated - open the document above for the full version.
