BW3DB-2068CPCS band GSM phone

DBTEL is a registered trademark of DBTEL Incorporated. Copyright © 2004 DBTEL Incorporated. All rights reserved. No part of this publication may be reproduced or distributed in any form or by any means, or stored in a database or retrieval system, without the prior written permission of the publisher. DBTEL Incorporated reserves the right to make changes in technical and product specifications without prior notification. Address: No.29, Tzu Chiang St, Tu-Cheng, Taipei, Taiwan. Website: http://www.dbtel.com.tw Warning: Use only approved accessories and battery. Do not connect to any incompatible products; otherwise, it will invalidate the recognition or warranty applying to your mobile phone. The font type of the legend, graphics and icons in the user manual may differ from that shown on the handset. Technical specifications and some certain features are subject to change in technology, design, software upgrade and availability. USER MANUAL J6 Notice To reduce exposure to electromagnetic radiation, use the handset properly. SAR Radiation Limit: 1.6 W/Kg Tested SAR Rating: 0.713 W/Kg (CAUTION - It's required to provide at least 1.5 cm separation between the device and the user body.) Safety Information DBTEL handset is the first Specific Absorption Rate (SAR) compliance in Ta i wa n . Compliance with International standard SAR Radiation Limit: 1.6 W/Kg Tested SAR Rating: 0.713 W/Kg Product Safety Product safety is always the first priority of DBTEL Incorporated. With the SAR Safety Certificate, we show our persistence in making customer safety the paramount importance. FCC requirements A declaration of conformity to the essential requirements. Identification of the United States of America in which the equipment is intended to be used. Identification of the public telecommunication network to which the equipment is intended to be connected. “ Hereby, we <DBTEL Inc.>, declares that this J6 is in compliance with the essential requirements and other relevant provisions of “FCC Part 2(Section 2 1093) & FCC OET Bulletin 65”. Contents FCC - SAR European Union - SAR SAR (FCC) This Model phone meets the FCC Requirements for exposure to radio waves. Your Mobile Phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radio frequency (RF) energy recommended by the Council of the European Union. These limits are part of comprehensive guidelines and established permitted levels of RF energy for the general public. The guidelines were developed by independent scientific organizations through the evaluation of scientific studies. The limits include a substantial safety margin designed to ensure the safety of all persons, regardless of age and health. The exposure standards for mobile phones employ a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit recommended by FCC is 1.6 W/kg.* Tests for SAR have been conducted using normal operating conditions with the phone transmitting at the highest certified power in all tested frequency bands. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to the station antenna, the lower the power output. Before a phone model is available for sale to the public, compliance with FCC must be shown. One of the essential requirements of this directive is the protection of the health and safety for the user and any other person. The highest SAR value for this model phone when tested for compliance against the standard is 0.713 W/kg. While there may be differences between the SAR levels of various phones and at various positions, they all meet the FCC requirement for RF exposure. The SAR limit for mobile phones for public use is 1.6 watts/kilogram (W/kg) averaged over ten grams of body tissue. The limit incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. For Your Safety For Your Safety Road safety Exercise proper control of the car at all times. Do not use handheld phones while driving; always use the hands free kit. Special regulations Always switch off your mobile wherever use is prohibited, such as in hospitals, as it may cause interference with medical equipment. Electronic devices Mobile phones may interfere with appliances such as computers, televisions and other radio equipments. Other medical devices Mobile phones may interfere with signals of personal medical devices, such as pacemaker or hearing aid. Consult your doctor for advice before using the mobile. Aircraft The use of mobile phones is prohibited in the air. Switch off your phone before boarding an aircraft. Accessories and battery Use only approved accessories and batteries. Do not connect to any incompatible product. This will invalidate any warranty applying to your mobile phone and may be dangerous. Disposal Your mobile phone and other accessories must be disposed of properly. It must not be thrown away in municipal waste! Please dispose of used mobile phones and other accessories in accordance with local regulations. Potentially explosive atmospheres Switch off your phone when in or near explosive areas, petrol stations and chemical plants. Emergency calls Make sure your phone is switched on and in a service area with adequate signal strength. When in idle mode, key in the emergency call number and press to be connected to the local emergency services. Provide all the necessary information as accurately as possible. Do not hang up until you are told to do so. Note If a PIN is set when switching on the mobile phone with SIM card inserted, you will be asked for the PIN code. You can make an emergency call without entering the PIN code. Press followed by or to make emergency call. Your J6 Your J6 Your phone Your mobile phone is a radio transceiver. When the phone is turned on, it transmits and receives radio frequency (RF) s…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 27, 2004 RE: DBTEL Incorporated FCC ID: BW3DB-2068C I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Your Confidentiality Request letter asks for confidential treatment of Block Diagram and Schematics. There is no mention of Parts List, Tune-Up Procedure or Operational Description. Please confirm that none of these additional Exhibits are to be considered Confidential. 2.) The Label for this device is incorrect. Please correct according to the format listed in Part 2 of the Rules: example - “FCC ID: XXXxxxx.’ 3.) Please confirm if the RF power target values HAM 0 and HAM 15 are the same as PLC = 0 and PLC = 15. 4.) The Form 731 shows both RF conducted and EIRP power in watts. Please be advised that only EIRP will be shown on the Grant for this Part 24 device. 5.) Is this product a tri-band device? If so, then it will be necessary to provide an attestation that only US bands of operation are permitted. 6.) Please provide a listing of all manufacturers’ supplied accessories for this device. 7.) Is this cellphone capable of data transmission? If so, then SAR will need to be tested with something greater than a 1:8 timeslot system. 8.) Ambient air and phantom and liquid temperature is required for each SAR measurement plot. Please provide temperature information. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

SPORTON LAB Response For FCC Application 2004/9/1 RE: DBTEL Incorporated FCC ID: BW3DB-2068C 1. Yes, Confidentiality items only include Block Diagram and Schematics. 2. The Label has been updated 3. HAM 0 is different PCL=0, please also find the attachment. 4. Yes, we know it. 5. Yes, it is 900/1800/1900 tri-band device. Attestation is provided. 6. The supplied accessories include headset and charger. 7. It is GPRS class 8 device, so the crestor factor is the same with GSM. 8. The updated SAR report with temperature in plottings will be uploaded on 9/1/2004 Sincerely Yours Daniel Lee EMC/SAR Manager

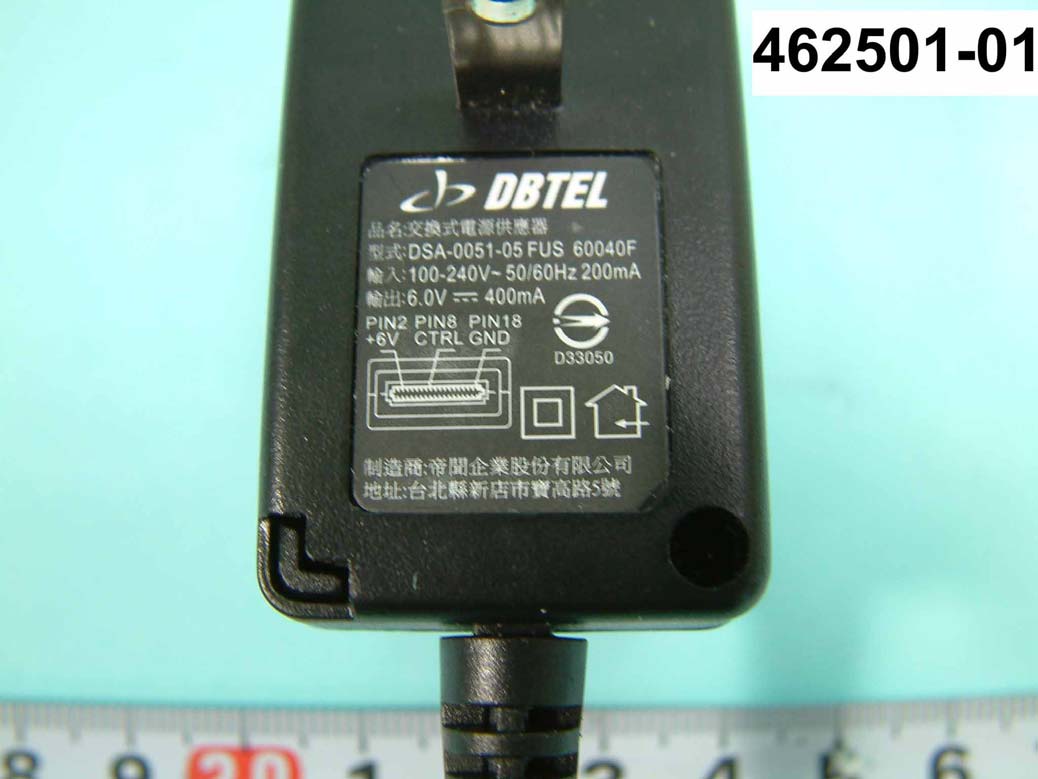

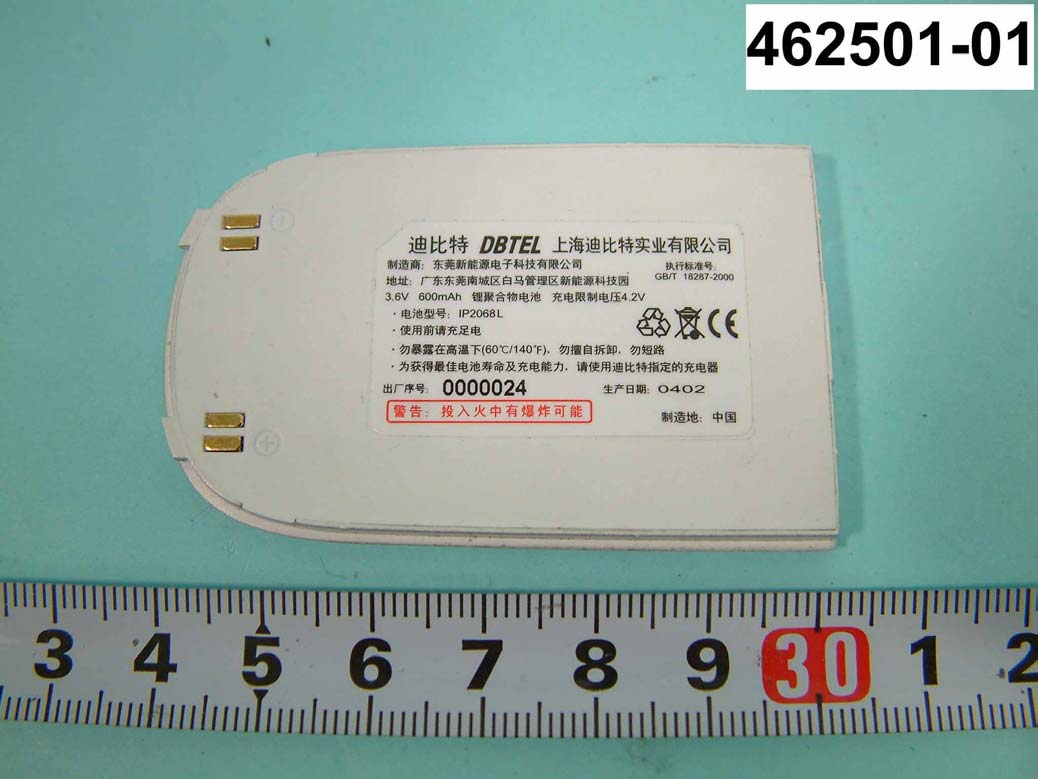

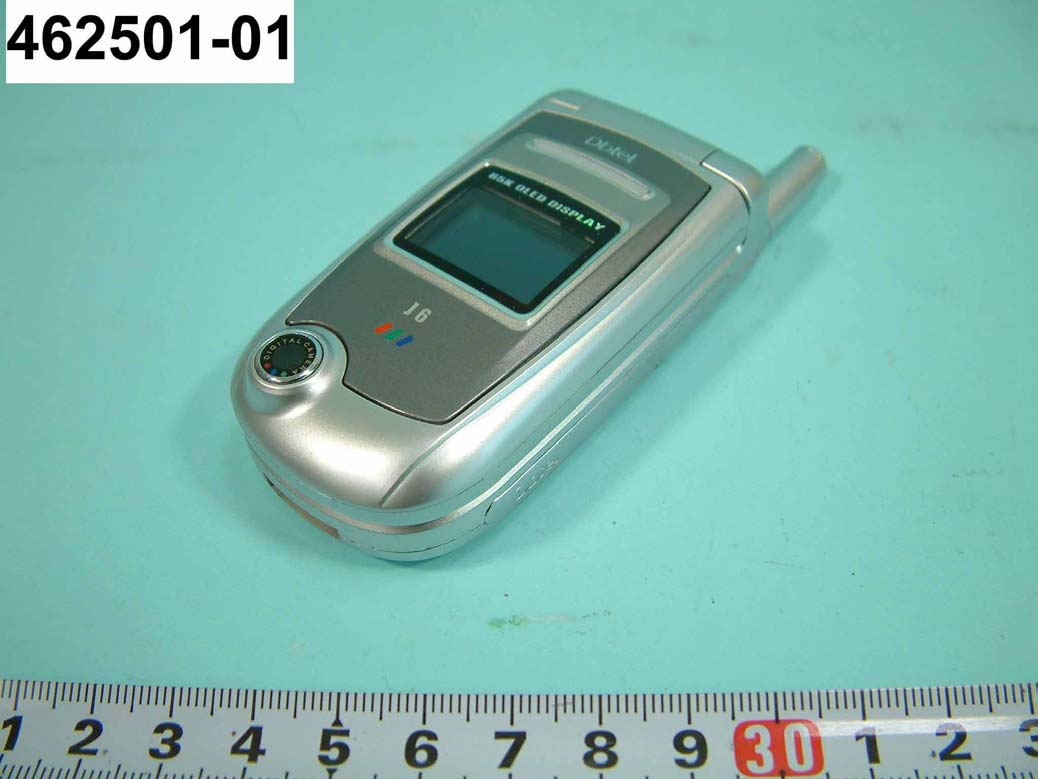

FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 APPENDIX A. External Photographs of EUT FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255

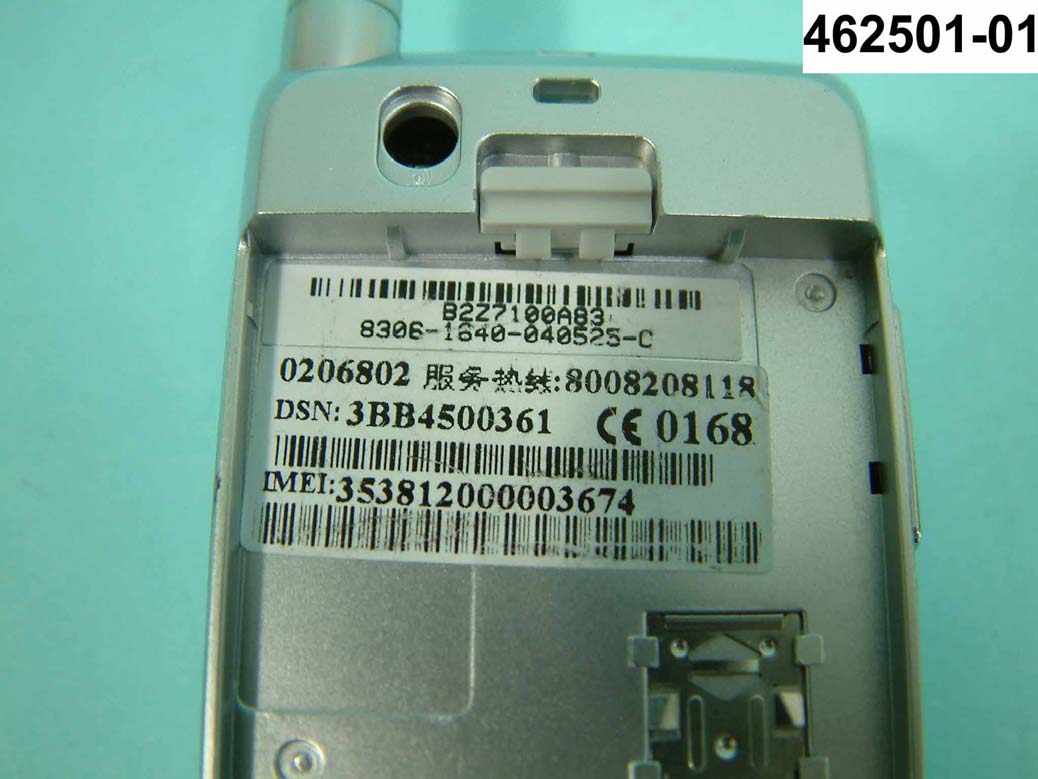

Label Placement: Label

Label Sample:

FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B1 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B2 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B3 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B4 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B5 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B6 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B7 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B8 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B9 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B10 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B11 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B12 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B13 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B14 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B15 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B16 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F462501-01 SPORTON International Inc. PAGE NUMBER : B17 OF B17 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 02, 2004 FAX : 886-2-2696-2255

1 DB2068C Radio Module operational description July 27,2004 2 Table of Contents 1.0 PURPOSE 3 2.0 SCOPE 3 3.0 RELATED DOCUMENTS 3 4.0 OVERVIEW 3 4.1DB2068C RADIO REFERENCE SOLUTION ARCHITECTURE 3 5.0 FUNCTIONAL DESCRIPTION 4 3 1.0 Purpose The purpose of this document is to provide the necessary information to describe the operational theory. 2.0 Scope This document will provide a top level description of the DB2068C Radio Module. 3.0 Related Documents There are a number of related documents which are helpful when using this manual. They include the following. a) DB2068C User’s Manual b) DB2068C Transceiver Data Sheet c) GSM System Specification. d) DB2068C Radio Circuitry Description The DB2068C User’s Manual provides the necessary information to operate a mobile. DB2068C Traceiver Data Sheet provides some information for the RF part. The DB2068C Radio Circuitry Description .Circuitry Description provides information on the circuits relevant to FCC certification. 4.0 O verview The attached picture is DB2068C BLOCK diagram. 4.1DB2068C Radio Module Circuit Architecture The circuit can be powered-up into four different modes, RX, TX, SYN or REF mode, depending on supply voltages applied, the logical level at pins RXON/TXON/SYNON and the 3-wire bus serial programming. In RX (TX) mode, all sections required for receive (transmit) are turned on. The SYN mode is used to power-up the synthesiser and the RF VCO prior to the RX or TX mode. In the SYN mode, some internal LO buffers are also powered-up such that VCO pulling is minimized when switching on the receiver 4 or the transmitter. The reference oscillator (REF mode) is turned on by applying the supply voltage. Additionally band selection is done using the 3-wire bus serial programming allowing the proper enabling of the LNAs and TX charge-pump current programming. 5.0 FUNCTIONAL DESCRIPTION RF Receiver The receiver front-end converts the aerial RF signal from GSM850 (869-894 MHz), GSM900 (925 - 960 MHz), DCS(1805 - 1880 MHz) or PCS (1930 - 1990 MHz) bands down to a low intermediate frequency (IF) of 100 kHz. The first stages are symmetrical low noise amplifiers (LNAs). They are matched to 50 W using external baluns. The DCS inpurs can also be used for PCS operation. The LNAs are followed by an I, Qdown-mixer. It consists of two mixers in parallel but driven by quadrature out of phase LO signals. The In phase (I) and Quadrature phase (Q) IF signals are low pass filtered to provide protection from high frequency offset interferers. The low IF I and Q signals are then fed into the channel filter. Channel filter and AGC The front-end low IF I and Q outputs enter the integrated bandpass channel filter with provision for five 8 dB gain steps in front of the filter. The filter is a self-calibrated fifth order band-pass filter centred around 100 kHz and has a bandwidth of 240 kHz for GSM 5 mode, 300kHz for EDGE mode. Being filtered the low IF I and Q are further amplified with provision for ten 4 dB gain steps and fully integrated DC offset compensation. Realised with an active high pass circuit this compensation either operates continuously or keeps the acquired offset correction during the bursts depending on the programming. The low IF output buffer provides close to rail-to-rail output signals. IQ modulator I and Q baseband signals are applied to the IQ modulator that shifts the modulation spectrum up to the transmit IF. It is designed for low harmonic distortion, low carrier leakage and high image rejection to keep the phase error as small as possible. The modulator is loaded at its IF output by an integrated low pass filter that supress unwanted spurs prior to get into the phase detector. The clock drive is generated by division of the RFLO signal provided for the transmit offset mixer. Transmit modulation loop The analog transmit modulation loop is composed by an on-chip offset mixer with spur filter and by a phase/frequency detector with charge pump. The loop is closed off-chip by a loop filter and transmit VCO. The analog PLL copies the modulation to the off-chip transmit VCO and acts as a tracking filter. A PLL of at least third order is required to meet noise requirements at 20 MHz offset from carrier. The PLL bandwidth must be greater than 700 kHz in order to keep a low dynamic phase error and to minimize the acquisition time. The IF frequencies used are about 60 MHz. RF VCO The RF VCO is fully integrated and self calibrating on manufacturing tolerances. It consists of 64 different frequency ranges that are selected internally depending on the frequency programming. It covers the necessary bandwidth of 3476 to 3980MHz and is tuned via the RF charge pump and the external loop filter. An internal supply voltage regulator using VCC(RFLO) as input supplies the RF VCO and minimises parasitic couplings and pushing. This regulator and the RF VCO are turned on by the SYNON signal. The 64 different frequency ranges are realised by switching of varactors’ cathodes between GND and the regulated RFVCO supply. RF LO section The RF LO section covering the 3476 to 3980 MHz bandwidth is driven by the internal RF VCO module. It includes the LO buffering for the RF PLL, a divider by two or one for GSM850/GSM900 and DCS/PCS respectively which drives a quadrature generation network to supply the RX IQ down-mixer or it drives the transmit modulation loop offset mixer and the clock divider driving the IQ modulator.Philips Semiconductors Objective specification Low power GSM850/GSM900/DCS/PCS multi-band transceiver UAA3536HN/C2

NO. Level Part Name Location Description QTY VENDOR1 APPROVAL NO. VENDOR2 APPROVAL NO. VENDOR3 APPROVAL NO. VENDOR3 APPROVAL NO. 14 1PM-2068-56H PCB 2068-56H FR-4 37.0*75.8*0.8MM 8LAYERS 1 联能 24 1HR-0000J3-841 R101 R102 R106 R110 R112 R169 R301R403 R409 R809 R834 L3 CHIP RESISTOR 0 OHM +-5% 1/16W 0402 12 SAMSUNG M1HR-0043* RALEC M1HR-0047* YAGEO M1HR-0044* 34 1HR-024AJ3-241 R621 CHIP RESISTOR 0.24 OHM +-5% 1/6W 1206 1 YAGEO M1HR-0016A* 旺诠 M1HR-0071* 44 1HR-051BJ3-841 R219 CHIP RESISTOR 5.1OHM +-5% 1/16W 0402 1 RALEC M1HR-0047* 54 1HR-0180J3-841 R12 CHIP RESISTOR 18 OHM +-5% 1/16W 0402 1 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 64 1HR-0330J3-841 R15 CHIP RESISTOR 33 OHM +-1% 1/16W 0402 1 RALEC M1HR-0047* SAMSUNG M1HR-0043* 74 1HR-0470J3-841 R27 CHIP RESISTOR 47 OHM +-5% 1/16W 0402 1 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 84 1HR-0510J3-841 R911~R920 CHIP RESISTOR 51 OHM +-5% 1/16W 0402 10 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 9 4 1HR-0560J3-841 R1006 R1007 R1008 R1009 R1013 R1030R1031 R1032 R1033 CHIP RESISTOR 56 OHM +-5% 1/16W 0402 9 RALEC M1HR-0047* 10 4 1HR-1000J3-841 R90 CHIP RESISTOR 100 OHM +-5% 1/16W 0402 1 PANASONIC M1HR-0013* RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 11 4 1HR-1200J3-841 R104 CHIP RESISTOR 120 OHM +-5% 1/16W 0402 1 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 12 4 1HR-1500J3-841 R16 R17 CHIP RESISTOR 150 OHM +-5% 1/16W 0402 2 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 13 4 1HR-2200J3-841 R24 R25 R508 CHIP RESISTOR 220 OHM +-5% 1/16W 0402 3 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 14 4 1HR-2700J3-841 R13 R14 CHIP RESISTOR 270 OHM +-5% 1/16W 0402 2 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 15 4 1HR-3300J3-841 R505 CHIP RESISTOR 330 OHM +-5% 1/16W 0402 1 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 16 4 1HR-4700J3-841 R832 CHIP RESISTOR 470 OHM +-5% 1/16W 0402 1 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 20 4 1HR-3301J3-841 R803 CHIP RESISTOR 3.3K OHM +-5% 1/16W 0402 1 PANASONIC M1HR-0013* RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 21 4 1HR-3901J3-841 R11 R302 CHIP RESISTOR 3.9K OHM +-5% 1/16W 0402 2 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 22 4 1HR-4701J3-841 R708 R1034 R1035 CHIP RESISTOR 4.7K OHM +-5% 1/16W 0402 3 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 23 4 1HR-1002J3-841 R18 R20 R43 R166 R210 R402 R407 R501R707 R709 R1016 CHIP RESISTOR 10K OHM +-5% 1/16W 0402 11 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 24 4 1HR-1502J3-841 R802 CHIP RESISTOR 15K OHM +-5% 1/16W 0402 1 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 25 4 1HR-2202J3-841 R150 R801 CHIP RESISTOR 22K OHM +-5% 1/16W 0402 2 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 26 4 1HR-2702J3-841 R831 R833 CHIP RESISTOR 27K OHM +-5% 1/16W 0402 2 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 27 4 1HR-3002F3-841 R502 CHIP RESISTOR 30K OHM +-1% 1/16W 0402 1 RALEC M1HR-0066 YAGEO M1HR-0044* 28 4 1HR-3302J3-841 R601 R607 CHIP RESISTOR 33K OHM +-5% 1/16W 0402 2 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 29 4 1HR-4702J3-841 R637 R902 CHIP RESISTOR 47K OHM +-5% 1/16W 0402 2 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 30 4 1HR-1003J3-841 R203 R204 R205 R305 R507 R602 R616R619 R807 R1018 R1027 R1028 CHIP RESISTOR 100K OHM +-5% 1/16W 0402 12 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 31 4 1HR-2203J3-841 R39 R105 R604 R606 CHIP RESISTOR 220K OHM +-5% 1/16W 0402 4 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 32 4 1HR-3303F3-841 R603 R605 CHIP RESISTOR 330K OHM +-1% 1/16W 0402 2 RALEC M1HR-0049* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 33 4 1HR-1004J3-841 R1039 CHIP RESISTOR 1M OHM +-5% 1/16W 0402 1 RALEC M1HR-0047* SAMSUNG M1HR-0043* YAGEO M1HR-0044* 34 4 1HR-1005J3-641 R503 CHIP RESISTOR 10M OHM +-5% 1/16W 0603 1 SAMSUNG M1HR-0004* YAGEO M1HR-0024* 旺诠 GS1HR-0002* 1PM-2068-56H DATE:2004/08/02 35 4 1RT-1002J4-A11 VR601 NTC THERMISTOR 10K OHM +-5% 1/10W 0402 1 MITUBISHI M1RT-0011 36 4 1HC-027B9A-841 C67 C70 CHIP C/C 2.7PF +-0.1PF 50V COG 0402 2 TDK GS1HC-0008* 37 4 1HC-082C9A-841 C11 C18 C21 C24 C38 C42 C94 C101C102 C140 C189 C190 CHIP C/C 8.2PF +-0.25PF 50V NPO/COG 0402 12 TDK GS1HC-0008* TDK M1HC-0063* SAMSUNG M1HC-0051* 38 4 1HC-100J9A-841 C509 C510 C543 C545 C603 C651 C709C710 C711 C714 C715 C716 C728 C812C902 CHIP C/C 10PF +-5% 50V NPO/COG 0402 15 TDK GS1HC-0008* TDK M1HC-0062* 39 4 1HC-120J9A-841 C41 CHIP C/C 12PF +-5% 50V NPO 0402 1 TDK GS1HC-0008* TDK M1HC-0062* 40 4 1HC-150J9A-841 C43 C44 C1001 C1002 C1003 C1004 C1020C1021 C1023 CHIP C/C 15PF +_5% 50V NPO/COG 0402 9 TDK GS1HC-0008* TDK M1HC-0062* SAMSUNG M1HC-0051* 41 4 1HC-220J9A-841 C3 C45 C46 CHIP C/C 22PF +-5%NPO 50V 0402 3 TDK GS1HC-0008* TDK M1HC-0062* SAMSUNG M1HC-0051* 42 4 1HC-270J9A-841 C1013 CHIP C/C 27PF +_5% 50V NPO/COG 0402 1 TDK GS1HC-0008* TDK M1HC-0062* SAMSUNG M1HC-0051* TAIYO YUDE N M1HC-0093* 43 4 1HC-330J9A-841 C605 C726 C727 C731 C1022 CHIP C/C 33PF +-5% 50V NPO/COG 0402 5 TDK GS1HC-0008* TDK M1HC-0062* SAMSUNG M1HC-0053* TAIYO YUDE N M1HC-0093* 44 4 1HC-390J9A-841 C6 C23 C31 C144 C303 C701 C808 C827C832 CHIP C/C 39PF +-5% 50V NPO/COG 0402 9 TDK GS1HC-0008* TDK M1HC-0062* SAMSUNG M1HC-0053* TAIYO YUDEN M1HC-0093* 45 4 1HC-470J9A-841 C13 CHIP C/C 47PF +-5% 50V NPO 0402 1 TDK GS1HC-0008* TDK M1HC-0062* 46 4 1HC-101J9A-841 C4 C5 C25 C35 C183 C535 C819 CHIP C/C 100PF +-5% 50V NPO/COG 0402 7 TDK GS1HC-0008* TDK M1HC-0062* SAMSUNG M1HC-0053* 47 4 1HC-151J9A-841 C806 CHIP C/C 150PF +-5% 50V NPO/COG 0402 1 TDK GS1HC-0008* TDK M1HC-0062* SAMSUNG M1HC-0053* 48 4 1HC-221J9A-641 C30 CHIP C/C 220PF +-5% 50V COG 0603 1 TAIYO YUDEN M1HC-0090* TDK M1HC-0041* SAMSUNG M1HC-0007* 49 4 1HC-271J9A-841 C22 C32 C142 C149 CHIP CAPACITOR 270PF +-5% 50V NPO/COG 0402 4 TDK GS1HC-0008* TDK M1HC-0062* 50 4 1HC-331J9A-841 C607 C608 CHIP C/C 330PF +-5% 50V NPO/COG 0402 2 TDK GS1HC-0008* TDK M1HC-0062* 51 4 1HC-471J9A-841 C601 C724 CHIP C/C 470PF +-5% 50V NPO/COG 0402 2 TDK…

Text truncated - open the document above for the full version.

1 DB2068C Radio Module Factory Tune-up Procedure July 27,2004 2 Table of Contents 1.0 PURPOSE 3 2.0 SCOPE 3 3.0 RELATED DOCUMENTS 3 4.0 OVERVIEW 3 4.1DB2068C RADIO REFERENCE SOLUTION ARCHITECTURE 3 5.0 FUNCTIONAL DESCRIPTION 4 5.1 TEST EQUIPMENT 5 5.2 INTRODUCTION 6 5.3 TUNE UP PROCEDURE 6 5.3.1 AFC TUNE UP PROCEDURE 7 5.3.2 APC TUNE UP PROCEDURE 7 5.3.3 AGC TUNE UP PROCEDURE 8 6.0 Tune-up Target 9 3 1.0 Purpose The purpose of this document is to provide the necessary information to allow a test person to tune-up a DB2068C Radio Module. 2.0 Scope This document will provide a top level description of the DB2068C Radio Module. 3.0 Related Documents There are a number of related documents which are helpful when using this manual. They include the following. a) DB2068C User’s Manual b) DB2068C Transceiver Data Sheet c) GSM System Specification. d) DB2068C Radio Circuitry Description The DB2068C User’s Manual provides the necessary information to operate a mobile. DB2068C Traceiver Data Sheet provides some information for the RF part. The DB2068C Radio Circuitry Description .Circuitry Description provides information on the circuits relevant to FCC certification. 4.0 O verview The attached picture is DB2068C BLOCK diagram. 5 5.1 Test Equipment Requirements The following test equipment(or equivalents) are required to properly tune the DB2068C Radio module. 1. Tested radio module needs a RF connection. 2. Personal computer(Host station) with the RF TEST test software(TAT) 3. R&S DC power supply. 4. R&S spectrum analyzer. 5. Radio tester(R&S CMU200) 6.GPIB-Bus and serial link. 6 5.2 Introduction This section describes the steps to take before the actual alignment of the radio should begin. The effort in this section is to visually inspect the assembled radio part with test equipment(CMU200). Visually inspect the radio to verify all components have been installed. 5.3 Tuning Procedure This section describes the procedure required and procedure to manually align the transmitter and receiver circuitry. 5.3.1 AFC(Auto frequency control): The TXVCO is used to drive the quadrate modulator circuit. It is necessary to tune the TCXO to align the 26MHz so that it will oscillate at with the proper tuning voltage TCXO PIN 1.Set-up the radio-tester in the GSM900, non-signaling TX-mode (e.g. channel 62).Set the transmission-mode to burst, the bit modulation on with no training sequence let the phone start random TX-bursts on channel 62 with the power level 10 (the other default values have to be present on the RAM!) It is assumed that the relation between ∆f and the DAC-value is a linear equation. So it is enough to determine two points of that curve to know the whole relation. The first point you get when you set the DAC to a certain value (for example 1000) and measure the resulting frequency error with the radio tester. The second point you get in the same way, but with another DAC setting (for example 3000) 7 5.3.2 APC Transmit part: The task of this part is to calibrate GSM peak power and the curve of time mask(power ramping curve). Average power is the most important parameter in the TX part. Accurate timing of burst prevents the interference between adjacent slots. The stored parameters in the EEPROM include Ham0, PowH0 and Ham15, TRU and TRD and so on. 8 Align at least 20 boards manually (with the exact RF peak-power levels respectively, according to GSM-specification) and notice the achieved values for every board. Get the corresponding power of the Ham0-DAC-values (PowH0), first set the Ham15 (peak-power)-value equal to the Ham0-value and then measure the new power with the radio tester. Average the various obtained DAC-levels to the default DAC-levels (Ham0, PowH0 and Ham15, TRU and TRD). Now we have all values we need for alignment:-the default values for TRUand TRD-the (default) pairs of values of Ham0/PowH0and Ham15/PowPeak(PowPeakare the various peak-power levels according to GSM-spec.) 5.3.3AGC (Auto gain calibration):This part will calibrate RX parameter that stored in EEPROM to satisfy with received different signal strength. The stored parameters in the EEPROM include a_rf_FineGain and so on. Set-up the Radio Tester (CMU) to generate RF-bursts(-> GPIB interface or by hand).Cable attenuation has to be compensated for the different frequency-bands. Set frequency to channel 62 (channel 698 for DCS). Set power level to -60 dBm. Set bit modulation to PRBS, transmission to continuous. Read out the power reported by the phone. Calculate the difference between the measured power and the expected power (-60 dBm)(= DiffPower). Store the new value of a_rf_FineGain = ( a_rf_FineGaindef-DiffPower )x 8to the RAM. Remeasure the reported power, ensure that the difference should less than 0.1Db. Set the radio tester to another frequency. Repeat the steps above for further frequencies (in our case: 5 frequencies). 9 6.0 Tune-up Target PCL = 0, PWR = 29.4 ± 0.2 dBm PCL =1, PWR = 28 ± 0.2 dBm PCL =2, PWR = 26 ± 0.2 dBm PCL =3, PWR = 24 ± 0.2 dBm PCL =4, PWR = 22 ± 0.2 dBm PCL =5, PWR = 20 ± 0.2 dBm PCL =6, PWR = 18 ± 0.2 dBm PCL =7, PWR = 16 ± 0.2 dBm PCL =8, PWR = 14 ± 0.2 dBm PCL =9, PWR = 12 ± 0.2 dBm PCL =10, PWR = 10 ± 0.2 dBm …

Text truncated - open the document above for the full version.
