BW3DB-T302CTri-Band GSM Mobile Phone

F66_ENUM_R1.0 (DBT302C.T01.CN.015.H01.S) DBTEL is a registered trademark of DBTEL Incorporated. Copyright © 2005 DBTEL Incorporated. All rights reserved. No part of this publication may be reproduced or distributed in any form or by any means, or stored in a database or retrieval system, without the prior written permission of the publisher. DBTEL Incorporated reserves the right to make changes in technical and product specifications without prior notification. Address: No.29, Tzu Chiang St, Tu-Cheng, Taipei, Taiwan. Website: http://www.dbtel.com.tw Warning: Use only approved accessories and battery. Do not connect to any incompatible products; otherwise, it will invalidate the recognition or warranty applying to your mobile phone. The font type of the legend, graphics or icons in the user manual may differ from that shown on the handset. Technical specifications and certain features are subject to change in technology, design, software upgrade and availability. USER MANUAL F66 Safety Information For your safety, please read the guidelines below carefully before you use your phone: Exposure to Radio Frequency Signals Max. SAR Measurement (1g) PCS1900 Head: 0.52 W/kg Body: 0.61 W/kg, Your wireless handheld portable telephone is a low power transmitter and recommendations for the protection of public exposure to RF electromagnetic energy. • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996 • Verband Deutscher Elektringenieure (VDE) DIN- 0848 • Directives of the European Community, Directorate General V in Matters of Radio Frequency Electromagnetic Energy • National Radiological Protection Board of the United Kingdom, GS 11, 1988 • American National Standards Institute (ANSI) IEEE. C95.1- 1992 • National Council on Radiation Protection and Measurements (NCRP). Report 86 • Department of Health and Welfare Canada. Safety Code 6 These standards are based on extensive scientific review. For example, over 120 scientists, engineers and physicians from universities, government health agencies and industry reviewed the available body of research to develop the updated ANSI Standard. The design of your phone complies with these standards when used normally. This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference Notice To reduce exposure to electromagnetic radiation, use the handset properly. SAR Radiation Limit: 2.0 W/Kg Tested SAR Rating: 0.512 W/Kg Safety Information DBTEL handset is the first Specific Absorption Rate (SAR) compliance in Taiwan. Compliance with International standard SAR Radiation Limit: 2.0 W/Kg Tested SAR Rating: 0.512 W/Kg Product Safety Product Safety is always the first priority of DBTEL Incorporated. With the SAR Safety Certificate, we show our persistence in making customer safety the paramount importance. R&TTE Directive requirements A declaration of conformity to the essential requirements. Identification of the European countries in which the equipment is intended to be used. Identification of the public telecommunication network to which the equipment is intended to be connected. “Hereby, we <DBTEL Inc.>, declares that this F66 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC ”. Contents 1 European Union - SAR 3 For Your Safety 4 Your F66 5 Your phone ------------------------------------------5 Specification ---------------------------------------5 Key description -------------------------------------5 Function key table--------------------------------5 Display indicators ----------------------------------6 Status indicators on main display ------------6 Backlight --------------------------------------------7 Installation 8 Installation of the SIM card and the battery 8 Removal of the SIM card and the battery --8 Battery Information 9 Battery charging------------------------------------9 Battery specification-------------------------------9 Notice on battery charging and discharging-9 Low battery indicator------------------------------9 Use of battery ---------------------------------------9 Battery disposal ------------------------------------9 Quick & Easy 10 Menu Map 11 Call Functions 15 Turning your phone ON and OFF ----------15 When PIN is requested----------------------- 15 Unlock a blocked SIM card ------------------ 15 Making calls ---------------------------------------16 Domestic calls----------------------------------- 16 International calls------------------------------- 16 Making calls via the phone book ----------- 16 Redial calls missed, received and dialed 16 Speed dial ---------------------------------------- 16 Calling your voice mailbox ------------------- 16 Answering calls-----------------------------------17 Call waiting--------------------------------------- 17 In-call menu-------------------------------------- 17 Multiparty ----------------------------------------- 18 Other operations ---------------------------------18 Keypad lock-------------------------------------- 18 Input text------------------------------------------ 18 Smart English ----------------------------------- 18 Using Smart English input ------------------- 19 Using The Menu 20 Accessing the menu function --------------- 20 Returning from menu function -------------- 20 Phone Book 21 View------------------------------------------------ 21 Add New------------------------------------------ 21 Copy Records----------------------------------- 21 Delete All ----------------------------------------- 21 Fixed Dial List ----------------------------------- 21 Speed Dial --------------------------------------- 21 Handset Status --------------------------------- 21 Own Numbers----------------------------------- 21 Messages 22 Messages ---------------------------------------- 22 WAP PUSH -------------------------------------- 24 Records 25 Recent Calls ------------------------------------- 25 Clear Logs -------------------------…

Text truncated - open the document above for the full version.

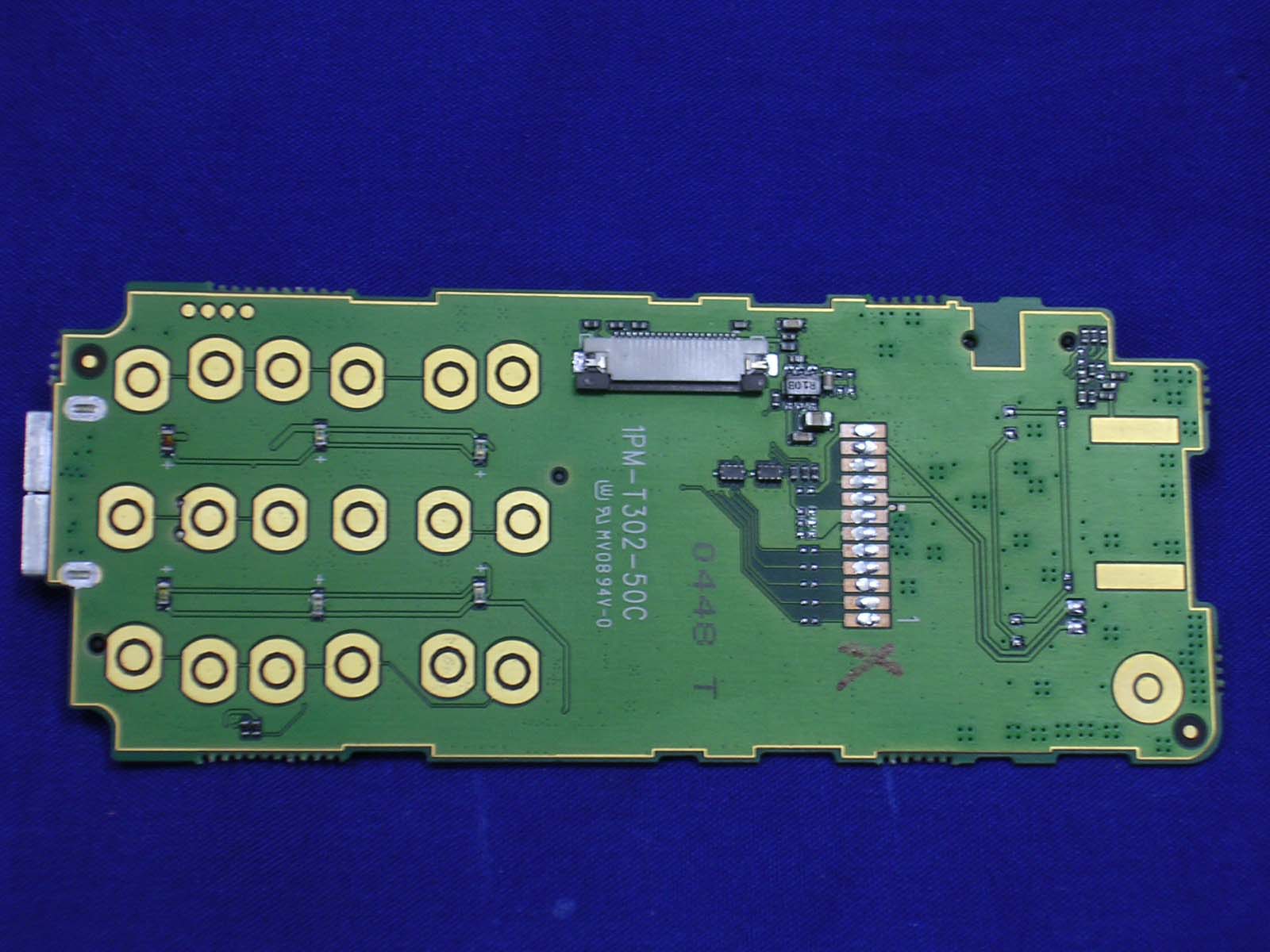

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 22, 2005 RE: DBTel Inc. FCC ID: BW3DB-T302C I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) I admit to a little bit of confusion. Please describe for me the differences and similarities of the Model F66 and Model F10. Are the differences only cosmetic? Are their changes to the antenna or antenna matching circuitry? Is the case material the same in both instances? 2.) Please remove the RF shielding (“tin cans”) from the PCB when making photographs of the internal circuit boards. Kindly add these additional views to the existing photograph set. 3.) FYI: It is easier to manipulate files at the FCC website when the photographs are removed from the EMC Test Report. In the future, please consider submitting External and Internal photographs only, and not including them again as a part of the Test Report document. For the SAR report your current procedure is satisfactory. 4.) The Label includes an FCC logo. Can this device be considered a “computer peripheral” with direct connection via a cable to a computer? 5.) Photographs of the body worn position within the SAR report do not include the headphone seen in the external photographs. Please explain. 6.) The SAR report seems to indicate that only a standard 8:1 GSM duty cycle was tested. Is their any possibility that GPRS would be used in body or head positions? If so, then this will effect the SAR report. Please explain. 7.) Reviewing the Tune-Up Procedure, am I correct in assuming this is a Power Class I device with a conducted power of +30dBm? If so, then I have concerns with the stated tolerance. Variations in power of this magnitude [+/-3dB] combined with typical measurement uncertainty could easily produce SAR values very close to the limits. If GPRS was also possible in a body worn position, SAR values in excess of the limit become a very real possibility. Kindly review the RF power tolerance values described in the Tune Up Procedure and provide realistic expectations of the RF power tolerance. 8.) Take a quick look at the Occupied Bandwidth plots provided in the Test Report. It appears to indicate that 26dBc points have a bandwidth under 200KHz. This is obviously a typo. Kindly correct this notation. 9.) FYI: In the future, please upload the SAR reports at the ATCB website to the RF Exposure exhibit instead of the Test Report exhibit. This would greatly aid in my organization of files. 10.) This device contains GSM and DCS functions that are not available in the USA. If they are not to be used in this country, an attestation to that effect from the Applicant is required. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2 February 22, 2005 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

F66(SMBT302C) F10(SMBT301M)

DBTEL INC. FCC ID.: BW3DB-T302C 29 Tzu Chiang ST.,Tu-Cheng,Taipei,Taiwan,R.O.C. Tel : +886 2 2268 2081*3704 FCC ID AND DoC Label The Label will be placed on the equipment as shown in the photograph below. DBTEL Main Unit Class:8GSM Model: F66(SMBT302C) S/N: 353230000000012 FCC ID: BW3DB-T302C DBTEL INC. FCC ID.: BW3DB-T302C 29 Tzu Chiang ST.,Tu-Cheng,Taipei,Taiwan,R.O.C. Tel : +886 2 2268 2081*3704 FCC ID AND DoC Label The Label will be placed on the equipment as shown in the photograph below. DBTEL Main Unit Class:8GSM Model: F10(SMBT301M) S/N: 355636000000012 FCC ID: BW3DB-T302C

Report No： 051L118SF Page: 1 of 145 Version:1.0 SAR Test Report Product Name：Tri-band Mobile Phone Model No. ：F66(SMBT302C), F10(SMBT301M) FCC ID ：BW3DB-T302C Applicant ：DBTEL INC. Address ：29 Tzu Chiang ST.,Tu-Cheng,Taipei,Taiwan,R.O.C. Date of Receipt：2005/01/10 Issued Date ：2005/01/20 Report No. ：051L118SF The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. SAR test report is for production unit. Report No： 051L118SF Page: 2 of 145 Version:1.0 Test Report Certification Issued Date: 2005/01/20 Report No.: 051L118SF Product Name ： Tri-band Mobile Phone Applicant ： DBTEL INC. Address ： 29 Tzu Chiang ST.,Tu-Cheng,Taipei,Taiwan,R.O.C. Manufacturer ： DBTEL INC. Model No. ： F66(SMBT302C), F10(SMBT301M) Trade Name ： DBTEL Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) F66_Head: 0.52 W/kg Body: 0.61 W/kg, F10_Head: 0.42 W/kg Body: 0.60 W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： ( Grace Lin ) Tested By ： (Shine Hsu) Approved By ： (Gene Chang) Report No： 051L118SF Page: 3 of 145 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information........................................................................................... 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System.............................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid............................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 15 4. SAR Measurement Procedure...................................................................... 16 4.1 SAR System Validation................................................................................................ 16 4.1.1 Validation Dipoles..................................................................................................... 16 4.1.2 Validation Result ....................................................................................................... 16 4.2 Arrangement Assessment Setup ................................................................................... 17 4.2.1 Test Positions of Device Relative to Head................................................................ 17 4.2.1.1 Definition of the “Cheek” Position ........................................................................ 17 4.2.1.2 Definition of the “Tilted” Position......................................................................... 18 4.2.2 Test Positions for body-worn.................................................................................... 19 4.3 SAR Measurement Procedure ...................................................................................... 19 5. SAR Exposure Limits...................................................................................... 21 6. Test Equipment List......................................................................................... 22 Report No： 051L118SF Page: 4 of 145 Version:1.0 7. Measurement Uncertainty.............................................................................. 23 8. Test Results........................................................................................................ 24 8.1 SAR Test Results Summary ......................................................................................... 24 8.2 SAR System Validation Data …

Text truncated - open the document above for the full version.

Report No： 051L118SF Page: 109 of 145 Version:1.0 Test Setup Photographs Right Head (EUT_F66 Cheek) Right Head (EUT_F66 Tilted) Report No： 051L118SF Page: 110 of 145 Version:1.0 Left Head (EUT_F66 Cheek) Left Head (EUT_F66 Tilted) Report No： 051L118SF Page: 111 of 145 Version:1.0 Body worn bottom (EUT_F66 distance 15mm) Right Head (EUT_F10 Cheek) Report No： 051L118SF Page: 112 of 145 Version:1.0 Left Head (EUT_F10 Cheek) Body worn bottom (EUT_F10 distance 15mm) Note: The positions used in the measurements were according to IEEE 1528-2003. Report No： 051L118SF Page: 113 of 145 Version:1.0 EUT Photographs F66 Report No： 051L118SF Page: 114 of 145 Version:1.0 F10 Report No： 051L118SF Page: 115 of 145 Version:1.0 Probe Calibration Report No： 051L118SF Page: 116 of 145 Version:1.0 Report No： 051L118SF Page: 117 of 145 Version:1.0 Report No： 051L118SF Page: 118 of 145 Version:1.0 Report No： 051L118SF Page: 119 of 145 Version:1.0 Report No： 051L118SF Page: 120 of 145 Version:1.0 Report No： 051L118SF Page: 121 of 145 Version:1.0 Report No： 051L118SF Page: 122 of 145 Version:1.0 Report No： 051L118SF Page: 123 of 145 Version:1.0 Report No： 051L118SF Page: 124 of 145 Version:1.0 Report No： 051L118SF Page: 125 of 145 Version:1.0 Report No： 051L118SF Page: 126 of 145 Version:1.0 Report No： 051L118SF Page: 127 of 145 Version:1.0 Report No： 051L118SF Page: 128 of 145 Version:1.0 Report No： 051L118SF Page: 129 of 145 Version:1.0 Report No： 051L118SF Page: 130 of 145 Version:1.0 Report No： 051L118SF Page: 131 of 145 Version:1.0 Report No： 051L118SF Page: 132 of 145 Version:1.0 Report No： 051L118SF Page: 133 of 145 Version:1.0 Report No： 051L118SF Page: 134 of 145 Version:1.0 Report No： 051L118SF Page: 135 of 145 Version:1.0 Report No： 051L118SF Page: 136 of 145 Version:1.0 Dipole Calibration Report No： 051L118SF Page: 137 of 145 Version:1.0 Report No： 051L118SF Page: 138 of 145 Version:1.0 Report No： 051L118SF Page: 139 of 145 Version:1.0 Report No： 051L118SF Page: 140 of 145 Version:1.0 Report No： 051L118SF Page: 141 of 145 Version:1.0 Report No： 051L118SF Page: 142 of 145 Version:1.0 Report No： 051L118SF Page: 143 of 145 Version:1.0 Report No： 051L118SF Page: 144 of 145 Version:1.0 Report No： 051L118SF Page: 145 of 145 Version:1.0

Report No.051L118FI Page: 1 of 42 Version:1.0 Test Report Product Name : Tri-band Mobile Phone Model No : F66(SMBT302C), F10(SMBT301M) FCC ID : BW3DB-T302C Applicant : DBTEL INC. Address : 29 Tzu Chiang ST.,Tu-Cheng,Taipei,Taiwan,R.O.C. Date of Receipt : Jan. 19, 2005 Issued Date : Jan. 24, 2005 Report No. : 051L118FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No.051L118FI Page: 2 of 42 Version:1.0 Test Report Certification Issued Date : Jan. 24, 2005 Report No. : 051L118FI Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Tri-band Mobile Phone Applicant : DBTEL INC. Address : 29 Tzu Chiang ST.,Tu-Cheng,Taipei,Taiwan,R.O.C. Manufacturer : DBTEL INC. Model No. : F66(SMBT302C), F10(SMBT301M) Rated Voltage : AC 120V/60Hz Trade Name : DBTEL Measurement Standard : FCC CFR Title 47 Part 2 Part24 Measurement Reference : TIA/EIA 603-A Test Result : Complied Documented By : ( Grace Lin ) Tested By : (Hsiu Ho) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No.051L118FI Page: 3 of 42 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 4 1.1. EUT Description ........................................................................................................... 4 1.2. Operational Description............................................................................................... 5 1.3. Configuration of tested System .................................................................................. 5 1.4. EUT Setup Procedures ................................................................................................ 5 1.5. Test Facility ...................................................................................................................6 1.6. Type of Emission .......................................................................................................... 6 1.7. DC voltages and DC currents ...................................................................................... 6 2. Peak Power Output ...................................................................................................... 7 2.1. Test Equipment............................................................................................................. 7 2.2. Test Setup .....................................................................................................................7 2.3. Limits ............................................................................................................................. 8 2.4. Test Procedure.............................................................................................................. 8 2.5. Test Specification ......................................................................................................... 8 2.6. Test Result of Peak Power Output .............................................................................. 9 3. Modulation Characteristics ....................................................................................... 13 3.1. Test Equipment........................................................................................................... 13 3.2. Test Setup ................................................................................................................... 13 3.3. Modulation Description.............................................................................................. 13 3.4. Test Specification ....................................................................................................... 14 3.5. Test Result of Modulation.......................................................................................... 15 4. Occupied Bandwidth.................................................................................................. 16 4.1. Test Equipment........................................................................................................... 16 4.2. Test Setup ................................................................................................................... 16 4.3. Test Procedure............................................................................................................ 16 4.4. Test Specification ....................................................................................................... 17 4.5. Test Result of Occupied Bandwidth ......................................................................... 18 5. Spurious Emission At Antenna Terminals (+/-1MHz) .............................................. 21 5.1. Test Equipment........................................................................................................... 21 5.2. Setup ...........................................................................................................................21 5.3. Limits ........................................................................................................................... 22 5.4. Test Procedure............................................................................................................ 22 5.5. Test Specification ....................................................................................................... 22 5.6. Spurious Emission At Antenna Terminals (+/-1MHz) .............................................. 23 6. Spurious Emission ..................................................................................................... 24 6.1. Test Equipment.…

Text truncated - open the document above for the full version.

Report No.051L118FI Page: 40 of 42 Version:1.0 Attachment 1: EUT Test Photographs Test Mode ： PCS1900 GSM Description： Front View of Spurious Emission Test Test Mode ： PCS1900 GSM Description： Back View of Spurious Emission Test Report No.051L118FI Page: 41 of 42 Version:1.0 Test Mode ： PCS1900 GSM Description： Front View of Spurious Emission Test Test Mode ： PCS1900 GSM Description： Back View of Spurious Emission Test
