BY4-DIR300VDIGITAL REMOTE CONTROL EXTERNDER

DIGITAL REMOTE CONTROL EXTENDER MODEL :DIR-300V OWNERS MANUAL 1 LOCATION OF CONTROLS Transmitter Side Receiver Side Accessories DC 12 V AC 120V Ada ptor x2 Infrared Extender X 3 1,1.5,2m in length DC Powe r DC Power IR Probe Infrared Remote Control Antenna Remote Control Indicators & IR Transmitter/Receiver Transmitter and Receiver Front 2 CAUTION: This equipment has been tested and found to comply with CE, FCC, Canadian DOC. regulations. These regulations are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with this manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular situation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the distance between the affected equipment and the receiver. z Connect the affected equipment to an outlet on a circuit which is different from than the one the receiver is connected to. z Consult the dealer or an experienced radio/TV technician for help. IMPORTANT SAFETY PRECAUTIONS z To prevent fire or shock hazard, do not submerge or expose this product to water. z To avoid electric shock, do not open the units. The DIR-300V contains no user serviceable parts. Doing so will void the warranty. z Use only the power supply provided with the DIR-300V z Do not overload wall outlets or extension cords. z If you are experiencing difficulty with this product, do not attempt to service it yourself. Please call your vendor for assistance. 3 Product Description The DIR-300V Wireless Infrared Remote Control Extender enables you to extend the range of your present Infrared Remote Control so that you can operate VCRs, stereos, Cable Converter, Satellite receivers, etc., virtually anywhere in the home. Applications The remote operation of electronics products that utilize IR (Infrared) remote control technology such as: ‧Satellite Receivers ‧Television ‧VCR's (Video Cassette Recorders) ‧CDs (Compact Disc) ‧DVD's (Digital Video Disc) ‧LDP's (Laser Disc Players) ‧Cable Converter Boxes ‧Audio / Hi-Fi Stereo Systems ‧Wireless Video Sender Systems ‧Any IR Remote Controlled Devices 4 APPLICATION DIAGRAM 1. Stereo system with remote control: 2. DSS / Satellite Receiver with remote control: Wall DIR-300V Receiver IR Remote Control DIR-300V Transmitter Probe Stereo Wire to Extension Speaker 2nd TV DSS or Satellite Receiver DIR-300V Receiver DIR-300V Transmitter IR Remote Control Wall IR Signal RF Signal 5 Installation & Operation Guide Receiver Picture 1 Picture 2 Picture 3 Picture 4 Working with extender probe Make sure the IR probe is affixed toward IR sensor receiving Window with proper position (within 0.5M and working angles +/- 15°). Keep Vertical Power Adaptor (Using IR ) Antenna Working without extender probe Working without extender probe Not less than 0.3M and not more than 6M Working Angle not more than +/- 15° Working Angle not more than +/- 15° Side View 5.7 M 6 M 0.3 6 Transmitter Picture 6 Picture 7 Picture 5 Antenna Power Adaptor Working Angle not more than +/- 15° Remote Control Keep Vertical Distance Not less than 0.3M and not more than 7M Working Angle not more than +/- 15° Antenna 7 Care and Maintenance z Keep the DIR-300V Remote Extender dry. If it gets wet, wipe it dry immediately. z Use and store the DIR-300V only in normal temperature environments. Extreme temperature can shorten the life of electronic devices z Handle the DIR-300V gently and carefully. Dropping it can damage the circuit board and can cause it to work improperly. z Keep the DIR-300V away from dust and dirt, which can cause premature wear of parts. z Wipe the DIR-300V with a damp cloth occasionally to keep it looking new. Do not use harsh chemicals, cleaning solvents, or strong detergents. Specifications Operating Voltage ..............................120 VAC, 50Hz /60Hz DC 12V, 250mA Power Consumption (pair)......................................3 Watts Max Transmission Frequency........................433.92MHz+/-1MHz Power Gain......................................................................10dBm Effective operating range.......................................about 100M (clear line of sight) Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”

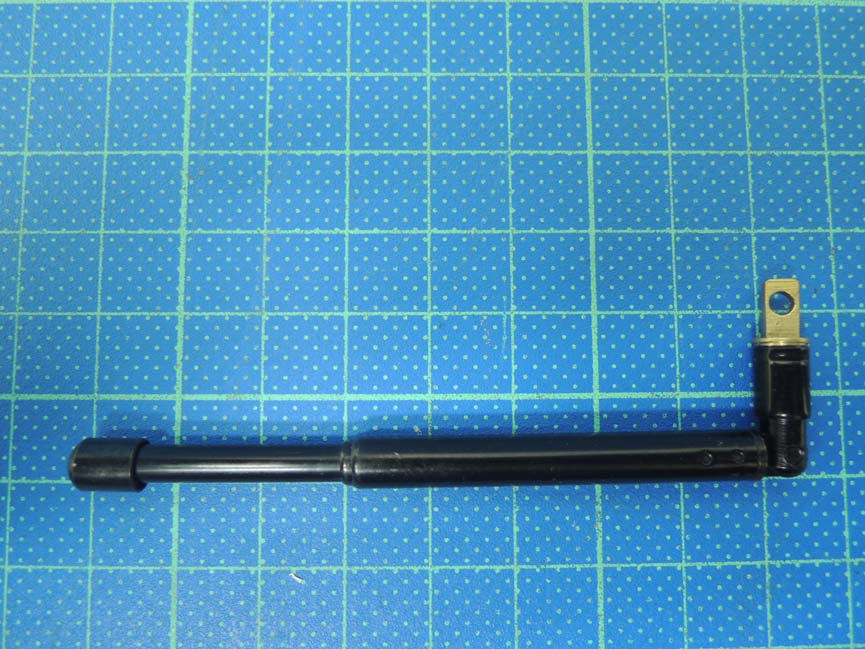

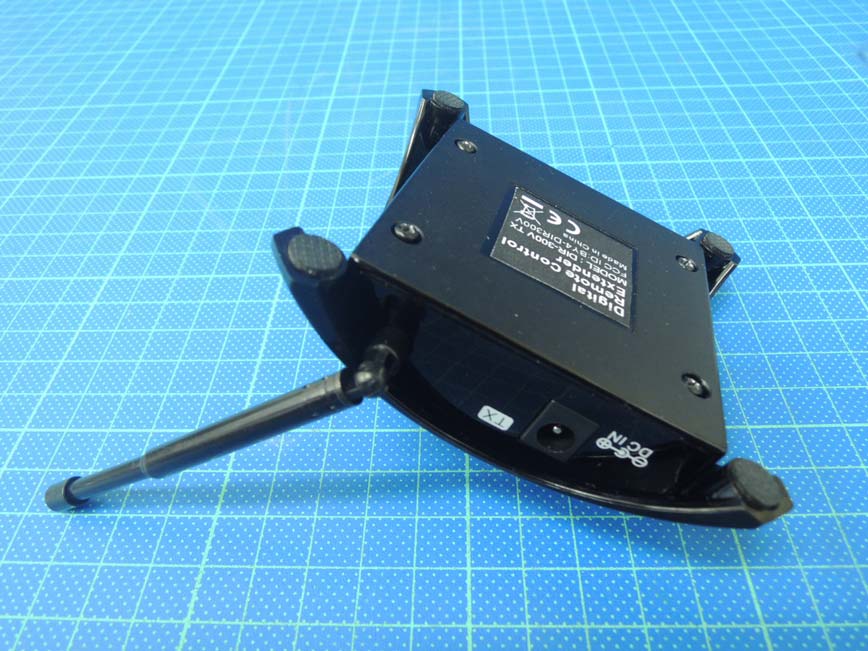

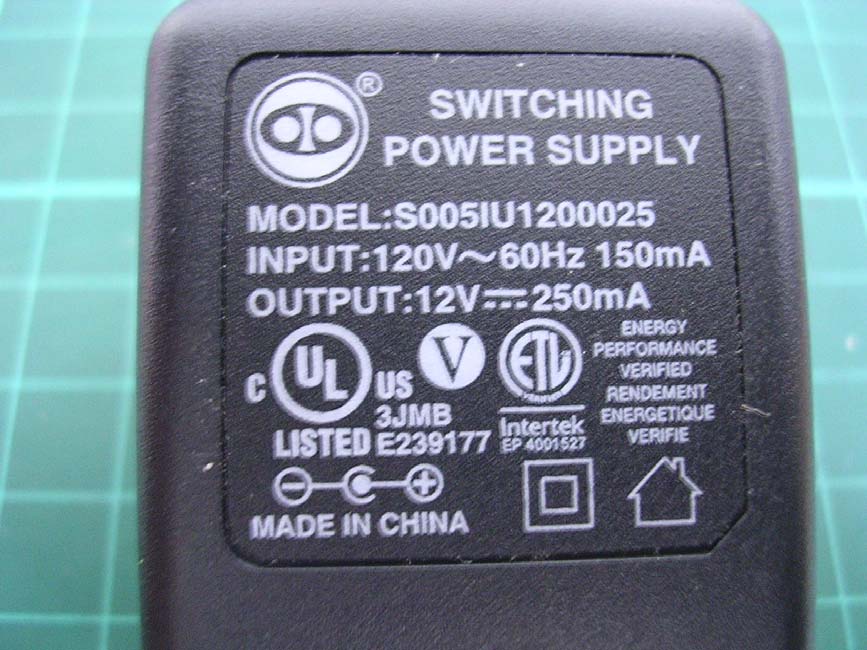

External photo of EUT TX External photo of EUT Adapter External photo of EUT Antenna

Internal photo of EUT TX Internal photo of EUT

FCC ID.: BY4-DIR300V Report No.: TS12110095-EME Page 1 of 19 0597 EMC TEST REPORT Report No. : TS12110095-EME Model No. : DIR-300 V Issued Date : Jan. 11, 2013 Applicant: TRANS ELECTRIC CO., LTD 771, Sec. 2, Chungsan Road, Huatang, Changhua, Taiwan Test Method/ Standard: 47 CFR FCC Part 15.231 & ANSI C63.4 2003 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Candy Liu/ Assistant These measurements were taken by: Sign on File Hugo Yeh / Engineer The test report was reviewed by: Name Jimmy Yang Title Engineer FCC ID.: BY4-DIR300V Report No.: TS12110095-EME Page 2 of 19 Table of Contents Summary of Tests ....................................................................................................................... 3 1. General information ............................................................................................................... 4 1.1 Identification of the EUT ................................................................................................. 4 1.2 Adapter information .........................................................................................................4 1.3 Additional information about the EUT............................................................................. 5 1.4 Antenna description.......................................................................................................... 5 1.5 Peripherals equipment ......................................................................................................5 2. Test specifications .................................................................................................................. 6 3. Radiated emission test FCC 15.231 (b).................................................................................. 7 4. Measured bandwidth FCC 15.231(C) .................................................................................. 13 5. Timing requirement of automatically operated transmitter.................................................. 14 6. Conducted emission FCC 15.207......................................................................................... 16 6.1 Operating environment................................................................................................... 16 6.2 Test setup & procedure................................................................................................... 16 6.3 Emission limit ................................................................................................................ 17 6.4 Conducted emission data FCC 15.207 ........................................................................... 18 FCC ID.: BY4-DIR300V Report No.: TS12110095-EME Page 3 of 19 Summary of Tests Test Item Reference Results Radiated Emission test 15.231(b), 15.209 Pass Measured bandwidth 15.231(c) Pass Timing requirement of manually operated transmitter 15.231(a)(1) Pass Conducted Emission test 15.231(b), 15.207 N/A FCC ID.: BY4-DIR300V Report No.: TS12110095-EME Page 4 of 19 1. General information 1.1 Identification of the EUT Product: DIGITAL REMOTE CONTROL EXTENDER Model No.: DIR-300 V FCC ID.: BY4-DIR300V Frequency Range: 433.92 MHz Channel Number: Single Channel Frequency of Each Channel: 433.92 MHz Access scheme: FSK Power Supply: DC 12 V from Adapter Power Cord: N/A Sample Received: Nov. 15, 2012 Test Date(s): Nov. 26, 2012 ~ Jan.08, 2013 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. 1.2 Adapter information The EUT will be supplied with a power supply from below list: No. Brand Model no. Specification Adapter N/A S005IU1200025 I/P:120V, 60Hz, 150 mA O/P:12 V, 250 mA FCC ID.: BY4-DIR300V Report No.: TS12110095-EME Page 5 of 19 1.3 Additional information about the EUT The EUT is DIGITAL REMOTE CONTROL EXTENDER, and was defined as information technology equipment. For more detail features, please refer to User's manual as file name “Installation guide.pdf” 1.4 Antenna description The EUT uses a permanently connected antenna Antenna Gain : 0 dBi Antenna Type : Rod antenna Connector Type : Fixed 1.5 Peripherals equipment Peripherals Brand Model No. Serial No. DVD Player SONY DVP-NS718HP S01-1003271-0 Remote Controller PX VC-181 N/A FCC ID.: BY4-DIR300V Report No.: TS12110095-EME Page 6 of 19 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 2.1053 and the requirement in FCC Part 15 Subpart C Section 15.231. 2.2 Operation mode The EUT was supplied with DC 12V from adapter(Test voltage: 120Vac, 60 Hz), when the remote control device send a IR signal, the IR sensor of the Transmitter to detect IR signal from the remote con…
