BY4WFD5000PRO4K UHD Wireless Presentation Receiver

1 4K UHD Wireless Presentation Receiver Model: WFD-5000 PRO 4K UHD Wireless HDMI Receiver INTRODUCTION Thank you for purchasing Trans WFD-5000 PRO Wireless Presentation System. WFD-5000 PRO is an ideal solution for Bring Your Own Device (BYOD) meeting. It supports multiple platforms including iOS, Android, Mac, and Windows operating systems for productive and flexible presentations and collaboration from individual devices. A wireless connection to a shared display from participants’ seats will also remove the need for complex configuring and cabling. You can share BYOD content effortlessly with just one click in huddle rooms and many other types of meeting spaces FEATURES AND CONTENTS Features:  Supports wireless transmission of HDMI output up to 4K  Plug and Play-No App required, quick receive to cast wirelessly  Supports iOS、Android、MAC、Windows system for notebooks, tablets and smart phones.  Wifi display support  Wireless connectivity in up to 100ft (30 meters) (L.O.S)  Lantency : 200ms max. Package Contents:  1 x WFD-5000 PRO Receiver main unit  1 x USB-A to USB-C cable  User Manual 2 CONNECTION & OPERATION RECEIVER LED STATUS LED COLOR : RED LED COLOR : BLUE RED LED : ON Powering BLUE LED : ON Connected and Mirroring RED LED : Flash Standby to Connect BLUE LED : Flash Connected and Pausing INSTALLATION Step1: Use HDMI cable to connect the HDMI OUT of WFD-5000 PRO receiver to a display device. Step2: Use USB power cable to connect powering to the USB-C Jack of WFD-5000 PRO receiver. To p I/O Descriptions LED Indication 3 Step3: Connection completed .When the receiver and transmitter are ready simply press the main button on the transmitter to mirror your device. Single click for mirror or disconnent. $Supports iOS / Android / MAC / Windows system for PC, notebooks, tablets and smart phones. Notice: If the USB powering cable is not long enough, please use own USB Power Adaptor cable to ensure the connection Receiver Operation Main Button (Mirror button) LED ON LED Flash Single click Mirror (LED:BLUE) Pause Mirror (LED:BLUE) Hold for 3 seconds Disconnect WiFi (LED:RED) System Reset (LED:RED) MAIN SCREEN OF RX When WFD-5000 PRO RX is successfully turned on, the screen will be shown on display * Outbound link can select only one of Wi-Fi (WLAN). 4 SETUP SCREEN MIRRORING WITH MOBILE DEVICES FOR RECEIVER The receiver is connected to a screen or projector via HDMI for a wireless presentation. You can cast your content via WiFi display. Use your device's own built-in screen mirroring function. Connect with WFD-5000 PRO with SSID & Password directly. 1. SSID: Selecting the SSID WFD5000-xxxxxx in the device’s Wi-Fi list 2. Password: Entering the password xxxxxxxx to connect your device with WFD-5000 PRO Receiver. WEB SETTING *WFD-5000 PRO IP- when Devices (either laptops or mobile phones) connect with WFD-5000 PRO with SSID & Password first, applying the IP in web browser can enter Admin setting page for more advance setting. 1. Preparation- To access the setting page, you have to choose either way to connect the devices. 1.1 Direct link- you can apply notebook or mobile phone to search WFD-5000 PRO by wifi and key in relative SSID and Password. Turn on web browser and enter “192.168.203.1” in the address bar. 1.2 Through Wifi AP or Routers- if your WFD-5000 PRO has been connected to a certain networking device, you can apply notebook or mobile phone to connect the same device. Turn on web browser and enter the address show in mainpage in the WFD-5000 PRO IP shown below. 5 2. Menu Settings: .Internet .Resolution .Language .Password .Device Name .WiFi Channel .EZChannel .Wallpaper .Ezair .Power Saving .Upgrade .Pair with EZcast TX .Reboot .Reset to factory default 3. Internet Setting: Connect the outbound Wi-Fi router. If you turn off remember WiFi, the outbound WiFi setting and password will not be kept for auto connection. 6 TROUBLE SHOOTING No. Problem Solution 1. No video output •Make sure all cables are firmly inserted into the input/output ports •Try use another HDMI cable. 2. Receiver failed to start up or turns on and off repeatedly •Check the power supply. The Receiver requires a USB 5 V above 0.9 A power to start up .Connection to a USB 3.0 port or other USB power adapters is recommended for sufficient power. 3.. Poor Wi-Fi connectivity •Please try to minimize interference from other wireless device or heavy power consumption house ware (ex. Wi-Fi Router, Microwave, air conditioner...). SPECIFICATION Output Resolution 3840x2160@60Hz I/O Input : USB-C (Power input) ; Output : HDMI / Audio WiFi 802.11a/b/g/n/ac WiFi Frequency 2.412 GHz ~2.485GHz / 5.15-5.25 GHz / 5.725-5.85 GHz Power DC 5V, 0.9A HDMI/HDCP HDMI 2.0 / HDCP 2.2 LED Indication Power, Cast status Key Reset button Power Consumption 5W max. NOTICE  Manufacturer reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.  The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.  WFD-5000 PRO incorporates HDMI ® technology and Soft App powered by EZcast . FCC INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection 7 against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer…

Text truncated - open the document above for the full version.

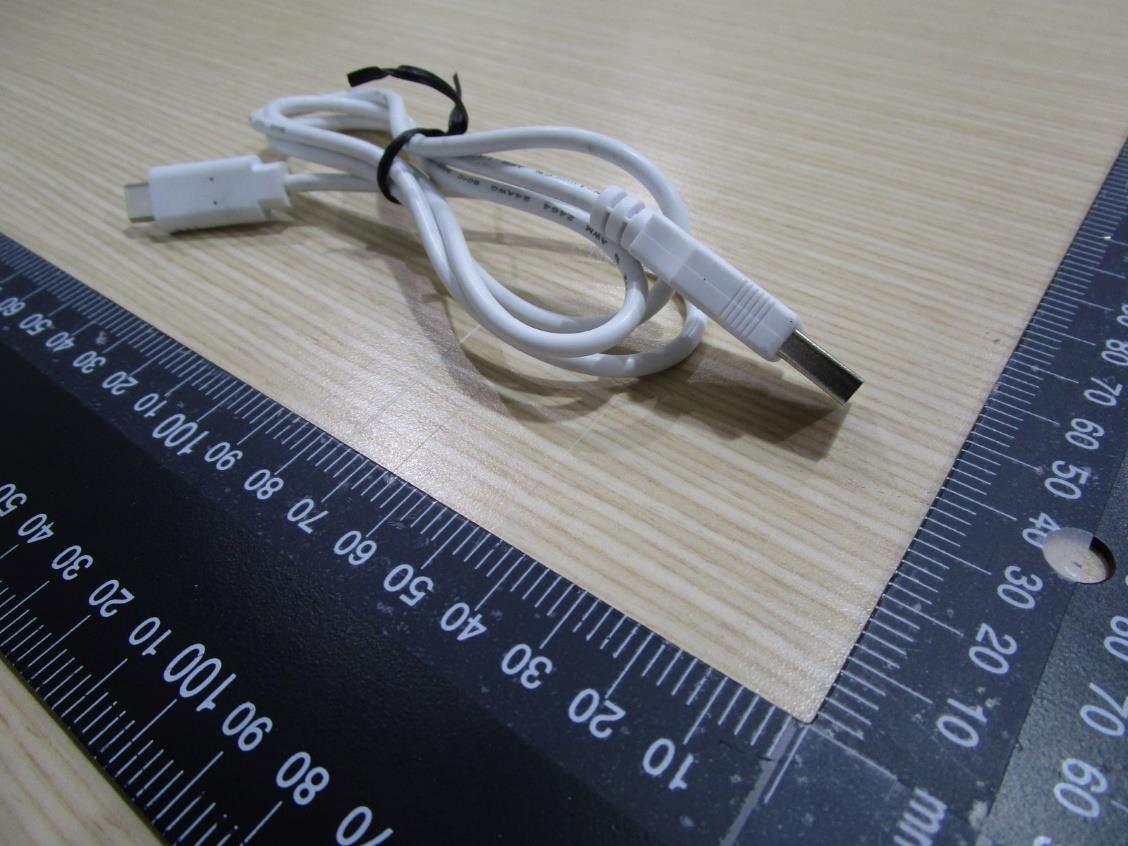

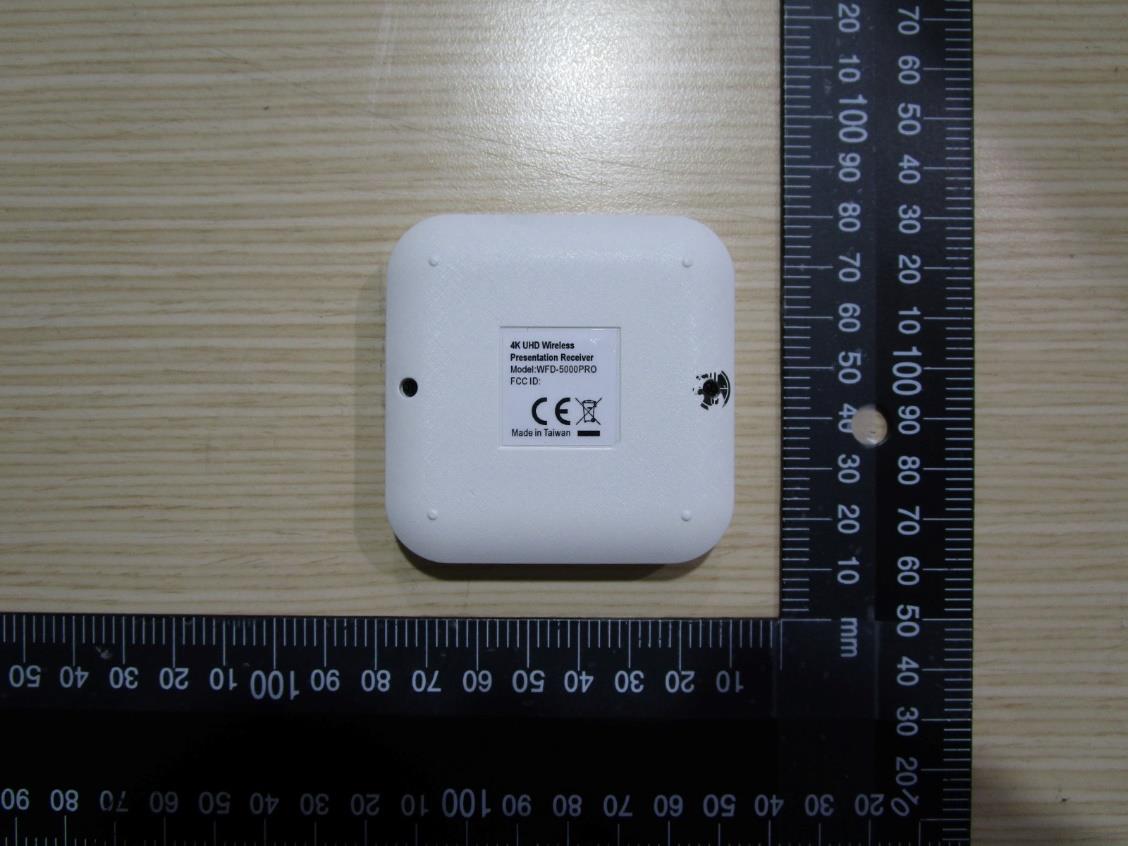

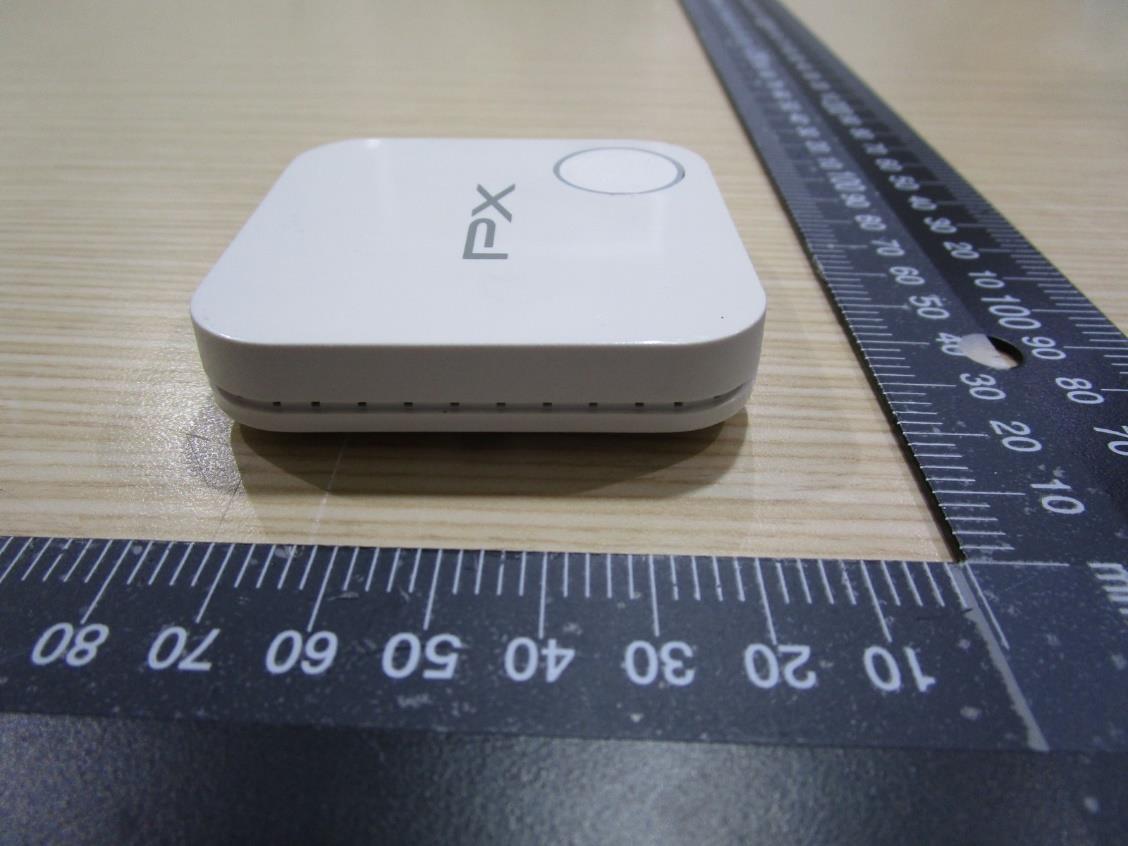

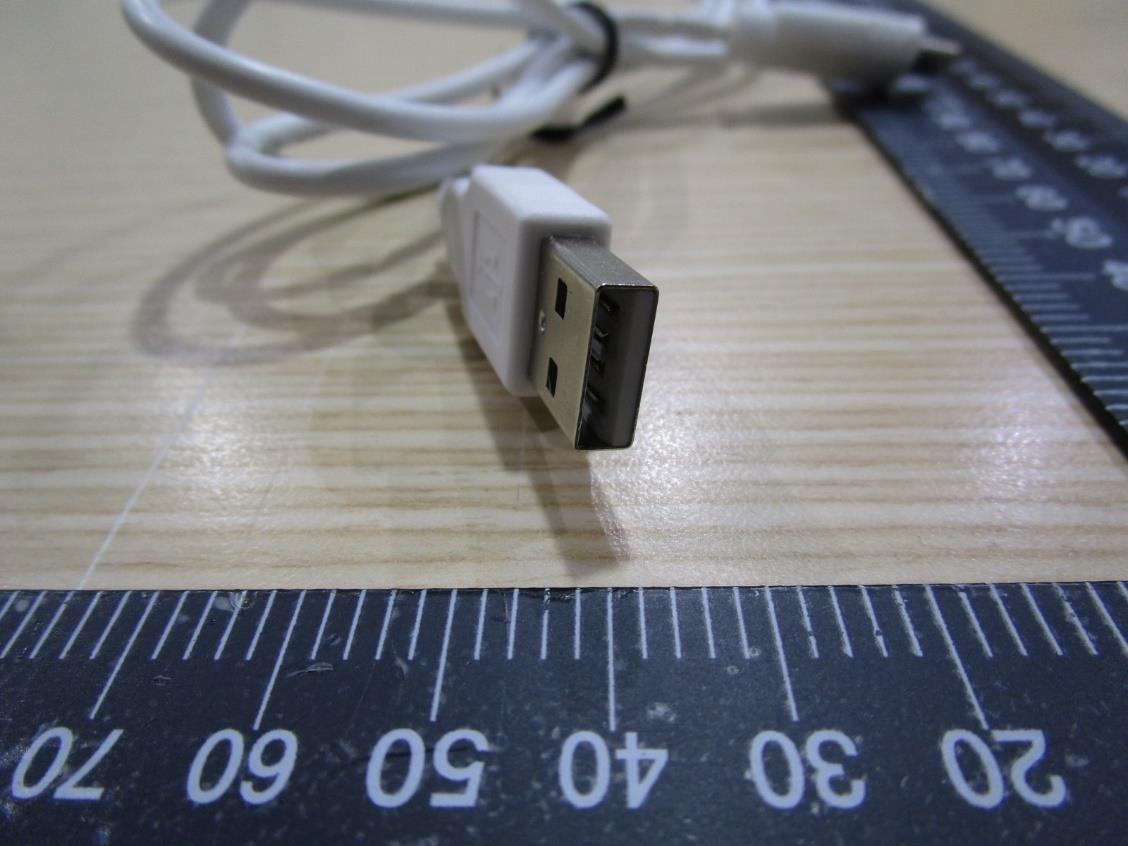

Test report No. : 4790186607-EP Page : 1 of 11 Issued date : Jan. 11, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 External Photos Outview: WFD-5000 PRO Pic 1 Outview: WFD-5000 PRO Pic 2 Test report No. : 4790186607-EP Page : 2 of 11 Issued date : Jan. 11, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Outview: WFD-5000 PRO Pic 3 Outview: WFD-5000 PRO Pic 4 Test report No. : 4790186607-EP Page : 3 of 11 Issued date : Jan. 11, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Outview: WFD-5000 PRO Pic 5 Outview: WFD-5000 PRO Pic 6 Test report No. : 4790186607-EP Page : 4 of 11 Issued date : Jan. 11, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Outview: WFD-5000 PRO Pic 7 Test report No. : 4790186607-EP Page : 5 of 11 Issued date : Jan. 11, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: WFD-5000 PRO Pic 1 Accessory: WFD-5000 PRO Pic 2 Test report No. : 4790186607-EP Page : 6 of 11 Issued date : Jan. 11, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: WFD-5000 PRO Pic 3 Accessory: WFD-5000 PRO Pic 4

100% 20.0mm 21.0mm 2 0 . 0 m m Model:WFD-5000PRO FCC ID: BY4WFD5000PRO Made in Taiwan 4K UHD Wireless Presentation Receiver 5mm 7mm Sticker on WFD-5000PRO Confirm by 2021/11/30 2 1 . 0 m m

Test report No. : 4790186607-EP Page : 7 of 11 Issued date : Jan. 11, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Internal Photos WFD-5000 PRO Pic 1 WFD-5000 PRO Pic 2 Test report No. : 4790186607-EP Page : 8 of 11 Issued date : Jan. 11, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 WFD-5000 PRO Pic 3 WFD-5000 PRO Pic 4 Test report No. : 4790186607-EP Page : 9 of 11 Issued date : Jan. 11, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 WFD-5000 PRO Pic 5 WFD-5000 PRO Pic 6 RF Module RF Ant 0 RF Ant 1 Test report No. : 4790186607-EP Page : 10 of 11 Issued date : Jan. 11, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 WFD-5000 PRO Pic 7 WFD-5000 PRO Pic 8 Test report No. : 4790186607-EP Page : 11 of 11 Issued date : Jan. 11, 2022 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 WFD-5000 PRO Pic 9 WFD-5000 PRO Pic 10

Test report No. : 4790186607-US-R2-V0 Page : 1 of 10 Issued date : 2022/1/11 FCC ID : BY4WFD5000PRO Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 Maximum Permissible Exposure Report Product : 4K UHD Wireless Presentation Receiver Model Name : WFD-5000 PRO FCC ID : BY4WFD5000PRO Test Regulation : 47 CFR FCC Part 2.1091 Received Date : 2021/8/18 , 2021/11/22 Test Date : 2021/8/18 ~ 2021/12/2 Issued Date : 2022/1/11 Applicant : Trans Electric Co., Ltd 771 Sec.2 Chungsan Rd, Huatang, Changhua, Taiwan 503 Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Test report No. : 4790186607-US-R2-V0 Page : 2 of 10 Issued date : 2022/1/11 FCC ID : BY4WFD5000PRO Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 REVISION HISTORY Original Test Report No.: 4790186607-US-R2-V0 Rev. Test report No. Date Page revised Contents Original 4790186607-US-R2-V0 2022/1/11 - Initial issue Test report No. : 4790186607-US-R2-V0 Page : 3 of 10 Issued date : 2022/1/11 FCC ID : BY4WFD5000PRO Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 Table of Contents 1. Attestation of Test Results ......................................................................................... 4 2. Facilities and Accreditation ...................................................................................... 5 3. Equipment Under Test .............................................................................................. 6 3.1. Description of EUT .............................................................................................. 6 3.2. Description of Available Antennas ...................................................................... 8 4. Requirement ............................................................................................................... 9 5. Radio Frequency Radiation Exposure Evaluation ............................................... 10 Test report No. : 4790186607-US-R2-V0 Page : 4 of 10 Issued date : 2022/1/11 FCC ID : BY4WFD5000PRO Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 1. Attestation of Test Results APPLICANT: Trans Electric Co., Ltd 771 Sec.2 Chungsan Rd, Huatang, Changhua, Taiwan 503 MANUFACTURER: Trans Electric Co., Ltd 771 Sec.2 Chungsan Rd, Huatang, Changhua, Taiwan 503 EUT DESCRIPTION: 4K UHD Wireless Presentation Receiver BRAND: PX MODEL: WFD-5000 PRO SAMPLE STAGE: Engineering Verification Test sample APPLICABLE STANDARDS STANDARD Test Results 47 CFR FCC PART 2.1091 PASS Underwriters Laboratories Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Underwriters Laboratories Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Underwriters Laboratories Taiwan Co., Ltd. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Underwriters Laboratories Taiwan Co., Ltd. will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Prepared By: Approved and Authorized By: Sally Lu Date : 2022/1/11 Waternil Guan Date : 2022/1/11 Project Handler Engineer Test report No. : 4790186607-US-R2-V0 Page : 5 of 10 Issued date : 2022/1/11 FCC ID : BY4WFD5000PRO Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-EM-F0864 / 5.0 Test Methodology and Reference Procedures The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06. 2. Facilities and Accreditation Test Location Underwriters Laboratories Taiwan Co., Ltd. Address Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Accreditation Certificate Underwriters Laboratories Taiwan Co., Ltd. is accredited by TAF, Laboratory Code 3398. Test report No. : 4790186607-US-R2-V0 Page : 6 of 10 Issued date : 2022/1/11 FCC ID : BY4WFD5000PRO Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX) :+886-3-583-7948 Doc No: 17-…

Text truncated - open the document above for the full version.

Test report No. : 4790186607-US-R0-V0 Page : 1 of 71 Issued date : 2022/1/11 FCC ID : BY4WFD5000PRO Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 RADIO TEST REPORT The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Product : 4K UHD Wireless Presentation Receiver Model Name : WFD-5000 PRO FCC ID : BY4WFD5000PRO Test Regulation : FCC 47 CFR Part 15 Subpart C (Section 15.247) Received Date : 2021/8/18 Test Date : 2021/8/18 ~ 2021/12/2 Issued Date : 2022/1/11 Applicant : Trans Electric Co., Ltd 771 Sec.2 Chungsan Rd, Huatang, Changhua, Taiwan 503 Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Test report No. : 4790186607-US-R0-V0 Page : 2 of 71 Issued date : 2022/1/11 FCC ID : BY4WFD5000PRO Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 REVISION HISTORY Original Test Report No.: 4790186607-US-R0-V0 Rev. Test report No. Date Page revised Contents Original 4790186607-US-R0-V0 2022/1/11 - Initial issue Test report No. : 4790186607-US-R0-V0 Page : 3 of 71 Issued date : 2022/1/11 FCC ID : BY4WFD5000PRO Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 Table of Contents 1. Attestation of Test Results .............................................................................................4 2. Summary of Test Results ...............................................................................................5 3. Test Methodology and Reference Procedures .............................................................6 4. Facilities and Accreditation ...........................................................................................6 5. Measurement Uncertainty .............................................................................................7 6. Equipment under Test ...................................................................................................8 6.1. Description of EUT .............................................................................................. 8 6.2. Channel List ....................................................................................................... 10 6.3. Test Condition .................................................................................................... 11 6.4. Description of Available Antennas .................................................................... 11 6.5. Test Mode Applicability and Tested Channel Detail ......................................... 12 6.6. Duty cycle .......................................................................................................... 13 7. Test Equipment ............................................................................................................ 14 8. Description of Test Setup ............................................................................................ 16 9. Test Results ................................................................................................................... 18 9.1. 6dB Bandwidth .................................................................................................. 18 9.2. Conducted Output Power ................................................................................... 21 9.3. Power Spectral Density ...................................................................................... 24 9.4. Conducted Out of Band Emission ...................................................................... 27 9.5. Radiated Spurious Emission .............................................................................. 36 9.6. AC Power Line Conducted Emission ................................................................ 56 Appendix I Radiated Band Edge Measurement .............................................................. 60 Appendix II Radiated Spurious Emission Measurement ............................................... 68 Test report No. : 4790186607-US-R0-V0 Page : 4 of 71 Issued date : 2022/1/11 FCC ID : BY4WFD5000PRO Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: 17-EM-F0876 / 6.0 1. Attestation of Test Results APPLICANT: Trans Electric Co., Ltd 771 Sec.2 Chungsan Rd, Huatang, Changhua, Taiwan 503 MANUFACTURER: Trans Electric Co., Ltd 771 Sec.2 Chungsan Rd, Huatang, Changhua, Taiwan 503 EUT DESCRIPTION: 4K UHD Wireless Presentation Receiver BRAND: PX MODEL: WFD-5000 PRO SAMPLE STAGE: Engineering Verification Test sample DATE of TESTED: 2021/8/18 ~ 2021/12/2 APPLICABLE STANDARDS STANDARD Test Results FCC 47 CFR PART 15 Subpart C (Section 15.247) PASS Underwriters Laboratories Taiwan Co., Ltd. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by Underwriters Laboratories Taiwan Co., Ltd. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating complianc…

Text truncated - open the document above for the full version.

Page : 1 of 4 Issued date : 2022/1/11 Project No. : 4790186607 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Radiated Spurious Emission Setup Configurations Above 1GHz Page : 2 of 4 Issued date : 2022/1/11 Project No. : 4790186607 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 30 MHz ~ 1 GHz Page : 3 of 4 Issued date : 2022/1/11 Project No. : 4790186607 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 9 kHz ~ 30 MHz Page : 4 of 4 Issued date : 2022/1/11 Project No. : 4790186607 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 AC Power Line Conducted Emission Setup Configurations
