BY4BTR1020Bluetooth Audio Adapter

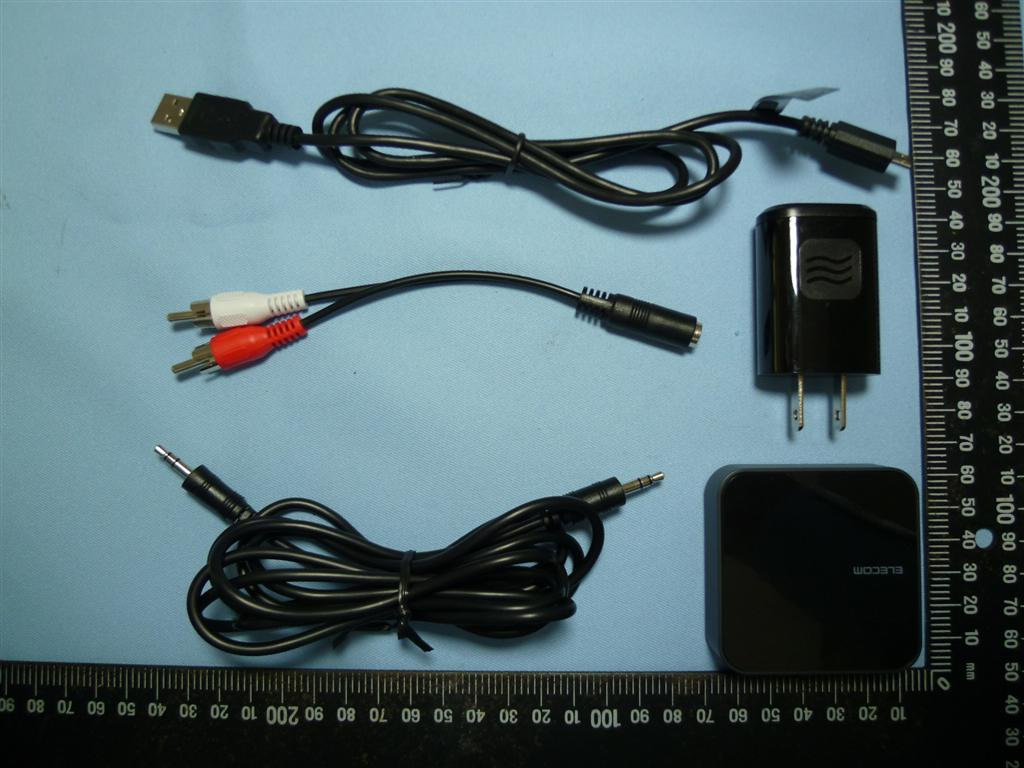

1 BTR-1020 Bluetooth music receiver With SBC supported Feature ◎ SBC codec support ◎ A2DP Bluetooth profile supported ◎ 33 feet (10M) effective range ◎ Audio RL audio output ◎ 8 devices ID storable ◎ Micro USB Port for powering What’s in the box Main Unit USB Cable 3.5mm male→ male Audio cable 3.5mm female→ audio RL cable AC/DC Adaptor （option） 2 Outlook and connectors Setup your BTR-1020 Front Top View Back Side View Audio Amplifier Audio RL 3.5mm male to male OR 3 Analogue connection 1. Connect one 3.5mm end of the include audio to headphone jacket on the BTR-1020. 2. Connect the other end to an audio input on your home stereo system (3.5mm or 3.5mm + 3.5mmm
2 RCA). Consult your stereo user’s manual for more information on how to accomplish this. 3. Consult your stereo user’s manual for more information on how to accomplish this. 4. Connect USB A to micro USB adaptor cable, the micro USB end to the micro USB jacket of BTR-1020, USB Type A connector to the USB port of your Audio Video Device or you can connect to an AC Adaptor with USB port(option) , the AC end to any AC outlet.. 5. The LED light will flash once to show the unit is powered and ready for being paired for your devices. Pairing your BTR-1020 iPad/iPhone/iPod touch 1. Go to Bluetooth manager of your iPad/iPhone/iPod touch by the following steps a .From your iPad/iPhone/iPod touch home page, tap “setting” b. Inside Settings tap on “General” c. Inside General tap on “Bluetooth” 4 2.Turn On the Bluetooth function 4. Enter “0000” when the player asks for PIN code (some devices have no need to input PIN). This will allow the iPad/iPhone/iPod touch to pair with “Music Receiver” 3.Your iPod/iPhone/iPad will auto searching available device. You will see “Music Receiver” then Tap on it. 5. Your iPod/iPhone/iPad connected to BTR-1020 Now. And You can play music from your iPod/iPhone/iPad. 5 Android Phone/Tablet（ （（ （ver 4.0 as Example） ）） ） 1. Go to Bluetooth manager of your smart phone by the following step Note: Some devices, such as iPhone, will connect immediately after pairing so the LED will ON. Other devices, such as notebook, may ask you if you wish to connect and LED will go off after pairing until a connection is established. a. From your smart phone home page, tap on “setting” b. Inside the setting, turn on The Bluetooth c. Bluetooth is turned on 2. Searched Bluetooth Devices will show up, please tap on “Music Receiver” 3. Enter “0000” when the player asks for PIN code（some devices have no need to input PIN）. 4. Once paired, the blue LED light on the BTR-1020 will flash once. The Blue LED will keep lighted when a connection is established And In your Smartphone there is showed “connected to media audio” 6 Although the BTR-1020 can only play music from one device at a time, it is capable of being paired to up to 8 devices. It means that you have to enter the PIN code once for each device. You can play the music now. Just play music on your device as you normally would and the sound will come out from your stereo system. Note: the effective range of BTR-1020 is 33 feet (10M). (light of sight). If you hold and wear the Smartphone or tablet and cover the Bluetooth antenna, the distance will be shorter. Reconnecting your device If you move out of range or turn off the Bluetooth feature on you iPad/iPhone/iPod touch or Smartphone,BTR-1020 will disconnected from your device. To reconnect, simply open the Bluetooth manager and tap on the “Music Receiver”, then you do not need to input PIN again, the connection will be done automatically. Adding a new phone or tablet： ：： ： If you want to switch from one device to another, please follow these steps 1. End the existing Bluetooth connection with connected device. 2. The BTR-1020 can now be connected with another device such as iPad/iPod/iPhone or Smartphone or tablet. 3. Follow the section “Pairing the BTR-1020” to connect a new device. Out of range or lost signal: When the paired phone or device away from receiver (33 feet) or there is something blocking the Bluetooth signal. The LED light will go off, it means the connection between device and BTR-1020 is lost. To avoid a lost connection: 1. Move the music device back into range ( within 33 feet), and make sure there’s a clear line of sight and there are no obstructions between BTR-1020 and device. 2. Within 15 seconds, the connection will automatically be reestablished and LED will turn on 3. If the connection is lost for more than 15 seconds, you need to reconnect the device and BTR-1020 again. Please follow the “Reconnect Your Device” section. 7 Indication of LED Troubleshooting You can solve your problems from this section No music out from my stereo speaker ◎ Make sure the BTR-1020 is powered. ◎ Make sure an audio cable or an Optical cable is correctly and firmly connected to BTR-1020 ◎ Make sure the volume of the stereo is set to a comfortable listening level ◎ Make sure you are within range. ◎ Make sure the Bluetooth function is opened on your device. ◎ Make sure you are playing the music from your device. SAFETY WARNINGS ◎ BTR-1020 requires full connection and both hands to install. ◎ Do not use BTR-1020 near water(for example, a bath tub, wash bowl, kitchen sink, laundry tub, wet basement, swimming pool, or other areas located near water). ◎ Clean with dry cloth. ◎ Unplug the BTR-1020 before cleaning. ◎ Install BTR-1020 far away from heat sources. ◎ Use only the attached accessories. ◎ Unplug the BTR-1020 when unused for long time. Indication meaning Description Flash once 1 sec per 5 secs Power on /Pairing Waiting for connection Permanent Lighted connected Device and main unit are connected 8 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this devic…

Text truncated - open the document above for the full version.

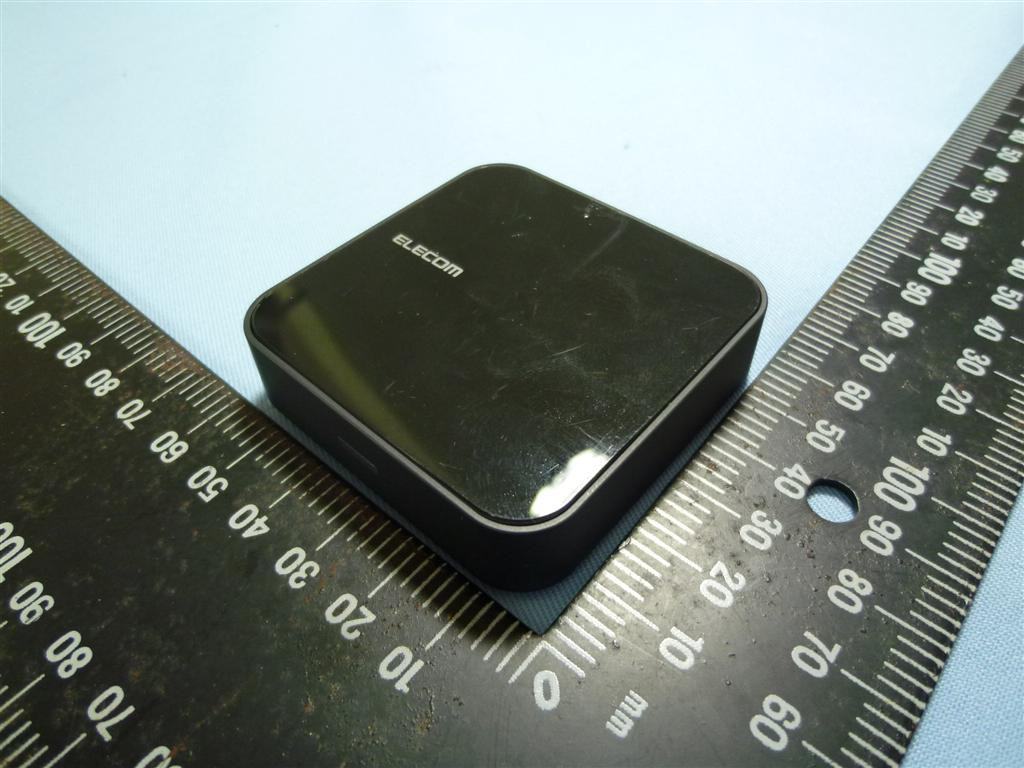

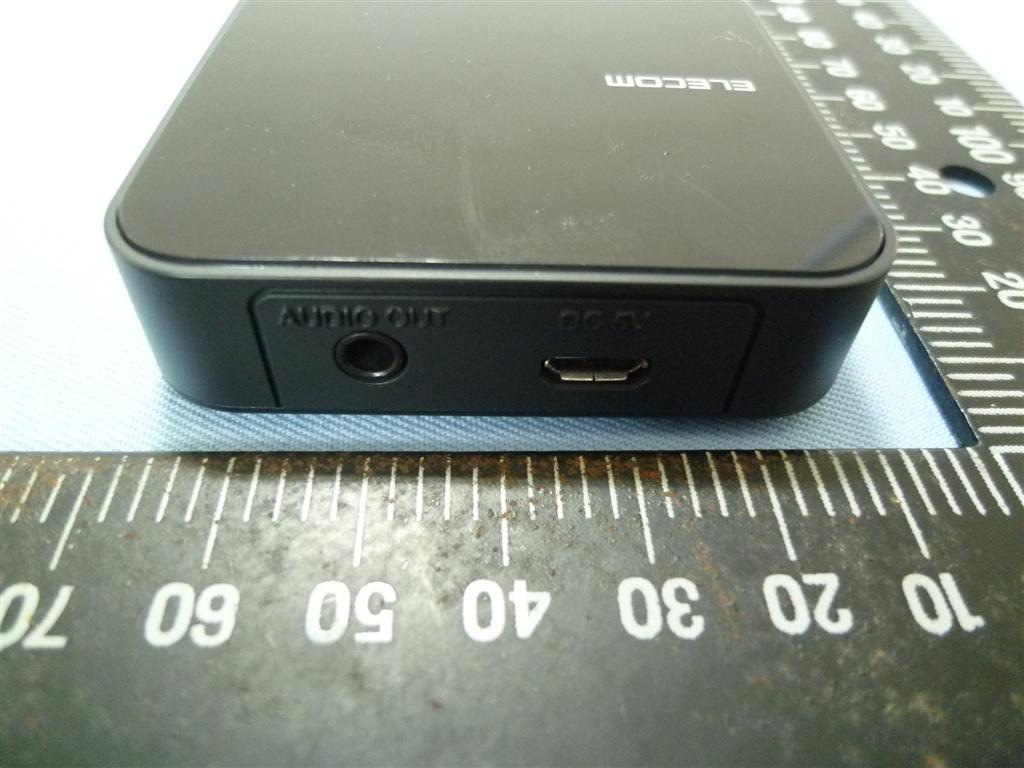

Appendix P Photo Documentation Page 1 of 3 Product: Bluetooth music receiver FCC ID: BY4BTR1020 Type Designation: BR-40 IC ID: 4593A-BR40 Appendix P Photo Documentation Page 2 of 3 Product: Bluetooth music receiver FCC ID: BY4BTR1020 Type Designation: BR-40 IC ID: 4593A-BR40 Appendix P Photo Documentation Page 3 of 3 Product: Bluetooth music receiver FCC ID: BY4BTR1020 Type Designation: BR-40 IC ID: 4593A-BR40

Label on BTR-1020 Confirm by 2014/02/10 100% Label Material : 80g Art Paper Ground Color : Black Text Color : White 31.2mm 3 1 . 2 m m 29.2mm 2 9 . 2 m m Bluetooth Music Receiver MODEL : BTR-1020 FCC ID : BY4BTR1020 Made in Taiwan 5mm 7mm

Appendix P Photo Documentation Page 1 of 3 Product: Bluetooth music receiver FCC ID: BY4BTR1020 Type Designation: BR-40 IC ID: 4593A-BR40 Appendix P Photo Documentation Page 2 of 3 Product: Bluetooth music receiver FCC ID: BY4BTR1020 Type Designation: BR-40 IC ID: 4593A-BR40 Appendix P Photo Documentation Page 3 of 3 Product: Bluetooth music receiver FCC ID: BY4BTR1020 Type Designation: BR-40 IC ID: 4593A-BR40

Produkte Products Prüfbericht - Nr.: Test Report No. 10045882 001 Seite 42 von 47 Page 42 of 47 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 Since maximum peak output power of the transmitter is <2mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure..

Produkte Products Prüfbericht - Nr.: Test Report No. 10045882 001 Seite 2 von 47 Page 2 of 47 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10045882 001 Seite 3 von 47 Page 3 of 47 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST FACILITIES ..................................................................................................... 6 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 TRACEABILITY ........................................................................................................ 7 2.4 CALIBRATION ......................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL PRODUCT INFORMATION ........................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 8 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 10 3.5 SUBMITTED DOCUMENTS ....................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................... 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 11 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 11 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 11 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 12 4.5 TEST SETUP DIAGRAM .......................................................................................... 12 5. TEST RESULTS ..................................................................................................... 14 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 14 5.1.1 Antenna Requirement ................................................................................................................ 14 5.1.2 Peak Output Power .................................................................................................................... 15 5.1.3 20dB Bandwidth ......................................................................................................................... 19 5.1.4 99% Bandwidth .......................................................................................................................... 23 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 27 5.1.6 Spurious Emission ..................................................................................................................... 33 5.1.7 Frequency Separation ................................................................................................................ 34 5.1.8 Number of hopping frequency .................................................................................................... 36 5.1.9 Time of Occupancy .................................................................................................................... 38 5.2 MAINS EMISSIONS................................................................................................. 41 5.2.1 Mains Conducted Emissions ...................................................................................................... 41 6. SAFETY HUMAN EXPOSURE ................................................................................... 42 Produkte Products Prüfbericht - Nr.: Test Report No. 10045882 001 Seite 4 von 47 Page 4 of 47 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 42 6.1.1 Electromagnetic Fields ............................................................................................................... 42 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 43 8. LIST OF TABLES ................................................................................................... 47 9. LIST OF PHOTOGRAPHS......................................................................................... 47 Produkte Products Prüfbericht - Nr.: Test Report No. 10045882 001 Seite 5 von 47 Page 5 of 47 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix P: Photo Documentation (File Name: 10045882APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10045882APPENDIX D) Test Specifications T…

Text truncated - open the document above for the full version.

Test Report No.10045882 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 10045882AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ............................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 10 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 22 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 34 Spurious Emissions, Mains, 150kHz - 30MHz ......................................................................................... 36 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (GFSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge (GFSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 6 Radiated Bandedge (8DPSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 7 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 8 Radiated Bandedge (8DPSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 9 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 10 Spurious Emissions, TX Mode, 1-18G Service No.: 114017604-BT FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/2/6 19:46:00 Applicant: Trans Test Rating: DC 5V Product: Bluetooth Music receiver Temp.(°C °C°C °C)/Hum.(%): 20(°C °C°C °C)/60% Model No.: BTR-1020 Test Engineer: Hugo Chang Test Mode: BT-2402 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4804.000 -2.59 47.94 45.35 74.00 -28.65 peak 2 6394.231 5.10 43.95 49.05 74.00 -24.95 peak 100 261 3 7206.000 5.44 44.13 49.57 74.00 -24.43 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 11 Service No.: 114017604-BT FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2014/2/6 19:47:03 Applicant: Trans Test Rating: DC 5V Product: Bluetooth Music receiver Temp.(°C °C°C °C)/Hum.(%): 20(°C °C°C °C)/60% Model No.: BTR-1020 Test Engineer: Hugo Chang Test Mode: BT-2402 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4804.000 -2.59 48.38 45.79 74.00 -28.21 peak 2 6258.013 4.62 45.26 49.88 74.00 -24.12 peak 100 6 3 7206.000 5.44 43.44 48.88 74.00 -25.12 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 12 Service No.: 114017604-BT FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/2/6 19:48:56 Applicant: Trans Test Rating: DC 5V Product: Bluetooth Music receiver Temp.(°C °C°C °C)/Hum.(%): 20(°C °C°C °C)/60% Model No.: BTR-1020 Test Engineer: Hugo Chang Test Mode: BT-2441 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4882.000 -2.39 48.07 45.68 74.00 -28.32 peak 2 7323.000 5.76 43.67 49.43 74.00 -24.57 peak 3 8655.449 6.58 43.90 50.48 74.00 -23.52 peak 100 4 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 13 Service No.: 114017604-BT FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2014/2/6 19:49:58 Applicant: Trans Test Rating: DC 5V Product: Bluetooth Music receiver Temp.(°C °C°C °C)/Hum.(%): 20(°C °C°C °C)/60% Model No.: BTR-1020 Test Engineer: Hugo Chang Test Mode: BT-2441 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4882.000 -2.39 48.39 46.00 74.00 -28.00 peak 2 7323.000 5.76 42.90 48.66 74.00 -25.34 peak 3 7756.410 6.13 44.01 50.14 74.00 -23.86 peak 100 43 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 14 Service No.: 114017604-BT FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/2/6 19:52:41 Applicant: Trans Test Rating: DC 5V Product: Bluetooth Music receiver Temp.(°C °C°C °C)/Hum.(%): 20(°C °C°C °C)/60% Model No.: BTR-1020 Test Engineer: Hugo Chang Test Mode: BT-2480 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4960.000 -2.19 46.72 44.53 74.00 -29.47 peak 2 7440.000 6.09 43.77 49.86 74.00 -24.14 peak 3 8110.577 6.11 43.76 49.87 74.00 -24.13 peak 100 232 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 15 Service No.: 114017604-BT FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2014/2/6 19:53:43 Applicant: Trans Test Rating: DC 5V Product: Bluetooth Music receiver Temp.(°C °C°C °C)/Hum.(%): 20(°C °C°C °C)/60% Model No.: BTR-1020 Test Engineer: Hugo Chang Test Mode: BT-2480 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4960.000 -2.19 47.26 45.07 74.00 -28.93 peak 2 6176.282 4.33 45.35 4…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10045882 001 Seite 43 von 47 Page 43 of 47 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10045882 001 Seite 44 von 47 Page 44 of 47 Photograph 2: Set-up for Spurious Emissions (Back View 1) Produkte Products Prüfbericht - Nr.: Test Report No. 10045882 001 Seite 45 von 47 Page 45 of 47 Photograph 3: Set-up for Spurious Emissions (Back View 2) Photograph 4: Set-up for Conducted testing Produkte Products Prüfbericht - Nr.: Test Report No. 10045882 001 Seite 46 von 47 Page 46 of 47 Photograph 5: Set-up for for Mains Conducted testing Back Photograph 6: Set-up for for Mains Conducted testing Front
