BY4BTR2000NBluetooth Audio Adapter

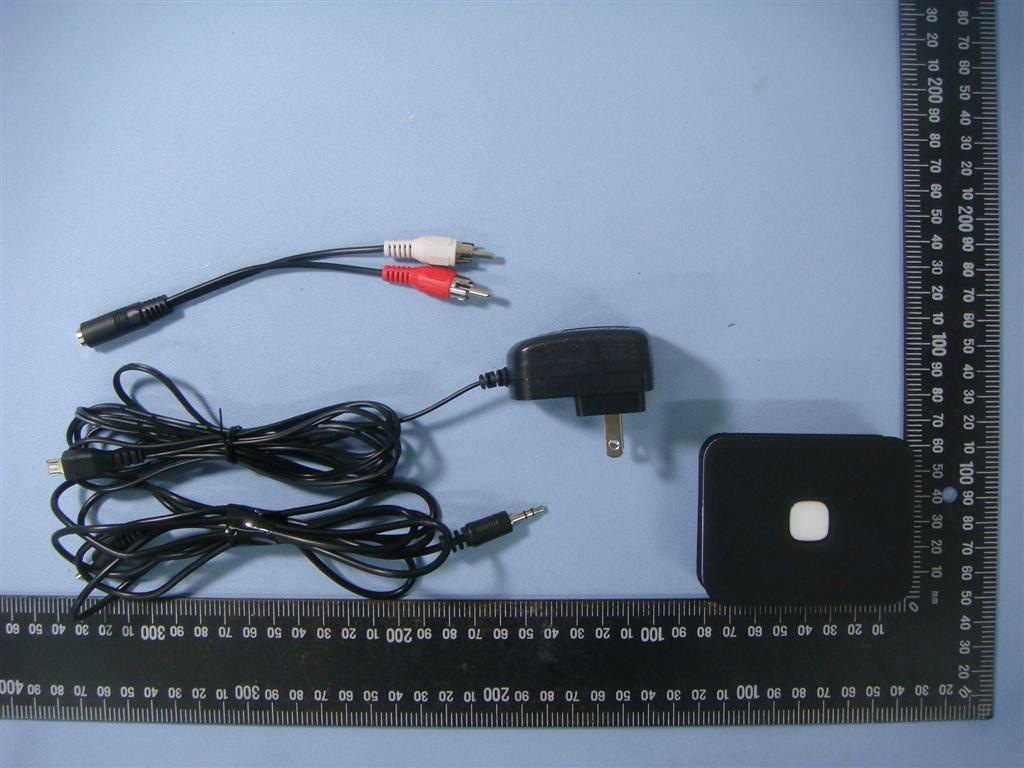

11270 Bluetooth audio receiver With A2DP, CSR ® aptX ® supported and With NFC TM Fast paring and connection. Feature ◎aptX ® codec support ◎NFC Quick link support ◎SBC codec support ◎A2DP Bluetooth profile supported ◎ 33 feet(10M) effective range ◎TOSLINK digital audio output ◎Audio RL audio output ◎8 devices ID storable What’s in the box Main unit AC/DC adaptor 3.5mm male
3.5mm female
male audio cable audio RL cable 1 Outlook and connectors Front Top View Back Side View 2 Setup your 11270 11270 with 3.5mm Stereo output and Optical output, but you can use only one output at a time, it means you need to make a switch setting on the back of 11270 like followed Analogue connection 1. Connect one 3.5mm end of the include audio to headphone jacket on the 11270 2. Connect the other end to an audio input on your home stereo system (3.5mm or 3.5mm + 3.5mmm
2 RCA). Consult your stereo user’s manual for more information on how to accomplish this. 3 Digital connection 1. Connect one TOSLINK cable end to optical jacket on the 11270(recommended) 2. Connect the other end to one TOSLINK input of your home stereo system. Consult your stereo user’s manual for more information on how to accomplish this. 3. Connect AC power adaptor cable to DC input jacket of 11270, AC end to any AC outlet. 4. The LED light will flash once to show the unit is powered and ready for being paired for your devices. 4 NFC Fast connection and Pairing of 11270 11270 is equipped with a standard NFC tag, there are NDEF information for Bluetooth org and NFC forum defined. Before you can use this feature, you need to check your Smartphone or tablet with NFC function and the operational system is Android 4.1 and above. Start the NFC function STEP1: Check the android operational system Tab the “setting” Choose “about Device” Make sure android version Is 4.1 or above Step 2 : Turn on the NFC function Back to setting page Check NFC function Turn on NFC function 5 Step3: Fast Connection using NFC TAP the Smartphone to BTR Pairing First Connection, if connected *The message will pop up you can play music now Please choose YES *Some device will pop up Some will not Step4: Disconnected you device and 11270 If you wan to disconnect, you need to tap the Smartphone to 11270 again. Then the connection between 11270 and your device will off. 6 Pairing your 11270 for no NFC device iPad/iPhone/iPod touch 1. Go to Bluetooth manager of your iPad/iPhone/iPod touch by the following steps 7 a .From your iPad/iPhone/iPod touch home page, tap “setting” b. Inside Settings tap on “General” c. Inside General tap on “Bluetooth” 2.Turn On the Bluetooth function 4. Enter “0000” when the player asks for PIN code(some devices have no need to input PIN). This will allow the iPad/iPhone/iPod touch to pair with “Music Receiver” 3.Your iPod/iPhone/iPad will auto searching available device. You will see “Music Receiver” then Tap on it. Android Phone/Tablet（ （（ （ver 4.0 as Example） ）） ） 1. Go to Bluetooth manager of your smart phone by the following step 8 a. From your smart phone home page, tap on “setting” b. Inside the setting, turn on The Bluetooth c. Bluetooth is turned on 5. Your iPod/iPhone/iPad connected to 11270 Now. And You can play music from your iPod/iPhone/iPad. Note: Some devices, such as iPhone, will connect immediately after pairing so the LED will ON. Other devices, such as notebook, may ask you if you wish to connect and LED will go off after pairing until a connection is established. Although the 11270 can only play music from one device at a time, it is capable of being paired to up to 8 devices. It means that you have to enter the PIN code once for each device. You can play the music now. Just play music on your device as you normally would and the sound will come out from your stereo system. Note: the effective range of 11270 is 33 feet(10M) (light of sight). If you hold and wear the Smartphone or tablet and cover the Bluetooth antenna, the distance will be shorter. 9 2. Searched Bluetooth Devices will show up, please tap on “Music Receiver” 3. Enter “0000” when the player asks for PIN code（some devices have no need to input PIN）. 4. Once paired, the blue LED light on the 11270 will flash once. The Blue LED will keep lighted when a connection is established And In your Smartphone there is showed “connected to media audio” Disconnecting the connection via manual button When you need to disconnect the connected Smartphone, you can push the button on the Top of 11270 then it will on the pairing Mode for new connection Reconnecting your device If you move out of range or turn off the Bluetooth feature on you iPad/iPhone/iPod touch or Smartphone,11270 will disconnected from your device. To reconnect, simply open the Bluetooth manager and tap on the “Music Receiver”, then you do not need to input PIN again, the connection will be done automatically. Adding a new phone or tablet： ：： ： If you want to switch from one device to another, please follow these steps 1. End the existing Bluetooth connection with connected device. 2. The 11270 can now be connected with another device such as iPad/iPod/iPhone or Smartphone or tablet. 3. Follow the section “Pairing the 11270” to connect a new device. Out of range or lost signal: When the paired phone or device away from receiver (33 feet) or there is something blocking the Bluetooth signal. The LED light will go off, it means the connection between device and 11270 is lost. To avoid a lost connection: 1. Move the music device back into range ( within 33 feet), and make sure there’s a clear line of sight and there are no obstructions between 11270 and device. 2. Within 15 seconds, the connection will automatically be reestablished and LED will turn on 3. If the connection is lost for more than 15 seconds, you need to reconnect the device and 11270 again. Please follow the “Reconnect Your Device” section. 10 Indication of LED There are 2 LEDs in the front Panel, each LED indicate what is the output selection now. …

Text truncated - open the document above for the full version.

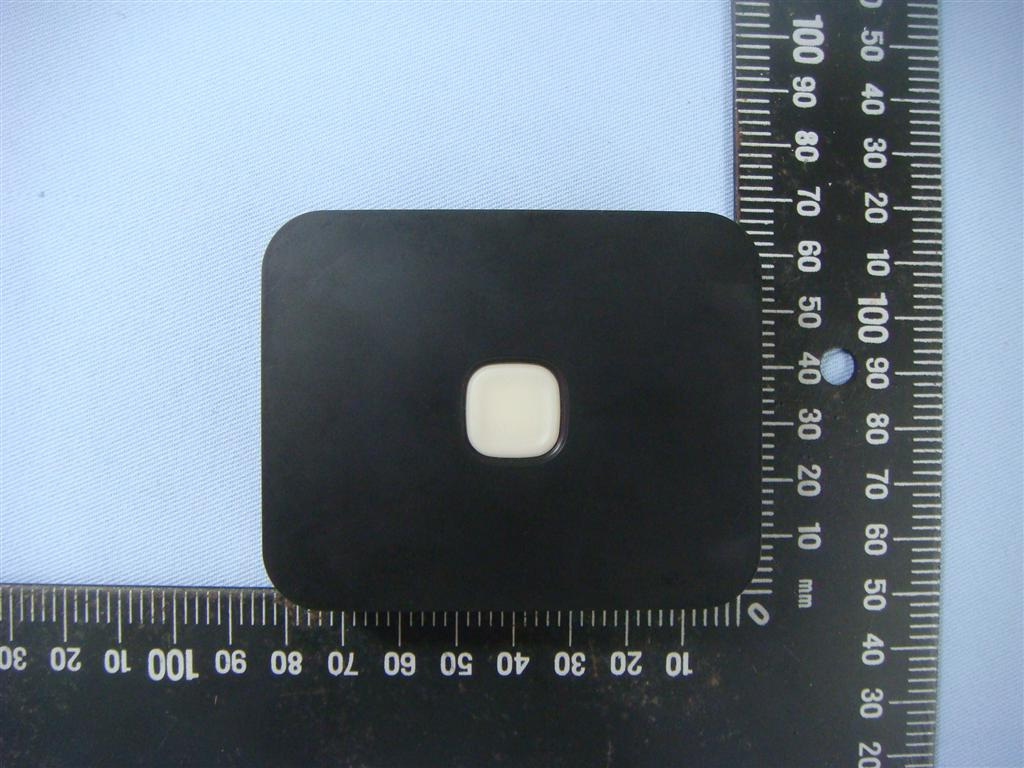

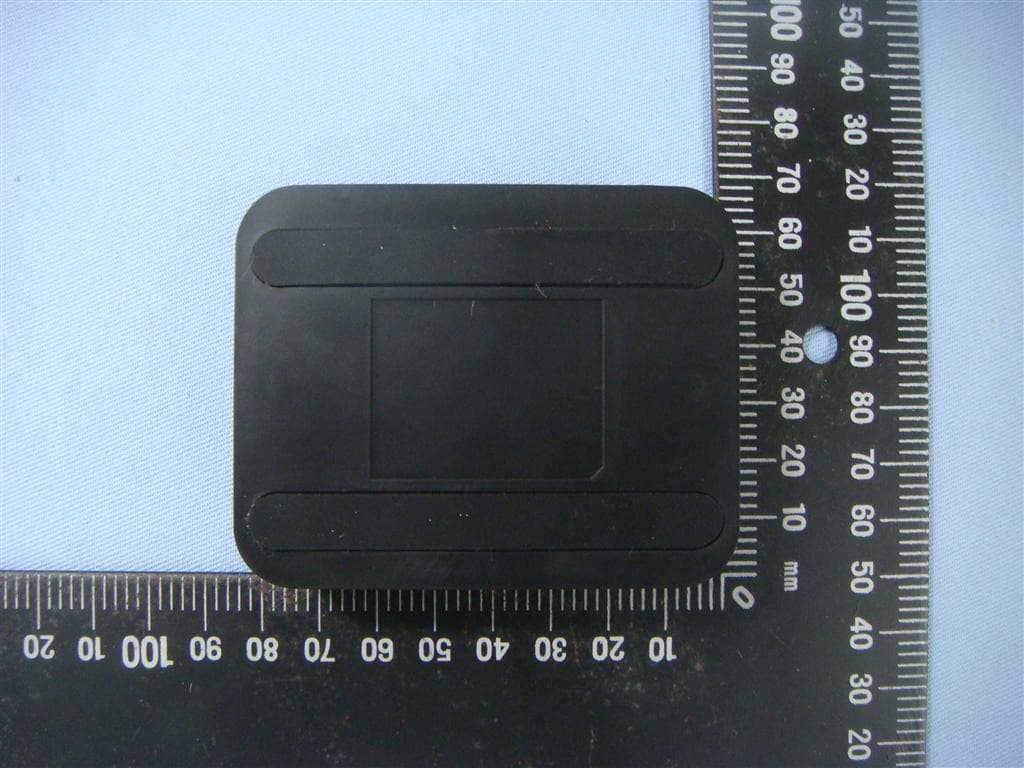

ATTACHMENT Photo Documentation Page 1 of 4 FCC ID: BY4BTR2000N Product: Bluetooth music receiver Type Designation: BTR-2000N, 11270 ATTACHMENT Photo Documentation Page 2 of 4 FCC ID: BY4BTR2000N Product: Bluetooth music receiver Type Designation: BTR-2000N, 11270 ATTACHMENT Photo Documentation Page 3 of 4 FCC ID: BY4BTR2000N Product: Bluetooth music receiver Type Designation: BTR-2000N, 11270 ATTACHMENT Photo Documentation Page 4 of 4 FCC ID: BY4BTR2000N Product: Bluetooth music receiver Type Designation: BTR-2000N, 11270

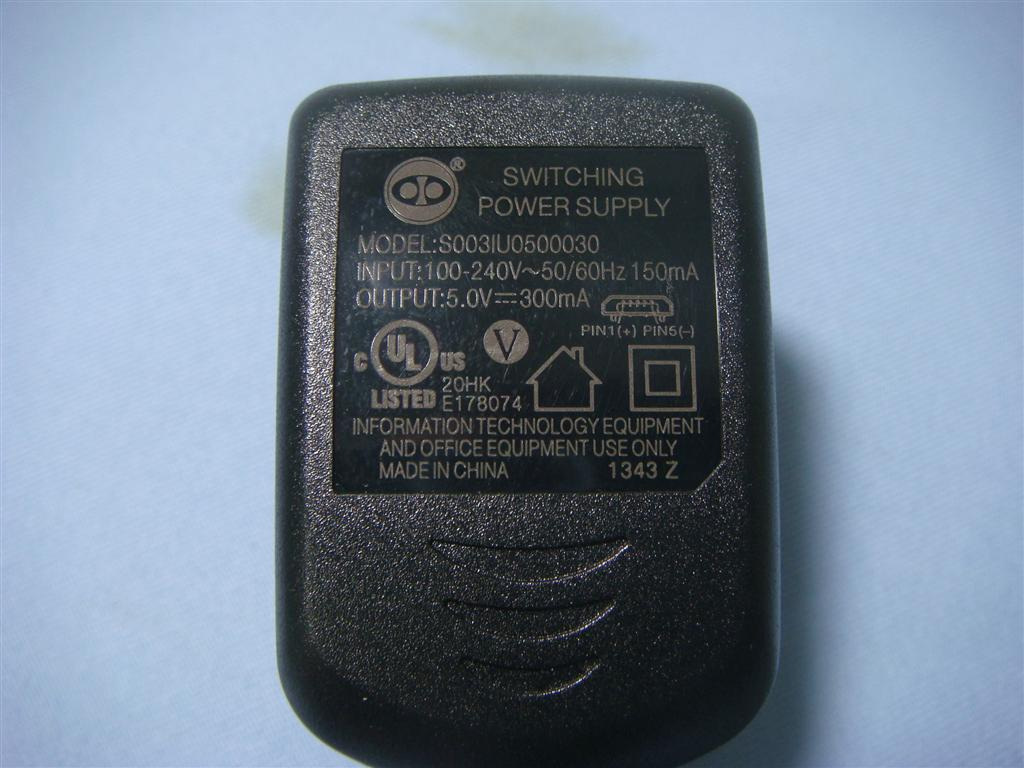

35.2mm 2 5 . 2 m m 33.2mm 2 7 . 2 m m YYWW 2013/11/22 Sticker on 11270 Confirm by Jasco date code : production year / week ex. 1353 = the fifty-third week of the year 2013 100% Q8997G 2 m m 2mm 35.2mm 2 7 . 2 m m 33.2mm 2 5 . 2 m m 11270 Input : DC 5V/300mA FCC ID : BY4BTR2000N HD Audio Bluetooth Receiver with NFC R 31.2mm 2 9 . 2 m m 29.2mm 3 1 . 2 m m 11081 YYWW 2013/11/22 Sticker on 11081 Confirm by Jasco date code : production year / week ex. 1353 = the fifty-third week of the year 2013 100% 2 m m 2mm 31.2mm 3 1 . 2 m m 29.2mm 2 9 . 2 m m Q8993G Input : DC 5V/300mA FCC ID : BY4BTR3002 Home Audio Bluetooth Receiver R

ATTACHMENT Photo Documentation Page 1 of 2 FCC ID: BY4BTR2000N Product: Bluetooth music receiver Type Designation: BTR-2000N, 11270 ATTACHMENT Photo Documentation Page 2 of 2 FCC ID: BY4BTR2000N Product: Bluetooth music receiver Type Designation: BTR-2000N, 11270

Produkte Products Prüfbericht - Nr.: Test Report No. 10044669 001 Seite 42 von 47 Page 42 of 47 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 Since maximum peak output power of the transmitter is 0.21 mW <1mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure..

Produkte Products Prüfbericht - Nr.: Test Report No. 10044669 001 Seite 2 von 47 Page 2 of 47 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10044669 001 Seite 3 von 47 Page 3 of 47 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST FACILITIES ..................................................................................................... 6 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 TRACEABILITY ........................................................................................................ 7 2.4 CALIBRATION ......................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL PRODUCT INFORMATION ........................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 8 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 10 3.5 SUBMITTED DOCUMENTS ....................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................... 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 11 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 11 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 11 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 12 4.5 TEST SETUP DIAGRAM .......................................................................................... 12 5. TEST RESULTS ..................................................................................................... 14 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 14 5.1.1 Antenna Requirement ................................................................................................................ 14 5.1.2 Peak Output Power .................................................................................................................... 15 5.1.3 20dB Bandwidth ......................................................................................................................... 19 5.1.4 99% Bandwidth .......................................................................................................................... 23 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 27 5.1.6 Spurious Emission ..................................................................................................................... 33 5.1.7 Frequency Separation ................................................................................................................ 34 5.1.8 Number of hopping frequency .................................................................................................... 36 5.1.9 Time of Occupancy .................................................................................................................... 38 5.2 MAINS EMISSIONS................................................................................................. 41 5.2.1 Mains Conducted Emissions ...................................................................................................... 41 6. SAFETY HUMAN EXPOSURE ................................................................................... 42 Produkte Products Prüfbericht - Nr.: Test Report No. 10044669 001 Seite 4 von 47 Page 4 of 47 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 42 6.1.1 Electromagnetic Fields ............................................................................................................... 42 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 43 8. LIST OF TABLES ................................................................................................... 47 9. LIST OF PHOTOGRAPHS......................................................................................... 47 Produkte Products Prüfbericht - Nr.: Test Report No. 10044669 001 Seite 5 von 47 Page 5 of 47 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix PI: Photo Documentation internal view (File Name: 10044669APPENDIX PI) Appendix PE: Photo Documentation external view (File Name: 10044669APPENDIX PE) App…

Text truncated - open the document above for the full version.

Test Report No.10044669 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 10044669AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ............................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 10 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 22 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 34 Spurious Emissions, Mains, 150kHz - 30MHz ......................................................................................... 36 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (GFSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge (GFSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 6 Radiated Bandedge (8DPSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 7 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 8 Radiated Bandedge (8DPSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 9 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 10 Spurious Emissions, TX Mode, 1-18G Service No.: 114015419-BT Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/11/28 18:37:49 Applicant: Trans Test Rating: AC 120V/60Hz Product: Bluetooth music receiver Temp.(°C °C°C °C)/Hum.(%): 20.5(°C °C°C °C)/60% Model No.: BTR-2000N Test Engineer: Hugo Chang Test Mode: BT-2402 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3533.654 -5.62 52.03 46.41 74.00 -27.59 peak 100 64 2 4786.859 -2.64 52.19 49.55 74.00 -24.45 peak 100 303 3 8028.846 6.04 44.22 50.26 74.00 -23.74 peak 100 269 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 11 Service No.: 114015419-BT Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/11/28 18:38:51 Applicant: Trans Test Rating: AC 120V/60Hz Product: Bluetooth music receiver Temp.(°C °C°C °C)/Hum.(%): 20.5(°C °C°C °C)/60% Model No.: BTR-2000N Test Engineer: Hugo Chang Test Mode: BT-2402 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3615.385 -5.55 51.15 45.60 74.00 -28.40 peak 100 347 2 4786.859 -2.64 52.94 50.30 74.00 -23.70 peak 100 240 3 7701.923 6.16 44.41 50.57 74.00 -23.43 peak 100 12 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 12 Service No.: 114015419-BT Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/11/28 18:40:52 Applicant: Trans Test Rating: AC 120V/60Hz Product: Bluetooth music receiver Temp.(°C °C°C °C)/Hum.(%): 20.5(°C °C°C °C)/60% Model No.: BTR-2000N Test Engineer: Hugo Chang Test Mode: BT-2441 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3778.846 -5.45 50.83 45.38 74.00 -28.62 peak 100 134 2 4868.590 -2.42 54.39 51.97 74.00 -22.03 peak 100 288 3 6939.102 4.94 45.35 50.29 74.00 -23.71 peak 100 22 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 13 Service No.: 114015419-BT Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/11/28 18:41:54 Applicant: Trans Test Rating: AC 120V/60Hz Product: Bluetooth music receiver Temp.(°C °C°C °C)/Hum.(%): 20.5(°C °C°C °C)/60% Model No.: BTR-2000N Test Engineer: Hugo Chang Test Mode: BT-2441 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3560.897 -5.60 51.12 45.52 74.00 -28.48 peak 100 243 2 4868.590 -2.42 53.43 51.01 74.00 -22.99 peak 100 117 3 7701.923 6.16 44.82 50.98 74.00 -23.02 peak 100 245 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 14 Service No.: 114015419-BT Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/11/28 18:43:53 Applicant: Trans Test Rating: AC 120V/60Hz Product: Bluetooth music receiver Temp.(°C °C°C °C)/Hum.(%): 20.5(°C °C°C °C)/60% Model No.: BTR-2000N Test Engineer: Hugo Chang Test Mode: BT-2480 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3697.115 -5.50 51.31 45.81 74.00 -28.19 peak 100 0 2 4950.320 -2.21 59.05 56.84 74.00 -17.16 peak 100 296 3 4950.320 -2.21 53.96 51.75 54.00 -2.25 AVG 100 296 4 7347.756 5.84 44.90 50.74 74.00 -23.26 peak 100 320 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 15 Service No.: 114015419-BT Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/11/28 18:44:55 Applicant: Trans Test Rating: AC 120V/60Hz Product: Bluetooth music receiver Temp.(°C °C°C °C)/Hum.(%): 20.5(°C °C°C °C)/60% Model No.: BTR-2000N Test Engineer: Hugo Chang Test Mode: BT-2480 Remark: No. Frequency (M…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10044669 001 Seite 43 von 47 Page 43 of 47 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10044669 001 Seite 44 von 47 Page 44 of 47 Photograph 2: Set-up for Spurious Emissions (Back View 1) Produkte Products Prüfbericht - Nr.: Test Report No. 10044669 001 Seite 45 von 47 Page 45 of 47 Photograph 3: Set-up for Spurious Emissions (Back View 2) Photograph 4: Set-up for Conducted testing
