BY4BTR315Bluetooth music receiver

• Lights blue when paired and connected to your Bluetooth device. • Blinks blue when not connected to your Bluetooth device. • Turns off when the receiver is turned off. Wirelessly stream music from your iPhone, iPad, or other Bluetooth-enabled device to your home stereo or other audio device. Package contents • Bluetooth Music Receiver • 6 ft. 3.5 mm stereo audio cable • AC/DC adapter • 3.5 mm jack to RCA stereo audio plug adapter • Quick Setup Guide Features • aptX® audio decoding: The highest Bluetooth stereo audio quality possible • Supports Near Field Communication (NFC) for easy connection with compatible Bluetooth devices • Optical digital audio output: The highest quality audio connection to your home stereo • Analog stereo audio output: Easily connect to amplified speakers or any device with an audio input jack • Wireless range up to 33 feet (10 m) • Wall mount feature • Remembers up to eight Bluetooth devices Note: Music can be played from only one device at a time. Setting up your Bluetooth Music Receiver Connecting to an output device You can choose either analog (good) or digital (best) cables to connect your Bluetooth Music Receiver, depending on the connections available on your home stereo system. Digital connection Using an optical digital audio cable (not included), connect your home stereo system to the OPTICAL jack on your Bluetooth Music Receiver. OR To pair your devices using NFC Fast connection: Note: Check your Bluetooth device to see if it is compatible with NFC. If it is not, use the steps above to pair your Bluetooth device. 1 Turn on your receiver by plugging in the AC/DC adapter and sliding the power switch to ON. The LED indicator blinks on and off slowly. Your receiver is in pairing mode. 2 Turn on Bluetooth on your Bluetooth device. 3 Turn on the NFC function (see documentation that came with your NFC-enabled device). 4 Touch your Smartphone or tablet to the NFC logo ( ) on the top of your receiver, to pair with your Bluetooth Music Receiver. The LED indicator on the receiver lights blue. 5 When your Smartphone or tablet tells you that the receiver is connected, you can begin playback. 6 To disconnect, touch your Smartphone or tablet to your Bluetooth Music Receiver again (see documentation that came with your NFC-enabled device). Notes: • Some devices, such as an iPhone, connect immediately after pairing so the LED on the Bluetooth Music Receiver remains on. Other devices, such as notebook computers, may ask you if you wish to connect. In this instance, the LED continues to blink until a connection is established. • Your Bluetooth Music Receiver saves pairing information for up to eight devices. However, it can only be connected to and play content from one device at a time. • When you turn on your Bluetooth Music Receiver, it automatically connects to the last connected device if that device is in range. To connect to a different paired device, you have to turn off Bluetooth or unpair from the currently paired device and manually connect to the other paired one. Analog connection Using the included 3.5 mm stereo audio cable, connect your home stereo system or other component to the AUDIO OUT jack on your Bluetooth Music Receiver. Note: If your home stereo system does not have a 3.5 mm Audio In connector, use the included 3.5 mm jack to RCA stereo audio plug adapter. Connecting power: 1 Plug the AC/DC adapter into the DC 5V jack on your receiver. 2 Plug the AC/DC adapter into a wall power outlet and slide the power switch to ON. The LED indicator begins to blink blue to indicate that the unit is on and ready to be paired to your Bluetooth devices. Pairing your devices Before you can use your Bluetooth Music Receiver with a Bluetooth device, you need to pair the two. Your receiver can connect to a Bluetooth-enabled device using the Bluetooth settings on your device or by touching your Bluetooth device to the Bluetooth Music Reciever using NFC. To pair your devices using Bluetooth settings: 1 Make sure that a compatible Bluetooth device (like a music player or phone) is turned on and within 33 feet (10 meters) of your receiver. 2 Turn on your receiver by plugging in the AC/DC adapter and sliding the power switch to ON. The LED indicator blinks on and off slowly. Your receiver is in pairing mode. 3 Turn on Bluetooth on your Bluetooth device, then set it to pairing mode. For more information, see the documentation that came with your Bluetooth device. 4 On the Bluetooth device, select Music Receiver in the list of found devices. 5 On the Bluetooth device, enter 0000 as the PIN, if prompted. The LED indicator lights blue on the receiver. 6 If you are pairing with a computer, make sure that your Bluetooth Music Receiver is selected as the computer’s default playback device. See the computer’s documentation for instructions. LED indicator QUICK SETUP GUIDE RF-BTR315 Bluetooth Music Receiver Final flat size 254 mm x 177.8 mm (W x H) Final fold size 127 mm x 177.8 mm (W x H) Optical digital audio cable (not included) OR NFC logo 6 ft 3.5 mm stereo audio cable 3.5 mm jack to RCA stereo audio plug adapter Audio device (such as an audio receiver) Before using your new product, please read these instructions to prevent any damage. Reconnecting your device: When your receiver is not paired to a device, the LED indicator will slowly blink on and off. Note: The auto connect feature may not work with some Bluetooth devices. If this occurs, use your Bluetooth device settings menu to manually select the Music Receiver from the list of found Bluetooth devices. LED status V1 ENGLISH 14-1268 Troubleshooting Indication Solid blue Blinks blue Off Description Paired and connected to your Bluetooth device. Not connected to your Bluetooth device. Turns off when the receiver is turned off. Legal notices FCC caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC statement: This equ…

Text truncated - open the document above for the full version.

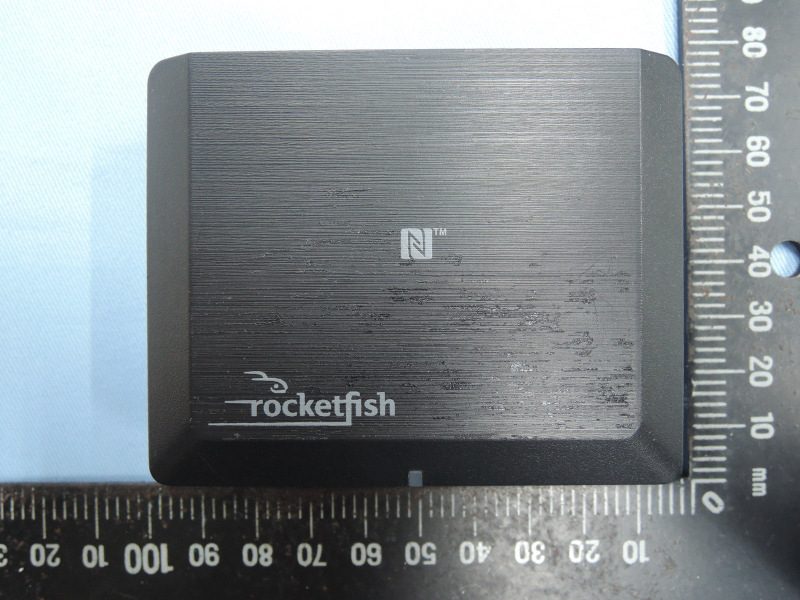

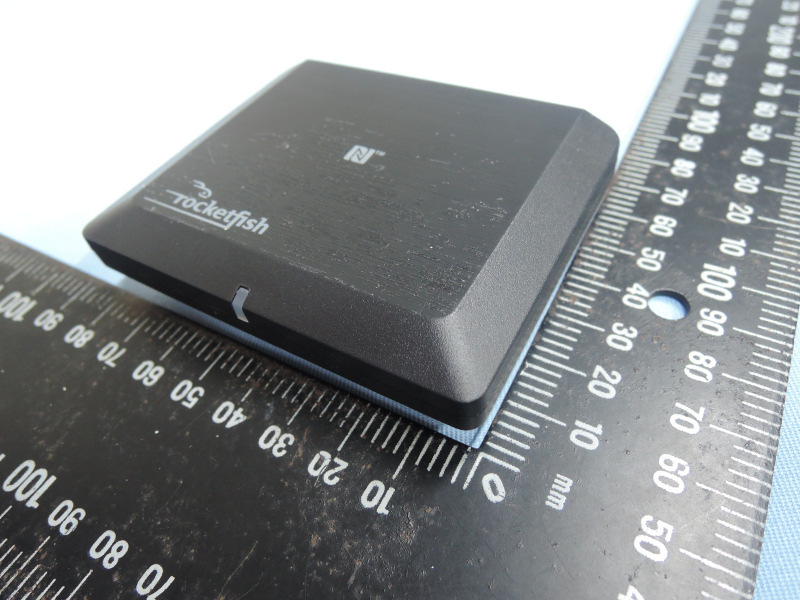

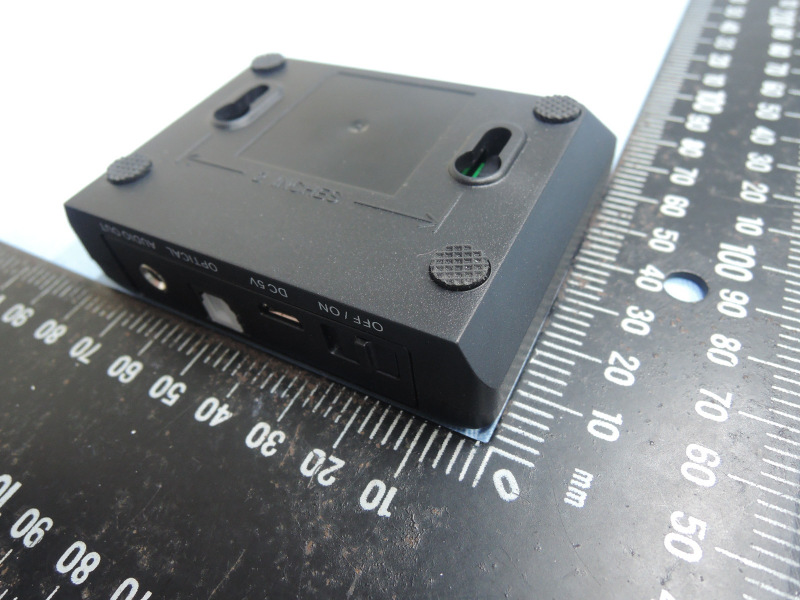

Appendix P Photo Documentation Page 1 of 2 10049641 001 Product: Bluetooth music receiver Type Identification: RF-BTR315 Appendix P Photo Documentation Page 2 of 2 10049641 001 Product: Bluetooth music receiver Type Identification: RF-BTR315

Appendix P Photo Documentation Page 1 of 3 10049641 001 Product: Bluetooth music receiver Type Identification: RF-BTR315 Appendix P Photo Documentation Page 2 of 3 10049641 001 Product: Bluetooth music receiver Type Identification: RF-BTR315 Appendix P Photo Documentation Page 3 of 3 10049641 001 Product: Bluetooth music receiver Type Identification: RF-BTR315

Produkte Products Prüfbericht - Nr.: Test Report No. 10049641 001 Seite 43 von 48 Page 43 of 48 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 Since maximum peak output power of the transmitter is <1mW, hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure..

Produkte Products Prüfbericht - Nr.: Test Report No. 10049641 001 Seite 2 von 48 Page 2 of 48 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10049641 001 Seite 3 von 48 Page 3 of 48 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST FACILITIES ..................................................................................................... 6 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 7 2.3 TRACEABILITY ........................................................................................................ 8 2.4 CALIBRATION ......................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 8 3. GENERAL PRODUCT INFORMATION ........................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 9 3.3 INDEPENDENT OPERATION MODES ......................................................................... 10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 11 3.5 SUBMITTED DOCUMENTS ....................................................................................... 11 4. TEST SET-UP AND OPERATION MODES ................................................................... 12 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 12 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 12 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 12 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 13 4.5 TEST SETUP DIAGRAM .......................................................................................... 13 5. TEST RESULTS ..................................................................................................... 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 15 5.1.1 Antenna Requirement ................................................................................................................ 15 5.1.2 Peak Output Power .................................................................................................................... 16 5.1.3 20dB Bandwidth ......................................................................................................................... 20 5.1.4 99% Bandwidth .......................................................................................................................... 24 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 28 5.1.6 Spurious Emission ..................................................................................................................... 34 5.1.7 Frequency Separation ................................................................................................................ 35 5.1.8 Number of hopping frequency .................................................................................................... 37 5.1.9 Time of Occupancy .................................................................................................................... 39 5.2 MAINS EMISSIONS................................................................................................. 42 5.2.1 Mains Conducted Emissions ...................................................................................................... 42 6. SAFETY HUMAN EXPOSURE ................................................................................... 43 Produkte Products Prüfbericht - Nr.: Test Report No. 10049641 001 Seite 4 von 48 Page 4 of 48 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 43 6.1.1 Electromagnetic Fields ............................................................................................................... 43 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 44 8. LIST OF TABLES ................................................................................................... 48 9. LIST OF PHOTOGRAPHS......................................................................................... 48 Produkte Products Prüfbericht - Nr.: Test Report No. 10049641 001 Seite 5 von 48 Page 5 of 48 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix P: Photo Documentation (File Name: 10049641APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10049641APPENDIX D) Test Specifications Th…

Text truncated - open the document above for the full version.

Test Report No.10049641 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 10049641AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ................................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ......................................................................................................... 10 Spurious Emissions, TX Mode, 18-26G ....................................................................................................... 22 Spurious Emissions, TX Mode, 30M-1G ..................................................................................................... 34 Spurious Emissions, Mains, 150kHz - 30MHz ............................................................................................ 36 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (GFSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge (GFSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 6 Radiated Bandedge (8DPSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 7 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 8 Radiated Bandedge (8DPSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 9 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 10 Spurious Emissions, TX Mode, 1-18G Service No.: 114029633-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/1/2 11:03:10 Applicant: Trans Test Rating: AC 120V/60Hz Product: Bluetooth Music receiver Temp.(°C °C°C °C)/Hum.(%): 17.2(°C °C°C °C)/56% Model No.: RF-BTR315 Test Engineer: Hugo Chang Test Mode: 1DH5-2402-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4804.000 -2.79 62.22 59.43 74.00 -14.57 peak 100 125 2 4804.000 -2.79 54.33 51.54 54.00 -2.46 AVG 100 125 3 6644.000 5.28 45.00 50.28 74.00 -23.72 peak 100 203 4 7206.000 5.44 43.96 49.40 74.00 -24.60 peak 0 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 11 Service No.: 114029633-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/1/2 11:04:13 Applicant: Trans Test Rating: AC 120V/60Hz Product: Bluetooth Music receiver Temp.(°C °C°C °C)/Hum.(%): 17.2(°C °C°C °C)/56% Model No.: RF-BTR315 Test Engineer: Hugo Chang Test Mode: 1DH5-2402-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4804.000 -2.79 61.24 58.45 74.00 -15.55 peak 100 77 2 4804.000 -2.79 54.72 51.93 54.00 -2.07 AVG 100 77 3 7206.000 5.44 44.97 50.41 74.00 -23.59 peak 4 8106.000 6.13 45.62 51.75 74.00 -22.25 peak 100 207 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 12 Service No.: 114029633-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/1/2 11:15:16 Applicant: Trans Test Rating: AC 120V/60Hz Product: Bluetooth Music receiver Temp.(°C °C°C °C)/Hum.(%): 17.2(°C °C°C °C)/56% Model No.: RF-BTR315 Test Engineer: Hugo Chang Test Mode: 1DH5-2441-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4882.000 -2.58 58.62 56.04 74.00 -17.96 peak 100 28 2 4882.000 -2.58 51.74 49.16 54.00 -4.84 AVG 100 28 3 6542.000 5.39 45.86 51.25 74.00 -22.75 peak 100 6 4 7323.000 5.76 43.72 49.48 74.00 -24.52 peak 0 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 13 Service No.: 114029633-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/1/2 11:16:18 Applicant: Trans Test Rating: AC 120V/60Hz Product: Bluetooth Music receiver Temp.(°C °C°C °C)/Hum.(%): 17.2(°C °C°C °C)/56% Model No.: RF-BTR315 Test Engineer: Hugo Chang Test Mode: 1DH5-2441-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4882.000 -2.58 57.89 55.31 74.00 -18.69 peak 100 130 2 4882.000 -2.58 52.32 49.74 54.00 -4.26 AVG 100 130 3 6355.000 4.92 44.72 49.64 74.00 -24.36 peak 100 329 4 7323.000 5.76 44.33 50.09 74.00 -23.91 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 14 Service No.: 114029633-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/1/2 11:21:47 Applicant: Trans Test Rating: AC 120V/60Hz Product: Bluetooth Music receiver Temp.(°C °C°C °C)/Hum.(%): 17.2(°C °C°C °C)/56% Model No.: RF-BTR315 Test Engineer: Hugo Chang Test Mode: 1DH5-2480-TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4960.000 -2.37 51.64 49.27 74.00 -24.73 peak 2 6712.000 5.19 45.97 51.16 74.00 -22.84 peak 100 156 3 7440.000 6.08 42.40 48.48 74.00 -25.52 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 15 Service No.: 114029633-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/1/2 11:22:50 Applicant: Trans Test Rating: AC 120V/60Hz Product: Bluetooth Music …

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10049641 001 Seite 44 von 48 Page 44 of 48 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10049641 001 Seite 45 von 48 Page 45 of 48 Photograph 2: Set-up for Spurious Emissions (Back View 1) Photograph 3: Set-up for Spurious Emissions (Back View 2) Produkte Products Prüfbericht - Nr.: Test Report No. 10049641 001 Seite 46 von 48 Page 46 of 48 Photograph 4: Set-up for Conducted testing Photograph 5: Set-up for for Mains Conducted testing Back Produkte Products Prüfbericht - Nr.: Test Report No. 10049641 001 Seite 47 von 48 Page 47 of 48 Photograph 6: Set-up for for Mains Conducted testing Front
