BY4BTR5300inCar Bluetooth Music Receiver

1 BTR-5300 Bluetooth music receiver For Car Use with 2.1A powering capability With SBC supported Feature ◎ SBC codec support ◎ A2DP Bluetooth profile supported 33 feet◎ (10M) effective range ◎ Audio RL audio output ◎ 8 devices ID storable ◎ USB port for powering capability 2.1A Blue LED for operation, Red LED for indication of USB port◎ Changeable fuse◎ What’s in the box Main Unit 3.5mm male→ male Audio cable 2 Setup your BTR-5300 Analogue connection 1. Connect one 3.5mm end of the included cable to headphone jacket on the BTR-5300. 2. Connect the other end to an audio input on your car stereo system (3.5mm
3.5mm or 3.5mm
2 RCA (not included)). 3. Consult your stereo user’s manual for more information on how to accomplish this. 4. Push the BTR-5300 into the cigarette lighter port. 5. The LED light will flash once to show the unit is powered and ready for being paired for your devices. Powering your PAD or Smartphone The USB port of BTR-5300 can provide 2.1A powering capability, you can use your charging cable with USB Type A connector (not included) to charge your Smartphone and PAD 3 Pairing of BTR-5300 iPad/ iPhone/ iPod touch 1. Go to Bluetooth manager of your iPad/iPhone/iPod touch by the following steps a .From your iPad/iPhone/iPod touch home page, tap “setting” b. Inside Settings tap on “General” c. Inside General tap on “Bluetooth” 2. Turn On the Bluetooth function 4. Enter “0000” when the player asks for PIN code (some devices have no need to input PIN). This will allow the iPad/iPhone/iPod touch to pair with “Music Receiver” 3. Your iPod/iPhone/iPad will auto searching available device. You will see “Music Receiver” then Tap on it. 4 5. Your iPod/iPhone/iPad connected to BTR-5300 now. And you can play music from your iPod/iPhone/iPad. 5 Android Smartphone/Tablet（ （（ （ver 4.0 as Example） ）） ） 1. Go to Bluetooth manager of your smart phone by the following step a. From your smart phone home page, tap on “setting” b. Inside the setting, turn on The Bluetooth c. Bluetooth is turned on 2. Searched Bluetooth Devices will show up, please tap on “Music Receiver” 3. Enter “0000” when the player asks for PIN code（some devices have no need to input PIN）. 4. Once paired, the blue LED light on the BTR-5300 will flash once. The Blue LED will keep lighted when a connection is established And In your Smartphone there is showed “connected to media audio” 6 Note: Some devices, such as iPhone, will connect immediately after pairing so the LED will ON. Other devices, such as notebook, may ask you if you wish to connect and LED will go off after pairing until a connection is established. Although the BTR-5300 can only play music from one device at a time, it is capable of being paired to up to 8 devices. It means that you have to enter the PIN code once for each device. You can play the music now. Just play music on your device as you normally would and the sound will come out from your stereo system. Note: the effective range of BTR-5300 is 33 feet (10M). (light of sight). If you hold and wear the Smartphone or tablet and cover the Bluetooth antenna, the distance will be shorter. Reconnecting your device If you move out of range or turn off the Bluetooth feature on you iPad/iPhone/iPod touch or Smartphone, BTR-5300 will disconnected from your device. To reconnect, simply open the Bluetooth manager and tap on the “Music Receiver”, then you do not need to input PIN again, the connection will be done automatically. Adding a new phone or tablet： ：： ： If you want to switch from one device to another, please follow these steps 1. End the existing Bluetooth connection with connected device. 2. The BTR-5300 can now be connected with another device such as iPad/iPod/iPhone or Smartphone or tablet. 3. Follow the section “Pairing the BTR-5300” to connect a new device. Indication of LED Indication meaning Description Flash once 1.5 secs per 4 secs Power on /Pairing Waiting for connection Permanent Lighted connected Device and main unit are connected 7 Troubleshooting You can solve your problems from this section No music out from my car stereo. ◎Make sure the BTR-5300 is powered. Please check that you have push the BTR-5300 firmly into the cigarette lighter port of your car. If you push it firmly into car cigarette lighter port and still no power, please change the fuse (please check the CHANGE FUSE section for further information. ◎ Make sure your car stereo is switched to AUX in. ◎Make sure an audio cable is correctly and firmly connected to BTR-5300 ◎Make sure the volume of the stereo is set to a comfortable listening level ◎Make sure you are within range. ◎Make sure the Bluetooth function is opened on your device. ◎Make sure you are playing the music from your device. Safety Warnings ◎BTR-5300 can provide 2.1 A powering capacity to charge your Smartphone or Tablet, Do not overload the cigarette lighter port. ◎BTR-5300 requires full connection and both hands to install. ◎Do not use BTR-5300 near water (for example, a bath tub, wash bowl, kitchen sink, laundry tub, wet basement, swimming pool, or other areas located near water). ◎Clean with dry cloth. ◎Unplug the BTR-5300 before cleaning. ◎Install BTR-5300 far away from heat sources. ◎Use only the attached accessories. ◎Unplug the BTR-5300 when unused for long time. 8 Change the fuse BTR-5300 is designed with double protection mechanism, in case if no power for the unit, you can change the fuse by yourself, please follow the steps to change. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a…

Text truncated - open the document above for the full version.

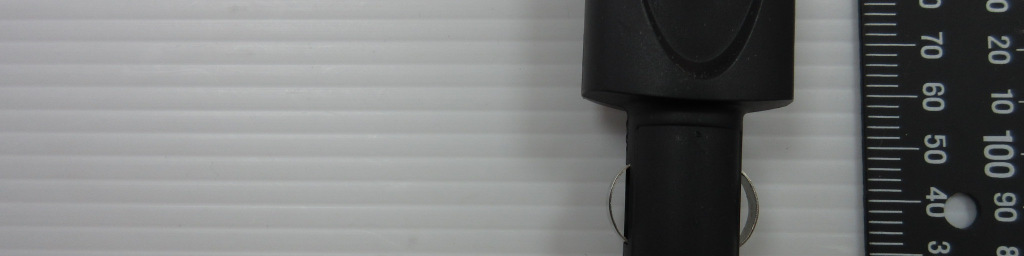

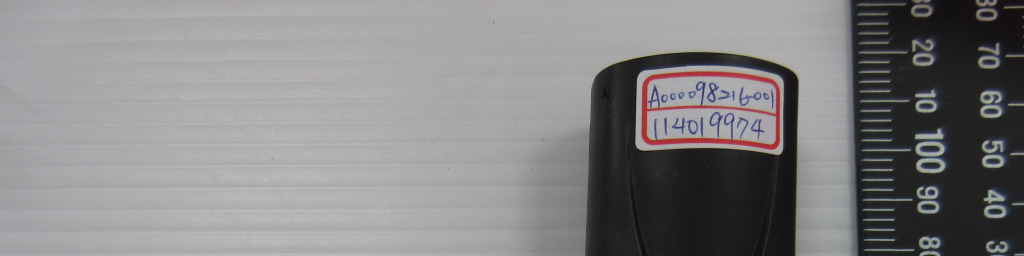

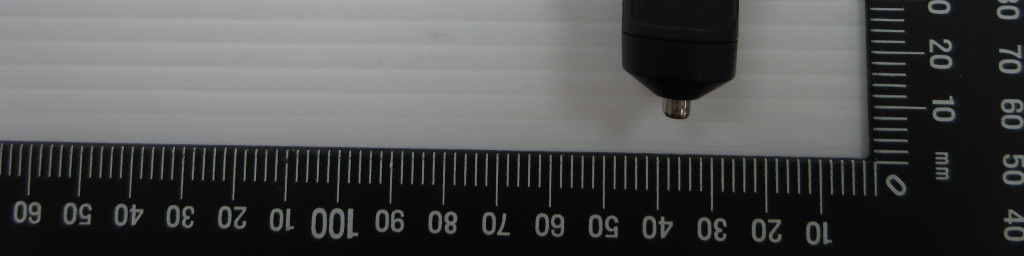

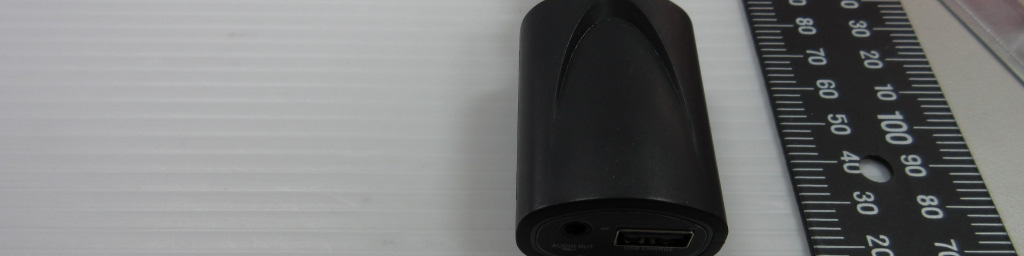

Appendix P Photo Documentation Page 1 of 1 10048308 001; 10048309 001; 10048312 001; 10048316 001 Product: inCar Bluetooth Music Receiver Type Identification: BTR-5300

25.4mm 25.4mm C2 C2 2 2 m m for car use 100% 200% Bluetooth Music Receiver MODEL : BTR-5300 FCC ID: BY4BTR5300 Madein Taiwan for car use Bluetooth Music Receiver MODEL : BTR-5300 FCC ID: BY4BTR5300 Madein Taiwan Sticker on BTR-5300 2014/09/09 5 mm 7 mm 2 2 m m

Appendix P Photo Documentation Page 1 of 1 10048308 001; 10048309 001; 10048312 001; 10048316 001 Product: inCar Bluetooth Music Receiver Type Identification: BTR-5300

Produkte Products Prüfbericht - Nr.: Test Report No. 10048312 001 Seite 42 von 46 Page 42 of 46 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 The maximum peak output power of the transmitter is 4.54 mW. The separation between hand and antenna is more than 2mm. Hence the EUT is exclueded from SAR evaluation. Please also refer to FCC KDB publication 447498 D01 v05: Mobile Portable RF Exposure

Produkte Products Prüfbericht - Nr.: Test Report No. 10048312 001 Seite 2 von 46 Page 2 of 46 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10048312 001 Seite 3 von 46 Page 3 of 46 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST FACILITIES ..................................................................................................... 6 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 7 2.3 TRACEABILITY ........................................................................................................ 8 2.4 CALIBRATION ......................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 8 3. GENERAL PRODUCT INFORMATION ........................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 9 3.3 INDEPENDENT OPERATION MODES ......................................................................... 10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 11 3.5 SUBMITTED DOCUMENTS ....................................................................................... 11 4. TEST SET-UP AND OPERATION MODES ................................................................... 12 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 12 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 12 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 12 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 13 4.5 TEST SETUP DIAGRAM .......................................................................................... 13 5. TEST RESULTS ..................................................................................................... 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 15 5.1.1 Antenna Requirement ................................................................................................................ 15 5.1.2 Peak Output Power .................................................................................................................... 16 5.1.3 20dB Bandwidth ......................................................................................................................... 20 5.1.4 99% Bandwidth .......................................................................................................................... 24 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 28 5.1.6 Spurious Emission ..................................................................................................................... 34 5.1.7 Frequency Separation ................................................................................................................ 35 5.1.8 Number of hopping frequency .................................................................................................... 37 5.1.9 Time of Occupancy .................................................................................................................... 39 6. SAFETY HUMAN EXPOSURE ................................................................................... 42 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 42 6.1.1 Electromagnetic Fields ............................................................................................................... 42 Produkte Products Prüfbericht - Nr.: Test Report No. 10048312 001 Seite 4 von 46 Page 4 of 46 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 43 8. LIST OF TABLES ................................................................................................... 46 9. LIST OF PHOTOGRAPHS......................................................................................... 46 Produkte Products Prüfbericht - Nr.: Test Report No. 10048312 001 Seite 5 von 46 Page 5 of 46 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix P: Photo Documentation (File Name: 10048312APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10048312APPENDIX D) Test Specifications The following standards were applied Table 1: Applied Standard and Test Levels Radio FCC CFR47 Part 15: Subpart C Section 15.247 ANSI C63.4:2009, Public Notice DA 00-705 Produkte Products Prüfbericht - Nr.: Test Report No. 10048312 001 Seite 6 von 46 Page 6 of 46 2. Test Sites 2.1 Test Facilities TUV Rhein…

Text truncated - open the document above for the full version.

Test Report No.10048312 001 Appendix D: Radiated Spurious Emission Data (File: 10048312AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ............................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 10 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 22 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 34 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (GFSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge (GFSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 6 Radiated Bandedge (8DPSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 7 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 8 Radiated Bandedge (8DPSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 9 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 10 Spurious Emissions, TX Mode, 1-18G Service No.: 114019974-BT-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/9/9 20:01:11 Applicant: Trans Test Rating: DC 12V Product: inCar Bluetooth Music Receiver Temp.( °C °C°C °C)/Hum.(%): 30(°C °C°C °C)/48% Model No.: BTR-5300 Test Engineer: Freeman Wang Test Mode: 2402MHz_1DH5_TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 1190.705 -9.79 50.96 41.17 74.00 -32.83 peak 2 4804.000 -2.59 49.36 46.77 74.00 -27.23 peak 3 7206.000 5.44 44.61 50.05 74.00 -23.95 peak Tel:+886-2-2172-7000 Fax:+886-2-2528-0018 11F.,No.758,Sec. 4,Bade Rd.,Songshan Dist.,Taipei 105,Taiwan TUV Rheinland Taiwan Spurious Emissions, TX Mode, 1-18G 11 Service No.: 114019974-BT-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2014/9/9 20:02:13 Applicant: Trans Test Rating: DC 12V Product: inCar Bluetooth Music Receiver Temp.(°C °C°C °C)/Hum.(%): 30(°C °C°C °C)/48% Model No.: BTR-5300 Test Engineer: Freeman Wang Test Mode: 2402MHz_1DH5_TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 1326.923 -10.17 51.21 41.04 74.00 -32.96 peak 2 4804.000 -2.59 48.75 46.16 74.00 -27.84 peak 3 7206.000 5.44 45.01 50.45 74.00 -23.55 peak Tel:+886-2-2172-7000 Fax:+886-2-2528-0018 11F.,No.758,Sec. 4,Bade Rd.,Songshan Dist.,Taipei 105,Taiwan TUV Rheinland Taiwan Spurious Emissions, TX Mode, 1-18G 12 Service No.: 114019974-BT-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/9/9 20:14:19 Applicant: Trans Test Rating: DC 12V Product: inCar Bluetooth Music Receiver Temp.(°C °C°C °C)/Hum.(%): 30(°C °C°C °C)/48% Model No.: BTR-5300 Test Engineer: Freeman Wang Test Mode: 2402MHz_3DH5_TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 1272.436 -10.02 50.17 40.15 74.00 -33.85 peak 100 229 2 4804.000 -2.59 48.77 46.18 74.00 -27.82 peak 3 7206.000 5.44 44.24 49.68 74.00 -24.32 peak Tel:+886-2-2172-7000 Fax:+886-2-2528-0018 11F.,No.758,Sec. 4,Bade Rd.,Songshan Dist.,Taipei 105,Taiwan TUV Rheinland Taiwan Spurious Emissions, TX Mode, 1-18G 13 Service No.: 114019974-BT-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2014/9/9 20:15:21 Applicant: Trans Test Rating: DC 12V Product: inCar Bluetooth Music Receiver Temp.(°C °C°C °C)/Hum.(%): 30(°C °C°C °C)/48% Model No.: BTR-5300 Test Engineer: Freeman Wang Test Mode: 2402MHz_3DH5_TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 1000.0000 -9.25 54.38 45.13 74.00 -28.87 peak 100 261 2 4804.000 -2.59 49.04 46.45 74.00 -27.55 peak 3 7206.000 5.44 44.14 49.58 74.00 -24.42 peak Tel:+886-2-2172-7000 Fax:+886-2-2528-0018 11F.,No.758,Sec. 4,Bade Rd.,Songshan Dist.,Taipei 105,Taiwan TUV Rheinland Taiwan Spurious Emissions, TX Mode, 1-18G 14 Service No.: 114019974-BT-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/9/9 20:04:28 Applicant: Trans Test Rating: DC 12V Product: inCar Bluetooth Music Receiver Temp.(°C °C°C °C)/Hum.(%): 30(°C °C°C °C)/48% Model No.: BTR-5300 Test Engineer: Freeman Wang Test Mode: 2441MHz_1DH5_TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 1326.923 -10.17 50.38 40.21 74.00 -33.79 peak 2 4868.590 -2.42 54.41 51.99 74.00 -22.01 peak 3 7323.000 5.76 45.03 50.79 74.00 -23.21 peak Tel:+886-2-2172-7000 Fax:+886-2-2528-0018 11F.,No.758,Sec. 4,Bade Rd.,Songshan Dist.,Taipei 105,Taiwan TUV Rheinland Taiwan Spurious Emissions, TX Mode, 1-18G 15 Service No.: 114019974-BT-FCC Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2014/9/9 20:05:31 Applicant: Trans Test Rating: DC 12V Product: inCar Bluetooth Music Receiver Temp.(°C °C°C °C)/Hum.(%): 30(°C °C°C °C)/48% Model No.: BTR-5300 Test Engineer: Freeman Wang Test Mode: 2441MHz_1DH5_TX Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 1599.359 -10.03 50.89 40.86 74.00 -33.14 peak 2 4882.00…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10048312 001 Seite 43 von 46 Page 43 of 46 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10048312 001 Seite 44 von 46 Page 44 of 46 Photograph 2: Set-up for Spurious Emissions (Back View 1) Photograph 3: Set-up for Spurious Emissions (Back View 2) Produkte Products Prüfbericht - Nr.: Test Report No. 10048312 001 Seite 45 von 46 Page 45 of 46 Photograph 4: Set-up for Conducted testing
