BY4BTX1000Bluetooth Audio Adapter

1 BTX-1200 Bluetooth audio transmitter With A2DP, CSR ® aptX ® supported Features
Connected upto 2 devices (headphone or music receiver)
aptX ® normal and low latency codec support
SBC codec support
A2DP Bluetooth profile supported
33 feet (10M) effective range

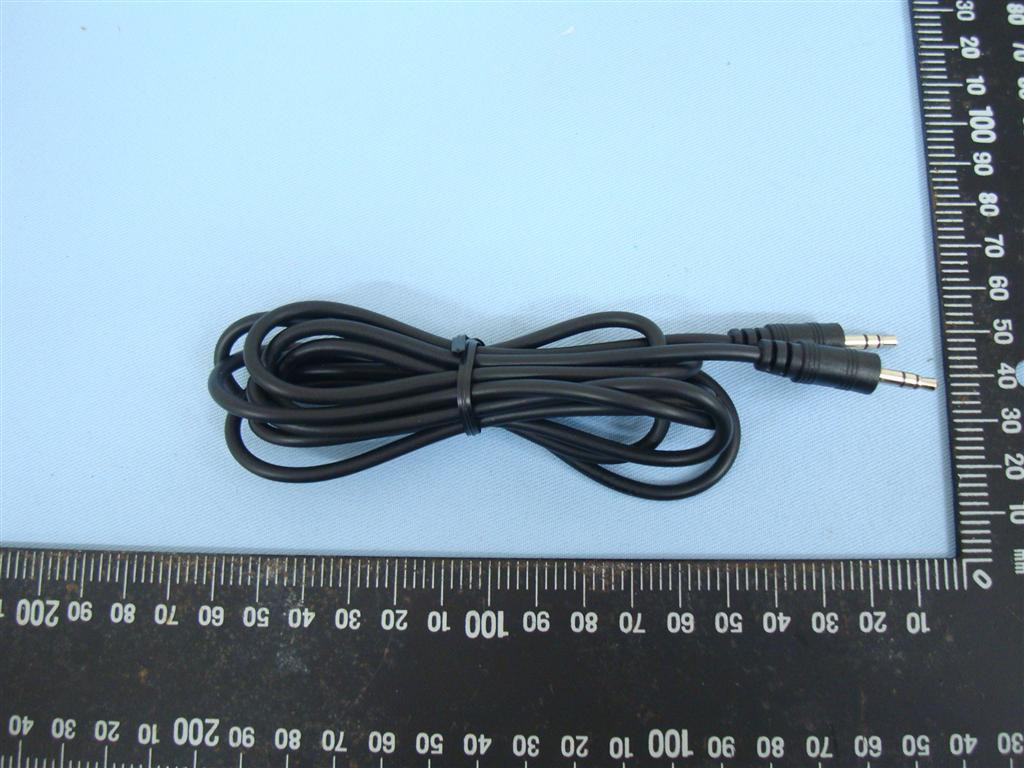

Audio RL audio input What’s in the box Main Unit 3.5mm male → male audio cable 2 USB for Power Audio In for TV or Audio Device Pairing Outlook Setup your BTX-1200 Before your connection, please make sure that you have Bluetooth headphone or music receiver in hands. BTX-1200 is a Bluetooth music transmitter and splitter, it can not be operated without Bluetooth headset or music receiver. Connection (TV audio connection) 1. Connect one 3.5mm end of the include audio to headphone jacket on the BTX-1200 2. Connect the other end to an audio output on your TV’s Headphone output or speaker output. Consult your TV user’s manual for more information on how to accomplish this. 3. Connect the USB Type A connector to the USB port of your TV set. Note: The USB port must have the powering capability of 500Ma 4. Connect the USB type A to an USB adaptor (option) 3 Operation Connect to the first headset or music receiver 1. Take your Bluetooth headphone or Bluetooth music receiver 2. make it into “pairing” mode, please consult your manual for further information 3. The BTX-1200 will auto connect the “pairing” devices, when BTX-1200 and headphone or music receiver are connected, the LED on BTX-1200 will go permanent lighted. Connect to the second headset or music receiver 1. Take your second Bluetooth headphone or Bluetooth music receiver 2. make it into “pairing” mode, please consult your manual for further information 3. Press the “pairing” button on BTX-1200 for one second, the LED will blinking for seconds, BTX-1200 is searching for the second Bluetooth headset or music receiver, at the same time, the audio on first connected device will be muted. 4. when BTX-1200 and headphone or music receiver are connected, the LED on BTX-1200 will go permanent lighted Note: BTX-1200 can connect two Bluetooth A2DP receivers at the same time, in some scenario, if you want to connect another A2DP device, you need to reset the BTX-1200 for new connection. Reset Method Press the “pairing” key on BTX-1200 for 5 seconds, then release it, the LED on BTX-1200 will go blinking for searching “pairing” A2DP devices nearby. Note: the effective range of BTX-1200 is 33 feet (10M) (light of sight). For the best performance we recommend you to let BTX-1200 visible. Do not block the bluetooth antenna; otherwise the distance will be shorter. 4 Indication of LED Troubleshooting You can solve your problems from this section, no music from your headset or music receiver.
Make sure the BTX-1200 is powered.
Make sure an audio cable is correctly and firmly connected to BTX-1200
Make sure that the audio source is correct and with audio out.
Make sure the volume of the audio out is set to a comfortable listening level
Make sure you are within range. Safety Warnings
BTX-1200 requires full connection and both hands to install.
Do not use BTX-1200 near water (for example, a bath tub, wash bowl, kitchen sink, laundry tub, wet basement, swimming pool, or other areas located near water).
Clean with dry cloth.
Unplug the BTX-1200 before cleaning.
Install BTX-1200 far away from heat sources.
Use only the attached accessories.
Unplug the BTX-1200 when unused for long time. *** aptX ® software is copyright CSR plc or its group companies. All rights reserved. The aptX ® mark and the aptX logo are trademarks of CSR plc or one of its group companies and may be registered in one or more jurisdictions. Indication Meaning Description Flash once 1 sec per 5 secs Power on / Pairing Searching the device under pairing mode Permanent Lighted Connected Device and main unit are connected 5 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Part 15B compliance statement: Part 15B compliance statement:Part 15B compliance statement: Part 15B compliance statement: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio 6 communications. However, there is no guarantee that interference will not occur in a particular installation. I f this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — I ncrease the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help

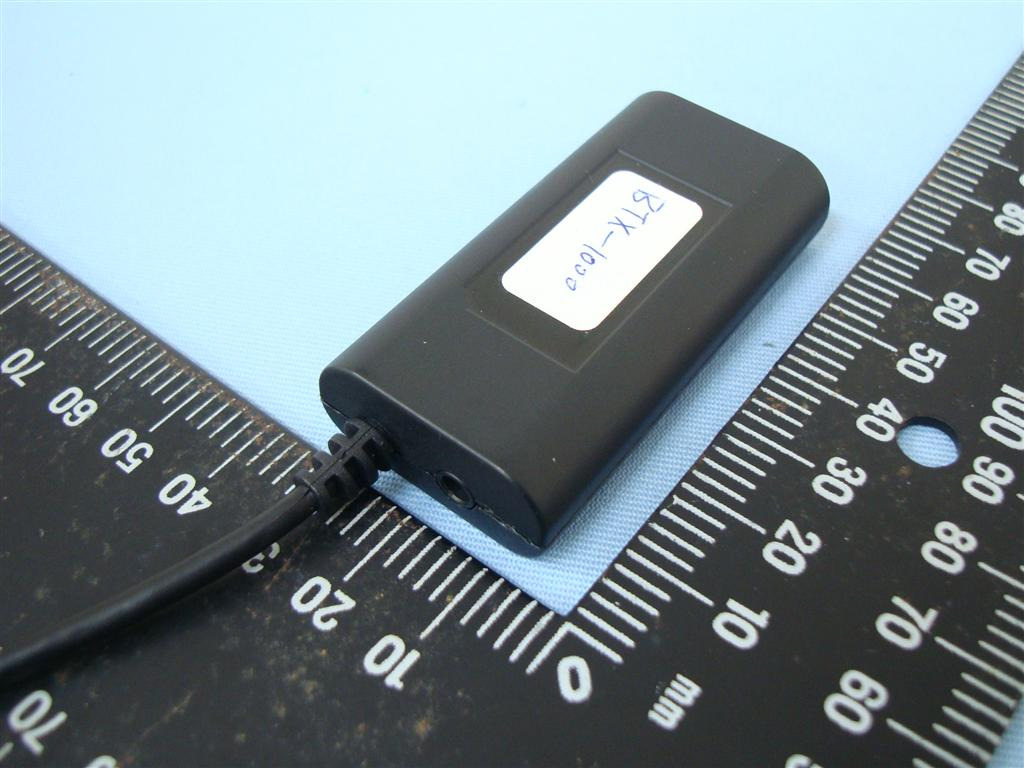

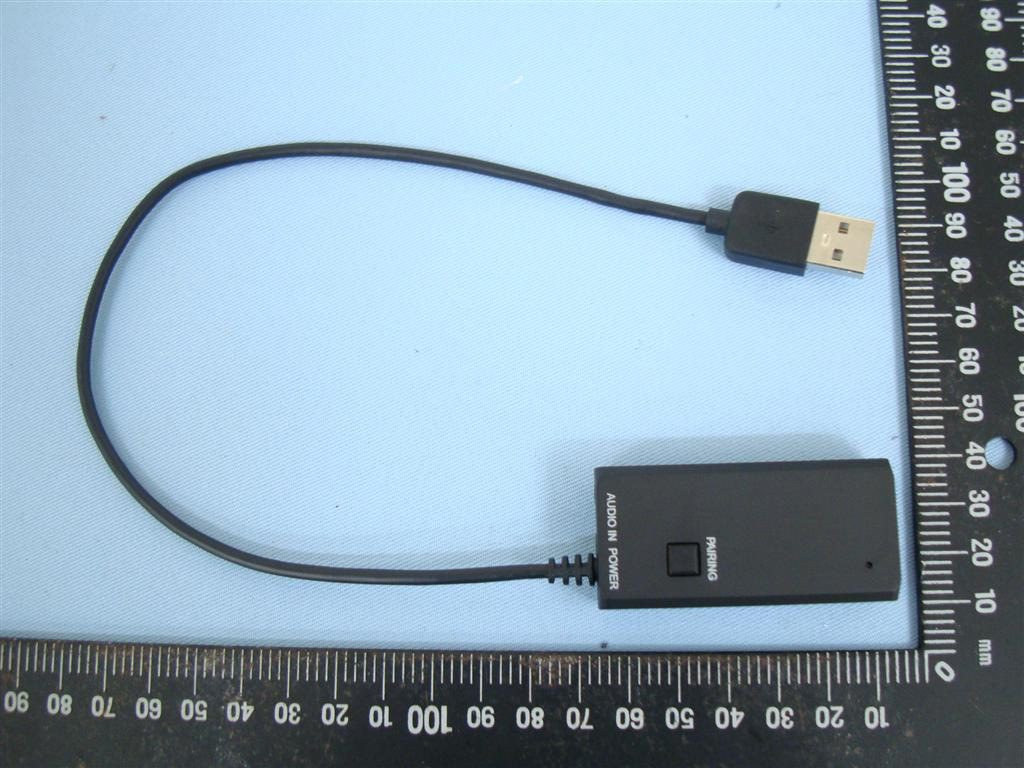

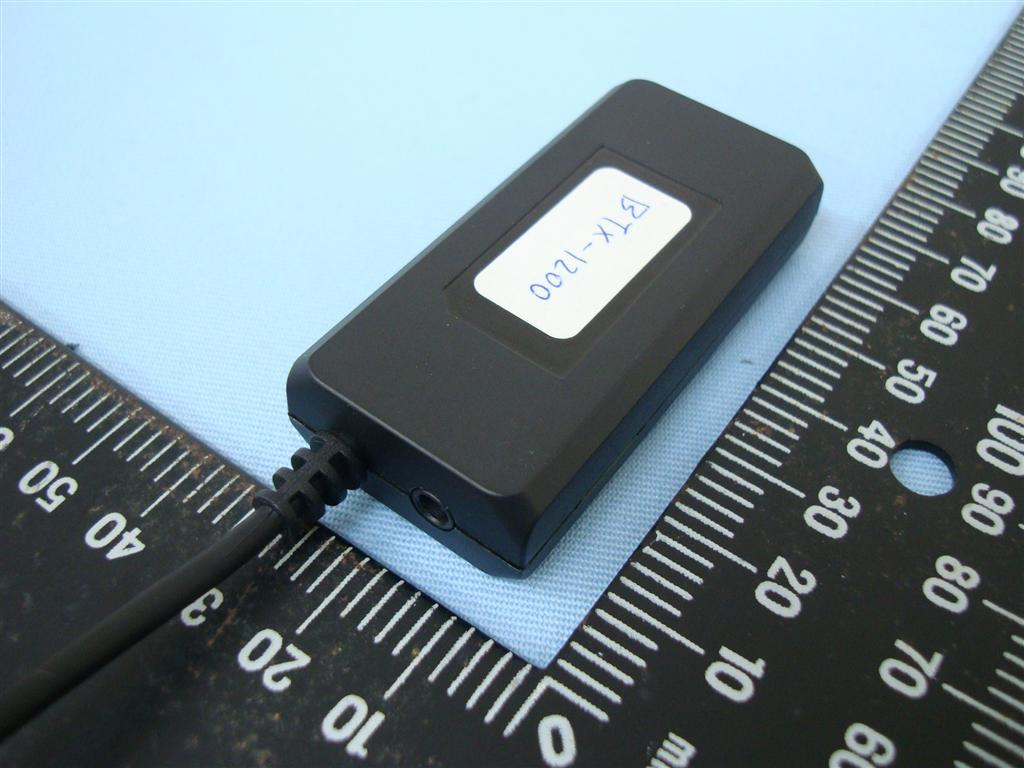

ATTACHMENT Photo Documentation Page 1 of 5 FCC ID: BY4BTX1000 Product: Bluetooth Music Transmitter and Splitter Type Designation: BTX-1000, BTX-1200 ATTACHMENT Photo Documentation Page 2 of 5 FCC ID: BY4BTX1000 Product: Bluetooth Music Transmitter and Splitter Type Designation: BTX-1000, BTX-1200 ATTACHMENT Photo Documentation Page 3 of 5 FCC ID: BY4BTX1000 Product: Bluetooth Music Transmitter and Splitter Type Designation: BTX-1000, BTX-1200 ATTACHMENT Photo Documentation Page 4 of 5 FCC ID: BY4BTX1000 Product: Bluetooth Music Transmitter and Splitter Type Designation: BTX-1000, BTX-1200 ATTACHMENT Photo Documentation Page 5 of 5 FCC ID: BY4BTX1000 Product: Bluetooth Music Transmitter and Splitter Type Designation: BTX-1000, BTX-1200

30mm 28.3mm 1 3 . 2 m m 1 5 m m Bluetooth Music Transmitter and Splitter MODEL : BTX-1200 FCC ID : BY4BTX1000 Made in Taiwan 100% 5mm 7mm Sticker on BTX-1200 2014/01/08

ATTACHMENT Photo Documentation Page 1 of 3 FCC ID: BY4BTX1000 Product: Bluetooth Music Transmitter and Splitter Type Designation: BTX-1000, BTX-1200 ATTACHMENT Photo Documentation Page 2 of 3 FCC ID: BY4BTX1000 Product: Bluetooth Music Transmitter and Splitter Type Designation: BTX-1000, BTX-1200 ATTACHMENT Photo Documentation Page 3 of 3 FCC ID: BY4BTX1000 Product: Bluetooth Music Transmitter and Splitter Type Designation: BTX-1000, BTX-1200

Produkte Products Prüfbericht - Nr.: Test Report No. 10044699 001 Seite 42 von 47 Page 42 of 47 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 Since maximum peak output power of the transmitter is 0.76mW <1mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure..

Produkte Products Prüfbericht - Nr.: Test Report No. 10044699 001 Seite 2 von 47 Page 2 of 47 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10044699 001 Seite 3 von 47 Page 3 of 47 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST FACILITIES ..................................................................................................... 6 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 TRACEABILITY ........................................................................................................ 7 2.4 CALIBRATION ......................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 7 3. GENERAL PRODUCT INFORMATION ........................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 8 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 10 3.5 SUBMITTED DOCUMENTS ....................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................... 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 11 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 11 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 11 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 12 4.5 TEST SETUP DIAGRAM .......................................................................................... 12 5. TEST RESULTS ..................................................................................................... 14 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 14 5.1.1 Antenna Requirement ................................................................................................................ 14 5.1.2 Peak Output Power .................................................................................................................... 15 5.1.3 20dB Bandwidth ......................................................................................................................... 19 5.1.4 99% Bandwidth .......................................................................................................................... 23 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 27 5.1.6 Spurious Emission ..................................................................................................................... 33 5.1.7 Frequency Separation ................................................................................................................ 34 5.1.8 Number of hopping frequency .................................................................................................... 36 5.1.9 Time of Occupancy .................................................................................................................... 38 5.2 MAINS EMISSIONS................................................................................................. 41 5.2.1 Mains Conducted Emissions ...................................................................................................... 41 6. SAFETY HUMAN EXPOSURE ................................................................................... 42 Produkte Products Prüfbericht - Nr.: Test Report No. 10044699 001 Seite 4 von 47 Page 4 of 47 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 42 6.1.1 Electromagnetic Fields ............................................................................................................... 42 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 43 8. LIST OF TABLES ................................................................................................... 47 9. LIST OF PHOTOGRAPHS......................................................................................... 47 Produkte Products Prüfbericht - Nr.: Test Report No. 10044699 001 Seite 5 von 47 Page 5 of 47 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix PI: Photo Documentation internal view (File Name: 10044699APPENDIX PI) Appendix PE: Photo Documentation external view (File Name: 10044699APPENDIX PE) App…

Text truncated - open the document above for the full version.

Test Report No.10044699 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 10044699AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ............................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 10 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 22 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 34 Spurious Emissions, Mains, 150kHz - 30MHz ......................................................................................... 35 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (GFSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge (GFSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 6 Radiated Bandedge (8DPSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 7 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 8 Radiated Bandedge (8DPSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 9 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 10 Spurious Emissions, TX Mode, 1-18G Service No.: 114015425-BT Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/11/28 20:17:05 Applicant: Trans Test Rating: DC 5V Product: Bluetooth Transmitter Temp.(°C °C°C °C)/Hum.(%): 20.5(°C °C°C °C)/60% Model No.: BTX-1000 Test Engineer: Hugo Chang Test Mode: BT-2402 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4786.859 -3.43 54.51 51.08 74.00 -22.92 peak 100 274 2 6230.769 3.48 46.06 49.54 74.00 -24.46 peak 100 232 3 6584.936 4.32 45.18 49.50 74.00 -24.50 peak 100 333 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 11 Service No.: 114015425-BT Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/11/28 20:18:07 Applicant: Trans Test Rating: DC 5V Product: Bluetooth Transmitter Temp.(°C °C°C °C)/Hum.(%): 20.5(°C °C°C °C)/60% Model No.: BTX-1000 Test Engineer: Hugo Chang Test Mode: BT-2402 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3588.141 -6.19 50.60 44.41 74.00 -29.59 peak 100 360 2 4786.859 -3.43 55.30 51.87 74.00 -22.13 peak 100 14 3 6884.615 3.96 46.32 50.28 74.00 -23.72 peak 100 336 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 12 Service No.: 114015425-BT Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/11/28 20:19:52 Applicant: Trans Test Rating: DC 5V Product: Bluetooth Transmitter Temp.(°C °C°C °C)/Hum.(%): 20.5(°C °C°C °C)/60% Model No.: BTX-1000 Test Engineer: Hugo Chang Test Mode: BT-2441 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4868.590 -3.31 54.63 51.32 74.00 -22.68 peak 100 118 2 6530.449 4.39 44.43 48.82 74.00 -25.18 peak 100 250 3 8137.820 5.09 44.44 49.53 74.00 -24.47 peak 100 359 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 13 Service No.: 114015425-BT Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/11/28 20:20:54 Applicant: Trans Test Rating: DC 5V Product: Bluetooth Transmitter Temp.(°C °C°C °C)/Hum.(%): 20.5(°C °C°C °C)/60% Model No.: BTX-1000 Test Engineer: Hugo Chang Test Mode: BT-2441 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4868.590 -3.31 54.60 51.29 74.00 -22.71 peak 100 322 2 6584.936 4.32 45.26 49.58 74.00 -24.42 peak 100 341 3 8083.333 5.04 44.57 49.61 74.00 -24.39 peak 100 73 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 14 Service No.: 114015425-BT Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/11/28 15:16:35 Applicant: Trans Test Rating: DC 5V Product: Bluetooth Transmitter Temp.(°C °C°C °C)/Hum.(%): 20(°C °C°C °C)/58% Model No.: BTX-1000 Test Engineer: Hugo Chang Test Mode: BT-2480 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3724.359 -5.49 50.96 45.47 74.00 -28.53 peak 100 59 2 4950.320 -2.21 57.34 55.13 74.00 -18.87 peak 100 286 3 4950.320 -2.21 52.08 49.87 54.00 -4.13 AVG 100 286 4 5931.090 3.25 47.16 50.41 74.00 -23.59 peak 100 283 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 15 Service No.: 114015425-BT Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/11/28 15:17:38 Applicant: Trans Test Rating: DC 5V Product: Bluetooth Transmitter Temp.(°C °C°C °C)/Hum.(%): 20(°C °C°C °C)/58% Model No.: BTX-1000 Test Engineer: Hugo Chang Test Mode: BT-2480 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10044699 001 Seite 44 von 47 Page 44 of 47 Photograph 2: Set-up for Spurious Emissions (Back View 1) Produkte Products Prüfbericht - Nr.: Test Report No. 10044699 001 Seite 45 von 47 Page 45 of 47 Photograph 3: Set-up for Spurious Emissions (Back View 2) Photograph 4: Set-up for Conducted testing Produkte Products Prüfbericht - Nr.: Test Report No. 10044699 001 Seite 46 von 47 Page 46 of 47 Photograph 5: Set-up for for Mains Conducted testing Back Photograph 6: Set-up for for Mains Conducted testing Front
