BY4DAS1102.4GHz Wireless Digital Audio Sender

DAS-110 2.4 GHz Wireless Digital Audio Sender 8CH Selectable, Auto-Scan Introduction Internet Radio, on-line MP3 concert and internet audio program are popular these days. In order to enjoy this kind of entertainment or program, user need to hook their computer to internet and listen the audio from multimedia speaker! If you want to listen to this kind of audio everywhere you need to take you notebook or PC to the place you want to go! DAS-110 can provide you a different experience of listening. With state of art RF and digital processing technology, and with 8 CH selectable bands, it can provide crystal clear audio to your audio amplifier. With 2 different types of transmitter, user can choose the proper Tx for their daily usage. Feature
2.4GHz
8 CH selectable channels
Auto Scan channel ---Receiver
1 to 1 or 1 to many
FEC coding
last channel recall Package of content Before your installation, please check the content of package
DAS-110 Tx X1
DAS-110 Rx X1
AC DC Adaptor X2
3.5 mm to 3.5 mm stereo audio cable X1
3.5 mm to RCA R/L audio cable X2 1 Transmitter Receiver Audio cable Audio cable Adaptor Installation Illustration TX ( Stand alone Transmitter)
Listen to the internet radio Connect 3.5mm to 3.5 mm cable one end to the speaker out of your computer, the other end to the audio input on the back panel of DAS-110 Tx
Listen to the MP3 player or another audio device Connect 3.5mm to 3.5 mm cable one end to the headphone jacket of your MP3 player or another devices, the other end to the audio input on the back panel of DAS-110 Connect the barrel end of AC/DC adaptor to the DC input of the back panel of DAS-110, AC end to your AC outlet RX Connect 3.5mm to RCA RL audio cable , 3.5mm end to the audio output on the back panel of DAS-110 Rx, RCA RL to the audio input of your audio amplifier. Connect the barrel end of AC/DC adaptor to the DC input of the back panel of DAS-110, AC end to your AC outlet 2 Transmitter Transmitter MP3 Notebook Audio Cable Audio Cable Audio Cable Receiver AC/DC Adaptor AC/DC Adaptor AC/DC Adaptor speaker Operation Step 1. Please check the power is ok in either Tx or Rx Step 2.Push the button on the Tx to select desired channel(the Receiver can auto scan the channel that Tx has) Step3. Turn on the audio amplifier at the Rx site to check the audio quality, if there is some interference occurred, the sound will has some zigzag and buzz. You need to choose another channel as Step 2 to make sure that the audio quality is crystal clear. Step4: open your mind to enjoy. Safety Indoor use only Clean with dry and soft cloth No serviceable parts for customer Digital Audio Sender Specifications Model NO. Transmitter (R/L) RECEIVER Description Transmitter Receiver Operating temperature -10 ~ +60 (degrees Celsius) -10 ~ +60 (degrees Celsius) Frequency range 2400 ~ 2483.5 MHz 2400 ~ 2483.5 MHz Modulation FSK (Modulation Index 0.5) Channel number 8 8 Channel spacing 9 MHz 9 MHz Channel frequency 2410, 2419 ~ 2473 MHz 2410, 2419~ 2473 MHz Frequency stability ±100 KHz ±100 KHz TX Power +10 dBm (Typical) Input impedance >10K Ohm Input level 4Vp-p (Max) RX Sensitivity -85 dBm (Min.) Output impedance < 1KOhm Output level 3.4Vp-p (Max) Transmit Distance Between Tx & Rx 100ft(Min, LOS) Response (station) 20 ~ 20 KHz, ±3dB Dynamic range (station) 45dB (Min) Separation (station) 45dB (Min) S/N ratio (station) 45dB (Min) THD (station) 0.6% (Min) Power supply AC 120V@60Hz or 230@50Hz / DC 9V, 200mA PLUG: 5.5mmx2.1mmx11mm Polarity: Outside Jack(-) Inside Jack(+) NOTE: The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To avoid the interference, please far away the source of interference such as wireless LAN AP, Microwave OVEN etc To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter. 3

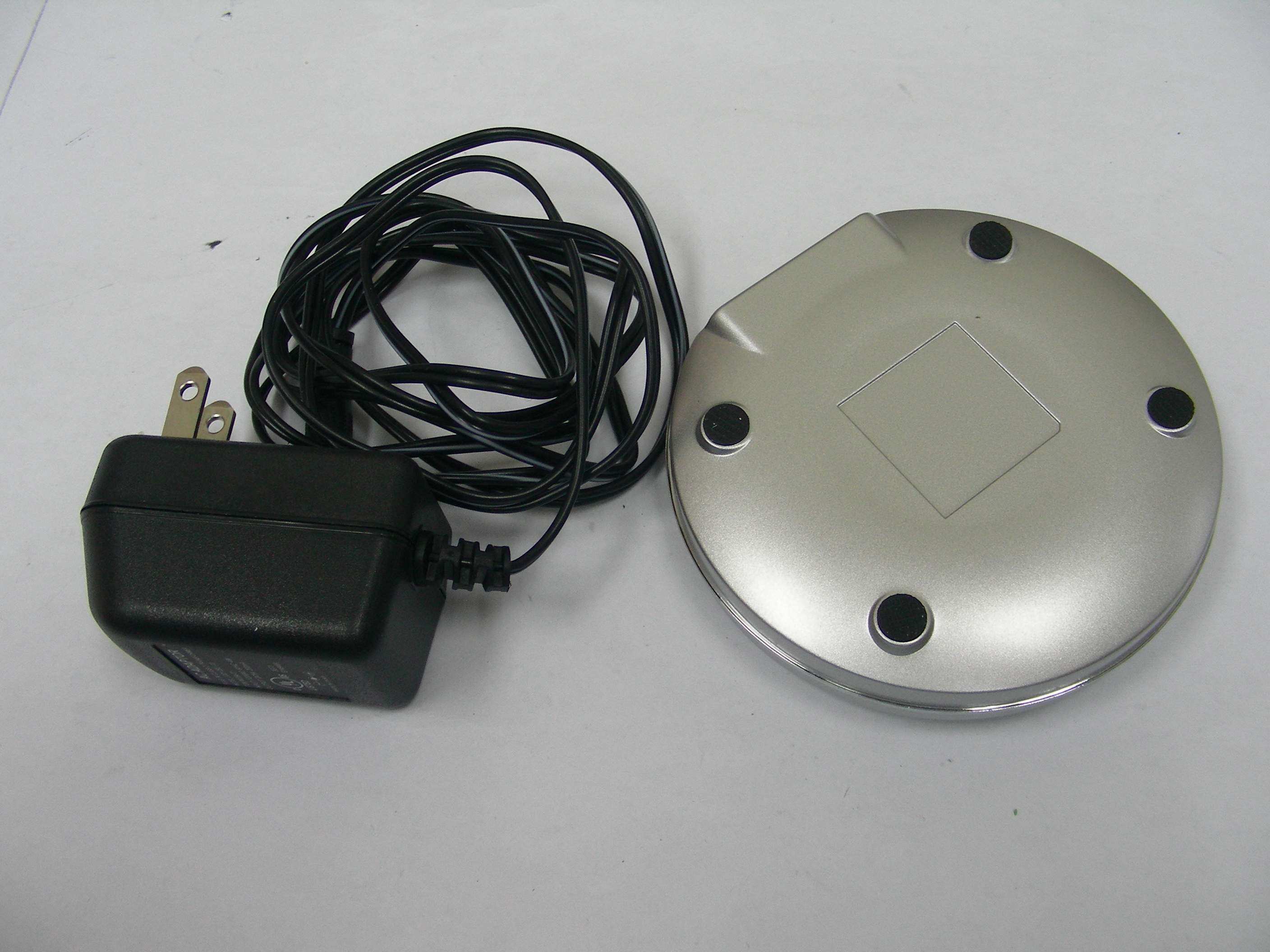

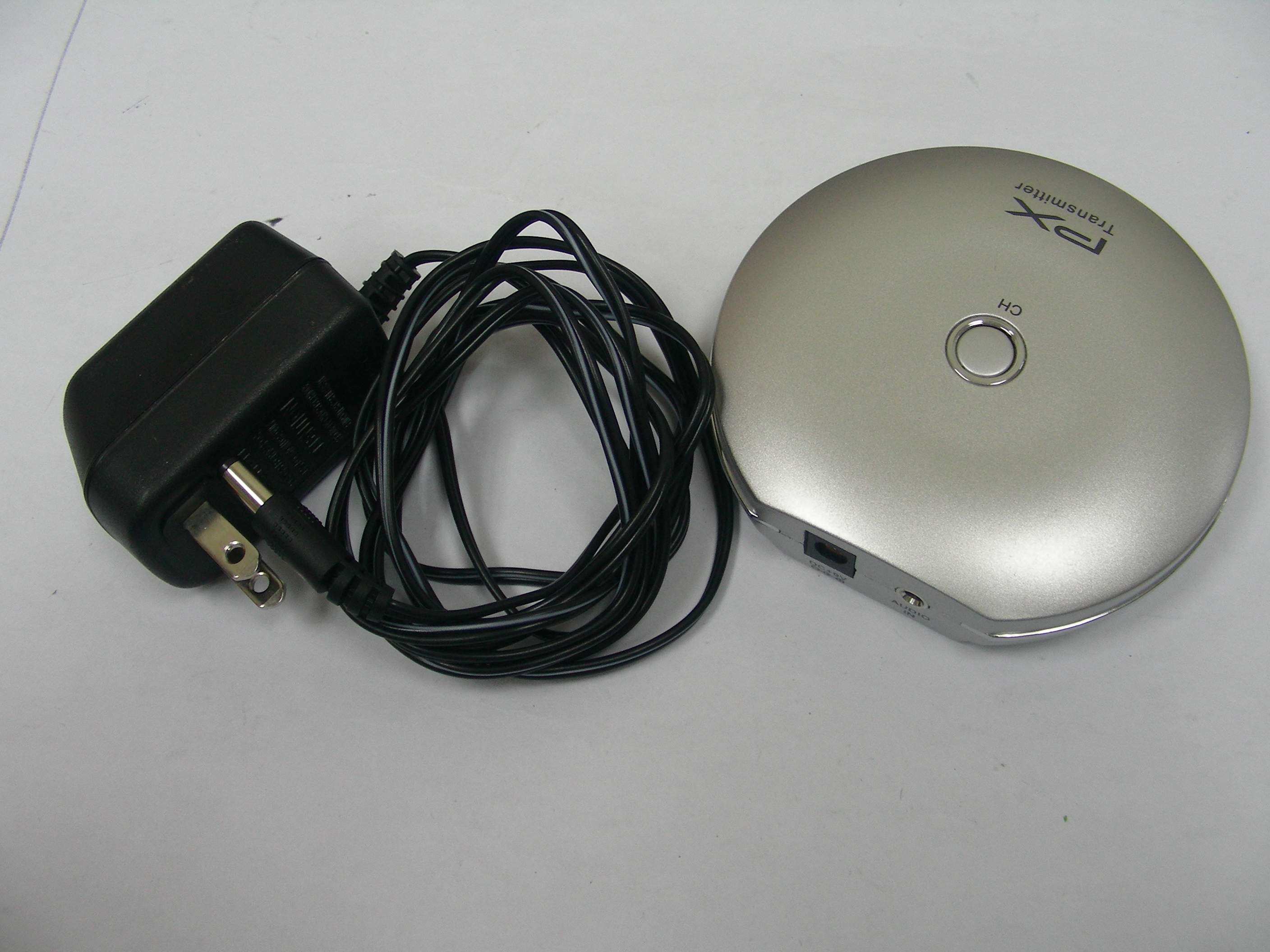

ETC Report No.: 06-01-MAS-121-03 Page A1 of A2 FCC ID. :BY4DAS110 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT ETC Report No.: 06-01-MAS-121-03 Page A2 of A2 FCC ID. :BY4DAS110 3. Adaptor

ID Label / Location

ETC Report No.: 06-01-MAS-121-03 Page B1 of B3 FCC ID. :BY4DAS110 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View of EUT 2. Front view of PCB1 ETC Report No.: 06-01-MAS-121-03 Page B2 of B3 FCC ID. :BY4DAS110 3. Rear view of PCB1 4. Front view of PCB2 ETC Report No.: 06-01-MAS-121-03 Page B3 of B3 FCC ID. :BY4DAS110 5. Rear view of PCB2

ETC Report No. : 06-01-MAS-121-03 Sheet 1 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 06-01-MAS-121-03 Client: TRANS ELECTRIC CO., LTD. Product: 2.4GHz Wireless Digital Audio Sender Model: DAS-110 FCC ID: BY4DAS110 Manufacturer/supplier: TRANS ELECTRIC CO., LTD. Date test item received: 2006/01/12 Date test campaign completed: 2006/04/25 Date of issue: 2006/04/26 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 53 pages Total number of pages of photos: External photos 2 pages Internal photos 3 pages Setup photos 2 pages Test Engineer Checked By Approved By Mark James Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : 06-01-MAS-121-03 Sheet 2 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 Client : TRANS ELECTRIC CO., LTD. Address : 765, Sec.2, Chungsan Rd., Huatang, Changhua, Taiwan, R.O.C. Manufacturer : TRANS ELECTRIC CO., LTD. Address : 765, Sec.2, Chungsan Rd., Huatang, Changhua, Taiwan, R.O.C. EUT : 2.4GHz Wireless Digital Audio Sender Trade name : Trans Model No. : DAS-110 Power Source : Adapter Model No.: JOD-28U-03 Input: 120Vac, 60Hz, 4W Output: DC 9Vdc, 200mA Regulations applied : FCC 47 CFR, Part 15 Subpart C (2005) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA 5 FCC Registration Number: 90588, 91094, 91095 NVLAP Lab Code 200133-0 ETC Report No. : 06-01-MAS-121-03 Sheet 3 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ..............................................................................................................5 1.1 Product Description..............................................................................................................................5 1.2 Characteristics of Device .....................................................................................................................5 1.3 Test Methodology................................................................................................................................5 1.4 Test Facility..........................................................................................................................................5 2 PROVISIONS APPLICABLE .............................................................................................................6 2.1 Definition.............................................................................................................................................6 2.2 Requirement for Compliance...............................................................................................................7 2.3 Restricted Bands of Operation.............................................................................................................9 2.4 Labeling Requirement..........................................................................................................................9 2.5 User Information................................................................................................................................10 3. SYSTEM TEST CONFIGURATION ...............................................................................................11 3.1 Devices for Tested System.................................................................................................................11 4 CONDUCTED EMISSION MEASUREMENT...............................................................................12 4.1 Standard Applicable...........................................................................................................................12 4.2 Measurement Procedure.....................................................................................................................12 4.3 Conducted Emission Data..................................................................................................................13 4.4 Result Data Calculation......................................................................................................................19 4.5 Conducted Measurement Equipment.................................................................................................19 5 ANTENNA REQUIREMENT ...........................................................................................................20 5.1 Standard Applicable...........................................................................................................................20 5.2 Antenna Construction and Directional Gain.............................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : 06-01-MAS-121-03 Sheet 36 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 9 SPURIOUS EMISSION - RF CONDUCTED MEASUREMENT 9.1 Standard Applicable According to 12.247 (c) , in any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. Attenuation below the general limits specified in Section 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the radiated emission limits specified in Section 15.209(a) (see Section 15.205(c)). 9.2 Measurement Procedure 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Position the EUT as shown in figure 2. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any one measured frequency within its operating range and make sure the instrument is operated in its linear range. 3. Set both RBW and VBW of spectrum analyzer to 100 kHz with a convenient frequency span including 100kHz bandwidth from band edge. 4. Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the graph with marking the highest point and edge frequency. 5. Repeat above procedures until all measured frequencies were complete. 9.3 Measurement Equipment Equipment Manufacturer Model No. Next Cal. Due Spectrum Analyzer Hewlett-Packard 8564EC 09/23/2006 ETC Report No. : 06-01-MAS-121-03 Sheet 37 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 9.4 Measurement Data Test Date: Apr. 17, 2006 Temperature: 22 °C Humidity: 66 % Channel Frequency(MHz) Chart 1 2410 Page 38, Page 40 5 2446 Page 41 8 2473 Page 39, Page 42 All out-of –band conducted emissions were more than 20dB below the carrier. Note: Please refer to page 38 to page 42 for chart ETC Report No. : 06-01-MAS-121-03 Sheet 38 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 ETC Report No. : 06-01-MAS-121-03 Sheet 39 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 ETC Report No. : 06-01-MAS-121-03 Sheet 40 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 ETC Report No. : 06-01-MAS-121-03 Sheet 41 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 ETC Report No. : 06-01-MAS-121-03 Sheet 42 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 ETC Report No. : 06-01-MAS-121-03 Sheet 43 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 10 RADIATED EMISSION MEASUREMENT 10.1 Standard Applicable For unintentional radiator, the radiated emission shall comply with § 15.109(a). For intentional radiators, according to § 15.247 (a), operation under this provision is limited to frequency hopping and direct sequence spread spectrum, and the out band emission shall be comply with § 15.247 (c) 10.2 Measurement Procedure 1. Setup the configuration per figure 3 and 4 for frequencies measured below and above 1 GHz respectively. 2. For emission frequencies measured below 1 GHz, it is performed in a semi-anechoic chamber to determine the accurate frequencies of higher emissions. For emission frequencies measured above 1 GHz, a pre-scan be performed with a 1 meter measuring distance before final test. 3. For emission frequencies measured below and above 1 GHz, set the spectrum analyzer on a 120 kHz and 1 MHz resolution bandwidth respectively for each frequency measured in step 2. 4. The search antenna is to be raised and lowered over a range from 1 to 4 meters in horizontally polarized orientation. Position the highness when the highest value is indicated on spectrum analyzer, then change the orientation of EUT on test table over a range from 0 。 to 360 。 with a speed as slow as possible, and keep the azimuth that highest emission is indicated on the spectrum analyzer. Vary the antenna position again and record the highest value as a final reading. A RF test receiver is also used to confirm emissions measured. Note : A filter was used to avoid pre-amplifier saturated when measure TX operation mode. 5. Repeat step 4 until all frequencies need to be measured were complete. 6. Repeat step 5 with search antenna in vertical polarized orientations. 7. Check the three frequencies of highest emission with varying the datarate, placement of ANT. cables associated with EUT to obtain the worse case and record the result. ETC Report No. : 06-01-MAS-121-03 Sheet 44 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 Figure 3 : Frequencies measured below 1 GHz configuration RF Test Receiver Search Antenna 3m 4m 1m Turn Table EUT 0.8m Antenna Tower Ground Plane Figure 4 : Frequencies measured above 1 GHz configuration Spectrum Analyzer Horn Antenna 3m 4m 1m Turn Table EUT 0.8m Antenna Tower Amplifier ETC Report No. : 06-01-MAS-121-03 Sheet 45 of 53 Sheets FCC ID. :BY4DAS110 Rev. No 1.0 10.3 Measuring Instrument The following instrument are used for radiated emissions measurement : Equipment Manufacturer Model No. Next Cal. Due EMI Test Receiver Hewlett-Packard 8546A 12/12/2006 Spectrum Analyzer Rohde & Schwarz FSU46 11/02/2006 Horn Antenna EMCO 3115 06/04/2006 Horn Antenna EMCO 3116 07/21/2006 Preamplifier Hewlett-Packard 8449B 09/19/2006 BiLog Antenna Schaffner CBL 6112B 06/14/2006 Spectrum Analyzer Hewlett-Packard 8564EC 09/23/2006 Measuring instrument setup in measured frequency band when specified detector function is used : Frequency Band (MHz) Instrument Function Resolution bandwidth Video Bandwidth RF Test Receiver Quasi-Peak 120 kHz 300 kHz 30 to 1000 Spectrum Analyzer Peak 120 kHz 300 kHz Spectrum Analyzer Peak 1 MHz 1 MHz Above 1000 Spectrum Analyzer Average 1 MHz 10 Hz Measuring instrument setup in measured frequency band when specified detector function is used: Frequency Band (MHz) Instrument…

Text truncated - open the document above for the full version.

ETC Report No. : 06-01-MAS-121-03 Sheet 1 of 2 Sheets FCC ID. :BY4DAS110 Photos of Radiation Measuring Setup ETC Report No. : 06-01-MAS-121-03 Sheet 2 of 2 Sheets FCC ID. :BY4DAS110 Photos of Conduction Measuring Setup
